COLOR TELEVISION
YA39020067
AV-30W767/S,
AV-30W777/S
POWER
THEATERPRO
VIDEO STATUS
SLEEP
TIMER
FAVORITE
SUB CH
1
7
4
TUNE
3
9
6
RETURN+
/TV
MUTING
MENU
OK
BACK
2
8
0
5
CH +
VOL
–VOL
+
REC
OPEN/CLOSE STILL/PAUSE
STOP PAUSE
PLAY FFREW
TV CATV VCR DVD
VCR CHANNEL
PREV NEXT TV/VCR
VCR/DVD
POWER
ASPECT
CH –
TV
RM-C1272G
ML/MTS SOUND GUIDE
DISPLAY C.C.
INPUT
BASIC CHASSIS
SR2
SCHEMATIC DIAGRAMS
CD-ROM No.SML200607

2-1(No.YA390)
5.NOTE FOR REPAIRING SERVICE
This model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : ( ) side GND and the
ISOLATED(NEUTRAL): ( ) side GND. Therefore, care must be
taken for the following points.
(1)Do not touch the LIVE side GND or the LIVE side GND and the
ISOLATED(NEUTRAL)side GND simultaneously. if the above
caution is not respected, an electric shock may be caused.
Therefore, make sure that the power cord is surely removed from
the receptacle when, for example, the chassis is pulled out.
(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL)
side GND or never measure with a measuring apparatus measure
with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND
and ISOLATED(NEUTRAL)side GND at the same time.
If the above precaution is not respected, a fuse or any parts will be broken.
Since the circuit diagram is a standard one, the circuit and
circuit constants may be subject to change for improvement
without any notice.
NOTE
Due improvement in performance, some part numbers show
in the circuit diagram may not agree with those indicated in
the part list.
When ordering parts, please use the numbers that appear
in the Parts List.

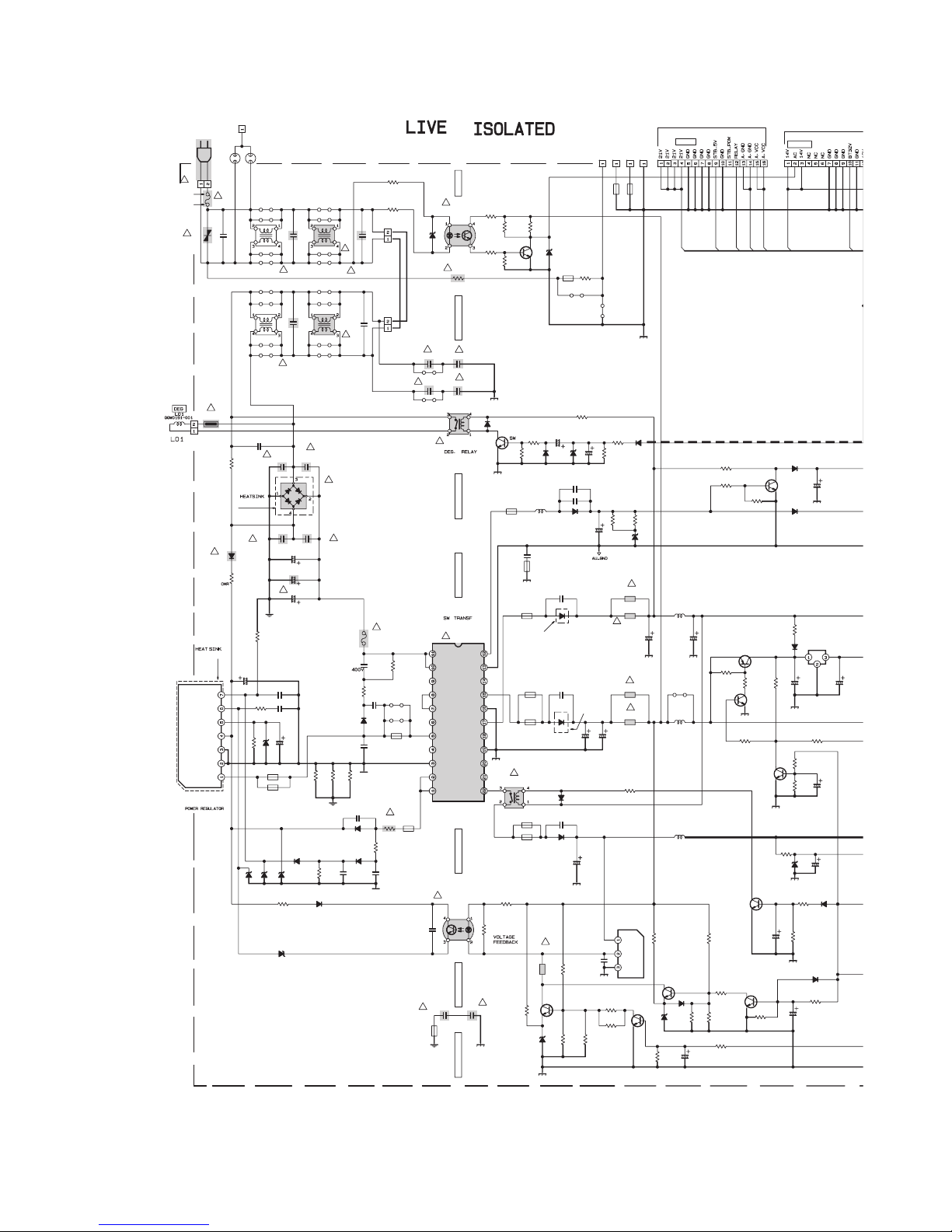

STANDARD CIRCUIT DIAGRAM
NOTE ON USING CIRCUIT DIAGRAMS
(7)Ground symbol
: LIVE side ground
: ISOLATED(NEUTRAL)side ground
: EARTH ground
: DIGITAL ground
(6)Connecting method
: Connector : Wrapping or soldering
: Receptacle
(5)Test point
: Test point : Only test point display
Respective voltage values are indicated
: B1
: 9V : 5V
: B2 (12V)
(4)Power Supply
Type
MM : Metalized mylar capacitor
PP : Polypropylene capacitor
MPP : Metalized polypropylene capacitor
MF : Metalized film capacitor
TF : Thin film capacitor
BP : Bipolar electrolytic capacitor
TAN : Tantalum capacitor
(3)Coils
No unit
Others
: [µH]
: As specified
No indication : Ceramic capacitor
(2)Capacitors
Capacitance value
1 or higher : [pF]
less than 1 : [µF]
Withstand voltage
No indication : DC50[V]
Others : DC withstand voltage [V]
AC indicated : AC withstand voltage [V]
Electrolytic Capacitors
47/50[Example]: Capacitance value [µF]/withstand voltage[V]
Composition resistor 1/2 [W] is specified as 1/2S or Comp.
Type
No indication : Carbon resistor
OMR : Oxide metal film resistor
MFR : Metal film resistor
MPR : Metal plate resistor
UNFR : Uninflammable resistor
FR : Fusible resistor
4.INDICATIONS ON THE CIRCUIT DIAGRAM
(1)Resistors
Resistance value
No unit : [Ω]
K: [kΩ]
M
Rated allowable power
No indication : 1/16 [W]
Others : As specified
: [MΩ]
3.INDICATION OF PARTS SYMBOL [EXAMPLE]
In the PW board : R209 R209
1.SAFETY
The components identified by the symbol and shading are
critical for safety. For continued safety replace safety ciritical
components only with manufactures recommended parts.
Since the voltage values of signal circuit vary to some extent
according to adjustments, use them as reference values.
2.SPECIFIED VOLTAGE AND WAVEFORM VALUES
The voltage and waveform values have been measured under the
following conditions.
(1)Input signal : Colour bar signal
(2)Setting positions of
each knob/button and
variable resistor
(3)Internal resistance of tester : DC 20kΩ/V
(4)Oscilloscope sweeping time : H 20µs / div
: V 5ms / div
: Othters Sweeping time is
specified
(5)Voltage values : All DC voltage values
: Original setting position
when shipped
AV-30W767 /S, AV-30W777/S

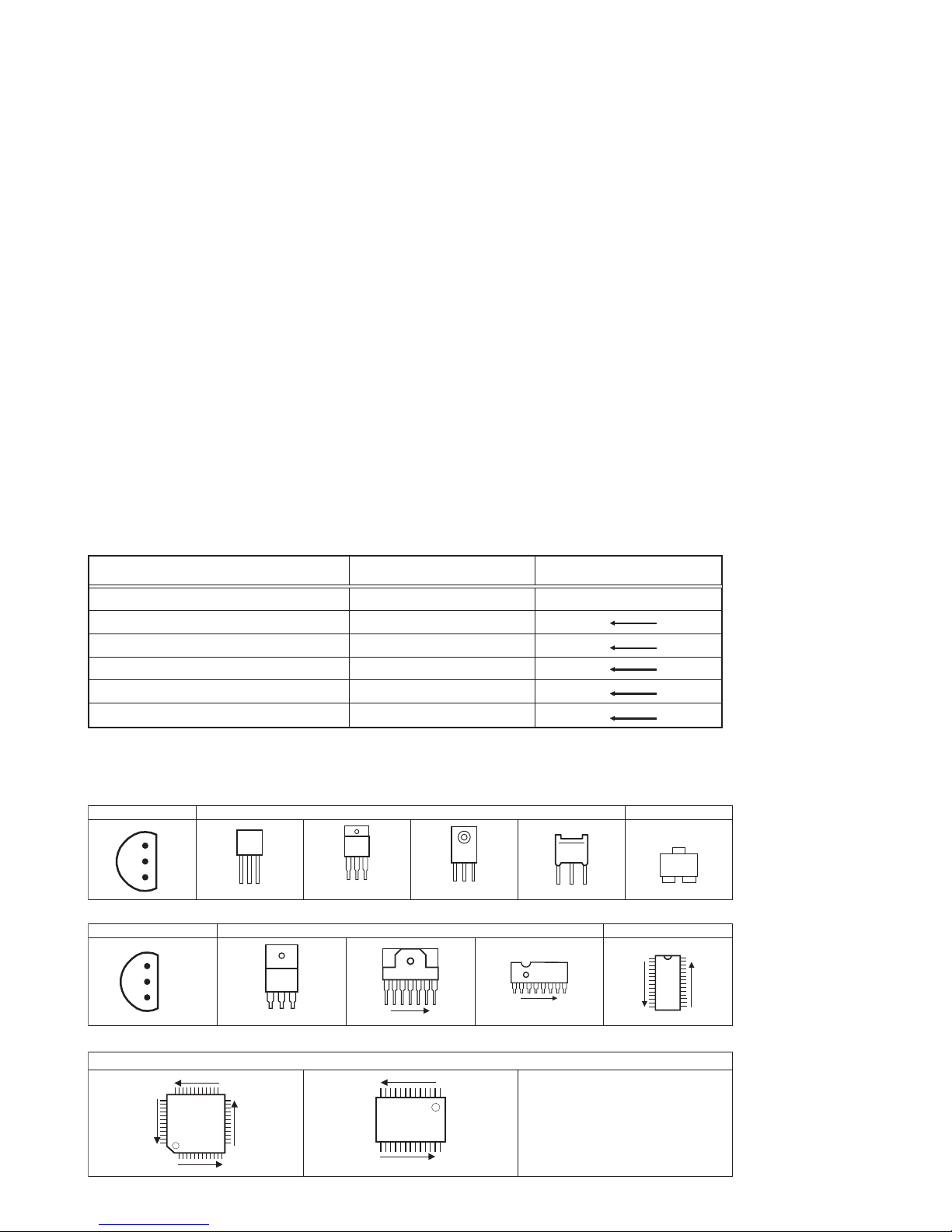

SEMICONDUCTOR SHAPES
CONTENTS
SEMICONDUCTOR SHAPES ......................................................................2-2
BLOCK DIAGRAM ........................................................................................2-3

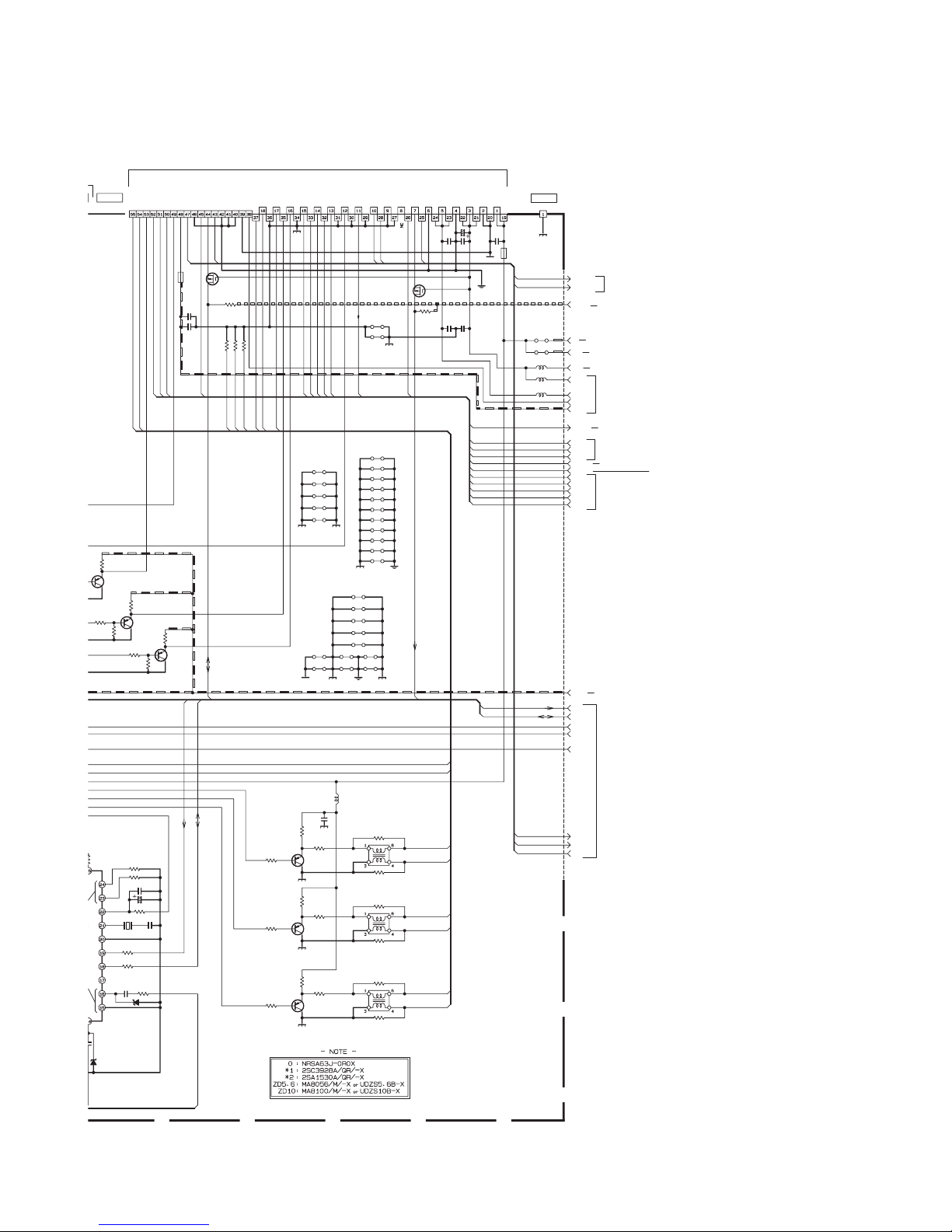

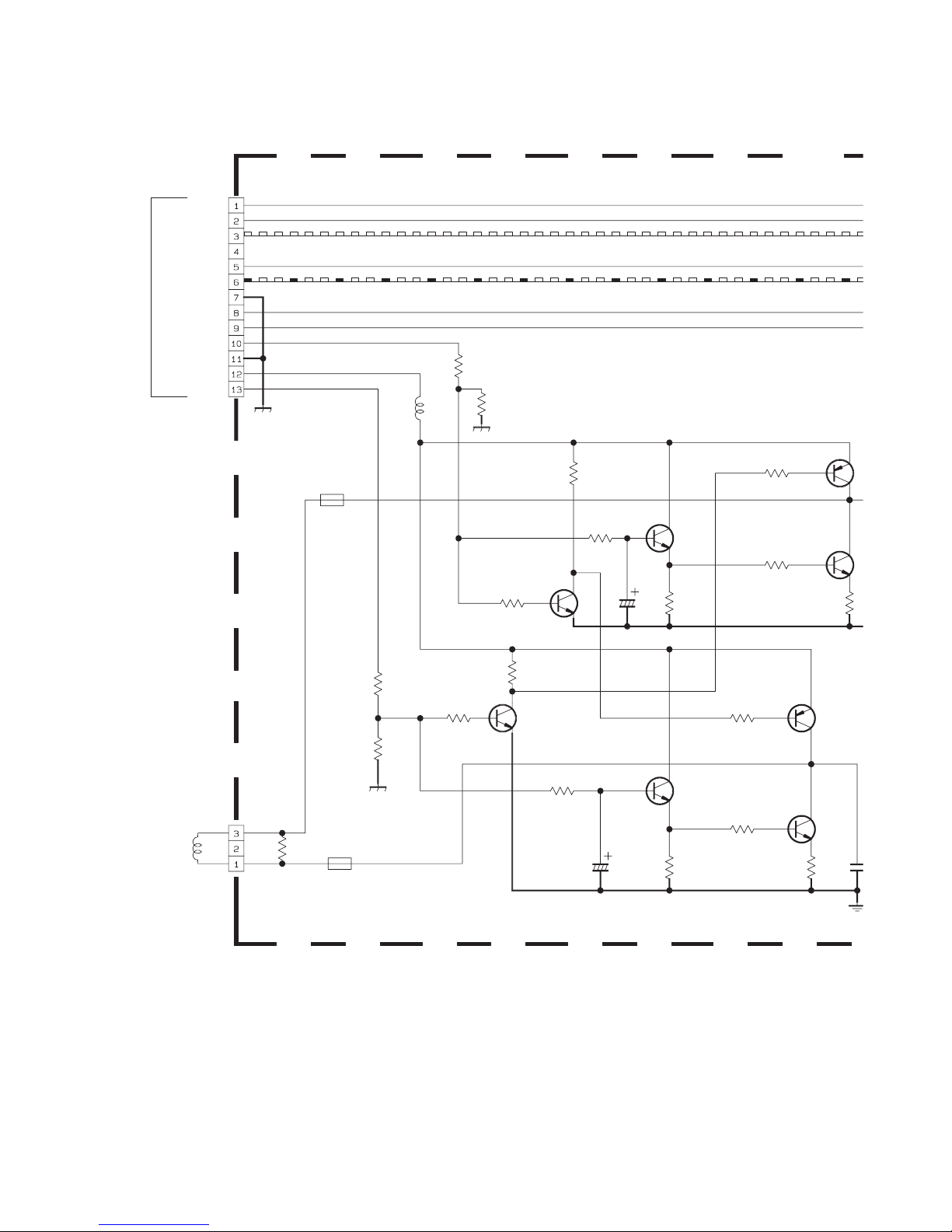

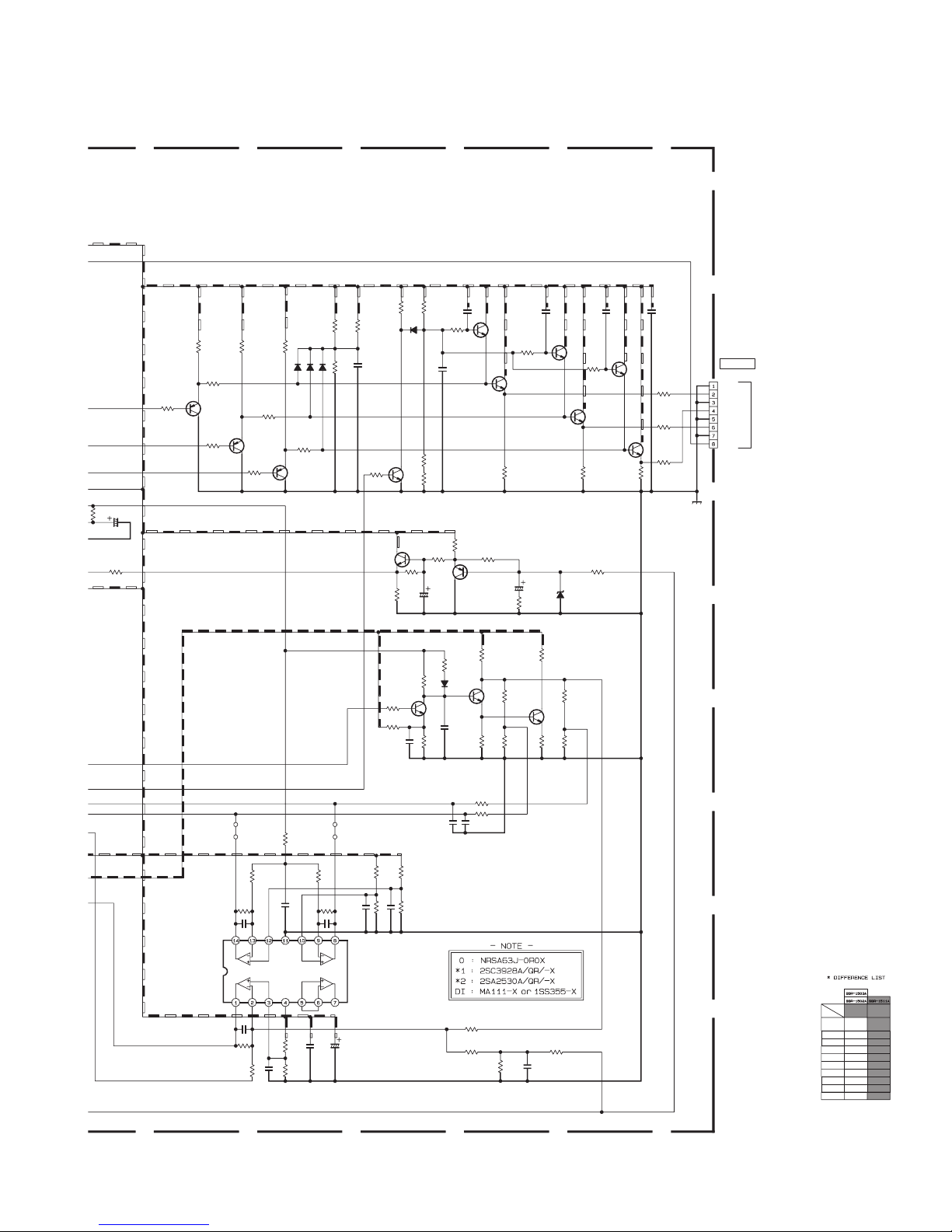

CIRCUIT DIAGRAMS

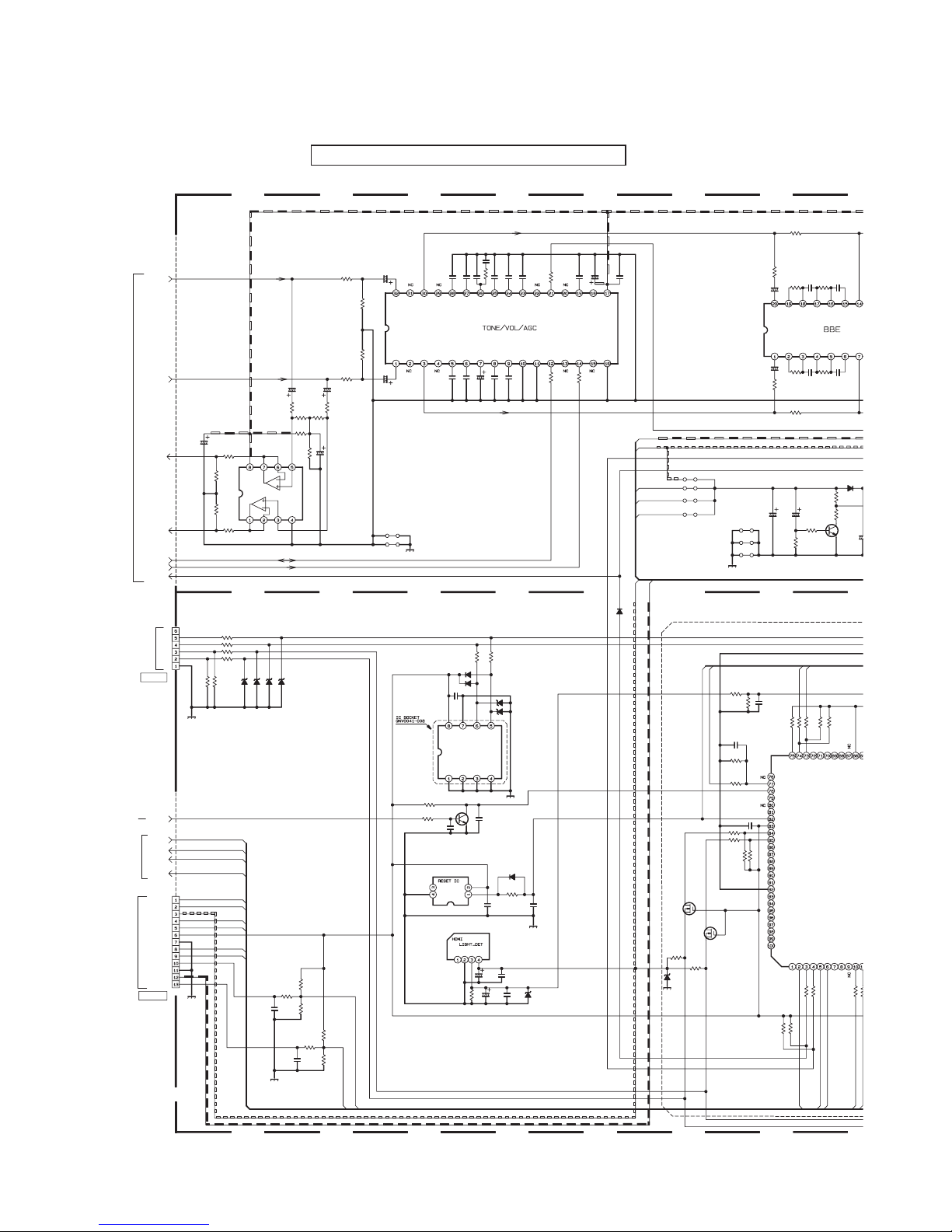

MAIN PWB CIRCUIT DIAGRAM ................................................................................................................ 2-5
CRT SOCKET PWB CIRCUIT DIAGRAM ................................................................................................ 2-13

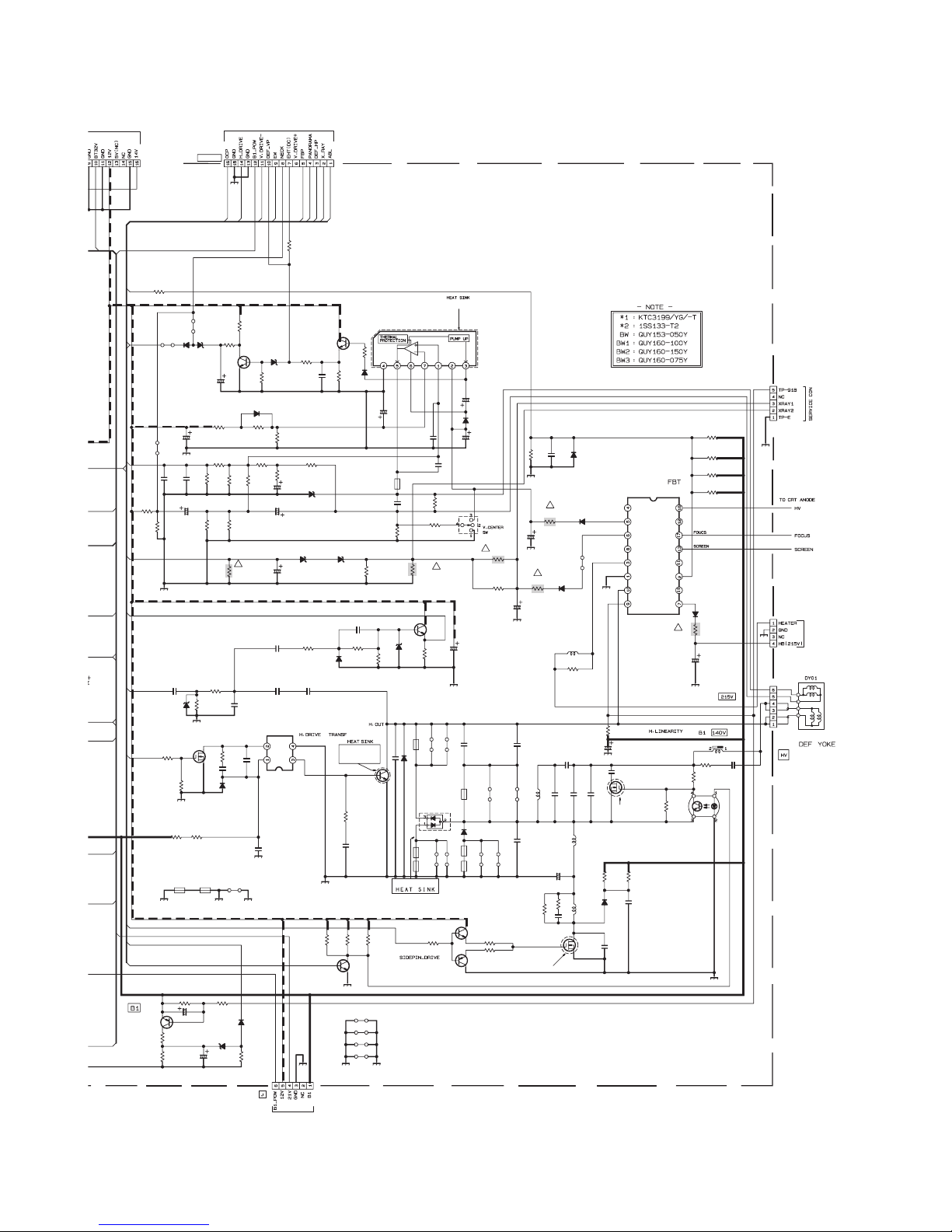

POWER & DEF PWB CIRCUIT DIAGRAM ............................................................................................... 2-15

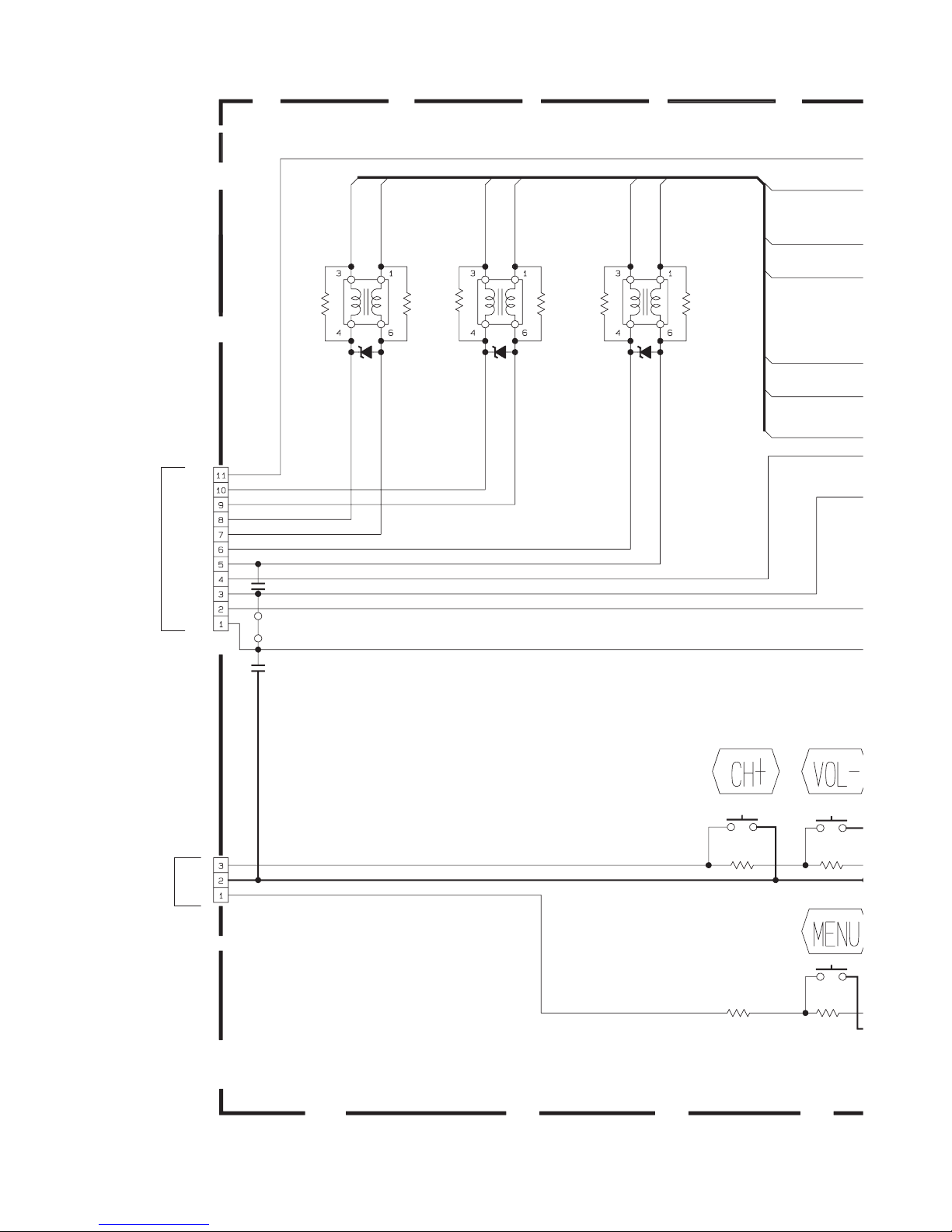

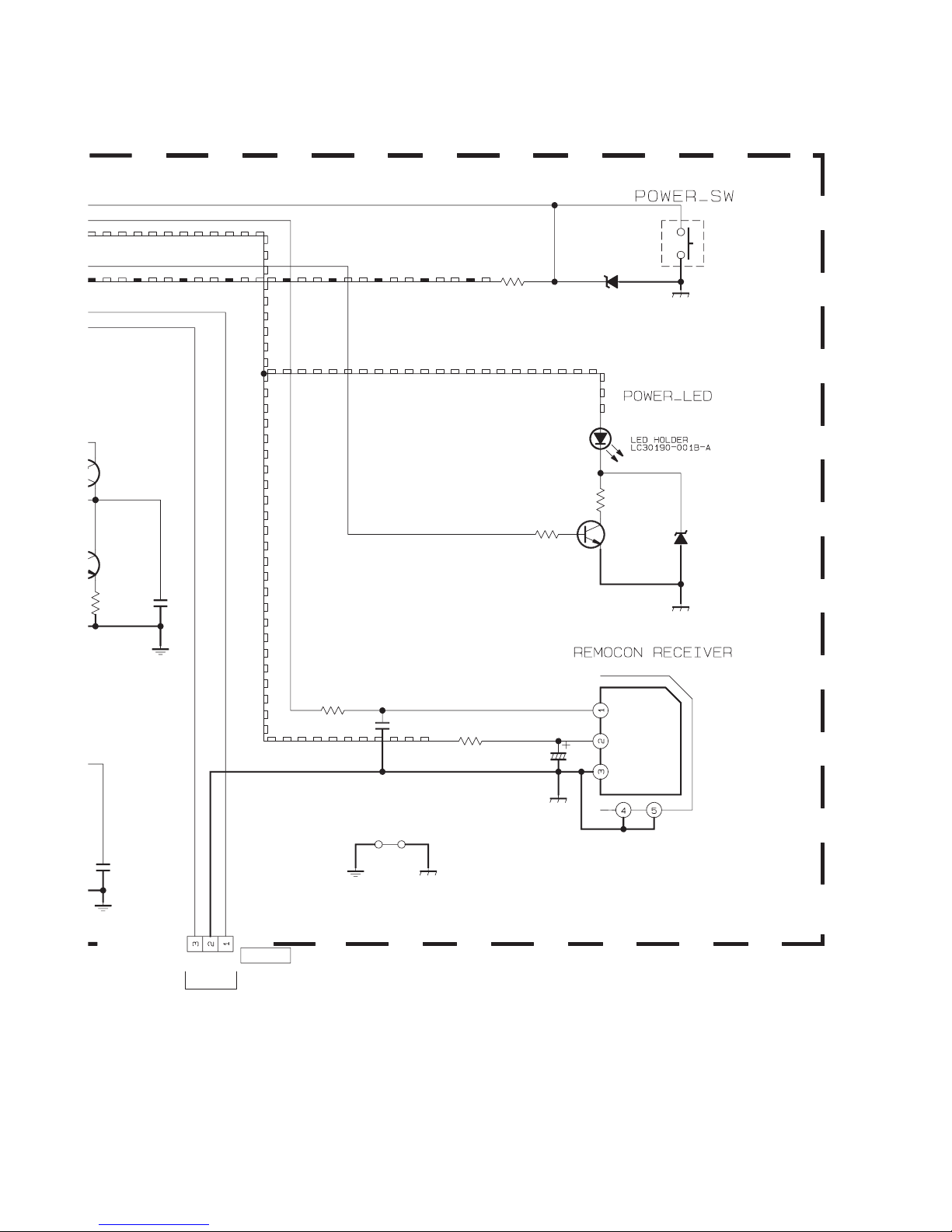

FRONT CONTROL PWB CIRCUIT DIAGRAM .......................................................................................... 2-17
SIDE CONTROL PWB CIRCUIT DIAGRAM ............................................................................................. 2-19
SD CARD PWB CIRCUIT DIAGRAM ........................................................................................................ 2-21
PATTERN DIAGRAMS
MAIN PWB PATTERN .............................................................................................................................. 2-23
CRT SOCKET PWB PATTERN ................................................................................................................. 2-27
POWER & DEF PWB PATTERN ............................................................................................................... 2-29
FRONT CONTROL PWB PATTERN ......................................................................................................... 2-33
SIDE CONTROL PWB PATTERN ............................................................................................................. 2-34
SD CARD PWB PATTERN ........................................................................................................................ 2-34
VOLTAGE CHATRS................................................................................... 2-35
WAVEFORMS ............................................................................................ 2-36
USING P.W. BOARD
P.W.B ASS’Y name
MAIN P.W. BOARD
POWER & DEF P.W. BOARD
CRT SOCKET P.W. BOARD
FRONT CONTROL P.W. BOARD
SIDE CONTROL P.W. BOARD
SD CARD P.W. BOARD
AV-30W767/S AV-30W777/S
SSR-1503A-M2
SSR-2501A-M2
SSR-3051A-M2
SSR-8051A-M2
SSR-8151A-M2
SSR-8551A-M2
SSR-1502A-M2
(No.YA390)2-2
IC
BOTTOM VIEW FRONT VIEW TOP VIEW
1 N
N
1
OUT
E
IN
IN OUTE
1 N
TOP VIEW
1
N
1
N
CHIP IC
TRANSISTOR
BOTTOM VIEW FRONT VIEW TOP VIEW
CHIP TR
E
C
B
ECB
C
BE
B
(G)
E
(S)
C
(D)
ECB
ECB

2-3(No.YA390)
SD CARD PWB
MAIN PWB
POWER & DEF PWB
SIDE CONTROL
PWB
IC2911 PC2921
POWER REG. VOLTAGE
FEEDBACK
D2901
B1
T2921
SW
TRANSF.
LF2902
LF2903
F2901
RY2931
ATSC_RX
ATSC_TX
P
B
CO
N
CO
N
V
D
R
AUDIO OUT
(L/R)
L_FIX
R_FIX
IC251
AV SELECT
L3/R3
Y3/C3
V3
INPUT 3
S-VIDEO
VIDEO
AUDIO
(L/R)
V1
V2
V3
V4
Y3/C3
L1/R1
L2/R2
L3/R3
L4/R4
Y4/C4
Y1/C1
Y1/C1
L1/R1
V1
INPUT 1
S-VIDEO
VIDEO
AUDIO
(L/R)
COMPONENT
VIDEO (Y/Pb/Pr)
Y1/PB1/PR1
L2/R2
V2
Y2/PB2/PR2
INPUT 2
VIDEO
AUDIO
(L/R)
COMPONENT
VIDEO (Y/Pb/Pr)
YOUT
COUT
VOUT
Y4/C4
L4/R4
V4
INPUT 4
S-VIDEO
VIDEO
AUDIO
(L/R)
COMY1/COMPB1/COMPR1
COMY2/COMPB2/COMPR2
LOUT
ROUT
Y_OUT/PB_OUT/PR_OUT/
HS_OUT/VS_OUT
SD CARD
SLOT
DATA N
DATA P
SD CARD
CONTROL
IC1001
ATSC TUNER PWB
CVSB_IN
YD_IN
CD_IN
ATSC_LOUT
ATSC_ROUT
ATSC_RX
ATSC_TX
OSD_R/OSD_G/OSD_B/
OSD_YM/OSD_YS
COM_Y
COM_PB
COM_PR
COM_HD
COM_VD
IC801
COMPONENT VIDEO SW/
SYNC SEPARATION
COM_Y/COM_PB/COM_PR
COM_HD/COM_VD
HDMI
DIGITAL IN-1
HDMI
DIGITAL IN-2
AUDIO_L
AUDIO_R
IC641
AUDIO AMP
PB_OUT
PR_OUT
Y_OUT
HS_OUT
VS_OUT
ATSC_LOUT
ATSC_ROUT
OSD_R
OSD_G
OSD_B
OSD_YM
OSD_YS
ATSC_LOUT
ATSC_ROUT
BLOCK DIAGRAM
