JVC HR-V715EK User manual

HR-V715EK
VIDEO CASSETTE RECORDER
INSTRUCTIONS
LPT0910-001A
PAL
VCR
SAT
REVIEW
HR-V715EK-Cover 3/16/04, 05:30 PM1
Black

safety first2
Safety Precautions
The rating plate and the safety caution are on the rear of the unit.
WARNING: DANGEROUS VOLTAGE INSIDE
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
IMPORTANT
■Please read the various precautions on pages 2–4 of this instruction manual before installing or
operating the recorder.
■It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs
without the consent of the owner of copyright in the sound or video recording, broadcast or cable
programme and in any literary, dramatic, musical, or artistic wor embodied therein.
IMPORTANT
Connect on to the ma ns supply n the Un ted K ngdom. DO NOT cut off the ma ns plug from
th s equ pment. If the plug fitted is not suitable for the power points in your home or the cable is
too short to reach a power point, then obtain a proper safety approved extension lead/adapter or
consult your dealer.
In the unl kely event of the plug fuse fa l ng be sure to replace the fuse only w th an dent cal
approved type, as or g nally f tted, and to replace the fuse cover. If the fuse fa ls aga n consult
your nearest JVC dealer.
If nonetheless the mains plug is cut off remove the fuse and dispose of the plug immediately, to
avoid a possible shoc hazard by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains plug then follow the instructions given below:
DO NOT ma e any connection to the Larger Terminal coded E or Green.
The wires in the mains lead are coloured in accordance with the following code:
Blue to N (Neutral) or Blac
Brown to L (Live) or Red
If these colours do not correspond with the terminal identifications of your plug, connect as
follows:
Blue wire to terminal coded N (Neutral) or coloured Blac .
Brown wire to terminal coded L (Live) or coloured Red.
If in doubt — consult a competent electrician.
CAUTION
■When you are not using the recorder for a long period of time, it is recommended that you
disconnect the power cord from the mains outlet.
■Dangerous voltage inside. Refer internal servicing to qualified service personnel. To prevent
electric shoc or fire hazard, remove the power cord from the mains outlet prior to connecting or
disconnecting any signal lead or aerial.
The STANDBY/ON o button does not completely shut off mains power from the unit, but switches
operating current on and off. “y ” shows electrical power standby and “ z” shows ON.
Video tapes recorded with this video recorder in the LP (Long Play) mode cannot be played bac on
a single-speed video recorder.
HR-V715EK-EN/p02-07 3/8/04, 02:16 PM2
Black

safety first 3
When the equipment is installed in a cabinet or a shelf, ma e sure that it has sufficient space on all sides
to allow for ventilation (10 cm or more on both sides, on top and at the rear.)
When discarding batteries, environmental problems must be considered and the local rules or laws
governing the disposal of these batteries must be followed strictly.
Failure to heed the following precautions may result in damage to the recorder, remote control or video
cassette.
1. DO NOT place the recorder…
… in an environment prone to extreme temperatures or humidity.
… in direct sunlight.
… in a dusty environment.
… in an environment where strong magnetic fields are generated.
… on a surface that is unstable or subject to vibration.
2. DO NOT block the recorder’s vent lat on open ngs or holes.
(If the ventilation openings or holes are bloc ed by a newspaper or cloth, etc., the heat may not be
able to get out.)
3. DO NOT place heavy objects on the recorder or remote control.
4. DO NOT place anyth ng wh ch m ght sp ll on top of the recorder or remote control.
(If water or liquid is allowed to enter this equipment, fire or electric shoc may be caused.)
5. DO NOT expose the apparatus to dr pp ng or splash ng.
6. DO NOT use th s equ pment n a bathroom or places w th water. Also DO NOT place any con-
tainers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants,
cups, etc.) on top of this unit.
7. DO NOT place any naked flame sources, such as l ghted candles, on the apparatus.
8. AVOID v olent shocks to the recorder dur ng transport.
MOISTURE CONDENSATION
Moisture in the air will condense on the recorder when you move it from a cold place to a warm place,
or under extremely humid conditions—just as water droplets form in the surface of a glass filled with
cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions
where condensation may occur, eep the recorder turned on for a few hours to let the moisture dry.
ATTENTION
TO MOBILE PHONE USERS:TO MOBILE PHONE USERS:
TO MOBILE PHONE USERS:TO MOBILE PHONE USERS:
TO MOBILE PHONE USERS:
Using a mobile phone in the vicinity of the recorder may cause picture vibration on the TV screen or
change the screen to a blue bac display.
ON PLACING THE RECORDER:ON PLACING THE RECORDER:
ON PLACING THE RECORDER:ON PLACING THE RECORDER:
ON PLACING THE RECORDER:
Some TVs or other appliances generate strong magnetic fields. Do not place this appliance on top of the
recorder as it may cause picture disturbance.
■Cassettes mar ed “VHS” (or “S-VHS”) can be used with this video cassette recorder. However, S-VHS
recording is not possible with this model.
■This model is equipped with SQPB (S-VHS QUASI PLAYBACK) that ma es it possible to play bac
S-VHS recordings in the SP mode with regular VHS resolution.
■HQ VHS is compatible with existing VHS equipment.
■VIDEO Plus+ and PlusCode are registered trademar s of Gemstar Development Corporation. The
VIDEO Plus+ system is manufactured under license from Gemstar Development Corporation.
HR-V715EK-EN/p02-07 3/8/04, 02:16 PM3
Black

safety first4
Some Do’s And Don’ts
On The Safe Use Of Equipment
This equipment has been designed and manufactured to meet international safety standards but, li e
any electrical equipment, care must be ta en if you are to obtain the best results and safety is to be
assured.
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension leads and interconnec-
tions between pieces of equipment) are properly made and in accordance with the manufacturer’s
instructions. Switch off and withdraw the mains plug when ma ing or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your
equipment.
DO be careful with glass panels or doors on equipment.
DON’T continue to operate the equipment if you are in any doubt about it wor ing normally, or if it is
damaged in any way — switch off, withdraw the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages.
DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is
designed for unattended operation or has a standby mode. Switch off using the switch on the
equipment and ma e sure that your family nows how to do this. Special arrangements may
need to be made for infirm or handicapped people.
DON’T use equipment such as personal stereos or radios so that you are distracted from the require-
ments of road safety. It is illegal to watch television whilst driving.
DON’T listen to headphones at high volume, as such use can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.
Overheating will cause damage and shorten the life of the equipment.
DON’T use ma eshift stands and NEVER fix legs with wood screws — to ensure complete safety
always fit the manufacturer’s approved stand or legs with the fixings provided according to the
instructions.
DON’T allow electrical equipment to be exposed to rain or moisture.
ABOVE ALL...
—NEVER let anyone especially children push anything into holes, slots or any other opening in
the case — this could result in a fatal electrical shoc ;
—NEVER guess or ta e chances with electrical equipment of any ind — it is better to be safe than
sorry!
HR-V715EK-EN/p02-07 3/8/04, 02:16 PM4
Black

Contents
Diagrams of Equipment ................................6
Equipment Key .............................................
Welcome to JVC ............................................8

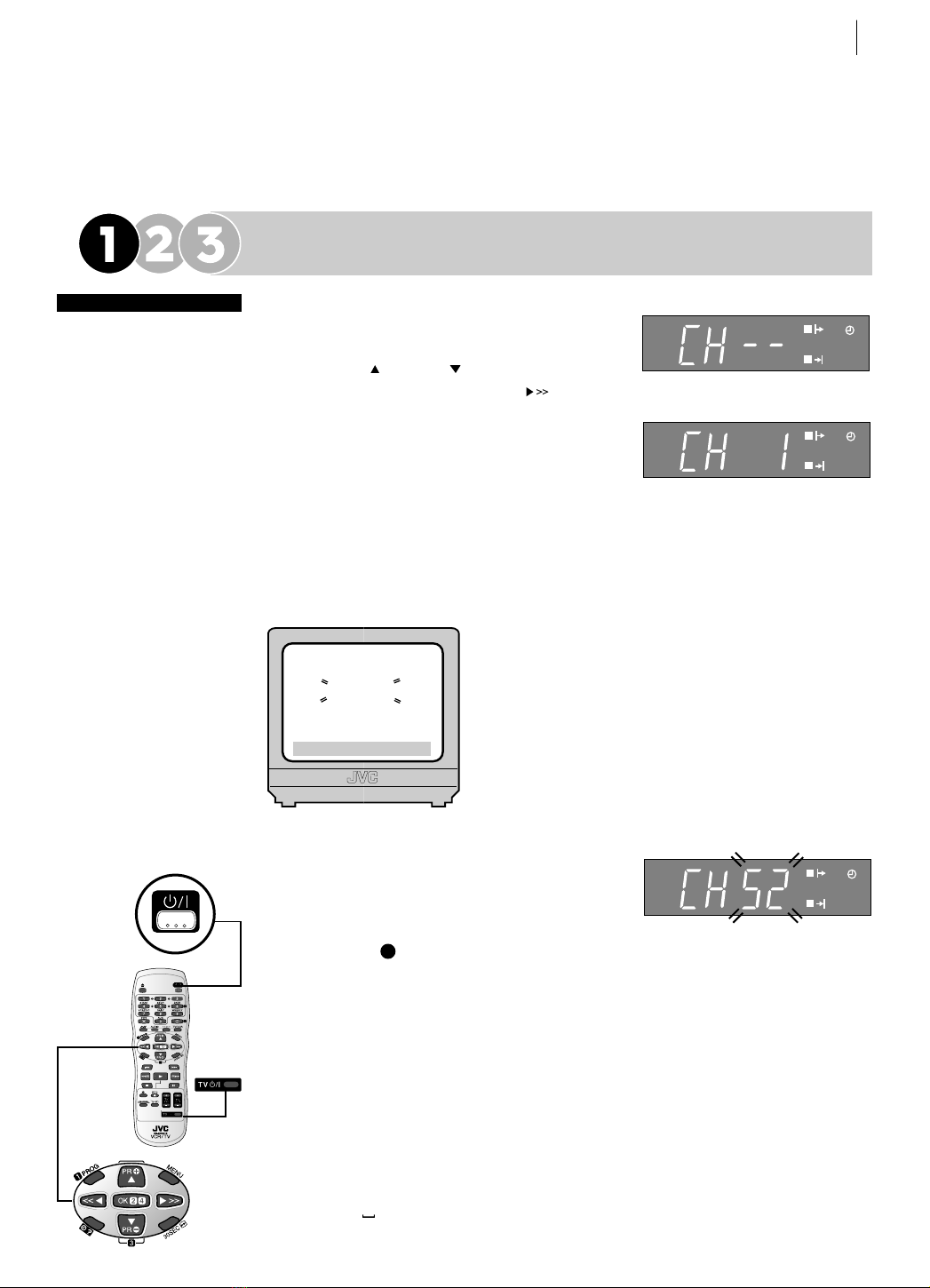

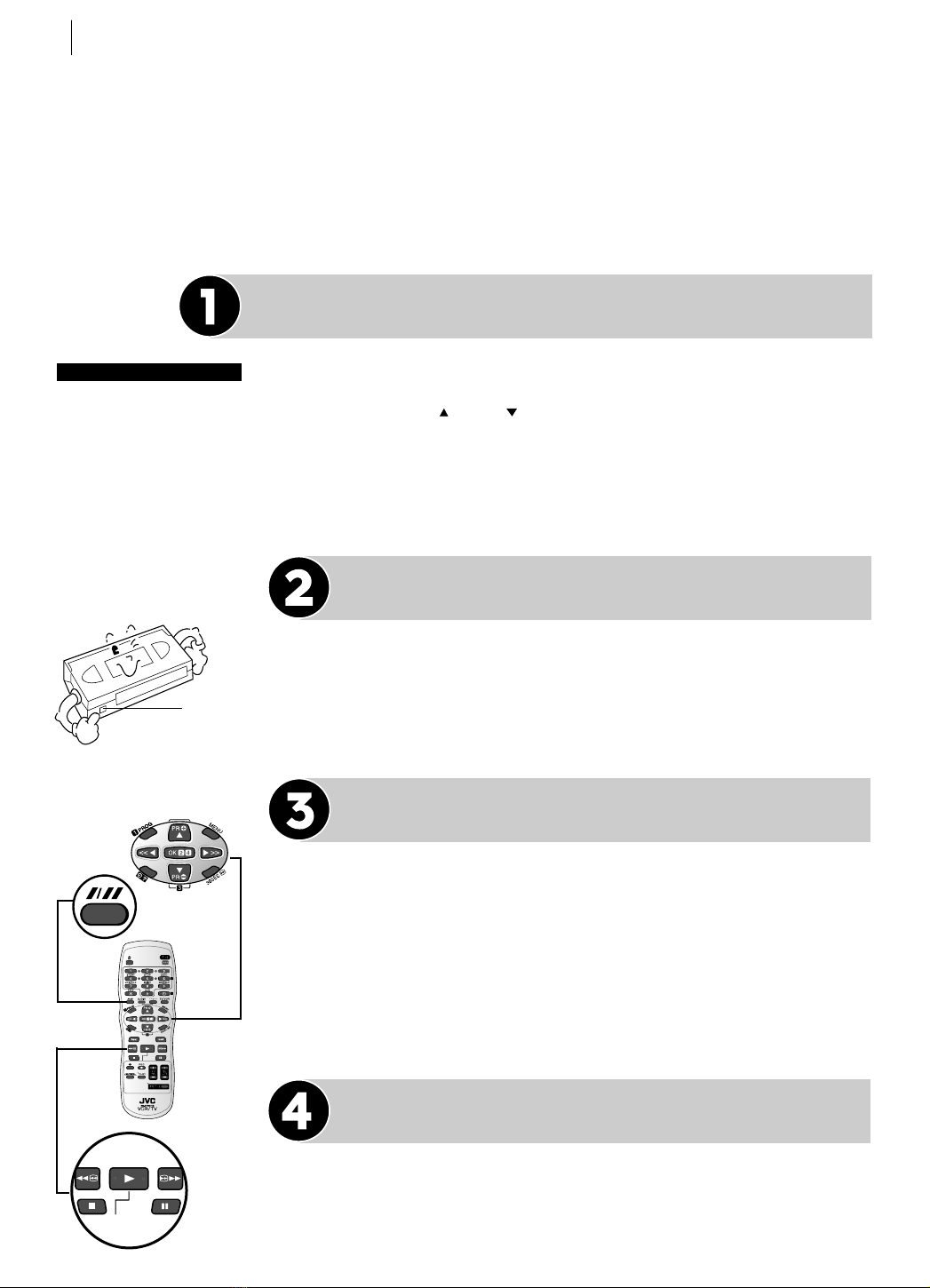

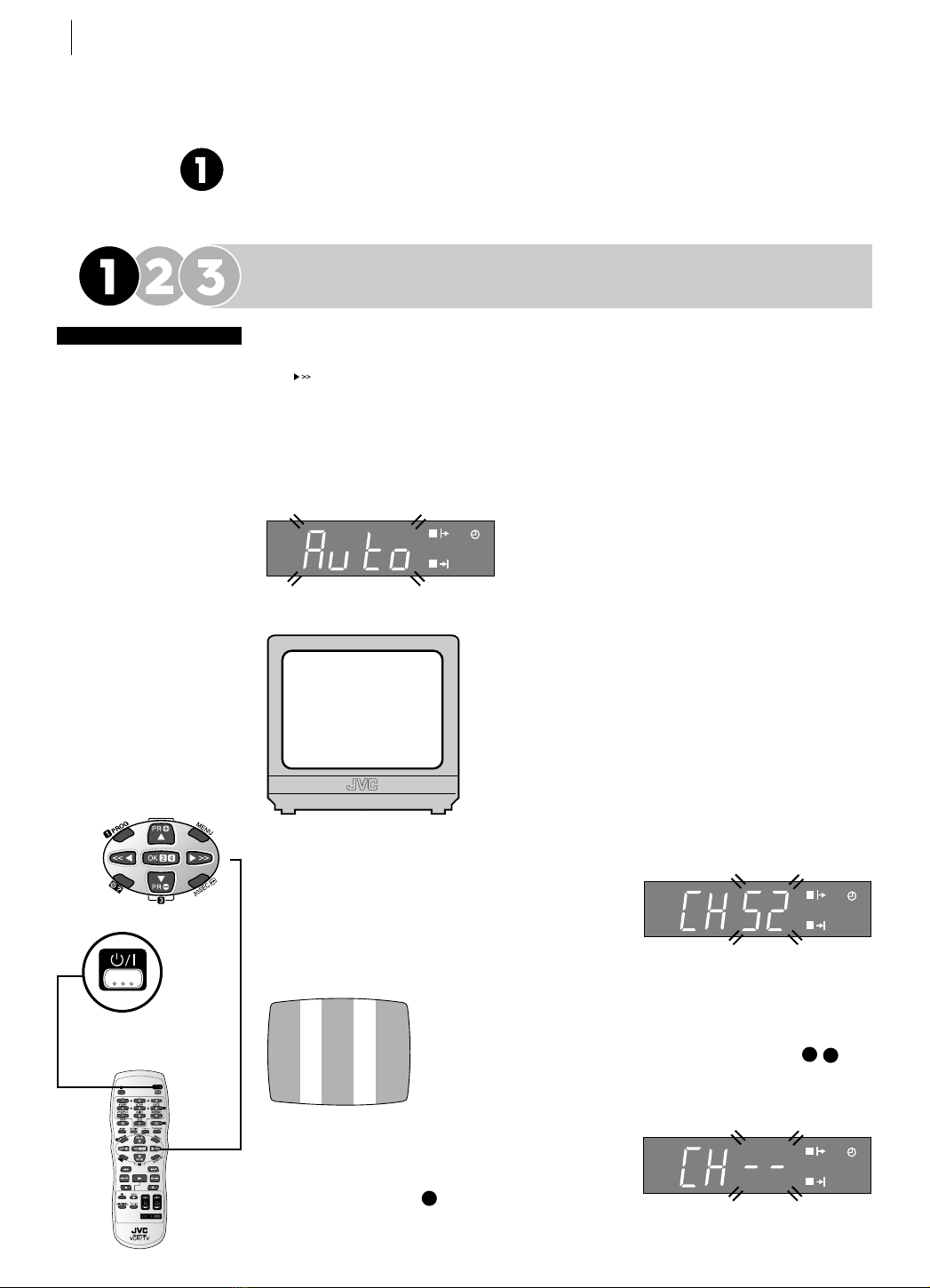

Three-Step Quick Start ............................... 10
Basic Features ............................................ 13
Advanced Features ..................................... 29
Subsidiary Information .............................. 55
List of Terms .............................................. 59
HR-V715EK-EN/p02-07 3/8/04, 02:16 PM5
Black

diagrams of equipment6
front panel
display
rear panel
12
3
4
5
6
789
0!@# $
VCR
SAT
REVIEW
L
AUDIO
CONTROLEUR SAT
010
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT
SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
1
7
45
3
2
6
t
y
o
u
^
&
r
Q
i
q
*
7
6
8
3
9
4
0
!
@
$
5
#
%
)
w
(
e
p
E
R
T
Y
1
2
remote control
*DECODER function is not available in the UK.
VCR
SAT
REVIEW
1
2
3
4 5
67
HR-V715EK-EN/p02-07 3/16/04, 05:41 PM6
Black

equipment key 7
Diagram Key
3ANT. IN Connector enables
connection of aerial.
4L-2 IN/DECODER
Connector enables connection
of satellite receiver or second
recorder.
FRONT PANEL
1STANDBY/ON o Button
turns VCR on/off (loading a
cassette also turns power on).
2Cassette Loading Slot is
where cassette is inserted
door closes.
32 H EXPRESS c Button
enables 24H Express Timer
Programming.
4Advanced JOG Dial enables
picture search, preset position
selection or 24H Express
Timer Programming.
5c Button engages timer—
standby mode.
6b(Display) Button
switches display between
clock time and Preset
Position *(or Mode).
* Preset Position (or Mode) is
not displa ed during pla back.
7Display Panel provides
clear view of various displays
and indicators.
8Infrared Beam Receiving
Window is where Remote
Control should be aimed when
in use.
9r Button
‘review’ timer-recorded
programme.
10 SP/LP Button select tape
speed.
11 T Button starts regular
recording (press once), Instant
Timer Recording (press twice)
sets duration of ITR.
12 | Button stops tape
temporarily during recording
stops tape temporarily during
playback plays back frame by
frame with each additional
press.
SATc Button enables/
disables the Auto Satellite
Programme Recording mode.
13 § Button stops tape
ejects tape during Stop mode.
14 . Button plays back tape
cancels Pause, Still, Slow,
Search modes.
REAR PANEL
1Mains Power Cord
supplies power to VCR.
2SAT CONTROL Connector
enables connection of the
Satellite Controller for timer
recording with a satellite
receiver.
* DECODER function is not available in the
UK.
5L-1 IN/OUT Connector
enables AV connection to TV
or second VCR.
6AUDIO OUT (L/R)
Connectors enable connection
of audio cassette recorder, TV
or second VCR for dubbing.
7RF. OUT Connector enables
connection to aerial terminal
of TV receiver.
VCR DI PLAY PANEL
1c Indicator lights when
the c button has been
pressed to engage Timer
mode.
2Play Indicator lights up
during playback blinks during
Repeat Playback or when
using Next Function Memory
for playback.
3Record Indicator lights up
during recording blinks
during Instant Timer
Recording.
4Channel Display shows
preset position where the
station currently being
received is stored.
Mode shows external
input mode selected (L-1 or L-
2).
Clock Display shows
current time.
Preset Position* (or Mode)
and Clock Display appear
alternately when b is
pressed.
* Preset Position (or Mode) is
not displa ed during pla back.
5REVIEW Indicator blinks
after timer-recording and
shows how many
programmes have been timer-
recorded.
Programme Stop Time
Indicator shows the
programme stop time for 24H
Express Timer Programming.
SATc Indicator lights up
during Auto Satellite
Programme Recording
standby mode blinks when
Auto Satellite Programme
Recording is in progress.
7VCR Indicator lights when
the VCR is in the video mode.
At this point, the TV automati-
cally enters AV mode.
REMOTE CONTROL
1 Button ejects tape
during stop mode.
2STARTSTART
STARTSTART
START + / – Buttons
access Regular Program
screen input programme
Start Time.
3 STOPSTOP
STOPSTOP
STOP + / – Buttons input
programme Stop Time.
4PDC Button enables/
disables PDC recording.
* VPS (Video Programme
S stem) recording is not currentl
available in the U.K. and not
possible with this VCR.
5x Button cancels timer-
programme.
0000 Button resets
counter on the on-screen
display to ‘0:00:00’.
6Auto Tracking Button
enables/disables auto
tracking mode during
playback.
/ Button selects tape.
7AUDIO Button changes
output sound mode.
8PROG Button accesses
Timer Programming Set
screen.
9 OK Button enters
selections made in on-screen
menus.
10 Buttons initiate
functions such as frame by
frame playback and variable
speed search.
11 C Buttons accesses
Program screens/displays to
check the programme that you
have programmed (next
programme’s information
screen appears each time
button is pressed).
12 Buttons initiate
index function.
13 < Button rewinds
the tape inltiates reverse
picture search.
14 S Button stops tape.
15 T Button starts regular
6 Programme Start Time
Indicator shows the
programme start time for 24H
Express Timer Programming.
recording (press . the same
time)
16 Button shows current
VCR status on the TV screen
if O.S.D is set to ON.
17 TV PR +/– Buttons select
the connected JVC TV's
channel.
18 rButton
‘reviews’ timer-recorded
programme.
19 TV Button switches TV
input terminal.
20 STANDBY/ON o Button
— same as button on VCR.
21 Number Keys are used in
preset position selection and
the VIDEO Plus+ Timer
Programming.
22 DATE + / – Buttons input
date of programme for timer
recording.
23 DAILY Button enables
timer recording of daily
serials.
24 WEEKLY Button enables
timer recording of weekly
serials.
25 AUX Button selects VCR’s
auxiliary input mode.
26 c Button engages timer-
standby mode.
27 b(Display) Button
switches display between
clock time and Preset
Position* (or Mode).
Preset Position (or Mode) is not
displa ed during pla back.
28 TV/VCR Button switches
connected TV’s mode between
TV and AV.
29 MENU Button accesses
Menu screen.
30 PR Buttons are used
for selection in on-screen
menus.
PR + / – Buttons select a
preset position.
31 3 Button
initiates a 30-second period of
fast-motion playback.
32 . Button — same as
button on VCR.
33 > Button fast-
forwards tape inltiates
forward picture search.
34 | Button — same as
button on VCR.
35 TV +/– Buttons control
volume of connected JVC TV.
36 TV STANDBY/ON o
Button turns TV on/off.
/
/
HR-V715EK-EN/p02-07 3/16/04, 05:41 PM7
Black

welcome to jvc8
before you start
Please read the SAFETY
FIRST on pages 2–4
it tells you about some
safety points
Refer to the diagrams on
pages 6–7 when reading
through these
instructions
Refer to the List of
Terms on page 60 if you
need an explanation for
any terms in this manual
remote control
The Remote ontrol can
operate most of your
V R’s functions, as well
as basic functions of JV
TV sets. (see page 7)
Depending on the type
of JV TV. Some or all
functions cannot be
operated using the
Remote ontrol.
If the Remote ontrol
doesn’t work properly,
remove it’s battery,
replace the battery and
then try again. Video Cassette Recorder
VCR
SAT
REVIEW
RF Cable
Infrared Remote
Control Unit
Welcome to JVC
Thank ou for choosing JVC.
We hope that you will get many hours of enjoy-
ment from your new unit.
In just three easy steps you will be ready to enjoy the exceptional perfor-
mance of your new VCR. More detailed instructions begin on page 0. They
will explain how to use the many sophisticated features this VCR boasts.
Getting Everything Ready
check the contents Unpack the box and place the VCR on a flat, stable surface.
Check that you have the items shown below.
“AA” Batteries (x 2)
HR-V715EK-EN/p08-12 3/17/04, 09:27 AM8
Black

welcome to jvc 9
GETTING EVERYTHING READY (continued)
connect cables Connect the cables as indicated in the diagram (below , using
the TV Aerial Cable, the RF Cable and the 2 -pin SCART Cable (not provided .
scart and rf
S ART is a
recommended option
because its use
improves the quality of
the picture.
If connecting to a stereo
TV you will need a
S ART cable.
There are several types
of S ART cables, fully-
wired and others.
If you use a S ART
cable, you must also
connect the RF cable. You are now ready to start the Three-Step Quick Start which begins on the next
page.
You have two ways for initial setup of your new VCR depending upon the
connection method and your TV.
If you have connected only the RF cable,
perform Auto Setup (墌 pg. 10).
If you have connected both the RF cable and the fully-
wired 2 -pin SCART cable, and if your TV does not offer
T-VLink, etc.*,
perform Auto Setup (墌 pg. 10).
If you have connected both the RF cable and the fully-
wired 2 -pin SCART cable, and if your TV offer T-VLink,
etc.*,
perform Preset Download (墌 pg. 11).
* Compatible with TVs offering T-VLink, EasyLink, Megalogic, SMARTLINK,
Q-Link, DATA LOGIC or NexTView Link via fully-wired 21-pin SCART cable.
The degree of compatibility and available functions may differ by system.
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER
ENTREE/SORTIE
IN/OUT SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1L-2
010
RF able
(provided)
TV Aerial
able
(not
provided)
21-pin S ART able
(not provided)
Mains Power
ord
Mains Outlet
Back of VCR
*DECODER function is not available in the UK.
HR-V715EK-EN/p08-12 3/8/04, 01:22 PM9
Black

three-step quick start0
Auto Setup
START AUTO SETUP
Press the o button. If ‘Auto’ appears on the display panel, press OK button
(or .
what will happen? The display panel on the front of the VCR will show the
word ‘Auto’. Do not press any button on the VCR or the Remote Control.
note If you have connected both the RF cable and the fully-wired 21-pin SCART
cable, and if your TV offers T-VLink, etc., and the TV is turned on, the VCR
automatically performs the Preset Download (墌 pg. 11 even if you select ‘Auto’
for Auto Setup function.
The VCR is automatically setting up the tuner
channels, clock, the VIDEO Plus+ assigned Guide
Program numbers and the video channel. This only
happens the first time that the VCR is turned on.
rf and scart connection If you have chosen to
connect the VCR to the TV with both the RF Cable
and a 21-pin SCART Cable (not provided and the
TV set is in its AV mode (see the TV manual , you
will see the following information displayed on
your TV screen:
SELECT THE VIDEO CHANNEL
When Auto Setup has finished, you will see the following display panel on your VCR:
rf cable only If you have only used the RF
Cable to connect the VCR to the TV, you will
see this display. The number is the channel on
the TV that the Auto Setup has chosen to be the
video channel. In the example, we have presumed that channel 52 is vacant and
have set the VCR to 52:
Now tune the TV set to channel 52 (refer to TV manual if
necessar ; you should see two vertical white bars appear
on the TV screen. If the bars do not appear or are not
clear, choose another vacant channel pressing PR +/ -- on
the Remote Control and try again. If you cannot obtain
the vertical white bars on any channel between 22 and 69,
consult your local JVC dealer.
rf and scart connection If you have chosen
to connect the VCR to the TV with both the RF
Cable and a 21-pin SCART Cable (not provided ,
you need to press PR -- on the Remote Control
until the figure reads ‘– –’. This is because you will use the TV in AV mode to view
video pictures and therefore do not need a dedicated video channel.
before you start
heck that the V R is
turned off and no
cassette is inserted
Load the battery into the
Remote ontrol
Refer to the Remote
ontrol diagram
on pages 6–7
Unless indicated
otherwise, use the
buttons on the Remote
ontrol
heck that the
connection is completed
Turn on the TV
VCR
SAT
REVIEW
VCR
SAT
REVIEW
Three-Step Quick Start
For Step , be sure to perform either of the methods:
Auto Setup or Preset Download.
Auto Setup is running: don’t
touch any buttons
Your TV screen during Auto Setup if SCART is used
VCR
SAT
REVIEW
– –:– –
AUTO SET
PLEASE WAIT
[MENU]: EXIT
HR-V715EK-EN/p08-12 3/8/04, 01:22 PM10
Black
