JYTEK Thunderbolt PXIe-62314T User manual

PXIe-62314T
Compact 4-slot Thunderbolt™ 3
PXI Express Chassis
Manual Rev.: Rev. 1.0
Revision Date: November 3, 2020

ii Revision History
Revision History
Revision Release Date Description of Change(s)
1.0 2021-3-1 Initial release

Preface iii
Preface
Copyright © 2020 JYTEK Technology, Inc.
This document contains proprietary information protected by copy-
right. All rights are reserved. No part of this manual may be repro-
duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.
Disclaimer
The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect,
special, incidental, or consequential damages arising out of the
use or inability to use the product or documentation, even if
advised of the possibility of such damages.
JYTEK is committed to fulfill its social responsi-
bility to global environmental preservation
through compliance with the European Union's
Restriction of Hazardous Substances (RoHS)
directive and Waste Electrical and Electronic
Equipment (WEEE) directive. Environmental
protection is a top priority for JYTEK. We have
enforced measures to ensure that our products,
manufacturing processes, components, and raw
materials have as little impact on the environment as possible.
When products are at their end of life, our customers are encour-
aged to dispose of them in accordance with the product disposal
and/or recovery programs prescribed by their nation or company.
Battery Labels (for products with battery)
ᘄ㟁ụㄳᅇᨲ

iv Preface
California Proposition 65 Warning
WARNING: This product can expose you to chemicals
including acrylamide, arsenic, benzene, cadmium,
Tris(1,3-dichloro-2-propyl)phosphate (TDCPP), 1,4-Diox-
ane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and
vinyl materials, which are known to the State of California to cause
cancer, and acrylamide, benzene, cadmium, lead, mercury,
phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and
vinyl materials, which are known to the State of California to cause
birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
Trademarks
Product names mentioned herein are used for identification pur-
poses only and may be trademarks and/or registered trademarks
of their respective companies.
Conventions
Take note of the following conventions used throughout this
manual to make sure that users perform certain tasks and
instructions properly.
NOTE:
NOTE:
Additional information, aids, and tips that help users perform
tasks.
CAUTION:
Information to prevent minor physical injury, component dam-
age, data loss, and/or program corruption when trying to com-
plete a task.
Information to prevent serious physical injury, component
damage, data loss, and/or program corruption when trying to
complete a specific task.

Table of Contents v
Table of Contents
Revision History...................................................................... ii
Preface.................................................................................... iii
List of Figures....................................................................... vii
List of Tables.......................................................................... ix
1 Introduction ........................................................................ 1
1.1 Features............................................................................... 1
1.2 Specifications....................................................................... 2
1.3 Connectors, I/O and Controls ............................................ 14
1.3.1 Front Panel ............................................................... 14
1.3.2 Rear Panel................................................................ 17
1.3.3 Positions of Backplane Thermal Sensors................. 17
1.3.4 PCI Express.............................................................. 18
2 Getting Started ................................................................. 23
2.1 Package Contents ............................................................. 23
2.2 Power Supply Budget Considerations ............................... 24
2.3 Cooling Considerations...................................................... 24
2.4 Configure Settings for Cooling........................................... 24
2.5 Installation.......................................................................... 25
2.5.1 Operation - Power on sequence............................... 26
2.5.2 Operation - Power off sequence............................... 27
2.6 PXIe-62314T Software Resources .................................... 28
2.6.1 JYTEK PXI Platform Services (APPS).................... 28
2.6.2 MAPS Core............................................................... 28
3 System Management & Configuration ........................... 29
3.1 ChassisWatch.................................................................... 30
3.1.1 Chassis Status Monitor............................................. 30

vi Table of Contents
3.1.2 Smart Fan ................................................................. 31
A Appendix: Maintenance.....................................................33
A.1 Installation Problems.......................................................... 33
A.2 FAQ ................................................................................... 33
A.3 Basic Troubleshooting ....................................................... 36
A.4 Maintenance ...................................................................... 37
A.4.1 Handling the Chassis................................................ 37
A.4.2 Cleaning the Exterior ................................................ 37
A.4.3 Power Requirements ................................................ 37
Important Safety Instructions............................................... 39
Getting Service...................................................................... 41

List of Figures vii
List of Figures
Figure 1-1: Backplane PCI Express Bus Topology......................... 5
Figure 1-2: Top View....................................................................... 8

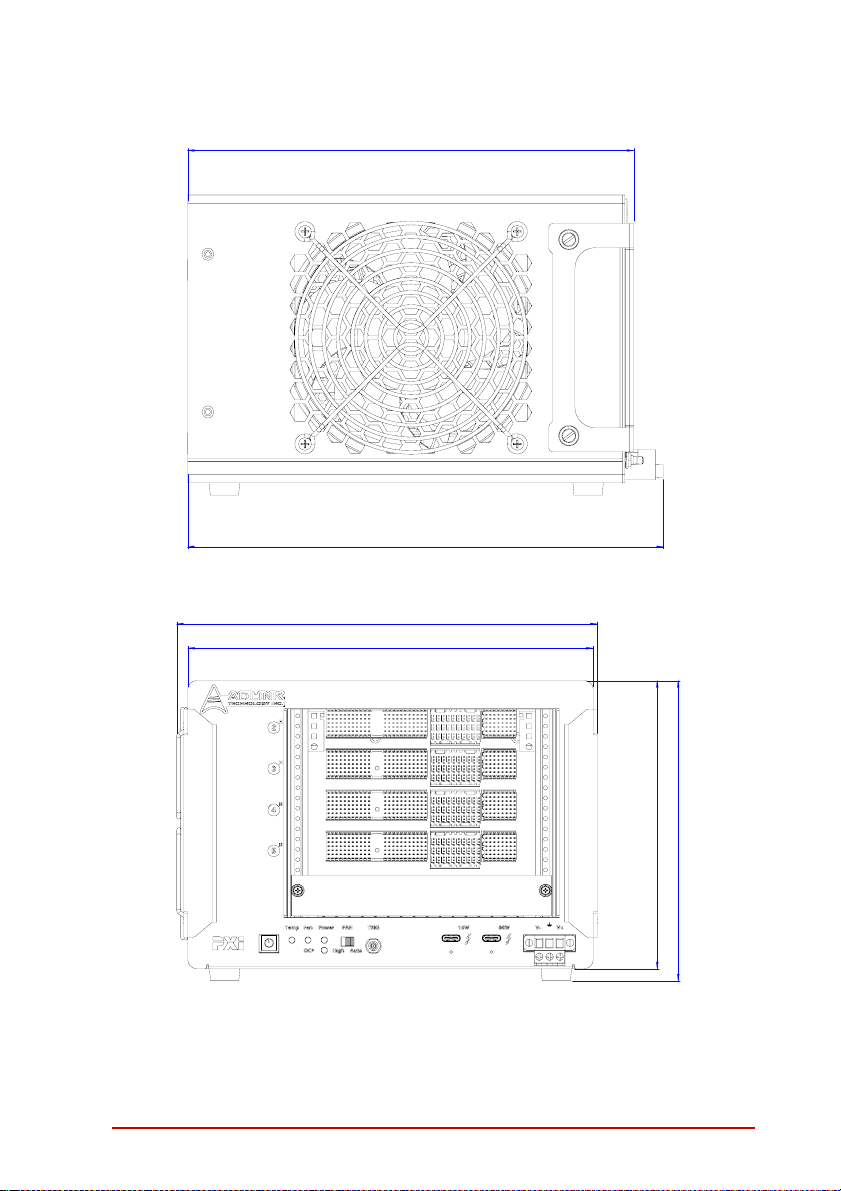

Figure 1-3: Left View....................................................................... 9
Figure 1-4: Front View .................................................................... 9

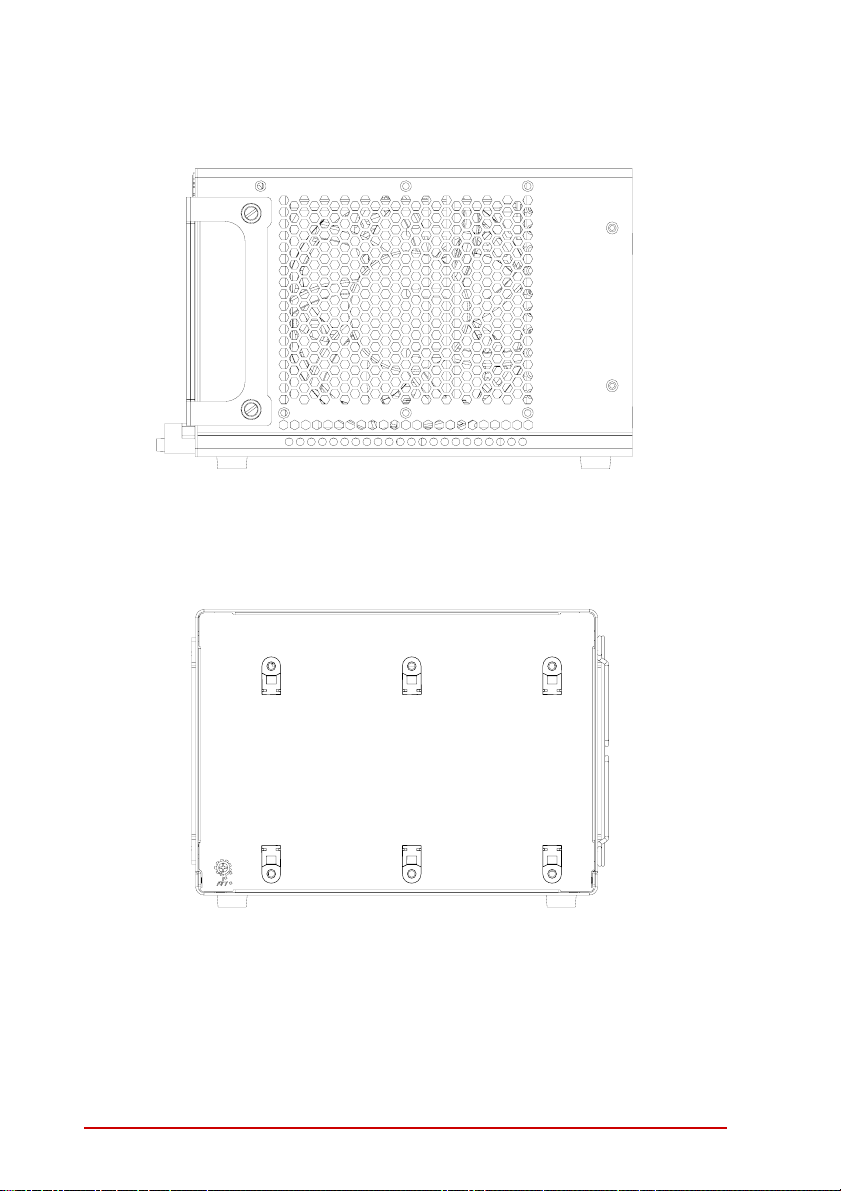

Figure 1-5: RightView ................................................................... 10
Figure 1-6: Rear View ................................................................... 10
Figure 1-7: Bottom View ............................................................... 11
Figure 1-8: PXIe-62314T Front Panel ........................................... 14
Figure 1-9: PXIe-62314T Rear Panel............................................ 17
Figure 1-10: PXIe-62314T Backplane Thermal Sensor Positions... 17
Figure 1-11: 3U PXI Express Peripheral Module ............................ 19
Figure 1-12: 3U Hybrid Slot Compatible PXI-1 Peripheral Module . 20
Figure 1-13: Trigger Bus and Bus Bridges...................................... 21
Figure 3-1: Chassis ChassisWatch Utility ..................................... 30
Figure 3-2: Target Temperature Parameters ................................ 31

viii List of Figures
This page intentionally left blank.

List of Tables ix
List of Tables
Table 1-1: DC Power Output Specifications ..................................... 3
Table 1-2: Backplane Slot DC Power Current .................................. 3
Table 1-3: PXI 10 MHz Reference Clock .......................................... 3
Table 1-4: PXI Express 100 MHz System Reference Clock ............. 4
Table 1-5: Backplane Slots & Functionality ...................................... 5
Table 1-6: Operating Temperature .................................................. 6
Table 1-7: Cooling ............................................................................ 7
Table 1-8: Mechanical Dimensions and Weight................................ 8
Table 1-9: PXI Express Slot Pin Definitions.................................... 12
Table 1-10: Environmental Specifications......................................... 13
Table 1-11: Front Panel Power & Status .......................................... 16
Table 1-12: Front Panel Indicators.................................................... 16
Table 3-1: Target Temperature Parameters Legend ...................... 32

xListofTables
This page intentionally left blank.

Introduction 1
1 Introduction
The JYTEK PXIe-62314T is a compact 4-slots PXI Express chas-
sis equipped with high-performance PXI Express backplane and
Thunderbolt 3 ports for uplink to a host PC or notebook computer.
The chassis' modular design ensures easy maintenance and a
high level of flexibility for a variety of applications using PXI sys-
tems. The PXIe-62314T chassis fully complies with the PXI™-5
PXI Express Hardware Specification, offering advanced timing and
synchronization features of PXI Express instrumentation signals.
Utilizing Thunderbolt 3 and PCI Express 3.0 technology, the
PXIe-62314T features 40Gbps bidirectional bandwidth (maximum
22Gbps bidirectional data bandwidth) for high-throughput data
transfer applications.
The PXIe-62314T offers USB Power Delivery functionality through
Thunderbolt 3 ports, supporting up to 60W power supply for con-
nected Thunderbolt 3/USB PD compatible devices such as a note-
book computer, flash drive, or other storage device. The maximum
power supply capability of the chassis is 160W total, with 58W of
power cooling capacity per slot and a smart system monitoring
controller for chassis status including fan speed, system voltages,
and internal temperature.
1.1 Features
Dual Thunderbolt™ 3 ports for host PC connection
Thunderbolt™ 3 daisy chain
Thunderbolt™ 3 bidirectional data bandwidth transfers up to
40 Gb/s.
USB Power Delivery up to 60W
Four PXI Express Hybrid slots
Programmable Trigger I/O port
Smart fan and chassis status monitoring

2Introduction
1.2 Specifications
 PXI-5 PXI Express hardware specification Rev.1.0 compli-
ant
 Dual Thunderbolt™ 3 ports (USB Type-C connectors,
support USB PD 5V, 9V, 15V and 20V up to 60W/15W
and daisy-chain capability)
 Thunderbolt™ 3 bidirectional data bandwidth transfers up
to 40 Gb/s.
 1 Trigger I/O port programmable from/to backplane PXI
Trigger Bus
 Smart fan & temperature, voltage, fan monitor
 Backplane PXI Signals
DC Power Output up to 160W (combined total of slots 2/3/4/
5 and USB power delivery)
Wide range DC 9 to 32V input, up to 160W
Dimensions: 207.9 x 148.4 x 220.5mm (8.19" x 5.84" x
8.68")
PXI 10MHz sync signals
PXIe 100MHz sync signals
PXI Trigger Bus
Local Bus(PXI_LBL6 and PXI_LBR6)

Introduction 3
DC Power Input
Rated Input 9-32 VDC
DC Power output
Table 1-1: DC Power Output Specifications
Backplane Slot DC Power Current Capacity
Table 1-2: Backplane Slot DC Power Current
PXI 10 MHz System Reference Clock (PXI_CLK10)
Table 1-3: PXI 10 MHz Reference Clock
Operation Ambient Temperature Maximum Total DC Output
0°C to 50°C (32°F to 122°F) 160W (DC input 16V-32V)
120W (DC input 9-12V)
Voltage
Rail Maximum Total Current Load Regulation Maximum Ripple Noise
+12V 15A ±5% 120mV
+3.3V 12A ±5% 50mV
+5V 12A ±5% 50mV
-12V 1A ±5% 120mV
+5Vaux 1A ±5% 50mV
Slot Type Slot Number +5V +3.3V +12V -12V +5Vaux
PXIe Hybrid
Peripheral Slot 2/3/4/5 6A 9A 6A 1A 1A
Item Detail
Maximum slot-to-slot skew 280 ps
Accuracy ±1 ppm max, 0°C to 55°C (32°F to 131°F)
Maximum jitter 0.44 ps RMS phase-jitter (12k Hz–20 MHz)
Duty-factor for PXI_CLK10 45% to 55%
Unloaded signal swing 3.3V ± 5% (±0.165V)

4Introduction
PXIe 100 MHz System Reference Clock (PXIe_CLK100)
Table 1-4: PXI Express 100 MHz System Reference Clock
Item Description
Maximum slot-to-slot skew 100 ps
Accuracy ±1 ppm max, 0°C to 55°C (32°F to 131°F)
Maximum jitter 2.41 ps RMS phase-jitter (12kHz–20MHz)
Duty-factor for PXIe_CLK100 45% to 55%
Absolute differential voltage
(when terminated with a 50Ω load to
1.30 V or Thévenin equivalent)
400 to 900 mV
PXIe_SYNC100 Implemented as default behavior.
PXIe_SYNC_CTRL is disabled by
connecting a 10kΩ pull-down resistor to
ground.

Introduction 5
Backplane Slots & Functionality
Table 1-5: Backplane Slots & Functionality
Backplane PCI Express Bus Topology
Figure 1-1: Backplane PCI Express Bus Topology
Type of Slot Qty Slot
Number Bus
PXI Express Hybrid
Peripheral Slot 4 2,3,4,5
Slots 2 and 3 support PCIe x1 Gen2
link, and PCI 32-bit (33MHz 5VIO).
Slots 4 and 5 support PCIe x4 Gen3
link, and PCI 32-bit (33MHz 5VIO).
Front Panel
PCI Express
2.0 Switch
PCI Express
3.0 Switch
PCIe Gen2 x4
PCIe Gen3 x4
TB3
USB Type-C
Port A
(USB-PD 60W)
TB3
USB Type-C
Port B
(USB-PD 15W)
Thunderbolt 3
Intel JHL6540
PCIe-to-PCI
Bridge PCI Bus
32-bit 33Hz
5VIO
PCIe x4 Gen3
PCIe x4 Gen3
PCIe x1 Gen2
PCIe x1 Gen2
23
H
4
H
5
H
H
Programmable MUX
SMBus Controller
Trigger Signal
SMB
Connector
SMBus
Trigger Bus

6Introduction
Operating Temperature
Table 1-6: Operating Temperature
Peripheral Module Power
Consumption Operating Temperature Environment
When all installed peripheral modules
require less than 38W cooling
capacity.
0°C to 50°C
(32°F to 122°F) Indoor use
only
When any peripheral module requires
more than 38W and less than 58W
cooling capacity.
0°C to 40°C
(32°F to 104°F)
NOTE:
NOTE:
To optimize cooling, optional Wind Block Modules must be installed
on all unpopulated slots.

Introduction 7
Cooling
Table 1-7: Cooling
Item Detail
Chassis Rear Fans
(for peripheral modules)
Forced air circulation through one 136
CFM fan
Module slot airflow direction From bottom to top of module
Module airflow intake Left side of chassis (when facing
chassis)
Module airflow exhaust Right side of chassis (when facing
chassis)
Peripheral Module Slot cooling
capacity
Maximum 58W per slot
Minimum chassis cooling clearances Both sides of chassis: 101.60 mm
(4.00 in.)
CAUTION:
Place chassis horizontally and do not block ventilation holes.
Ensure sufficient cooling clearance on both sides of chassis.

8Introduction
Mechanical Dimensions and Weight
Table 1-8: Mechanical Dimensions and Weight
(All dimensions in millimeters)
Figure 1-2: Top View
Item Detail
Height 148.4mm / 5.84"
Width 207.9mm / 8.19"
Depth 220.5 mm / 8.68"
Net Weight 3.8KG, 8.38 lbs
Gross Weight
(with package, power cable, and filler
panels)
5.5KG, 12.13 lbs

Introduction 9
Figure 1-3: Left View
Figure 1-4: Front View
235.20
220.50
142.40
200.40
148.40
207.90

10 Introduction
Figure 1-5: RightView
Figure 1-6: Rear View
