König Electronic DVB-T USB21B User manual
2
ENGLISH
Table of Contents
I. Overview................................................................................................................................................................ 3
1.1 Introduction..................................................................................................................................................... 3
1.2 Features ......................................................................................................................................................... 3
1.3 System Requirements.................................................................................................................................. 3
II. Appearance & Menus ........................................................................................................................................... 4
III. Operation Guide .................................................................................................................................................. 5
3.1 Scan Channels ............................................................................................................................................ 5
3.2 Watch Live TV Show .................................................................................................................................... 6
3.3 Display Teletext ............................................................................................................................................ 6
3.4 Receive FM Radio........................................................................................................................................ 6
3.5 TimeShift ........................................................................................................................................................ 7
3.6 Program Guide............................................................................................................................................. 7
3.7 Live Record TV Show................................................................................................................................... 8
3.8 Create Schedule Task .................................................................................................................................. 8
3.9 Schedule Record TV Show .......................................................................................................................... 8
3.10 Remind to Watch ........................................................................................................................................ 8
3.11 Multi-channel Preview................................................................................................................................. 8
3.12 Favorite Management ................................................................................................................................ 9
3.13 Take Snapshot.......................................................................................................................................... 10
IV. Settings ............................................................................................................................................................. 11
4.1 DTV Setting................................................................................................................................................ 11
4.2 Record Setting............................................................................................................................................ 12
V. Technical Support 5.1 Troubleshooting................................................................................................................ 12
5.1 How to clear the saved channel: ................................................................................................................ 12
5.2. Contact Support ........................................................................................................................................ 12
3
I. Overview
1.1 Introduction
BlazeVideo HDTV Player is a fully-featured but easy to use HDTV player for you to watch, record, pause, replay live TV,
Teletext and FM radio on PC. DVB compliant, it supports most popular TV Card with BDA interfaces on the market.
BlazeVideo HDTV Player also acts as your multimedia center with superior video and audio quality, supporting DVD and
most popular media le playback. The more advanced features, such as DVD record/ bookmark, video capture, photo
slideshow, special audio effect, brings you innite wonderful multimedia entertainment.
1.2 Features
Supports most popular TV cards with BDA interface on the market, and runs stable and smooth on Windows 98/
●
Me/2000/XP/Vista operating system
DVB compliant, watch, record, pause, replay live TV, Teletext and FM radio
●
Intelligent EPG guides you through what and when to watch
●
TimeShift to pause live TV shows for a break or skip commercial
●
Smart search to quickly locate favorite TV shows or desired TV show times
●
Real-time record while watching live TV show
●
Scheduled recording, never miss any wonderful TV shows
●
Reminds you to watch at the scheduled time
●
Auto & manual scan for all available channels
●
Displays subtitles, supports multiple language & audio channels
●
Capture TV show/DVD video as still image
●
Freely manage favorites channels
●
Multi-channel preview to quickly access favorite programs
●
Fully-featured media center, play DVD/SVCD/VCD/CD disc and most popular media files with outstanding video &
●
audio quality
Smart Stretch lets video smart fit on all monitors, avoids video loss or distortion
●
DVD video/audio record and DVD bookmark preview
●
Advanced power saving scheme for Notebook PC
●
Auto wakeup to perform schedule task at PC hibernation status
●
1.3 System Requirements
Basic
CPU Intel Celeron 600MHz or higher
System Memory 128MB RAM or higher
Operating System Windows 98 SE/ME/ 2000/ XP/Vista
Display Card 24-bit resolution and supports DirectX, 8MB video ROM or more
Sound Card PCI sound cards, integration chipset on mother board, USB audio
devices etc., compatible with Windows and stereo speakers
Device
All DVD drives;
HDTV receiver and its driver should be properly installed for HDTV
playback
Hard Disk Available
Capacity
At least 512 MB temporary space for TimeShift function; Large enough
space for HDTV/DVD record
DirectX DirectX 9.0 or later
4
II. Appearance & Menus
Button/Icon Name Description
EPG Open HDTV EPG window
Play Play HDTV or Media
TimeShift/Pause TimeShift (for HDTV) or pause playback
Stop Stop playback
Record Record HDTV or DVD
Previous Skip to play previous HDTV channel / DVD chapter
Browse Browse channel
Next Skip to play next HDTV channel / DVD chapter
Open Select playback type
Subtitles Select Subtitles
Audio Select Audio
5
Capture Capture video as .bmp still image
Volume Control Drag slider bar to adjust volume
Mute Turn on/off audio
Media Type
Playback status
Display playback type
Display playback status
Signal Quality Display HDTV signal quality
Signal Strength Display HDTV signal strength
Channel/Chapter Display current HDTV channel / DVD chapter
Time Display current time of HDTV / DVD
Fast backward Fast backward, switch between 1X, 2X, 4X, 8X,
16X at each press
Slider Bar Drag the slider to new position for
playback.
Fast Forward Fast forward, switch between 1X, 2X, 4X, 8X, 16X
at each press
Open Floating Panel Show Floating Panel
Show Advanced Panel Show/Hide Advanced Panel
III. Operation Guide
BlazeVideo HDTV Player features very easy usage, below we just guide you through the HDTV operation, for DVD and
medial le playback, please refer to the Help le in the software.
3.1 Scan Channels
3.1.1 Auto Scan Channels
If a HDTV device is installed or connected to your PC, and its driver has been properly installed, after launching the
BlazeVideo HDTV Player, a box will pop up to prompt whether to scan channels.
Click Yes, the “Scan” box displays to set scan options.
Advanced Setting: Check “Advanced Scan” and click “Advanced...” to popup the “Advanced Setting” dialog box, here you
can set advanced scan properties.
6
3.1.2 Manually Scan Channels
In TV Advanced Panel click
●
In EPG_Channels window click
●
Go to Options -> DTV window, click “Scan” button under “DTV Source”.
●
Abort Scanning:
Just press “Abort” button to stop scanning (it is recommended you nish scanning one time at least).
3.2 Watch Live TV Show
Select Channel: In EPG_Channels window, double click a desired channel; or click to open the channel list to
select.
Switch Channel: Click or to switch channel.
Browse Channel: Click to open the channel list; all channels will be displayed.
Return to Last Channel: Click to resume playing the last viewed channel. Select Subtitle: Click to select your
desired subtitle. Select Audio: Click to select your desired audio.
3.3 Display Teletext
Note: The Teletext function is activated only if your HDTV service provider has provided such service.
Display Teletext:
Click
●and tick “Teletext” in popup menu.
Click
●and tick “Show Teletext” in popup menu.
Go To: Go to specied Teletext page, or press to go to previous or next page.
Hold: Keep displaying current Teletext page during other operations.
Transparent: Display Teletext over the current video by transparent mode.
3.4 Receive FM Radio
In the EPG_Channels window, the channel displayed with Radio type or marked with will be radio channel,
Double-click a radio channel to begin to listening to radio, and the visualization effect will be activated by default, the video
window will display multi-colored shapes and patterns that change in harmony with the audio track being played.
7
3.5 TimeShift
TimeShift means you can pause watching a live program to have a break; when you come back you will resume watching
from the point at which you paused.
Click
●to pause, the screen will freeze, but the recording will continue.
Click
●again or click to continue watching TV show from the point at which it was paused.
Click
●twice to stop TimeShift and return to the live program.
Note: The recording duration depends on your TimeShift buffer size, which can be set in DTV Setting.
3.6 Program Guide
In the EPG_Guide panel, click a program to access program details: program title, start time, end time and program
description.
Smart Search: Type the start time or keyword of your desired programs in the search box, the relative program guide will
be displayed.
8
Click to clear the search result and resume displaying the complete program guide.
3.7 Live Record TV Show
While you are watching a TV show, click to pop up the record oating panel, you will begin to record live HDTV
show as MPEG2 le. You can also stop recording, playback the recording or delete the record le in this record panel.
3.8 Create Schedule Task
In EPG_Schedule window, click
●to create a task.
In EPG_Channels window, select a program with EPG guide and click
●
In EPG_ Programs window, right click a program and select “Add to Schedule”.
●
In EPG_ Favorite window, select a program with EPG guide and click
●
Through one of above steps create a task and display task box below: here you can set task name, task type and task
time.
Auto wake-up to perform scheduled task at PC hibernation status:
Your PC can auto wake-up to launch a scheduled task in hibernation status for power saving, the operation is below:
1. Set schedule task;
2. Hibernate your PC;
Note: To hibernate your PC, you must activate “Enable Hibernation” in your PC’s power options properties.
3. Your PC will auto wake-up to perform the task at the scheduled time.
3.9 Schedule Record TV Show
Following 3.8 chapter “Create Schedule Task”, set task type as “Recording File” and set task start time, it will auto record
the preset TV show at the task start time, even though you are away from your PC or your PC is hibernating.
3.10 Remind to Watch
You will be reminded to watch TV shows at the scheduled time, so you will never miss any of your favorite programs. Just
set task type as Viewing Reminder when creating the scheduled task. The other operations are similar to schedule record
TV.
3.11 Multi-channel Preview
Preview while scanning channels:
●Tick “Preview found channels” box while scanning channels, each found channel
will sequentially display on the video window.
Multi-channel preview in EPG window:
●Click in EPG_Channels window to refresh channels, each program will
display on the video window in sequence; after refresh finishes, all programs’ snapshots will be listed in EPG_Channels
window. Double-click a program, for direct playback.
9
3.12 Favorite Management
Add to favorite:
●In EPG_Channels window, select a channel and click or right click to add favorite.
Watch
●favorite channel: Double-click the favorite channel to directly watch this channel’s program.
Favorite management:
●in EPG_Favorite window you can freely create, rename, change or delete favorite folders.
10
3.13 Take Snapshot
Click to take a snapshot, the captured image will be displayed on the capture oating panel, default saved as .bmp
le in “My Pictures” in sequence numbers 1, 2, 3, etc.
You can freely capture, preview, delete, copy or save the snapshot on the Capture oating panel.
11
IV. Settings
Right-click video window and click Options to open the Options box for advanced settings, below we just take DTV and
Record setting as examples.
4.1 DTV Setting
Device:
●If a HDTV device is installed or connected to your PC, the device name will be displayed.
Scan:
●Click to launch channel scanning.
TimeShift:
●
Buffer File: Display the directory of the buffer le, please select a directory with large enough space.
Buffer Size: Hard disk size for buffer and saving paused programs, the bigger size, the longer the time for saving
programs.
12
Note: After you change the buffer le or buffer size, please restart the program to activate the change.
Days to keep EPG history:
●Set the days to keep the EPG history, maximum 7 days.
Clear History:
●Delete the EPG history.
Scroll browse programs:
●Selected to scroll browse programs after clicking .

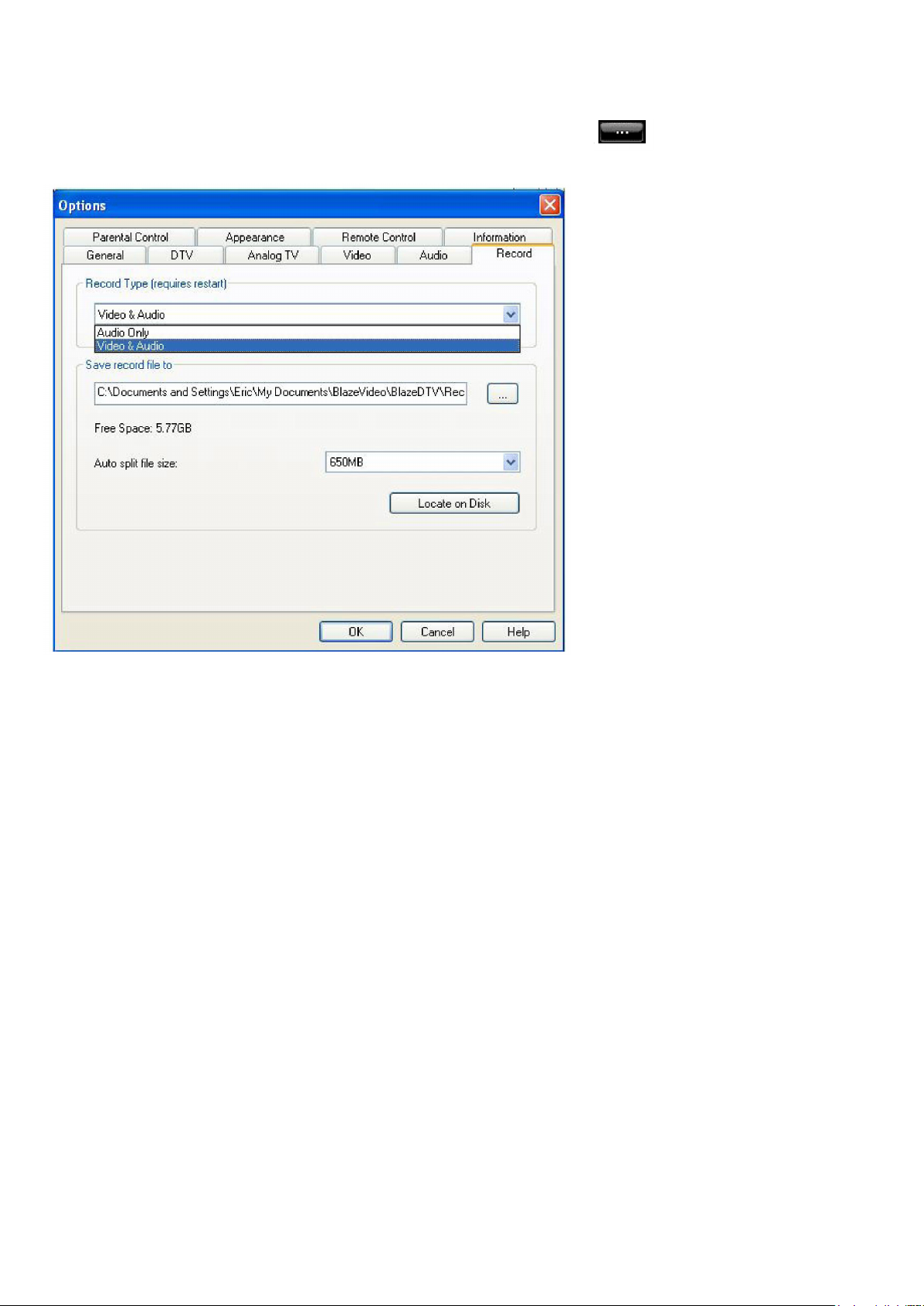

4.2 Record Setting
Record Type:
Audio Only: Only record HDTV show/DVD movie audio
●
Video & Audio: Record DVD with video and audio
●
Save Record File to: Specify the path for saving the record le
Locate on Disk: To quickly open the record le’s folder
V. Technical Support 5.1 Troubleshooting
5.1 How to clear the saved channel:
• Please exit the program first, then locate the “DVB_T.gsl” file in program installation folder and delete it.
Fail to search channel:
a. Expand frequency range.
b. Adjust off-center frequency.
c. Change parameters in Advanced Setting box.
Fail to playback HDTV show:
• Current channel has no data stream, please rescan channel.
Note: Please view the clock in main control panel to check: if the clock changes with the time, there is data stream; clock
unchanged, no data stream.
Cannot record some channel’s program
• The channel adopts AC-3 audio encoding mode.
5.2. Contact Support
Please collect the following information and E-mail us. We will respond as soon as possible:
Product Order ID
●
BlazeVideo HDTV Player’s version number
●
Windows operating system version
●
38
Declaration of conformity / Konformitätserklärung / Déclaration de conformité /
Conformiteitsverklaring / Dichiarazione di conformità / Declaración de conformidad
Megfelelőségi nyilatkozat / Yhdenmukaisuusvakuutus / Överensstämmelseförklaring /
Prohlášení o shodě / Declaraţie de conformitate / Δήλωση συμφωνίας /
Overensstemmelseserklæring / Samsvarserklæring
We, / Wir, / Nous, / Wij, / Questa società, / La empresa infrascrita, / Mi, / Me, / Vi, / Společnost, / Noi, / Εμείς, / Vi
Nedis B.V., De Tweeling 28, 5215MC, ’s-Hertogenbosch
The Netherlands / Niederlande / Pays Bas / Nederland / Paesi Bassi / Países Bajos / Hollandia / Alankomaat / Holland /
Nizozemí / Olanda / Ολλανδία / Holland
Tel. / Tél / Puh / Τηλ. : 0031 73 5991055
Email / Couriel / Sähköposti / e-post: [email protected]
Declare that product: / erklären, dass das Produkt: / Déclarons que le produit: / verklaren dat het product: / Dichiara che il
prodotto: / Declara que el producto: / Kijelentjük, hogy a termék, amelynek: / Vakuutamme, että: / Intygar att produkten: /
prohlašuje, že výrobek: / Declarăm că acest produs: / Δηλώνουμε ότι το προϊόν: / Erklærer, at produkt: / Erklærer at
produktet:
Brand: / Marke: / Marque: / Merknaam: / Marca: / Márkája: / Merkki: / Märke: / Značka: / Μάρκα: / Mærke: / Merke: KÖNIG
Model: / Modell: / Modèle: / Modello: / Modelo: / Típusa: / Malli: / Μοντέλο: DVB-T USB21B
Description: USB DVB-T STICK TV
Kuvaus: USB STICK (DVB-T) TV-SOVITIN
Beskrivning: USB-sticka för DVB-T TV
Is in conformity with the following standards: / den folgenden Standards entspricht: / est conforme aux normes suivantes: /
in overeenstemming met de volgende normen is: / è conforme ai seguenti standard: / es conforme a las siguientes normas: /
Megfelel az alábbi szabványoknak: / Täyttää seuraavat standardit: / Överensstämmer med följande standarder: / splňuje
následující normy: / Este în conformitate cu următoarele standarde: / Συμμορφώνεται με τις ακόλουθες προδιαγραφές: /
Overholder følgende standarder: / Er i samsvar med de følgende standardene:
EMC: EN 55022: 1998 +A1: 2000 +A2: 2003 Clasa B, EN 61000-3-2: 2000 Clasa D, EN 61000-3-3:1995 +A1: 2001,
EN 55024: 1998 +A1: 2001+A2: 2003
EU Directive(s) / EG-Richtlinie(n) / Directive(s) EU / EU richtlijn(en) / Direttiva(e) EU / Directiva(s) UE / EU direktívák / EU
Toimintaohje(et) / Eu Direktiv(en) / Směrnice EU / Directiva(e) UE: / Οδηγία(ες) της ΕΕ: / EU direktiv(er) / EU-direktiv(ene):
2004/108/EC
‘s-Hertogenbosch, 11.03.2010
Mrs. / Mme. / Mevr. / Sig.ra / D. / Fru / Paní / Κα : J. Gilad
Purchase Director / Einkaufsleiterin / Directrice des Achats / Directeur inkoop /
Direttore agli acquisti / Director de compras / értékesítési igazgató / Ostojohtaja
/ Inköpsansvarig / Obchodní ředitelka / Director achiziţii / Διευθυντής αγορών /
Indkøbschef / Innkjøpssjef
Table of contents
