Könighaus E Series User guide

Könighaus GmbH
Albert-Einstein-Straße 1
D-46446 Emmerich am Rhein
Original Instruction Manual

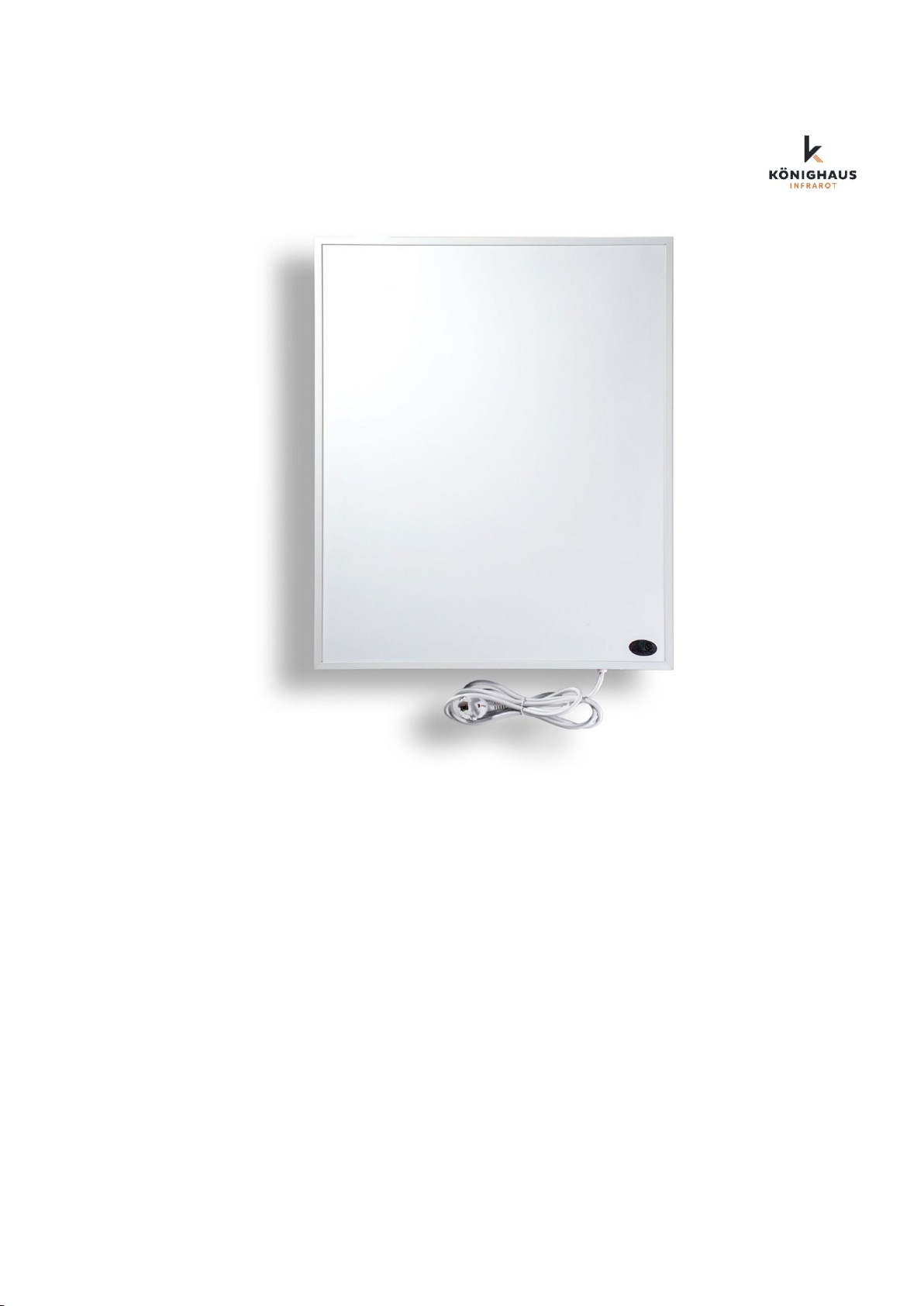

Far infrared heating
Model: Könighaus- E-, M-. P-, G, GS-series, mirror, arc
Important
This product is only suitable for well insulated rooms or for occasional use
suitable for use.
Read carefully before use
Keep for reference

Original Instruction manual Version V1.9 2 / 29
Könighaus- E-, M-. P-, G, GS-Series, mirror, arc
Change Index
Date
Version
Chapter
Reason
Responsibility
9.10.2015
V0.0
All
Updating
uttc Ingenieurgesellschaft
mbH
Friedrich-Heinrich-Allee 159
D-47475 Kamp-Lintfort
E-Mail: [email protected]
Auftrag 2015-1668
03.12.2015
V1.0
All
Added series G and GS.
03.08.2016
V 1.1
General infor-
mation,
Chapter 4.5
Chapter 8
Address changed, Added IP pro-
tection class, Declaration of Con-
formity updated
06.09.2016
V1.2
All
Modifications in accordance with
the amended requirements with
regard to the Sales Suitability
Certificate
Chapter 1.2.1
Modification in the assembly of
the ceiling
31.08.2017
V1.3
All
Modifications of series E
22.01.2018
V1.4
All
Amendments in conformity with
Regulation (EU) 2015/1188
28.01.2019
V1.5
All
Added additional devices
19.02.2019
V1.6
Chapter 6
On/off switch specified
23.04.2019
V1.7
All
Device updates, new P series
20.09.2019
V1.8
All
Text changes
24.04.2020
V1.9
All
Logo and product update
These operating instructions have been prepared by us to the best of our knowledge. Should you never-
theless discover any errors or ambiguities, please let us know. Furthermore, we would appreciate any
hints and suggestions. Please contact us:
Könighaus GmbH
Albert-Einstein-Straße 1
D-46446 Emmerich am Rhein
Tel.: [phone]
E-Mail: [e-mail]
Internet: www.koenighaus-heizsysteme.de
Ownership
This manual is a property of:
Könighaus GmbH
Albert-Einstein-Straße 1
D-46446 Emmerich am Rhein
Version V1.9
2020
The distribution and duplication of these documents, exploitation and communication of their contents are not allowed, un-
less expressly permitted. Violations oblige to compensation. All rights reserved in the event of patent grant or utility model
registration.

Content
Original Instruction manual Version V1.9 3 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
Content
1Product Information........................................... 4
1.1 Far Infrared Heaters ............................................................................... 4
1.2 Various mounting types..........................................................................5
1.2.1 Ceiling mount..........................................................................................5
1.2.2 Wall mount..............................................................................................5
1.2.3 Mobile operation with aluminium and wood feet ....................................5
1.2.4 Direct installation on the power circuit....................................................5
2Reading references............................................ 6
2.1 Abbreviations, synonyms, symbols ........................................................ 6
2.2 Safety-related information ...................................................................... 6
3Legal Regulations .............................................. 8
3.1 Disclaimers.............................................................................................8
3.2 Applicable guidelines..............................................................................8
3.3 Sales within non-European economic areas.......................................... 8
4Safety.............................................................. 9
Intended use...........................................................................................9
Technical data ......................................................................................10
4.2.1 Notes on energy consumption..............................................................11
Nameplate ............................................................................................13
4.3.1 Labelling on the machine .....................................................................13
Safety Instructions................................................................................14
5Mounting........................................................... 16
5.1 General notes on mounting..................................................................16
5.1.1 Installation of the Konighaus E-Series .................................................17
5.1.2 Installation of Konighaus P-, DL-Series, GSP 800 and GSP-1000:.....18
5.1.3 Installation of Konighaus M-, G-, GS- and SP-series...........................19
5.2 Positioning............................................................................................20
5.2.1 Mounting and stand..............................................................................20
6Commissioning ................................................ 22
6.1 Notice on handling................................................................................22
7Cleaning and maintenance.............................. 23
7.1 Cleaning ...............................................................................................23
7.2 Repair...................................................................................................23
8Troubleshooting............................................... 24
9Declaration of Conformity ............................... 25
10 Guarantee provision statement....................... 27

Product Information
Original Instruction manual Version V1.9 4 / 29
Könighaus- E-, M-. P-, G, GS-Series, mirror, arc
1 Product Information
Foreword
Thank you for choosing a far infrared heating system from Könighaus Heizsysteme.
Far infrared heaters are electric heaters and work with electricity. As a result, there
is a certain risk potential. It is therefore important to read these operating instruc-
tions carefully before starting up the heater. Furthermore, the operating instructions
should always be kept close to the device.
If you have any doubts or questions, please do not hesitate to contact us.
1.1 Far Infrared Heaters
Far infrared heaters are direct heaters that operate on the principle of heat radia-
tion (infrared). They do not need much energy to create a comfortable and pleasant
room climate.
Due to an energy conversion of almost 100%, the far infrared heaters are very effi-
cient in transmission. The surfaces of the heating panels are designed to achieve
optimum heat dissipation at wavelengths ranging from 6 to 15 μm.
The heating panels use the same principle of solar heating, whereby the heat
waves irradiate bodies and objects, which in turn emit the heat. The resulting in-
door climate corresponds to a climate generated by natural solar radiation. Further-
more, the formation of mould is prevented because the walls store the heat much
longer and more effectively than with convection heating.
Far infrared heaters can be used for a wide variety of buildings or rooms and their
environments. Depending on the environment and type of application, different
models are recommended. Our consultants will be happy to assist you in the selec-
tion of the individual model. There are different installation instructions for different
models. These should be strictly observed. (see below).
The infrared panels with remote control heat up to working temperature for only a
few minutes (about 5 to 10 minutes). You will find more information in Chapter 2. If
you do not feel a warm and comfortable temperature in the room immediately after
a short time, continue operating the far infrared heater until the items and objects in
the room are heated up. After the first introductory phase, the heater should use
little energy to heat the room, as objects and walls are heated.
Depending on the model, the surface will heat up to 80 to 125 °C. All our far infra-
red heaters are equipped with overheating protection, which automatically switches
off the heating operation of the device in the event of overheating.

Product Information
Original Instruction manual Version V1.9 5 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
1.2 Various mounting types
1.2.1 Ceiling mount
With the M series, ceiling mounting is possible. For safety reasons, this should only
be carried out by a specialist. Please note but urgently follow the instructions for
mounting.
1.2.2 Wall mount
Far infrared heaters are the perfect auxiliary or main heating systems for residential
areas. Due to the aesthetic aspect and the space-saving design of our far infrared
heating systems, they can be installed in almost any environment. (Please observe
the instructions for installation).
1.2.3 Mobile operation with aluminium and wood feet
Our far infrared heaters can be used very well with our aluminium or wood feet
which are mobile and flexible at different places. For this reason, mount the feet on
the outer frame. For stability reasons, we recommend mounting on the wide side of
the heater and thus operation in horizontal format.
1.2.4 Direct installation on the power circuit
Our series M without a plug is designed for direct installation on the power supply
circuit and may only be installed by a specialist. If this is not observed, warranty
claims and liability claims will not be granted and a risk may arise.

Reading references
Original Instruction manual Version V1.9 6 / 29
Könighaus- E-, M-. P-, G, GS-Series, mirror, arc
2 Reading references
2.1 Abbreviations, synonyms, symbols
abbreviation/
synonym
Significance
EMC
Electromagnetic compatibility
Device
Far infrared heating
Symbol
Significance

Instructions for action

Bulleted list
Italic
Name of a key, a button, a switch
2.2 Safety-related information
Symbol warns you of personal injury.
These operating instructions contain safety-related information:
Chapter Error! Reference source not found. Error! Reference source not fo
und.
As warnings in individual chapters,
The safety-related information explains the dangers on the machine and how you
can avoid these dangers.
Read the safety-related information carefully. With your knowledge, you can recog-
nize dangerous situations and protect yourself and others.
Chapter Security
This chapter informs you about measures for your safety. The information is in-
tended to raise your awareness of safe behaviour.
The aim is to provide a basis for training and instruction.
Warning instructions
Several chapters of this operating manual contain warnings. A warning always
warns you of an imminent danger. It is to be understood in connection with the situ-
ation in which the warning is given.
The aim is to avoid accidents and damage.

Reading references
Original Instruction manual Version V1.9 7 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
SIGNAL WORD
This warning text mentions the hazard. This warning text states
the consequences.
This instruction names the remedy.
Signal word
Risk level of
the hazard
Significance
DANGER
High
Death or serious injury will occur if the haz-
ard is not avoided.
WARNING
medium
Death, serious injury may occur if the hazard
is not avoided.
CAUTION
Low
Minor or moderate injuries may occur if the
hazard is not avoided.

Legal Regulations
Original Instruction manual Version V1.9 8 / 29
Könighaus- E-, M-. P-, G, GS-Series, mirror, arc
3 Legal Regulations
3.1 Disclaimers
No warranty is given for damages caused by the following reasons:
Unauthorized or improper use of the device.
Failure to observe the instructions in this operating manual regarding transport,
storage, installation, commissioning, operation, maintenance, servicing or other
measures on the device.
Incorrect installation or commissioning.
Unauthorized modifications and changes to the device.
Natural wear and tear.
Unsuitable operating materials and spare parts.
Improperly performed repairs.
Chemical, electrochemical or electrical influences.
Disasters caused by external influence or force majeure.
If the device is sold outside Europe, the manufacturer assumes no liability
whatsoever. The device is designed, built and documented exclusively for the
European Economic Area.
In the event of resale of the device outside Europe, the seller has the full rights
of ownership.
The obligation to fulfil all legal requirements of the respective economic area /
country.
The far infrared heater is to be operated exclusively in residential areas!
3.2 Applicable guidelines
See EC Declaration of Conformity in Chapter Error! Reference source not f
ound..
3.3 Sales within non-European economic areas
The manufacturer accepts no liability if the far-infrared heating system is sold out-
side Europe. The machine has been designed, built and documented exclusively
for the European Economic Area.
If the far-infrared heating system is resold outside Europe, then the seller is re-
sponsible for fulfilling all legal requirements of the respective economic area/coun-
try.

Safety
Original Instruction manual Version V1.9 9 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
4 Safety
Intended use
The far infrared heaters are used to heat living spaces.
The device heats objects and bodies in the wavelength range of 6 to 15 μm, which
in turn give off the heat to the air in the room.
The device can be mounted on the ceiling or wall in living rooms. Furthermore, the
device may be operated on special feet that are only permitted for the device.
The device is built according to the state of the art and the recognized safety rules.
However, inappropriate or improper use of the device may result in danger to life
and health of the user or third parties or damage to the device and other material
assets.
The area of application of the device is the residential area. It is intended for con-
nection to a public power supply network.
The manufacturer is not liable for non-observance and for damages resulting from
this. The risk is borne by the operator.
If malfunctions occur during operation:
Disconnect the unit from the power supply.
Inform the manufacturer of the device.
Reasonably foreseeable misuse
Any other use than that described in these operating manual is considered as a fore-
seeable misuse.
These include:
Operation without safety guards.
Mechanical or electrical bridging,
The use of parts other than the original parts.
Modifications, changes and manipulations.
Failure to follow the instructions.

Safety
Original Instruction manual Version V1.9 10 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
Technical data
The following technical information refers to the entire information heating systems of
the Könighaus Heating System. Specific information about your equipment can be
found on the identification plate on the back of your heating panel.
Type
Tension
(V)
Power
(Watt)
Fre-
quenzy
(Hz)
Size
(mm)
Weight
(kg)
IP pro-
tection
class
P-130
220 –240
130
50-60
505x385x20
1,9
44
P-300
220 –240
300
50-60
605x505x20
2,7
44
P-450
220 - 240
450
50-60
905x505x20
3,8
44
P-600
220 - 240
600
50-60
1005x605x20
5
44
P-800
220 - 240
800
50-60
1005x605x20
5
44
P-1000
220 - 240
1000
50-60
1005x605x20
5
44
P-1200
220 - 240
1200
50-60
1205x610x20
6
44
M-300
220 - 240
300
50-60
595x505x20
2,48
44
M-350
220 - 240
360
50-60
595x595x20
2,9
44
M-450
220 - 240
450
50-60
905x505x20
3,58
44
M -600
220 - 240
600
50-60
1005x595x20
4,42
44
M-800
220 - 240
780
50-60
1005x595x20
4,42
44
M-100
220 - 240
1000
50-60
1005x595x20
4,42
44
M-1200
220 - 240
1200
50-60
1195x1005x20
9,98
44
E-300
220 - 240
300
50-60
600x500x20
2
44
E-350
220 - 240
350
50-60
595x595x20
2
44
E-450
220 - 240
450
50-60
900x500x20
3
44
E-600
220 - 240
600
50-60
1013x595x20
3
44
E-720
220 - 240
720
50-60
595x1195x20
4
44
E-800
220 - 240
800
50-60
1000x780x20
4
44
E-1200
220 - 240
1200
50-60
1200x1000x20
7
44
GSP-300
220 - 240
300
50-60
700x600x30
7,76
44
GSP-450
220 - 240
450
50-60
1000x600x30
10,16
44
GSP-600
220 - 240
600
50-60
1000x600x30
11,56
44
GSP-800
220 - 240
800
50-60
1005x605x35
11,56
44
GSP-1000
220 - 240
1000
50-60
1005x605x35
11,56
44
G-300
220 - 240
300
50-60
700x600x30
7,76
44
G-450
220 - 240
450
50-60
1000x600x30
10,16
44
G-600
220 - 240
600
50-60
1000x600x30
9
44
B-300
220 - 240
24
50-60
650x550x300
3
44

Safety
Original Instruction manual Version V1.9 11 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
Notes on energy consumption
The Ecodesign Directive (2009/25/EC) of the European Parliament regulates the re-
quirements of energy-related products (ErP). Since 1.1.2018, infrared heaters must
now also be labelled in accordance with Regulation 2015/1188/EU. In the following, the
required data from the Regulation are presented:
The following products were selected as references:
M-350, P-600, E-1200,
G-300 and G-450
GSP-300 and GSP-450.
The data on the right side of the table are the same for all devices, and are
therefore listed here once.
Model identifier(s): M-350, G-300, SP-300
Specifications
Symbol
Value
Unit
Specifications
Unit
Heat supply
Only for single room electric storage heaters: Type of heat
supply control
Normal heat supply
Pnom
0,3
kW
Manual control of the heat supply with integrated
Thermostat
No
Medium heat supply
(standard value)
Pmin
0,0
kW
Manual control of heat supply with feedback
No
Maximum continuous
heat supply
Pmax,c
0,3
kW
Electronic control of the heat supply with feedback
of the room and / or outside temperature
No
Auxiliary power consumption
Heat supply with fan support
No
At normal heat supply
elmax
0,300
kW
Type of heat output/room temperature control
At minimum heat supply
elmin
0,000
kW
Single-stage heat supply, no room temperature con-
trol.
No
In standby mode
elSB
0,000
kW
Two or more manually adjustable stages with no
room temperature control.
No
Room temperature control with mechanical thermo-
stat
No
With electronic room temperature control.
No
Electrical room temperature control and time of day
control.
No
Electrical room temperature control and weekday
control
Yes
Other control options
Room temperature control with presence de-
tection
No
Room temperature control with open window
detection
Yes
With remote control options
No
With adaptive control
No
With operating time limitation
No
With black ball sensor
No
Model identifier(s): P-600
Specifications
Symbol
Valu
e
Unit
Heat supply
Normal heat supply
Pnom
0,5
kW

Safety
Original Instruction manual Version V1.9 12 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
Minimum heat supply
(Standard value)
Pmin
0,0
kW
Maximum continuous heat
supply
Pmax,c
0,5
kW
Auxiliary power consumption
At normal heat supply
elmax
0,500
kW
At minimum heat supply
elmin
0,000
kW
In standby mode
elSB
0,000
kW
Model identifier (s): E-1200
Specifications
Sym-
bool
Waar
de
Een
heid
Heat supply
Normal heat supply
Pnom
1,1
kW
Minimum heat supply
(Standard value)
Pmin
0,0
kW
Maximum continuous heat
supply
Pmax,c
1,1
kW
Auxiliary power con-
sumption
At normal heat supply
elmax
1,100
kW
At minimum heat supply
elmin
0,000
kW
In standby mode
elSB
0,000
kW
Model identifier(s): G-450, SP-450
Specifications
Sym-
bool
Waar
de
Een
heid
Heat supply
Normal heat supply
Pnom
0,4
kW
Minimum heat supply
(Standard value)
Pmin
0,0
kW
Maximum continuous heat
supply
Pmax,c
0,4
kW
Auxiliary power con-
sumption
At normal heat supply
elmax
0,400
kW
At minimum heat supply
elmin
0,000
kW
In standby mode
elSB
0,000
kW

Safety
Original Instruction manual Version V1.9 13 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
Nameplate
Labelling on the machine
Safety-related information in the form of pictograms and / or labels is attached to
the device. They point out risks that:
occur frequently and / or
have serious consequences.
The following labels are attached to the device:
Significance
labelling
Warning against hot surface!
The device becomes very hot
during operation (up to 125 °C
depending on the model). Touching
it can cause severe burns
WARNING!
To avoid overheating of the heater,
the heater must not be covered.
Far Infrared Carbon Crystal Heating Panel

Safety
Original Instruction manual Version V1.9 14 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
Safety Instructions
WARNING!
This device is not equipped with a system for controlling the
room temperature. The heater must not be used in small
rooms inhabited by persons who cannot leave the room on
their own, unless the following conditions are met because
constant monitoring is guaranteed.
All Könighaus far infrared heaters are exclusively suitable for use as heating
devices. Any improper use can lead to a considerable danger for humans, ani-
mals and the environment.
For operation in commercial areas, the devices must only be installed and
tested by qualified personnel (in compliance with national regulations).
Children under three years of age must be kept away unless they are con-
stantly monitored.
Children 3 years and younger than 8 years may only switch the device on and
off if they have been supervised or instructed on the safe use of the device and
have understood the resulting dangers, provided that the device is placed or
installed in its normal operating position. Children aged 3 years and younger
than 8 years must not connect the plug to the socket, regulate the device,
clean the device and/or carry out maintenance on the device by the user.
Caution - Some parts of the product can become very hot and cause burns.
Special care must be taken when children and people in need of protection are
present.
The heater must be installed so that switches and other controls cannot be
touched by a person in the bathroom or shower.
Under no circumstances whatsoever must the device be covered or sheltered.
Direct contact may result in accumulation of heat, which could create hazard or
occurrence of fire. The minimal distance of 50 cm must not be disrupted.
Spacers must obligatorily be used at the installation.
If the power cord of this device is damaged, it must be replaced by the manu-
facturer or his customer service or a similarly qualified person to avoid haz-
ards.
Persons with reduced physical, sensory or mental abilities or lack of experi-
ence and knowledge may only use the device under supervision or if instructed
with regard to the dangers.
Be careful not to expose your eyes intensively and for several hours to the far
infrared rays, as this can cause damage to the eye.
Far-infrared heaters are not suitable for use in the rain, under water, in very
wet conditions, or for any other use other than that intended.
Before mounting, please read the mounting instructions in chapter 5 Mounting.
Only use in wet rooms after installation by a specialist.
Do not use this heater near a bathtub, shower or swimming pool.
The device may only be put into operation after appropriate and proper installa-
tion.

Safety
Original Instruction manual Version V1.9 15 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
If the device is damaged, it must be disconnected from the power supply and
repaired by a specialist. Never repair it yourself!
The heater must not be used if the compartments are damaged.
The device must not be used for continuous time or permanently without a
thermostat.
If an automatically regulating thermostat is not used, the device can work for
more continuous time only under supervision. Never leave the device for con-
tinuous time without supervision.
Electrical energy
The device is operated with a supply voltage of 220 - 240 V.
If the plug or the power cable is damaged, the heating panel must not be used.
This must be checked before each use.
Never pull or tear the power cord.
Do not pinch the power supply cable or run it over sharp/abrasive edges.
Never open or repair the device yourself. This will render all warranty and liabil-
ity claims invalid.
Repairs must be carried out by a specialist.
__________________________________________________________________
Overheating
The far infrared heaters are equipped with overheating protection. If
the overheating protection switches off, the plug must be removed. Af-
ter a waiting time of approx. 10 to 15 minutes, the device will be ready
for operation again.
oThe only exceptions are the P and M series, as this is intended for
installation in the power circuit.
__________________________________________________________________
For the sake of our environment
The device contains components or substances which, in the event of improper
disposal endanger the environment.
To avoid environmental damage, proceed as follows. Materials and components:
•Cardboard packaging material can be disposed of in the waste paper collec-
tion or the local disposal system.
•Dispose of plastic films and packaging properly. Keep out of the reach of chil-
dren.
•Do not throw parts in the dustbin: The device must not be disposed of with
household waste. Only to collection points for electrical and electronic equip-
ment. The symbol of the crossed-out dustbin indicates this.
•By recycling, material recovery or other forms of recovery of old equipment,
you are making an important contribution to protecting our environment.
Please ask your local authority and the responsible disposal point for more
information.
Energy
Disposal

Mounting
Original Instruction manual Version V1.9 16 / 29
Könighaus- E-, M-. P-, G, GS-Series, mirror, arc
5 Mounting
You can see VIDEO TUTORIAL here:
https://www.koenighaus-heizungsmotive.de/video-instructions.html
Warning
Please read all instructions before operating the device
to prevent the risk of fire, electric shock or injury.
Our far-infrared heaters may only be used with the original suspension provided
and can be mounted. Warranty and liability for consequential damages are ex-
cluded for far-infrared heating systems used without original suspension.
5.1 General notes on mounting
Various mounting types are available for the various models. Our far infrared
heaters have certain suspension devices. These must be used for mounting.
Our series M is designated for direct installation to the power supply network.
The installation must obligatorily be carried out by a specialist. The infrared
panel for heating with remote control is designated for fixed mounting on the
ceiling and the wall.
Remove the blue transportation protective film (series E, M, with glass and a
mirror).
Make sure that the power plug is not plugged in or that the device is already
connected to the power circuit. The device may only be installed if it is not
switched on.
Under no circumstances should you drill holes in the far infrared heater. If this
happens accidentally, do not operate the device under any circumstances and
contact your dealer.
For the Konighaus E and P-Series, use the enclosed mounting template and
follow the mounting instructions to ensure easy and trouble-free installation.
If the appliance is used in children's rooms or in rooms accessible to children,
please ensure that the far infrared heater is suspended 1.20 metres above the
floor.
Distance to the rear side: Our infrared heating panels with remote control give
off convection heat to the rear side (but not infrared radiation). Nevertheless,
with a view to the ventilation make sure that the rear side of series Könighaus
M (with fixing supports) is not at a distance smaller than 25 mm from the wall.
This distance is guaranteed only when the attached fixing material for wall
mounting is used. Distance of 10 mm should be observed for series P.
Mounting on ceiling should be carried out by a specialist / electrician. The
panel does not have a plug (it is connected directly to the power supply net-
work) and must be used with a temperature regulating thermostat. At mounting
on ceiling it must be obligatorily guaranteed that the distance from the alumin-
ium cleats adds up to about 25 mm to guarantee the discharge of the hot air

Mounting
Original Instruction manual Version V1.9 17 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
behind the panel and prevent accumulation of heat. Screws with size of over
25 mm must be used for the purpose.
Distance to the front: Our far-infrared heaters emit far-infrared radiation only at
the front. Ensure that the minimum distance of approx. 50 cm to the front, 20
cm to the side and up and down is 20 cm.
When mounting in public areas, VDE 0108 must be observed.
Direct splashing of water must be avoided. In case of mounting or use in wet
rooms, the installation must always be carried out by a specialist company and
in accordance with VDE 0100 parts 701, 702 and 703.
When installing in wet rooms, care must be taken that the device cannot come
into contact with water (shower and bathtub). Do not use wet fingers.
Do not mount the heating device directly below or in front of a plug socket.
The mains plug must be accessible after installation and must be able to be
pulled out immediately if necessary.
If the remote infrared heater is to be connected to a fixed installed electrical
installation, a disconnecting device of the overvoltage category III must be pro-
vided for full disconnection. This connection work may only be carried out by a
qualified specialist.
5.1.1 Installation of the Konighaus E-Series
1) Drill the four holes into the wall according to the holding devices on the back
and then insert the enclosed dowels into the holes so that they are congruent
with the wall.
2) Then fasten the holders with a washer and screw (Series: Holder Washer
Screw)
3) Align the brackets so that they are horizontal on the wall.
4) Place the wall-mounted panel in the holder. Make sure that the panel is firmly
seated.
Indication: The installation is also valid for the old series P.

Mounting
Original Instruction manual Version V1.9 18 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
Warning / Notice
If the device is not installed properly, there are considerable dangers, such as
dangers due to electric shock or fire. For this reason, operation of devices with-
out a power plug must only be carried out by qualified specialists.
Make sure that the plug never leads upwards but always aside or downwards!

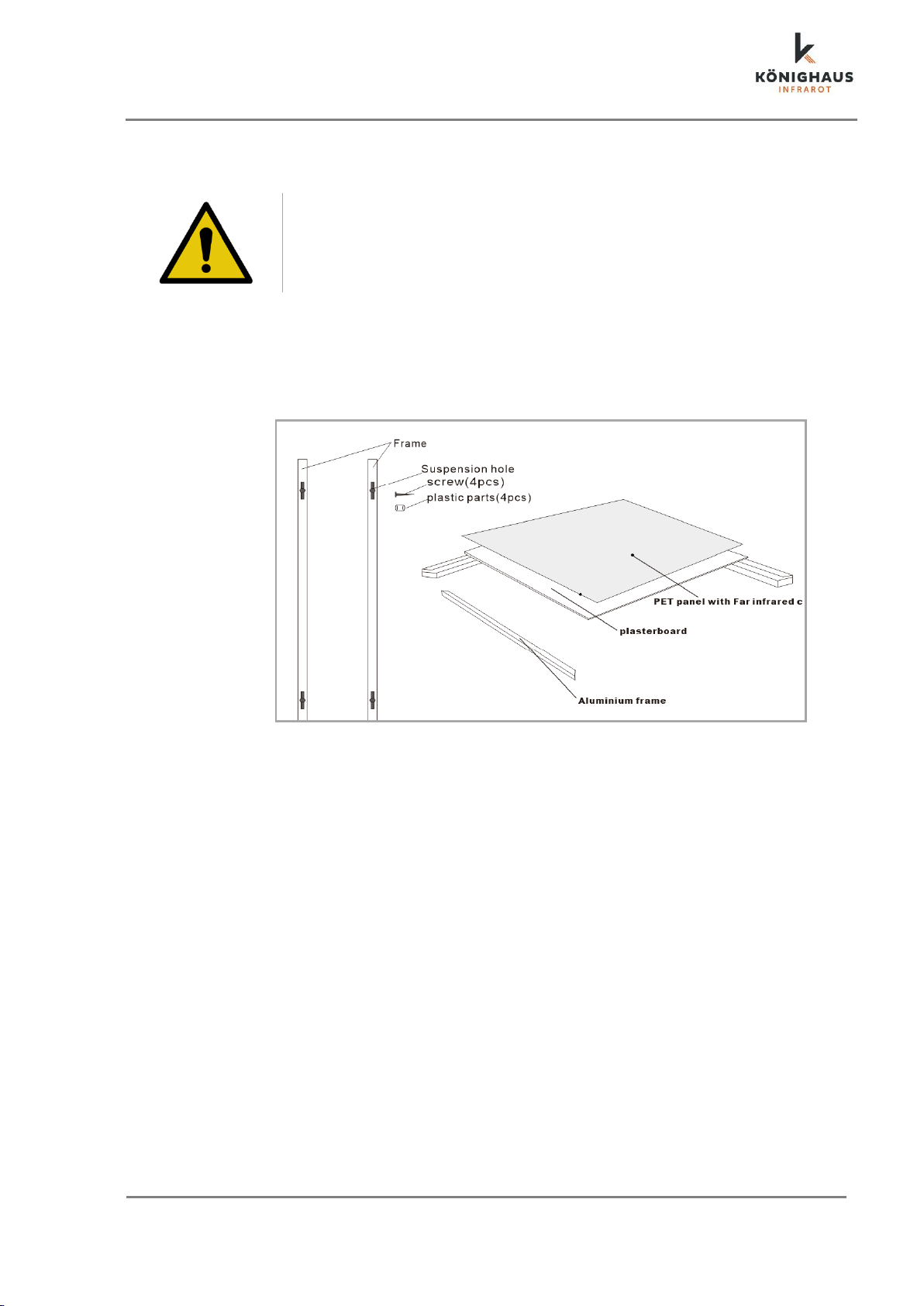

5.1.2 Installation of Konighaus P-, DL-Series, GSP 800 and GSP-1000:
Horizontal suspension:
1) Take the gauge board included in the delivery and attach it to the desired place on
the wall with the help of adhesive tape. Outline the apertures for boring and bore
holes on the four places outlined for the dowels provided.
2) Take the four plastic bolt pins (C) included in the delivery and place them on the four
screws (B) included in the delivery. They provide the safe distance between the
heating panel and the wall to avoid heat retention. There must be a little distance left
between the head of the screw and the plastic bolt pin so that the screw could be
fixed into the panel. The plastic bolt pins are respectively left in front of the suspen-
sion aperture (A) of the heating panel and provide the safe distance.
3) Bolt up the four screws (B) into the dowels / into the wall.
4) Take the heating panel and align it to the four screws (B). Carefully place the heating
panel into the four apertures (A) of the frame. After placing the heating panel into the
apertures (A), carefully align it to the right or to the left so that the heads of the
screws should be exactly behind the slots of the aperture.
5) Carefully check whether each screw lies in each aperture and you will be ready!

Mounting
Original Instruction manual Version V1.9 19 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
Vertical suspension:
1) Take the gauge board included in the delivery and attach it to the desired place on
the wall with the help of adhesive tape. Outline the apertures for boring and bore
holes on the four places outlined for the dowels provided.
2) Take the four plastic bolt pins (C) included in the delivery and place them on the four
screws (B) included in the delivery. They provide the safe distance between the heat-
ing panel and the wall to avoid heat retention. There must be a little distance left be-
tween the head of the screw and the plastic bolt pin so that the screw could be fixed
into the panel. The plastic bolt pins are respectively left in front of the suspension ap-
erture (A) of the heating panel and provide the safe distance.
3) Take the heating panel and align it to the four screws (B). Carefully place the heating
panel into the four apertures (A) of the frame. After placing the heating panel into the
apertures (A), carefully slide it into the slots so that the heads of the screws should be
exactly behind the slots of the aperture.
4) Carefully check whether each screw lies in each aperture and you will be ready!
5.1.3 Installation of Konighaus M-, G-, GS- and SP-series
The mounting is necessary for the following devices:
M-300, -360, -450, -600, -800, -1000, -1200
GS-300, -450, -600
SP-300, -450, -600
If the infrared heating with remote control is connected to a fixed electrical in-
stallation, a magnetic separator of category of overvoltage III must be antici-
pated for full separation. These connection-related works may be executed
solely by a qualified specialist.

Mounting
Original Instruction manual Version V1.9 20 / 29
Könighaus- E-, M-. P-, G, GS- Series, mirror, arc
1) Bore four holes into the wall, corresponding to the fixing devices located from
the rear side and after that insert the dowels included in the equipment into the
holes, so that the same should be aligned with the surface of the wall.
2) After that the screws are bolted up into the holes so that they should slightly
protrude out of the wall.
3) Underslung the fixing devices of the heating panel onto the screws.
5.2 Positioning
Make sure that the far infrared heater is not obstructed by cabinets, sofa or other
objects and can radiate freely inside the room. The most efficient heating output is
obtained with horizontal wall mounting. Further to that the heaters must not be
mounted against glass.
If the far infrared heater is prevented from radiating effectively into the room, a
shadow effect is spoken about. To prevent this, contact your dealer to achieve opti-
mum positioning.
5.2.1 Mounting and stand
