3.1 Weight adjustment
The anti-vibration table AV1 and AV5 can be used to hold equipment with a weight
from 15 to 72 kg. However, the table needs to be installed correctly to have the
optimal anti vibration ability.
NOTE: Before proceeding it is important that you know the exact weight (in
Kg) of the equipment, which you will place on the anti-vibration platform.
When AV1 or AV5 leaves the factory it is equipped with 3 springs and an extra
weight plate. See right column in the table below. The yellow areas indicate the
optimal working conditions for the 3 different installation methods.
Example: The total weight of equipment placed on the anti-vibration platform with 3
springs should be in the range from 45- 72 Kg.
The Anti-vibration table can be modified in 2 steps to gradually work optimal with
less heavy equipment on the platform.
Step 1: To work with equipment from 30-45 kg one spring is removed so only 2
springs are used.
NOTE: Only remove the middle spring, when needed.
Step 2: To work optimal with equipment from 15-30 kg 2 springs are installed and
an extra weight plate must be used.
2 springs and
Weight plate
2 Springs without
Weight plate
3 Springs without
Weight plate
(From factory)
Equipment
weight
Use: Deflection Frequency Deflection Frequency Deflection Frequency
Kg 2 springs
and weight
plate
mm Hz mm Hz mm Hz
15-20 15.59 3.99
20-25 18.13 3.70
25-30 19.94 3.53 15.59 3.99 10.40 4.89
30-35 2 springs
without
weight
plate
21.76 3.38 18.13 3.70 12.09 4.54
35-40 23.57 3.25 19.94 3.53 13.30 4.33
40-45 21.76 3.38 14.51 4.14
45-50 3 springs
without
weight
plate
23.57 3.25 15.71 3.98
50-55 25.38 3.13 16.92 3.83
55-60 18.13 3.70
60-65 19.34 3.59
65-70 20.55 3.48
70-72 21.76 3.38

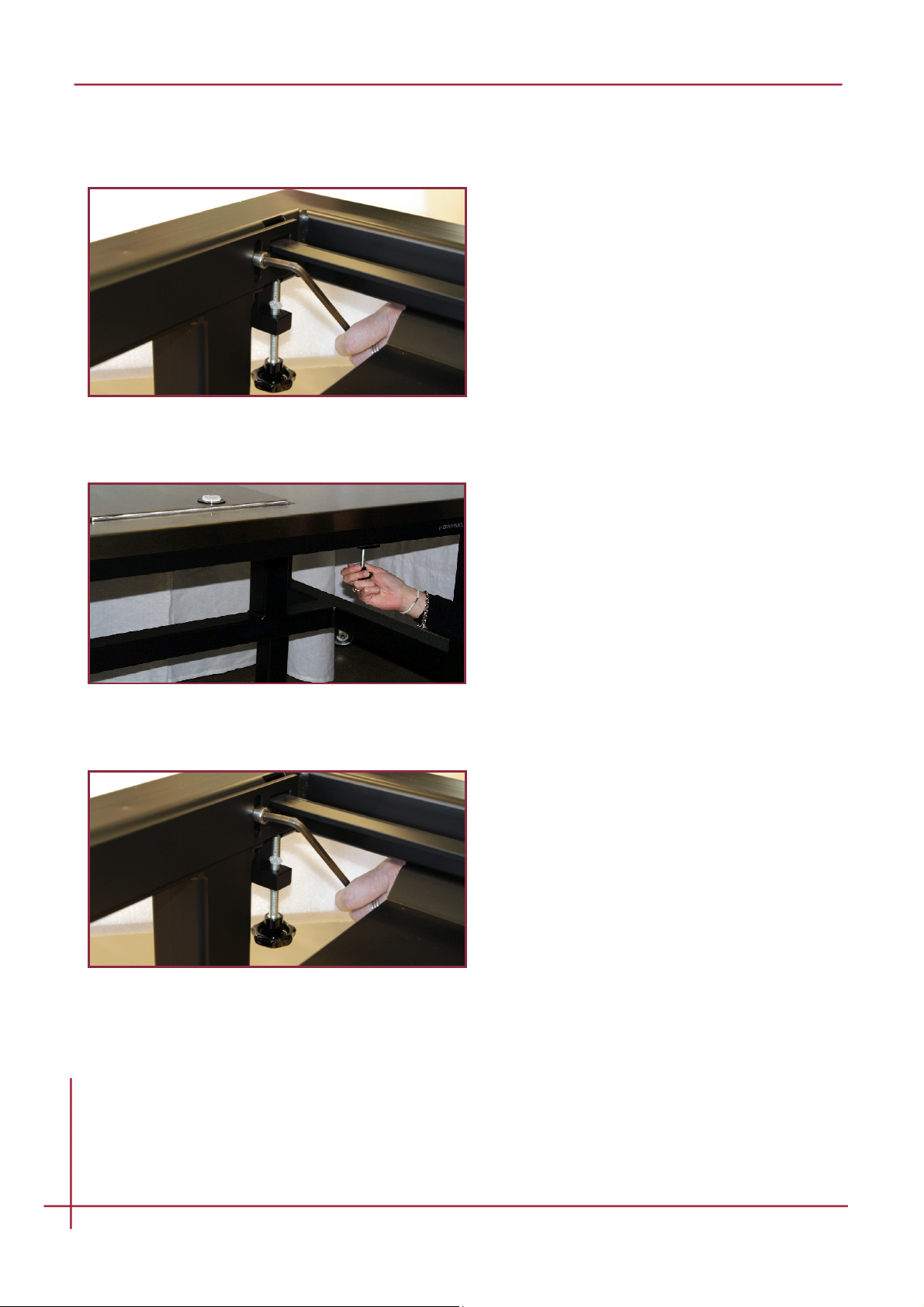

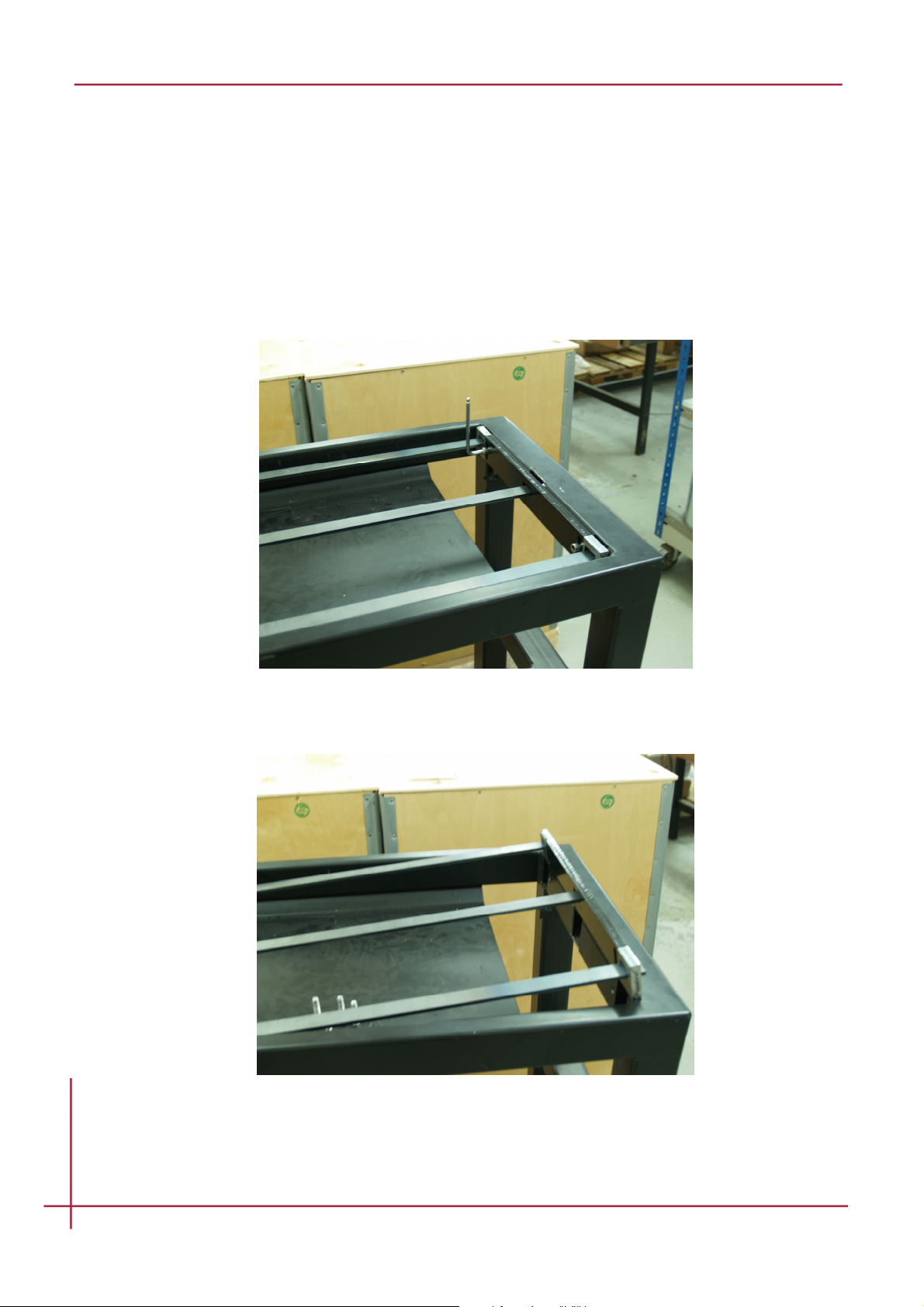

Instructions about how to remove the middle spring and how to install the extra weight
plate can be found in the following pages:
