K Tool International XD KTI62115 User manual

KTI62115 7/14/14

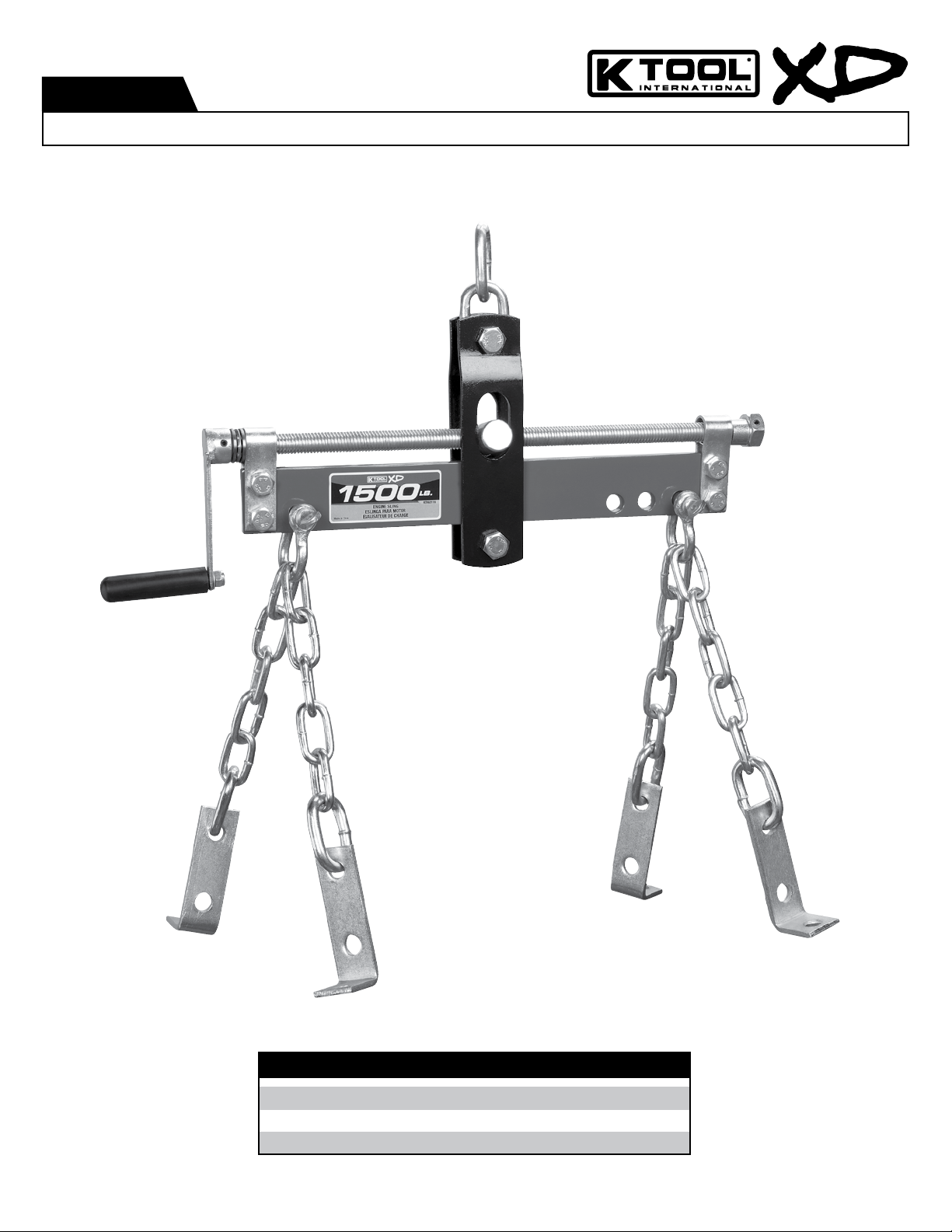

1500 LB. ENGINE SLING
OWNERS MANUAL
SPECIFICATIONS
KTI62115
Capacity ..........................................................................1500 Lbs.
Overall Length...........................................................................18"
Shipping Weight...............................................................14.3 Lbs.
Complies with ASME PALD/2009 Safety Standard

KTI62115 2 7/14/14
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
IMPORTANT: READ THESE INSTRUCTIONS BEFORE OPERATING
BEFORE USING THIS DEVICE, READ THIS MANUAL COMPLETELY AND THOROUGHLY, UNDERSTAND ITS OPERATING
PROCEDURES, SAFETY WARNINGS AND MAINTENANCE REQUIREMENTS.
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsibility of
the device owner to keep this manual intact and in a convenient location for all to see and read. If the manual or product labels are lost
or not legible, contact K-Tool International for replacements. If the operator is not uent in English, the product and safety instructions
shall be read to and discussed with the operator in the operator's native language by the purchaser/owner or his designee, making
sure that the operator comprehends its contents.
THE NATURE OF HAZARDOUS SITUATIONS
The use of portable automotive lifting and support devices is subject to certain hazards that cannot be prevented by mechanical
means, but only by the exercise of intelligence, care, and common sense. It is therefore essential to have owners and personnel
involved in the use and operation of the equipment who are careful, competent, trained, and qualied in the safe operation of
the equipment and its proper use. Examples of hazards are dropping, tipping or slipping of loads caused primarily by improperly
secured loads, overloading, off-centered loads, use on other than hard level surfaces, and using equipment for a purpose for
which it was not designed.
METHODS TO AVOID HAZARDOUS SITUATIONS
 • Read,study,understandandfollowallinstructionsbeforeoperatingthisdevice.
 •
Inspect before each use. Do not use if damaged, altered, modied, in poor condition, or has loose or missing hardware or
components. Take corrective action before using.
 • Thisdeviceisnotdesignedforoverheadliftingapplications.Stayoutfromunderaloadbeingliftedorsuspended.
 • Donotexceedratedcapacity.
 • Donotspreadtheloadbearingchainsmorethanatotalof90°.
 • Assureloadissecuredtothedevice.
 • Attachallfourchainstotheloadbeinglifted.
 • WeareyeprotectionthatmeetsANSIZ87.1requirementsandOSHAstandards(usersandbystanders).
 • Noalterationsshallbemadetothisdevice.
 • ThisproductmaycontainoneormorechemicalsknowntotheStateofCaliforniatocausecancerandbirthdefectsorother
reproductive harm. Wash hands thoroughly after handling.
 • Failuretoheedthesewarningsmayresultinpersonalinjuryand/orpropertydamage.
CONSEQUENCES OF NOT AVOIDING HAZARDOUS SITUATIONS
Failuretoreadthismanualcompletelyandthoroughly,failuretounderstanditsOPERATINGINSTRUCTIONS,SAFETYWARNINGS,
MAINTENANCEINSTRUCTIONSandcomplywiththem,andfailuretocomplywiththeMETHODSTOAVOIDHAZARDOUS
SITUATIONScouldcauseaccidentsresultinginseriousorfatalpersonalinjuryand/orpropertydamage.
WARNING:Indicatesahazardoussituation
which, if not avoided, could result in death
or serious injury.
WARNING
WARNING
WARNING
WARNING
WARNING INFORMATION

KTI62115 3 7/14/14
OPERATING INSTRUCTIONS
   ThisisthesafetyalertsymbolusedfortheOPERATINGINSTRUCTIONSsectionofthismanualtoalertyoutopotential
personal injury hazards. Obey all instructions to avoid possible injury or death.
TheEngineSlingisdesignedtobeusedwithaportableshopcranetohandleandpositionenginesandotherlargevehicle
components. The drive screw adjusts the sling's lift point in relation to the mounting chains to compensate for off-center loads,
or adjusts to a certain angle for component removal or installation.
1. Attachtheshopcrane'shookorattachmentdevicetotheovallinkatthetopofthesling'sliftingblock.Makesuretheconnection
is secure.
2. Lift only on the areas of the engine or component as specied by the vehicle manufacturer. Make sure that all four chains are
securely fastened to the load.
3. Before lifting make sure that all fuel and electrical lines and components are clear of the load.
4. Lift the load just high enough to locate the center of balance or the desired angle in which the load can be removed. This
adjustment is accomplished by turning the sling's drive screw in a clockwise or counterclockwise rotation.
PREVENTATIVE MAINTENANCE
ThisisthesafetyalertsymbolusedforthePREVENTATIVEMAINTENANCEsectionofthismanualtoalertyouto
potential personal injury hazards. Obey all instructions to avoid possible injury or death.
1. AlwaysstoretheEngineSlinginawellprotectedareawhereitwillnotbeexposedtoinclementweather,corrosivevapors,
 abrasivedust,oranyotherharmfulelements.TheEngineSlingmustbecleanedofwater,snow,sand,grit,oil,greaseorother
foreign matter before using.
2. TheEngineSlingmustbelubricatedperiodicallyinordertopreventprematurewearingofparts.Ageneralpurposegreasemustbe
applied to the threads on the screw.
3. EveryEngineSlingownerisresponsibleforkeepingitslabelcleanandreadable.
4. Do not attempt to make any repairs unless you are a qualied repair person that is familiar with this equipment.
Important:AnyEngineSlingfoundtobedefectiveasaresultofwornpartsduetolackoflubricationisnoteligibleforwarranty
consideration.
K-Tool International warrants that all jacks and service-related equipment will be free from defects in material and workmanship for a
period of 2 years following the original date of purchase. This warranty is extended to the original retail purchaser only. If any jack or
service-related item proves to be defective during this period, it will be replaced or repaired, at K-Tool International’s option, without
charge. This warranty does not apply to damage from accident, overload, misuse or abuse, nor does it apply to any equipment which
has been altered or used with special attachments other than those recommended. This warranty does not cover repairs made by
anyonewhoisnotaK-ToolInternationalProfessionalLiftingEquipmentAuthorizedRepairCenter.
AllHDandXDjacksorservice-relatedequipmentwillbereplacedorrepairedatK-ToolInternational’soptionduringthe2yearwarranty
period.
During the 2 year warranty period, all alleged defective products must be shipped, freight prepaid, along with proof of date-of-purchase,
to your nearest K-Tool International Professional Lifting Equipment Authorized Warranty Center. Be certain to include your name,
address and phone number along with proof-of-purchase information, and a brief description of the alleged defect. The product will be
returned to the customer, freight prepaid.
ManyallegeddefectivesmaysimplybehandledbycallingyournearestServiceCenterforparts.Seepages13-15foralistingof
authorized warranty service centers.
In no event shall K-Tool International be liable for incidental or consequential damages. The liability on any claim for loss or damage
arisingoutofthesale,resaleoruseofajackorrelatedserviceequipment,shallinnoeventexceedthepurchaseprice.SOMESTATES
DONOTALLOWTHEEXCLUSIONORLIMITATIONOFINCIDENTALORCONSEQUENTIALDAMAGES,SOTHEABOVELIMITATION
MAYNOTAPPLYTOYOU.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED IN CONNECTION WITH THE SALE OF K-TOOL
INTERNATIONALPROFESSIONALLIFTINGEQUIPMENT.ALLOTHERWARRANTIES,INCLUDINGANYIMPLIEDWARRANTIESOF
MERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE,AREEXCLUDED.
THISWARRANTYGIVESYOUSPECIFICLEGALRIGHTSANDYOUMAYALSOHAVEOTHERRIGHTSWHICHVARYFROMSTATE
TOSTATE.
WARRANTy HANDlING PROCEDURES AND GUIDElINES FOR HD AND xD lIFTING EQUIPMENT

KTI62115 4 7/14/14
1500 LB. ENGINE SLING

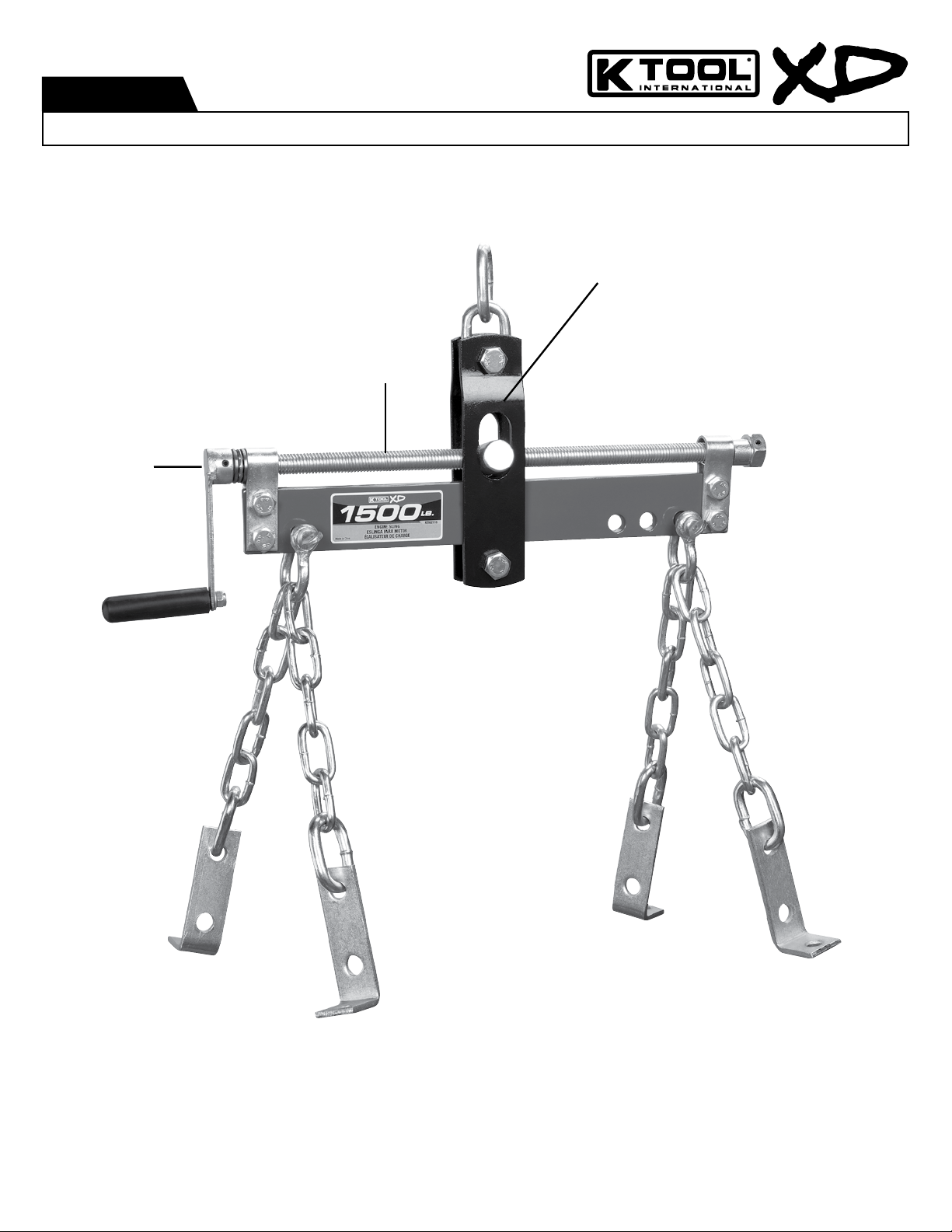

PARTS BREAKDOWN
KTI62115
Worm Shaft
Fulcrum
Hex
Adjusting
Nut
NOTE:eachreplacementchainavailableseparatelyasPart#KTP62115C
ProductLabelKitavailableasPart#KTP62115LK

KTI62115 5 7/14/14
ESLINGA PARA MOTOR DE 1500 LIBRAS
MANUAL DEL PROPIETARIO
KTI62115
ESPECIFICACIONES
Capacidad .......................................................................1500 Lbs.
Longitud global .........................................................................18"
Peso de embarque...........................................................14.3 Lbs.
Cumple con las Normas de Seguridad/ASME PALD-2009
