Kaboodle W-50553 User manual

Hardware included
C DBA
p. 1Ver. 3
W-50553
Tools you will need
To put your kaboodle kitchen waste bins together you will need the following tools.
Safety
gear
Tape
measure Pencil Utility knife
Follow these
instructions to
install your parts
and accessories.
Things you need to know
• Always read the full instructions prior to installation.
• Consider possible obstructions to your parts & accessories,
like hinges inside the cabinet or adjacent cabinet doors and
handles, prior to installation.
• Make sure you leave plumbing and electrical work
to qualified trades people. Never try this yourself.
• Make sure you always use safety gear like a mask, ear muffs
and glasses when using tools.
• Tip: After marking out the pre-drill holes as per the
instructions, take the part that is to be installed and align
the appropriate holes with the markings to ensure they
match up prior to pre-drilling the holes.
• If you have any questions, contact us on:
Australia: 1800 666 078 Monday to Friday between
8:00am and 6:00pm AEST, New Zealand: 0800 522 663
Monday to Friday between 8:00am and 5:00pm NZST
or email: [e-mail].

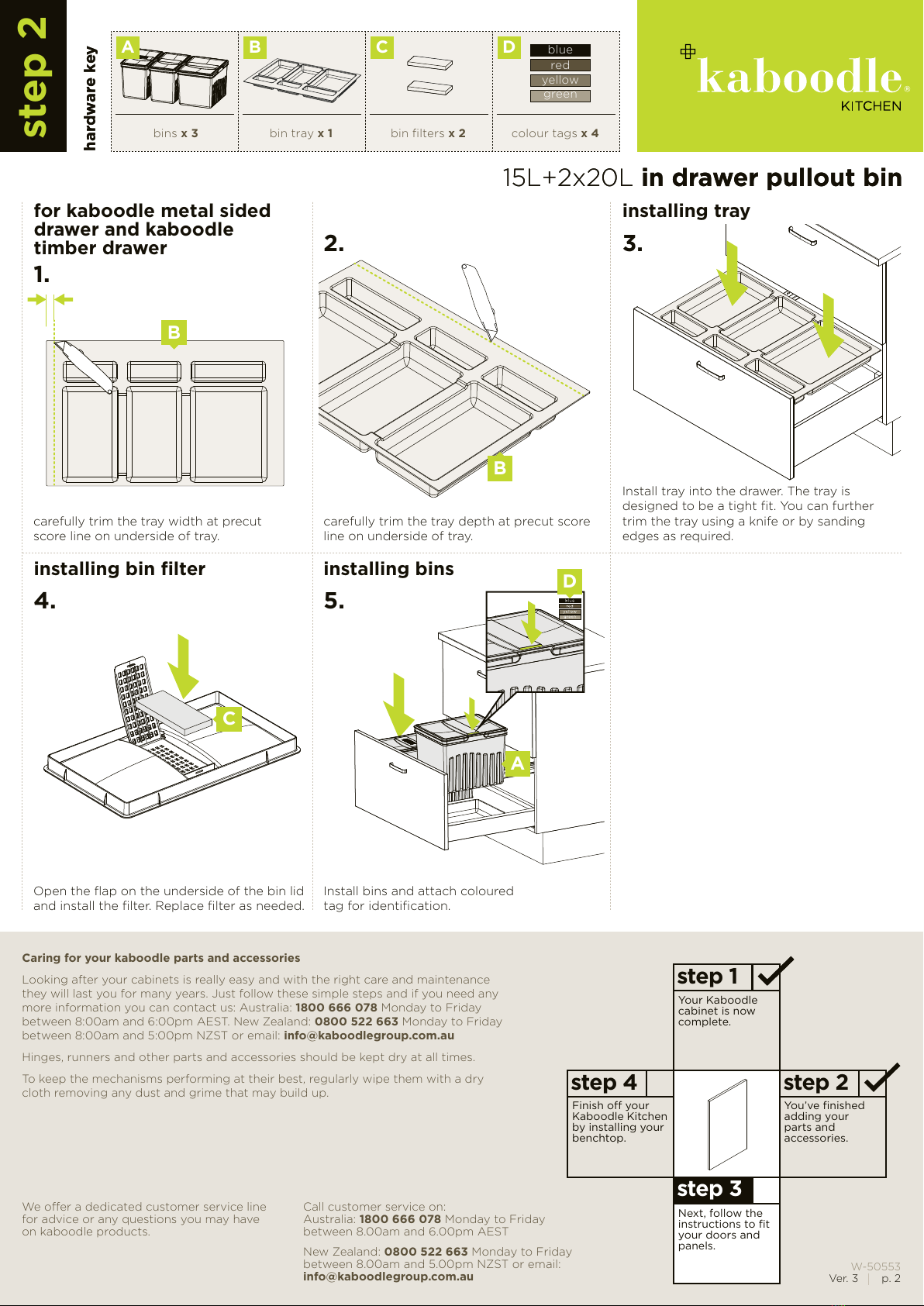

15L+2x20L in drawer pullout bin
step 2
3 bins
1x15L & 2 x 20L colour tags x 4
blue
red
yellow
green
bin tray x 1 bin filters x 2
installation guide

step 1
step 2
step 3
step 4
15L+2x20L in drawer pullout bin15L+2x20L in drawer pullout bin
A
B
step 2
hardware key
1.
5.4.
installing bin filter installing bins
3.2.
installing tray
Install tray into the drawer. The tray is
designed to be a tight fit. You can further
trim the tray using a knife or by sanding
edges as required.
Install bins and attach coloured
tag for identification.
carefully trim the tray depth at precut score
line on underside of tray.
Open the flap on the underside of the bin lid
and install the filter. Replace filter as needed.
carefully trim the tray width at precut
score line on underside of tray.
hardware key
bins x 3 bin filters x 2bin tray x 1
A C
colour tags x 4
DB
C
B
D
Caring for your kaboodle parts and accessories
Looking after your cabinets is really easy and with the right care and maintenance
they will last you for many years. Just follow these simple steps and if you need any
more information you can contact us: Australia: 1800 666 078 Monday to Friday
between 8:00am and 6:00pm AEST. New Zealand: 0800 522 663 Monday to Friday
between 8:00am and 5:00pm NZST or email: [e-mail]
Hinges, runners and other parts and accessories should be kept dry at all times.
To keep the mechanisms performing at their best, regularly wipe them with a dry
cloth removing any dust and grime that may build up.
We offer a dedicated customer service line
for advice or any questions you may have
on kaboodle products.
Call customer service on:
Australia: 1800 666 078 Monday to Friday
between 8.00am and 6.00pm AEST
New Zealand: 0800 522 663 Monday to Friday
between 8.00am and 5.00pm NZST or email:
[e-mail] W-50553
Ver. 3 p. 2
Your Kaboodle
cabinet is now
complete.
You’ve finished
adding your
parts and
accessories.
Finish off your
Kaboodle Kitchen
by installing your
benchtop.
Next, follow the
instructions to fit
your doors and
panels.
blue
red
yellow
green
for kaboodle metal sided
drawer and kaboodle
timber drawer
