Kaboodle W-50529 User manual

E F
Hardware included
C DBA
p. 1Ver. 3
W-50529
Tools you will need
To put your kaboodle kitchen waste bins together you will need the following tools.
Cordless drill with:
• Number 2 screw tip
• 2mm drill bit
Tape
measure
Adjustable
square
Spirit level
(optional)
Screw
driver
Safety
gearPencil
Follow these
instructions to
install your parts
and accessories.
Things you need to know
• Always read the full instructions prior to installation.
• Consider possible obstructions to your parts & accessories,
like hinges inside the cabinet or adjacent cabinet doors and
handles, prior to installation.
• Make sure you leave plumbing and electrical work
to qualified trades people. Never try this yourself.
• Make sure you always use safety gear like a mask, ear muffs
and glasses when using tools.
• Tip: After marking out the pre-drill holes as per the
instructions, take the part that is to be installed and align
the appropriate holes with the markings to ensure they
match up prior to pre-drilling the holes.
• If you have any questions, contact us on:
Australia: 1800 666 078 Monday to Friday between
8:00am and 6:00pm AEST, New Zealand: 0800 522 663
Monday to Friday between 8:00am and 5:00pm NZST
or email: [e-mail].
4x17L base mount pullout bin
step 2
bin
frame x 1
16mm
wood screws x 16
brackets x 4 25mm
wood screws x 6
installation guide
KA4 65mm
screws x 4 stabilisers x 4

hardware key
AA B C D
centre line
320mm
335mm±5mm
front of base cabinet
C
D
B
centre hole
centre hole
step 2
p. 2Ver. 3
W-50529
1.
brackets 25mm
wood screw
16mm
wood screw
bin frame
pre-drilling bracketsmeasuring up for brackets
1.
2.
2.
4x17L base mount pullout bin
On the base of the cabinet mark out a parallel line in the middle
of the cabinet. Then mark out 160mm from the centre line both
ways. Lastly, mark out a line 97mm from the front edge of the
cabinet as pictured above.
Further secure the bin frame and the brackets to the cabinet
using 16 X 16mm wood screws (D) as pictured above.
securing frame and brackets
Align the bin frame (A) and the brackets (B) with the pre-drilled
holes as pictured above and fix through the centre hole to the
cabinet using 6x25mm wood screws (C).
D
82mm +/- 1mm
82mm +/- 1mm
335mm±5mm
Pre-drill a hole, using a 2mm drill bit to a depth of roughly
2.5mm, where the lines cross.
C
C
B

step 1
step 2
step 3
step 4
Next, follow the
instructions to fit
your doors and
panels.
Finish off your
Kaboodle Kitchen
by installing your
benchtop.
You’ve finished
adding your
parts and
accessories.
Your Kaboodle
cabinet is now
complete.
1. 1.

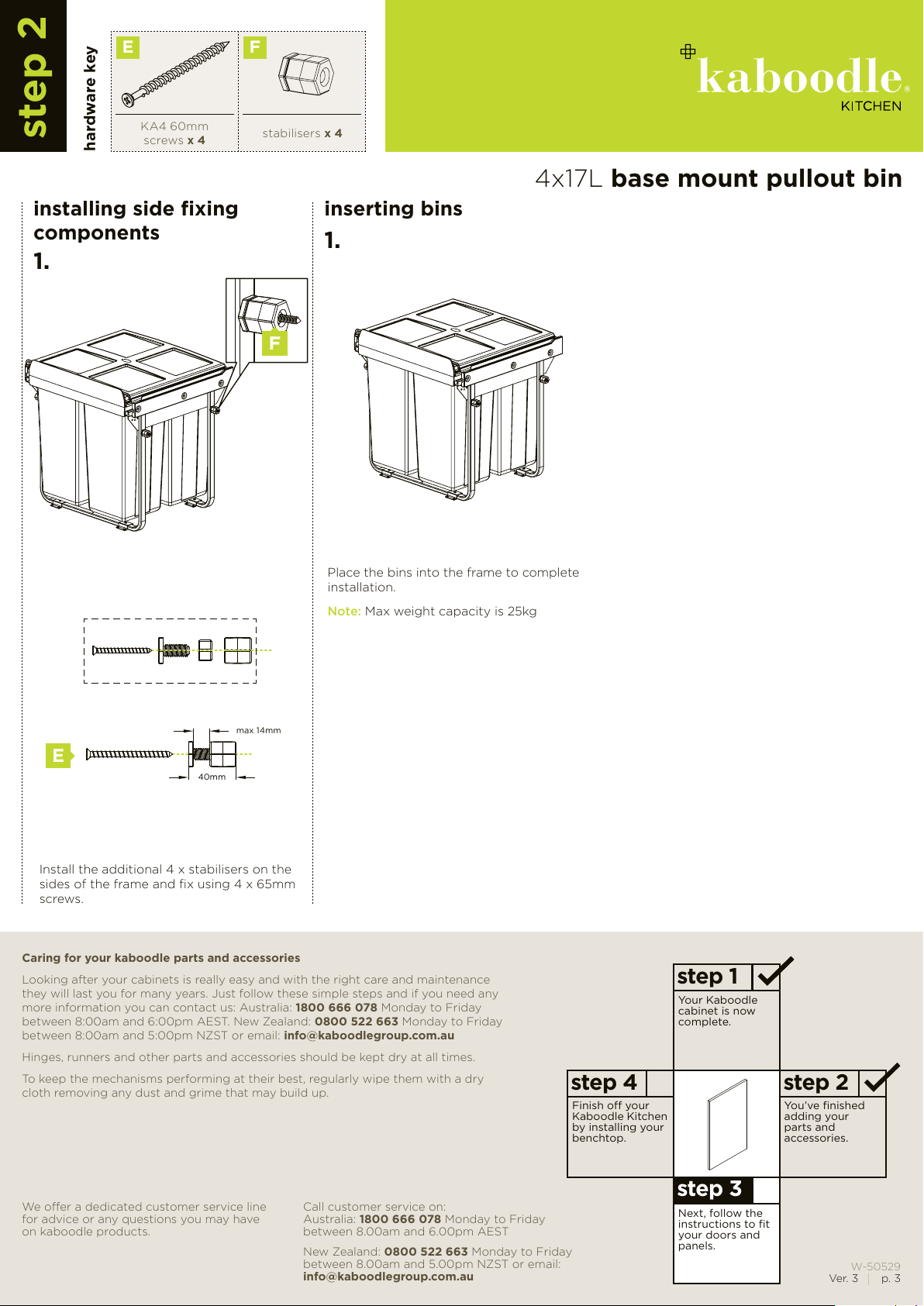

installing side fixing
components
inserting bins
max 14mm
40mm
max 14mm
40mm
E F
hardware key
KA4 60mm
screws x 4 stabilisers x 4
step 2
We offer a dedicated customer service line
for advice or any questions you may have
on kaboodle products.
Call customer service on:
Australia: 1800 666 078 Monday to Friday
between 8.00am and 6.00pm AEST
New Zealand: 0800 522 663 Monday to Friday
between 8.00am and 5.00pm NZST or email:
[e-mail] p. 3Ver. 3
W-50529
Caring for your kaboodle parts and accessories
Looking after your cabinets is really easy and with the right care and maintenance
they will last you for many years. Just follow these simple steps and if you need any
more information you can contact us: Australia: 1800 666 078 Monday to Friday
between 8:00am and 6:00pm AEST. New Zealand: 0800 522 663 Monday to Friday
between 8:00am and 5:00pm NZST or email: [e-mail]
Hinges, runners and other parts and accessories should be kept dry at all times.
To keep the mechanisms performing at their best, regularly wipe them with a dry
cloth removing any dust and grime that may build up.
4x17L base mount pullout bin
Place the bins into the frame to complete
installation.
Note: Max weight capacity is 25kg
Install the additional 4 x stabilisers on the
sides of the frame and fix using 4 x 65mm
screws.
E
F
