Precaution before use
Notes
Hardware Parameter
Vocabulary
After Services
Usage of player
Connection
TV connection/07 Amplifier connection/08
Network connection/10 Install hard disk/10
Products Introduction
RC photo/04 Front panel/05
Left panel/06Back panel/05
Right panel/06
Main function and Accessories
Powerful codec/01 Rich interfaces/01
Packing list/01
Update instruction/18
Network share/19-20 Others /21-22
Setup/11-17

★To prevent fire, electronic shock and damage of product, please do not let the player come
into contact with fain, moisture or liquid. Do not put vases or other water containers on the
player.
★To ensure good ventilation, please do not put the player in bookcases, cabinet or other
confined places. Keep well-ventilated to prevent fire or electronic shock caused by overheat
of the player.
★Keep the lighted candle and other lighted subjects away from the player.
★Please do not open the case of the player. Only the specialist is allowed to do this
Placing
Please place the player on a flat area and keep it away from the sunlight and avoid heat,
humidity and frequent shake. Otherwise it would damage the case and other components of
the player and shorten the service life of the player.
For the best performance of the player, please do not place heavy subjects on the player and
keep it at least 15cm away from the wall.
Power
Do not use over-voltage, otherwise the player would be damaged and might cause fire.
Please connect the powerline correctly and make sure the cable is not damaged.
Please unplug the power cord if you do not use the player for a long time to prevent damage
caused by the thunder.
Clearing
Please unplug the power cord before cleaning the player. Please use a slightly-wet
rag to clean the player instead of liquid detergent. Do not use solvents like gas,
because this might damage the case of the player.
01

Please keep the player away from any humid places, like basement. Condensation
of moisture might cause damage to the player. In case of this, please turn on the
player and the heat of the player can drive the humidity away.
About the user manual
Please read the user manual carefully and keep the manual in safe place
for use. The picture in this user manual might be different with the
pictures shown on the TV. This might be caused by the different version
of the software.
Service
Please do not try to repair the player by yourself. Unauthorized repair might cause
dlectronic shock or damage of the player. If cases below appear, please contact your
local distributor or the repair centre.
A.Unnormal picture or audio output
B.The AC adaptor or the power cord is damaged
C.Liquid or other things enter the inner parts of the player
D.The player comes into contact with rain or other liquid
E.The player is dropped or damaged by any other reason
F.The player operates anomalously
If any of the components needs to be replaced, please make sure the same and autho-
rized components is used. Otherwise it might cause fire, electronic shock or other
damages
02 03
Moisture-proof

Product introduction
OFF/ON
CVBS
FL/FR
OPTICAL
RESET
YPBPR
HDMI
LAN
USB-PC
1 2 3
4
12
11
12
105 6
7
8 9
12V
2
COAXIAL
IMS
IMS
04 05
POWER
7
1 3
2 4
4

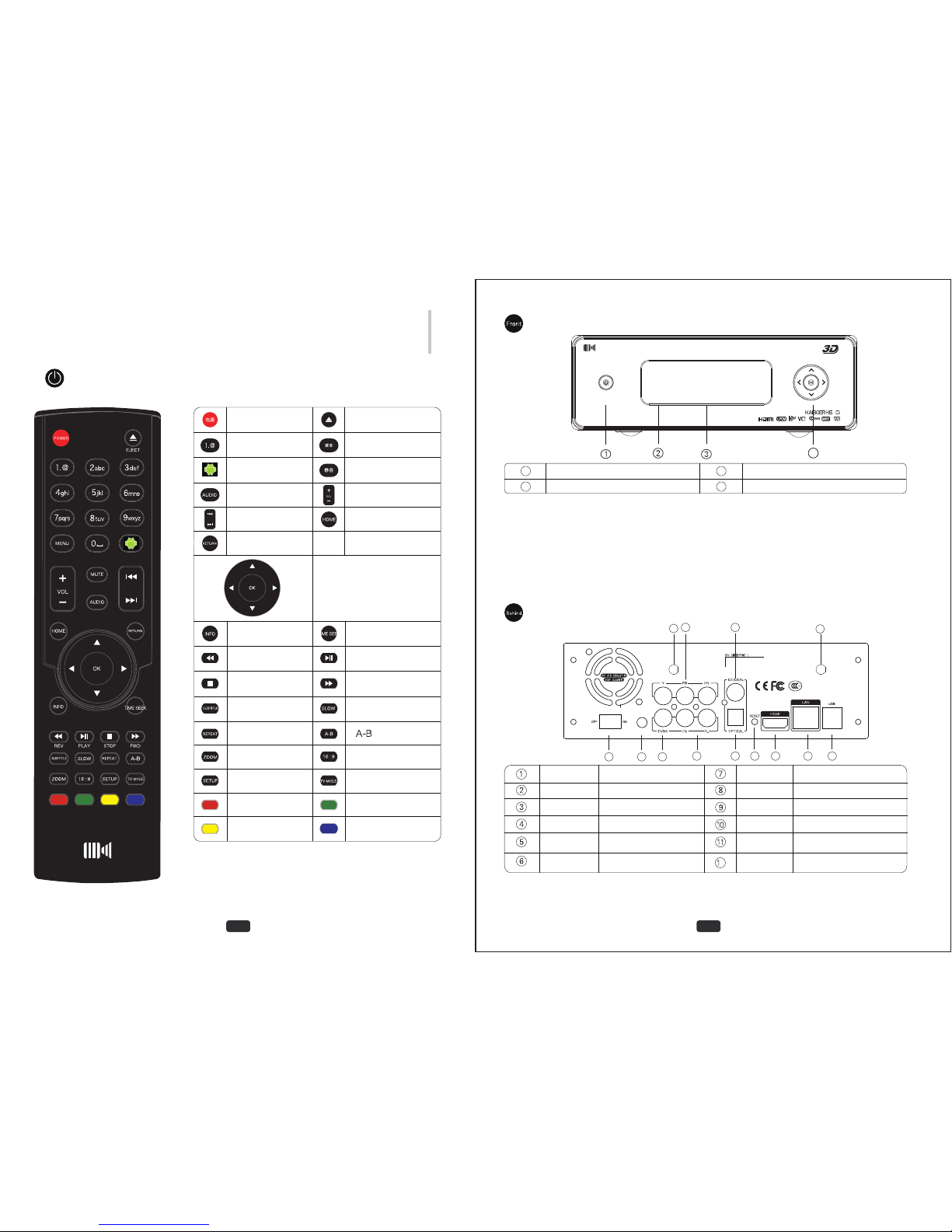

Remote control
EJECT
POWER
NUMBER MENU
ANDROID MUTE
RETURN
HOME
AUDIO
INFO TIME SEEK
REV PLAY/PAUSE
STOP FWD
SUBTITLE SLOW
REPEAT
ZOOM PROPORTION
SETUP TV MODE
VOL+/-
NEXT/LAST
Front panel
POWER LED screen
Signal receiver left/right/up/down/ok
Notice:
1.Please do not cover the remote control signal receiver.
2.Please do not put heavy subject or other liquid containers on the player.
3.Reboot the player again, pls wait 10 mins.
Rear panel
Antenna
Notice: When player is on, pls don’t remove the HDMI cable.

CVBS
YPbPr
HDMI
Connection
高清晰度：
标准清晰度：
高清晰度：
标准清晰度：
标准清晰度：
06 07
Left panel
4*USB interface
Right panel
Built in 3.5” hard disk
TV connection
HDMI connection
HDMI can transfer video and audio signal at the
same time.Max definition up to 1080p and lossless
audio signal, 7.1 channels
TV
YPbPr and Composite connection
If there is no HDMI interfaces on your TV, please
connect via YPbPr interface. Connect the YPbPr
cable to the player and TV respectively according to
the color:Red,Green,Blue.
Green Blue Red
Green Blue Red
Not standard accesories

HDMI
Audio
COAXIAL/
OPTICAL
COAXIAL
HDMI
FL FR
OPTICAL
08
09
Amplifier connection
Three audio connect interfaces
High definition multimedia
interface
Coaxial/optical
FL/FR
Supports 7.1 audio system
Supports 5.1 audio system
Supports 2.1 audio system
HDMI connection indicating diagram
Coaxial and Optical connection
indicating diagram
Optical
Coaxial
FL/FR connection indicating
diagram
Red White
Red White

Setup
Menu Description
File manage Manage the file of the player
Media center Play movies, music and view photo
Network Online videos
Android Android 2.2
Setup Setting of audio, video and player
Note: The models of different version of firmware might be a little different.
11
10
Network Connection
With gigabit lan, you can connect the player to
the network in your home and visit the
computer and NAS.
There are 2 ways to connect to the internet.
Modem
Internet
Wifi
The player has been built in wifi, convenient for clients contact wifi modem.

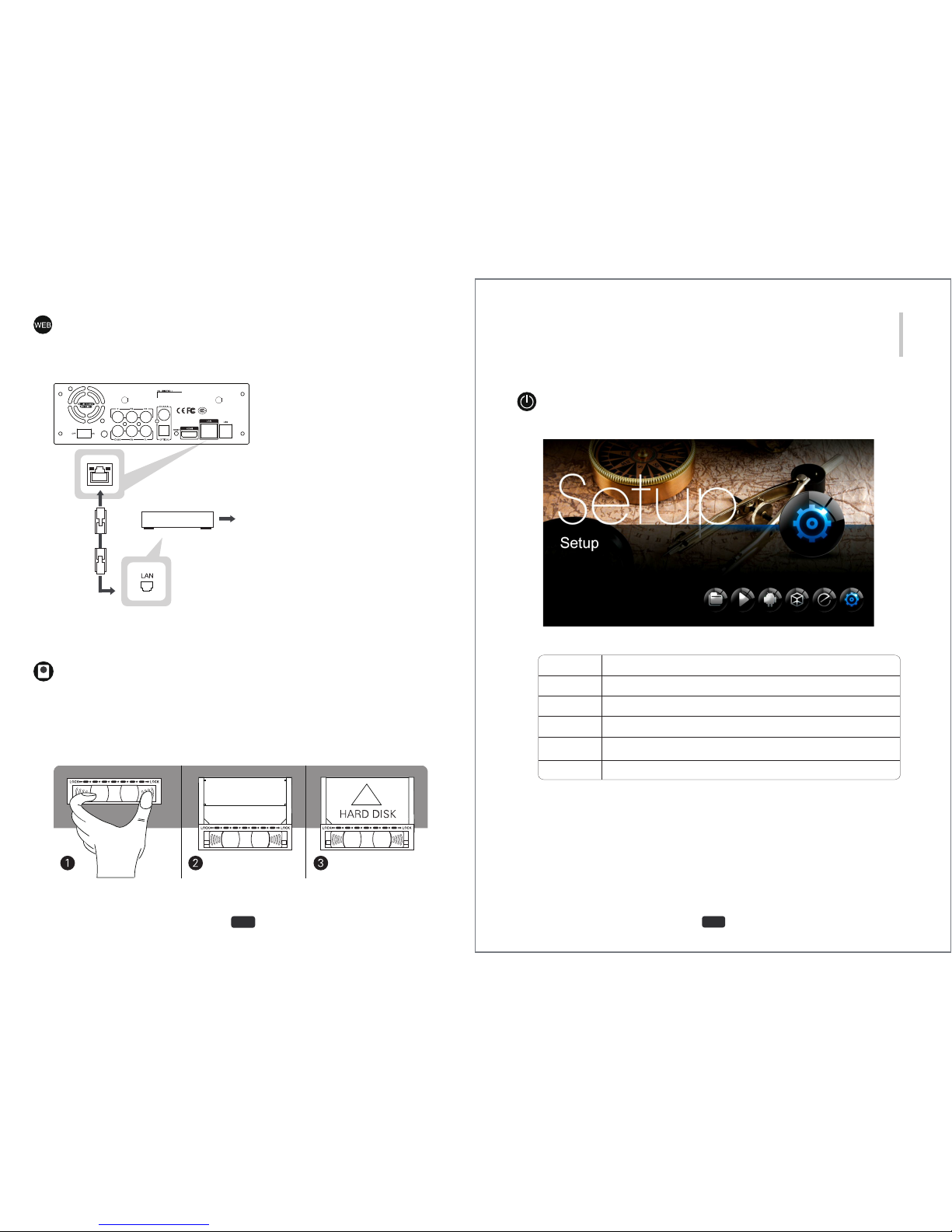

Install the HDD
The player can install a 3.5” HDD.
Notice:please turn off the player before installing a HDD.
Open the HDD bay cover and put HDD into the bay gently, then install it.
Main Memu
Set up

DLNA DMR
12 13
System
Language
Text Encoding
R/RW auto-player
Screen Saver
Support to choose the start-up time
Mini Keyboard for name the device
Support Chinese and English
Scan Storage
Resume Play
Format
Format screen
BD Menu
Choose “on/off”
Choose “on/off”
Choose “on/off”

1080P 24HZ
Support Auto/12bit/10bit/off
Deep Color
Support Auto,PAL,NTSC,480I50HZ,
480I60HZ,480P50HZ,480P60HZ,
576I50HZ,576I60HZ,576P50HZ,
576P60HZ,720I50HZ,720I60HZ,
720P50HZ,720P60HZ,1080I50HZ,
1080I60HZ,1080P 50HZ,
1080P 60HZ.
Support Pan scan4:3/Letter Box 4:3/16：9/16：10
14 15
Seamless Playback
Choose “on/off”
Factory Default

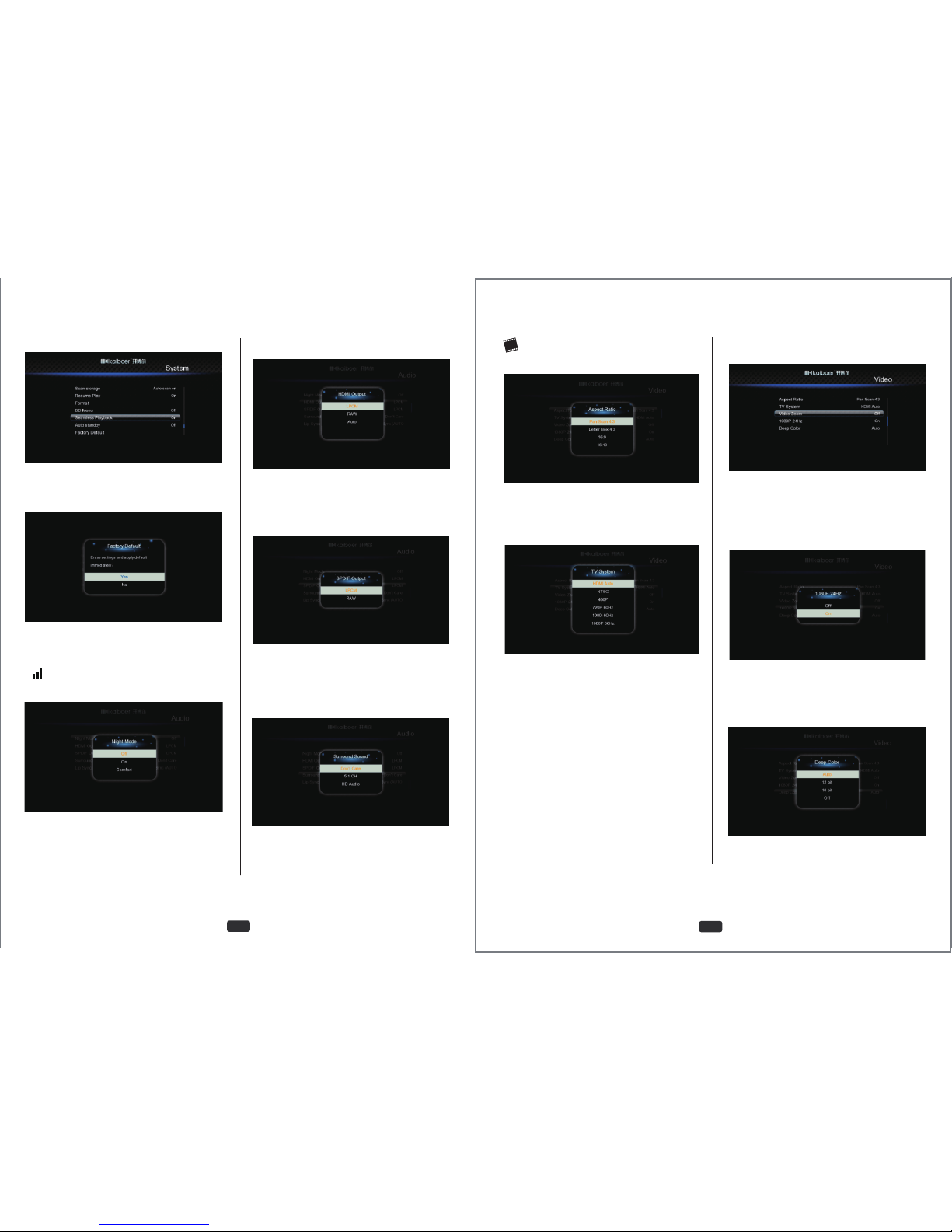

Audio Set-up
Night Mode
HDMI output
SPDIF Output
Surround Sound
Video
Aspect Ratio
TV System
Video Zoom
Choose “on/off”

网路资讯
1）通过网线连接路由器。
2）设置菜单-网络-PPPOE拔号，输入用户名及密
码，按OK连接。每一次启动
K670i都必须按
此按钮连接，
K670i无手动断线功能，如果需
要断线，必须关机。
16 17

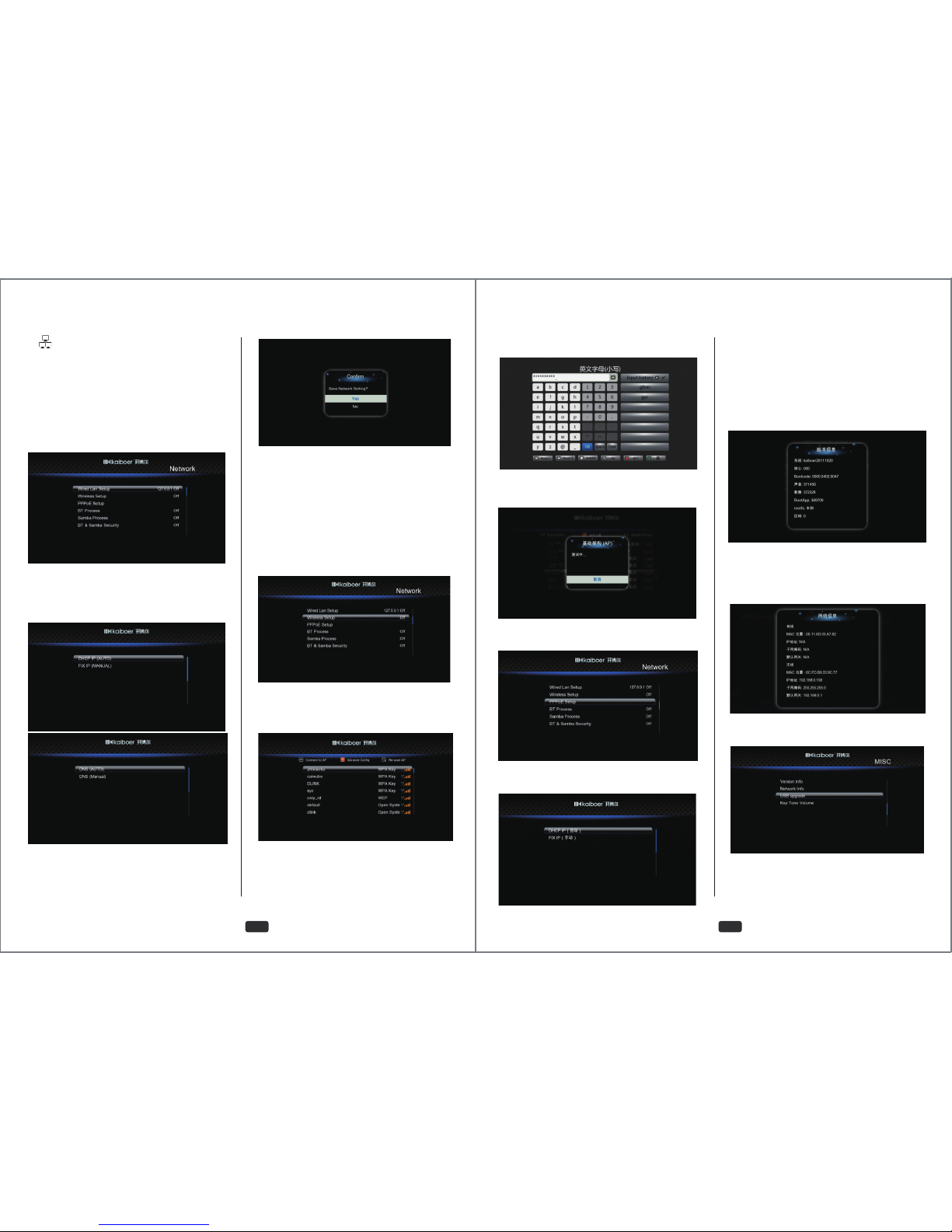

Network
Wired Lan Setup
1) Connect Router
2)Turn on DHCP of Router, k670i will get IP address
automatically.
Turn on player-enter “system”-Network-Wired Lan
Setup(below)
Choose DHCP IP(auto)-DNS(auto)-Save network
setting?-Yes-Testing-Ok. It will show IP address, such
as:192.168.xxx.xxx, Submask:255.255.255.0
Wireless Lan Setup
Turn on player, player will search wifi atutomatically.
Click “Zoom” button to search wifi signal-choose the
suitable one-click “ok” button-Test-then connect
sucessfully.
Turn on player-enter “system”-Network-Wireless Lan
Setup(below)
Click “Zoom” to search the network
Input your key of wifi to connect.
Testing
PPPOE
To connect wired and wireless
USB update

18 19
Use Features
File Manage
Copy,delete,remove,rename the sources in
device.
Media Center
Movie
Music
Premium App
Android
Android 2.2 OS, supporting many
apps.(Need extra mouse and keyboard).
“Info” button
Click INFO button to check movie’s
name, audio, chapter, volume, playback
time, etc.
“AUDIO ” button
“Subtitle” button
