KAIROS MSW115 User manual

User manual - Mechanical smart watch
Page 1 of 12
MECHANICAL SMART WATCH HYBRID
User Guide
Revision 1-2
For KAIROS Watches
C O N F I D E N T I A L

User manual - Mechanical smart watch
Page 2 of 12
Revision History
Revision
Date (D/M/Y)
Author
Reviewed by
Approved by
Comments and Changes
1-0
11-12-2015
Gaurang Patel
Jigar Patel
Initial Release
1-1
17-09-2016
Nilesh Mittaliya
Jigar Patel
Minor modification as
per firmware upgrade
1-2
12-10-2016
Nilesh Mittaliya
Jigar Patel
Battery charging
troubleshoot 2.14
FCC statement added
2.15

User manual - Mechanical smart watch
Page 3 of 12
Table of Contents
Table of Contents ........................................................................................................................................................ 3
List of Figures............................................................................................................................................................... 3
List of Tables................................................................................................................................................................ 3
1. Introduction..................................................................................................................................................... 4
1.1. Document Purpose...................................................................................................................................... 4
1.2. Intended Readership ................................................................................................................................... 4
1.3. Abbreviations .............................................................................................................................................. 5
1.4. Open Items .................................................................................................................................................. 5
2. Common setting .............................................................................................................................................. 6
2.1. NAVIGATING MENUS................................................................................................................................... 6
2.2. PAIRING WITH A MOBILE DEVICE................................................................................................................ 7
2.3. TURNING BLUETOOTH ON/OFF................................................................................................................... 7
2.4. SWITCHING TO DO-NOT-DISTURB (DND) MODE......................................................................................... 7
2.5. TURNING VIBRATION ON/OFF..................................................................................................................... 7
2.6. CHANGING THE DEFAULT STANDBY TIME................................................................................................... 8
2.7. SHUTTING DOWN THE WATCH ................................................................................................................... 8
2.8. RETURN TO FACTORY SETTINGS.................................................................................................................. 8
2.9. BOOTING FAILSAFE FIRMWARE (FSFW) ...................................................................................................... 8
2.10. UPGRADING FIRMWARE ............................................................................................................................. 8
2.11. WHY DOESN'T MY WATCH SHOW ANY NOTIFICATIONS?........................................................................... 8
2.12. WHY IS MY BATTERY INDICATOR INCORRECT? ........................................................................................... 8
2.13. WHY WON'T MY WATCH CONNECT WITH THE KAIROS MOBILE APP?....................................................... 8
2.14. ARE YOU HAVING TROUBLE CHARGING YOUR WATCH? ............................................................................ 9
2.15. The statements should be displayed in the user manual............................................................................ 9
3. Guidelines to upgrade watch firmware using Kairos iOS application ........................................................... 10
3.1. Steps to follow:.......................................................................................................................................... 10
3.2. To activate notifications from phone to watch......................................................................................... 10
4. Steps for Watch and iOS device Connectivity. .............................................................................................. 11
List of Figures
Figure 1 Navigation of menu ....................................................................................................................................... 6
Figure 2 Navigation of received messages .................................................................................................................. 6
Figure 3 Pairing with mobile device ............................................................................................................................ 7
List of Tables
Table 1 - Intended readership ..................................................................................................................................... 4
Table 2 - List of abbreviations ..................................................................................................................................... 5

User manual - Mechanical smart watch
Page 4 of 12
1. Introduction
1.1. Document Purpose
This document will cover the operating information of Mechanical Smart Watch Hybrid (hereafter referred to as
MHSW user manual), which includes introduction and features of the MHSW watch, setting up the smart watch,
Basic watch setting, setting up Kairos application on Android and iOS watch...
1.2. Intended Readership
The intended readership for this document is:
For
Function
Hybrid smart watch R&D
team/Application
Engineering/Marketing Team
/ smart watch user
Operating information and settings of Hybrid Smart Watch and mobile
applications
Table 1 - Intended readership

User manual - Mechanical smart watch
Page 5 of 12
1.3. Abbreviations
Abbreviation
Details
ANCS
Apple Notification Center Service
DND
Do Not Disturb
FSFW
Failsafe Firmware
iOS
iPhone OS
MAC
Media Access control
FCC
Federal Communications Commission
Table 2 - List of abbreviations
1.4. Open Items
Topics highlighted in yellow are pending / incomplete for want of clarification or requisite data.

User manual - Mechanical smart watch
Page 6 of 12
2. Common setting
2.1. NAVIGATING MENUS
The watch interface can be navigated intuitively using simple gestures.
Swipe your finger right or left to browse menus.
Tap to make a selection, such as to enter menu or to perform any action.
Tap and hold to return to the home screen or put your watch in sleep mode.
Figure 1 Navigation of menu
Navigation of received messages
Figure 2 Navigation of received messages

User manual - Mechanical smart watch
Page 7 of 12
2.2. PAIRING WITH A MOBILE DEVICE
To pair your mobile device with the watch, enable Bluetooth connection on both your watch and your
mobile device.
Open the Kairos app on your mobile device.
Tap "scan watches".
The app will bring up a list of nearby Kairos watches. Tap on the one you want to connect to. A pairing
request message will appear.
For Windows/android - swipe right to accept or left to reject the pairing request.
For Apple devices - enter the passkey displayed on your watch to accept the pairing request.
Figure 3 Pairing with mobile device
2.3. TURNING BLUETOOTH ON/OFF
Enter the Bluetooth sub-menu located under "Settings".
The current status of Bluetooth is shown in the initial screen of the Bluetooth menu.
Tap the Bluetooth icon to turn Bluetooth on or off.
2.4. SWITCHING TO DO-NOT-DISTURB (DND) MODE
Enter the Notifications sub-menu located under "Settings".
The first screen indicates whether DND mode is enabled or not.
Tap the DND icon to turn DND on or off.
2.5. TURNING VIBRATION ON/OFF
Enter the Notifications sub-menu located under "Settings".
The second screen in the sub-menu indicates whether vibration mode is enabled or not.
Tap the vibration icon to turn vibration on or off.

User manual - Mechanical smart watch
Page 8 of 12
2.6. CHANGING THE DEFAULT STANDBY TIME
To save power, your watch's screen will turn off after 10 seconds without input. To change the default
standby time, follows these simple instructions:
Enter the Standby Time sub-menu located under "Settings".
The first screen indicates the current standby time.
Swipe up or down to adjust the time as you desire.
2.7. SHUTTING DOWN THE WATCH
If you don't want to use your watch for a certain period of time, you can shut it off to save battery.
Tap on the Shutdown sub-menu located under "Settings". This will bring shutdown confirmation screen.
Swipe right to confirm or cancel by swiping left.
To turn the watch on again, tap on the screen and hold for a moment.
2.8. RETURN TO FACTORY SETTINGS
If you want to restore your watch to its default factory settings, you can do so by tapping the Factory
Reset sub-menu under "Settings". This will bring up the factory reset confirmation screen.
Swipe right to confirm or cancel by swiping left.
Note that after a factory reset, your watch will restart.
2.9. BOOTING FAILSAFE FIRMWARE (FSFW)
If your watch begins to malfunction, booting FSFW will restart your watch in safe mode.
Be advised that this option should only be used if necessary as reverting to normal mode will require a
firmware upgrade.
2.10. UPGRADING FIRMWARE
Your watch must be connected to a charger and have at least 50% battery to perform a firmware upgrade
Connect your watch to your mobile device.
Select "Firmware Upgrade" from your mobile app's side menu and follow the prompts.
2.11. WHY DOESN'T MY WATCH SHOW ANY NOTIFICATIONS?
There are a few reasons why your watch might not display notifications.
First, make sure that Bluetooth is turned ON and that your mobile device is connected.
Second, make sure that Do-Not-Disturb (DND) mode is turned OFF.
Third, check the notification settings on the app on your mobile device.
2.12. WHY IS MY BATTERY INDICATOR INCORRECT?
When you first boot your watch, the battery indicator will read correctly.
Charge your battery to 100% and wait until the battery indicator symbol disappears.
2.13. WHY WON'T MY WATCH CONNECT WITH THE KAIROS MOBILE APP?
If your watch is already paired, you need to unpair it using the Bluetooth settings on both the connected
mobile device, and the watch.
Switch Bluetooth OFF and then ON again at both ends and then try to pair again.

User manual - Mechanical smart watch
Page 9 of 12
2.14. ARE YOU HAVING TROUBLE CHARGING YOUR WATCH?
If you are experiencing charging issues right out of the box, it is possible that your watch battery needs to
be fully drained to reset itself before the charging cycle can properly begin.
This can easily be done by allowing the watch battery to fully drain before attempting to charge. This
could take up to 3 days depending on the initial charge of your watch.
Once the battery has fully drained, connect your Kairos watch to the clip charger and attempt to charge.
The initial reset before the charging cycle should allow the battery to begin its first charging cycle.
2.15. The statements should be displayed in the user manual
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
oReorient or relocate the receiving antenna.
oIncrease the separation between the equipment and receiver.
oConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
oConsult the dealer or an experienced radio/TV technician for help.
Please find the steps to see the label through the screen navigation:
Power on the watch
Go inside Settings Menu
Go inside About Menu
Navigate till the Certification Page
Tap on the Certification Page to see the certification related all
information
Please find the below images for some more information

User manual - Mechanical smart watch
Page 10 of 12
3. Guidelines to upgrade watch firmware using Kairos iOS
application
This guideline is only applicable to users who are using Kairos Watches with Firmware package version below v1.4
or v1.4 itself.
To get this Firmware package version, go inside in “Settings> About” menu and then navigate to “Firmware” sub
menu.
3.1. Steps to follow:
Download and Install Version 1.3 of “Kairos Watches App” from App store.
Tap on “Scan For Watches” for scanning the watches.
List of Watches will appear on the iOS Device and then tap on the listed device to connect it.
A screen will appear where the user will have prompted to add a six-digit code for secure ANCS pairing on
his iOS Device (Bluetooth Pairing Request). This code will be displayed on his Kairos Watch.
Now, use “Firmware Upgrade” button to upgrade Kairos Watch’s firmware.
Once upgrade is done, confirm the firmware package version v1.5 on watch.

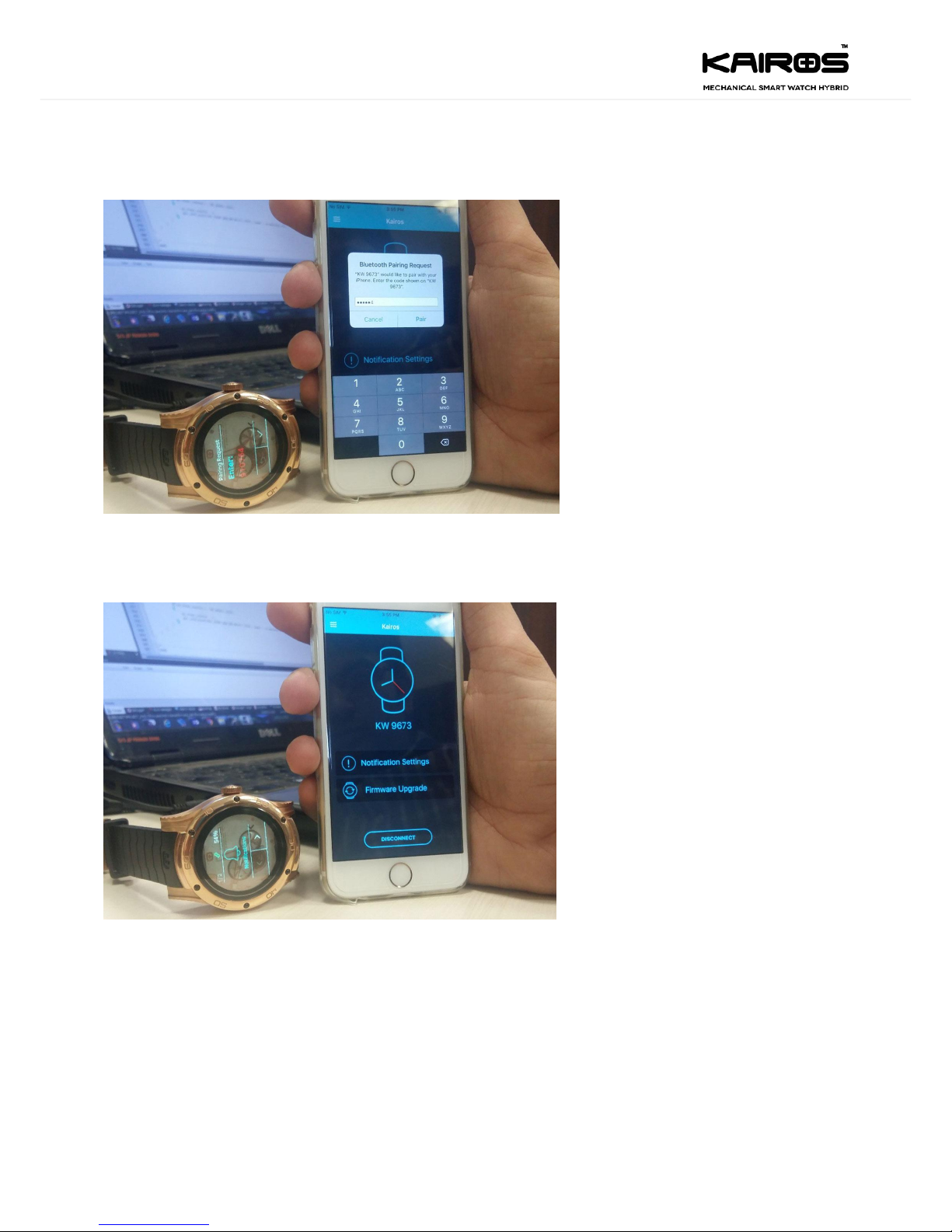

3.2. To activate notifications from phone to watch.
Make sure your Bluetooth is ON, and DND mode is OFF.
Then, iOS user needs to enter passkey in phone and this passkey is visible on watch. When watch get
connection with iOS app, pairing window will automatically prompt on both devices, watch and phone.

User manual - Mechanical smart watch
Page 11 of 12
4. Steps for Watch and iOS device Connectivity.
Step 1: Install Kairos Watch application from Apple Store from URL Kairos Watch App. Minimum requirement for
application is iOS 7.0
Step 2: Open Kairos Watch Application and then click on “SCAN FOR WATCHES” for scanning nearby Kairos
Watch devices. A message will appear to turn on the Bluetooth of phone If it off.
Step 3: Mobile app will show you the list of MAC address of discoverable Kairos Watches. Make sure to Kairos
Watch’s Bluetooth is turned on also.
Step 4: Tap on the appeared watch to be connect and after that Bluetooth pairing request will appear as shown in
below image.

User manual - Mechanical smart watch
Page 12 of 12
Step 5: Enter the Pair code in phone appear on watch and then click on “Pair” button or “OK” button (Different
system for different mobile device) and accept Pairing Request from your watch and you will get “Connected to
(Watch name)” message for short moment on mobile screen. Now, mobile is connected with watch.
Step 6: Application displays Dashboard Screen to user. This is Main screen of application. This screen has options
to navigate to other utilities. These options are (1) Notification Settings and (2) Firmware Update.
