Kaiweets KOT936 User manual

KAIWEETS
User Manual
SOLDERING STATION
Please read this manual thoroughly before use and keep it for later reference.
After-sale: [email protected]
(ERHSFCZ &

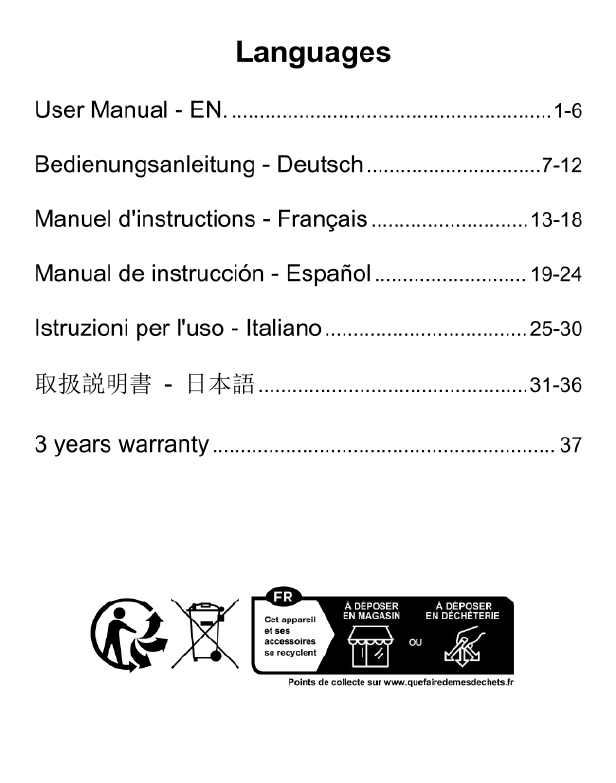

Languages
User Manual - EN. ..., 1-6
Bedienungsanleitung - Deutsch..........ccccoovvvnrennee. 7-12
Manuel d'instructions - Frangais.............ccccceeuunee. 13-18
Manual de instruccion - Espafiol...............c.c....... 19-24
Istruzioni per I'uso - Italiano..........cccccovvvvccenrnenns 25-30
DG R S N 31-36
3 years Warranty ... 37
FR
(3 ) EN MAG! EN DECHETERIE
ot de collcte sur v quefiredemesdechets fr

I. Safety Information: Efl
AWarnings: Please Read First!
® Unplug the power supply before servicing. Otherwise, it may cause electric shock.
® If the power cord is damaged, it must be replaced by the manufacturer, its service
agent, or similarly qualified personnel in order to avoid personal injury or damage
to the equipment.
® When the power is on, the soldering iron tip temperature is above 200°C to 480°C
(392°F to 896°F). Please take care when using it to avoid the risk of burns.
A\To avoid possible burns or fire hazards, please strictly obey
the following instructions:
© Do not touch the metal parts near the tip of the soldering iron.
© Do not use the soldering iron tip near flammable objects.
® Inform other personnel that the soldering iron tip is extremely hot and may cause
dangerous accidents, and that the power should be turned off when the soldering
station is not in use.
® Turn off the power and wait for the tip to cool to room temperature when replacing
parts or soldering iron tips.
/\To avoid damage to the welding table and to ensure the
safety of the operating environment, please obey the following
instructions:
® Never use the tip of the soldering iron for anything other than soldering
® Do not remove residue by knocking the table with the soldering iron, as this may
will severely damage the iron.
® Do ot change the welding table arbitrarily.
® Do not get the welding table wet or use it with wet hands.
1

® Welding will emit smoke and it should be operated in an environment with good
ventilation.
® Do not make any sudden movements that may injure your body or damage
objects when using the welding table.
Il. Operation

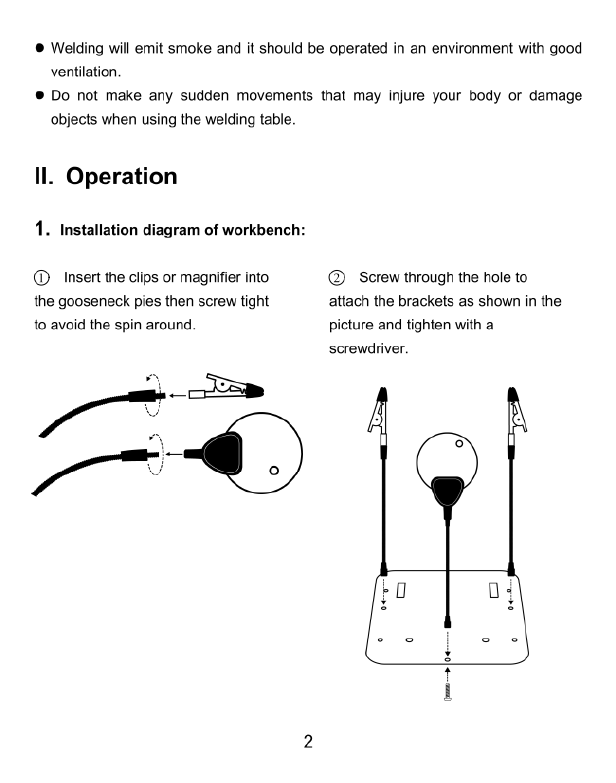

1. Installation diagram of workbench:
(@ Insert the clips or magnifier into @ Screw through the hole to
the gooseneck pies then screw tight attach the brackets as shown in the
to avoid the spin around. picture and tighten with a
screwdriver.

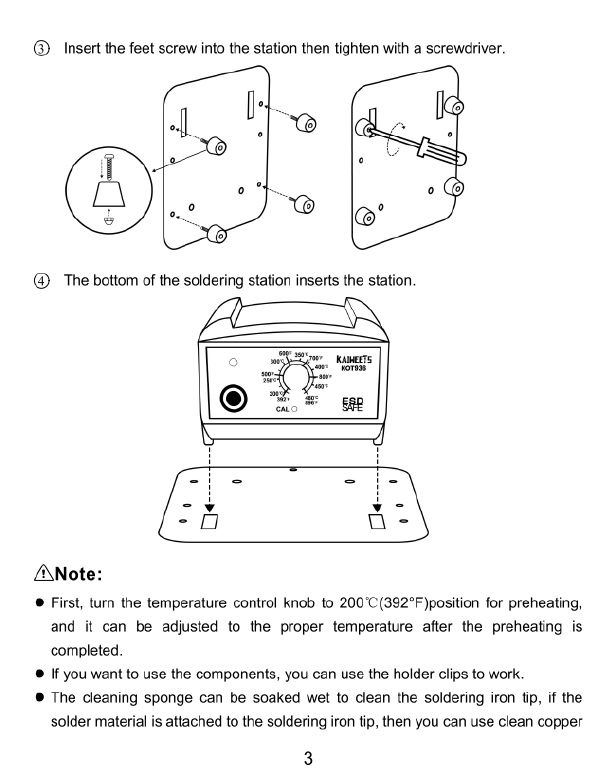

@ Insert the feet screw into the station then tighten with a screwdriver.
/\Note:
® First, tumn the temperature control knob to 200°C(392°F)position for preheating,
and it can be adjusted to the proper temperature after the preheating is
completed.
® If you want to use the components, you can use the holder clips to work
® The cleaning sponge can be soaked wet to clean the soldering iron tip, if the
solder material is attached to the soldering iron tip, then you can use clean copper
3

wire repeatedly to clean the soldering ifon tip before soldering
® Do not use fluxes containing too much chlorine or acid, only use fluxes with
synthetic resins or resins that have been activated.
® The soldering iron needs to be periodically corrected for temperature. In addition,
the temperature of the soldering iron needs to be corrected because the
temperature varies depending on the type of iron chosen. You can use a
screwdriver in the "CAL" hole on the chassis panel to make fine adjustments
yourself.
® Every 24 hours or at least once a week, take out the soldering iron tip to clean
and remove foreign objects in the sleeve.

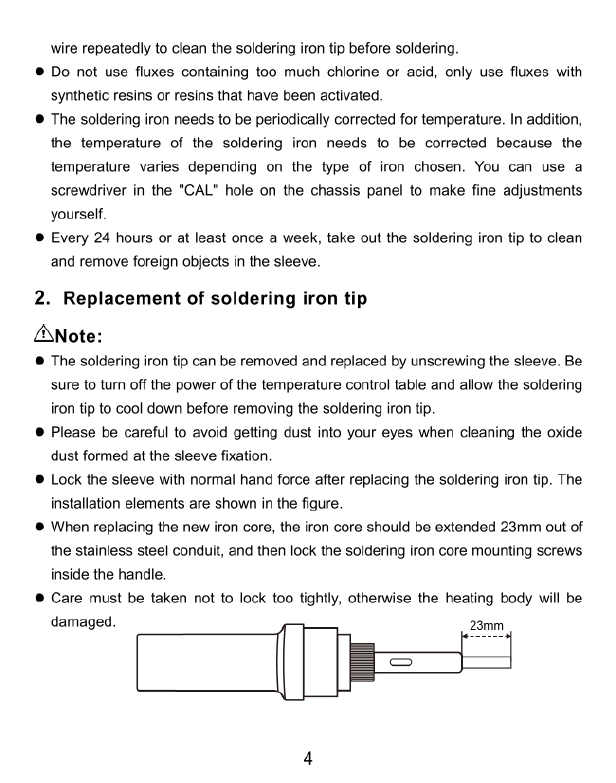

2. Replacement of soldering iron tip
/ANote:
® The soldering iron tip can be removed and replaced by unscrewing the sleeve. Be
sure to tum off the power of the temperature control table and allow the soldering
iron fip to cool down before removing the soldering iron fip.
® Please be careful o avoid getting dust into your eyes when cleaning the oxide
dust formed at the sleeve fixation.
® Lock the sieeve with normal hand force after replacing the soldering iron fip. The
installation elements are shown in the figure.
When replacing the new iron core, the iron core should be extended 23mm out of
the stainless steel conduit, and then lock the soldering iron core mounting screws
inside the handle.
@ Care must be taken not to lock too fightly, otherwise the heating body will be
damaged. 2

Ill. Package List
1. Please check the packaging:
(including cleaning sponge)
Name Quantity | Description of use
Electric welding station 1PCS | Main engine
Soldering Iron 1PCS Handle for welding
Advanced soldering iron holder | [Place soldering ron and sponge for
cleaning soldering iron
Lead-free solder wire 10g 1PCS | Welding consumables
900M soldering iron tips 5PCS | As shown in the figure
Copper wire cleaner for soldering | . [Used for soldering ron head to
iron tip avoid oxidation and cleaning
' Used for auxiliary viewing of
Magnifier 1PCS )
precision components
Prevent static electricity and
Tool holder 3PCs
facilitate operation
Welding table workbench 1PCS | Convenient for DIY operation
User manual 1PCS

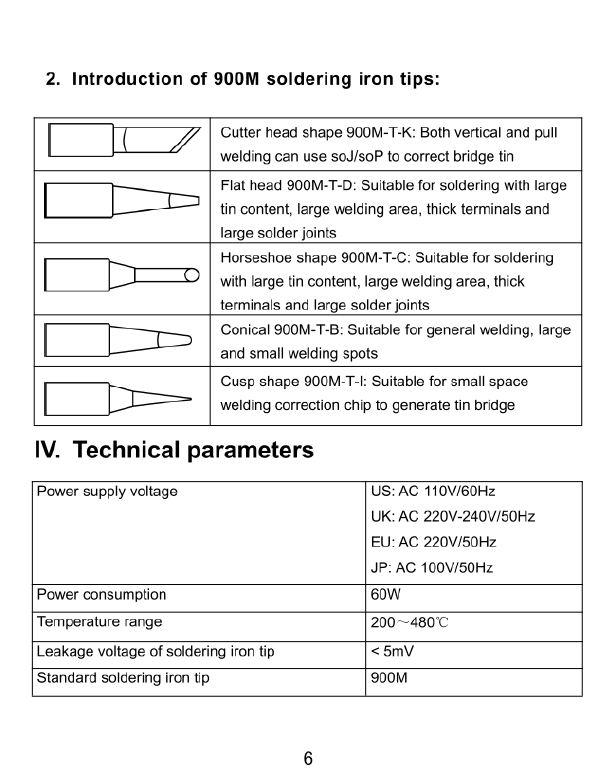

2. Introduction of 900M soldering iron tips:
a4
Cutter head shape 900M-T-K: Both vertical and pull
welding can use soJ/soP to correct bridge tin
I —
Flat head 900M-T-D: Suitable for soldering with large
tin content, large welding area, thick terminals and
large solder joints
[ o
Horseshoe shape 900M-T-C: Suitable for soldering
with large tin content, large welding area, thick
terminals and large solder joints
[T
Conical 900M-T-B: Suitable for general welding, large
and small welding spots
[ =
Cusp shape 900M-T-I: Suitable for small space
welding correction chip to generate tin bridge
IV. Technical parameters
Power supply voltage US: AC 110V/60Hz
UK: AC 220V-240V/50Hz
EU: AC 220V/50Hz
JP: AC 100V/50Hz
Power consumption 60w
Temperalure range 200-480C
Leakage voltage of soldering iron tip <Bmv
Standard soldering iron tip S00M
