KAKADU BIRDSVILLE User manual

BIRDSVILLE
ROOFTOP TENT
™
OWNERS MANUAL
Part No. 10001064

2
™
MOUNTING CONTENTS

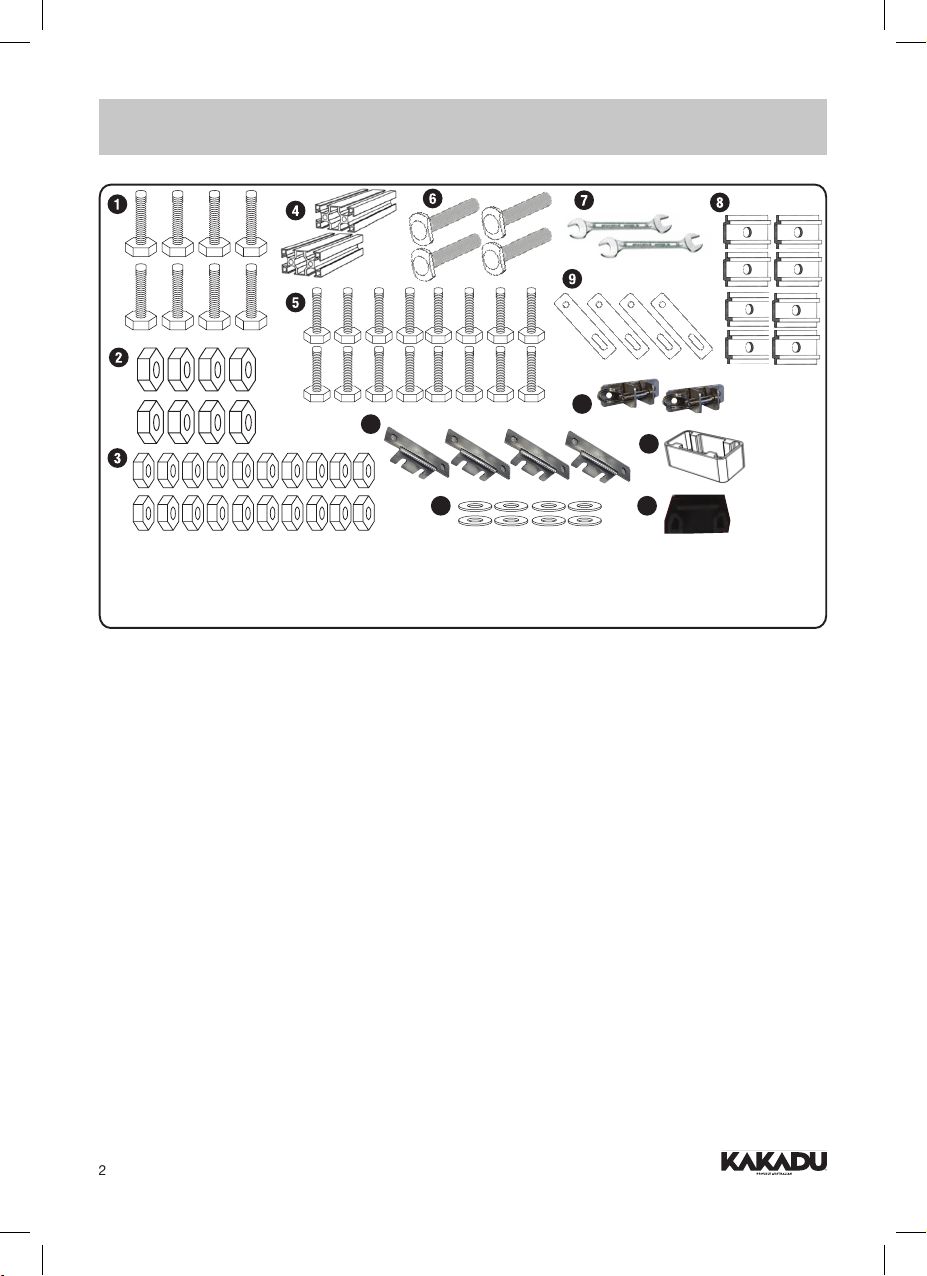

1. M8 X 2 11/64 INCH BOLTS X 8
2. M8 NUTS X 8 FOR LARGER BOLTS
3. M8 NUTS X 20 FOR SMALLER BOLTS
4. ROOF BARS X 2
5. M8 X 5/8 INCH X 16
6. OVAL HEAD 5/8 INCH BOLTS X 4
7. SUPPLIED SPANNERS
8. ALUMINIUM SLIDE PLATES X 8
9. STEEL MOUNT PLATES X 4
10. LADDER MOUNTING BRACKETS X 2
11. ROOF BAR MOUNTING BRACKETS X 4
12. RUBBER END CAPS FOR ROOF BARS X 4
13. 5/8 INCH WASHERS X 8
14. RUBBER END CAPS FOR CHANNELS X 4
10
12
13 14
11

3
™
SAFETY INFO AND MOUNTING INSTRUCTIONS
WARNING
Incorrect installation or use of your rooftop tent could result in serious injury or death. Follow
the installation instructions to ensure the rooftop tent is installed correctly. Follow the set up and
pack down instructions carefully. It is recommended that you contact your vehicle and/or accessory
manufacturer for specied loading and capacity of your vehicle’s roof capacity and the rack capacity.
Unfortunately, not all vehicles and roof racks can safely accommodate all models.
LOCATE MOUNTING LOCATIONS ON ROOF RACK
Kakadu™recommends this rooftop tent to be installed with 2-3 people. It is also recommended to use
an experienced aftermarket 4X4 accessories tter to mount the rooftop tent to your rack.

4
™
MOUNTING YOUR LADDER
Turn the tent over so you have access to the
side without the mounting rails. Very carefully
remove the end plastic cap of the top channel
and slide the four M8 bolts with the oval shaped
heads in. Hold the ladder in position and place
the mounting brackets in the correct position.
Tighten the bolts and nuts on the bracket rmly
to secure.
Attach the ladder to the brackets with the quick
release pin system.
MOUNTING ROOF BARS
1. Very carefully remove the plastic end caps on
the metal bars tted to the tent then carefully
slide in two M8 steel bolts on the inside track.
Place the roof bar bracket over the top of the
bolts then place the nut over the exposed part
of the bolts. Tighten one bolt up approximatively
3/4 tight in the area you want to mount the bars.
Repeat this on the other side of the tent.
2. Slide the rubber cap over the end of each roof
bar before installing onto brackets. Slide in four
5/8 inch M8 steel bolts into the underside of the
roof bars and loosely attach the nuts. Position
the bars sitting on top of the metal bracket and
tighten nuts up once they’re sitting underneath
the opening of the bracket tted to the tent bars.
Repeat this on other side.
3. Tighten all eight nuts on both sides of the roof
bar. Repeat this for second roof bar.
TIP: Take notice of where the ladder will sit and
don’t mount roof bars in this area.
*LADDER NEEDS TO BE
REMOVED WHEN VEHICLE
IS IN TRANSIT.

5
™
USING YOUR LADDER
Do not use the ladder before reading the
below points. For your own safety and to avoid
any potential injury, ensure that the ladder

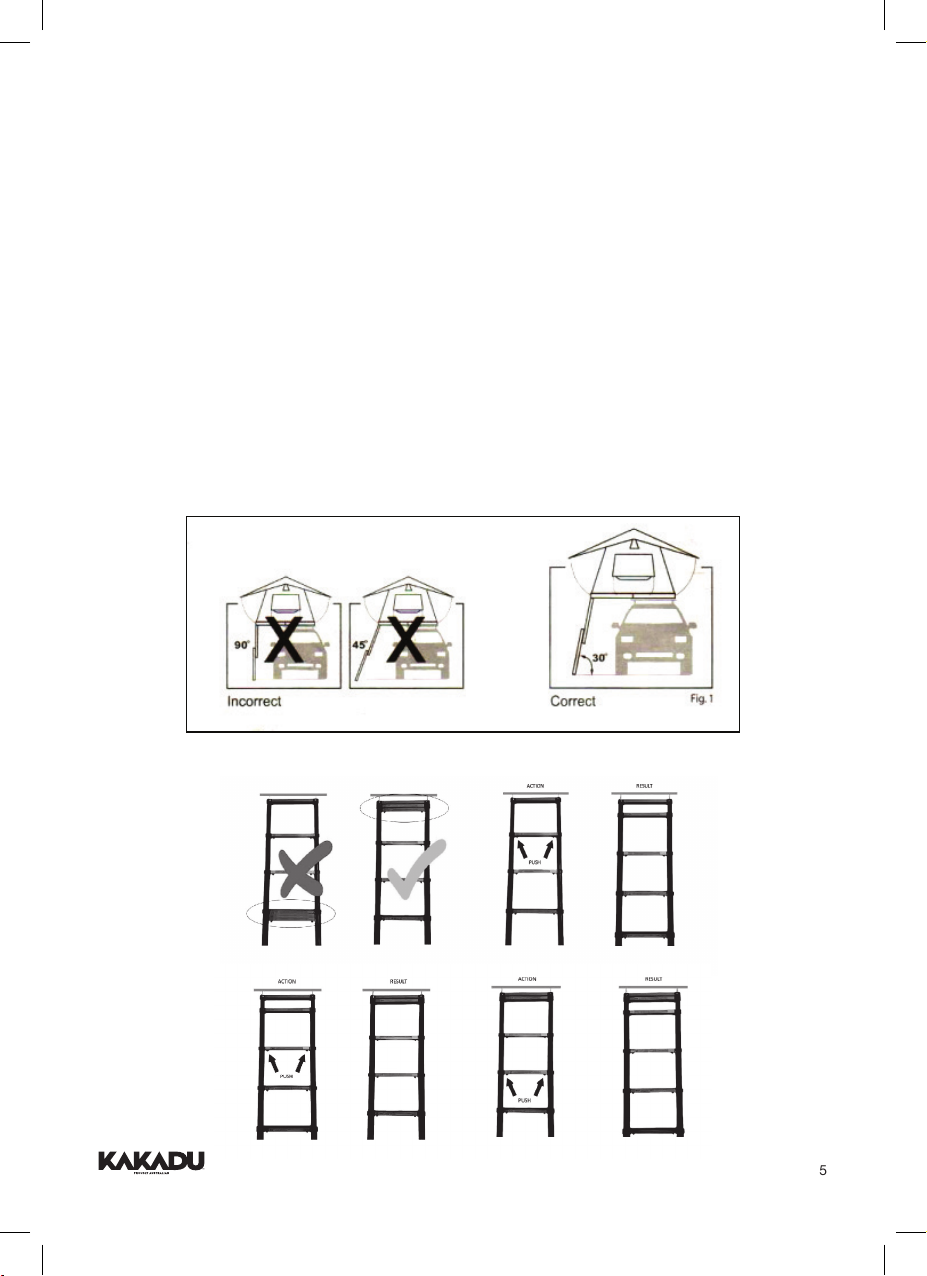

placement and angle is correct. Review the
below diagrams showing the correct angle
to position the ladder. Failure to do this may
result in injury. To achieve the correct angle,
you may need to adjust the ladder’s length. If
this is required, the adjustment must be done
from the top of the ladder. Ensure the ladder
is fully extended and all rungs are locked into
place. Once this is done, press the rst set of
locking buttons positioned second rung from
the top. The ladder will then compress until
a gap of approximately 1/2 inch - 3/4 inch is
achieved between rung 1 and rung 2. If further
shortening is required, press the second set
of locking buttons which is positioned on the
third rung of the ladder. This will then close
the previous gap between rung 1 and rung
2. Swing in the bottom of the ladder until the
desired angle is reached. Review the below
diagram before using the ladder.
The ladder also acts as extra support and a
brace for the rooftop tent when in use.
Please note: Review the measurement
between where the ladder will sit on your car
and the ground before use. If this exceeds 7ft
2.6 inches then you may need to purchase an
aftermaket ladder to reach this length.
*Ladder needs to be removed when car is in
transit.
*Note, images are for illustrative purposes only.
*Note, images are for illustrative purposes only.

6
™
PROLONGED TRAVELLING ON UNEVEN,
ROUGH OR CORRUGATED TERRAIN
WILL REQUIRE MORE FREQUENT
INSPECTIONS
NOTE: Kakadu™takes no responsibility for
the fitment of the rooftop tent to any vehicle
or roof rack.
These brackets have been carefully designed
to t most common roof rack congurations.
However, the increasing amount of roof rack
designs available in the market makes it difcult
to supply a bracket to t all racks.
It is recommended to discuss specic mounting
options and load capacities with a roof rack
specialist. There may be a chance you need to
purchase aftermarket rooftop tent mounts from
your roof rack manufacturer for customised set
ups.

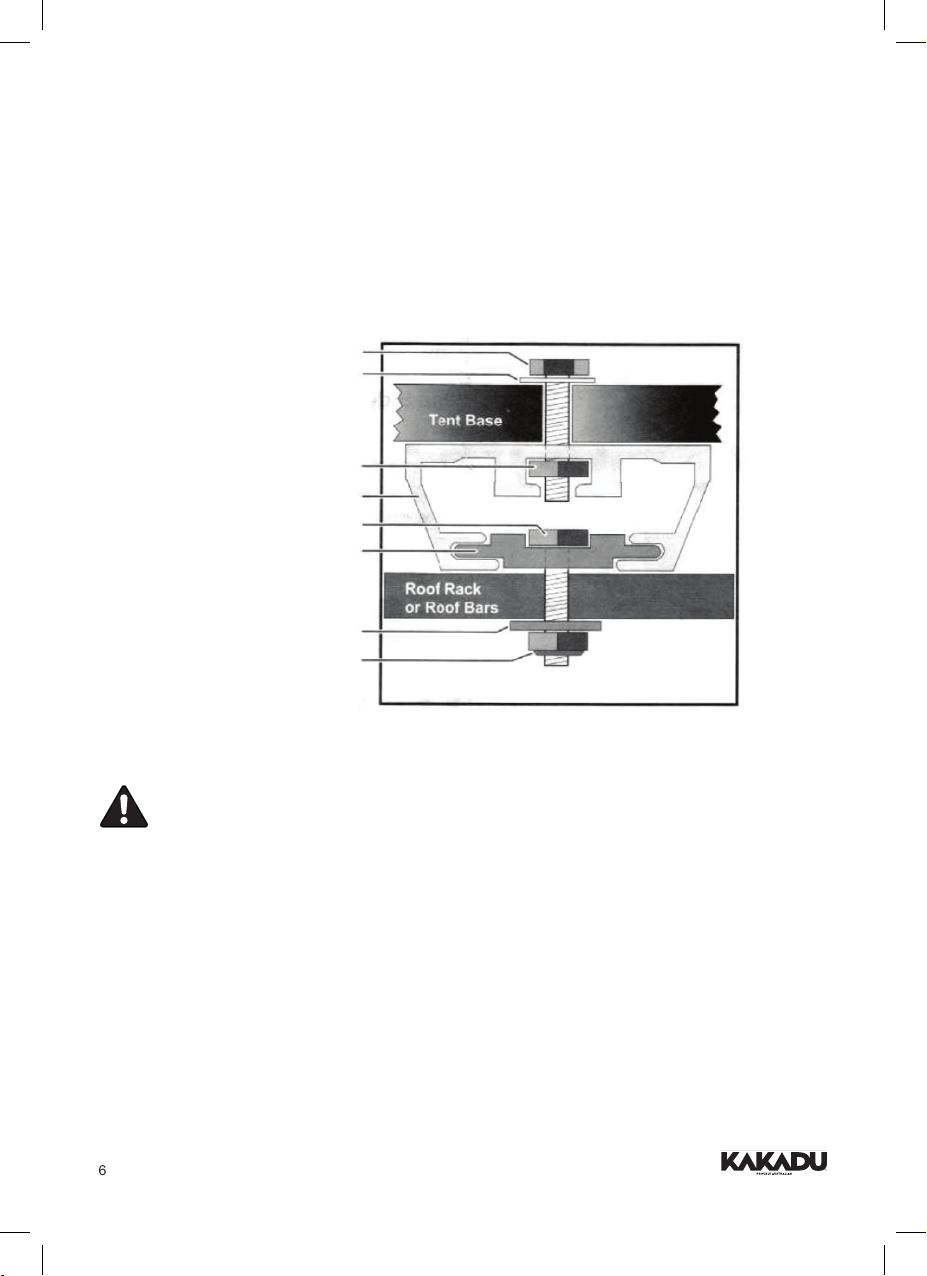

Washer
Aluminium Mounting Channel
55mm Steel M8 Bol
t
Slide Plate
Steel Mount Plate
M8 Nyl ock Nut
Steel M8 Bolt
M8 Nylock Nut
*Note, images are for illustrative purposes only.
MOUNTING TENTS TO ROOF RACK

7
™
FITTING THE TENT TO YOUR ROOF RACK
Roof T op Tent Base
Mounting Channel
Slide Plate
55mm Steel M8 Bolt
Steel Mount Plate
M8 Nylock Nut
After-Market Roof Rack Bars
1. Place the rooftop tent on top of your roof
rack system (min 2-3 people required).
2. Place the 2 11/64 inch steel M8 bolts into
the slide plates ready for installation into
the mounting channels. Slide the plates
into positions either side of the roof rack
system’s bars.
3. Check the position of the rooftop tent and
ensure that it’s in the correct place.
4. Tighten the washers and nylock nuts with
the supplied metal plate on all four positions
as per the below diagram. Please note: It is
important to regularly check all the mounting
hardware to ensure they are securely
attached to both the base of the tent and
the roof rack system.
5. Once the tent is securely tted, insert the
rubber caps onto each end of the mounting
channels.
*Note, images are for illustrative purposes only.

8
™
Note: IN WINDY CONDITIONS, WE DON’T
RECOMMEND TO ATTACH THE ANNEXES
AS PERSONAL INJURY AND PROPERTY
DAMAGE MAY OCCUR. Kakadu™TAKES NO
RESPONSIBILITY FOR ANY DAMAGE INCURRED
IF THE ABOVE ISN’T FOLLOWED

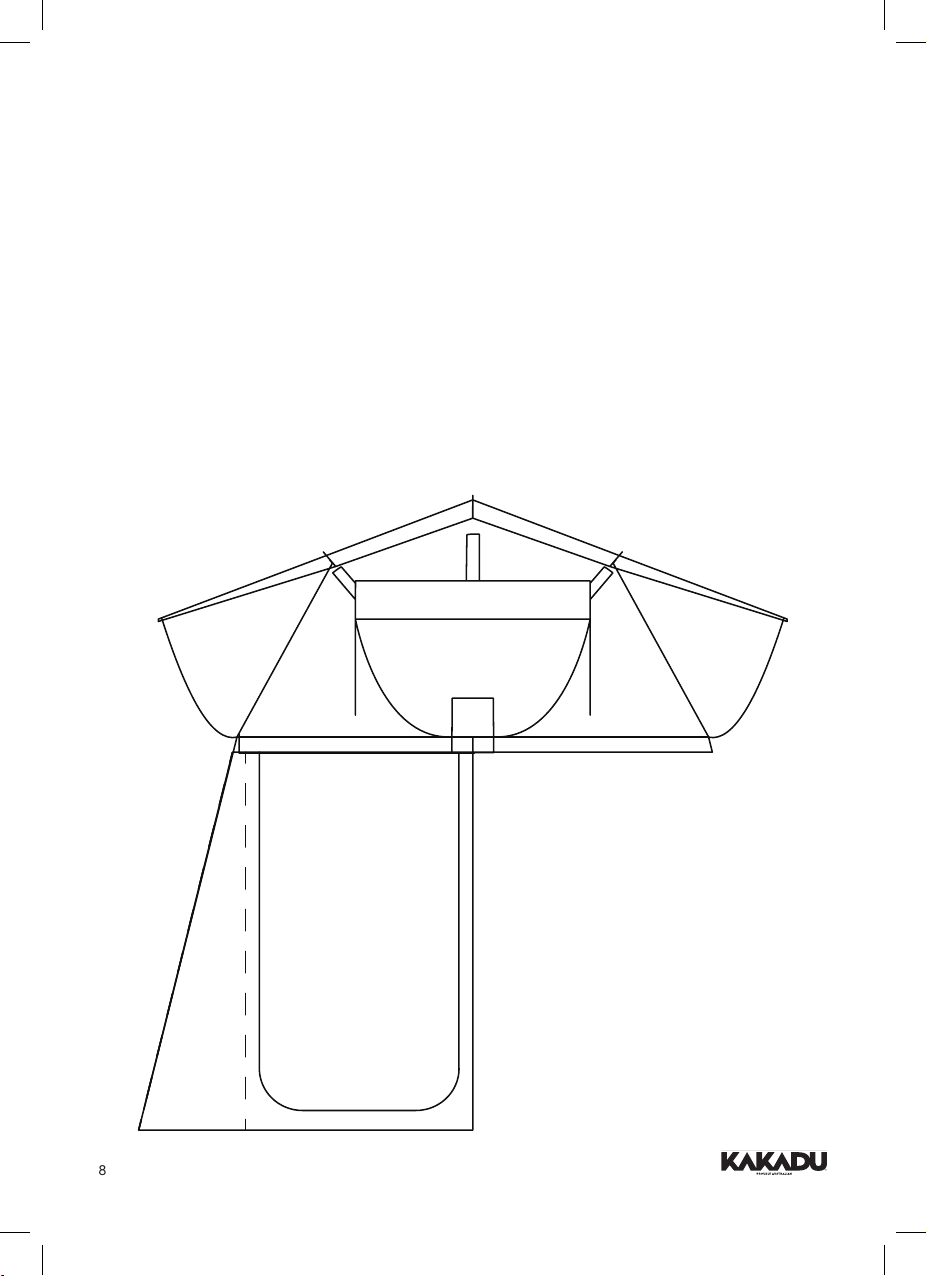

USING OPTIONAL ANNEXES
The Birdsville rooftop tent has an optional annex
available to purchase and use.
1. Lay the annex out next to the correct
position on the tent.
2. Feed the sail track through the side closest to
the car. Then zip on the remaining sides onto
the rooftop tent fabric until you reach the end.
Note: You will need to have your window tension
poles out for this. Then feed them through the gap
in the zipper seam.
3. Secure the annex down in the corners with
the peg points.

9
™
CLEANING
Clean with cold water and a soft bristle brush.
Do not use soaps or detergents. Do not
expose to petrol, diesel, oils or chemicals of
any nature.
Failure to follow these instructions may impact
the performance of your rooftop tent and
cause damage.
STORAGE
If you have to pack your rooftop tent up wet -
it is essential that the rooftop tent is unpacked
and allowed to dry fully as soon as possible.
Failure to do so will result in damage to the
rooftop tent fabric, waterproong and may
cause mildew.
Although the PVC cover material itself is
waterproof, there is the chance of water
ingress from the tent not being tucked in
properly or the buckles not done up tight
enough. We recommend to check the inside
of the rooftop tent’s bag to ensure no water
has made its way in. If there is moisture, the
rooftop tent needs to be allowed to dry out.
STRUCTURE
Kakadu™rooftop tents have been designed for
general outdoor use under normal conditions.
Always ensure that all ropes and pegs are
attached and secured at all times.
To avoid chances of personal injury
and/or property damage, Kakadu™
highly recommends the rooftop tents
should NOT be erected during windy
conditions.
Damaged caused by wind and/or
adverse weather will not be covered
under warranty.
FITTING
Kakadu™recommends this rooftop tent
to be installed with 2-3 people. It is also
recommended to use an experienced
aftermarket 4X4 accessories tter to mount
the rooftop tent to your rack. All mounting
hardware on both the rooftop tent and roof
rack should be checked regularly to ensure
they are always mounted securely.
NOTE: Kakadu™takes no responsibility
for the fitment of the rooftop tent to any
vehicle or roof rack.
Prolonged travelling on uneven, rough
or corrugated terrain will require more
frequent inspections
The brackets have been carefully designed
to t most common roof rack congurations.
However, the increasing amount of roof rack
designs available in the market makes it
difcult to supply a bracket to t all racks. It is
recommended to discuss specic mounting
options and load capacities with a roof rack
specialist.
WATERPROOFING
The raw materials that have been used on this
rooftop tent have been designed to withstand
most weather events. The water repellent
coating and sealed seams provide protection
from bad weather. However, wind-driven rain
can cause water ingress when windows and
doors are open. We recommend to close
all windows and doors in the case of bad
weather. If you nd that water is coming
through a zipper, a softened wax stick can be
used to rub over that area.
USING THE OPTIONAL ANNEXES
The annexes available for purchase will
provide a sheltered/protected area underneath
the rooftop tent.
Disclaimer: Any addition applied onto the
vehicle’s roof changes the loading and
handling of the vehicle. Kakadu™disclaims all
responsibility in the occurrence of accidents
due to improper use, lack of maintenance
and not ensuring the rooftop tent has
been securely tted. Kakadu™shall not be
liable for any damages whether they are
special, indirect, incidental, accidental or
consequential.

10
™
KEEP ALL FLAME AND HEAT
SOURCES AWAY FROM THE FABRIC.
UNDER NO CIRCUMSTANCES
SHOULD ANY NAKED FLAME
SOURCES BE USED NEAR THE
ROOFTOP TENT.
KEEP CAMP FIRES AWAY FROM
THE ROOFTOP TENT.
KEEP A FIRE EXTINGUISHER OR
WATER BUCKET NEARBY. WATCH
FOR AIRBORNE BURNING EMBERS
THAT MAY COME INTO CONTACT
WITH THE ROOFTOP TENT OR
ANNEX.
KEEP EXITS CLEAR.
IT IS ESSENTIAL TO USE ALL POLES,
ROPES AND PEGS AT ALL TIMES
WHEN THE TENT IS IN USE.
WATCH FOR GUY ROPES, PEGS
AND STRAPS TO PREVENT INJURY
AS THEY CAN BE A TRIP HAZARD.
ENSURE CHILDREN ARE
SUPERVISED AROUND THE
ROOFTOP TENT AT ALL TIMES.
DO NOTE OPERATE ANY DEVICE
WHICH BURNS FUEL INSIDE THE
TENT OR ANNEX.
SAFETY WARNINGS

11
™
1. This warranty will apply only if you have purchased from us or our authorized dealer, and will apply only to the
original purchaser who acquires the product for his or her own use.
2. WARRANTY PERIOD: we warrant that this product will be free from defects in materials and workmanship under
normal use as described in the published product documentation for 36 months and the integrated powerpack for
12 months from the date of original purchase (Limited Warranty).
3. WARRANTY: You are entitled to a replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if products
fail to be of acceptable quality and the failure does not amount to a major failure.
4. To the extent permitted by any applicable local law:
a. Our obligations under this Limited Warranty are limited to the repair, replacement or refund of covered parts
that prove defective under normal use during the Limited Warranty and does not extend to any claim for
damages that you or any other person may have for any loss (including without limitation consequential
damages or loss of profit, freight/shipping or travel costs), or damage howsoever caused whether or not such
loss or damage arises as a result of any defect in the product or from the failure or omission on our part to
comply with any obligation at law;
b. In replacing a defective product under the Limited Warranty, we may, at our discretion, substitute a model of
equivalent nature where the exact model is unavailable;
c. This Limited Warranty does not apply to damage caused by failure and damage caused by improper use
and abuse, fair wear and tear, accidents, misuse (including failure to follow instructions regarding care and
maintenance of the product), neglect, disassembly, alterations or external causes such as, but not limited
to, water damage, exposure to sharp objects, exposure to excessive force, anomalies in the electrical current
supplied to the product (if applicable), and extreme thermal or environmental conditions;
d. We may elect, at our discretion and as an alternative to repairing or replacing a defective part, to refund the
cost of the relevant product upon it being returned to us; and
e. This Limited Warranty does not extend to any products acquired for the purposes of re-supply, or for use in
manufacturing, or repair processes.
5. This warranty may be claimed by: returning the product to its place of purchase, with a detailed proof-of-purchase
clearly showing the date and detail of the purchase;
6. If you have any questions concerning this warranty policy, you may contact us in writing:
Adventure Operations, 71 Charles Ulm Place, Eagle Farm, 4009, QLD, Australia, or by
email: [e-mail] or visit our website: www.adventureoperations.com
TO THE EXTENT PERMITTED BY LAW, ADVENTURE TRADING AUSTRALIA PTY LTD, ITS SUBSIDIARIES AND ITS
VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
OR ANY SIMILAR STANDARD IMPOSED BY APPLICABLE LEGISLATION AND ADVENTURE TRADING AUSTRALIA PTY LTD
AND ITS SUBSIDIARIES’ RESPONSIBILITY TO REPAIR, REPLACE, OR OFFER A REFUND FOR DEFECTIVE PRODUCTS IS
THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO ITS CUSTOMERS UNDER THIS DOCUMENT.
