KALATEL DSR-1000eZ User manual

K
Ka al la at te el l D DS SR R- -1 10 00 00 0e eZ Z
Single Channel Color Digital Video Recorder
User Manual

Kalatel DSR-1000eZ ii 0150-0238B
WARNING!
To prevent fire and electric shock, do not expose this product to rain or moisture.
The lightning flash with the arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated
"dangerous voltage" within the products enclosure
that maybe of sufficient magnitude to constitute a
risk of electric shock to persons.
!
The exclamation point, within an equilateral
triangle, is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
CAUTION!
To prevent electric shock, do not remove cover.
No user serviceable components are inside.
Refer servicing to qualified service personnel.
!
CAUTION! Lithium Battery
Danger of explosion if battery is
incorrectly replaced. Replace only
with the same or equivalent type
recommended by the
manufacturer.
ATTENTION
This product contains a recyclable lithium battery.
It may be illegal to dispose of this battery
improperly under local, state, or federal laws.
Check with your local waste management officials
for disposal and recycling options.
CAUTION!
Electrostatic-Sensitive Device!
Use proper CMOS and MOSFET handing precautions, including approved
grounded wrists straps, etc., to avoid damage to this unit or its internal
components, from electric discharge.
WARNING!
This equipment generates, uses and can radiate radio frequency energy, and if not installed and used
in accordance with the instructions in this manual, may cause interference to radio communications. It
has been tested and found to comply with the limits for a Class A computing device pursuant to subpart
J of part 15 of FCC rules which are designed to provide reasonable protection against such
interference when operated in a commercial environment. This equipment has also been tested and
found to comply with the requirements for a CE Class A device and TUV safety standards.
Operation of this equipment in a residential area may cause interference, in which case the user is
required to take all measures that are necessary, at the user's expense, to correct the interference.

0150-0238B iii Kalatel DSR-1000eZ
IMPORTANT INFORMATION
Software and/or firmware is furnished to the purchaser under a license for use on a single system.
Software and/or firmware included with this equipment are the sole proprietary property of, confidential to,
and copyrighted by GE Interlogix, Corvallis, Oregon, USA. The software/firmware are not to be copied or
disclosed in any manner without the express written consent of GE Interlogix.
All information and specifications furnished by GE Interlogix are believed to be accurate and reliable. No
responsibility is assumed by GE Interlogix for neither its use nor any infringements of rights of third parties
that may result from its use. No license is granted by implication or otherwise under any patent or patent
rights of GE Interlogix.
The Kalatel™brand name and product model numbers are the property of GE Interlogix.
COPYRIGHT, 2004: The contents of this manual may not be copied or reproduced in any manner or
form without the prior written consent of GE Interlogix.

Kalatel DSR-1000eZ iv 0150-0238B

0150-0238B vKalatel DSR-1000eZ
CONTENTS
1FEATURES, CONNECTIONS, AND SETUP ................................................... 1-1
1.1 Product Description.........................................................................................1-1
1.2 Features............................................................................................................1-1
1.3 Unpacking ........................................................................................................1-1
1.4 Installation Environment.................................................................................1-2
1.5 Passwords........................................................................................................1-2
1.6 Front Panel Controls .......................................................................................1-3
1.7 Back Panel Connections.................................................................................1-4
1.8 Accessories I/O Port........................................................................................1-6
1.9 Setting the Time and Date...............................................................................1-8
1.10 Setting the Alarms .........................................................................................1-10
2USER OPERATIONS................................................................................. 2-1
2.1 Recording.........................................................................................................2-1
2.2 Playback...........................................................................................................2-2
2.3 The Search Interface........................................................................................2-4
2.4 Specifying Search Parameters .......................................................................2-4
3THE MENU SYSTEM................................................................................. 3-1
4OPERATOR PROGRAMMING...................................................................... 4-1
4.1 Main Menu →Time/Date..................................................................................4-1
4.2 Main Menu →Alarms.......................................................................................4-4
4.3 Main Menu →Timer Settings..........................................................................4-5
4.4 Main Menu →Record Settings .......................................................................4-6
4.5 Main Menu →Display Settings.......................................................................4-8
4.6 Main Menu →Archive Setup.........................................................................4-10
4.7 Main Menu →Advanced Menu .....................................................................4-15
5INSTALLER PROGRAMMING...................................................................... 5-1
5.1 Advanced Menu →Disk Overwrite Mode ......................................................5-1
5.2 Advanced Menu →Disk Maintenance............................................................5-2
5.3 Advanced Menu →Audio Record Setting ......................................................5-3
5.4 Advanced Menu →Auto Delete Mode............................................................5-4
5.5 Advanced Menu →Communications.............................................................5-4
5.6 Advanced Menu →Multiplexer Format..........................................................5-7
5.7 Advanced Menu →Adjust Picture..................................................................5-7
5.8 Advanced Menu →Front Panel Lock.............................................................5-8
5.9 Advanced Menu →Factory Settings..............................................................5-8
5.10 Advanced Menu →Change Password...........................................................5-9

Kalatel DSR-1000eZ vi 0150-0238B
5.11 Advanced Menu →Languages.......................................................................5-9
5.12 Advanced Menu →Firmware Upgrade ..........................................................5-9
6WAVEBROWSER..................................................................................... 6-1
6.1 WaveBrowser Overview and Controls...........................................................6-2
6.2 DSR WaveLink .................................................................................................6-4
6.2.1 Functionality......................................................................................................................6-4
6.3 Upgrading the DSR with WaveBrowser.........................................................6-5
7RS-232 REMOTE PROTOCOL.................................................................. 7-1
8FACTORY DEFAULTS............................................................................... 8-1
9TECHNICAL SPECIFICATIONS ................................................................... 9-1
10 WARRANTY AND SERVICE ..................................................................... 10-1
10.1 Factory Service..............................................................................................10-1
10.2 Warranty and Return Information.................................................................10-2

0150-0238B 1-1Kalatel DSR-1000eZ
1FEATURES, CONNECTIONS, AND SETUP
1.1 Product Description
The DSR-1000eZ is a Digital Video Recorder designed to be a direct replacement for a Time Lapse
VCR. Digital Video Recording allows the user to have continuous recording on a hard disk, without
the need for replacing or rewinding of videotapes. The DSR-1000eZ provides menu based search
capabilities for recorded events, as well as access to live or recorded data via the Ethernet (optional).
1.2 Features
•Single channel Composite Video Input / Output connection.
•Accepts Single Camera input or a Multiplexed input from most popular multiplexers.
•Compatible with Color or Monochrome cameras.
•Records up to 60 pictures per second (NTSC) or 50 pictures per second (PAL).
•Continuous Recording in Disk Overwrite mode.
•Video Archiving via the unit's SCSI port.
•Access to Live or Recorded video via the Ethernet (Ethernet option only).
•Continues Recording while Archiving, or transmitting data via the Ethernet (Ethernet option
only).
•A simple on-screen menu system.
•Includes WaveReader software for viewing Live or Recorded images on a PC (Ethernet option
only).
•Timed recording.
•Audio Recording (Audio option only).
•Programmable Auto Delete Mode.
•Auto-Daylight savings time change function.
•Clock synchronization with Network Server.
•Integrated WaveBrowser Software.
•Dynamic IP addressing (DHCP).
1.3 Unpacking
Check the package and contents for visible damage. If any components are missing or damaged,
contact the supplier immediately. Do not attempt to use the unit. If, for any reason they must be
returned, the contents must be shipped in the original packaging.
Package Contents
•The DSR-1000eZ unit.
•Accessories PCB.
•The DSR-1000eZ user manual.

Kalatel DSR-1000eZ 1-20150-0238B
•WaveReader software with User Manual (Ethernet option only).
•Archiving Addendum.
1.4 Installation Environment
Power: Ensure that the site's AC power is stable and within the rated voltage of the external power
supply. If the site's AC power is likely to have spikes or power dips, use power line conditioning or an
Uninterruptable Power Supply (UPS).
Ventilation: Install the unit in a well-ventilated area. Take note of the locations of the cooling vents in
the unit's enclosure, and ensure that they are not obstructed.
Temperature: Observe the unit's ambient temperature specifications when choosing a location
space. Extremes of heat or cold beyond the specified operating temperature limits may cause the unit
to fail. Do not install the unit on top of other hot equipment.
Moisture: Do not expose the unit to rain or moisture. Moisture can damage the internal components.
Do not install this unit near sources of water.
Chassis: You can place other equipment on top of the unit if it weighs less than 35 pounds.
1.5 Passwords
Figure 1-1Passwords
Password Name Function Changeable by user? Password
Advanced Menu
Password Provides access to the
Advances menu for the
installer. Yes: See page 5-93477
Factory Password Restores the unit to the
factory defaults. No 8111
A password is provided to limit access to the Advanced menu. It is recommended that the default
password be changed after installation is complete. As a security measure, store the password in the
administrator's secured files or in a limited access area. For instructions on entering the Advanced
menu with the password see section 4.7 Main Menu →Advanced Menu on page 4-15.
A password is also provided to return the unit to the factory defaults. For instructions on returning the
unit to the factory defaults, see section 5.8 Advanced Menu →Factory Settings on page 5-8.

0150-0238B 1-3Kalatel DSR-1000eZ
1.6 Front Panel Controls

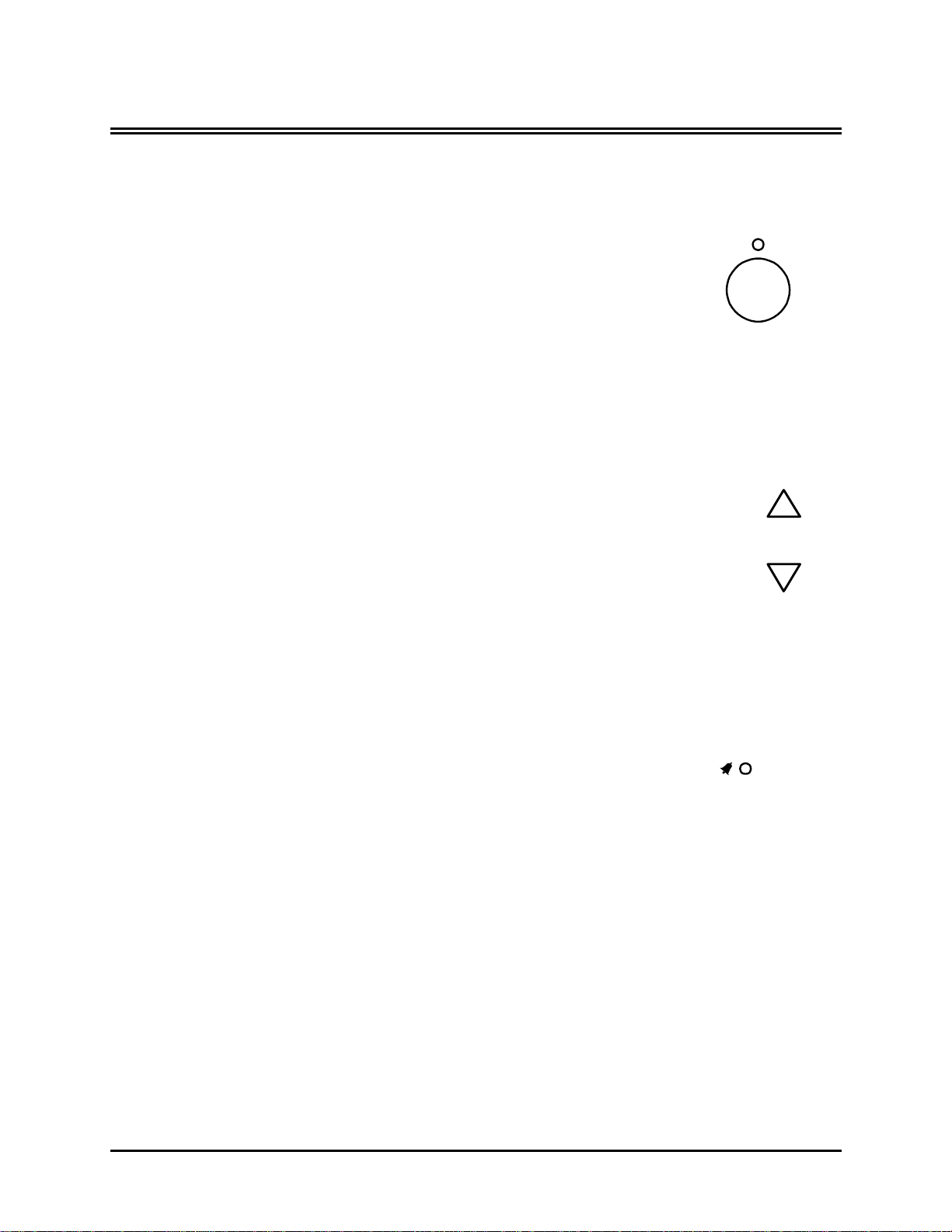

Figure 1-2Front Panel
1 2 4 5 63
7
8
9
10
1. Record button: Press this button to begin recording.
2. Reverse play button: Press this button to playback video in reverse at the normal record speed.
3. Stop button: Press this button to stop Recording or Playback.
4. Play Forward button: Press this button to playback video at the normal record speed.
5. Pause button: Press this button to pause playback.
6. Search button: Press this button to enter the Search Filters menu.
7. Increase and Decrease Record Speed buttons: Press these buttons to increase or decrease
the Record or Playback speed.
8. Combination Menu and Enter button: Press the lower half of the button (the Menu button) to
enter the Menu system. Also used to move to higher level menus while in the menu system.
--OR—
Press the upper half of the button (the Enter button) to make or confirm a selection in the menu
system.
9. Power On Indicator and Alarm Indicator: Indicates power and an alarm indication when their
respective LED’s are lit.
10. Jog / Shuttle: The Jog (the inner of the two dials) is used for single frame advance while in
Pause mode; it is also used to change the value of a parameter while in the menu system. The
Shuttle (the outer of the two dials) is used to Fast Forward and Rewind while in the Play mode.

Kalatel DSR-1000eZ 1-40150-0238B
1.7 Back Panel Connections

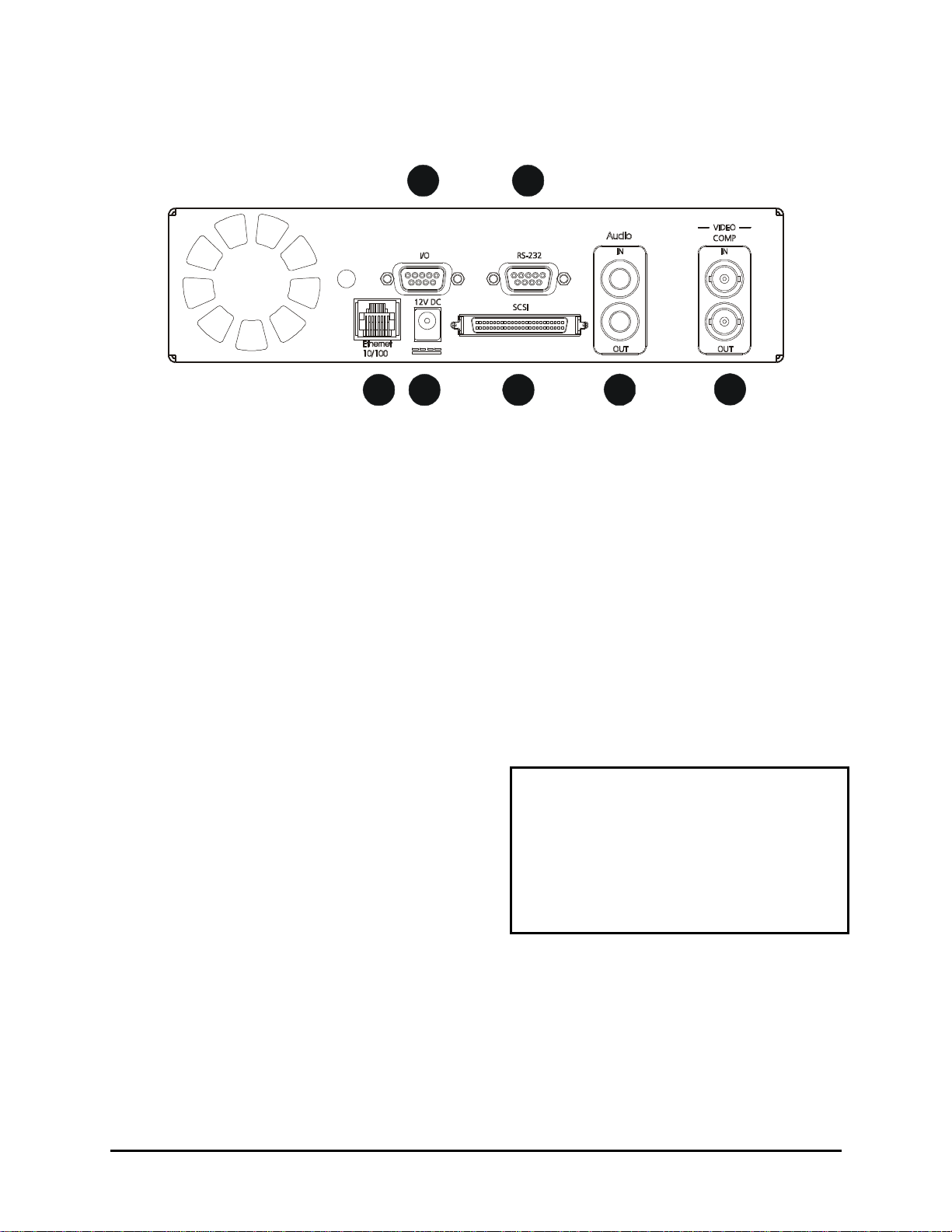

Figure 1-3Back Panel
6
1
2
4
5
3
7
1. I/O Port: For connecting peripheral devices such as alarm devices, alarm relays, or the VEXT
connection.
2. RS-232 Serial Port: Serial port for Flash Upgrading of software. Also for external control of
unit.
3. Ethernet Port (Optional): For viewing Live or Recorded images on a PC via the Ethernet.
4. Power Connector: Connect 12 Volt DC external power supply.
5. SCSI Port: For connecting an SCSI compatible archive device.
6. Audio In (Optional): RCA jack, 315mV, 40k Ohms. Unbalanced.
Audio Out (Optional): RCA jack, 315mV, 600 Ohms. Unbalanced.
7. Video In: Composite video input with BNC style connector.
Video Out: Composite video output with BNC style connector.
Ethernet Port (Ethernet models only)
Wire Type: CAT5
Connector Type: RJ-45
Max Cable Length: 100 feet / 30.5 meters
Minimum Cable Length: 6 feet / 1.8 meters
Hub Wiring Configuration: Straight Through
PC Wiring Configuration: Cross Over
The cable connection configuration depends on your
network configuration:
•For a DSR-1000eZ that connects directly to a
Hub, use a Straight Through connection.
•For a DSR-1000eZ that connects directly to a
PC, use a Cross-over connection.
Consult with your MIS personnel for the specific type
of configuration. See section 5.5 Advanced Menu →
Communications for information about configuring
the ethernet settings in the menu system.
