KALITE Steam 7000 User manual

INSTRUCTION MANUAL
Model: Steam 7000
www.kalite.vn

CONTENT
Gerenal description............................................................................................
Safety precautions..............................................................................................
Warning..............................................................................................................
Instructions.........................................................................................................
Cooking skill and recipes.....................................................................................
Cleaning and maintenance.................................................................................
Relevant accessories..........................................................................................
Troubleshooting..................................................................................................
1
02
02
03
04
09
10
11
13

GENERAL DESCRIPTION
1. water tank
2. water tank knob
SAFETY PRECAUTIONS
Key point
Please read this manual carefully before using this product to prevent incorrect operation and any
danger, and keep it for future reference.
Danger
• Do not immerse in water or wash under the tap, because there are electronic components and
heating elements in the shell.
• Avoid any liquid entering the product to prevent electric shock and short circuit, and do not pour
liquid into the radiator inlet
• Ingredients should be no more than basket capacity to prevent touching with any heating
elements
• When the product is working, do not cover the air inlet and air outlet.
• Do not pour oil in the pan, as it may cause fire hazard.
2
3. display
4. frying grid
5 basket
6 handle
7. air inlets
8. waste water tray
9. air&steam outlets
10. air outlet
11. mains cord
1
2
3
4
5
6
7
8
9
10
11

WARNING
• Check whether the voltage of the product is suitable for the local power supply voltage
• If the product is damaged on the plug, main wires or other parts, please do not use it
• If the power cord is damaged, in order to avoid danger, it must be replaced by professionals from
the manufacturer, its maintenance department or similar departments.
• Keep the product and its power cord out of the reach of children
• Keep wires away from hot surfaces
• Do not use wet hands when inserting the product or operating the control panel
• The product must be plugged into a grounded outlet. Always make sure that the plug is inserted
into the correct socket
• Do not connect the product to the external timing switch
• Do not put the product close to inflammable materials such as tablecloth or curtain
• Do not stick the deviceon the wall or face other appliances. There should be at least 10cm free
space on the back side and at least 10cm space on the top of the product
Don't put anything on the product
• Do not use the product for other purposes than those mentioned in this manual
• When using the product, someone must take care of the use of the product
• Hot air and steam are released through the air outlet in the boiler. Please keep your hands and
face at a safe distance from the air outlet in the basket, so as to avoid scalding caused by the hot air
and steam released from the air outlet in the basket
• Be careful of hot steam and hot air when you take out the basket
• If you see black smoke coming out, please unplug the deviceimmediately. Do not move the air
fryer until the smoke is discharged
• The devicecan not operate in the mode of external timer or independent remote control system
• During the operation of the appliance, the temperature of some external surfaces may be very
high. Please note
Note
• Please make sure to place the product on a smooth surface
• This product is designed for home use. It may not be suitable for use in staff kitchens, farms,
motels and other non residential environments.
• The product should be used according to the instruction. If it is not professional or not used
according to the instruction, it will be invalid
• Product with damaged plug cannot be used
• The product needs to be cooling down for about 30 minutes after use as well as cleaning
Electromagnetic field (EMF)
This product complies with all EMF. Under proper use, based on existing scientific evidence, the
product is safe.
3

INSTRUCTIONS
Before first use
1. Remove all packaging materials
2. Use hot water and liquid detergent and abrasive sponge to clean the frying board and frying pan
3. Wipe internal and external products with clean cloth. This product uses hot air to cook food
without oil
4. For the first use, please do not put any food into the basket, and use the pure baking function to
run for 15 minutes, during which there may be some slight smell and smoke, but please don't worry,
this is not a fault, just a normal phenomenon for the first use
5. Please ensure that the product is used in a ventilated environment
6. For the first use, please do not put any food into the basket. After adding water to the water tank,
use the pure steam function to run for 15 minutes. In the first run of the product for about 1 minute,
the water pump may have a big vibration sound. Please don't worry, this is not a fault, but a normal
phenomenon for the first use.
Function and operation instructions
4

Instructions for using pure Air Fryer function
The air fryer function mainly uses hot air to cook the food. After cooking, the food is crisp, tender and
full of taste.
1. Put in ingredients:
Ensure water tank is filled completely before cooking. Place desired food and
ingredients into the basket.
Note: do not pour oil or any liquid in the basket
Note: Please place the product in a stable place with heat-resistant surface
2. Setting function:
a) plug in the power supply, the display will be lighted up.
b) click the air fryer mode menu " " icon.
c) Click the button " " and " " to set time and temperature.
d) Click the start button " " to start baking the food. At this moment, the working status light flashes
quickly, indicating that the product is running
Tips: if you want to adjust the time or temperature during the cooking process, you can press the
return key " " in the running state of the product, pause the operation and reenter the temperature
and time setting state for adjustment, and press the starting key after the setting
Tips: if you need to preheat the appliance, you can preheat it without ingredients in it. You only need
to set the cooking time for 3 minutes more than the expected cooking time. After the product works
for 3 minutes, you can pull out the basket and put the ingredients inside, and then slide the basket
back again
Tips: some foods need to be taken out and shaken at intervals during cooking. Please hold the
handle to pull the basket out of the product and shake the basket. Then put the basket back into the
frying pan to continue cooking. Pay attention to the hot air when pulling out the basket
3.End of Cooking: you will hear 5 long sounds. At this time, please take the basket out of the product
and place it in a heat-resistant container or mat. Please confirm whether the food is cooked. If the
food is not cooked, put the basket back into the device and set it for a few minutes
Note: do not turn the basket upside down because the excess oil in the pan will leak onto the food.
To remove large or fragile food, use pliers or clips etc
Tips: after cooking, the excess oil in the food will be collected at the bottom of the basket. Please
pay attention during cleaning
Tips: If the device has not been operated for a long time in the setting state or the cooking is finished,
the machine will enter the standby mode. Touch any key to enter the setting state or pull out the
basket body to wake up the machine (push the basket back will enter the function setting state as
well)
INSTRUCTIONS
5

Instructions for use of pure Steam function
The pure steam function mainly uses the high temperature steam to cook the food. After cooking,
the food is fresh and tender, and the nutrition of the food is fully maintained.

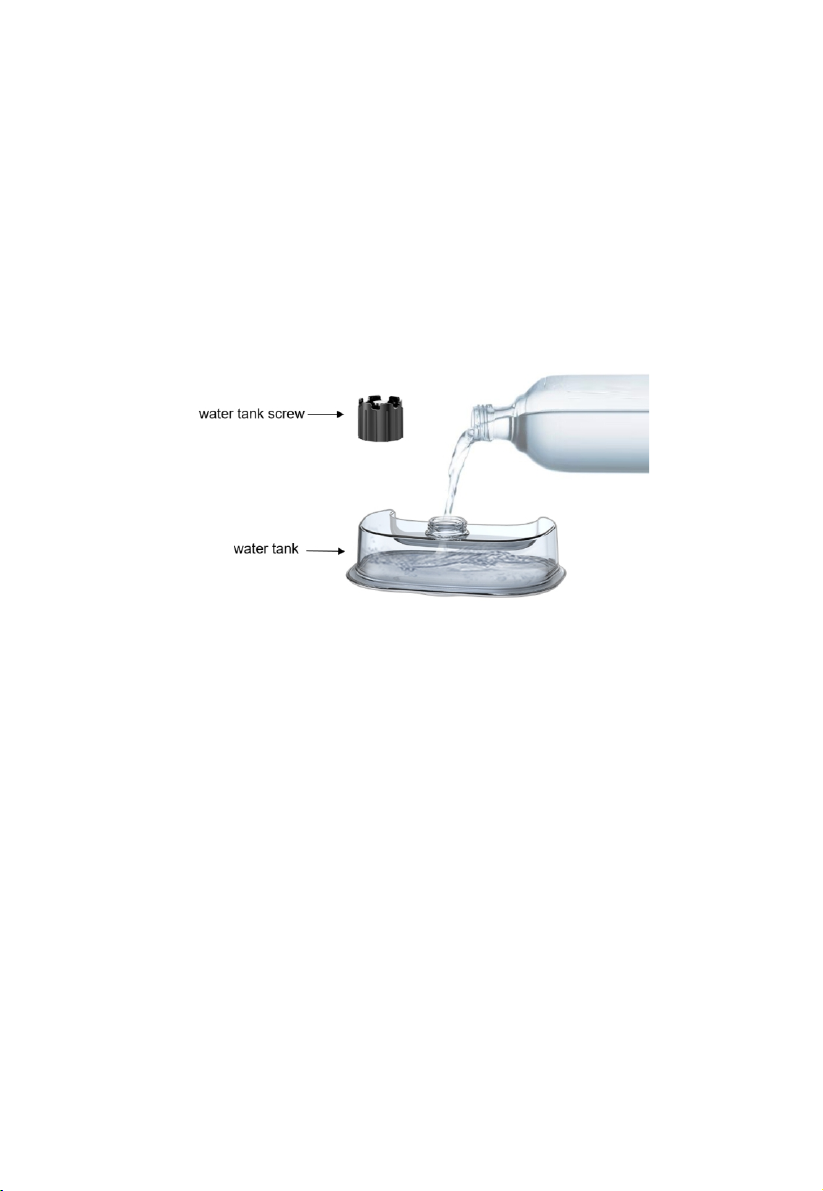

1. Add water to the water tank:
take out the water tank, unscrew the nut of the water tank, add enough distilled water into the water
tank, then tighten the nut of the water tank, and finally align the nut of the water tank with the water
inlet and put it into the water tank
INSTRUCTIONS
Note: please use distilled water for cooking
Note: do not fill the water tank with water higher than 50 degrees or lower than 10 degrees,
otherwise there may be a risk of water leakage
Note: after adding water, please be sure to tighten the nuts of the water tank, otherwise there may
be a risk of water leakage
Note: do not water the top of the product directly to avoid water entering the product
Note: do not drop the water tank from a high place, otherwise the water tank will leak and eventually
cause water leakage
2. Put in ingredients:
Carefully pull out the basket from the device, then put the ingredients inside, and slide the basket
back.
Note: Please place the device in a stable place with heat-resistant surface
6

3. Setting function:
a) plug in the power supply, the display will be lighted up.
b) click the menu" " icon
c) click Time adjustment button" "to set the time. Note: steam temperature is 100 ° C, not
adjustable
d) Click the " " button to begin steaming food. At this moment, the working status light flashes
quickly, indicating that the product is running
Tips: during operation, in case of insufficient water in the water tank, the product will give a short
interval sound, and the water shortage light " " will flash. Please add enough distilled water into
the water tank
Note: the capacity of the water tank is 1000ml, and it can run for 50 minutes with full water. There will
be slight differences between different devices.
Tips: If you want to adjust the time during cooking, you can press the time adjustment button under
the running state of the product
Tips: When the steam function is on, the heating tube and fan will be used to quickly preheat the
chamber for 1 minute to reduce the heating time of steam;When the steam function is over, the fan
rotates to cool the prototype for 10 seconds
Tips: In the process of steaming, please wait patiently for the food to be cooked. Do not pull out the
product's fryer frequently to avoid excessive steam leakage and failure to steam the food
4. End of Cooking:
You will hear 5 long sounds. At this time, please take the basket out of the product and place it in a
heat-resistant container or mat. Please confirm whether the food is cooked. If the food is not
cooked, put the basket back into the device and set it for a few minutes
Note: do not turn the basket upside down because the excess oil in the pan will leak onto the food.
To remove large or fragile food, use pliers or clips,etc
Tips: after cooking, the excess oil in the food will be collected at the bottom of the basket. Please
pay attention to cleaning
Tips: after cooking, please take out the water tank and waste water tank from the product, and pour
out the unused water and waste water, so as to prevent liquid from becoming moldy and smelly after
a long time
Tips: If the device has not been operated for a long time in the setting state or the cooking is
finished, the machine will enter the standby mode. Touch any key to enter the setting state or pull
out the basket body to wake up the machine (push the basket back will enter the function setting
state as well)
INSTRUCTIONS
7

The following table can help you choose the ingredients
Pure air fryer menu:
COOKING SKILLS AND RECIPES
Min-max (g) Time (min) Temp (⁰C) Shake Remark
French fries
Thin frozen fries
Thick frozen fries
Home-made fries
Homemade potato wedges
Home-made potato cubes
Potato gratin
Steak
Meat chops
Hamburger
Sausage roll
Drumsticks
Chicken breast
Snacks
Spring rolls
Frozen chicken nuggets
Frozen fish fingers
Frozen bread crumbed
Stuffed vegetables
Cake
Quiche
Muffins
Sweet snacks
300 - 700
300 - 700
300 - 800
300 - 800
300 - 750
500
100 - 500
100 - 500
100 - 500
100 - 500
100 - 500
100 - 500
100 - 400
100 - 500
100 - 400
100 - 400
100 - 400
300
400
300
400
9 - 6
11 - 20
10 - 16
18 - 22
12 - 18
15 - 18
8 - 12
10 - 14
7 - 14
13 - 15
18 - 22
10 - 15
8 - 10
6 - 10
6 - 10
8 - 10
1 - 10
20 - 25
20 - 22
15 - 18
1 - 20
200⁰C
200⁰C
200⁰C
180⁰C
180⁰C
200⁰C
180⁰C
180⁰C
200⁰C
180⁰C
180⁰C
180⁰C
200⁰C
200⁰C
200⁰C
180⁰C
160⁰C
160⁰C
180⁰C
200⁰C
160⁰C
Y
Y
Y
Y
Y
Y
Y
Y
Add 1/2 tbsp of oil
Add 1/2 tbsp of oil
Add 1/2 tbsp of oil
Use oven-ready
Use oven-ready
Use oven-ready
Use oven-ready
Use baking tin
Use baking tin/
oven dish
Use baking tin
Use baking tin/
oven dish
8

COOKING SKILLS AND RECIPES
Pure steam menu:
Min-max (g) Time (min) Temp (⁰C) Remark
Ingredients
Egg
Broccoli
Fresh shrimp
Fish
Frozen dumplings
Stuffed bun
corn
4 pcs
100-500
100-500
100-500
100-300
360g (9 pcs)
2 pcs
30-35
13-15
13-15
15-20
20-25
15-20
25-30
100⁰C
Use the shrimp menu
frozen
Vegetables
Pork ribs
500
500
20-25
20-25
100⁰C
100⁰C
100⁰C
100⁰C
100⁰C
100⁰C
100⁰C
100⁰C
Use the broccoli menu
Note: remember that these settings are all directional. When the origin, size, shape and brand of
raw materials are different, we cannot guarantee the best settings of your ingredients
In the pure air fryer mode, the device will heat the air quickly. During the operation, pulling the
basket out for a short time and turning or shaking the food will not have a great impact on the whole
heating process
In the pure steaming mode, please try not to pull out the basket to turn the food, so as to avoid the
steam leakage and affect the final cooking effect
Tips: small ingredients usually take a little less time to prepare than large ingredients.
Tips: foods with large weight and thick thickness usually need more heating time than those with
small weight and thin thickness
Tips: constantly shaking smaller materials during the manufacturing process can optimize the final
result and help prevent uneven steaming and explosion in some places
Tips: don't make extremely greasy ingredients such as sausages in a frying pan
Tips: snacks made in the oven can also be made in the fryer
Now you can make French fries as follows:
a) peel and slice potato
b) clean the potato strips and dry them
c) pour 1 / 2 tablespoon of olive oil into a bowl and smear all the chips with oil
d) take the chips out of the bowl with your fingers or kitchen utensils, leave the excess oil in the bowl,
and put the chips on the frying grid
e) start the French fries function to cook the French fries
Tips: the best food size of chips is 500g
COOKING SKILLS AND RECIPES
Pure steam menu:
Min-max (g) Time (min) Temp (⁰C) Remark
Ingredients
Egg
Broccoli
Fresh shrimp
Fish
Frozen dumplings
Stuffed bun
corn
4 pcs
100-500
100-500
100-500
100-300
360g (9 pcs)
2 pcs
30-35
13-15
13-15
15-20
20-25
15-20
25-30
100⁰C
Use the shrimp menu
frozen
Vegetables
Pork ribs
500
500
20-25
20-25
100⁰C
100⁰C
100⁰C
100⁰C
100⁰C
100⁰C
100⁰C
100⁰C
Use the broccoli menu
Note: remember that these settings are all directional. When the origin, size, shape and brand of
raw materials are different, we cannot guarantee the best settings of your ingredients
In the pure air fryer mode, the device will heat the air quickly. During the operation, pulling the
basket out for a short time and turning or shaking the food will not have a great impact on the whole
heating process
In the pure steaming mode, please try not to pull out the basket to turn the food, so as to avoid the
steam leakage and affect the final cooking effect
Tips: small ingredients usually take a little less time to prepare than large ingredients.
Tips: foods with large weight and thick thickness usually need more heating time than those with
small weight and thin thickness
Tips: constantly shaking smaller materials during the manufacturing process can optimize the final
result and help prevent uneven steaming and explosion in some places
Tips: don't make extremely greasy ingredients such as sausages in a frying pan
Tips: snacks made in the oven can also be made in the fryer
Now you can make French fries as follows:
a) peel and slice potato
b) clean the potato strips and dry them
c) pour 1 / 2 tablespoon of olive oil into a bowl and smear all the chips with oil
d) take the chips out of the bowl with your fingers or kitchen utensils, leave the excess oil in the bowl,

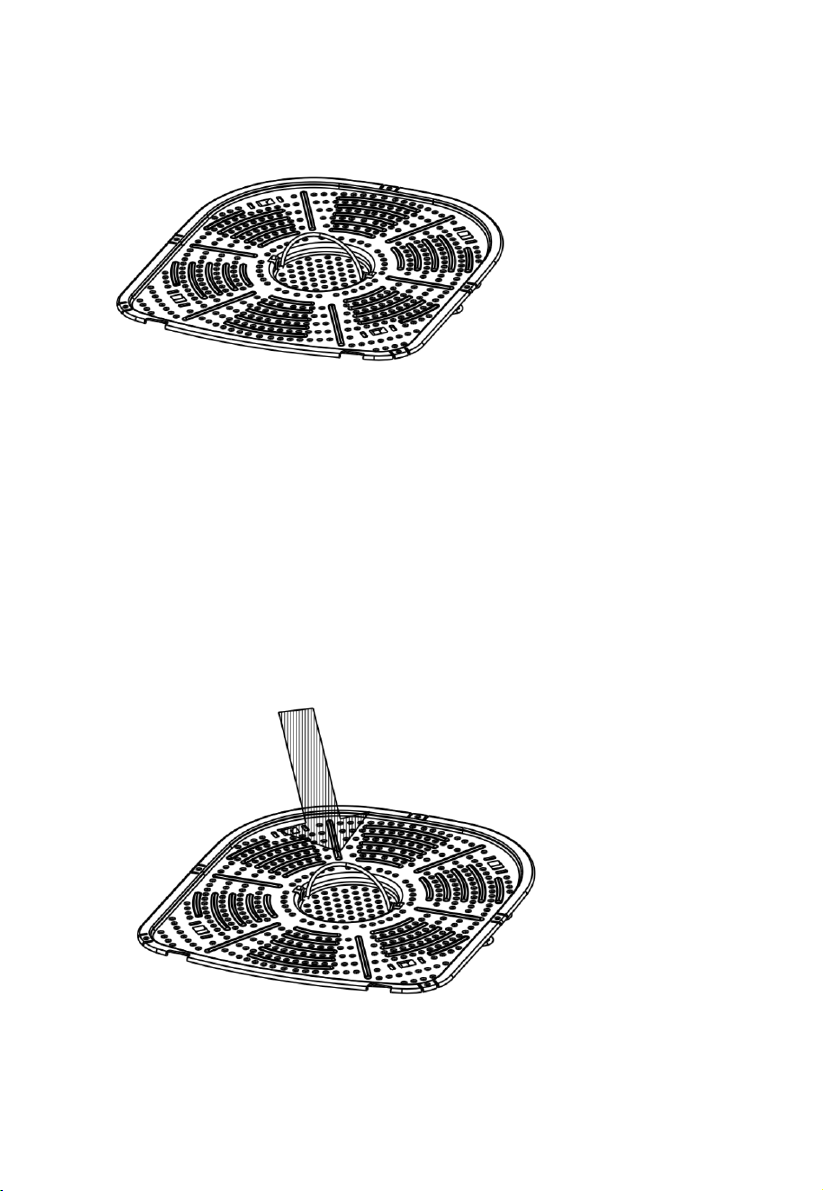

and put the chips on the frying grid
e) start the French fries function to cook the French fries
Tips: the best food size of chips is 500g
9
