Kalorik AFO-04D User manual

AFO - 04D
INSTRUCTION
MANUAL
Air Fryer Toaster Oven

TABLE OF
Important Safeguards 3
Getting to know your Air Fryer Toaster Oven 5
Main Component 5
Feature 6
Technical Specification 6
LED Control Panel 7
Before using your Air Fryer Toaster Oven 9
Operation Guide 10
Cooking Functions Quick Reference Chart 12
Replacing the light 13
Care,Cleaning&Store 14
Troubleshooting 16
CONTENTS

R
T
A
o
l
E
w
a
A
s
a
D
t
y
e
s
A
r
f
O
L
o
L
v
ll
e
o
I
n
N
w
.
S
b
T
a
R
s
U
ic
C
s
T
a
I
f
O
e t
N
y
S
p
B
re
E
c
F
a
O
u
R
t i
E
o n
U
s
S
w
E
he
n u si ng yo u r Air Fryer
IMPORTANT SAFEGUARDS
Unplug from outlet when not in use and before cleaning. Allow to
cool before cleaning or handling, putting on or taking off parts.
Do not touch hot surfaces without using heat-protective gloves.
To avoid burns, use extreme caution when removing hot
Accessories or disposing of hot grease.
Do not immerse cord, plug or any parts of Air Fryer Toaster Oven in
water or other liquid to prevent against electrical hazard. This
appliance should not be used by or near children.
Do not operate any appliance with a damaged cord or plug. If the
appliance is dropped or damaged, please return product to original
store or retailer for proper inspection and repair.
To avoid potential injury, do not use accessories or attachments
not recommended for the unit.
Do not use outdoors.
Do not let cord hang over the edge of a surface where the potential of
child or pet interaction is present.
Do not place on or near a hot gas or electric burner.
Do not use this appliance for other than intended use.
Extreme caution should be exercised when using containers constructed
of materials other than metal or glass in the Air Fryer Toaster Oven.
Do not store any materials other than manufacturer’s
Recommended accessories in this appliance when not in use.
Do not place any of the following materials in this appliance: cardboard,
plastic, paper , or anything similar.
3

IMPORTANT SAFEGUARDS
Do not cover Crumb Tray or any part of the Air Fryer Toaster Oven with
metal foil. This will cause overheating of the Air Fryer Toaster Oven.
Oversized foods,Metal foil packages or utensils must not be inserted
in an Air Fryer Toaster Oven as they may involve a risk of fire or
electric shock.
A fire may occur if the appliance is covered or touching flammable
materials such as curtains, draperies or walls,when in operation.
Do not store any items on top of the appliance when in operation.
Do not operate under wall cabinets.
Do not clean with metal scouring pads. Pieces can break off the pad
and touch electrical parts, involving a risk of electric shock.
Warning: To avoid possibility of fire, Never leave the appliance
unattended during use.Use recommended temperature settings for
all function.
Do not rest cooking utensils or baking dishes on glass door.
Do not operate your appliance in an appliance garage or under a wall
cabinet.When storing in an appliance garage,always unplug the unit
from the electrical outlet. Not doing so could create a risk of fire.
Check if the voltage indicated on the appliance corresponds to the local
main voltage before connecting the appliance.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
4

GETTING TO KNOW YOUR
AIR FRYER TOASTER OVEN

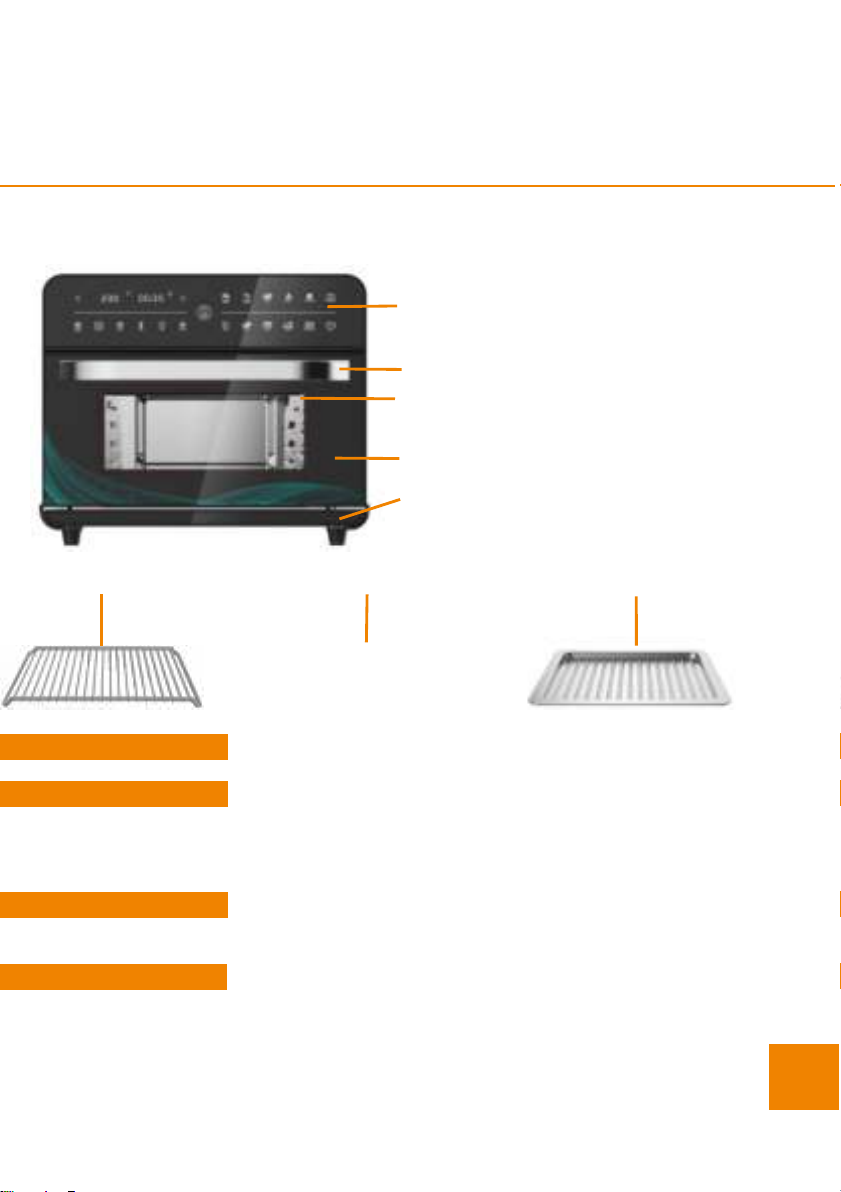

MAIN COMPONENTS
LED Control Panel
Door Handle
Oven Light
Visible Door
Crumb Tray
Oven Rack Air Fryer Basket Baking Pan
Oven Rack: Using for m eat,bread,pizza etc.
Air Fryer Basket: Use the Air Fryer Basket in conjunction with the
Air Fry function to optimize your cooking results.
Using for fries,chicken wings,onion etc. It also could
be used as the dehydrate basket
Baking Pan: Using for cookies,cake, turkey etc.It can also hold
the drippings from the food or oil when Air frying.
Press the “ Light ” button to turn on or turn off light.
In order to save energy, the light will turn off
automatically in 5 minutes, and re-press “ Light ”
button if want to turn on the light
once again.
5
Oven Light:
5

FEATURE
By using all-new 360° HOT AIR CIRCULATION technology,The Air Fryer
Toaster Oven can offer you more delicious and healthier cuisine.
TECHNICAL SPECIFICATION
Voltage
Power
Frequenc
y
Capacity
220~240V
1800W
50-60Hz
25L
DOOR SENSOR
If the door is opened during cooking, the cooking will pause and the
light will turn on. The panel will show .When the door is
closed, the light will turn off and resume cooking. Please make sure to keep
the oven door closed during cooking.
CORD STORAGE
The built-in cord storage design, located in the back of the unit, takes
up excess cord length and keeps your countertop looking clean and
organized.
6

LED Control Panel
①Air Fryer Toaster Oven Functions Overview
TEMP
RANGE
TIME
RANGEI
CONS
DEFAULT
TEMPERATUR
EE ICONS

KEEP
WARM
PROOF
PRESET
ICONS
ICONS
ICONS
DEFAULT
TIME
ICONS
FRENCH
FRIES
230℃
38-230℃
38-230℃
25MINS
Up to 2 HOURS
CHICKEN
WINGS
230℃
38-230℃
18MINS
Up to 2 HOURS
STEAK
230℃
7MINS
Up to 2 HOURS
PIZZA
200℃
38-230℃
11MINS
Up to 2 HOURS
VEGETABLES
230℃
38-230℃
LIGHT 1
MED 2
DARK 3
15MINS
Up to 2 HOURS
LIGHT 3MINS
MED 4MINS
DARK 5MINS
TOAST
230℃
3MINS
BROIL
230℃
150-230℃
10MINS
Up to 2 HOURS
BAKE
176℃
38-230℃
20MINS
Up to 2 HOURS
ROAST
200℃
38-230℃
30MINS
Up to 2 HOURS
DEHYDRATE
50℃
38-82℃
4 HOURS
Up to 2 HOURS
50℃
38-120℃
4 HOURS
Up to 8 HOURS
38℃
40 MINS
Up to 8 HOURS
38-48℃
7

LED Control Panel
The above default data are for reference only, the user
can adjust the desired temperature and time as required.
②
④

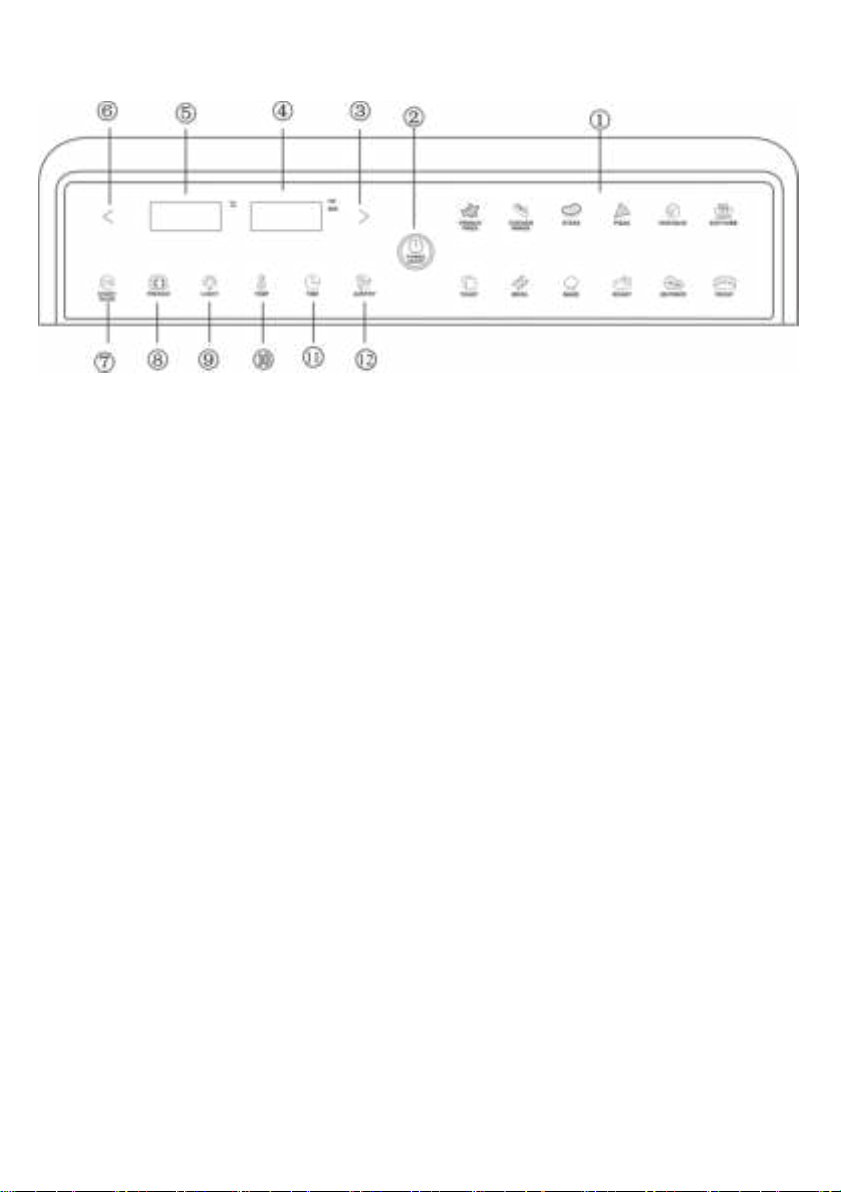

⑤ DISPLAY:TEMPERATURE
⑦
⑧
⑨
DISPLAY:TIME
Touch “ POWER ON/OFF”icon to turn the Air Fryer Toaster Oven On/Off.
POWER ON/OFF
Touch “ START/PAUSE”icon to start or cancel the program.
START/PAUSE
PREHEAT
Touch “ PREHEAT”icon tp preheat the Air Fryer Toaster Oven. (No need to touch
the “START/PAUSE”icon to enter the preheat program)
LIGHT SWITCH
Touch “LIGHT”icon to turn the oven light On/Off. (After manual selection,
it will automatically turn off 5 minutes later.)
⑩ ③

⑩+③
⑩+⑥
TEMPERATURE INCREASE
TEMPERATURE DECREASE
Touch “ ” icon and then touch “> ”icon to increase the temperature as needed.
Long press “> ”icon for rapid decrease operation of setting.
Touch “ ” icon and then touch “< ”icon to decrease the temperature as needed.
Long press “< ”icon for rapid decrease operation of setting.
+③
TIME INCREASE
11
Touch “ ” icon and then touch “> ”icon to increase the time as needed.
Long press “> ”icon for rapid increase operation of setting.
+⑥
TIME DECREASE
11
Touch “ ” icon and then touch “< ”icon to decrease the time as needed.
Long press “< ”icon for rapid decrease operation of setting.
When “AIRFRY”icon is displayed on the LED control panel, the menu with air fry
function is working. Icon will disappear for the menu without air fry function.
AIRFRY
12

YOUR AIR FRYER TOASTER OVEN
5
BEFORE USING
1
i
R
n
e
s
m
id
o
e
v
t
e
h
a
e
ll
o
p
v
a
e
c
n
k
.
aging around and
3
FREN C H CHIC KE N STE AK PIZZA VE GE T AB LES
FRIES WING S LIGH T S TA R T/S TOP
TOAS T BR OI L B A KE R O AS T DE HY DR A TE
AIR FRY P REH EA T
POW ER
ON/O FF
4
.
M
2

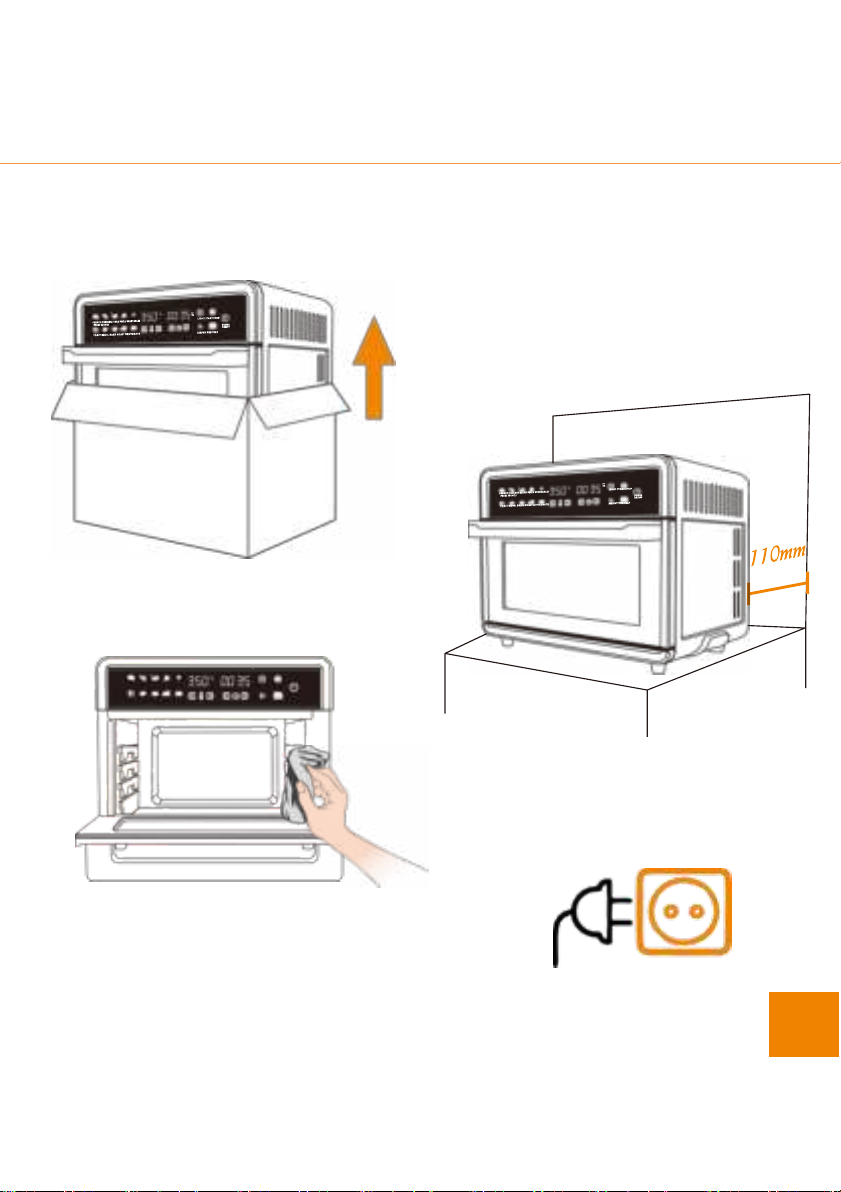

Place on a stable, level, heat-
