Kamome FKLT-201DHK User manual

Kamomefan F Series
FKLT-201DHK
Thank you very much for choosing our
product. Please read the User manual
carefully in order to use this product
correctly. Please keep the User manual
properly after reading.
DC24V, AC adapter (dedicated)Power supply
Power Consumption
10W (when using a dedicated AC adapter)
Cable length of AC adapter About 1.8m
Dimensions Width 36.5 × length 32 × height 55.5~62cm (when bracket unfolded)
Net Weight About 2kg (excluding the remote control and AC adapter)
This design and specifications of the product may be modified without prior notice.
1C18A
Contents
Safety Precautions ............................P1-P2
Name of Parts and Function ..........P3
Ｈow to use .................................P 4-P 12
Maintenance and Storage..................P13-P14
Troubleshooting..................................P15-P16
DOSHISHA CO.,LTD
[This product is for indoor use only]
Voltage
Frequency
220V
50Hz
User manual
Remote control Battery Lithium Battery (CR-2025)
The diagram and illustrations in this user manual are for reference only,the actual product is subject to manufacturer specifications.

Warning
Please read Safety Precautions carefully in order to ensure proper use
Please read and abide by the critical safety information listed in this section carefully
Please keep it properly after reading
Incorrect operation may cause a risk of death or serious injury
indicates “mandatory”. The specific mandatory content will be shown with picture and
text inside and beside . (The picture on the left indicates that “the power plug must be
pulled out from the socket”)
Prohibited
Prohibited
Prohibited
Unplug
Disas-
sembly
prohibited
Instruction
Do not connect this product to
power supply excepted rated
voltageandratedfrequency
Do not use devices other than
those provided with dedicated AC
adapters
It may cause electric shock and fire
Do not
Do not damage the power cord and
AC adapter, and do not use the
device before the plug is properly
inserted into the socket
It may cause electric shock, short
circuit and fire
Do not operate without the blades
and protective covers
It may cause personal injury and
device failure
Do not expose the product to
children, or use it in any place that
the children can access
It may cause electric shock and
personal injury
Do not insert metal objects such
as pins and wires into the gaps in
the main unit.
It may cause electric shock and
personal injury
Be sure to disconnect the AC
adapter out of the socket when
not in use. It may cause electric
shock, electric leakage, or fire
due to insulation deterioration.
For maintenance, remove the AC
adapter from the socket.
Failure to remove it may cause
electric shock, fire, or personal
injury.
Disassembly prohibited. Only
qualified personnel are allowed to
carry out repairs.
It may cause fire, electric shock,
personal injury, and other safety
accidents. For repairs, please
consult the sales office or Shun
Hing Electric Service Center Ltd.
Do not directly plug or unplug the
AC adapter with wet hands.
It may cause safety accidents such
as electric shock.
Immersion and watering of the
device are prohibited.
It may cause short circuit, electric
shock and other safety accidents.
In the event of an abnormality
(e.g. burnt smell, smoke), unplug
the AC adapter immediately and
stop using it.
It may cause fire or electric shock
Please insert the AC adapter fully
into the socket.
Failure to fully insert may cause
electric shock, short circuit and
fire.
Clean the dust adhering to the
pins and mounting surfaces of
the AC adapter.
Inserting AC adapter with dust
attached may cause safety
accidents such as short circuit and
fire.
After maintenance, fully secure the
blades and protective cover.
If it is not fully tightened or
properly installed, it may result in
safety accidents such as personal
injury and device failure.
If the battery liquid leaked from the
remote control and accidentally
enters into the eyes, do not rub.
Rinse immediately with cool water
and go to the hospital.
It may cause blindness or visual
impairment.
Wet hands
prohibited
Water
prohibited
indicates “prohibited”. The specific prohibited content will be shown with picture and text
inside and beside . (The picture on the left indicates “Disassembly prohibited”)
Incorrect operation may cause personal injury or property damage
(including residence, family properties, livestock and pets)
Warning
Attention
Meaning and example icon symbols
connect AC adapter to
socket when cleaning or
maintenance.It may cause fire,
electric shock,or personal injury.
Safety Precautions
Do not damage,process,bend,pull,
twist,or bundle the power cord,and
do not put any heavy object on the
cord and pinch it.It may cause fire
or electric shock.

Attention
Instruction Prohibited
Prohibited
When unplugging the AC adapter,
be sure to hold the AC adaptor
instead of the power cord.
It may cause electric shock, short
circuit, or break off the power cord.
Do not use a battery other than
specified.
It may cause liquid leakage.
Do not get your hair too close to
the device.
It may cause personal injuries due
to hair being caught.
Please confirm the positive and
negative poles of battery in the
remote control.
Incorrect installation of positive and
negative poles will not only cause
device failure, but may also cause
safety accidents due to liquid
leakage and battery rupture.
Do not place the battery of the
remote control in a hot place where
there is direct sunlight.
It may cause liquid leakage, battery
rupture, fire and other safety
accidents.
Do not use in the following places.
● Near stoves and other fire
sources
● Places with flammable gas
● Places that can be splashed by
rain and water
It may cause discoloration,
deformation, flame extinguishing,
fire, electric shock and other safety
accidents.
Take the battery out of the remote
control if it won’t be used for a long
time.
If the device is left unused for an
extended period of time with battery
installed, internal contamination
may be caused by liquid leakage,
and safety accidents such as fire
and personal injury may occur due
to battery rupture.
Do not blow directly to the body for
a long time.
It may cause harm to your health.
Do not use household cleaners,
thinners, gasoline, alcohol or
abrasive powder for cleaning. It
may cause discoloration,
deformation, electric shock or
device failure.
When disposing of the remote
control, be sure to remove the
battery.
Disposal of the remote control
directly with battery installed may
cause an accident. Please dispose
of the battery as required by local
government.
Do not drag the main unit.
It may damage the floor.
Do not forcibly turn the main unit to
the front while it is swinging.
It may cause device damage,
malfunction or noise.
Do not insert your fingers into
the guard or any moving parts
It may cause safety accidents
such as personal injury.
While folding the bracket or
adjusting the fan height, be careful
to prevent pinching the fingers.
It may cause safety accidents such
as personal injury.
Do not use in an unstable place.
It may cause personal injury,
device failure and other safety
accidents.
When setting up, be sure to fully
unfold the bracket to make it
completely touch the ground.
If the device is not set properly, it
may cause safety accidents such
as falling over.
■ This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experiences and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by aperson responsible for their safety.
■ Children should be supervised to ensure that they do not play with the appliance.
■ The appliance is only to be used with the power supply unit provided with the appliance.
■ The appliance must only be supplied at safety extra low voltage corresponding to the marking on the
appliance.

Front guard
Fan part of
main unit
Blade
Operation part•
Remote
receiver
Base part of
main unit
Tripod
Middle tube
Handle
Rear guard
Support ring
Height adjustment
button
Remote control
Remote control storage
position
DC port
Connect to DC plug
Power cord
DC plug
Remote
control
AC
adapter
Center mark
shell (Aroma
box)
Name of Parts and Function
Front
Back
Operation part of
main unit
Operation buttons
Remote control
Power button • Air volume control knob
(main unit)
Start/stop running; adjust air volume during running.
Air volume up knob (remote control)
Increase the air volume
Air volume down knob (remote control)
Reduce the air volume
Up/down swing button
Start/stop up/down swing

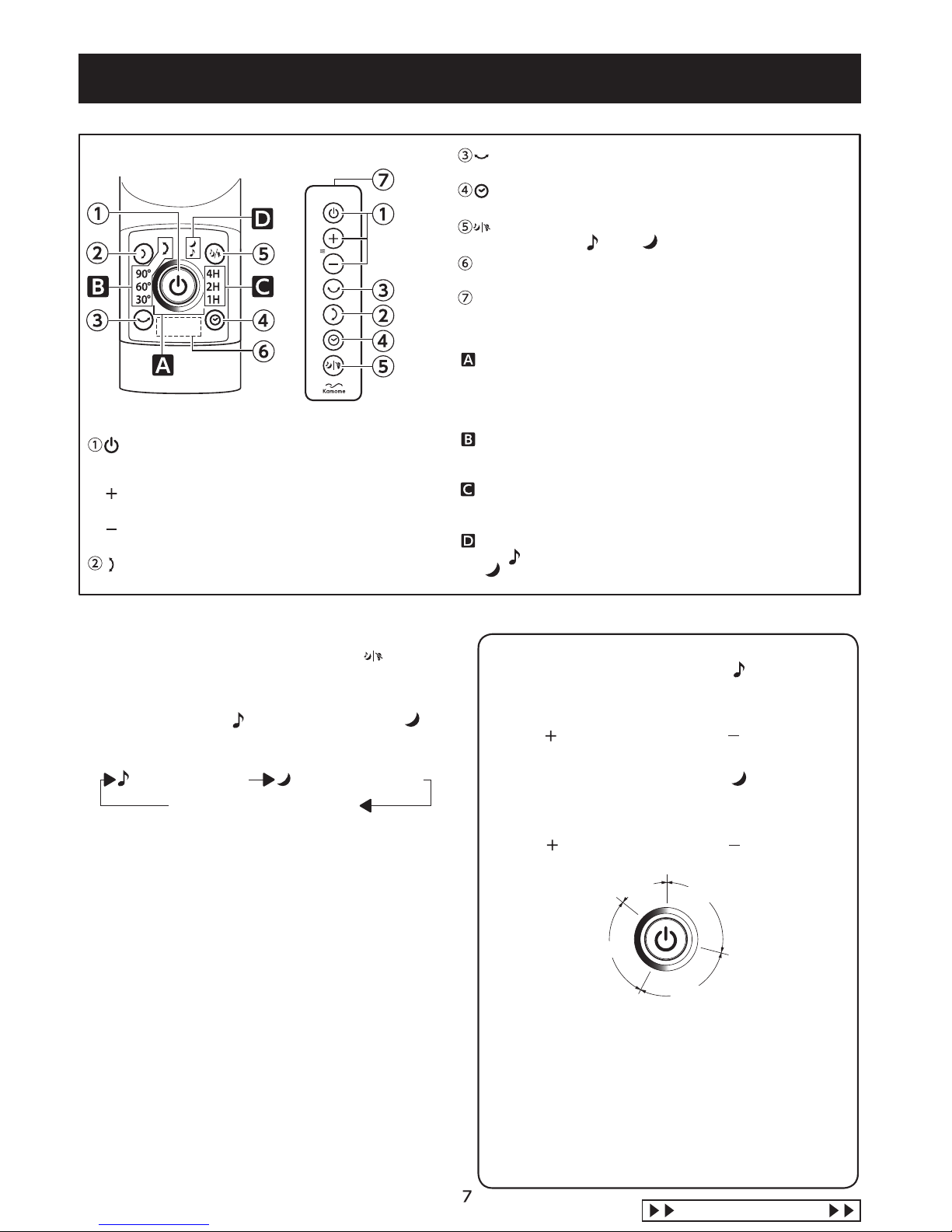

Left/right swing button
Start/stop left/right swing/angle setting
Timer button
Set the time of schedule on/off
Natural/sleep wind button
Switch between natural/ sleep wind
Remote control receiver (main unit)
Receive signal from the remote control
Signal emitter (remote control)
Point it to the remote signal receiver on the main
unit.
Display part
Air volume indicator
Display the air volume. With the increase of air
volume, the light coil of the indicator light in the upper
right corner will become longer and longer and form a
complete circle when the maximum air volume is
reached.
Swing display 30°, 60°, 90°
Display the angle of left/right swing and up/down
swing in swing mode.
Timer display 1H, 2H, 4H
Display the remaining time before the schedule on/off
function starts.
Natural/sleep wind display
The indicator turns on in natural wind mode and the
indicator turns on in sleep wind mode.

How to Use
After purchase, please confirm if the following accessories are complete
※Do not throw away the packaging materials after assembly, which can be used to store the product after use.
Do not turn on the power before the blades and guards are installed
• Plug the AC adapter into the socket only when the blades and guards have been properly
installed • Start operation only when the Tripod has been properly set.
• Avoid pinching your fingers when folding or unfolding the Tripod.
It may cause personal injury and other safety accidents.
Main unit.......................................................1pcs
AC adapter...................................................1pcs
Remote control.............................................1pcs
Coin lithium battery (CR2025).......................................... 1pcs
Aroma filter (1 in aroma box ; installed )..................... 4pcs
User manual (including Warranty Card) ................1pcs
Packing List
1. Turn over the main unit and put it on the
table, unfold the Tripod and insert the DC
plug of the AC adapter into the bottom of
the middle tube.
• Please insert the DC plug of the AC adapter into
the DC port in the middle tube of the main unit.
• To embed the wires into the hook (groove), insert
the DC plug completely after aligning the
direction.
Be sure to insert the power cord of
AC adapter into the hook on the base
of the main unit.
If the power cord isn’t embedded in
the hook, it is easy to cause fire,
accident and device failure due to
wire falling off.
Middle tube
DC port
Hanging hook
DC plug Power cord
Power cord
Continued on next page
Fully insert the
power cord into
the hook
Preparation before Use
To pull out the DC plug from the DC port, it can be
easily operated by shaking the DC plug of the power
cord left and right and pull it outwards.
When DC plug is pulled out
Warning
Warning
Do not shake the power cord excessively.
It may damage the cord and cause device
failure. Only shake the power cord at the
minimum amplitude when necessary.
Attention
Attention

How to Use (cont.)
2. Please keep the main unit upright, lift it up and set
in a stable place
• Please hold the handle to move the fan.
• Please fully unfold the tripod so that they all touch the
ground.
• Do not place the tripod with middle tube (when set
correctly, the middle tube should be 5~10 mm away
from the ground.)
3. Press the height adjustment button on the
back of the main unit to adjust the height
•The fan position of the main unit moves up and
down when the height adjustment button is pressed.
•The part above the base of the main unit will move
up and down.
The height can be adjusted with the height adjustment button.
• While pressing the height adjustment button, hold down the base of
the main unit and tripod, and then lift the handle to raise the height.
• Locking mechanisms are integrated at highest and lowest
positions.
Usable range
• About 5m in front of the main unit
• About 30° to the left and right sides in front of the main unit
• When there is an obstacle between the remote control and
the main unit, the remote control may not work properly.
• Remove the battery when it is not used for
a long time.
• Please properly mount the battery pole .
• Do not charge, short circuit, disassemble,
throw in fire or heat the battery.
• When liquid leakage occurs, clean it
completely before inserting a new battery.

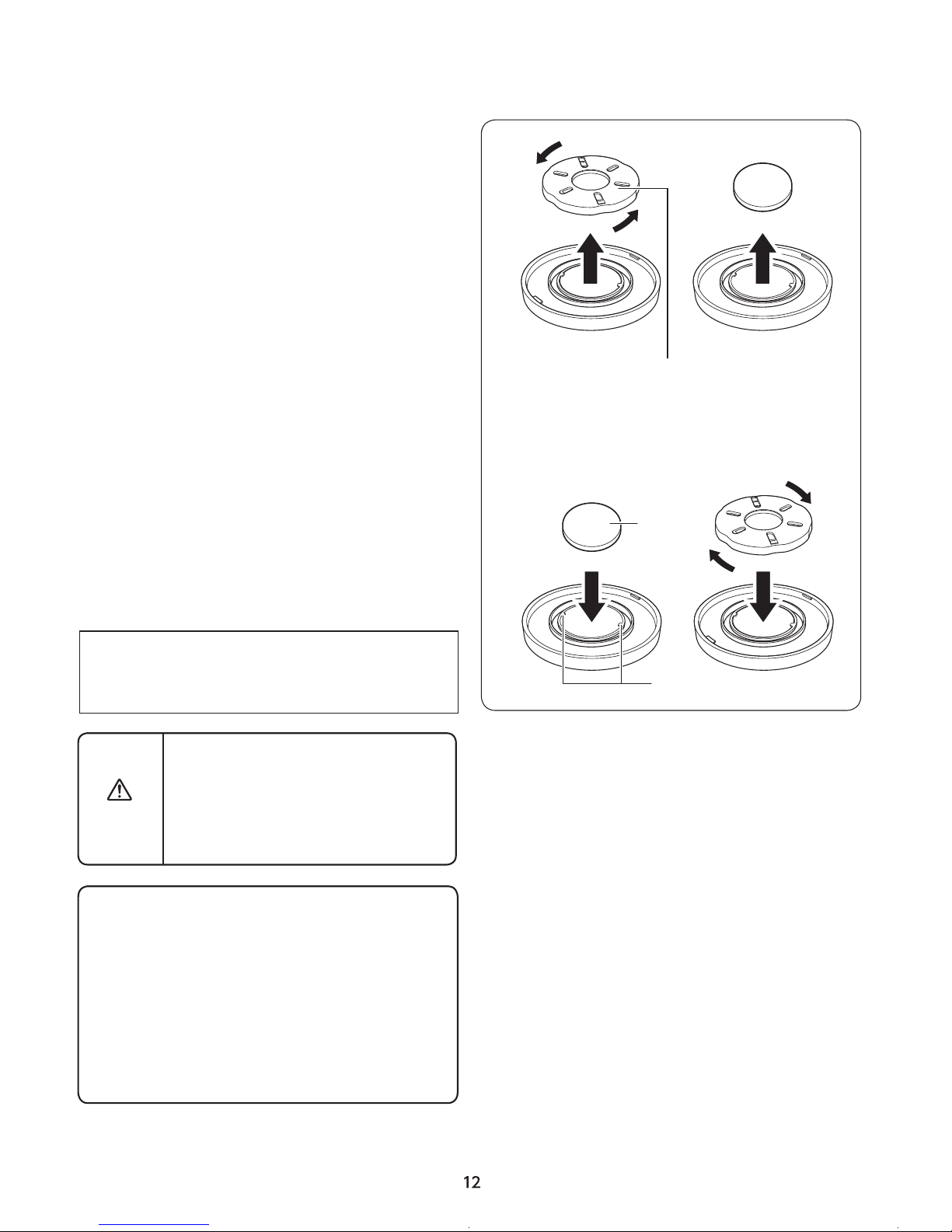

4. Install the battery into the remote control
1. Turn over the remote control and pull out the battery
case ①
Pull the battery case out of the gap.
2. Insert the coin lithium battery into the battery case.
Pay attention to the polarity of the battery②
Make sure that the pole is facing up.
3. Insert the battery case into the main unit of the
remote control ③
Please insert the battery case until you hear a click
sound.
Avoid
pinching
your fingers
Power cord
Height
adjustment
button
Battery case
Remote control
(rear side)
Coin lithium
battery
When the main unit is turned over, there may be a safety accident such as injury due to
rapid folding of the tripod.
When using at night, please pay attention to setting place.
Attention
When the fan of the main unit is
moved up and down, be careful to
avoid pinching your fingers.
Attention
Attention

When the remote is not in use
4. When the remote controller is not in use, mount it on
the remote controller storage location on the rear
tripod.④
※The remote controller can’t be used for operation
when it is installed in the storage area.
Memory function
When you press the power button on the main unit or the
remote control, operation will start from the last setting mode
when the unit was turned off (air volume • swing angle)
※When the AC adapter is removed from the plug, the
device will automatically restore the initial settings.
[Initial setting] Air volume: Minimum; Swing: None.
The remote control can be
attached to the remote
control storage location on
the rear tripod.
Remote control storage
position
5. Insert the AC adapter into the outlet
When it is properly connected to DC port, the main
unit will make a buzzing sound.
Start/stop operation
1. Start operation
Simply press the power button on the main unit
or remote control to start the operation.
• In normal use, the air volume and swing angle
will default to the setting when it was turned off
last time because of the memory function.
• After inserting AC adaptor into the outlet, press
the power button on the main unit or the
remote control for the first time to start the
operation from the minimum air volume and
non-swing state.
[Increase air volume]
Rotate the air volume knob clockwise on
the main unit .
Press the air volume + button on the
remote control.
Press repeatedly to increase the air volume.
[Reduce air volume]
Rotate the air volume knob
anti-clockwise on the main unit.
Press the air volume - button on the
remote control.
Press repeatedly to reduce the air volume.
Dimmer mode
Light off mode
About 60 seconds after operating the main unit or
remote control, the indicator that turns on/flashes
automatically will enter the dimmer mode (20%
brightness). When you press the button on the
main unit or the remote control again, the dimmer
mode will be automatically released and the
indicator will resume normal.
Press and hold the Natural/Sleep wind button
on the main unit or the remote control (> 3
seconds) to set it to the light off mode , which
can turn off the lighted/flashing indicator automat-
ically. When the button of the main unit or the
remote control is pressed, the light-off mode is
automatically released and the indicator turns on
and flashes.

Left/right swing button
Start/stop left/right swing/angle setting
Timer button
Set the time of schedule on/off
Natural/sleep wind button
Switch between natural/ sleep wind
Remote control receiver (main unit)
Receive signal from the remote control
Signal emitter (remote control)
Point it to the remote signal receiver on the main unit
.
Power button • Air volume control knob
(main unit)
Start/stop running; adjust air volume during running.
Air volume up knob (remote control)
Increase the air volume
Air volume down knob (remote control)
Reduce the air volume
Up/down swing button
Start/stop up/down swing
Display part
Air volume indicator
Display the air volume. With the increase of air volume, the
light coil of the indicator light in the upper right corner will
become longer and longer and form a complete circle when the
maximum air volume is reached.
Swing display 30°, 60°, 90°
Display the angle of left/right swing and up/down swing in
swing mode.
Timer display 1H, 2H, 4H
Display the remaining time before the schedule on/off function
starts.
Natural/sleep wind display
The indicator turns on in natural wind mode and the
indicator turns on in sleep wind mode.
How to Use (cont.)
Operation part
of main unit
Remote control
2. Start natural /sleep wind function
Press the natural/sleep wind button on the
main unit or the remote control during opera-
tion to switch functions.
※The set natural / sleep wind indicator will
turn on.
Related functions of natural/sleep wind
Natural wind (natural wind indicator will turn on)
Adjust the air volume to set the natural wind. The
air volume can be adjusted by the air volume
adjustment knob on the main unit or air volume +
button ( ) and air volume - button ( ) on the
remote control.
Sleep wind (sleep wind indicator will turn on)
Adjust the air volume to set the natural wind. The
wind mode can be adjusted by the air volume
adjustment knob on the main unit or air volume +
button ( ) and air volume - button ( ) on the
remote control. The air volume will change over
time.
(In strong wind)
The wind changes in the sequence of strong
→ medium → weak → feeble.
(In medium wind)
The wind changes in the sequence of
medium → weak → feeble.
(In weak wind)
The wind changes in the sequence of weak
→ feeble.
(In feeble wind)
※ The air volume indicator will maintain the display state at
the time of setting.
Maintain the same air volume as feeble wind.
Natural wind
indicator ON
Sleep wind
indicator ON
Natural /sleep wind indicator OFF
(Released)
(Example) Strong Feeble
Medium
Weak
Continued on next page

Angle adjustment
You can manually adjust the unit angle up, down, left
and right. About 90°
About 10°
The swing angle can be set to 10° down and
90° up. You can support the upper part of the
middle tube and press the upper or lower part of
the front guard to slowly move it up and down.
90°
60°
30°
During
swinging, the
part above the
operation part
will move
left/right
Press the swing up/down indicator again to stop
swinging up/down.
To confirm the current swinging angle of the fan, it
takes a certain period of time before the swinging
runs correctly when it swings up/down for the first
time. The time required varies with the start
swinging angle.
Swing up/down
(“ ” indicator on)
Swing up/down canceled
(Indicator off)
Swing left/right 30°
(“30°” indicator on)
Swing left/right
canceled
(Indicator off)
Swing left/right 90°
(“90°”indicator on)
Swing left/right 60°
(“60°” indicator on)
3. Start/stop swing
Up/down and left/right swing can be enabled at the
same time.
During the running, simply press the Up/down swing
button and the left/right swing button on the main
unit or the remote control to switch.
Up/down swing
During the running, simply press the up/down swing
button on the main unit or the remote control to start
swing up/down.
•The fan can swing up to about 90° from the front.
•Only the fan moves.
•You can confirm the swing running status through the
swing up/down indicator on the main unit.
Left/right swing
During the running, simply press the left/right swing
button on the main unit or the remote control to start
swing left/right.
• Only the fan part above the base moves.
•You can confirm the swing running status through the
swing left/right indicator on the main unit. Each time
the left/right swing button is pressed, the swinging
angle changes and the left/right swing indicator
switches automatically.
• When left/right swing stops, press the left/right
swing button several times to make sure that the
indicator turns off.
To confirm the current swinging angle of the fan, it
takes a certain period of time before the swinging
runs correctly when it swings left/right for the first
time. The time required varies with the start swinging
angle.
Swing angle
Continued on next page

How to Use (cont.)
Auto-off function
The fan will automatically stop running after 12
hours since the last operation of the main unit or
the remote control.
Unplug the AC adapter from the outlet
after use.
Failure to remove it may cause fire or
device failure.
4. Stop operation
During operation, simply press the power
button on the main unit or the remote
control to stop.

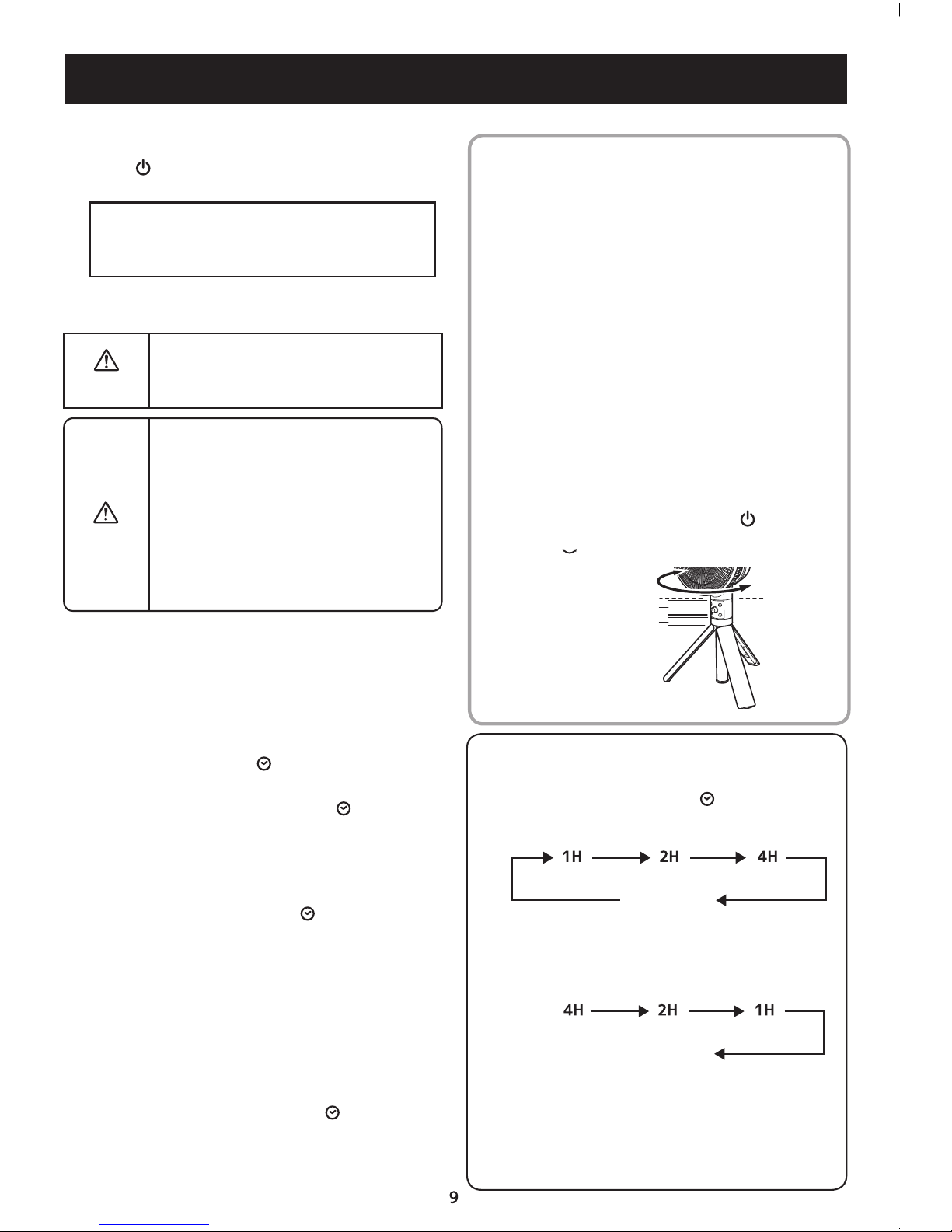

Timer setting
Off timer setting
When off timer is set, the fan will automatically
stop running after reaching the set time.
1. Press the timer button during running to set
the off timer
When you press the timer button on the
main unit or the remote control during running,
the 1H timer indicator will turn on, and the
schedule off mode is enabled.
The time for schedule off (1H~4H) can be set
by pressing the timer button on the main unit
or the remote control.
• Please confirm the timer display and set the
time before the device stops.。
• When the off timer is set, the timer display
will show the remaining time before the
schedule off function starts.
2. Cancellation of schedule off
The timer indicator will automatically turn off by
simply pressing the timer button on the main
unit or the remote control several times.
Q：Is there any possibility for the fan to swing
away from the center in the left/right swing
mode?
Example: The fan moves from the center to the
right or left in swinging mode.
A：Please manually align the middle position of
swinging
This device is equipped with manual swing function, which
can adjust the fan about 30° and 10° to the left and right of
the product center. When this position is not in the center
of this unit, the position of automatic swing will shift from
the center position.
To manually align the center of swinging
Pull the AC adaptor out of the outlet when the fan is
stopped, press and hold the operation part • base part of
main unit, and rotate the upper part of the main unit to the
left or right until it no longer rotates (there is a click sound
every 10°).
Returning three scales from the stop position is the center
position of this unit.
After aligning the center position, insert the AC adapter into
the outlet, and then press the power button on the main
unit or remote control to start running and then press the
swing button to start left/right swing.
Timer display
The timer display will switch in the following order
when you press the timer button on the main unit
or remote control .
When the on/off timer has been set, the timer
display changes with time, indicating the remain-
ing time before the timer function is started.
When the off timer is set, the timer indicator will
turn on. When the on timer is set, the timer
indicator will flash.
※On timer and off timer can’t be set at the
same time.
5. Pull the AC adapter out of the outlet
Warning
Attention
• To save power when the fan is unused
for long periods of time, unplug the AC
adapter from the outlet.
Prevent energy consumption in
standby.
• When a power failure occurs or the AC
adapter is removed from the outlet
during running, all operations will start
from the beginning.
When the running stops, all settings
are canceled. Operation part
Base part of
main unit
(1 hour) (2 hour) (4 hour)
(4 hour) (2 hour) (1 hour)
Off
(Timer disabled)
Off
(Timer enabled)

Before enabling the on timer, check the
surrounding environment to ensure that the
fan can operate normally after reaching the set
time.
Do not use the on timer in an environment
where there are children, or strong wind may
cause the device to tip over.If there is fire or
smoke around it that may cause a safety
accident.
Attention
On timer settings
When on timer is set, the fan will automatically start
running after reaching the set time.
1. Press the timer button to set the on timer when the
fan is stopped.
If you press the timer button on the main unit or the
remote control when the fan is stopped, the timer
indicator will start flashing, indicating that the sched-
ule on mode is enabled.
• The indicator for the last air volume (including the
swing indicator) also flashes (“Memory function” →
see page 6)
You can simply press the timer button on the
main unit or the remote control to set the time to
start the schedule on function.
• When the on timer is set, the timer display will show
the remaining time before the schedule on function
starts.
2. Setting running air volume when reaching the set
time
You can simply press the power/air volume adjust-
ment button on the main unit or the air volume +/-
button on the remote control to set the running air
volume at the set time. The air volume indicator also
flashes.
• The wind blowing mode at the set time can be set
by pressing the swing button and the
natural/sleep wind button.
• Confirm the settings through the flashing indicator.
Auto-off function
The fan will automatically shut down after 12 hours
of continuous operation even if it is started through
the on timer.
The fan will automatically stop running after 12
hours since the last operation of the main unit or
the remote control.
3. Cancel the setting of schedule on
You can simply press the timer button on the
main unit or the remote control several times and
the timer indicator will turn off automatically.

How to Use (cont.)
• Do not drip excessively in order to
prevent spillage of aroma oil or natural
essential oil from the filter storage area
of the center mark shell (aroma box).
• Be sure to wipe clean when aroma oil or
natural essential oil adheres to the
center mark shell (aroma box) and filter
cover.
• Do not install when the center mark
shell (aroma box) and filter cover are
attached with aroma oil or natural
essential oil.
• Do not use filter other than those
dedicated for this product.
It may cause main unit damage and
malfunction.
Attention
Use of aroma oil
1. Remove the center mark shell (aroma box)
mounted on the front guard.
You can simply rotate the center mark shell
(aroma box) anti-clockwise remove it.
2. Remove the filter cover and drip aroma oil in the
filter placed in the center mark shell (aroma box).
Rotate the filter cover to the left to remove it from
the center mark shell (aroma box) and confirm that
the filter is installed. Drip 2-3 drops of
commercially available aroma essential oil or
natural essential oil into it. Pay attention to prevent
the essential oil from overflowing during operation.
3. Install the filter cover, and then install the center
mark shell to its original position.
Rotate the filter cover to the right to mount it on the
center mark shell, then rotate the shell (aroma box) to
the right and install it on the front guard.
4. Start operation
Follow “Start/stop running” on page 6 and you can
enjoy the breeze with aromatherapy.
Center
mark shell
(aroma box)
Aroma essential oil or natural essential oil
Center mark shell Filter cover Filter

Filter replacement
※ When the filter is dirty or you need to use
different kinds of aroma oil or natural essential
oil, please replace the filter.
※ To replace the filter, rotate it left to remove the
filter cover, and then remove and replace the filter.
※Install the filter under the buckle as shown in the
figure, and then rotate right to install the filter
cover.
※In addition to the filter installed in the center mark
shell (aroma box), this product also supplies three
pieces separately. Filter mustn’t be cleaned for
secondary use.
※Please install the filter under the buckle in the
filter
storage area inside the center mark shell
(aroma box).
Please fully clean the center mark shell (aroma
box) with neutral detergent , and wipe the water
completely.
Filter for replacement
Filter for replacement are sold separately . Please
consult the shop where you bought the fan or
Shun Hing Electric Service Center Ltd.
※Filter are consumables and the replacement is
charged even during the warranty period.
Filter for replacement
Product name: Filter
Model: AF-ZE1
Please handle the disassembled
filter properly.
Aroma oil/natural essential oil sometimes
melts plastics. Please note that it may
cause personal injury when an important
item comes into contact with the
removed filter.
Aroma oil/natural essential Oil
• Keep it away from flames.
• Keep it out of reach of children.
• When contaminated on the surface of clothing,
rinse with plenty of water and let it dry naturally. Do
not use a dryer, or else it may catch fire.
• Wash hands immediately when your hands are
contaminated.
• Be sure to carefully read the instructions for use of
aroma oil/natural essential oil.
Attention
Used filter
Filter cover
Filter
Buckle
To prevent the filter from exposing/
overflowing from the filter storage area in the
center mark shell (aroma box), place the
filter under the buckle when installing.

Maintenance and Storage
Notice
• Never use household cleaner, thinner, gasoline,
alcohol, or abrasive powder.
• Do not flush the main unit or AC adapter with water.
(It may cause electric shock and device failure.)
Cleaning
When the main unit is dirty, soak a soft cloth in warm
water or neutral detergent (excluding citrus series), wring
it thoroughly, wipe the dirt, and then wipe with a dry cloth.
(Do not rub the resin hard, or else it may cause scratches
on the surface.)
Blade cleaning
Disassemble the front guard
before
cleaning of the
internal blades of the main unit. The operation requires
two persons (one person holds and the other disassem
- bles).
Do not apply excessive force to the main unit.
Removal method of blades and front guard
2. Pull out the front guard completely to the point
where it cannot continue to rotate②
3. Hold the blade, turn the knob ③used for mounting
blade to the right, and then pull the blade toward you
to remove it④
The structure of the blade mounting knob is the
reverse of the ordinary knob. Rotating left is to
install, and rotation right is to remove.
※The rear guard can’t be removed. There is a wiring
harness inside the rear guard, so be sure to pay
full attention during maintenance.
※Be sure to fully dry after maintenance.
Tips for removal of front guard
①Keep the fan facing up, and pinch
the lower part of the fan with your
feet.
※Please take care to prevent staining
your clothes.
②Wet your fingers or wrap your
hands with a thin wet towel, and
hold the outer ring of the front
guard to prevent it from
slipping.
Always disconnect the AC adapter from the outlet during maintenance.
If the plug isn’t pulled out, it may cause electric shock, fire, or personal injury.
Do not run the fan without blades and guard installed.
Do not apply excessive force to
rotate the front guard.
It may cause fan damage and
malfunction.
• Fully fix the guards and blades before inserting the AC adapter into the outlet.
• Please be careful to prevent being cut by the blade edge.
Warning
Warning
Attention
Attention
Blade
Front guard Knob
Rear
guard
Motor concentric
shaft
Safety screw
1. Remove the safety screw, rotate the front guard
to
the left side.
③Rotate the front guard anti-clockwise.
④Rotate the outer ring of the front guard about 2cm to open the
lock.
⑤Lift the front guard upwards to remove it.

Assembly method of blades and front guard
1. Align the pin of the motor concentric shaft and
install the blade ①
Position the pins of the blade pin fixing part and the
motor shaft base and install them.
2. Hold the blade and rotate the blade mounting knob to
the left to secure the blade ②
Hold the blade, rotate the blade mounting knob to
the “left” and fully tighten the blade.
3. Align the groove of the front guard with the mark of
the rear guard and press the entire front guard into it
③
Align the groove of the front guard with
the U-shaped recess mark on the rear guard and
press it in.
If it is only installed halfway, there may be abnormali-
ties such as guard falling off and noise.
Storage method
• Fully dry it after maintenance.
• Put it in a plastic bag, then put in the packaging
box, and store it in a dry place free of moisture.
• Before putting it in a box, make the fan face the
front through the swing function.
• When it is not used for a long time, remove the
battery from the remote control.
※Retract the bracket and reduce the height to
achieve compact storage. In this case, the fan
can’t stand steadily. Please be careful to
prevent the device from being damaged due
to tipping over.
Take care to prevent excessive rotation of
the front guard.
It may cause fan damage and malfunction.
Attention
Align the groove of the front guard with the recess mark of rear
③
④
Motor concentric
shaft
Rear guard
Blade
Front guard Knob for blade
mounting
Motor center shaft
Blade (reverse)
Pin
Fixing part of
shaft When installing the
blade, align the pin
fixing part of the
blade with the pin of
the motor concen-
tric shaft ①
Mark
Safety screw
4. Rotate the front guard④to the right side while it has
.
been settled,add the safety screw for protection.
guard,press the entire front guard into ,and the rotate right
Front guard
Rear
gu ard

Troubleshooting
Check according to the following table when you think it may have “failure”.
Problem Cause Solution
No power • DC plug of AC adapter falls off the
DC port Insert the DC plug of AC adapter into the
DC port
Blades won’t turn • The blades are not properly installed
• The blades are stuck by the guard Install blades and guard properly (refer to
page 14 “Assembly of blades • front guard)
Air volume pointer and
indicator are off or have
no display
• In light off mode The dimmer/light off mode can be canceled
by simply holding down any button other
than the power button on the main unit
or the remote control.
Display part/indicators
are dark
• The dimmer mode will be enabled
automatically in about one minute
after the last operation.
The dimmer/light off mode can be canceled
by simply holding down any button other
than the power button on the main unit
or the remote control.
Running stops suddenly • Auto-off function is enabled to turn
off the power automatically
Simply press ay operation button on the
main unit or the remote control to turn on
the power
Main unit tipped over • The bracket is not unfolded properly
• The bracket does not touch the ground
Fully unfold the brackets and ensure that
all three brackets touch the ground.
Noise • The blades are not properly installed
• The blades are stuck by the guard
• The front guard is not properly installed
Install blades and guard properly (refer to
“Assembly method of blades and front
guard” on page 14)
The swing angle is greater
than set or normal operation
starts after a certain period
when the swing button is
pressed
• This is not a failure (in order to confirm
the positional relationship of the
internal circuit, there may be cases
where the operation can’t be
performed immediately or the opera-
tion exceeds the specified angle when
the swing function is first turned on.)
Please wait for the swing to resume normal
• Blade mounting knob is loose; Tighten the blade mounting knob (refer to
“Assembly method of blades and front
guard” on page 14)
• The installation place isn’t stable
• The fan is adjusted to a higher position
through the telescopic button
• The noise is caused by increased
shaking in an unstable place or high
position
• Set it in a stable place
• Try to lower the fan part
• Obstacles lift up the middle tube Remove obstacles
• AC adapter falls off the outlet Insert the AC adapter into the outlet
Only qualified technicians are allowed to disassemble or repair the fan.
Warning

Problem Cause Solution
The indicator does not flash
and the fan does not work
even if the button is pressed
• On timer is enabled Press the timer button repeatedly to disable
the timer.
Remote operation invalid • The battery voltage is low. Replace the battery
• The battery is loaded incorrectly Install the battery properly
• The remote control is installed in the
storage area during operation
• The remote control doesn’t point at the
receiver
• Too far away from the receiver
Point at the receiver
Operate in effective range
Is there any of the following situations?
• Power cord or AC adapter heats up abnormally.
• The power is connected and disconnected
repeatedly
• Burning smell
• Other abnormalities • failures
Please cut off the power, unplug the AC adapter
and contact the dealer or Shun Hing Electric
Service Center Ltd.
Fans not used for long term should be carefully inspected
