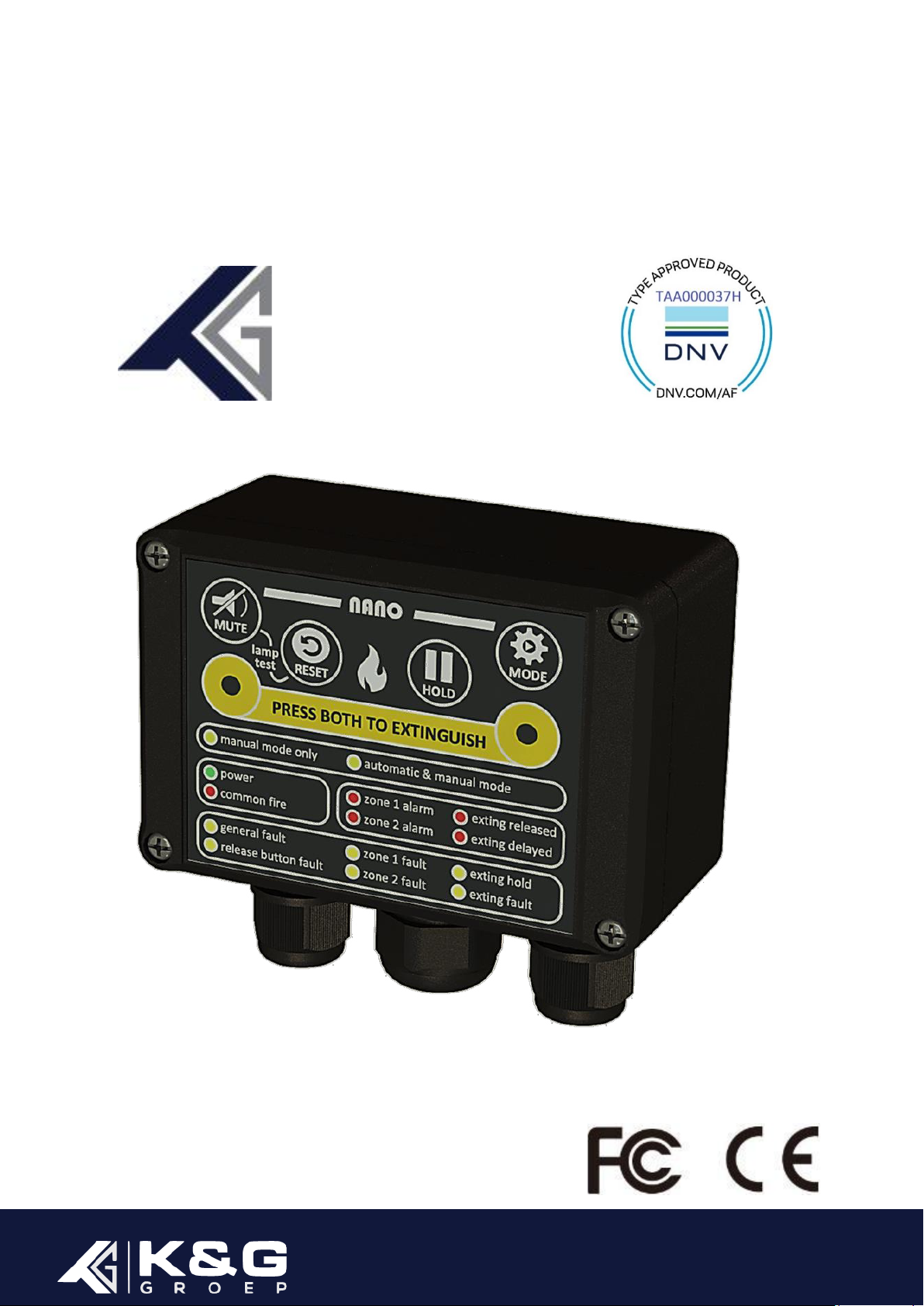

K&G GROEP NANO MARINE User manual

www.KG-Groep.com | January 1, 2023 | version 1.0
Owner’s manual
NANO MARINE
FIRE DETECTION
EXTINGUISHING
CONTROL SYSTEM

Owners’ manual |NANO MAR SYSTEM | January 1, 2023 | version 1.0 page 2
TABLE OF CONTENTS
1FOREWORD 3
2CERTIFICATION 3
3INTRODUCTION 3
4MAINTENANCE & CLEANING 3
5KEY PROPERTIES 4
6FEATURES OF THE NANO MAR SYSTEM 4
6.1 ACOUSTIC ALARM 4
6.2 EXTINGUISHANT RELEASE OUTPUT 4
6.3 HISTORIC EVENT LOG 5
6.4 COMMUNICATION PORT 5
6.5 DIRECT RELEASE 5
6.6 GENERAL FAULT RELAY 5
6.7 VFC FIRE RELAY ACTIVE IN SINGLE OF DUAL MODE ALARM 5
6.8 SINGLE OR DUAL ZONE 5
6.9 EXTINGUISHANT RELEASE DELAY 5
7NANO CONTROL PANEL FACIA 5
8CONTROL BUTTONS 6
8.1 MUTE 6
8.2 RESET 6
8.3 LAMP TEST 6
8.4 HOLD EXTINGUISHING RELEASE 6
8.5 AUTOMATIC &MANUAL RELEASE OR MANUAL ONLY MODE 6
8.6 EXTINGUISHING RELEASE 6
9LED INDICATORS 7
9.1 MANUAL RELEASE ONLY 7
9.2 AUTOMATIC &MANUAL RELEASE 7
9.3 POWER 7
9.4 COMMON FIRE 7
9.5 FIRE ZONE ALARM 7
9.6 EXTINGUISHING RELEASED 8
9.7 EXTINGUISHING DELAYED 8
9.8 GENERAL FAULT 8
9.9 FIRE ZONE FAULT 8
9.10 EXTINGUISHING RELEASE HOLD 8
9.11 EXTINGUISHING RELEASE FAULT 8
9.12 INTERNAL FAULT INDICATORS 8
10 COMMON SETTINGS 9
11 WHAT TO DO RECOMMENDATIONS 9
11.1 WHAT TO DO IN THE EVENT OF A FIRE ALARM CONDITION 9
11.2 WHAT TO DO IN THE EVENT OF A FAULT CONDITION 9
11.3 ROUTINE TESTING RECOMMENDATIONS 9
11.4 WARNING 9
12 MAINTENANCE RECOMMENDATIONS 10
12.1 TEST THE NANO SYSTEM WITHOUT ACTIVATING THE EXTINGUISHERS. 10
12.2 DAILY TESTING (PREMISES MANAGEMENT) 11
12.3 WEEKLY TESTING (PREMISES MANAGEMENT) 11
12.4 QUARTERLY TESTING (COMPETENT PERSON) 11
12.5 YEARLY TESTING (COMPETENT PERSON) 11
13 WARRANTY 12

www.kg-groep.com page 3
1FOREWORD
This owner9s manual must be thoroughly read and understood before using and operating the NANO
MAR SYSTEM and is intended for end users. The NANO MAR SYSTEM and the associated connections
must be installed, commissioned, and maintained by a skilled, knowledgeable, and competent person
or organization that is appropriately qualified to perform this work and is familiar with the objective
of the equipment and the associated technical terminology.
2CERTIFICATION
The NANO MAR SYSTEM has successfully passed CE and FCC, EMC testing according to EN 50130, EN
61000, EN 55016, 47 CFR15-ICES-003, ANSI 63.4, IEC60945-pt11 and a DNV marine type approval
according the DNV Class Guideline 0339-2021, certificate TAA000037H. For that the NMS has endured
extensive environmental tests such as vibration, dry heat, damp heat and cold tests in accordance
with the requirements of the DNV-CG 0339 standard.
3INTRODUCTION
The purpose of the NANO MAR SYSTEM is to control and monitor a number of aerosol generators
mounted on a ship as part of a fire extinguishing system. The NANO MAR SYSTEM is a compact and
robust stand-alone fire detection-extinguishant release system designed to protect various
applications like electrical cabinets, engine rooms in vessels, yachts and other small areas or
equipment. The NANO MAR SYSTEM continuously senses its inputs and, in the event of a fire, gives
the correct output to enable a product specific fire extinguishing. The NANO control panel has two
fire detection zones, any, or all of which can contribute to the extinguishant release decision. In a
marine application, it9s NOT common for a fire suppression system to be released by automatic fire
detector. By default, the NANO control panel is set to only manual release, but can also be changed
to automatic & manual release via push buttons on the NANO control panel.
4MAINTENANCE &CLEANING
There are not user-replaceable parts in the NANO MAR SYSTEM. Take Electrostatic Discharge (ESD)
precautions when opening the NANO control panel or NANO ETB BOX. Avoid direct contact with any
of the components or connectors connected to the printed circuit board. Failure to follow accepted
ESD handling practices could cause damage to the NANO MAR SYSTEM. Before starting the cleaning
process, bring the system out of operation to prevent an unwanted fire extinguishing system release.
It is important to note that improper cleaning of the NANO control panel front can damage this panel
inhibit their ability to sense fire and activate the fire extinguishers. To remove dust and contaminants,
use nonalcoholic products which has been designed for that purpose.
Do not use high pressure or stream cleaners.

Owners’ manual |NANO MAR SYSTEM | January 1, 2023 | version 1.0 page 4
5KEY PROPERTIES

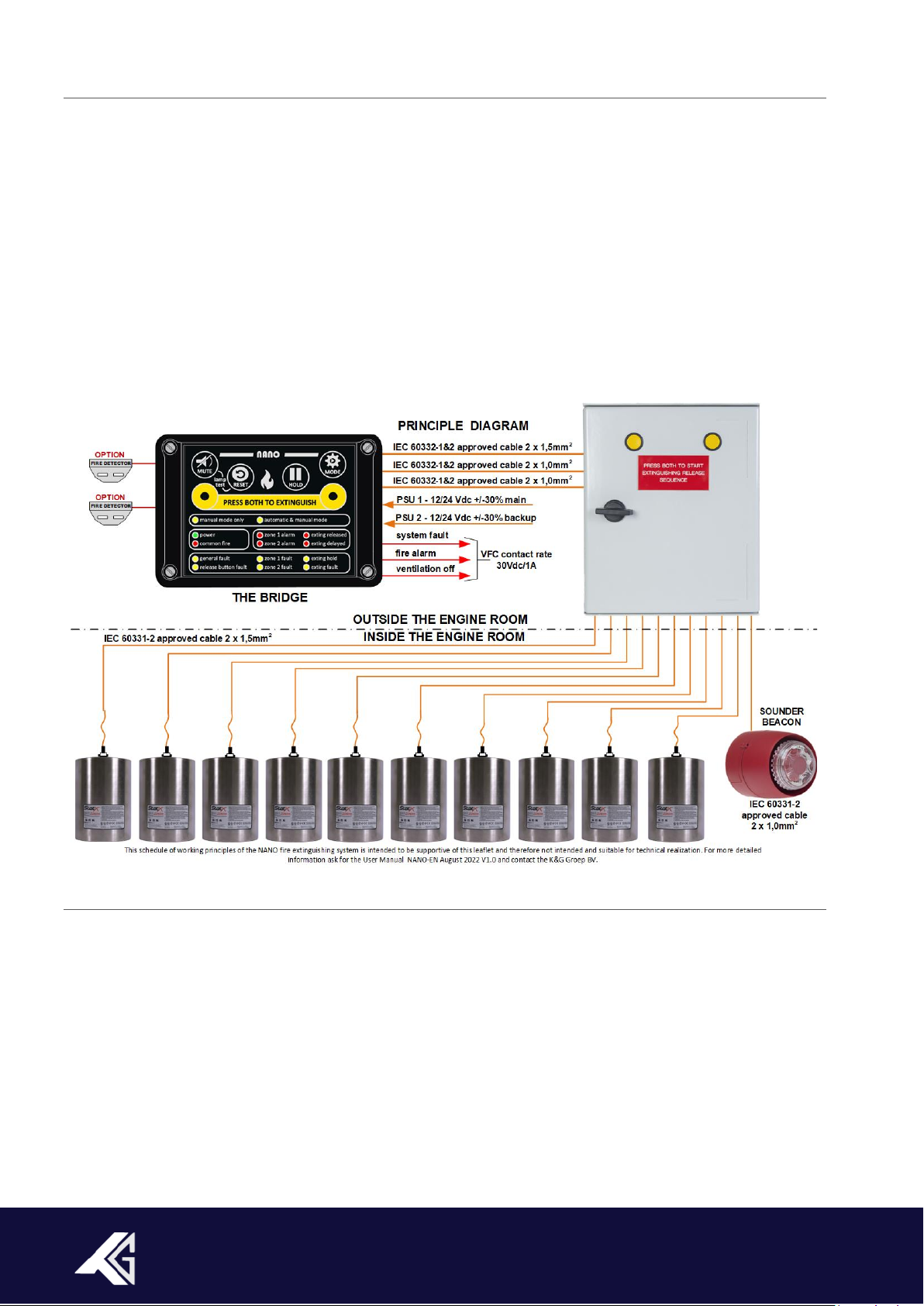

The NANO MAR SYSTEM consists of three components. The basis is formed by the NANO control
panel which is placed on the bridge or in its vicinity. Then there are two extinguisher terminal boxes
(ETB MAR BOX). The ETB MAR BOX must be placed outside, but in the immediate vicinity of the
protected room. One is suitable for connecting up to 5 extinguishers and one for connecting up to 10
extinguishers. From the ETB MAR BOX the cable leads to the KVB plug & play Stat-X extinguisher
installed in the volume to be protected. Just like on the front of the NANO control panel, on the front
of the ETB MAR BOX, we have applied two dual-action buttons for releasing extinguishing. The fire
extinguishers will be released, depending on the DIP switch (time) settings. In a marine application, it
is NOT common for a fire suppression system intended for an engine room to be released by an
automatic fire detector. But the NANO control panel has two fire zones suitable for connecting Apollo
Orbis Marine approved fire detectors. The NANO MAR SYSTEM can be set up so that fire alarms from
these Apollo fire detectors are detected, signalized, and reported on the NANO control panel, but
considered as informative/exploratory.
6FEATURES OF THE NANO MAR SYSTEM
6.1 ACOUSTIC ALARM
The NANO has an internal attention signal and a monitored output for external sounder/beacon.
6.2 EXTINGUISHANT RELEASE OUTPUT
The K&G NANO MAR SYSTEM is equipped with two activation techniques for the activation of a fire
extinguishing system. By default, the NANO control panel is programmed for the activation of
electrical igniters intended for aerosol fire extinguisher generators or activating an extinguishing
system with a solenoid.

www.kg-groep.com page 5
6.3 HISTORIC EVENT LOG
The NANO control panel has an historic event log memory of 10.000 events readable from a USB port.
Connect an USB cable between the Mini-B USB port and your computer. The device will function as
an USB stick.
6.4 COMMUNICATION PORT
The NANO control panel has a Modbus network connection. Modbus enables communication among
devices connected to the same network.
6.5 DIRECT RELEASE
When the timer settings are set to a delay (between 0 –35 seconds), the direct extinguish DIP switch
gives the choose to override the delay in case of a fire event. This function can be selected with DP1.
6.6 GENERAL FAULT RELAY
The general fault relay signalizes, any fault in the NANO SYSTEM. The general fault relay is energized
in quiescent state. In the event of a complete power failure, the general fault relay becomes inactive.
6.7 VFC FIRE RELAY ACTIVE IN SINGLE OF DUAL MODE ALARM
A single or dual FIRE indication can trigger the VFC relay. You can choice to have the potential free
contact active at the first or at the second fire alarm. This function can be selected via dip switch 5.
6.8 SINGLE OR DUAL ZONE
Usually, the extinguishing system is activated in the so-called two group-dependent status (avoiding
coincidence). Two fire conditions must be met before an extinguishing activation will be initiated.
6.9 EXTINGUISHANT RELEASE DELAY
Extinguishing delay is only useful in normally occupied spaces. For the delay timer settings, there are
3 Dip Switches 6,7 and 8, which can be set in steps of 5 seconds the delay time between 0 and 35 sec.

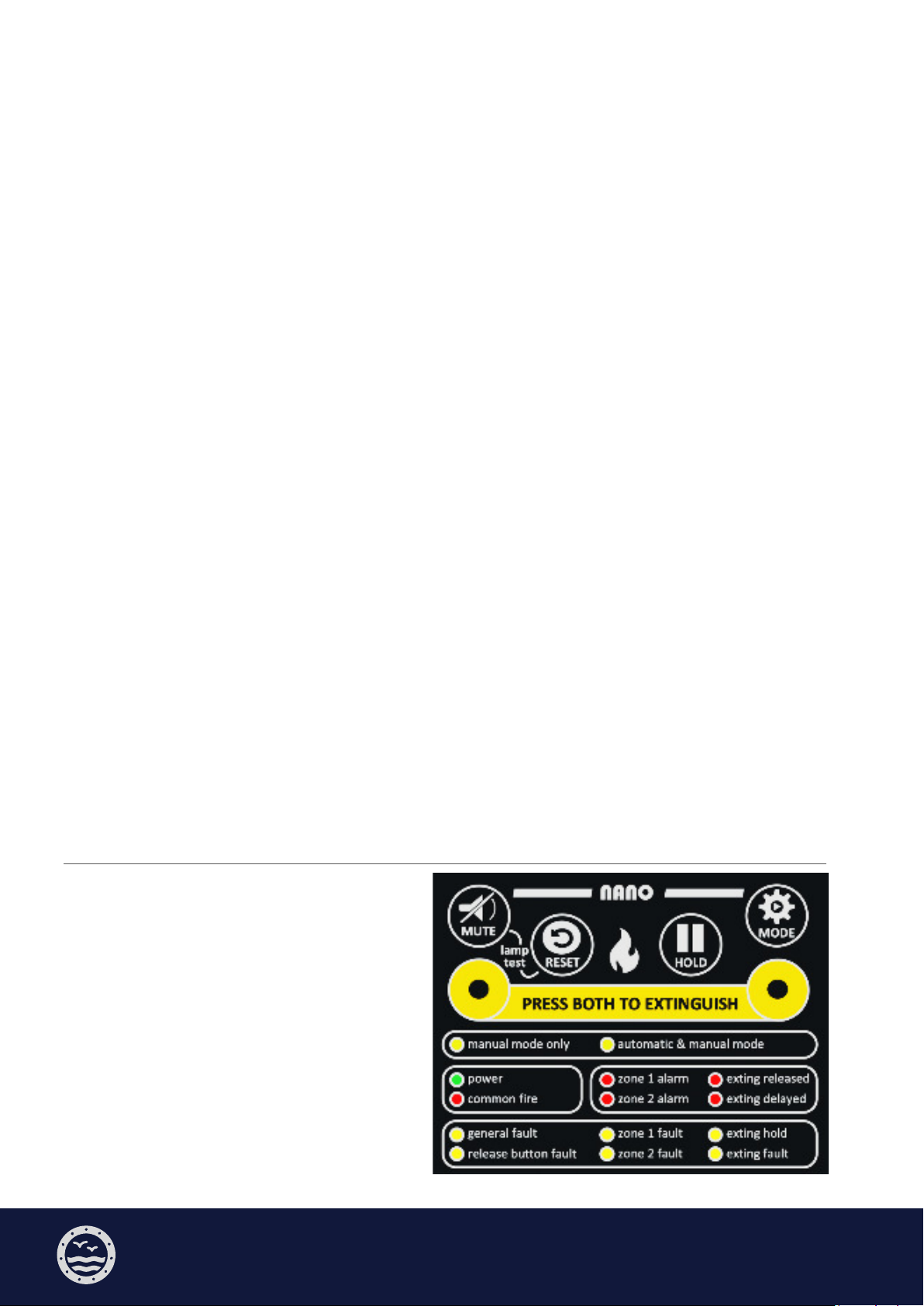

7NANO CONTROL PANEL FACIA
The NANO control panel has a clear and orderly
front panel, which indicate the system status of
the NANO MAR SYSTEM. The figure shows the
controls and LED indicators.

Owners’ manual |NANO MAR SYSTEM | January 1, 2023 | version 1.0 page 6

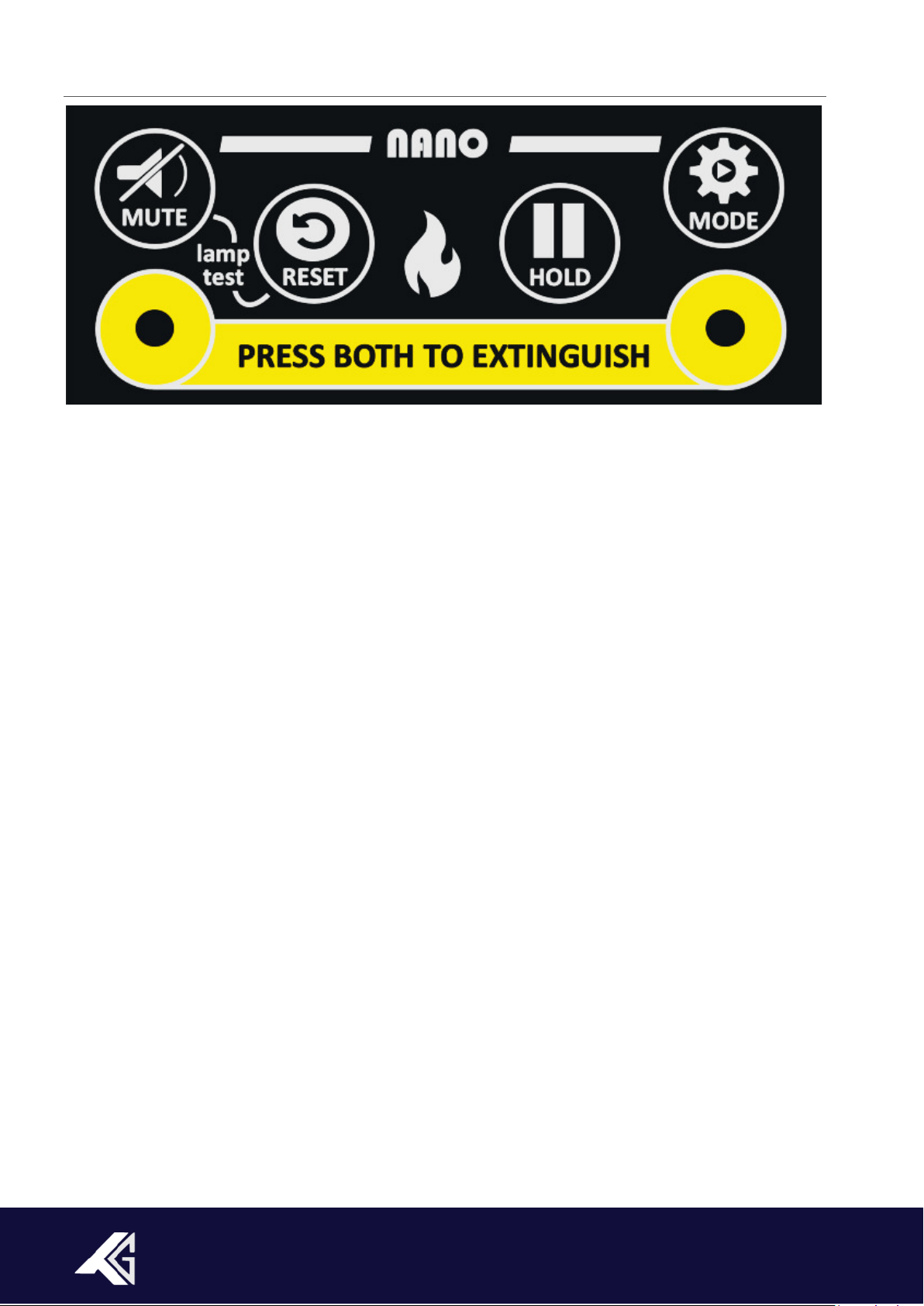

8CONTROL BUTTONS
8.1 MUTE
The buzzer can be silenced at any time by pressing the Mute button. To silence the external sounder,
press the Mute button twice. In case of a second alarm the sounder and buzzer will be activated again.
8.2 RESET
After the cause of the alarm has been determined the NANO control panel can be reset by pressing
the Reset button. Manual Call Points, if triggered, must first be reset locally.
8.3 LAMP TEST
All indicators and buzzer can be tested at any time by pressing the Mute and Reset simultaneously.
8.4 HOLD EXTINGUISHING RELEASE
By pressing the hold button at the panel or external hold button, as long this button is pressed, the
extinguishing release sequence will be halted and cause the yellow hold activated indicator flash.
Release the Hold button shall re-start the countdown release timer from programmed time (20 sec).
8.5 AUTOMATIC &MANUAL RELEASE OR MANUAL ONLY MODE
The mode of the system can be toggled between Manual Only and Automatic & Manual by operating
the MODE push button on the NANO control panel. When the system is in Manual Only mode, the
extinguishant cannot be released by the operation of automatic detectors. To switch the system from
manual only to automatic & manual, press the MODE push button for 3 seconds. Return, press the
MODE again.
8.6 EXTINGUISHING RELEASE
When a fire emerges, press both front extinguishing release pushbuttons, this will trigger an alarm.
The fire extinguishers will be released, depending on the DIP switch (time) settings.

www.kg-groep.com page 7

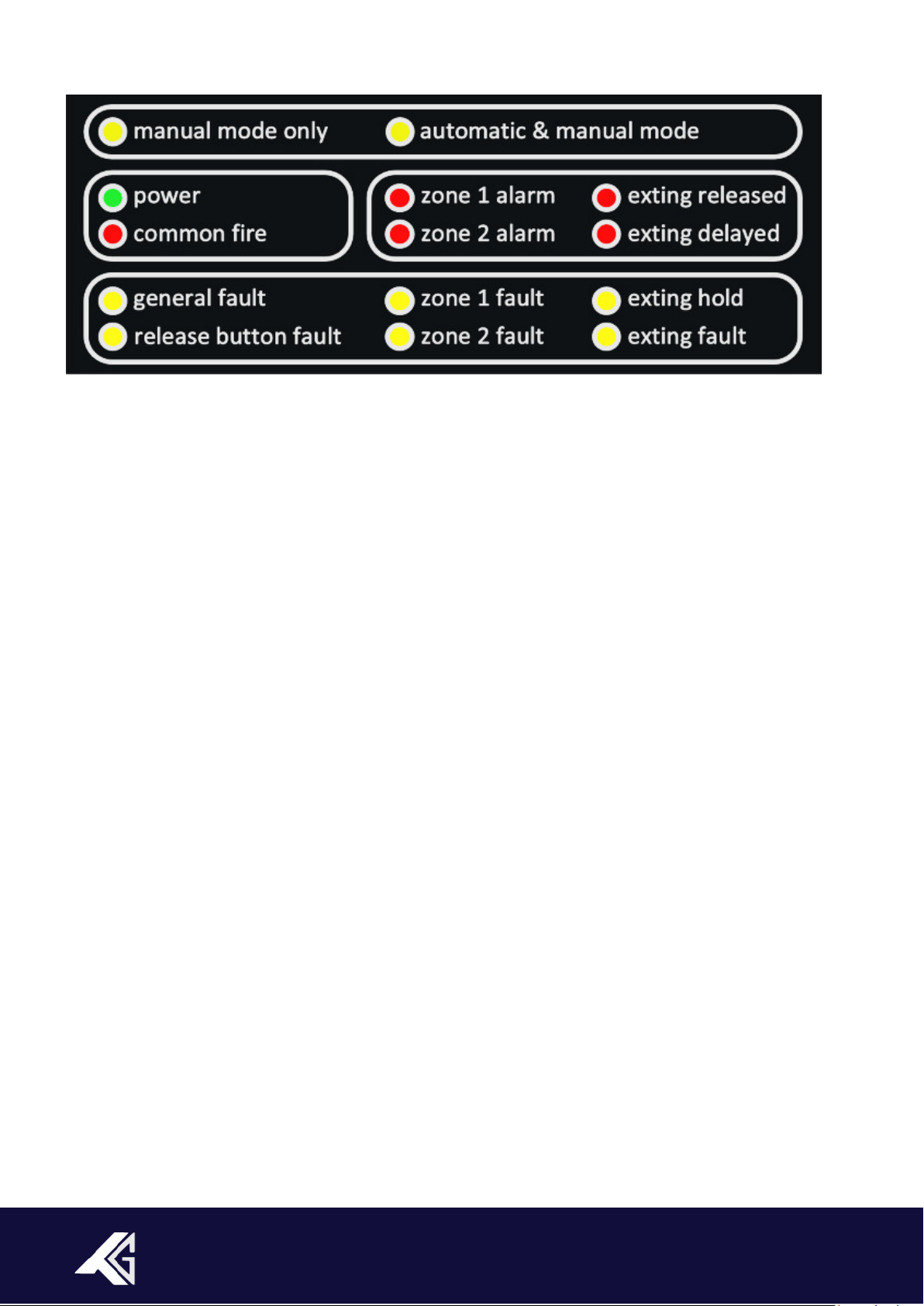

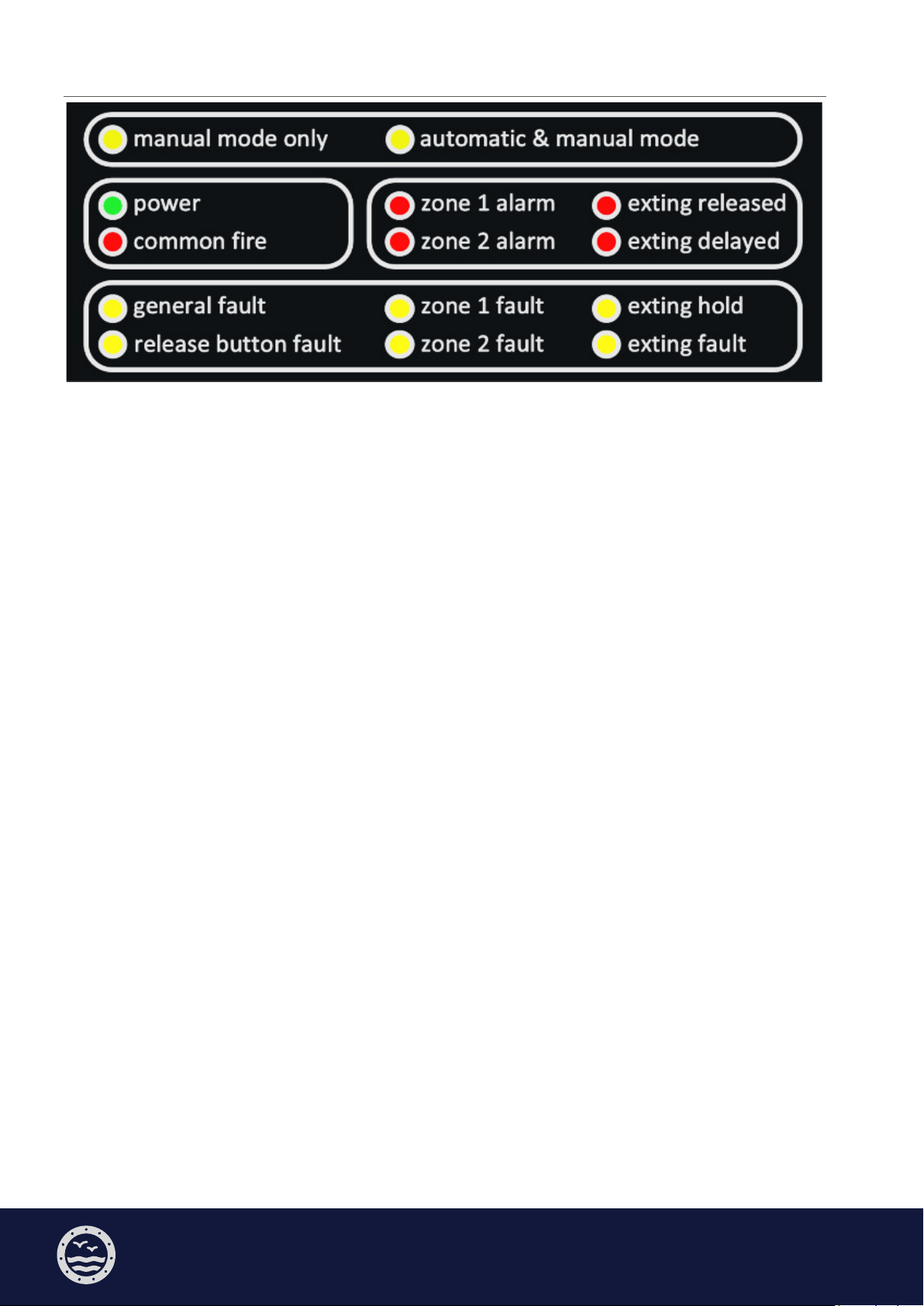

9LED INDICATORS
The NANO control panel has 3 internal fault and 14 individual front LED indicators. Under normal
condition only the green Power LED and either the Manual Only or Automatic and Manual LED lite.
9.1 MANUAL RELEASE ONLY
The yellow LED manual only lit, the extinguishant will only released by manual action.
9.2 AUTOMATIC &MANUAL RELEASE
The yellow LED automatic & manual lit, the extinguishant is released by automatic detection and/or
manual release
9.3 POWER
Under normal conditions the NANO control panel will have only the green power on LED lit and either
the manual only or automatic & manual LED lit. Failure of the mains power or disconnection of the
backup power will cause a fault. The power LED lite differently, indicating an abnormality in the power
supply to the NANO control panel. When starting the NANO MAR SYSTEM after a power failure or an
extinguishers release, the green power LED on the NANO control panel flashes for maximal 1 minute
until the system is ready and this LED lit continuously.
If the mains power supply is NOT present, the power LED flashes 1 x per second and the yellow
general fault LED lit.
If the standby power supply is NOT present, the power LED flashes 2 x per second followed by a
pause of 1 second, then repeating, the general fault and internal battery fault LED lit.
9.4 COMMON FIRE
In the event of a fire alarm from either the fire alarm detectors or the operation of the extinguishant
release pushbuttons, the red general fire LED will lite.
9.5 FIRE ZONE ALARM
Upon receipt a fire alarm condition caused by the activation of a fire detector, the red alarm indicator
of the relevant fire alarm zone will flash.

Owners’ manual |NANO MAR SYSTEM | January 1, 2023 | version 1.0 page 8
9.6 EXTINGUISHING RELEASED
The red extinguishing released indicator lights continuously when the extinguishers are activated.
This extinguishing release indicator lights up after ending of the configured extinguishing delay time,
or when the two extinguishing release buttons on the front or the external release button is activated.
9.7 EXTINGUISHING DELAYED
The red extinguishing delayed indicator indicates that the extinguishing release delay is active. This
indicator flash when the delay time is running.
9.8 GENERAL FAULT
General fault indicator lights and specific fault indicators flash. This yellow fault indicator will light
continuously at any fault condition or power malfunction.
9.9 FIRE ZONE FAULT
When the NANO control panel has detected an error in one of the critical fire detection paths of the
system, the specific yellow zone fault indicator flash and the general fault indicator lights up.
9.10 EXTINGUISHING RELEASE HOLD
The yellow hold indicator flash and a different tone sounds as long the hold button on the panel front,
or the external hold button is pressed.
9.11 EXTINGUISHING RELEASE FAULT
This yellow indicator lights up continuously when a critical fault is detected (open or short circuit) in
the extinguishing output line.
9.12 INTERNAL FAULT INDICATORS
There are three extra yellow fault indicators on the internal electronic PCB, meant for second
priority fault messages and these indicators will flash.

www.kg-groep.com page 9
10 COMMON SETTINGS
In a marine application, it is NOT common for a fire suppression system intended for an engine room
to be released by an automatic fire detector but ONLY by manual release.
The most common Marine setting of the NANO MAR SYSTEM is based on marine rules and standards.
Under normal condition only the green Power LED and the Manual Only LED lite to indicate the system
is operating correctly. Ask your supplier for your system settings.
Example setting for a vessel’s engine room:
▪The extinguishing delay time is 20 seconds
▪The NANO MAR SYSTEM operate in the manual mode only
▪The use of automatic fire detectors is only informative
Example setting for an electronical cabinet or auxiliary space in a vessel
▪The extinguishing delay time is set between 0 and 35 seconds
▪The NANO MAR SYSTEM operate in the Automatic & Manual mode
▪Dual zone alarm for automatic extinguishing release
▪When release delay is programmed, the manual release is also delayed
11 WHAT TO DO RECOMMENDATIONS
11.1 WHAT TO DO IN THE EVENT OF A FIRE ALARM CONDITION
▪Carry out the premises defined procedures.
▪When it is safe to do so silence the fire alarm devices and reset the system.
▪Note the time the fire alarm occurred and log the fire event in the logbook.
11.2 WHAT TO DO IN THE EVENT OF A FAULT CONDITION
▪Note the indications on the front of the NANO control panel.
▪Note the time the fault was noticed and log the fault event in the logbook.
▪Notify your service department or company of the fault condition.
11.3 ROUTINE TESTING RECOMMENDATIONS
The required management and maintenance tasks and their frequency may vary by application and
Country. It is the responsibility of the Premises Management to undertake periodic tests to ensure
the fire detection-/extinguishing system is operational. Record the test results each time in your
logbook.
Always ensuring that the system is set to maintenance mode
11.4 WARNING
The NANO MAR SYSTEM is equipped with 2 activation techniques for activation of fire extinguishers.
In the (DP3 OFF position) the system is set for the activation of electrical igniters meant for aerosol
fire extinguishers. In the (DP3 ON position) the system is set for activating of an extinguishing system
using a solenoid activator. DS 3 OFF = system is meant for electrical igniters intended for aerosol fire
extinguishers 1,3A/50ms. With DS 3 ON the system is meant for solenoid technology.
When the DP3 is in the ON position (solenoid only) DO NOT USE this in combination with an
ETB/BOX. This may cause irreparably damage to the ETB/BOX and the NANO panel.

Owners’ manual |NANO MAR SYSTEM | January 1, 2023 | version 1.0 page 10
12 MAINTENANCE RECOMMENDATIONS
12.1 TEST THE NANO MAR SYSTEM WITHOUT ACTIVATING THE EXTINGUISHERS.
Step 1 OPEN the ETB MAR BOX
Step 2 DISCONNECT each extinguisher by using the disconnect
switch on each ETB.
Step 3 ACTIVATE the extinguishing by pressing simultaneous both
yellow extinguishing release buttons on the ETB MAR BOX door.
Step 4 CONFORMATION
Step 5 RESET the system by pressing the reset button on the NANO front.
Step 6 REPEAT activate the extinguishing release by pressing simultaneous the
extinguishing release buttons on the front
of the NANO control panel .
Step 7 CONFORMATION
Step 8 RESET the system by pressing the reset button on the NANO control panel.
Step 9 RESTORE the system and re-connected the extinguishers.
Disconnect extinguisher
MOVE the disconnect switch of all in the YES position and the aerosol extinguisher is
disabled and can not be activated. A disablement will be signalized as fault on the NANO
control panel.
Confirmation of extinguisher activation
As confirmation of a successful extinguishment activation, the red LEDs on the extinguishers
terminal board will flash and the red extinguishing released LED on the NANO control panel
front lite up.
Confirmation of extinguisher activation
As confirmation of a successful extinguishment activation, the red LEDs on the extinguishers
terminal board will flash and the red extinguishing released LED on the NANO control panel
front lite up.
CONNECT extinguishers
Move the disconnect switch in the NO position and the aerosol
extinguisher is connected to the system and can be activated.
The fault LED on the front of the NANO control panel goes out. Only the green Power LED
and the Manual Only LED light up to indicate that the system is ready for use.

www.kg-groep.com page 11
12.2 DAILY TESTING (PREMISES MANAGEMENT)
To be conducted by the Premises Management. Check that the panel shows no fire or fault
indications. If there are any fault conditions indicated, then follow instructions in section 11.
12.3 WEEKLY TESTING (PREMISES MANAGEMENT)
To be conducted by the Premises Management.
▪Perform a Lamp Test to check that all visual and audible indicators on the panel are functioning.
▪When automatic fire detectors are involved bring NANO control panel in ONLY manual mode
▪Test then at least one detector to confirm the operation of the control panel and the audible
alarms.
▪Carry out an inspection of the extinguishing system according to the instructions of the supplier.
12.4 QUARTERLY TESTING (COMPETENT PERSON)
To be conducted by the Competent Person. Included as reference for the Premises Management.
▪Check all previous logbook entries and verify that any corrective actions had been taken.
▪Carry out the weekly test.
▪Check extinguishers conform the described test method 1 or 2 depending on the availability of
test plugs.
▪Check the emergency power supply. Disconnect mains power (PSU1) of the NANO control panel
and verify that the emergency power (PSU 2) is functioning.
12.5 YEARLY TESTING (COMPETENT PERSON)
To be conducted by the Competent Person. Included as reference for the Premises Management.
▪Carry out the quarterly test.
▪Test ALL fire detection devices and the manual release and hold buttons.
▪The control panel case should be cleaned periodically by wiping with a soft, damp cloth.

Owners’ manual |NANO MAR SYSTEM | January 1, 2023 | version 1.0 page 12
13 WARRANTY
K&G represent the NANO/MAR SYSTEM and is free from defects in materials and workmanship. Our
warranty does not cover a NANO/MAR SYSTEM which is damaged, misused, and/or used contrary to
the supplied operating manuals or which has been repaired or altered by others. The liability of K&G
is at all times limited to repair or, at K&G8s discretion, replacement of the NANO/MAR SYSTEM.
K&G shall not under any circumstances be liable for any indirect, special, or consequential damages
such as, but not limited to, damage or loss of property or equipment, cost of de-installation or
reinstallation, cost of transport or storage, loss of profits or revenue, cost of capital, cost of purchased
or replacement goods, or any claims by customers of the original purchaser or third parties or any
other similar loss or damage, whether incurred directly or indirectly. Remedies set forth herein to the
original purchaser and all others shall not exceed the price of the NANO/MAR SYSTEM supplied. This
warranty is exclusive and expressly in lieu of all other warranties, whether expressed or implied,
including, without limitation, any warranties of merchantability or fitness for a particular purpose.
It is the responsibility of the premises management to define the fire procedures and ensure that all
relevant users are trained and that fire drills are performed with appropriate isolation measures in
place to ensure that accidental discharge of the extinguishant agent is avoided. It is also the
responsibility of the premises management to ensure that there is nothing that can impede the
operation of the fire detection and extinguishant system and prevent any obstructions from blocking
fire detection/activation devices.
This owner’s manual only applies to the NANO MAR detection and activation system.
For more information about the management, inspection, and maintenance procedures
of the extinguishing system, please contact your extinguishing system supplier.
Reservations
The policy of K&G Groep BV is one of continuous improvement and as such we reserve the right to make changes to product specifications
at any time and without prior notice. Errors and omissions excepted.
Outdated or replaced computers and electronics are valuable sources for secondary raw materials, if recycled. Dealers of the NANO system
must comply with local regulations for waste separation applicable in the country where the supplier is located. Questions concerning the
information presented in this manual may be addressed to your dealer.
For technical questions or support contact your dealer for
Other manuals for NANO MARINE
2
Table of contents
Other K&G GROEP Control System manuals
