K&N Engineering A2054-326 User manual

HYUNDAI S COUPE 1.5i MVi 1992 - 95 57-0263 Instruction Sheet A2054-326
Page 1 of 2
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE FITTING THE KIT.
Photo A
Photo B
Instruction sheet A2054-326
Page 2 of 2
Your car and the engine bay should look like the ones
in these pictures, if not then talk to your kit supplier.
Should you still have a problem, call K&N customer
services. Tel: [phone]. Fax: [phone].
1. Unclip and remove
the intake hose from
the MAS (Mass Air
Sensor).
Photo C
2. Unclip and remove
the air box lid
assembly and filter
element from the air
box base. 3. Remove the air box
base from the inner
wing by removing the
3 securing screws
located inside of the
air box base.
1. Fit the new filter onto
the MAS. Tighten the
clip until the filter just
turns, Rotate the filter
until the K&N logo is
straight then tighten the
clip one full turn (360
degrees) no more, Do
not overtighten the
clip.
2. Attach the new
bracket to the rear air
box mounting point
located on the inner
wing using an original
mounting screw.
3. Attach the stud on
the filter lid to the
bracket using a nut, flat
washer and spring
washer supplied.
4. Carefully lengthen
the flexi cold air hose
to approx. 76cm / 30”
and feed it down past
the side of the radiator
to the front lower grille.
5. Pierce a hole in the
top of the flexi cold air
hose and attach the
hose to the middle air
box mounting point
using a plastic tie
supplied. Position the
end of the flexi cold air
hose to finish 10cm /
4” from the filter no
nearer.
10cm / 4”
no nearer

Tuning.
CAT. Cars. No adjustments are required.
An increase in fuel may be required if further engine modifications are to be carried out.
Filter maintenance.
Under normal conditions clean and reoil the filter at approx. 40,000 miles / 65,000 Km.
Use only K&N cleaner and oil and follow the instructions carefully.
K&N filters are pre-oiled ready to fit.
The advantage's of K&N's cold air intake system.
Cooler air being denser, will show positive improvements in power
over filter systems that draw hot air from the engine bay.
This Kit Should Contain:
1 x Clamp On Filter.
1 x #48 Hose Clip.
1 x Bracket.
1 x Cold Air Hose Assembly.
1 x Instruction Sheet.
1 x Instruction Pack :-
1 x Filter Maintenance Sheet.
1 x Leaflet.
1 x K&N Window Sticker.
1 x Million Mile Warranty.
1 x Fixing Kit :-
1 x M6 Nut.
1 x 6mm Spring washer.
1 x Flat washer.
2 x Medium Plastic Ties.
FITTING YOUR 57i KIT
If you are not fitting the kit it is essential that
the person fitting the kit (eg. Mechanic)
carefully follows these particular
instructions even if they have fitted K&N kits
before. This will save you both time and
money. Kits fitted incorrectly may show a loss
in performance, e.g. the positioning of the
essential cold air hose, (flexi expandable and
rubber hoses are used).
A final check under the bonnet, by yourself
with the instructions, would seem sensible.

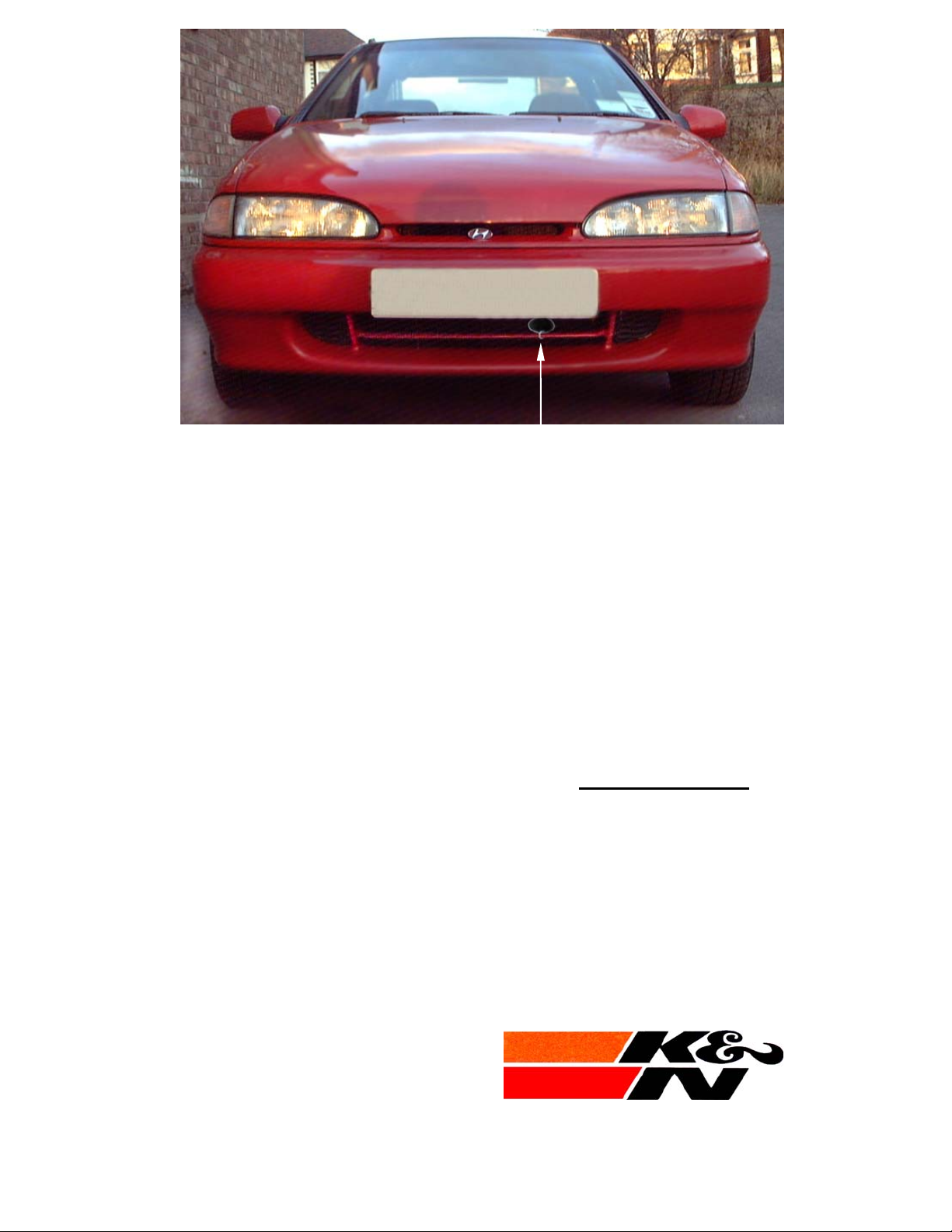

Pierce / Drill a 3mm hole in the end of the flexi cold air hose and feed the hose to
the lower grille. Secure the end of the hose to the grille using a plastic tie supplied.
It may be necessary to ovalise the end of the hose so that it will fit in the grille.
