Kandolite KLB54W3RGBAW User manual

USER MANUAL
KLB54W3RGBAW

I n d e x
summarize ............................................................................3
safety instruction ....................................................................3
outside size picture..................................................................4
main function .........................................................................5
DMX controller function ............................................................5
Display operation instruction.....................................................5
Manual instruction ...................................................................8
Operating control instruction ................................................... 11
X L connection instruction...................................................... 12
Connection picture................................................................. 13
Exploded Views..................................................................... 15
Luminance list…………………………………………….……………………….……………16
Problem analyze…………………………………………….…………………………………17
Technical specification……………………………..………………………………………18

Summarize
Thank you for purchasing our LED wall wash lighting. Please read these
instructions carefully before begin and operate the fixtures according to these
instructions to avoid any possible damages and accidents causes by misusage.
Products introduce
This led wall washing light is covered by tensile aluminum, designed in a
fashion of hydrodynamic form. It takes uses high brightness , G, B, A, W 5
kinds LED. Each kind of LED can be independently dimmer. It uses power
switch, performs low weight and consumption, stable capability and long life.
The built-in program includes dimmer, strobe, eotic, gradual change, fading
and so on. International standard DMX 512 signal is requested.
Packin list
KLB54W3 GBAW 1 pc
Hang locks 2 pcs
bracket 1 pc
Power-in cable 1 pc
The use manual
Warranty Card
Safety Information
Safety Notes
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving
and moving;.
! Avoid direct eye exposure to the fixture when it is on;

Safety instruction
● Make sure the power supply voltages are consistent with this lights，Ensure
the use of voltage is in the range of the request technical parameter.
●before the installation, please check the light’s fasteners and mechanical
structure have been received in good condition and appear no damage.
● This light is designed for indoor use, working temperature is lower than 40
degree.
●The fixtures maybe mounted in any position provided there is adequate
room for ventilation. Make sure there are no inflammable and explosive
items (ornaments) in 0.5 meters away.
●Yellow / green cabling earthling safety; no flicker when the fixture is working
on.

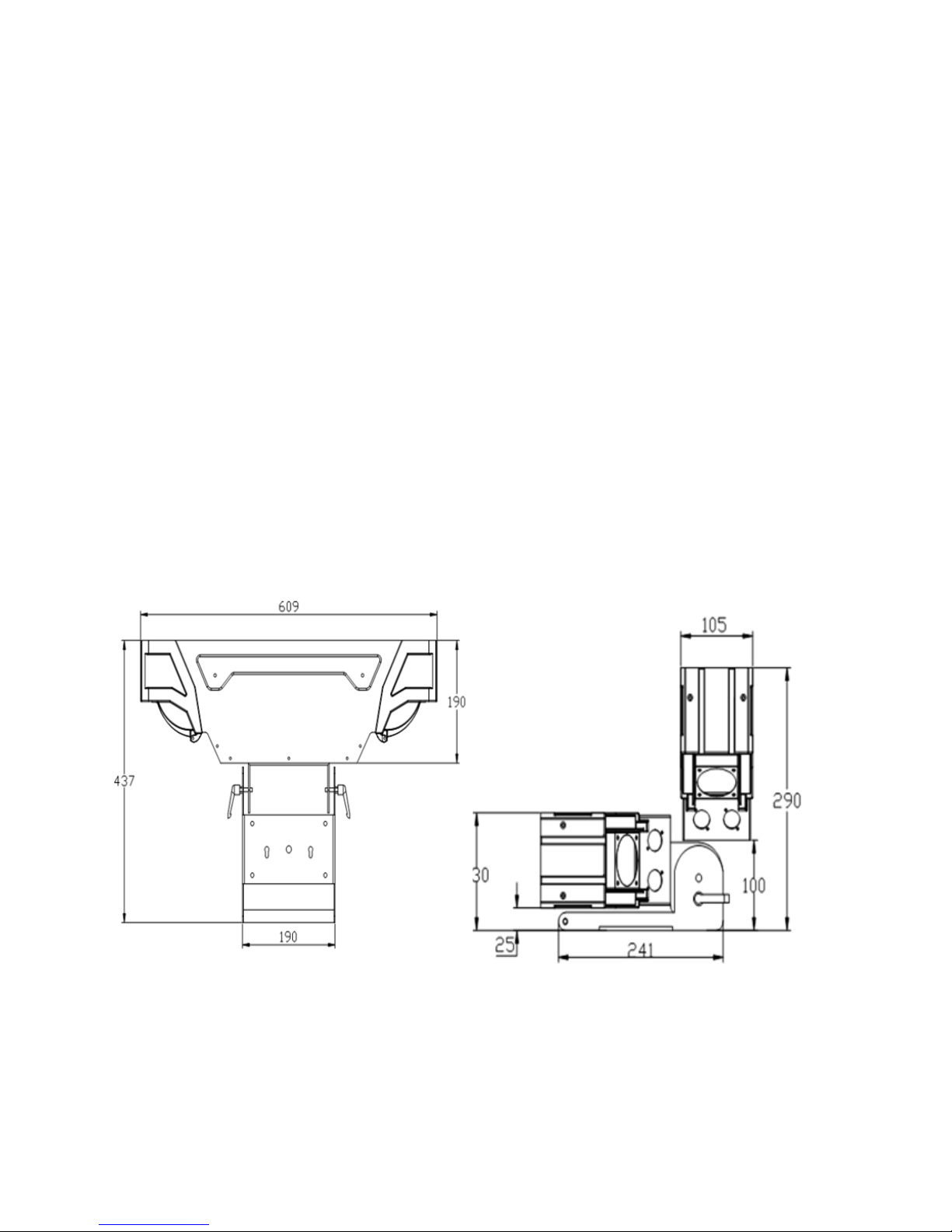

Outside Size Picture

Main Function
• high quality LED: low consumption, brightness, stable capability and
long life
•Each color of LED with 256 dimming. GBAW can mix a perfect color
effect.
•dim 0%-100%, Strobe、gradual change、jumping change
•DMX512 Controller，with 2-line 16 character LCD display.
•auto run /sound activated/master slave/interconnected multi-machine
control
•using switching power supply to protect the LED to work well
•Lens: 15°,25°,45°.
•DMX512 channels: 5CH、9CH、14CH、15CH、30CH

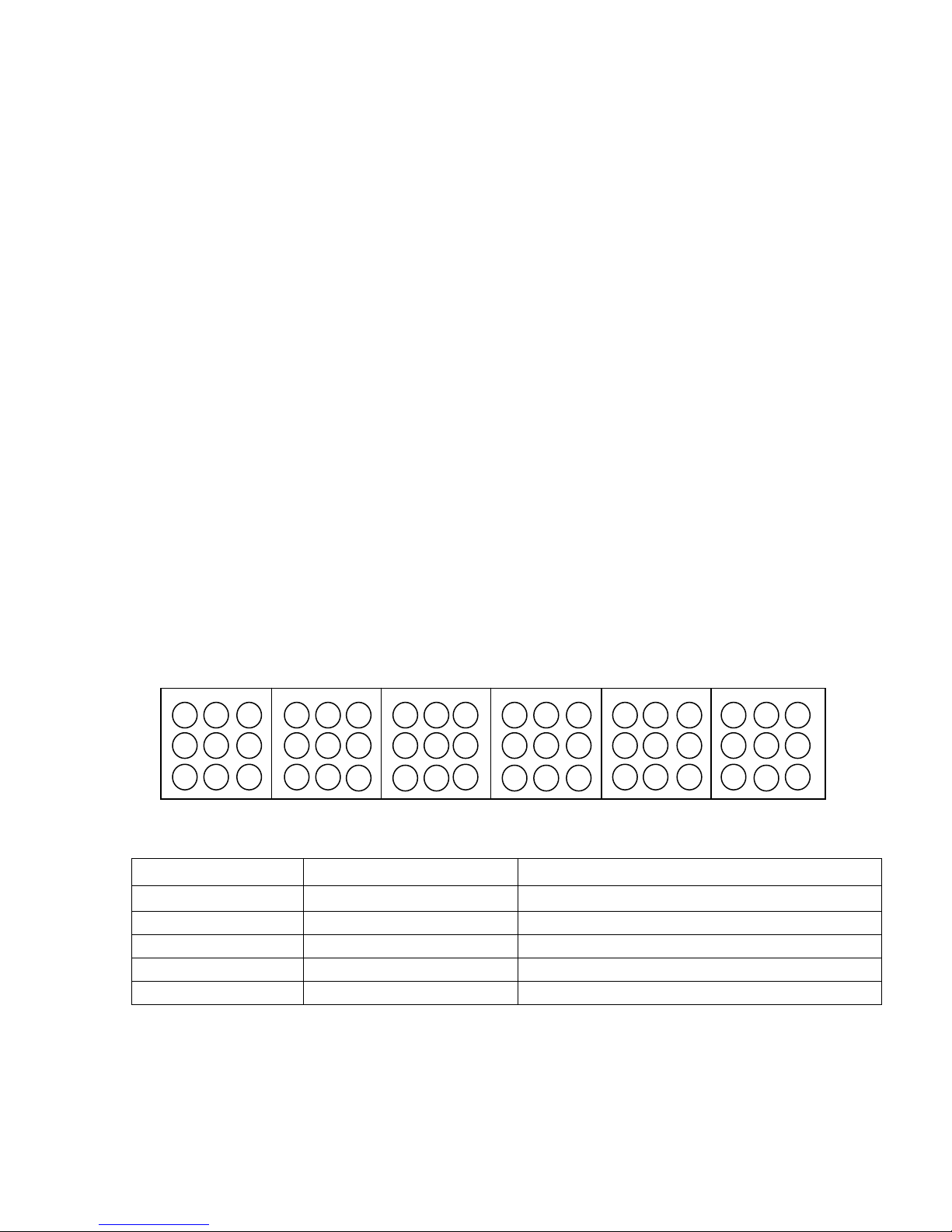

DMX Control Function
1
st
pixel 2
nd
pixel 3
rd
pixel 4
th
pixel 5
th
pixel 6
th
pixel
5CH
Channel DMX Value Control Function
1CH 0-255 0-100% from 1
st
to 6
th
pixel
2CH 0-255 G 0-100% from 1
st
to 6
th
pixel
3CH 0-255 B 0-100% from 1
st
to 6
th
pixel
4CH 0-255 A 0-100% from 1
st
to 6
th
pixel
5CH 0—255 W 0-100% from 1
st
to 6
th
pixel

9CH
Channel DMX Value Control Function
priority
1CH 0-255 ed dimming 0——100% 0
2CH 0-255 Green Dimming 0——100% 0
3CH 0-255 Blue Diming0——100% 0
4CH 0-255 Amber Dimming 0——100% 0
5CH 0-255 White Dimming 0——100% 0
0-9 invalid 6CH
10-255 ,G,B,A,W mixing
3
0-2 Close strobe
7CH 3-255 Strobe Speed(slow-fast)
3
0—4 Invalid
5-24 Mode 1, the value is greater, the speed is
faster
25-49 Mode 2, the value is greater, the speed is
faster
50-74 Mode 3, the value is greater, the speed is
faster
75-99 Mode 4, the value is greater, the speed is
faster
100-124 Mode 5, the value is greater, the speed is
faster
125-149 Mode 6, the value is greater, the speed is
faster
150-174 Mode 7, the value is greater, the speed is
faster
175-199 Mode 8, the value is greater, the speed is
faster
200-224 Mode 9, the value is greater, the speed is
faster
8CH
225-255 Multiple mode 1-9, the value is greater, the
speed is faster
2
9CH 0-15 invalid
16-242 ,G,B,A,W gradual change
243-255 adom sound activated

14CH
Channel DMX
Value
Control Function priority
1CH 0—255 ed dimming 0—100% 1
st
pixel to the 3
rd
0
2CH 0—255 Green dimming 0—100% 1
st
pixel to the 3
rd
0
3CH 0—255 Blue dimming 0—100% 1
st
pixel to the 3
rd
0
4CH 0—255 Amber dimming 0—100% 1
st
pixel to the 3
rd
0
5CH 0—255 White dimming 0—100% 1
st
pixel to the 3
rd
0
6CH 0—255 ed dimming 0—100% 4
th
pixel to the 6
th
0
7CH 0—255 Green dimming 0—100%4
th
pixel to the 6
th
0
8CH 0—255 Blue dimming 0—100% 4
th
pixel to the 6
th
0
9CH 0—255 Amber dimming 0—100% 4
th
pixel to the 6
th
0
10CH 0—255 White dimming 0—100% 4
th
pixel to the 6
th
0
0—9 invalid 11CH
10-255 GBAW mixing
3
0—2 Close strobe 12CH
3-255 Strobe slow-fast
3
0—4 invalid
5-24 Mode 1, the value is greater, the speed is faster
25-49 Mode 2, the value is greater, the speed is faster
50-74 Mode 3, the value is greater, the speed is faster
75-99 Mode 4, the value is greater, the speed is faster
100-124 Mode 5, the value is greater, the speed is faster
125-149 Mode 6, the value is greater, the speed is faster
150-174 Mode 7, the value is greater, the speed is faster
175-199 Mode 8, the value is greater, the speed is faster
200-224 Mode 9, the value is greater, the speed is faster
13CH
225-255 Multiple mode 1-9, the value is greater, the
speed is faster
2
0-15 invalid
16-242 GBAW gradual change
14CH
243-255 adom sound activated

15CH
Devide the 6pixel into 3 group, each group 2pixel, each group 5CH( GBAW);
5CH*3
30CH
Device the 6pixel into 6 group, each group 1pixel, each group 5CH( GBAW);
5CH*6
Display Operation
MENU : access the menu or return to a previous menu option
ENTE : select the current menu option
UP : menu selection or parameter increments
DOWN : menu selection or parameters decrease
Manual Instruction

DMX mode and slave mode options
When the DMX = ON, SLAV = OFF, it the DMX working state, while the DMX =
OFF, SLAV = ON, it the slave mode (for state of slave to receiving);
Operation: press the MENU key to exit the setting mode and then press the UP
/ DOWN key until shows ” UN MODE”, then press ENTE choose, the display
will glinting at this moment, press UP / DOWN button to select the required
mode, press the MENU key to exit (parameter auto-save).
DMX channels select and DMX address setting
ADD : is DMX address settings for 001-512, CHS: is the number of DMX
receiving channels, 5CH, 9CH, 14CH;
1) press the MENU button to exit the setting mode and then press
the UP / DOWN key until shows”DMX channels”
2) The first press ENTE key, modify the DMX address, the cursor will
glinting in the ADD ’s last value, press UP / DOWN key to modify
the DMX address;
3) The second press ENTE key, modify the number of DMX receiving
channels (CHS);
4) Third press ENTE key will return to state of the first time press
ENTE ; finally press MENU key to exit. (Note: When DMX = ON,
this setting is valid)
GBAW color dimming mode

GBAW:5 colors mixing choose(25 in total)
Operation: ENTE +UP/DOWN+MENU
Sound Mode
ST OBE 0N: sound-activated with strobe; ST OBE OFF: sound-activated no
strobe
Operation: ENTE + UP / DOWN + MENU
Built-in programs:
P 00: the number of built-in programs: P 00-P 09
FL00: (FADE) strobe speed, Fl00-Fl99, Fl00 is 0, Fl99 is the slowest;
SP00: program changes’ speed, sp00-sp99, sp00 is the fastest
Operation: ENTE + UP / DOWN + MENU
Gradient mode:
GB gradient mode: speed adjustment for the SPEED 0-20
Operation: ENTE + UP / DOWN + MENU

DMX Dimming mode
DMX Dimming Mode：Dimming mode0-4，Mode 0 is output directly。
Operation：ENTE +UP/DOWN+MENU
Build-in GBAW dimming mode
Dimming mode: GBAW dimming 0-255，0 is close，255 is brightness
Operation：ENTE +UP/DOWN+MENU
Operating Control Instruction
Master/Slave
Master ：The master should always working as a master as long
as it is not set in a DMX mode whatever other modes it
is. And it send out the signal so that the slave
synchronous with it. To avoid the host signal and
DMX512 signals interfere with each other, should cut off
the DMX512 signals. The signal lines are longer than 60
meters(20 lamps) ,should increase a signal amplifier.
Slave ：he Slave must be set in DMX mode and the address code
should be A001, to assure receive the master’s signals
correctly. Only one light can be set as a Master and others are
slaves.

XLR cable connectin
The stand connection way of the X L is: one end connect to the male
plug , and the other connect to the female
Noted: In order to avoid failures and interference signal transmission,
We connect a resistance 120Ω
（
1/4W
）
at the end of the DMX
connecting as below
The Conversion between 3pin and 5 pin XL
If the output cable of DMX512 controller is the 5PIN, please use 1pc
5PIN to 3PIN cable

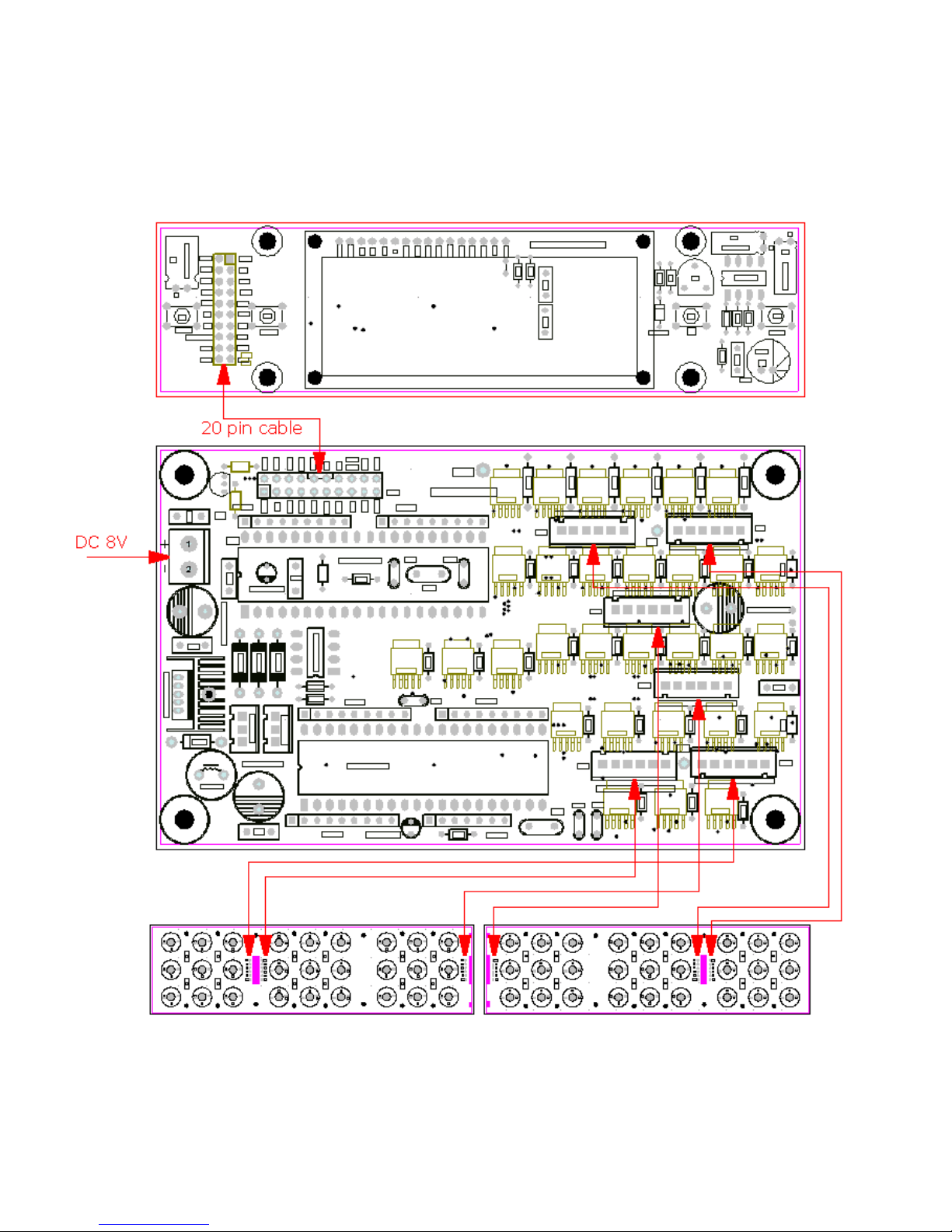

Connectin picture
Electrical connections

Li ht board
Light Connecting picture

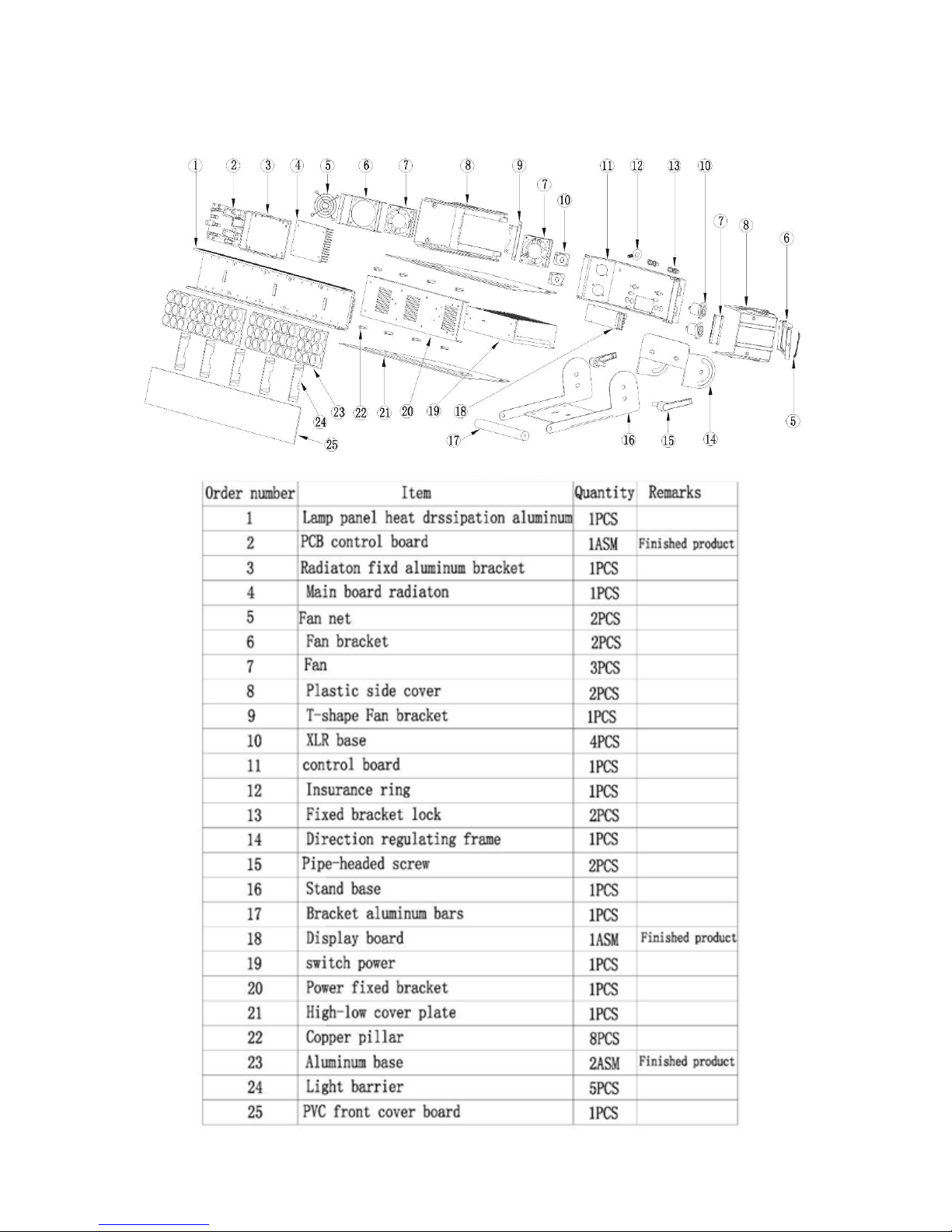

Exploded views

Luminance list

Problem Analyze
Problem Checking way
Can not turn on the
light
Check the power source plug is in normal or not
Check the switch of the lights is off or on
Check the fuse if in normal
DMX can not control it
Check the DMX cable is connect to the lights or not
Check the DMX512 controller work in normal or not
Check the DMX cable is normal or not
Check if the lights is in DMX mode
（
A001
）
Display not bright
When connect to the electricity did the led flash one time?
If so the power source is normal; If not please check if
the switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED not light
When connect to the electricity
，
did the led flash one time?
If so the power source is normal; If not
，
please check if
the switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
Some of the LED not
light
LED is connect by leds in series first, then connect
parallel, so please check if the leds is loose
 Use the multimeter to check if the led is bright or not, of
not, please change the led
check whether current limiting resistor is normal or not
Check constant current IC is normal or not (compared
with the normal IC)
Single color leds always
bright/not bright
Check the switch of this color is normal or not
Change the IC control board

Technical Specification
•Input voltage：AC 100V-240V/50-60HZ
•Consume：190W
•Lamp Type： LED(3W)
•Lamp Spec：（12PCS）、G（12PCS）、B（12PCS）、A（12PCS）、
W（6PCS）
•Life span:50000-100000 hours
•Control mode：stand alone/ master and slaver
•Channel：5CH、9CH、 14CH、15CH、30CH
•Beam Angle: 15°, 25°,.45°
•Protection rating:IP20
•Anti-electricity intension：1.5KV
•Insulation esistance：＞２MΩ
•Size:：609*190*104mm
•Net Weight：7.7KG

Copyright 2012 KANDOLITE. All rights
reserved. Due to continuous
improvements and innovations,
specifications may change without
notice.
