USER MANUAL
KMLWSH36W10

I n d e x
summarize ......................................................................... 3
safety instruction ................................................................ 3
outsi e size picture ............................................................. 4
main function ...................................................................... 5
DMX controller function ....................................................... 5
Display operation instruction............................................... 7
Manual instruction............................................................... 8
Operating control instruction............................................... 9
XRL connection instruction .................................................. 9
Connection picture .............................................................11
Problem analyze.................................................................12
Technical’s pecification….………….…………………………..………14

Summarize
Thank you for purchasing our Moving head LED lighting. Please read these
instructions carefully before begin and operate the fixtures according to these
instructions to avoid any possible damages and accidents causes by misusage.
Pro ucts intro uce
This led MLWSH36W10 light is uses aluminum shell , designed in a fashion of
hydrodynamic form. Appearance shows: long can, short can or short can with
color filter . It takes uses high power R, G, B, W 5 4 in 1 LED. It uses power
switch, performs low weight and consumption, stable capability and long life.
The built-in program includes dimmer, strobe, eotic, gradual change, fading and
so on. International standard DMX 512 signal is requested.
Packing list
•MLWSH36W10 light 1PC
•Bracket 1PC
•DMX cable 1PC
•Power Cable 1PC
•The use manual
•Warranty Card
Safety Information
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving and
moving;.
! Avoid direct eye exposure to the fixture when it is on;
Safety instruction

● Make sure the power supply voltages are consistent with this lights ， Ensure the
use of voltage is in the range of the request technical parameter.
●before the installation, please check the light’s fasteners and mechanical
structure have been received in good condition and appear no damage.
● This light is designed for indoor use, working temperature is lower than 50
degree.
●The fixtures maybe mounted in any position provided there is adequate room
for ventilation. Make sure there are no inflammable and explosive items
(ornaments) in 0.5 meters away.
●Yellow / green cabling earthling safety; no flicker when the fixture is working on.

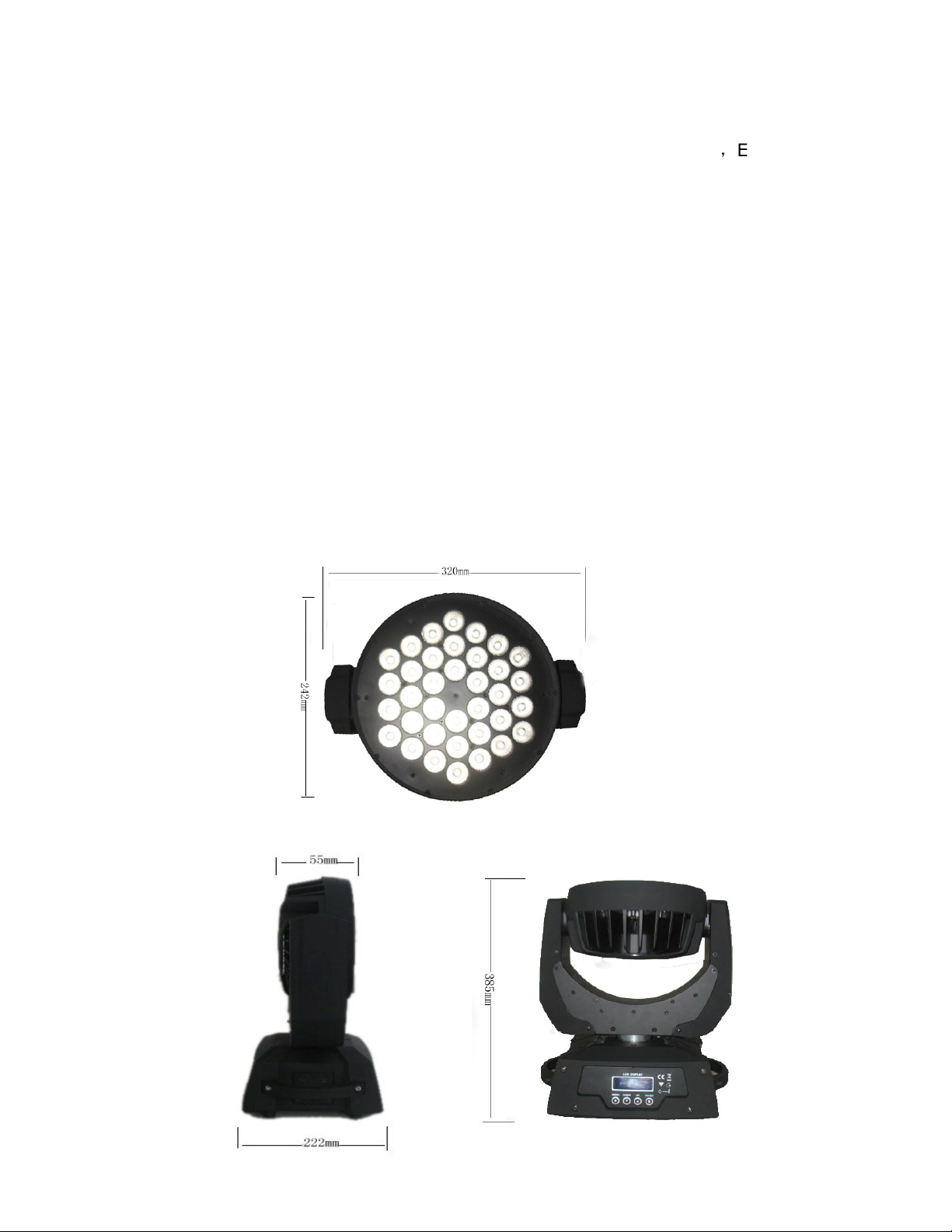

Outsi e Size Picture

Main Function
•Use high quality LED lighting source, l ow power consumption, high
brightness, stable performance and long life.
•Each color of LED with 256 dimming. RGB can make over 16.7 million colors.
The color mixing is better with White LEDs
•linear dimming 0%-100%, Strobe 、 gradual change 、 jumping change
•DMX512 Controller ， 4 button set DMX ID address with LCD display
•master slave/interconnected multi-machine control
•lens degree: 25º 、 45º optional
•using switching power supply to protect the LED to work well
•Pan 540 degrees, Tilt 270 degrees, reset
•DMX channels optional

DMX Control Function
14CH
Channel DMX Value Function
1CH 0—255 General dimming
2CH 0—255 Red dimming
3CH 0—255 Green dimming
4CH 0—255 Blue dimming
5CH 0—255 White
6CH 0—10
11—255
Strobe off
Strobe speed
7CH 0—20
21—30
31—40
41—50
51—60
61—70
71—80
81—90
91—100
101—110
111—120
121—130
131—140
141—150
151—160
161—170
171—180
181—190
191—200
201—210
211—220
221—255
Invalid
AUTO 1
AUTO 2
AUTO 3
AUTO 4
AUTO 5
AUTO 6
AUTO 7
AUTO 8
AUTO 9
AUTO 10
CUSTOM 1
CUSTOM 2
CUSTOM 3
CUSTOM 4
CUSTOM 5
CUSTOM 6
CUSTOM 7
CUSTOM 8
CUSTOM 9
CUSTOM 10
keep
CH8 0—255 Automatic speed
（ fast-slow ）
CH9 0-255 Pan 0--450°
CH10 0-255 Tilt 0--270°
CH11 0-255 Pan fine 0—2.1 degrees
CH12 0-255 Tilt fine 0—1.0 degree
CH13 0-255 X/Y speed
（ fast-slow ）
CH14 0-254
255-255
invalid
reset

Display Operation
Back side
1 ： DMX512 DMX-IN XLR socket
2 ： DMX512 DMX-OUT XLR socket
3 ： AC POWER-IN socket （ AC100-240V ， 50-60Hz ）
4 ： FUSE ： 5A
5 ： power switch （ ON/OFF ）
Front side ：（ LCD display+4 button input ）
•MENU : access the menu or return to a previous menu option
•ENTER : select the current menu option
•UP : menu selection or parameter increments
•DOWN : menu selection or parameters decrease

Manual Instruction
(Address) (Address=) A001-A512
(x Reverse)
(option) (Y Reverse)
（ NO/YES ）
(XY Exchange)
(Language) English
(lightness) 1-32
(Display) constant open
dim
(poorlight) off
LOGO
（ NO/YES ）
[menu]
ch1
(man Control)
ch12
0--255
(Sound)
(Test
operation)
(Auto)
(program
run)
(Resume
default) (enter)
(Fixture reset) (enter)

1 ： Press [menu] or [enter] to main menu
2 ： Press [up] or [down] to select options
Operating Control Instruction
Master/Slave
Master ： The master should set as built-in program and shows” P - X – X” send out
synchronization signals. To avoid the host signal and DMX512 signals interfere
with each other, should cut off the DMX512 signals. The signal lines are longer
than 60 meters should increase a signal amplifier.
Slave ： It must be in the SLAV mode and the address code should be A001 to assure
receive the master’s signals correctly. Only one light can be set as a Master and
others are slaves.
XLR cable connecting
XRL cable：
：：
：
The stand connection way of the XRL is: one end connects to the male plug, and
the other connects to the female.
Noted
：
In order to avoid failures and interference signal transmission
，
we connect

a resistance120Ω
（
1/4W
）
at the end of the DMX connecting as below:
The Conversion between 3pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to
3PIN cable

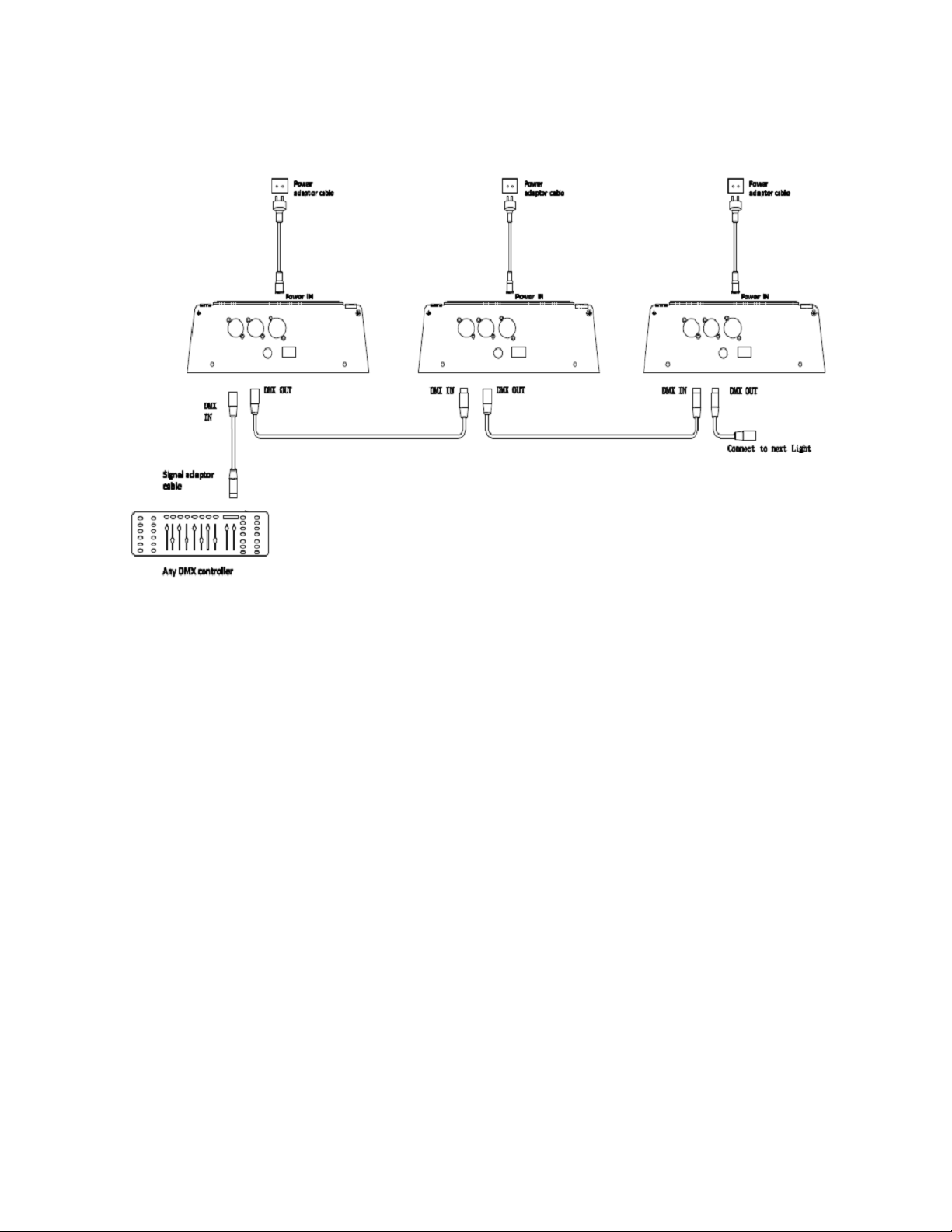

Connecting picture

Problem Analyze
Problem Checking way
Can not turn on the
light
Check the power source plug is in normal or not
Check the switch of the lights is off or on
Check it the fuse if in normal
DMX can not control
it
Check the DMX cable is connect to the lights or not
Check the DMX512 controller work in normal or not
Check the DMX cable is normal or not
Check if the lights is in DMX mode（ A001）
Display not bright
When connect to the electricity， did the led flash one time?
If so， the power source is normal; If not， please check if the
switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED not light
When connect to the electricity， did the led flash one time?
If so， the power source is normal; If not， please check if the
switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED is connect by leds in series first, then connect parallel,
so please check if the leds is loose

Some of the LED not
light
 Use the multimeter to check if the led is bright or not, of
not, please change the led
check whether current limiting resistor is normal or not
Check constant current IC is normal or not (compared with
the normal IC)
Single color leds
always bright/not
bright
Check the switch of this color is normal or not
Change the IC control board
Noted: only professional persons can do as above
！

Technical Specification
•Input voltage ： AC 100V-240V/47-63HZ
•Output voltage ： DC24V
•Consume ： 260W
•Lamp Type ： High Power LED(10w)
•Lamp Spec ： RGBW 4-in-1 LED(36 pcs)
•Constant current drive: 500Ma(single color drive)
•Refresh Rate: above 400HZ
•Life Span: above 50000 hours
•Control Signal ： DMX512, master and slaver, sound activated
•Control mode ： stand alone/ DMX/ master and slaver
•Channel ： 14CH,10CH
•Color effect: R,G,B,W color mixing
•Function Effect ：
：：
： dimmer, strobe, eotic, fade, sound activated
•Pan 540 degrees, Tilt 270 degrees, reset b
•Pan fine 2.1 degrees, Tilt fine 1.0 degree
•Beam Angle: 25° or 45°
•Cooling mode: Fan cooling
•Protection rate:IP20
•Anti-electricity intension ： 1.5 V
•Insulation Resistance ：＞２ MΩ
•Size: ： 320*242*385mm
•Net Weight ： 9.5 G
