USER MANUAL
KWW36W1RGB

I n d e x
summarize ............................................................................ 3
safety instruction .................................................................. 3
outsi e size picture ............................................................... 4
main function ........................................................................ 5
DMX controller function......................................................... 5
Display operation instruction ................................................ 6
Manual instruction................................................................. 6
Operating control instruction ................................................ 8
XRL connection instruction.................................................... 9
Connection picture .............................................................. 10
Explo e Views ................................................................... 11
luminance list...................................................................... 12
Problem analyze.................................................................. 13
Technical’s specification …………….…………………………..……15

Summarize
Thank you for purchasing our products. Please read these instructions
carefully before begin and operate the fixtures according to these
instructions to avoid any possible damages and accidents causes by
misusage.
Pro ucts intro uce
This led KWW36W RGB color-changing projecting light is covered by high
strength die-casting aluminum which is able to endure high temperature,
designed in a fashion of hydrodynamic form. It takes uses 3W high power
R, G, B 3 kinds LED, the color mixing effect is very good, high brightness.
Each color can be independently dimmer, fading changes and so on. It uses
power switch, performs low weight and consumption, stable capability and
long life. The built-in program includes dimmer, strobe, eotic, gradual change,
fading and so on. International standard DMX 5 2 signal is requested.
Packing list
•KWW36W RGB light PC （Waterproof Power in/out extension Cable ，
Waterproof DMX in/out extension cable ）
•Waterproof Power in Cable PC（with Plug）
•Waterproof DMX in PC（connect to DMX5 2 Controller）
•The use manual
•Warranty Card
Safety Information
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving
and moving;.
! Avoid direct eye exposure to the fixture when it is on;
Safety instruction

Safety instruction
● Make sure the power supply voltages are consistent with this lights，Ensure
the use of voltage is in the range of the request technical parameter.
●before the installation, please check the light’s fasteners and mechanical
structure have been received in good condition and appear no damage.
● This light is designed for indoor or outdoor, working temperature is lower
than 40 degree.
●The fixtures maybe mounted in any position provided there is adequate
room for ventilation. Make sure there are no inflammable and explosive
items (ornaments) in 0.5 meters away.
●Yellow / green cabling earthling safety; no flicker when the fixture is working
on.
Outsi e Size Picture

Main Function
•Protection rating: IP65, in door or out door used.
•the unique design of the cooling way: the light source is separately with
the electrical source and natural air convection cooling
•DMX5 2 Controller，DMX ID address with 3 digitals display
•master slave/interconnected multi-machine control
•lens degree: 5º、25º、45º optional
•using switching power supply to protect the LED to work well
•linear dimming - 00%, can dim separately
•Strobe、gradual change、jumping change
DMX Control Function
Channel DMX
Value
Control
Function
Remark Priority
1CH 0-255 General dimming Must use this channel, otherwise no
function of dimming
2CH 0-255 Red Dimming 0——
100%
3CH 0-255 Green Diming0——
100%
4CH 0-255 Blue Dimming0——
100%
1
0-14 Dimming
5CH 15-255 Strobe Speed
When the 6CH above is 32-223 ， this
channel has the function of speed
adjustment0-255
2
0-31 Invalid
32-63 From dark to bright
64-95 From bright to dark
96-127 From dark—bright—
dark
Must use CH1 、 2 、 3 、 4 otherwise
no light ， From the 5CH, start the
speed adjustment
128-159 RGB Gradient
160-191 3 colors jumping
change
192-223 7 colors jumping
change
6CH
224-255 Auto run dark—
bright—dark
From the 5CH adjust the
speed(CH1 、 CH2 、 CH3 、 CH4 、 is
invalid)
3

Display Operation
DC24V/OUT AC 00V-240V (power in)
A：function button
B：setup button
Menu Instruction
. “A” is the function button “B” is the setup button. correspond with DMX and
built-in program mode.
DMX mode: When shows all of the figures (00 -5 2), for the light’s DMX
address code, receive DMX5 2 signal.
built-in program mode: the first word on the left show “P” means built-in
program mode, the second for the program 0-A, the third is to modify
the programs.
2. operate as follows:
For the DMX mode, press “A” firstly, the left first digit flashing, then
press “B” to adjust the hundredths address as 0-5.
press “A” secondly, the left second digit flashing, then press “B” to

adjust tens-digit as 0-9
press “A” thirdly, the left third digit flashing, then press “B” to adjust
ones-digit as 0-9
press “A” fourthly, switch to built-in program mode, the display’s
first word on the left show “P” ,the second for the built-in programs
and flashing, press “B” to modify the built-in program 0-9, “A” for the
standby.
press “A” fifthly, the third digit glinting, press B to modify the built-in
programs.
press “A” sixthly, switch to DMX node again, return to step .
3. Built-in Program details（Pr- -）
The built-in program set as a master send out synchronization signals and
make the slave synchronous with it. The Slave must be set in DMX mode
and the address code should be A00 , only set this can take over the signal
of master. The Master outputs controlling signal, and Only one light can be
set as a Master and others are slaves.
“P -P 9”: Red dimmer. Operate as: press “A” until the last digit
glinting then press “B” key to change red dimmer (0-9, 9 is the
brightest)
“P2 -P29”: Blue dimmer. Operate as above. (0-9, 9 is the brightest)
“P3 -P39”: Green dimmer. Operate as above. (0-9, 9 is the brightest)
“P4 -P49”: Indigo dimmer. Operate as above. (0-9, 9 is the brightest)
“P5 -P59”: Purple dimmer. Operate as above. (0-9, 9 is the brightest)
“P6 -P69”: White dimmer. Operate as above. (0-9, 9 is the brightest)
“P7 -P79”: White Strobe. (P7 is the fastest)
“P8 -P89”: Auto run built-in program. (P8 is the fastest)
“P9 -P99”: Gradual change. (P9 is the fastest)
“PA -PA9”: is invalid.

4. When the screen flashes, it indicates that in the set-state. If you do not press any key
for 8 seconds , the state will saved automatically, and when you turn on the
lights next time will show this state.
Operating Control Instruction
Master/Slave
Master：The master should set as built-in program and shows” P - X – X” send
out synchronization signals. To avoid the host signal and DMX5 2 signals
interfere with each other, should cut off the DMX5 2 signals. The signal lines
are longer than 60 meters, should increase a signal amplifier.
Slave：It must be in the SLAV mode and the address code should be A00 to
assure receive the master’s signals correctly. Only one light can be set as a
Master and others are slaves.
Note: This pro uct uses input an output power cor 1 m ㎡
㎡㎡
㎡copper
core wire, power line in series, when 220V AC shoul less than 25
lights, an 110V AC less than 13 lights! ! !

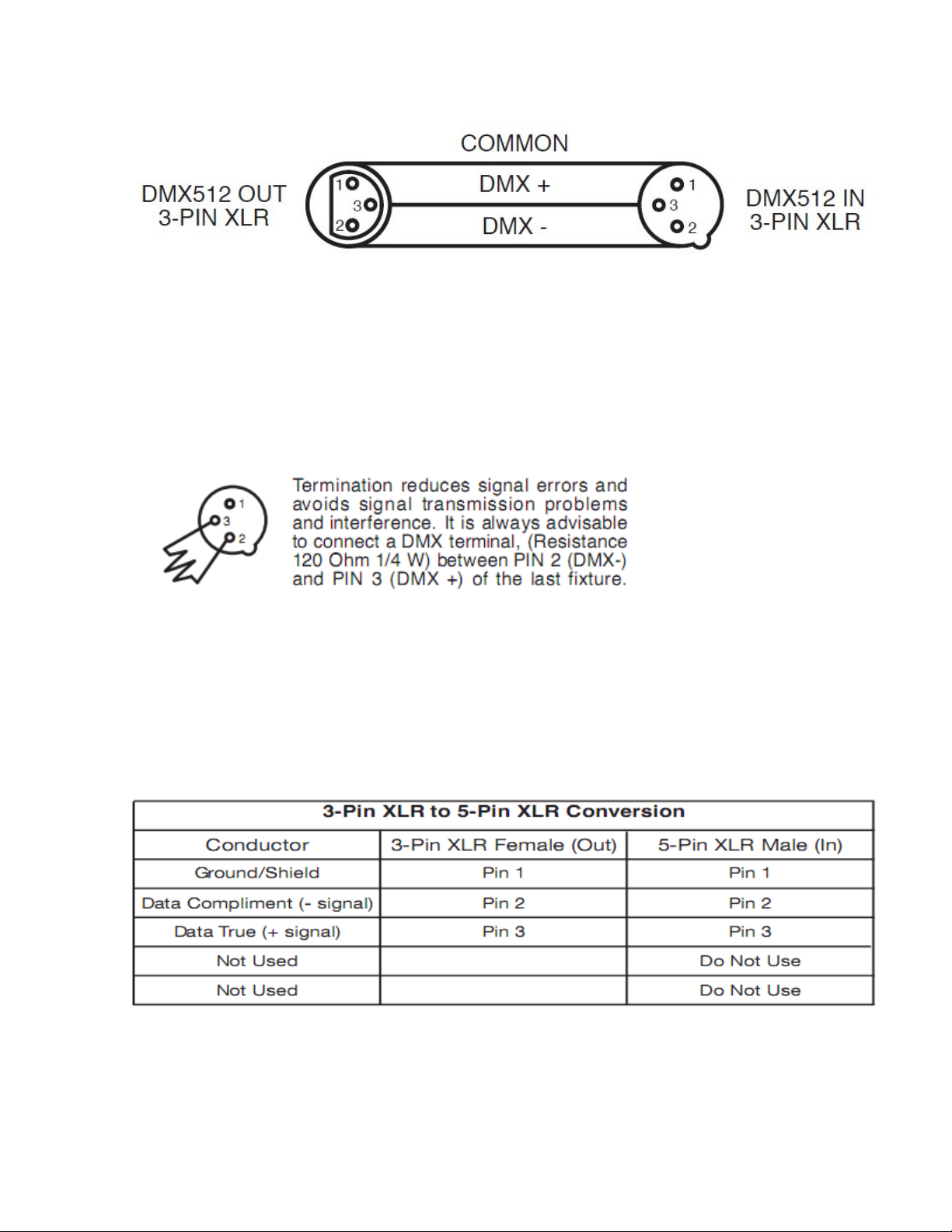

XLR cable connecting
XRL cable：
：：
：
The stand connection way of the XRL is: one end connect to the male plug ,and the other
connect to the female.

Noted
：
In order to avoid failures and interference signal transmission
，
we
connect a resistance 20Ω
（
/4W
）
at the end of the DMX connecting as
below:
The Conversion between 3pin and 5 pin XLR
If the output cable of DMX5 2 controller is the 5PIN, please use pc 5PIN to
3PIN cable

Connecting picture
Cable connecting picture

Explo e views

Illuminant list

Problem Analysis
Problem Checking way
Can not turn on
the light
Check the power source plug is in normal or not
Check the switch of the lights is off or on
Check it the fuse if in normal
DMX can not
control it
Check the DMX cable is connect to the lights or not
Check the DMX5 2 controller work in normal or not
Check the DMX cable is normal or not
Check if the lights is in DMX mode
（
A00
）
Display not bright
When connect to the electricity
，
did the led flash one
time? If so
，
the power source is normal; If not
，
please
check if the switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED not light
When connect to the electricity
，
did the led flash one
time? If so
，
the power source is normal; If not
，
please
check if the switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED is connect by leds in series first, then connect

Some of the LED
not light
parallel, so please check if the leds is loose
 Use the multi meter to check if the led is bright or
not, of not, please change the led
check whether current limiting resistor is normal or
not
Check constant current IC is normal or not (compared
with the normal IC)
Single color leds
always bright/not
bright
Check the switch of this color is normal or not
Change the IC control board
Noted only professional persons can do as above
！

Technical Specification
● Input voltage：AC 70V-264V/47-63HZ
● Output voltage：DC24V
● Consume：50W
● Lamp Type：High Power LED ( W)
● Lamp Spec：R（2PCS）、G（2PCS）、B（2PCS）
● Control Signal：DMX5 2, Master/Slave
● Control mode：stand alone/ DMX/ master and slaver
● Channel： 6CH
● Color effect：R、G、B mixing
● Function Effect：
：：
：dimmer, strobe, water, gradual change
● Beam Angle:45°
● Cooling mode: Natural Convection
● Protection Rating: IP65
● Cooling mode: Natural Convection
● Anti-electricity intension：.5KV
● Insulation Resistance：＞２MΩ
● Size:：：334* 30*2 3mm
● Net Weight：4KG

Copyright 20 2 KANDOLITE. All rights
reserved. Due to continuous improvements
and innovations, specifications may change
without notice.
