USER MANUAL
KSL1W9

I n d e x
summarize ......................................................................... 3
safety instruction ................................................................ 3
outside size picture .............................................................
main function ...................................................................... 5
DMX controller function ....................................................... 5
Display operation instruction............................................... 6
Operating control instruction............................................... 8
XRL connection instruction .................................................. 9
Connection picture .............................................................10
Exploeded views…………………………………………………………..11
Problem analyze……………………………………………………………12
Technical’s specification….……….…………………………..………1

Summarize
Thank you for purchasing our LED lighting. Please read these instructions carefully
before begin and operate the fixtures according to these instructions to avoid
any possible damages and accidents causes by misusage.
Products introduce
This led KK L1W9 light is uses aluminum shell , designed in a fashion of
hydrodynamic form. Appearance shows: long can, short can or short can with
color filter . It takes uses high power R,G,B 3 in 1 kinds of LED. It uses power
switch, performs low weight and consumption, stable capability and long life.
The built-in program includes dimmer, strobe, eotic, gradual change, fading and
so on. International standard DMX 512 signal is requested.
Packing list
•KK L1W9 light 1PC
•DMX cable 1PC (sold separately)
•Power Cable 1PC
•The use manual
•Warranty Card
afety Information
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving and
moving;.
! Avoid direct eye exposure to the fixture when it is on;
Safety instruction

● Make sure the power supply voltages are consistent with this lights ， Ensure the
use of voltage is in the range of the request technical parameter.
●before the installation, please check the light’s fasteners and mechanical
structure have been received in good condition and appear no damage.
● This light is designed for indoor use, working temperature is lower than 50
degree.
●The fixtures maybe mounted in any position provided there is adequate room
for ventilation. Make sure there are no inflammable and explosive items
(ornaments) in 0.5 meters away.
●Yellow / green cabling earthling safety; no flicker when the fixture is working on.
Outside Size Picture

Main Function
• high quality LED: low consumption, brightness, stable capability and long
life
•Each color of LED with 256 dimming. RGB can make over 16.7 million colors
•dim 0%-100%, trobe 、 gradual change 、 jumping change
•DMX512 Controller
•auto run /sound activated/master slave/interconnected multi-machine
control
•projecting distance:30m
•DMX512 channels:6 channels
DMX Control Function
Channel DMX
Value
Control Function Remark Priority
1CH 0-255 General dimming Must use this channel,
otherwise no function of
dimming
2CH 0-255 Red Dimming
0——100%
Or Amber color
3CH 0-255 Green
Diming0——100%
Or white color
4CH 0-255 Blue Dimming
0——100%
1
0-14 Dimming
5CH 15-255 trobe peed
When the 6CH above is
32-223 ，
this channel has the
function of speed
adjustment0-255
3
0-31 Invalid
32-63 From dark to bright
64-95 From bright to dark
96-127 From
dark—bright—dark
Must use CH1 、 2 、 3 、 4 otherwise
no light ， From the 5CH, start
the speed adjustment
128-159 RGB Gradient
160-191 3 colors jumping
change
192-223 7 colors jumping
change
From the 5CH adjust the
speed(CH1 、 CH2 、 CH3 、 CH4 、
CH7is invalid)
6CH
224-255 ound activated
3

Display Operation
•MENU : access the menu or return to a previous menu option
•ENTER: select the current menu option
•UP: menu selection or parameter increments
•DOWN: menu selection or parameters decrease
Operating instruction
1. MENU is used to access the menu or return to a previous menu option. It
can not be used to select and store the current menu option. Press UP /
DOWN to choose a desired menu item. Here are the operation details :
•”addr”: DMX mode （ A001-A512 ）
•“ ouF”: Voice-activated strobe mode
•“ ouA”: Voice-activated no strobe mode
•” P”; built-in program speed change model ( P00- P15, P00 is the fastest)
•”Pr”; Built-in program （ Pr00-Pr15 16 program in all ）
•”A C”; seven colors jumping （ A 00-A 15 speed adjustable ）
•”FAdE”: gradual change model （ FA00-FA15 speed adjustable ）
•”FLA ”: white color strobe （ FL00-FL15 speed adjustable ）
•”rL”: red dimmer （ r000-r255,, r255 is the brightest ）
•”gL”: green dimmer （ g000- g255, g255 is the brightest ）
•”bL”: blue dimmer （ b000- b255, b255 the brightest ）

2. Press ENTER to access the further menu setting. This process can be saved
automatically; that means you will enter the process saved previously
when you activate the light next time. For example, if you want to choose
DMX mode A001, operate as follows:
•Press MENU, go back to the initial setting
•Press UP / DOWN until Addr
•Press ENTER to choose, the display will glinting at this moment
•Press UP / DOWN to change the address code to select A001
• Press ENTER to select and store the current menu options. DMX mode
will be
• tored automatically and the screen will stop glinting.
3. Details of program built inside （ Pr- - ）
•Press MENU, go back to the initial setting
•Press UP / DOWN until Pr--
•Press ENTER to choose, the display will glinting at this moment
•Press UP / DOWN to change the address code to select pr00
• Press ENTER to select and store the current menu options. DMX mode
will be
• tored automatically and the screen will stop glinting.
•Pr00:red; Pr01:green Pr02:blue
•Pr03:amber Pr04:cyan Pr05:purple
•Pr06:white; Pr07:red+strobe;
Pr08:green+strobe
•Pr09:blue+strobe; Pr10:amber+strobe;
•Pr11:cyan+strobe
•Pr12:purple+strobe; Pr13:white+strobe;
•Pr14:RGB jumping change; Pr15: 7 colors jumping change;
Note ：
Pr7--- Pr15 Can change the content Of P ， correct the speed of jumping
change , P00 is the fastest ， P15 is the slowest

Operating Control Instruction
Master/Slave
Master ： The master should set as built-in program and shows” P - X – X” send out
synchronization signals. To avoid the host signal and DMX512 signals interfere
with each other, should cut off the DMX512 signals. The signal lines are longer
than 60 meters should increase a signal amplifier.
lave ： It must be in the LAV mode and the address code should be A001 to assure
receive the master’s signals correctly. Only one light can be set as a Master and
others are slaves.
XLR cable connecting
XRL cable：
：：
：
The stand connection way of the XRL is: one end connects to the male plug, and
the other connects to the female.

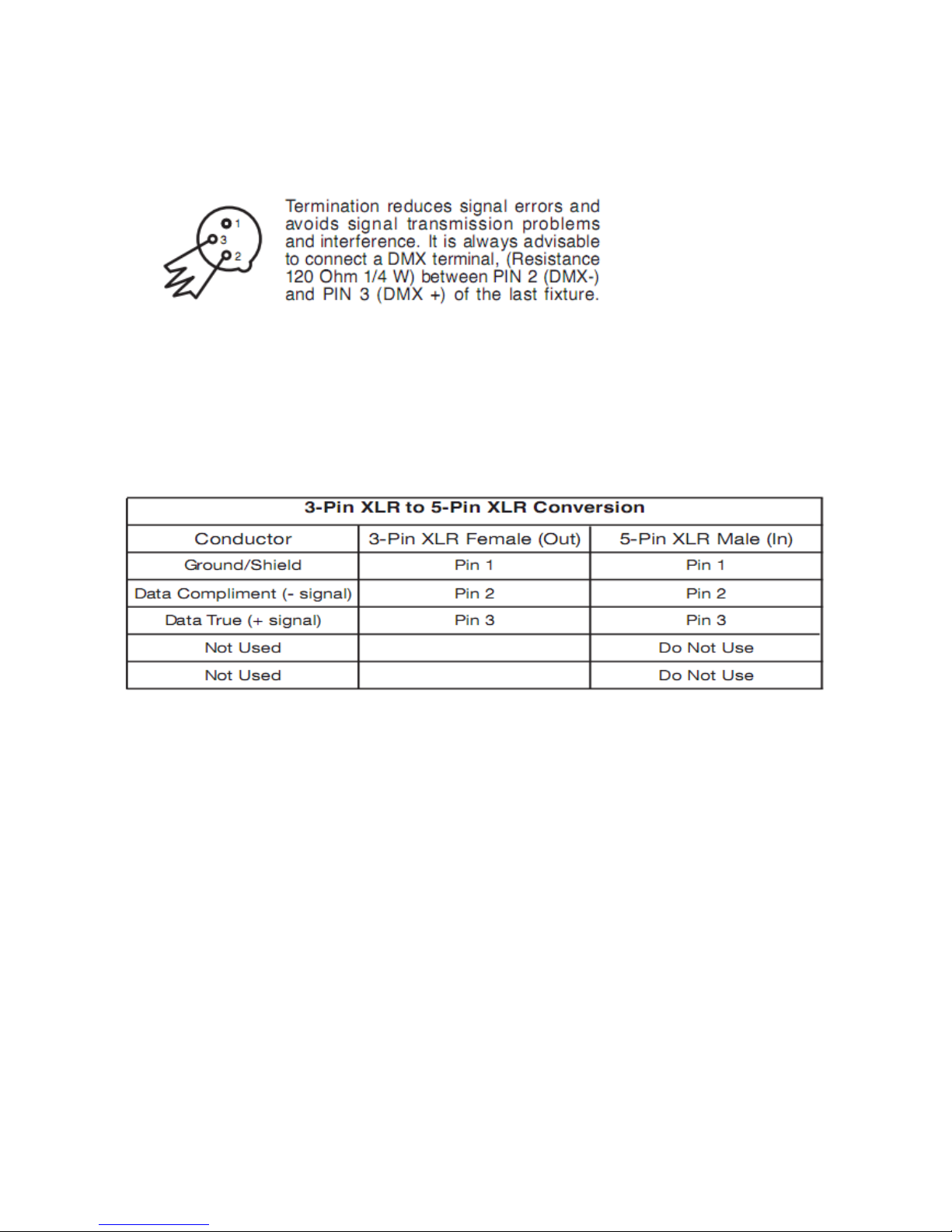

Noted
：
In order to avoid failures and interference signal transmission
，
we connect

a resistance120Ω
（
1/4W
）
at the end of the DMX connecting as below:
The Conversion between 3pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to
3PIN cable

Connecting picture

Exploeded views

Problem Analyze
Problem Checking way
Can not turn on the
light
Check the power source plug is in normal or not
Check the switch of the lights is off or on
Check it the fuse if in normal
DMX can not control
it
Check the DMX cable is connect to the lights or not
Check the DMX512 controller work in normal or not
Check the DMX cable is normal or not
Check if the lights is in DMX mode（ A001）
Display not bright
When connect to the electricity， did the led flash one time?
If so， the power source is normal; If not， please check if the
switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED not light
When connect to the electricity， did the led flash one time?
If so， the power source is normal; If not， please check if the
switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED is connect by leds in series first, then connect parallel,
so please check if the leds is loose

ome of the LED not
light
 Use the multimeter to check if the led is bright or not, of
not, please change the led
check whether current limiting resistor is normal or not
Check constant current IC is normal or not (compared with
the normal IC)
ingle color leds
always bright/not
bright
Check the switch of this color is normal or not
Change the IC control board
Noted: only professional persons can do as above
！

Technical Specification
•Input voltage:220V/50HZ
•Consume ： 15W
•Lamp Type ： High Power LED
•Lamp pec ： 3-in-1 9W 1PC
•Control ignal ： DMX512, sound activated, auto run
•Control mode ： DMX/ auto run/sound activated / master and slaver
•Beam Angle: 12°
•Projecting distance:30m
•Projecting angle(Y axis 0-90°,X axis 0-360°)
•Channel ： 6CH
•Function Effect ：
：：
： dimmer, strobe, eotic, gradual change
•Fine focusing knob
•ize:195.8*106*138.5MM
•Net Weight ： 1.6KG

Copyright 2012 KANDOLITE. All rights
reserved. Due to continuous improvements
and innovations, specifications may change
without notice.
