Kandolite KWW36W3RGB User manual

USER MANUAL
KWW36W3RGB

I n d e x
summarize ......................................................................... 3
safety instruction ................................................................ 3
outside size icture ............................................................. 4
main function ...................................................................... 5
DMX controller function ....................................................... 5
Dis lay o eration instruction............................................... 6
Manual instruction............................................................... 6
O erating control instruction............................................... 8
XRL connection instruction .................................................. 8
Connection icture .............................................................. 9

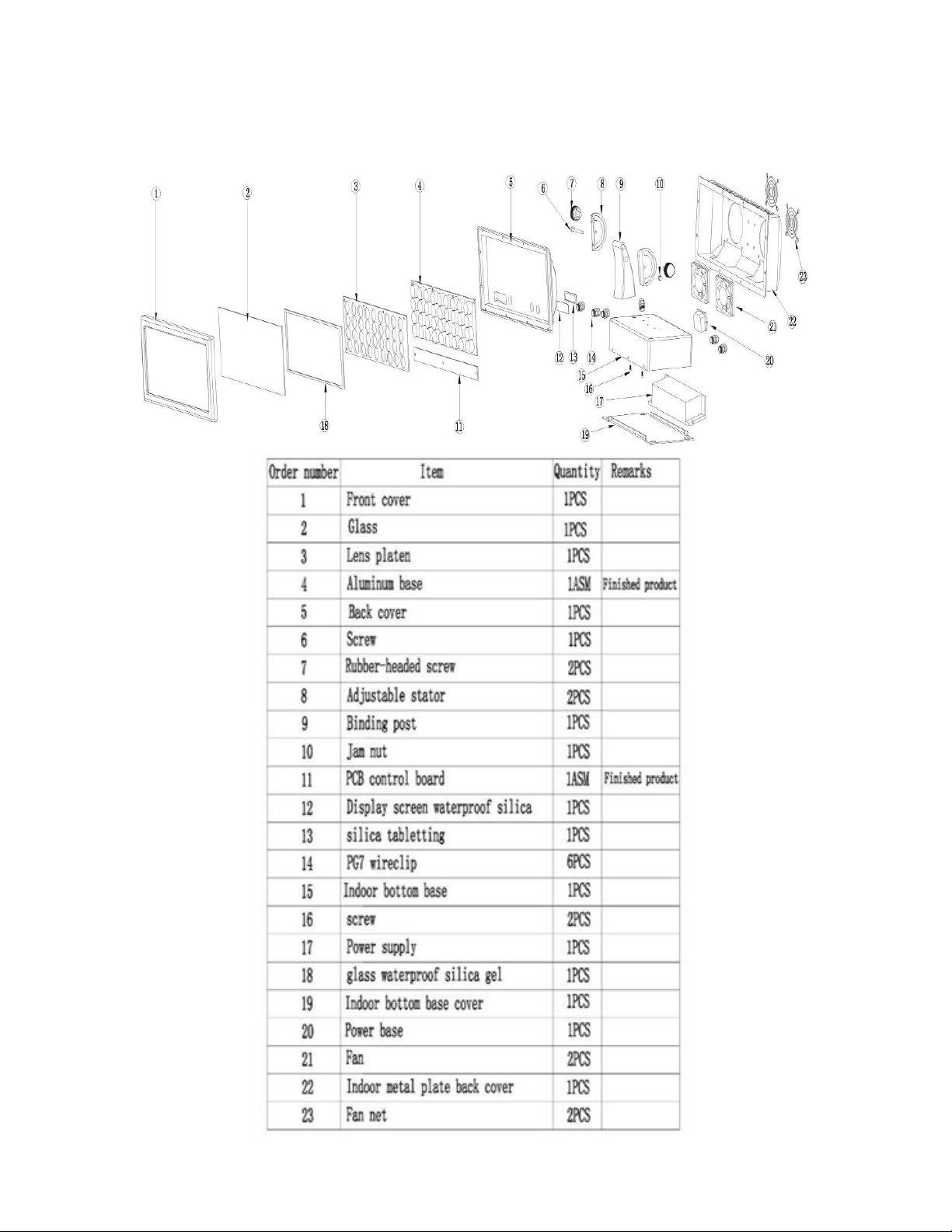

Ex loded Views ..................................................................10

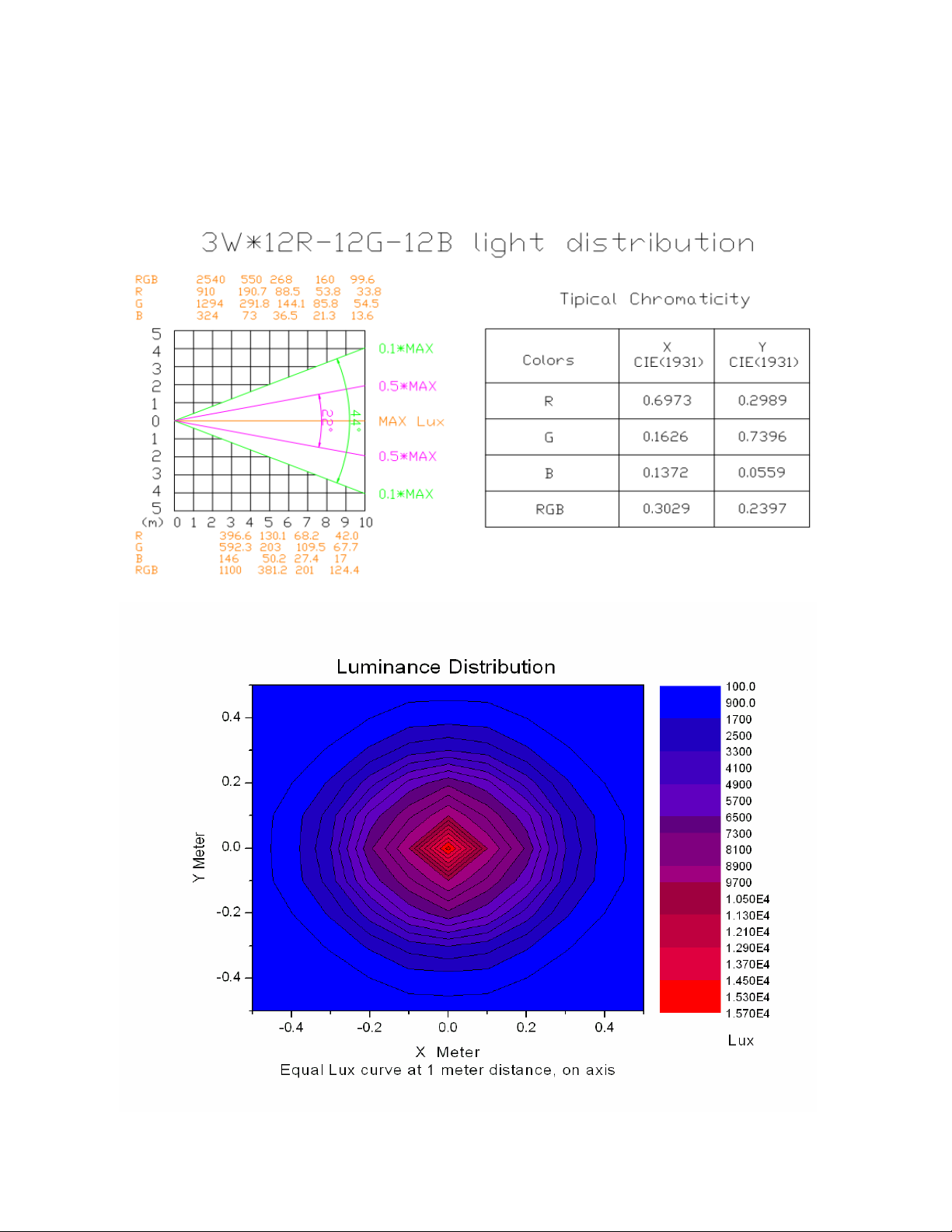

illuminance list...................................................................11
Problem analyse.................................................................12
Technicals secification…………….…………………………..………14

Summarize
Thank you for purchasing our products. Please read these instructions carefully
before begin and operate the fixtures according to these instructions to avoid
any possible damages and accidents causes by misusage.
Products introduce
This led KWW36W3 GB color-changing projecting light is covered by high
strength die-casting aluminum which is able to endure high temperature,
designed in a fashion of hydrodynamic form. It takes uses 3W high power , G,
B 3 kinds of LED, the color mixing effect is very good, high brightness. Each color
can be independently dimmer, fading changes and so on. It uses power switch,
performs low weight and consumption, stable capability and long life. The
built-in program includes dimmer, strobe, eotic, gradual change, fading and so on.
International standard DMX 512 signal is requested.
Packing list
•KWW36W3 GB light 1PC （ Waterproof Power in/out extension Cable ， Waterproof
DMX in/out extension cable ）
•Waterproof Power in Cable 1PC （ with Plug ）
•Waterproof DMX in 1PC （ connect to DMX512 Controller ）
•The use manual
•Warranty Card
Safety Information
! Enquire the skilled people before any repair;
! Always make sure disconnect from the power source before setting up, serving and
moving;.
! Avoid direct eye exposure to the fixture when it is on;
Safety instruction

● Make sure the power supply voltages are consistent with this lights ， Ensure the
use of voltage is in the range of the request technical parameter.
●before the installation, please check the light’s fasteners and mechanical
structure have been received in good condition and appear no damage.
● This light is designed for indoor use, working temperature is lower than 40
degree.
●The fixtures maybe mounted in any position provided there is adequate room
for ventilation. Make sure there are no inflammable and explosive items
(ornaments) in 0.5 meters away.
●Yellow / green cabling earthling safety; no flicker when the fixture is working on.
Outside Size Picture

Main Function
•Protection rating: IP65, in door or out door used.
•Each color of LED with 256 dimming. GB can make over 16.7 million colors
•DMX512 Controller ， DMX ID address with 2 digitals display
•master slave/interconnected multi-machine control
•lens degree: 15º 、 25º 、 45º optional
•using switching power supply to protect the LED to work well
•Stobe 、 gradual change 、 jumping change
•Channel:6CH

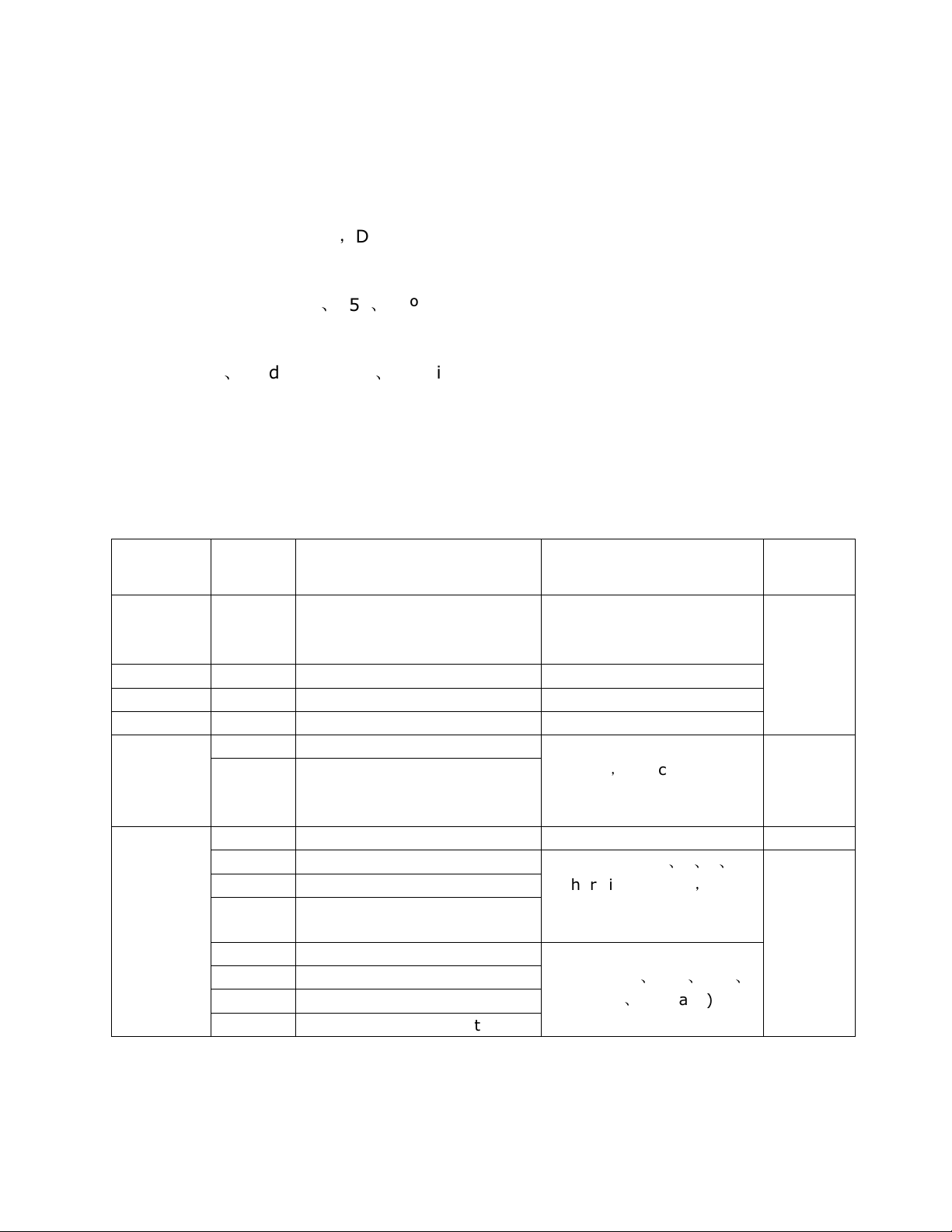

DMX Control Function
Channel DMX
Value
Control Function Remark Priority
1CH 0-255 General dimming Must use this channel,
otherwise no function of
dimming
2CH 0-255 ed Dimming 0——100%
3CH 0-255 Green Diming0——100%
4CH 0-255 Blue Dimming0——100%
1
0-14 Dimming
5CH 15-255 Strobe Speed
When the 6CH above is
32-223 ， this channel has
the function of speed
adjustment0-255
2
0-31 Invalid
32-63 From dark to bright
64-95 From bright to dark
96-127 From dark—bright—dark
Must use CH1 、 2 、 3 、 4
otherwise no light ， From
the 5CH, start the speed
adjustment
128-159 GB Gradient
160-191 3 colors jumping change
192-223 7 colors jumping change
6CH
224-255 Auto run dark—bright—dark
From the 5CH adjust the
speed(CH1 、 CH2 、 CH3 、
CH4 、 is invalid)
3

Dis lay O eration
DC24V/OUT
AC100V-240V IN (power in)
A ： function button
B ： setup button
Manual Instruction
1. “A”is the function button “B”is the setup button.correspond with DMX and
built-in program mode.
DMX mode: When shows all of the figures(001-512), for the light’s DMX
address code, receive DMX512 signal.
built-in program mode: the first word on the left show “P” means built-in
program mode, the second for the program 0-A, the third is to modify the
programs.
2. operate as follows:
For the DMX mode,press “A” firstly,the left first digit flashing,then press “B”
to adjust the hundredths adress as 0-5.
press “A” secondly,the left second digit flashing,then press “B” to adjust
tens-digit as 0-9
press “A” thirdly,the left third digit flashing,then press “B” to adjust

ones-digit as 0-9
press “A” fourthly, switch to built-in program mode, the display’s first
word on the left show “P” ,the second for the built-in programs and flashing,
press “B” to modify the built-in program 0-9, “A” for the standby.
press “A” fifthly,the third digit glinting, press B to modify the built-in
programs.
press “A” sixthly, switch to DMX node again,return to step 1.
3. Built-in Program details （ Pr- - ）
The built-in program set as a master send out synchronization signals and
make the slave synchronous with it. The Slave must be set in DMX mode and
the address code should be A001, only set this can take over the signal of
master. The Master outputs controlling signal, and Only one light can be set as
a Master and others are slaves.
“P11-P19”: ed dimmer. Operate as: press “A” until the last digit glinting
then press “B” key to change red dimmer (0-9, 9 is the brightest)
“P21-P29”: Blue dimmer. Operate as above. (0-9, 9 is the brightest)
“P31-P39”: Green dimmer. Operate as above. (0-9, 9 is the brightest)
“P41-P49”: Indigo dimmer. Operate as above. (0-9, 9 is the brightest)
“P51-P59”: Purple dimmer. Operate as above. (0-9, 9 is the brightest)
“P61-P69”: White dimmer. Operate as above. (0-9, 9 is the brightest)
“P71-P79”: White Strobe. (P71 is the fastest)
“P81-P89”: Auto run built-in program. (P81 is the fastest)
“P91-P99”: Gradual change. (P91 is the fastest)
“PA1-PA9”: is invalid.
4. When the screen flashes, it indicates that in the set-state..If you do not press any key for 8
seconds , the state will saved automatically, and when you turn on the lights next
time will show this state.

O erating Control Instruction
Master/Slave
Master ： The master should set as built-in program and shows” P - X – X” send out
synchronization signals. To avoid the host signal and DMX512 signals interfere
with each other, should cut off the DMX512 signals. The signal lines are longer
than 60 meters should increase a signal amplifier.
Slave ： It must be in the SLAV mode and the address code should be A001 to assure
receive the master’s signals correctly. Only one light can be set as a Master and
others are slaves.
XLR cable connecting
XRL cable：
：：
：
The stand connection way of the X L is: one end connects to the male plug,
and the other connects to the female.
Noted
：
In order to avoid failures and interference signal transmission
，
we connect
a resistance120Ω
（
1/4W
）
at the end of the DMX connecting as below:

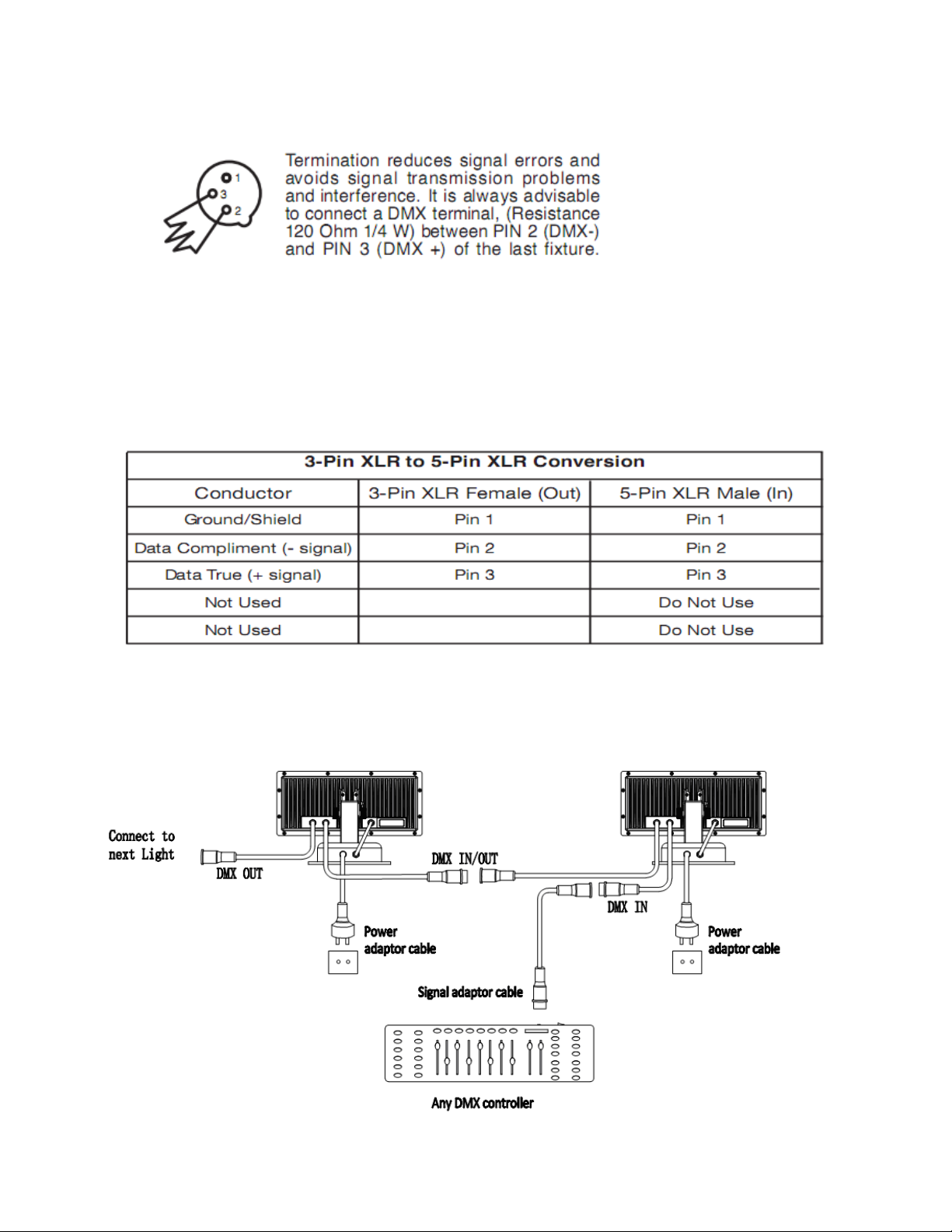

The Conversion between 3pin and 5 pin XL
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to
3PIN cable
Connecting icture
Cable connecting picture：

Ex loded views

Luminance list

Problem Analyze
Problem Checking way
Can not turn on the
light
Check the power source plug is in normal or not
Check the switch of the lights is off or on
Check it the fuse if in normal
DMX can not control
it
Check the DMX cable is connect to the lights or not
Check the DMX512 controller work in normal or not
Check the DMX cable is normal or not
Check if the lights is in DMX mode（ A001）
Display not bright
When connect to the electricity， did the led flash one time?
If so， the power source is normal; If not， please check if the
switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED not light
When connect to the electricity， did the led flash one time?
If so， the power source is normal; If not， please check if the
switch and the transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
LED is connect by leds in series first, then connect parallel,
so please check if the leds is loose

Some of the LED not
light
 Use the multimeter to check if the led is bright or not, of
not, please change the led
check whether current limiting resistor is normal or not
Check constant current IC is normal or not (compared with
the normal IC)
Single color leds
always bright/not
bright
Check the switch of this color is normal or not
Change the IC control board
Noted: only professional persons can do as above
！

Technical S ecification
● Input voltage ： AC 170V-264V/47-63HZ
● Output voltage ： DC24V
● Consume ： 100W
● Lamp Type ： High Power LED(3W)
● Lamp Spec ： （ 12PCS ）、 G （ 12PCS ）、 B （ 12PCS ）
● Control Signal ： DMX512, Master/Slave
● Control mode ： stand alone/ DMX/ master and slaver
● Channel ： 6CH
● Color effect ： 、 G 、 B mixing
● Function Effect ：
：：
： dimmer, strobe, eotic, gradual change
● Beam Angle:45°
● Cooling mode: Natural Convection
● Protection ating: IP65
● Cooling mode: Natural Convection
● Anti-electricity intension ： 1.5KV
● Insulation esistance ：＞２ MΩ
● Size: ：： 336*148*214mm
● Net Weight ： 5.8KG

Copyright 2012 KANDOLITE. All rights
reserved. Due to continuous improvements
and innovations, specifications may change
without notice.
