KanexPro HDBASE70POE HDBaseT 4K HDMI Transmitter and Receiver Kit with PoE - 230'

HDBASE70POE
USER MANUAL
HDMI Twisted Pair PoC Extender
All Rights Reserved
Version: HDBASE70POE_2016V1.0

70M 4K HDMI Extender over HDBaseT™ with POC
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till August 2016. In the constant effort to
improve our product, we reserve the right to make functions or parameters changes
without notice or obligation. Please refer to the dealers for the latest details.
All product function is valid till 2016-8-22.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

70M 4K HDMI Extender over HDBaseT™ with POC
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
lUnpack the equipment carefully and save the original box and packing material for
possible future shipment
lFollow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
lDo not dismantle the housing or modify the module. It may result in electrical shock
or burn.
lUsing supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
lRefer all servicing to qualified service personnel.
lTo prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
lDo not put any heavy items on the extension cable in case of extrusion.
lDo not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
lInstall the device in a place with fine ventilation to avoid damage caused by
overheat.
lKeep the module away from liquids.
lSpillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
lDo not twist or pull by force ends of the optical cable. It can cause malfunction.
lDo not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
lUnplug the power cord when left unused for a long period of time.
lInformation on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDMI/IR/RS232 Twisted Pair PoC
Extender
Table of Contents
1. Introduction..................................................................................................................1!
1.1 Introduction to HDBASE70POE .........................................................................1!
1.2 Features .............................................................................................................1!
1.3 Package Contents..............................................................................................1!
2. Product Appearance....................................................................................................2!
2.1 HDBASE70POET...............................................................................................2!
2.2 HDBASE70POER ..............................................................................................3!
3. System Connection .....................................................................................................4!
3.1 Usage Precautions.............................................................................................4!
3.2 System Diagram.................................................................................................4!
3.3 Connection Procedure .......................................................................................4!
3.4 Application..........................................................................................................5!
3.5 Twisted Pair Cable Connection..........................................................................5!
3.6 Collocation Products ..........................................................................................5!
4. Specification ................................................................................................................7!

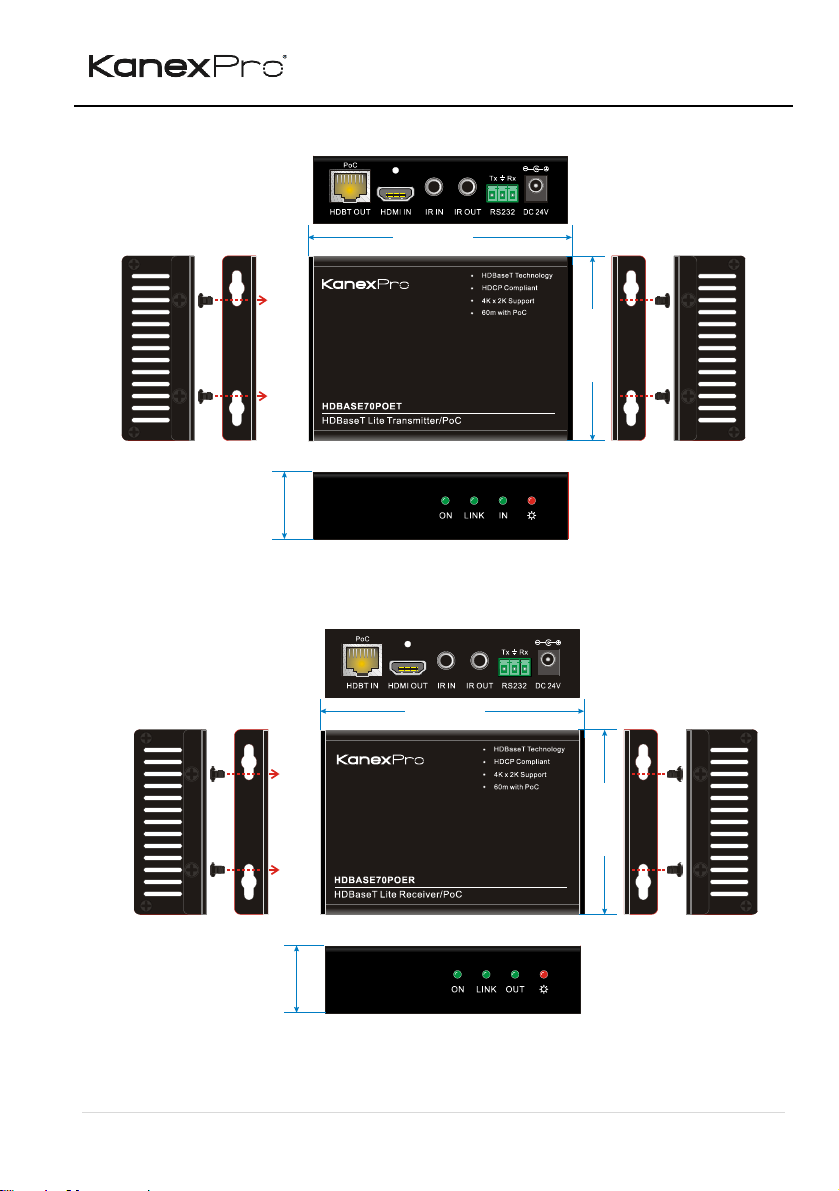

5. Panel Drawing .............................................................................................................8!
6. Troubleshooting & Maintenance..................................................................................9!
7. After-sales Service ....................................................................................................10!
8. Warranty ....................................................................................................................11!

HDMI/IR/RS232 Twisted Pair PoC
Extender
1 | Page
1. Introduction
1.1 Introduction to HDBASE70POE
HDBASE70POE is an HDMI/IR/RS232 twisted pair including transmitter and receiver.
HDBASE70POE uses HDBaseT technology to deliver HDMI signal, max transmission
distance up to 70 meters with CAT5e/CAT6 cable. CEC, bi-directional RS232&IR
control, and PoC are supported by HDBASE70POE.
1.2 Features
lSupport Full HD: Delivers resolutions including 800x600@60Hz, 1024x768@Hz,
1280x720@60Hz, 1280x1024@60Hz, 1366x768@60Hz, 1600x1200@60Hz,
1920x1080@60Hz, 1920x1200@60Hz, 3D, 4K×2K
lMax transmission distance is up to 70 meters over single CAT5e/CAT6 cable.
lHigh Bandwidth: 10.2Gps.
lHDTV Compatible, use HDMI 1.4 and HDCP compliant.
lSupport POC & CEC.
lConnect with a displayer to transmit EDID and HPD signals constantly by using a
CAT5e cable.
lUse HDBaseT technology.
lBi-directional RS232/IR controls.
lLED indicators show work status.
lWall/table-mountable aluminum enclosure, PT case design.
Note: Please use a CAT5e cable with low impedance (Shielded twisted pair will be
better and should be well grounded)for good transmission effect.
1.3 Package Contents
l1 x Transmitter (HDBASE70POET)
l1 x Receiver (HDBASE70POER)
l4 x Mounting brackets
l8 x Plastic cushions
l2 x RS232 cables
l8 x Screws
l2 x Power adapters (DC 24V)
l1 x User manual
Notes: Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.

HDMI/IR/RS232 Twisted Pair PoC
Extender
2 | Page
2. Product Appearance
2.1 HDBASE70POET
Figure 2-1 HDBASE70POET
1) ON: Working status indicator of this device. When the device works fine, this
green LED will keep blinking. And it will get off when the device stops work.
2) LINK: Twisted Pair Link status indicator, green LED. It will keep on when
connection is successful.
3) IN: When connected with devices support HDCP and work normally this LED will
keep on. If devices not support HDCP, this green LED will blink.
4) POWER LED: LED indicator of power. When connect with power, red LED will
keep on.
5) HDBT OUT: Connect to the HDBT IN port of HDBASE70POER with a CAT5e
cable.
6) HDMI IN: Connect to HDMI source.
7) IR IN: Connect with IR receiver, the IR signal received from this port can only
send out in HDBASE70POER.
8) IR OUT: Connect with IR sender, the sending IR signal are received from
HDBASE70POER.
9) RS232: RS232 connector.
10) DC 24V: Connect with power supply (Not necessary if HDBASE70POER
connects with power).
Note: Pictures shown on this manual are for reference only; different model and
specifications are subject to real product.

HDMI/IR/RS232 Twisted Pair PoC
Extender
3 | Page

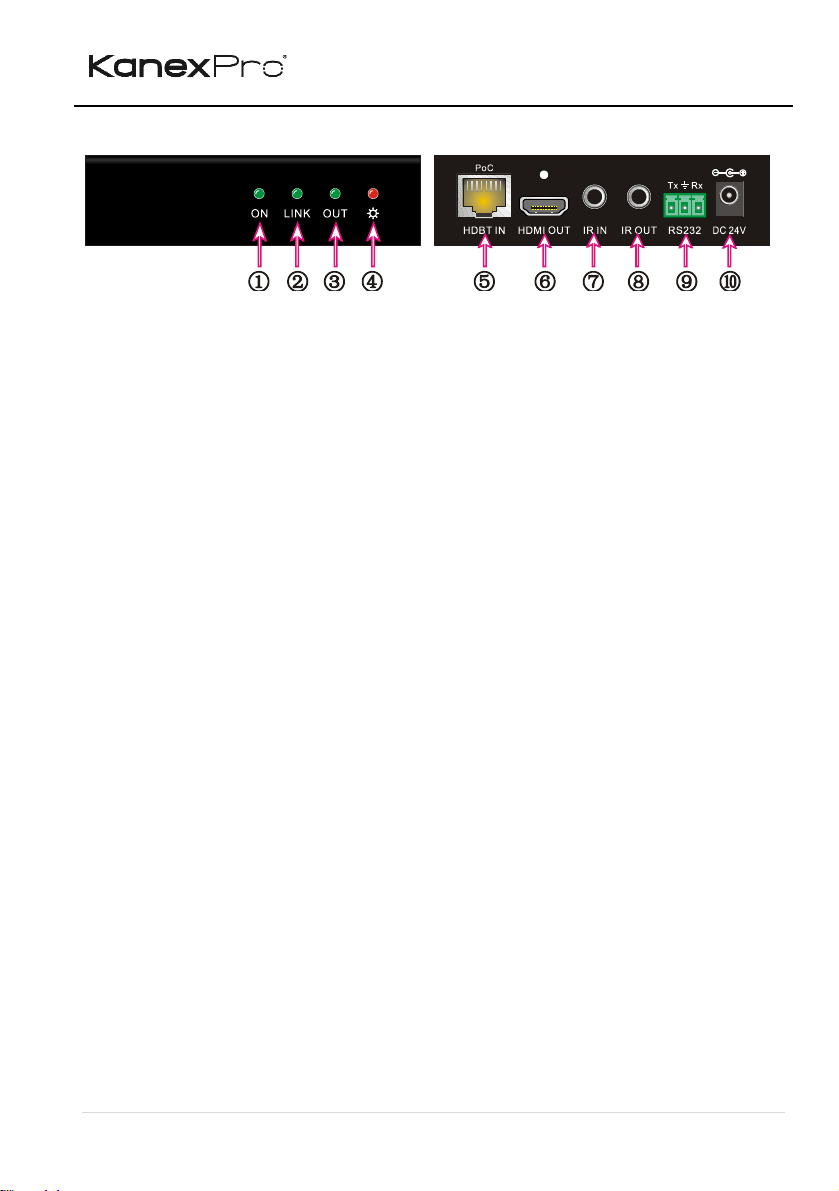

2.2 HDBASE70POER
Figure 2-2 HDBASE70POER
1) ON: Working status indicator of this device. When the device works fine, this
green LED will keep blinking. And it will get off when the device stops work.
2) LINK: Twisted Pair Link status indicator, green LED. It will keep on when
connection is successful.
3) OUT: When connected with devices support HDCP and work normally this LED
will keep on. If devices not support HDCP, this green LED will blink.
4) POWER LED: When connect with power, red LED will keep on.
5) HDBT IN: Connect to the HDBT OUT port of HDBASE70POET with a CAT5e
cable.
6) HDMI IN: Connect to HDMI display device.
7) IR IN: Connect with IR receiver, the IR signal received from this port can only
send out in HDBASE70POET.
8) IR OUT: Connect with IR emitter, the sending IR signal are received from
HDBASE70POET.
9) RS232: RS232 connector.
10) DC 24V: Connect with power supply (Not necessary if HDBASE70POET
connects with power).
Note: Pictures shown on this manual are for reference only, different model and
specifications are subject to real product.

HDMI/IR/RS232 Twisted Pair PoC
Extender
4 | Page
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safety.
3) All devices should be connected before power on.
3.2 System Diagram
Figure 3-1 System Connection Diagram
3.3 Connection Procedure
Step1. Connect HDMI source (such as Blue-ray DVD) to HDMI IN port of transmitter
HDBASE70POET with HDMI cable.
Step2. Connect HDBT OUT port of HDBASE70POET and HDBT IN port of
HDBASE70POER, with single CAT5e/CAT6 cable.
Step3. Connect HDMI displayer (such as HDTV) to HDMI OUT port of
HDBASE70POER with HDMI cable.
Step4. Both HDBASE70POET and HDBASE70POER have IR IN and OUT. When one
end is used as an IR receiver, the signal sent from the end can only be
transmitted via the other end.
For example: When “IR IN” of HDBASE70POET connects with an IR receiver,
the IR transmitter must connect to IR OUT of HDBASE70POER.
Step5. Connect the RS232 port of the devices to be controlled and the receiver or the
transmitter.
Step6. Connect with DC24V power adaptor(s) (One is enough if any end of
HDBASE70POET and HDBASE70POER is connected with adapter as its PoC
DVD
HDMI
HDMI
CAT5e
INPUT
MP-WP B-8
Projector
IR Remote
HDBASE70POET
HDBASE70POER

HDMI/IR/RS232 Twisted Pair PoC
Extender
5 | Page
function).
3.4 Application
HDBASE70POE has a good application in various occasions, such as computer realm,
monitoring, big screen displaying, meeting room, education and bank & securities
institution etc.

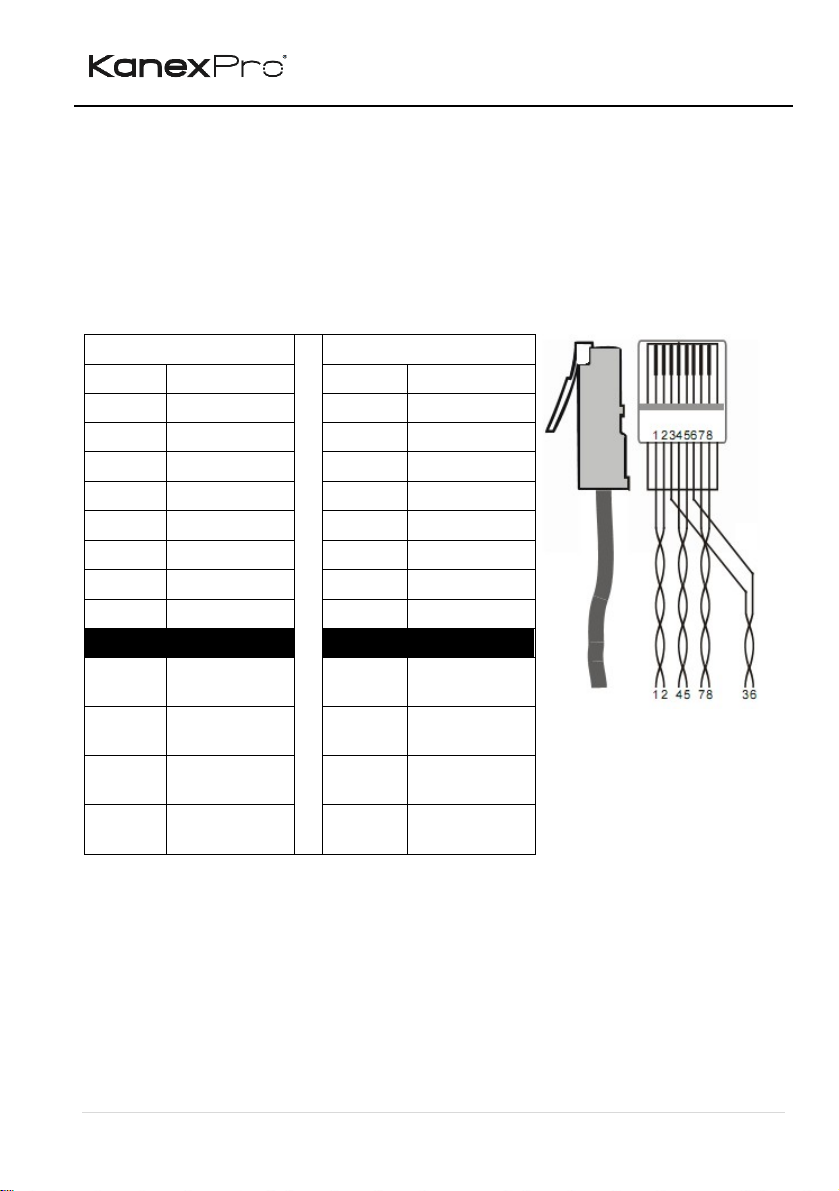

3.5 Twisted Pair Cable Connection
The twisted pair used in this extender MUST be a straight-through cable.
Notice: Cable connectors
MUST be metal one, the
shielded layer of cable
MUST be connected to the
connector’s metal shell, to
make a better transmission.
3.6 Collocation Products
HDBASE70POE usually work together with other devices to extend the transmission
distance of HDMI/IR/RS232 signal. Here are the most common collocation products.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown
1st
Ground
4--5
1st
Ground
4--5
2nd
Ground
3--6
2nd
Ground
1--2
3rd
Group
1--2
3rd
Group
3--6
4th
Group
7--8
4th
Group
7--8

HDMI/IR/RS232 Twisted Pair PoC
Extender
6 | Page

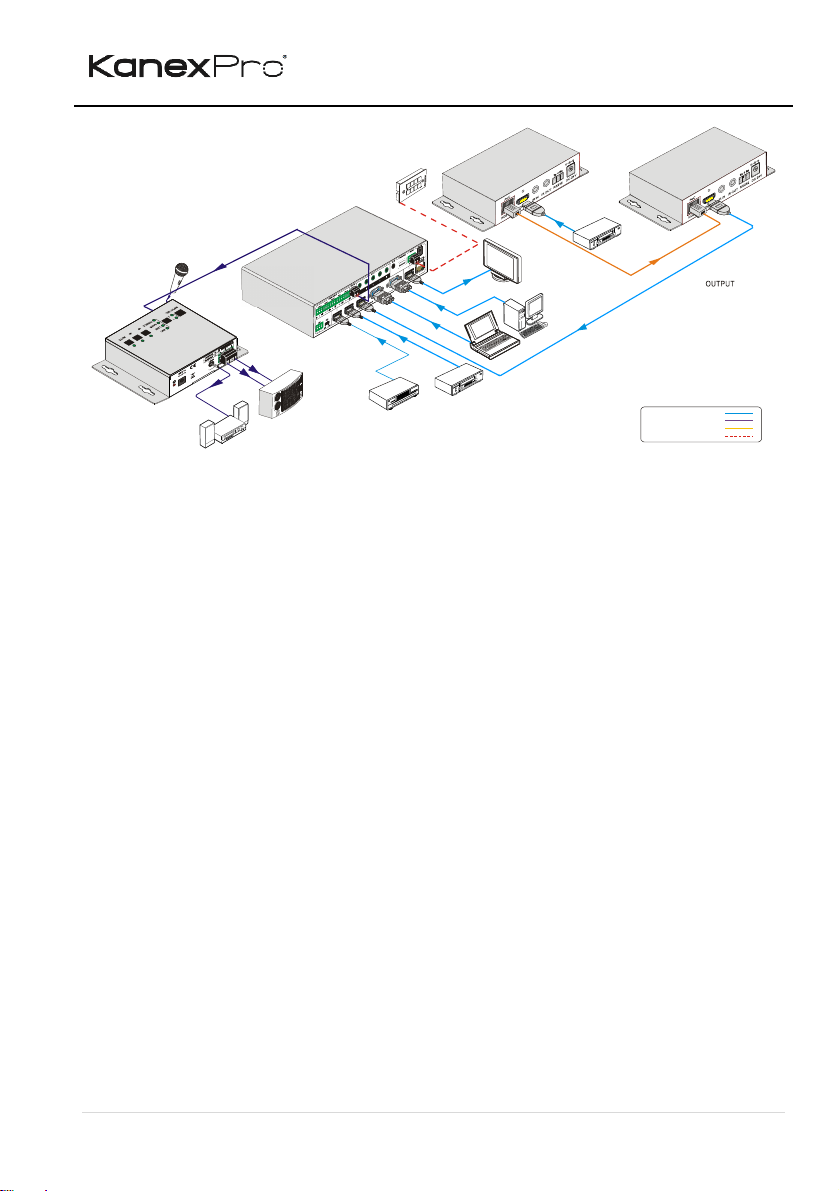

Figure 3-2 Collocation Products Connection Diagram
Description:
1) Mini scaler switcher
Ø6 video Inputs: 2 x HDMI, 1 x VGA, 1 x YPbPr, 1 x C-video & 1 x S-video, and
upscale to HDMI output at 1080P.
ØSupport VGA resolutions: 640x480, 800x600, 1024x768, 1280x1024, 1280x768,
1360x768@60Hz, and 1920x1080.
ØBuilt-in PAL/NTSC and audio format automatic identification technologies, with
good video and audio processing technology for high performance.
Ø3 audio outputs: HDMI embedded audio, 3.5mm stereo audio and Coaxial
(SPDIF).
ØOutput display H/V size, position, image color adjustable and output image
freezable.
ØBuilt-in breakpoint memory and power-off protection function.
2) Mini digital amplifier
Ø2x20Watt@4Ωas the default amplifier output.
ØBridge connection function. User can switch the amplifier to be 1x40Watt@8Ωby
bridge connection.
Ø48V phantom power to support condenser microphone.
ØMIC port can support balance/unbalance signal, suppress the external noise
effectively.
RS23 2 Con trol Signa l
Audi o/Vid eo Signal
Video Signa l
Audi o Sig nal
VCR
①
CAT5e
DVD
HDTV
PC
Laptop
HDBASE70POER
HDBASE70POET
DVD
MP-WPB-8
Speaker
Speaker3
MIC
②

HDMI/IR/RS232 Twisted Pair PoC
Extender
7 | Page
4. Specification
Model
Spec
HDBASE70POET
HDBASE70POER
Input
Input Signal
1 HDMI, 1 IR & 1 RS232
1 IR, 1 RJ-45 & 1 RS232
Input Connector
HDMI female, 3.5mm mini
jack, 3-pin captive screw
connector
3.5mm mini jack, RJ-45,
3-pin captive screw
connector
Video Signal
HDMI1.4
HDMI1.4
Audio
Digital audio, transmit
through HDMI audio
Digital audio, transmit
through HDMI audio
Output
Output
1 RJ-45, 1 IR, 1 RS232
1 HDMI, 1 IR, 1RS232
Output Connector
RJ-45, 3.5mm mini jack,
3-pin captive screw
connector
HDMI female, 3.5mm mini
jack, 3-pin captive screw
connector
Video signal
HDMI1.4
HDMI1.4
Transmission Mode
HD Base T
General
Resolution
800x600@60Hz, 1024x768@Hz, 1280x720@60Hz,
1280x1024@60Hz, 1366x768@60Hz,
1600x1200@60Hz, 1920x1080@60Hz,
1920x1200@60Hz, 3D, 4K×2K
Transmission Distance
Max distance 70M
SNR
>70dB@ 100MHz-100M
Bandwidth
10.2Gbps
THD
＜0.005%@1KHz
HDMI Standard
Support HDMI1.4, 3D and HDCP
Impedance
75Ω
Temperature
-10 ~ +40℃
Humidity
10% ~ 90%
Power Supply
Input: 100VAC~240VAC, 50/60Hz Output: DC 24V, 1.25A
Power Consumption
9.6W
Case Dimension
(W*H*D)
110mm x 28mm x 77 mm
110mm x 28mm x 77 mm
Net Weight
0.5Kg
0.5Kg
NOTE: All nominal levels are at ±10%.

HDMI/IR/RS232 Twisted Pair PoC
Extender
8 | Page
5. Panel Drawing
Figure 5-1 HDBASE70POET
Figure 5-1 HDBASE70POER
28 mm
77 mm
110 mm
28 mm
77 mm
110 mm

HDMI/IR/RS232 Twisted Pair PoC
Extender
9 | Page
6. Troubleshooting & Maintenance
Problems
Causes
Solutions
Output images in display
show with ghost
Incorrect setting on the
display
Check the display’s setting
A cable of bad quality
Try another high quality
connection cable
No output image when
switching
No signal at the input /
output end
Check with oscilloscope or
multimeter if there is any
signal at the input / output
end.
Fail or loose connection
Make sure the connection
is good
The extender is broken
Send it to authorized
dealer for repairing.
Cannot control the device
by control device (e.g. a
PC) through RS232 port
Wrong RS232
communication parameters
Make sure the RS232
communication parameters
are correct.
The device has already
been broken
Send it to authorized
dealer for repairing.
Static becomes stronger
when connecting the video
connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
Cannot control the device
by RS232 / IR
The device has already
been broken
Send it to authorized
dealer for repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.

HDMI/IR/RS232 Twisted Pair PoC
Extender
10 | Page
7. After-sales Service
If there appear some problems when running the device, please check and deal with the
problems reference to this user manual. Any transport costs are borne by the users
during the warranty.
1) Product Limited Warranty: It is warranted that the product will be free from defects
in materials and workmanship for three years, which starts from the first day you
buy this product (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence
that the unit is within the Warranty period, must be presented to obtain warranty
service.
2) What the warranty does not cover:
lWarranty expiration.
lFactory applied serial number has been altered or removed from the product.
lDamage, deterioration or malfunction caused by:
lNormal wear and tear
lUse of supplies or parts not meeting our specifications
lNo certificate or invoice as the proof of warranty.
lThe product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
lDamage caused by force majeure.
lServicing not authorized
lAny other causes which does not relate to a product defect
lDelivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
lProduct version and name.
lDetailed failure situations.
lThe formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor.

HDMI/IR/RS232 Twisted Pair PoC
Extender
11 | Page
8. Warranty
A. LIMITED WARRANTY
KanexPro ™ warrants that (a) its products (the “Product”) will perform greatly in
agreement with the accompanying written materials for a period of 36 months (3 full
years) from the date of receipt and (b) that the product will be free from defects in
materials and workmanship under normal use and service for a period of 3 years.
B. CUSTOMER REMEDIES
KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro
option, either return of the price paid for the product, or repair or replacement of the
Product that does not meet this Limited Warranty and which is returned to KanexPro
with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product
has resulted from accident, abuse, or misapplication. Any replacement Product will be
warranted for the remainder of the original warranty period of 3 years, whichever is
longer.
C. NO OTHER WARRANTIES
To the maximum extent permitted by applicable law, KanexPro disclaims all other
warranties, either express or implied, including, but not limited to implied warranties of
merchantability and fitness for a particular purpose, with regard to the product and any
related written materials. This limited warranty gives customers specific legal rights.
Customers may have other rights depending on the jurisdiction. 
D. NO LIABILITY FOR DAMAGES
To the maximum extent permitted by applicable law, in no event shall KanexPro be
liable for any damages whatsoever (including without limitation, special, incidental,
consequential, or indirect damages for personal injury, loss of business profits, business
interruption, loss of business information, or any other pecuniary loss) arising out of the
use of or inability to use this product, even if KanexPro has been advised of the
possibility of such damages.

1405 pioneer street
Brea, CA 92821
