KanexPro EXT-HDBTKVM100 User manual

EXT-HDBTKVM100
4K HDBaseT 2.0™ Extender w/ HDMI® & USB 2.0
KVM support
Extend HDMI, USB 2.0, and RS-232 & Power over HDBaseT
up to 150 meters (492 feet)
All Rights Reserved
Version: EXT-HDBTKVM100_2016V1.0

HDBaseT 2.0 KVM Extender Set
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till February 2016. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
All product function is valid till 2-26-2016.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDBaseT 2.0 KVM Extender Set
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
!Unpack the equipment carefully and save the original box and packing material for
possible future shipment
!Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
!Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
!Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
!Refer all servicing to qualified service personnel.
!To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
!Do not put any heavy items on the extension cable in case of extrusion.
!Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
!Install the device in a place with fine ventilation to avoid damage caused by
overheat.
!Keep the module away from liquids.
!Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
!Do not twist or pull by force ends of the optical cable. It can cause malfunction.
!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
!Unplug the power cord when left unused for a long period of time.
!Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDBaseT 2.0 KVM Extender Set
Contents
1. Introduction..................................................................................................................1!
1.1 Introduction to EXT-HDBTKVM100....................................................................1!
1.2 Features .............................................................................................................1!
1.3 Packing List........................................................................................................1!
2. Panel Description ........................................................................................................1!
2.1 Transmitter (EXT-HDBTKVM100T)....................................................................1!
2.2 Receiver (EXT-HDBTKVM100R) .......................................................................2!
3. System Connection .....................................................................................................4!
3.1 Usage Precautions.............................................................................................4!
3.2 System Diagram.................................................................................................4!
3.3 Connection Procedure .......................................................................................4!
3.4 PoH Solution ......................................................................................................5!
3.5 Application..........................................................................................................6!
4. Specification ................................................................................................................7!
4.1 Supported Resolution.........................................................................................8!
5. Panel Drawing .............................................................................................................9!
6. Troubleshooting & Maintenance................................................................................10!
7. After-sales Service ....................................................................................................11!

HDBaseT 2.0 KVM Extender Set
1
1. Introduction
1.1 Introduction to EXT-HDBTKVM100
Compliant with HDMI 2.0 & HDCP 2.2, The KanexPro EXT-HDBTKVM100 is a 4K
HDMI Extender set developed with the latest HDBaseT™ 2.0 technology to extend
uncompressed HDMI video, audio, USB 2.0, control signals and PoH over a single
CAT5e/6 cable. The PoH compliant extender comes with only one power supply, which
means that, it can be powered bi-directionally from Tx to Rx or vice versa to save
installers time and added cost to installing a power outlet. Ideally designed for smart
displays and KVM solutions fitting digital signage markets.
Features
!Compatible with HDMI2.0, delivers high-resolution AV signal (1080p 3D,
4Kx2K@60Hz), support older compatibility (e.g. HDMI 1.4)
!Supports HDBaseT 2.0, transmit 4Kx2K signal up to 100m and 1080p signal up to
150m over single CAT5e/CAT6 cable
!EDID Pass-Thru
!HDCP2.2 compliant
!Supports CEC
!Front panel status LEDs for power, link & HDCP
!Transmission mode (100m/150m) can be switched via intuitive front panel switcher
!Bi-directional USB & RS232 control
!Bi-directional PoH (Power over HDBaseT)
1.2 Packing List
"1 x Transmitter (EXT-HDBTKVM100T)
"1 x Receiver (EXT-HDBTKVM100R)
"4 x Detachable Mounting Ears
"8 x Screws
"1 x Power Adapter (DC 12V 2A)
"8 x Plastic Cushions
"2 x RS232 cables (Phoenix to 9 Pin
D-Sub)
"1 x User manual
#Please confirm if the product and the accessories are all included, if not, please
contact your dealer or [email protected]

HDBaseT 2.0 KVM Extender Set
1
2. Panel Description
2.1 Transmitter (EXT-HDBTKVM100T)
No.
Name
Description
①
Indicators
Power:
"OFF: No power
"RED: DC power present
ON: Working status indicator
"OFF: Not operational
"Blinking GREEN: Normal operation
LINK: HDBT Link status indicator
"OFF: No Link
"GREEN: Link successful
"Blinking GREEN: Link problem
HDCP: HDCP compliant indicator
$OFF: No HDMI traffic (no picture)
$GREEN: Traffic with HDCP
$Blinking GREEN: Traffic without HDCP
②
Transmission
Mode Switcher
Activate 100m/ 150m-transmission mode.
"100m mode: 4Kx2K@60Hz and 1080p signals can be
transmitted up to 100m
"150m modes: 1080p signal can be transmitted up to 150m,
but will not support 4K signals.
Note: After setting switch position, the mode will not take effect
until units are restarted. Please set both ends identical.
③
FW
Micro USB port, used for firmware update.
Firmware update needs auxiliary equipment, please contact
DC 12V
Tx Rx
RS232HDBT OUTHDMI IN USB OUT
FW100m / 150m
MODEON LINK HDCP
1
45678
2 3
Front
Rear

HDBaseT 2.0 KVM Extender Set
2
with our after-sales department for more details.
④
HDMI IN
Connect with HDMI source
⑤
HDBT OUT
Connect to the HDBT IN port on rear panel of the Receiver via
CAT5e/ CAT6a cable, compliant with HDBT2.0 and support
bi-directional PoH.
⑥
USB OUT
Type-B USB port, connect to PC to receive remote USB control
⑦
RS232
Serial port, connects with control device or device to be
controlled, supports bi-directional RS232 control.
⑧
DC 12V
Connect with a DC12V 2A power adapter.
#Pictures for reference only, subject to our existing products.
2.2 Receiver (EXT-HDBTKVM100R)
No.
Name
Description
①
Indicators
Power:
"OFF: No power
"RED: DC power present
ON: Working status indicator
"OFF: Not operational
"Blinking GREEN: Normal operation
LINK: HDBT Link status indicator
"OFF: No Link
"GREEN: Link successful
"Blinking GREEN: Link problem
HDCP: HDCP compliant indicator
$OFF: No HDMI traffic (no picture)
FW10 0 m / 150m
MODEON LINK HDCP
1
DC 12V
Tx Rx
HDBT IN
HDMI OUT USB IN RS232
45678
2 3
Front
Rear

HDBaseT 2.0 KVM Extender Set
3
$GREEN: Traffic with HDCP
$Blinking GREEN: Traffic without HDCP
②
Transmission
Mode Switcher
Activate 100m/ 150m-transmission mode.
"100m mode: 4Kx2K@60Hz and 1080P signals can be
transmitted up to 100m
"150m modes: 1080P signal can be transmitted up to 150m,
but do not support 4K signals.
Note: After setting switch position, the mode will not take effect
until units are restarted. Please set both ends identical.
③
FW
Micro USB port, used for firmware update.
Firmware update needs auxiliary equipment, please contact
with our after-sales department for more details.
④
HDMI OUT
Connect with HDMI display
⑤
HDBT IN
Connect to the HDBT OUT port on the Transmitter via CAT5e/
CAT6a cable, compliant with HDBT2.0 and support
bi-directional PoH
⑥
USB IN
Type-A USB port, connect to mouse/ keyboard/ U-disk for
remote USB access
⑦
RS232
Serial port, connects with control device or device to be
controlled, supports bi-directional RS232 control
⑧
DC 12V
Connect with a DC12V 2A power adapter.
#Pictures for reference only, subject to our existing products.

HDBaseT 2.0 KVM Extender Set
4
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and should have optimal
temperature and humidity.
2) All the power switches, plugs, sockets and power cords should be insulated for
reliable transmission and safety.
3) All devices should be connected before powering on.

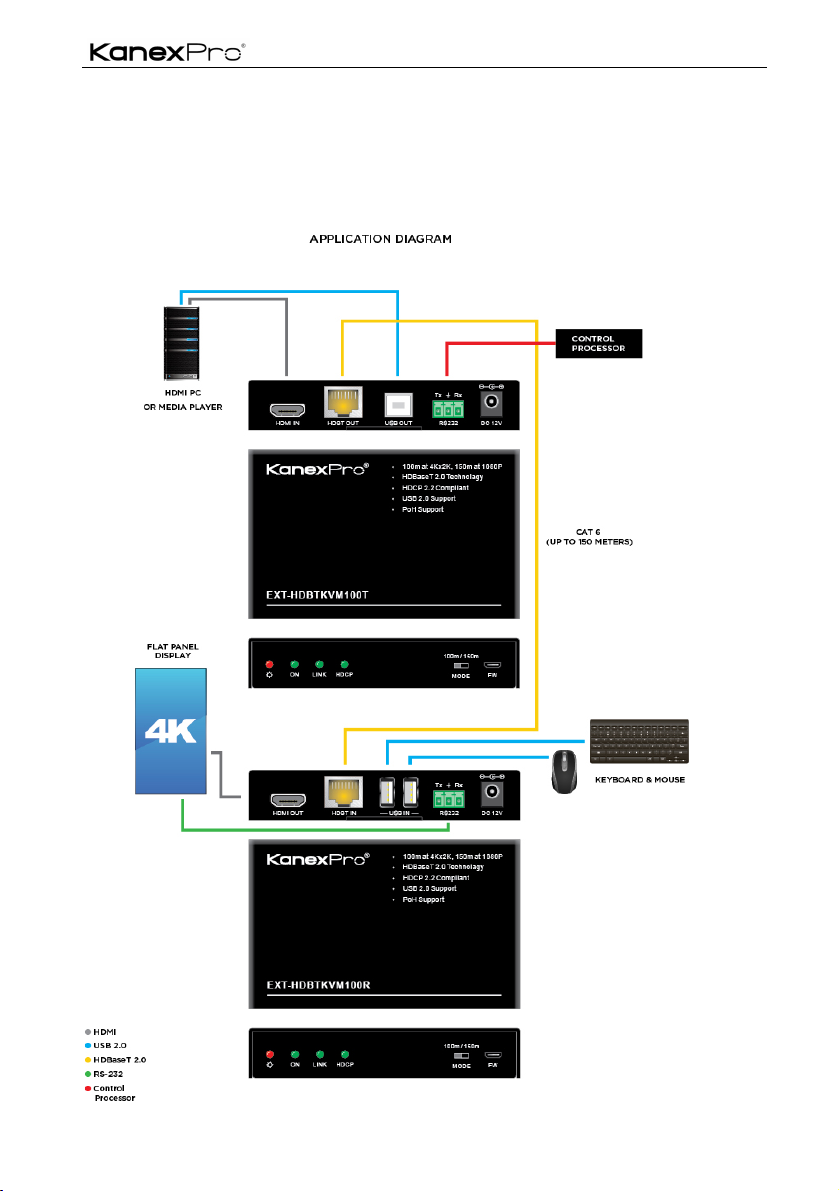

3.2 System Diagram
3.3 Connection Procedure
Step1. Connect HDMI source (such as Blu-ray or PC) to HDMI INport of the transmitter
with an HDMI cable.
Step2. Connect HDBT OUT port of the transmitter to HDBT IN port of the receiver
through a straight-thru CAT5e/CAT6 cable.
Step3. Connect a HDMI display (such as HDTV) to HDMI OUT port of the receiver with
HDMI cable;
Step4. When using the USB control, do the following:
a) Connect PC to the USB OUT port of transmitter.
b) Connect Mouse/ Keyboard to the USB IN port(s) port of receiver.
Step5. When using the bi-directional RS232 control, do the following:
c) Connect PC to the RS232 port at either the transmitter or the receiver.
d) Connect a third-party device (such as projector) need to be controlled to the
RS232 port at the other end.
Keyboard
Mouse
HDTV
PC
DC 12V
USB Signal:
RS232 Signal:
Transmitter
Receiver
Projector
BluerayDVD
Laptop

HDBaseT 2.0 KVM Extender Set
5
e) Send RS232 commands to control the third-party device. For more details
about RS232 commands, please refer to the user manual for the third-party
device.
Step6. Connect with DC12V power adaptor to the power port of either Transmitter or
Receiver; the other end will be powered synchronously via PoH.
#
1) System Diagram shown in this manual is for reference only, more specific
schemes depend on real-time applications.
2) Connect HDBT ports via straight-thru CAT5e/6 cable with TIA/EIAT568B standard
terminations at both ends.
3) RS232 communication protocol: Baud Rate: 9600; data bit: 8; stop bit: 1; parity:
none. HDBT Transceiver receives RS232 control from devices with various baud
rate (2400, 4800, 9600, 19200, 38400, 57600, 115200).
4) HDBT ports can work with existing KanexPro HDBT products that have same
power supply solution.
5) Make sure the switchers on front panel are in the necessary status.
6) Reboot the device if the switcher status has changed.
3.4 PoH (Power over HDBaseT)
HDBaseT Transceiver boasts HDBT port, which supports PoH. Besides carrying
uncompressed 1080p or 4K video signals, USB or RS-232 control signals over a single
Cat 5e/Cat 6 cable, it transfers DC power over a single Ethernet cable to a distance up
to 100 meters (m) bi-directionally.
Connect the DC adapter to either the transmitter or the receiver; the other end can be

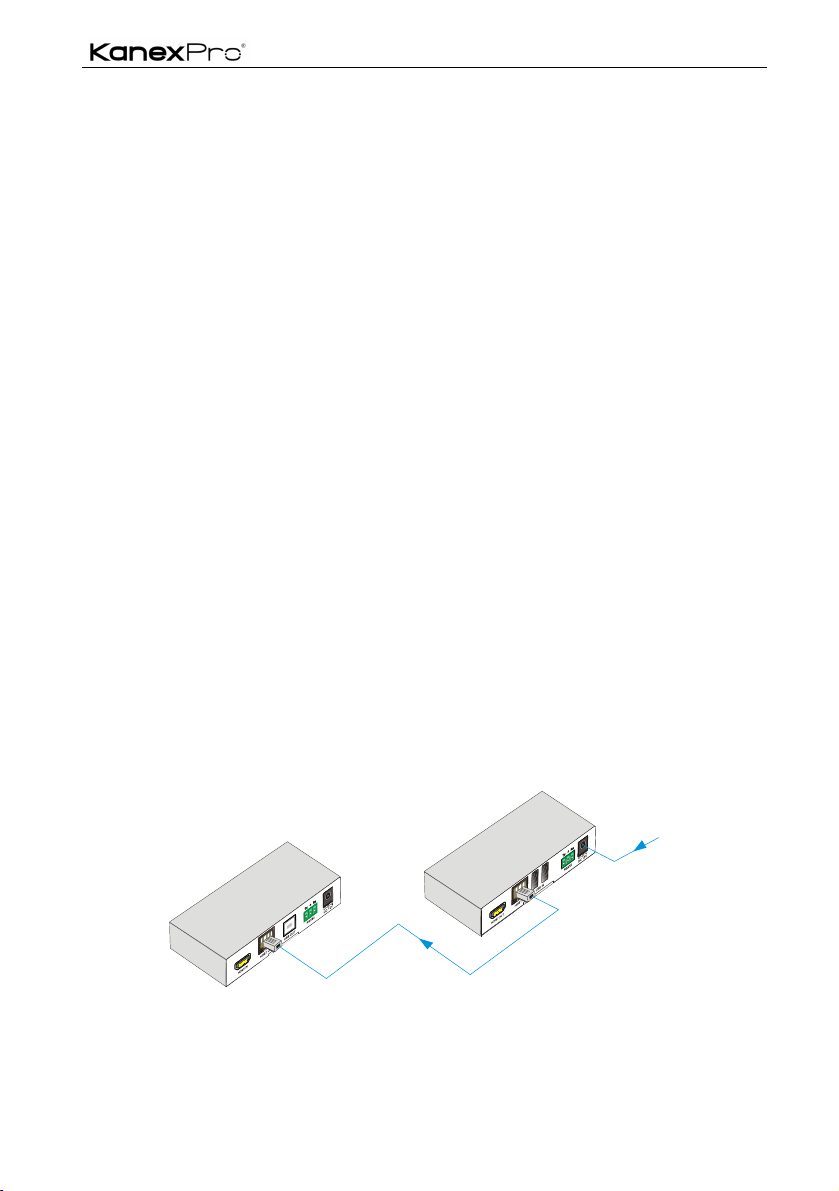

powered synchronously (see in the following figure):
DC 12V
Transmitter
Receiver
PoH

HDBaseT 2.0 KVM Extender Set
6
3.5 Application
Ideal for applications such as Digital Signage where high-resolution video, audio and
USB KVM function and data diagnostics can be sent back to the computer from the
QSR display or vice versa.

HDBaseT 2.0 KVM Extender Set
7
4. Specifications
Model
Spec
EXT-HDBTKVM100T
EXT-HDBTKVM100R
Audio& Video
Input
1 HDMI (19 pin Type-A male)
1 HDBT (RJ45 female)
2 USB IN (Type-A)
Output
1 HDBT (RJ45 female)
1 USB OUT (Type-B)
1 HDMI (19 pin Type-A male)
Other
1 RS-232 (3-pin pluggable terminal block)
Signal Standard
HDMI2.0 & HDCP2.2
HDMI2.0 & HDCP2.2
Transmission
Mode
HDBaseT 2.0
HDMI
Embedded
audio
PCM/Dolby Digital/DTS/DTS-HD
General
EDID
Management
EDID Pass-Thru
Transmission
Distance
1080p≤150m
4Kx2K≤100m
Temperature
-20~ 65℃
Reference
Humidity
10% ~ 90%
Power Supply
Input: 100V~240V AC; Output: DC 12V 2A
Power
Consumption
5.7w
8w
Dimension
(W*H*D) (mm)
4.5”x0.86”x3.74”
116*22*95(mm)
4.5”x0.86”x3.74”
116*22*95(mm)
Weight (g)
1.78 lb. (0.8Kg)
1.78 lb. (0.8Kg)
#All nominal levels are at ±10%.

HDBaseT 2.0 KVM Extender Set
8
4.1 Supported Resolution
4Kx2K
4096x2160@30Hz, 3840x2160 (30Hz/24Hz/25Hz/50Hz/60Hz)
16:9
1080P 3D, 1920x1080@60Hz, 1600x900@60Hz, 1366x768@60Hz,
1280x720@60Hz, 1024x576@60Hz
16:10
1920x1200@60Hz, 1680x1050@60Hz, 1440x900@60Hz,
1360x768@60Hz, 1280x800@60Hz
4:3
1600x1200@60Hz, 1400x1050@60Hz, 1280x1204@60Hz,
1024x768@60Hz, 800x600@60Hz, 640x480@60Hz
21:9
2560x1080 (30/60Hz)
#HDBaseT Transceiver supports 4K &1080p 3D HDMI signal; please use quality
HDMI cables compliant with HDMI2.0 for optimum range, resolution and
performance.

HDBaseT 2.0 KVM Extender Set
9
5. Panel Drawing
EXT-HDBTKVM100T
EXT-HDBTKVM100R
EXT-HDBTKVM100T
HDBaseT 2.0 with USBTra nsm itt e r
HDBa seT 2.0 Tec hn ology
HDCP 2 .2 Co mplia nt
100m a t 4Kx2K , 150m at 1 080P
USB 2. 0 Suppo rt
Bi-d irect io nal PoC
DC 12V
Tx Rx
RS232
FW100m / 150m
MODEON LINK HDCP
HDBT OUTHDMI IN USB OUT
116 mm
95 mm
22 mm
DC 1 2V
Tx Rx
HDBT I N
HDMI O UT USB IN RS232
EX T- H DBTKV M 100R
HD Bas eT 2. 0 Re c ei v er w i th U SB
HDBa se T 2.0 Techn ology
HDCP 2 .2 Com plian t
100m a t 4K x2K, 15 0m at 108 0P
USB 2. 0 Suppo rt
Bi-d irectio nal PoC
FW100m / 150m
MODEON LINK HDCP
116 mm
95 mm
22 mm
