KanexPro EXT-HDBASE70E User manual

EXT-HDBASE70E
4K UHD HDBaseT™ 70 Meter - HDMI® Extender
All Rights Reserved
Version: EXT-HDBASE70E_2016V1.2

KANEXPRO EXT-HDBASE70E
2 | Page
Preface
Read this user manual carefully before using this product. Pictures displayed in this
manual are for reference only. Different models and specifications are subject to the
actual product.
This manual is only for operational instruction, not for any maintenance usage. The
functions described in this version are updated till Dec 2017. Any changes of functions
and parameters since then will be informed separately. Please refer to the dealers for
the latest details.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment can generate, use, and radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits of a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

KANEXPRO EXT-HDBASE70E
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
potential future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain or moisture. Do not
install this product near water.
Do not place any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheating.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist/pull by force the ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
cord to the device before cleaning.
Unplug the power cord when left unused for an extended period.
Information on disposal for scrapped devices: Do not burn or mix with general
household waste; please treat the devices as normal electrical waste.

KANEXPRO EXT-HDBASE70E
4 | Page
Contents
1. Introduction..................................................................................................................1
1.1 Introduction to HDBaseT Extender Set ..............................................................1
1.2 Features .............................................................................................................1
1.3 Package List.......................................................................................................1
2. Introduction of Product Appearance ............................................................................3
2.1 Appearance of HDBaseT Transmitter ................................................................3
2.2 Appearance of HDBaseT Receiver ....................................................................4
3. System Connection .....................................................................................................5
3.1 Usage Precautions .............................................................................................5
3.2 System Diagram.................................................................................................5
3.3 Connection Procedure .......................................................................................5
3.4 Application..........................................................................................................6
3.5 Twisted Pair Cable Connection ..........................................................................6
4. Specification ................................................................................................................7
4.1 Supported Resolution.........................................................................................8
5. Panel Drawing .............................................................................................................9
6. Troubleshooting & Maintenance ................................................................................10
7. After-sales Service.....................................................................................................11
8. Warranty…………………………………………………………………………………….12

KANEXPRO EXT-HDBASE70E
1
1. Introduction
1.1 Introduction to HDBaseT Extender Set

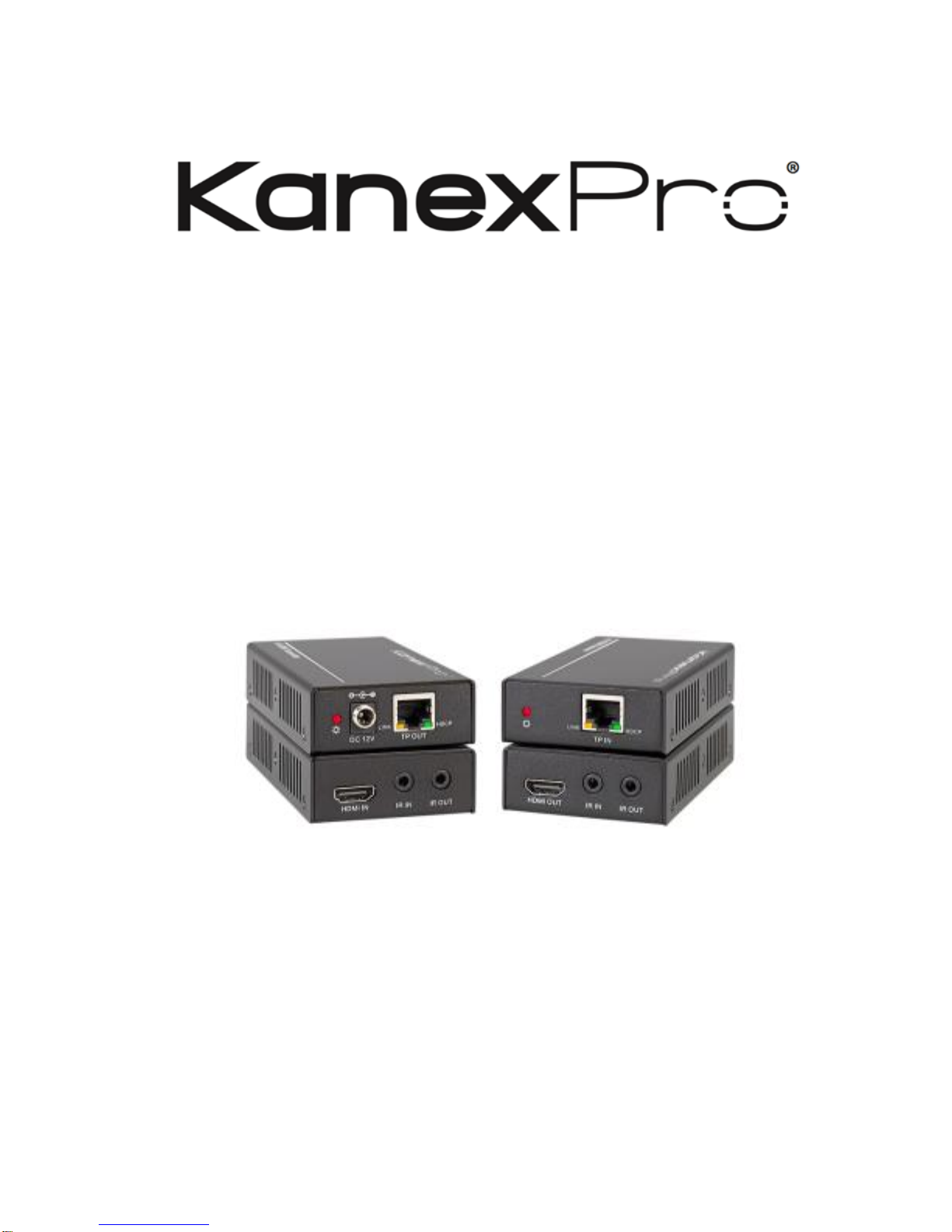

The KanexPro EXT-HDBASE70E is a 4K ready transmitter-receiver set made to extend
Ultra HD 4K, digital audio, wide-band IR and power over Ethernet (PoE) over a cost
effective cat6 cable. Supports computer resolutions up to 1920x1200, HD1080P/60 with
Deep Color. This HDCP compliant extender routes distances up to 230 feet using
HDBaseT™ Lite technology.
Ideal for digital signage applications or routing uncompressed HDMI A/V signals over
inexpensive CATx in boardrooms, conference rooms and classrooms for far-end
projectors.
1.2 Features
Extend uncompressed HDMI A/V signals over Single CAT6
Extend up to 70 meters (230 feet)
POE supported on the receiver side
Supports 4K UHD resolutions
Supports HDMI 1.4, 3D, and full HD 1080p/60
HDCP & EDID compliant
CEC Pass-through
Bi-directional IR control
High bandwidth up to 10.2 Gbps
Compatible with our HDMMX modular matrix switchers
One locking power supply included
Aluminum case enclosure with separate mounting ears
Ultra-compact receivers are easy to install and hide behind the TV or
projector, putting the design as the top priority.
Note: Please use a CAT5e cable with low impedance (Shielded twisted pair will be
better and should be well grounded) for good transmission effect.
1.3 Package List
1 x HDBaseT Extender Set (including TX and RX)

KANEXPRO EXT-HDBASE70E
2
4 x detachable mounting ears
4 x screws
8 x plastic cushions
1 x power adapter (DC 12V 1A)
1 x user manual
Notes:Please confirm if the product and the accessories are all included, if not,
please contact with the dealers.

KANEXPRO EXT-HDBASE70E
3
2. Introduction of Product Appearance
2.1 Appearance of HDBaseT Transmitter
1) HDMI IN: Connect to HDMI source.
2) IR IN: Connect to an IR receiver, the IR signal received from this port can only
send out via HDBaseT Receiver.
3) IR OUT: Connect with IR emitter, the sent IR signals are received by HDBaseT
Receiver.
4) Power Indicator: illuminate when power up
5) DC 12V: Connect with power supply, energize both TX and RX (PoC solution)
synchronously.
6) TP OUT: Connect to the TP IN socket on the HDBaseT Receiver via CAT5e/ CAT6
cable.

KANEXPRO EXT-HDBASE70E
4
2.2 Appearance of HDBaseT Receiver
1) HDMI Out: Connect to HDMI display.
2) IR IN: Connect to an IR receiver, the IR signal received from this port can only
send out via HDBaseT Transmitter.
3) IR OUT: Connect with IR emitter, the sent IR signals are received by HDBaseT
Transmitter.
4) Power Indicator: illuminate when power up
5) TP IN: Connect to the HDBaseT port on the HDBaseT Transmitter via CAT5e/
CAT6 cable.
Note: HDBaseT Extender Set boasts 2 indicators to show real-time operation
information:
Indicator
Function
Details
Green
Show input signal
connection
Connected:
HDCP Compliant: Illuminate;
Not HDCP Compliant: Blink.
Disconnected: Off
Yellow
Indicate linking status of
the transmitter and the
receiver
Connected: Illuminate
Disconnected: Off

KANEXPRO EXT-HDBASE70E
5
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safety.
3) All devices should be connected before power on.
4) The Cat5e/Cat6 terminations for HDBaseT devices should be a straight-thru
TIA/EIA T568B standard.
3.2 System Diagram
3.3 Connection Procedure
Step1.Connect HDMI source (such as Blue-ray DVD) to HDMI In port of the transmitter
with an HDMI cable.
Step2.Connect TP OUT port of the transmitter to TP IN port of the receiver through a
CAT5e/CAT6 cable.
Step3.Connect a HDMI displayer (such as HDTV) to HDMI Out port of the receiver
with HDMI cable.
Step4.When using the bi-directional IR control, do the following.
a) Connect the IR emitter at either end to the IR OUT port on either the
transmitter or the receiver.
b) When using a powered IR receiver, connect via a 3.5 mm stereo plug to
the IR IN on either the receiver or the transmitter.
Step5.Connect with DC 12V power adaptor to the power port of HDBaseT Transmitter,
HDBaseT Receiver will be energized synchronously with PoC solution.
HDTV
DVD
IR Remote
CAT5e/CAT6
Receiver
Transmitter

KANEXPRO EXT-HDBASE70E
6
3.4 Application
HDBaseT Extender Set has a good application in various occasions, such as computer
realm, monitoring, big screen displaying, meeting room, education and bank &
securities institution etc.
3.5 Twisted Pair Cable Connection
The Cat5e/Cat6 terminations for HDBaseT devices should be a straight thru
TIA/EIAT568B standard. TIA/EIA T568A standard is NOT recommended.
Note: To make a better transmission, cable connectors MUST be metallic, the shielded
layer of cable MUST be connected to the connector’s metal shell.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown
1st
Ground
4--5
1st
Ground
4--5
2nd
Ground
3--6
2nd
Ground
1--2
3rd
Group
1--2
3rd
Group
3--6
4th
Group
7--8
4th
Group
7--8

KANEXPRO EXT-HDBASE70E
7
4. Specification
Model
Spec
HDBaseT Transmitter
HDBaseT Receiver
Input
Input Signal
1 HDMI,1 IR
1 IR, 1 RJ-45
Input Connector
HDMI female
3.5mm mini jack
3.5mm mini jack
RJ-45
Video Signal
HDMI1.4
HDMI1.4
Audio
Digital audio, transmit
through HDMI audio
Digital audio, transmit
through HDMI audio
Output
Output
1 RJ-45, 1 IR
1 HDMI, 1 IR
Output Connector
RJ-45
3.5mm mini jack
HDMI female
3.5mm mini jack
Video signal
HDMI1.4
HDMI1.4
Transmission Mode
HDBaseT
HDBaseT
General
Resolution Range
800x600@60Hz~4K×2K
Transmission Distance
Maximum distance 230 ft. (70 m)
SNR
>70dB@ 100MHz-100M
Bandwidth
10.2Gbps
THD
＜0.005%@1KHz
HDMI Standard
Support HDMI1.4, and HDCP2.2
Impedance
75Ω
Temperature
0~ 50℃
Reference Humidity
10% ~ 90%
Power Supply
DC 12V, 1A
Power Consumption
9.6W
Dimension (W*H*D)
61 x 24x 120 mm
61 x 24x 120 mm
Weight
0.28Kg
0.28Kg
NOTE: All nominal levels are at ±10%.

KANEXPRO EXT-HDBASE70E
8
4.1 Supported Resolution
Format
Resolution
HDMI
480I, 480P, 576I, 576P, 720P, 1080I, 1080P, 4Kx2K, 1080P 3D
DVI
640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 800x600@60Hz,
800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz,
1024x768@75Hz, 1280x720@60 Hz, 1280x1024@60Hz,
1280x1024@75Hz, 1600x1200@60Hz, 1920x1080@60Hz,
1920x1200@60Hz
Note: HDBaseT Extender Set supports 4k&1080p 3D HDMI signal, please adopt
quality HDMI cables compliant with HDMI1.4 for reliable transmission when using.

KANEXPRO EXT-HDBASE70E
9
5. Panel Drawing
HDBaseT Transmitter
HDBaseT Receiver
HDMI IN IR IN IR OUT
DC 12V TP OUT
LINK HDCP
61.60 mm
24.00 mm
24.30 mm
9.97 mm
12.50 mm
120.60 mm
2.95 mm
7.21 mm
HDMI OUT IR IN IR OUT
TP IN
LINK HDCP
61.60 mm
24.00 mm
24.30 mm
9.97 mm
12.50 mm
120.60 mm
2.95 mm
7.21 mm

KANEXPRO EXT-HDBASE70E
10
6. Troubleshooting & Maintenance
No image on display:
Ensure that the display device has been set to the correct input.
Ensure that the HDMI cables used for both the source/transmitter and the
receiver/display are properly connected and are working. Test the HDMI cables
directly from a source to display and ensure their operation.
Ensure that the Cat5e/Cat6 cable has not been damaged and that it has been
terminated correctly with T568B on both ends. A temporary length of Cat5e/Cat6
can be used for testing to ensure that the devices are all compatible and working
properly.
Ensure proper grounding of the power supply.
Known issues with HDMI 1.2 source devices:
Older compatibility (HDMI 1.2) may result in HDBaseT transmission issues.
Please contact Technical Support for a solution to these issues.
Color lose or poor picture quality:
Ensure that the HDMI cables used for both the source and transmitter and the
receiver and display are properly connected and are of good quality. Test the
HDMI cables directly from a source to display and ensure their picture quality.
Ensure proper grounding of the power supply.
If the static becomes stronger or picture quality becomes worse when
connecting the video connectors, this may be due to improper grounding.
Check the grounding and make sure all the components are properly grounded
to a common ground. Improper grounding may cause damage to the receiver.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.

KANEXPRO EXT-HDBASE70E
11
7. After-sales Service
If problems arise when operating the device, please refer to this user manual. Any
transport costs are borne by the users during the warranty.
1) Product Limited Warranty: We warrant that products will be free from defects in
materials and workmanship for three years, which starts from the first day the
product exits warehouse. (Make note of the serial number on the product)
Proof of purchase in the form of a bill of sale or receipted invoice MUST be
presented to obtain warranty service.
2) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
Use of supplies or parts not meeting our specifications
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized
Any other causes which does not relate to a product defect
Delivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email or call our after-sales department if there are any
problems or any unanswered questions. Please inform us the following information
about your cases:
Product version and name.
Detailed failure situations.
The formation of the cases.

KANEXPRO EXT-HDBASE70E
12
Remarks: For any questions or problems, please try to get help from your local
distributor or contact kanexpro.com or call us at 888-975-1368 for further support.
8. Warranty
A. LIMITED WARRANTY
KanexPro ™ warrants that (a) its products (the “Product”) will perform greatly in
agreement with the accompanying written materials for a period of 36 months (3 full
years) from the date of receipt and (b) that the product will be free from defects in
materials and workmanship under normal use and service for a period of 3 years.
B. CUSTOMER REMEDIES
KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro
option, either return of the price paid for the product, or repair or replacement of the
Product that does not meet this Limited Warranty and which is returned to KanexPro
with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product
has resulted from accident, abuse, or misapplication. Any replacement Product will be
warranted for the remainder of the original warranty period of 3 years, whichever is
longer.
C. NO OTHER WARRANTIES
To the maximum extent permitted by applicable law, KanexPro disclaims all other
warranties, either express or implied, including, but not limited to implied warranties of
merchantability and fitness for a purpose, regarding the product and any related written
materials. This limited warranty gives customers specific legal rights. Customers may
have other rights depending on the jurisdiction. 
D. NO LIABILITY FOR DAMAGES
To the maximum extent permitted by applicable law, in no event shall KanexPro be
liable for any damages whatsoever (including without limitation, special, incidental,
consequential, or indirect damages for personal injury, loss of business profits,
business interruption, loss of business information, or any other pecuniary loss) arising
out of the use of or inability to use this product, even if KanexPro has been advised of
the possibility of such damages.

KANEXPRO EXT-HDBASE70E
13
1405 pioneer street
Brea, CA 92821
