KanexPro HDBASE70POER HDBaseT 4K HDMI Receiver with PoE - 230'

HDBASE70POE
HDMI/IR/RS232 PoE over Single Twisted Pair
All Rights Reserved
Version: HDMI Twisted Pair PoE Extender_2014V1.3

HDMI/IR/RS232 Twisted Pair PoE Extender
NOTICE: Please read this user manual carefully before using this product.
Pictures shown on this manual are for reference only; different model and
specifications are subject to real product.
Update History
Version
Date
Update Content
1.0
2013.05.29
First version.
1.1
2013.11.29
Changed product design
1.2
2014.04.16
Modified package contents.
1.3
2014.04.28
Removed the built-in IR receiver and added collocation
products.
This manual is for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till April 2014. Any changes of
functions and parameters since then will be informed separately. Please refer to
the dealers for the latest details.
All rights reserved. No part of this publication may be copied or reproduced without
permission.
All product function is valid till 2014-04-28.

HDMI/IR/RS232 Twisted Pair PoE Extender
Table of Contents
1. Introduction ..................................................................................................................1!
1.1 Introduction to HDMI Twisted Pair PoC Extender ..............................................1!
1.2 Features .............................................................................................................1!
1.3 Package Contents ..............................................................................................2!
2. Introduction of Product Appearance ............................................................................3!
2.1 Appearance of HDMI Twisted Pair PoC Transmitter..........................................3!
2.2 Appearance of HDMI Twisted Pair PoC Receiver..............................................4!
3. System Connection .....................................................................................................5!
3.1 Usage Precautions .............................................................................................5!
3.2 System Diagram.................................................................................................5!
3.3 Connection Procedure........................................................................................5!
3.4 Application..........................................................................................................6!
3.5 Twisted Pair Cable Connection ..........................................................................6!
3.6 Collocation Products ..........................................................................................6!
4. Specification ................................................................................................................8!
5. Panel Drawing .............................................................................................................9!
6. Troubleshooting & Maintenance................................................................................10!
7. Safety Operation Guide .............................................................................................11!
8. After-sales Service.....................................................................................................12!

HDMI/IR/RS232 Twisted Pair PoE Extender
1
1. Introduction
1.1 Introduction to HDMI Twisted Pair PoE Extender
The KanexPro HDBASE70POE is a Transmitter-Receiver set made to extend UltraHD
4K, digital audio, wide-band IR and power over Ethernet (PoE) over a cost effective
cat6a cable. It also supports computer resolutions up to 1920x1200, HD1080P/60 with
Deep Color. This HDCP compliant extender routes distances up to 200 feet using
HDBaseT™ Lite technology. As an added benefit to the systems integrator - the
extender provides remote power from either side Tx or Rx over the twisted pair
connection, eliminating the need for a separate power supply at the remote unit.
1.2 Features
!Two-way remote power: Tx to Rx or Rx to Tx using PoE (Power over
Ethernet)
!Route uncompressed HDMI signals over Single CAT6a
!Extend up to 200 feet
!Supports HDMI 1.4, 4K, 3D, and full HD 1080p/60
!HDCP & EDID compliant
!CEC Pass-through
!Bi-directional IR & RS-232 for control
!Supports all frequencies IR pass through, 5V & 12V, Crestron and Xantech
IR control signal compatible
!Front panel LED’s for signal & power
!Supports high bandwidth up to 10.2 Gbps
!Compatible with HDMMX modular matrix switchers
!Locking power supplies included
!Aluminum case enclosure with separate mounting ears

HDMI/IR/RS232 Twisted Pair PoE Extender
2
Note: Please use a CAT5e/6a cable with low impedance (Shielded twisted pair will be
better and should be well grounded)for good transmission effect.
1.3 Package Contents
"1 x HDMI Twisted Pair PoC Transmitter
"1 x HDMI Twisted Pair PoC Receiver
"4 x Mounting ears (Separated from HDMI Twisted Pair PoC Extender)
"8 x Plastic cushions
"2 x RS232 cables
"8 x Screws
"2 x Power adapter (DC 5V)
"1 x User manual
Notes:Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.

HDMI/IR/RS232 Twisted Pair PoE Extender
3
2. Introduction of Product Appearance
2.1 Appearance of HDMI Twisted Pair PoC Transmitter

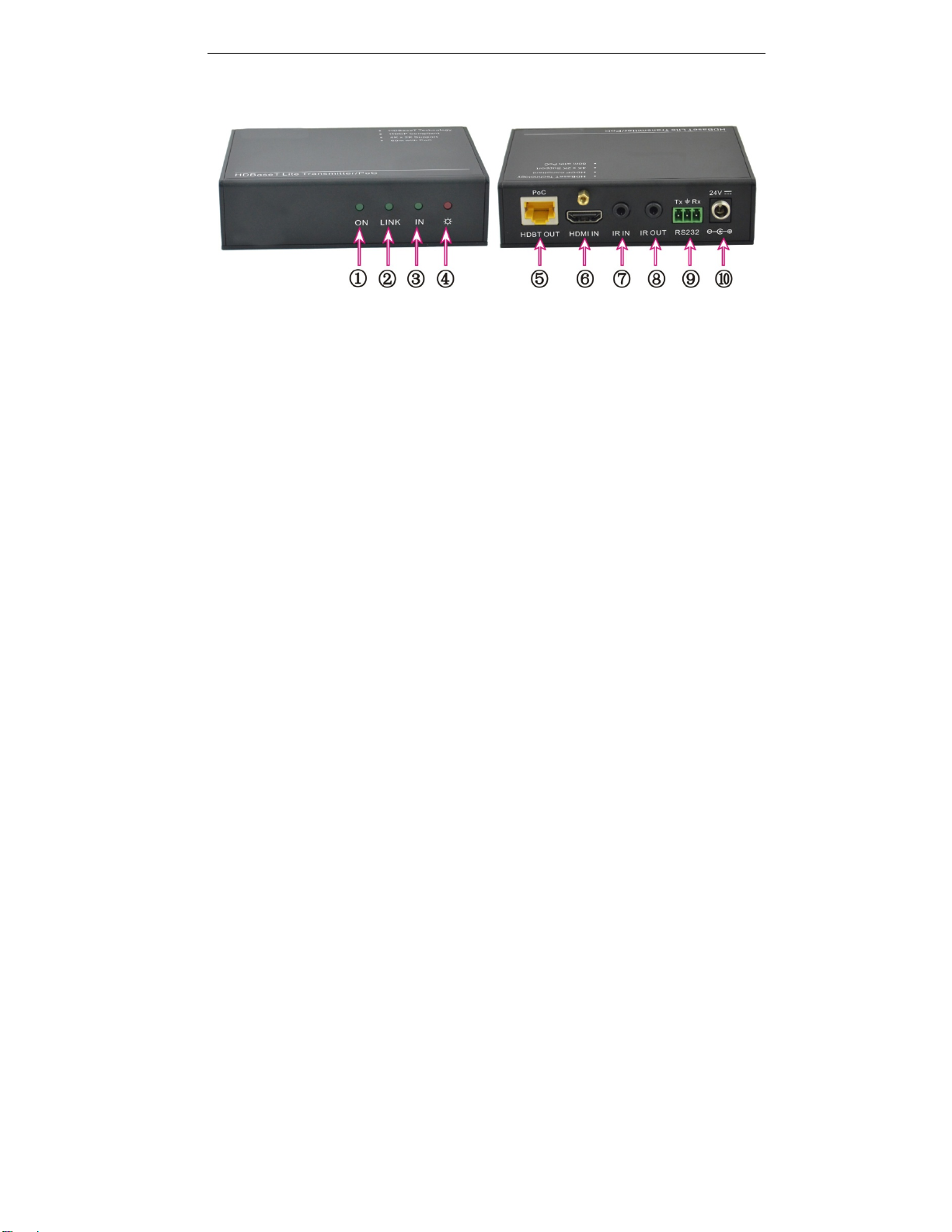

Figure 2-1 Appearances of HDMI Twisted Pair PoC Transmitter
1) ON: Working status indicator of this device. When the device works fine, this green
LED will keep blinking. And it will get off when the device stops work.
2) LINK: Twisted Pair Link status indicator, green LED. It will keep on when
connection is successful.
3) IN: When connected with devices support HDCP and work normally this LED will
keep on. If devices not support HDCP, this green LED will blink.
4) POWER LED: LED indicator of power. When connect with power, red LED will
keep on.
5) HDBT OUT: Connect to the HDBT IN port of HDMI Twisted Pair PoC Receiver with
a CAT5e cable.
6) HDMI IN: Connect to HDMI source.
7) IR IN: Connect with IR receiver, the IR signal received from this port can only send
out in HDMI Twisted Pair PoC Receiver.
8) IR OUT: Connect with IR sender, the sending IR signal are received from HDMI
Twisted Pair PoC Receiver.
9) RS232: RS232 connector.
10) 24V DC: Connect with power supply (Not necessary if HDMI Twisted Pair PoC
Receiver connects with power).
Note: Pictures shown on this manual are for reference only; different model and
specifications are subject to real product.

HDMI/IR/RS232 Twisted Pair PoE Extender
4
2.2 Appearance of HDMI Twisted Pair PoC Receiver
Figure 2-2 Appearances of HDMI Twisted Pair PoC Receiver
1) ON: Working status indicator of this device. When the device works fine, this green
LED will keep blinking. And it will get off when the device stops work.
2) LINK: Twisted Pair Link status indicator, green LED. It will keep on when
connection is successful.
3) OUT: When connected with devices support HDCP and work normally this LED
will keep on. If devices not support HDCP, this green LED will blink.
4) POWER LED: When connect with power, red LED will keep on.
5) HDBT IN: Connect to the HDBT OUT port of HDMI Twisted Pair PoC Transmitter
with a CAT5e cable.
6) HDMI IN: Connect to HDMI display device.
7) IR IN: Connect with IR receiver, the IR signal received from this port can only send
out in HDMI Twisted Pair PoC Transmitter.
8) IR OUT: Connect with IR emitter, the sending IR signal are received from HDMI
Twisted Pair PoC Transmitter.
9) RS232: RS232 connector.
10) 24V DC: Connect with power supply (Not necessary if HDMI Twisted Pair PoC
Transmitter connects with power).
Note: Pictures shown on this manual are for reference only, different model and
specifications are subject to real product.

HDMI/IR/RS232 Twisted Pair PoE Extender
5
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safety.
3) All devices should be connected before power on.
3.2 System Diagram
Figure 3-1 System Connection Diagram
3.3 Connection Procedure
Step1. Connect HDMI source (such as Blue-ray DVD) to HDMI IN port of transmitter
HDMI Twisted Pair PoC Transmitter with HDMI cable.
Step2. Connect HDBT OUT port of HDMI Twisted Pair PoC Transmitter and HDBT IN
port of HDMI Twisted Pair PoC Receiver, with single CAT5e/CAT6 cable.
Step3. Connect HDMI displayer (such as HDTV) to HDMI OUT port of HDMI Twisted
Pair PoC Receiver with HDMI cable.
Step4. Both HDMI Twisted Pair PoC Transmitter and HDMI Twisted Pair PoC Receiver
have IR IN and OUT. When one end is used as an IR receiver, the signal sent
from the end can only be transmitted via the other end.
For example: When “IR IN” of HDMI Twisted Pair PoC Transmitter connects with
an IR receiver, the IR transmitter must connect to IR OUT of HDMI Twisted Pair
PoC Receiver.
Step5. Connect the RS232 port of the devices to be controlled and the receiver or the
transmitter.
Step6. Connect with DC24V power adaptor(s) (One is enough if any end of HDMI

HDMI/IR/RS232 Twisted Pair PoE Extender
6
Twisted Pair PoC Transmitter and HDMI Twisted Pair PoC Receiver is
connected with adapter as its PoC function).
3.4 Application
HDMI Twisted Pair PoC Extender has a good application in various occasions, such as
computer realm, monitoring, big screen displaying, meeting room, education and bank &
securities institution etc.

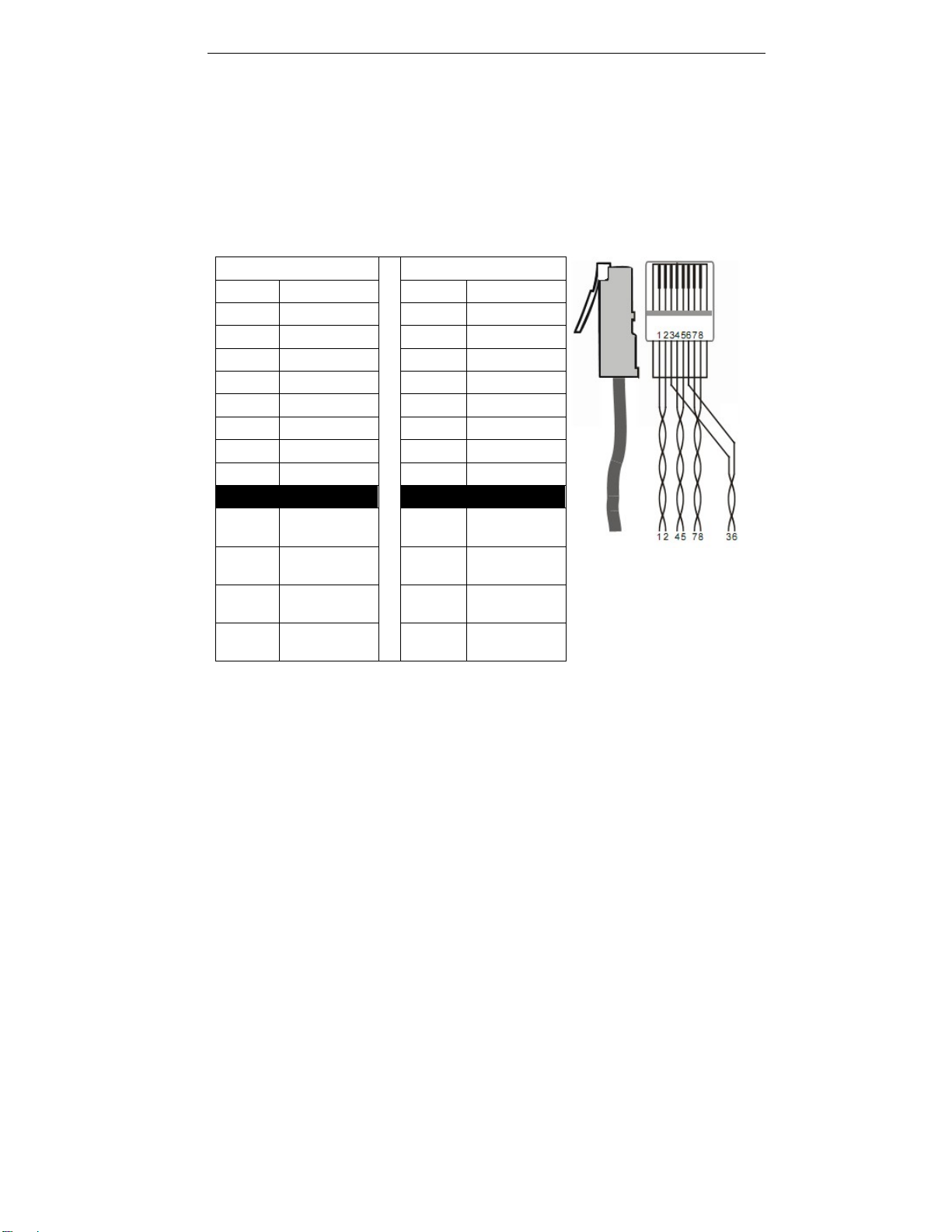

3.5 Twisted Pair Cable Connection
The twisted pair used in this extender MUST be a straight-through cable.
Notice: Cable connectors
MUST be metal one, the
shielded layer of cable
MUST be connected to the
connector’s metal shell, to
make a better transmission.
3.6 Collocation Products
HDMI Twisted Pair PoC Extender usually work together with other devices to extend the
transmission distance of HDMI/IR/RS232 signal. Here are the most common collocation
products.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown
1st
Ground
4--5
1st
Ground
4--5
2nd
Ground
3--6
2nd
Ground
1--2
3rd
Group
1--2
3rd
Group
3--6
4th
Group
7--8
4th
Group
7--8

HDMI/IR/RS232 Twisted Pair PoE Extender
7

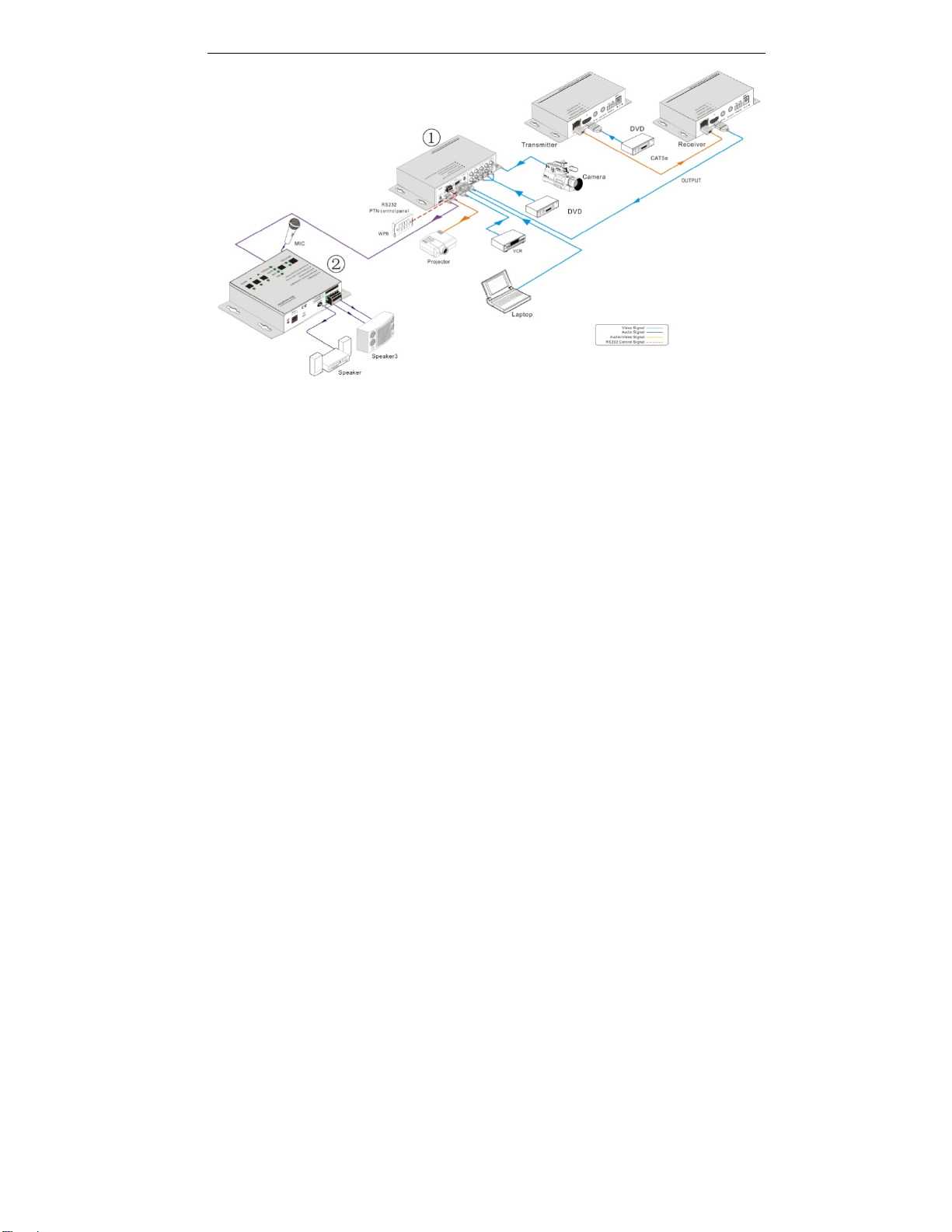

Figure 3-2 Collocation Products Connection Diagram
Description:
1) Mini scaler switcher
"6 video Inputs: 2 x HDMI, 1 x VGA, 1 x YPbPr, 1 x C-video & 1 x S-video, and
upscale to HDMI output at 1080P.
"Support VGA resolutions: 640x480, 800x600, 1024x768, 1280x1024, 1280x768,
1360x768@60Hz, and 1920x1080.
"Built-in PAL/NTSC and audio format automatic identification technologies, with good
video and audio processing technology for high performance.
"3 audio outputs: HDMI embedded audio, 3.5mm stereo audio and Coaxial (SPDIF).
"Output display H/V size, position, image color adjustable and output image
freezable.
"Built-in breakpoint memory and power-off protection function.
2) Mini digital amplifier
"2x20Watt@4Ohm as the default amplifier output.
"Bridge connection function. User can switch the amplifier to be 1x40Watt@8Ohm by
bridge connection.
"48V phantom power to support condenser microphone.
"MIC port can support balance/unbalance signal, suppress the external noise
effectively.

HDMI/IR/RS232 Twisted Pair PoE Extender
8
4. Specification
Model
Spec
HDMI Twisted Pair PoE
Transmitter
HDMI Twisted Pair PoE
Receiver
Input
Input Signal
1 HDMI, 1 IR & 1 RS232
1 IR, 1 RJ-45 & 1 RS232
Input Connector
HDMI female, 3.5mm mini
jack, 3p captive screw
connector
3.5mm mini jack, RJ-45, 3p
captive screw connector
Video Signal
HDMI1.4
HDMI1.4
Audio
Digital audio, transmit
through HDMI audio
Digital audio, transmit
through HDMI audio
Output
Output
1 RJ-45, 1 IR, 1 RS232
1 HDMI, 1 IR, 1RS232
Output Connector
RJ-45, 3.5mm mini jack, 3p
captive screw connector
HDMI female, 3.5mm mini
jack, 3p captive screw
connector
Video signal
HDMI1.4
HDMI1.4
Transmission Mode
HD Base T
General
Resolution Range
800x600 ~ 1920x1200
Transmission Distance
Max distance 70M
Gain
0dB ~ 10dB@100MHz
Differential Phase Error
±10° @ 135MHz_100M
SNR
>70dB@ 100MHz-100M
Bandwidth
10.2Gbps
Return Lost
＜-30dB@5KHz
THD
＜0.005%@1KHz
HDMI Standard
Support HDMI1.4 and HDCP
Min. ～Max. Level
＜0.3V ~ 1.45Vp-p
Impedance
75Ω
Temperature
-20 ~ +70
Humidity
10% ~ 90%
Power Supply
Input: 100VAC~240VAC, 50/60Hz Output: DC 24V, 1.25A
Power Consumption
9.6W
Case Dimension
W110.16xH28x D77 mm
W113.03xH28x D77 mm
Net Weight
0.5Kg
0.5Kg
NOTE: All nominal levels are at ±10%.

HDMI/IR/RS232 Twisted Pair PoE Extender
9
5. Panel Drawing
Figure 5-1 Panel drawing of HDMI Twisted Pair PoETransmitter
Figure 5-1 Panel drawing of HDMI Twisted Pair PoE Receiver

HDMI/IR/RS232 Twisted Pair PoE Extender
10
6. Troubleshooting & Maintenance
1) When images of terminal unit output with ghost, such as the projector output with
ghost. Generally this is not a unit faulty; an incorrect setting on the projector or a bad
quality of cable may cause this. Please check the projector’s setting or try another
high quality connection cable.
2) When there is a color losing or no video signal output, please check the input and
output end connections of the cables.
3) When user cannot control the extender by computer through its COM port, please
check the COM port number in the software and make sure the COM port is in
good condition.
4) When switching, there is no output image:
!Check with oscilloscope or multimeter if there is any signal at the input end. If
there is no signal input, it may be the input connection cord broken or the
connectors loosen.
!Check with oscilloscope or multimeter if there is any signal at the output end. If
there is no signal output, it may be the output connection cord broken or the
connectors loosen.
!If it is still the same after the above checking, maybe there is something wrong
in the extender. Please send it to the dealer for fixing.
5) If the static becomes stronger when connecting the video connectors, it probably
due to bad grounding, please check the grounding and make sure it connected well,
otherwise it would damage the extender.

HDMI/IR/RS232 Twisted Pair PoE Extender
11
7. Safety Operation Guide
In order to guarantee the reliable operation of the equipment’s and safety of the staff,
please abide by the following proceeding in installation, using and maintenance:
1) The system must be earthed properly. Do not use two blades plugs and ensure the
alternating power supply ranged from 100v to 240v and from 50Hz to 60Hz.
2) Do not put the device in a place of too hot or too cold.
3) As the power generating heat when running, the working environment should be
maintained fine ventilation, in case of damage caused by overheat.
4) Cut off the general power switch in humid weather or left unused for long time.
5) Before following operation, ensure that the alternating current wire is pull out of the
power supply:
!Take off or reship any components of the equipment.
!Take off or rejoin any pin or other link of the equipment.
6) As to non-professional or without permission, please DO NOT try to open the casing
of the equipment, DO NOT repair it on your own, in case of accident or increasing
the damage of the equipment.
7) DO NOT splash any chemistry substance or liquid in the equipment or around.

HDMI/IR/RS232 Twisted Pair POC Extender
8. After-sales Service
1) If there appear some problems when running HDMI Twisted Pair PoC Extender,
please check and deal with the problems reference to this user manual. Any
transport costs are borne by the users during the warranty.
2) You can email to our after-sales department or make a call, please tell us the
following information about your cases.
!Product version and name.
!Detailed failure situations.
!The formation of the cases.
3) We offer products for all three-year warranty, which starts from the first day you, buy
this product (The purchase invoice shall prevail).
4) Any problem is same with one of the following cases listed; we will not offer warranty
service but offer for charge.
!Beyond the warranty.
!Damage due to incorrectly usage, keeping or repairing.
!Damage due to device assembly operations by the maintenance company
non-assigned.
!No certificate or invoice as the proof of warranty.
!The product model showed on the warranty card does not match with the model
of the product for repairing or had been altered.
!Damage caused by force majeure.
5) This document is just a user manual released with the product, not a quality
guarantee. Any corrections or new function introductions added, we will update this
document without further notice.
Remarks: For any questions or problems, please try to get help from your local
distributor.

HDMI/IR/RS232 Twisted Pair PoE Extender
13
9. Warranty
KanexPro® warrants that (a) its products (the “Product”) will perform greatly in
agreement with the accompanying written materials for a period of 36 months from the
date of receipt (3 years) and (b) that the product will be free from defects in materials
and workmanship under normal use and service for a period of 3 years.
B. CUSTOMER REMEDIES
KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro
option, either return of the price paid for the product, or repair or replacement of the
Product that does not meet this Limited Warranty and which is returned to KanexPro
with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product
has resulted from accident, abuse, or misapplication. Any replacement Product will be
warranted for the remainder of the original warranty period of 3 years, whichever is
longer.
C. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, KANEX
DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT
AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES
CUSTOMERS SPECIFIC LEGAL RIGHTS. CUSTOMERS MAY HAVE OTHER
RIGHTS DEPENDING ON THE JURISDICTION.
D. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT
SHALL KANEX BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING
WITHOUT LIMITATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT
DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS, BUSINESS
INTERRRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS
PRODUCT, EVEN IF KANEX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.

HDMI/IR/RS232 Twisted Pair PoE Extender
14
Brea, California
KanexPro.com
MPN: HDBASE70POE
HDMI® and HDBaseT™ are trademarks or registered trademarks of HDMI Licensing LLC &
HDBaseT Alliance respectively in the United States and other countries. KanexPro is a trademark
of Apogee Inc., registered trademarks in the US.
