KanexPro HDBASE70POE User manual

HDBASE70POE
4K HDBaseT Lite 70M – HDMI Extender w/Power over Ethernet
All Rights Reserved
Version: HDBASE70POE_2014V1.3

KANEXPRO HDBASE70POE
Preface
Read this user manual carefully before using this product. Pictures displayed in this
manual are for reference only. Different models and specifications are subject to the
actual product.
This manual is only for operational instruction, not for any maintenance usage. The
functions described in this version are updated till Dec 2017. Any changes of functions
and parameters since then will be informed separately. Please refer to the dealers for
the latest details.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment can generate, use, and radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits of a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDMI/IR/RS232 Twisted Pair PoC Extender
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
potential future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain or moisture. Do not
install this product near water.
Do not place any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheating.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist/pull by force the ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
cord to the device before cleaning.
Unplug the power cord when left unused for an extended period.
Information on disposal for scrapped devices: Do not burn or mix with general
household waste; please treat the devices as normal electrical waste.

KANEXPRO HDBASE70POE
Table of Contents
1. Introduction .................................................................................................................1
1.1 Introduction to HDBASE70POE.........................................................................1
1.2 Features ............................................................................................................1
1.3 Package Contents .............................................................................................2
2. Introduction of Product Appearance............................................................................3
2.1 Appearance of HDMI Twisted Pair PoC Transmitter ..........................................3
2.2 Appearance of HDMI Twisted Pair PoC Receiver..............................................4
3. System Connection.....................................................................................................5
3.1 Usage Precautions ............................................................................................5
3.2 System Diagram ................................................................................................5
3.3 Connection Procedure.......................................................................................5
3.4 Application .........................................................................................................6
3.5 Twisted Pair Cable Connection..........................................................................6
3.6 Collocation Products..........................................................................................6
4. Specification ...............................................................................................................8
5. Panel Drawing ............................................................................................................9
6. Troubleshooting & Maintenance ...............................................................................10
7. After-sales Service....................................................................................................11
8. Warranty…………………………………………………………………………………….12

KANEXPRO HDBASE70POE
1
1. Introduction
1.1 Introduction to HDMI Twisted Pair PoC Extender
The KanexPro HDBASE70POE is a 4K compliant Transmitter-Receiver set
made to extend UltraHD 4K, digital audio, wide-band IR and power over
Ethernet (PoE) over a cost effective cat6a cable. It also supports computer
resolutions up to 1920x1200, HD1080P/60 with Deep Color. This HDCP
compliant extender routes distances up to 200 feet using HDBaseT™ Lite
technology.
As an added benefit to the systems integrator - the extender provides remote
power from either side Tx or Rx over the twisted pair connection, eliminating
the need for a separate power supply at the remote unit. Ideal for use in digital
signage applications, healthcare AV, control rooms, educational facilities,
airports, commanding centers and home theater.
1.2 Features
Two-way remote power: Tx to Rx or Rx to Tx using PoE (Power over Ethernet)
Route uncompressed HDMI signals over Single CAT6a
Extend up to 200 feet
Supports 4K UHD resolutions
Supports HDMI 1.4, 3D, and full HD 1080p/60
HDCP & EDID compliant
CEC Pass-through
Bi-directional IR & RS-232 for control
Supports all frequencies IR pass through, 5V & 12V, Crestron and Xantech IR
control signal compatible
Front panel LED’s for signal & power
Supports high bandwidth up to 10.2 Gbps
Compatible with HDMMX modular matrix switchers
One locking power supply included
Aluminum case enclosure with separate mounting ears
Backed by KanexPro 3-Year Parts and Labor Warranty
Note: Please use a CAT5e cable with low impedance (Shielded twisted pair will be

KANEXPRO HDBASE70POE
2
better and should be well grounded) for good transmission effect.
1.3 Package Contents
1 x HDMI Twisted Pair PoC Transmitter
1 x HDMI Twisted Pair PoC Receiver
4 x Mounting brackets (Separated from HDMI Twisted Pair PoC Extender)
8 x Plastic cushions
2 x RS232 cables
8 x Screws
2 x Power adapters (DC 24V)
1 x User manual
Notes:Please confirm if the product and the accessories are all included, if not,
please contact with the dealers.

KANEXPRO HDBASE70POE
3
2. Introduction of Product Appearance
2.1 Appearance of HDMI Twisted Pair PoC Transmitter
Figure 2-1 Appearances of HDMI Twisted Pair PoC Transmitter
1) ON: Working status indicator of this device. When the device works fine, this
green LED will keep blinking. And it will get off when the device stops work.
2) LINK: Twisted Pair Link status indicator, green LED. It will keep on when
connection is successful.
3) IN: When connected with devices support HDCP and work normally this LED will
keep on. If devices not support HDCP, this green LED will blink.
4) POWER LED: LED indicator of power. When connect with power, red LED will
keep on.
5) HDBT OUT: Connect to the HDBT IN port of HDMI Twisted Pair PoC Receiver
with a CAT5e cable.
6) HDMI IN: Connect to HDMI source.
7) IR IN: Connect with IR receiver, the IR signal received from this port can only
send out in HDMI Twisted Pair PoC Receiver.
8) IR OUT: Connect with IR sender, the sending IR signal are received from HDMI
Twisted Pair PoC Receiver.
9) RS232: RS232 connector.
10) DC 24V: Connect with power supply (Not necessary if HDMI Twisted Pair PoC
Receiver connects with power).
Note: Pictures shown on this manual are for reference only, different model and
specifications are subject to real product.

KANEXPRO HDBASE70POE
4
2.2 Appearance of HDMI Twisted Pair PoC Receiver
Figure 2-2 Appearances of HDMI Twisted Pair PoC Receiver
1) ON: Working status indicator of this device. When the device works fine, this
green LED will keep blinking. And it will get off when the device stops work.
2) LINK: Twisted Pair Link status indicator, green LED. It will keep on when
connection is successful.
3) OUT: When connected with devices support HDCP and work normally this LED
will keep on. If devices not support HDCP, this green LED will blink.
4) POWER LED: When connect with power, red LED will keep on.
5) HDBT IN: Connect to the HDBT OUT port of HDMI Twisted Pair PoC Transmitter
with a CAT5e cable.
6) HDMI IN: Connect to HDMI display device.
7) IR IN: Connect with IR receiver, the IR signal received from this port can only
send out in HDMI Twisted Pair PoC Transmitter.
8) IR OUT: Connect with IR emitter, the sending IR signal are received from HDMI
Twisted Pair PoC Transmitter.
9) RS232: RS232 connector.
10) DC 24V: Connect with power supply (Not necessary if HDMI Twisted Pair PoC
Transmitter connects with power).
Note: Pictures shown on this manual are for reference only, different model and
specifications are subject to real product.

KANEXPRO HDBASE70POE
5
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All the power switches, plugs, sockets and power cords should be insulated and
safety.
3) All devices should be connected before power on.
3.2 System Diagram

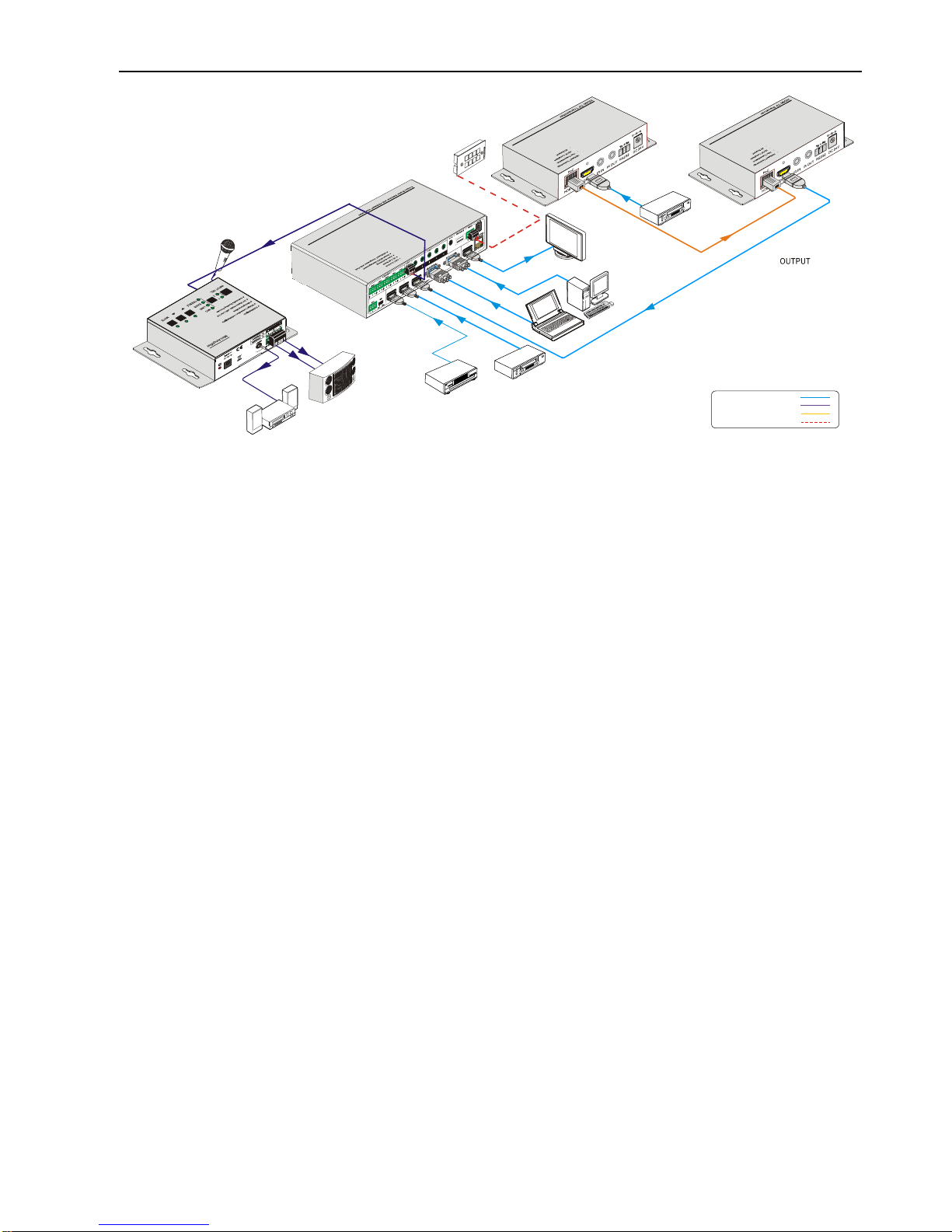

Figure 3-1 System Connection Diagram
3.3 Connection Procedure
Step1.Connect HDMI source (such as Blue-ray DVD) to HDMI IN port of transmitter
HDMI Twisted Pair PoC Transmitter with HDMI cable.
Step2.Connect HDBT OUT port of HDMI Twisted Pair PoC Transmitter and HDBT IN
port of HDMI Twisted Pair PoC Receiver, with single CAT5e/CAT6 cable.
Step3.Connect HDMI displayer (such as HDTV) to HDMI OUT port of HDMI Twisted
Pair PoC Receiver with HDMI cable.
Step4.Both HDMI Twisted Pair PoC Transmitter and HDMI Twisted Pair PoC Receiver
have IR IN and OUT. When one end is used as an IR receiver, the signal sent
from the end can only be transmitted via the other end.
For example: When “IR IN” of HDMI Twisted Pair PoC Transmitter connects
with an IR receiver, the IR transmitter must connect to IR OUT of HDMI Twisted
Pair PoC Receiver.
Step5.Connect the RS232 port of the devices to be controlled and the receiver or the
transmitter.
Step6.Connect with DC24V power adaptor(s) (One is enough if any end of HDMI
Twisted Pair PoC Transmitter and HDMI Twisted Pair PoC Receiver is
DVD
HDMI HDMI
CAT5e
INPUT Rs232
control panel
Projector
IR Remote
Receiver
Transmitter

KANEXPRO HDBASE70POE
6
connected with adapter as its PoC function).
3.4 Application
HDMI Twisted Pair PoC Extender has a good application in various occasions, such as
computer realm, monitoring, big screen displaying, meeting room, education and bank
& securities institution etc.
3.5 Twisted Pair Cable Connection
The twisted pair used in this extender MUST be a straight-through cable.
Notice: Cable connectors
MUST be metal one, the
shielded layer of cable
MUST be connected to the
connector’s metal shell, to
make a better
transmission.
3.6 Collocation Products
HDMI Twisted Pair PoC Extender usually work together with other devices to extend
the transmission distance of HDMI/IR/RS232 signal. Here are the most common
collocation products.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown
1st
Ground
4--5
1st
Ground
4--5
2nd
Ground
3--6
2nd
Ground
1--2
3rd
Group
1--2
3rd
Group
3--6
4th
Group
7--8
4th
Group
7--8

KANEXPRO HDBASE70POE
7
Figure 3-2 Collocation Products Connection Diagram
Description:
1) Mini scaler switcher
➢6 video Inputs: 2 x HDMI, 1 x VGA, 1 x YPbPr, 1 x C-video & 1 x S-video, and
upscale to HDMI output at 1080P.
➢Support VGA resolutions: 640x480, 800x600, 1024x768, 1280x1024, 1280x768,
1360x768@60Hz, 1920x1080.
➢Built-in PAL/NTSC and audio format automatic identification technologies, with good
video and audio processing technology for high performance.
➢3 audio outputs: HDMI embedded audio, 3.5mm stereo audio and Coaxial (SPDIF).
➢Output display H/V size, position, image color adjustable and output image
freezable.
➢Built-in breakpoint memory and power-off protection function.
2) Mini digital amplifier
➢2x20Watt@4Ω as the default amplifier output.
➢Bridge connection function. User can switch the amplifier to be 1x40Watt@8Ω by
bridge connection.
➢48V phantom power to support condenser microphone.
➢MIC port can support balance/unbalance signal, suppress the external noise
effectively.
RS232 Control Signal
Audio/Video Signal
Video Signal
Audio Signal
VCR
①
CAT5e
DVD
HDTV
PC
Laptop
Transmitter Receiver
DVD
RS232
control panel
Speaker
Speaker3
MIC
②

KANEXPRO HDBASE70POE
8
4. Specification
Model
Spec
HDMI Twisted Pair PoC
Transmitter
HDMI Twisted Pair PoC
Receiver
Input
Input Signal
1 HDMI,1 IR & 1 RS232
1 IR, 1 RJ-45 & 1 RS232
Input Connector
HDMI female, 3.5mm mini
jack, 3-pin captive screw
connector
3.5mm mini jack, RJ-45, 3-
pin captive screw
connector
Video Signal
HDMI1.4
HDMI1.4
Audio
Digital audio, transmit
through HDMI audio
Digital audio, transmit
through HDMI audio
Output
Output
1 RJ-45, 1 IR, 1 RS232
1 HDMI, 1 IR, 1RS232
Output Connector
RJ-45, 3.5mm mini jack, 3-
pin captive screw connector
HDMI female, 3.5mm mini
jack, 3-pin captive screw
connector
Video signal
HDMI1.4
HDMI1.4
Transmission Mode
HD Base T
General
Resolution
800x600@60Hz, 1024x768@Hz, 1280x720@60Hz,
1280x1024@60Hz, 1366x768@60Hz,
1600x1200@60Hz, 1920x1080@60Hz,
1920x1200@60Hz, 3D, 4K×2K
Transmission Distance
Max distance 70M
SNR
>70dB@ 100MHz-100M
Bandwidth
10.2Gbps
THD
＜0.005%@1KHz
HDMI Standard
Support HDMI1.4, 3D and HDCP
Impedance
75Ω
Temperature
-10 ~ +40℃
Humidity
10% ~ 90%
Power Supply
Input: 100VAC~240VAC, 50/60Hz Output: DC 24V,
1.25A
Power Consumption
9.6W
Case Dimension
W110.16xH28x D77 mm
W113.03xH28x D77 mm
Net Weight
0.5Kg
0.5Kg
NOTE: All nominal levels are at ±10%.

KANEXPRO HDBASE70POE
9
5. Panel Drawing
Figure 5-1 Panel drawing of HDMI Twisted Pair PoC Transmitter
Figure 5-1 Panel drawing of HDMI Twisted Pair PoC Receiver
ON LINK IN
HDBaseT Lite Transmitter/PoC
HDBaseT Technology
HDCP Compliant
60m with PoC
4K x 2K Support
HDMI INHDBT OUT
Tx Rx
RS232IR IN IR OUT
PoC
110.16 mm 14.00 mm
30.00 mm
77.00 mm
50.00 mm
HDBaseT Lite Receiver/PoC
HDBaseT Technology
HDCP Compliant
ON LINK OUT
4K x 2K Support
60m with PoC
Tx Rx
HDMI OUTHDBT IN RS232IR IN IR OUT
PoC
110.03 mm 14.00 mm
30.00 mm
77.00 mm
50.00 mm

KANEXPRO HDBASE70POE
6. Troubleshooting & Maintenance
Problems
Causes
Solutions
Output images in display
show with ghost
Incorrect setting on the
display
Check the display’s setting
A cable of inferior quality
Try another high-quality
connection cable
No output image when
switching
No signal at the input /
output end
Check with oscilloscope or
multimeter if there is any
signal at the input / output
end.
Fail or loose connection
Make sure the connection
is good
The extender is broken
Send it to authorized
dealer for repairing.
Cannot control the device
by control device (e.g. a
PC) through RS232 port
Wrong RS232
communication
parameters
Make sure the RS232
communication
parameters are correct.
The device has already
been broken
Send it to authorized
dealer for repairing.
Static becomes stronger
when connecting the
video connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
Cannot control the device
by RS232 / IR
The device has already
been broken
Send it to authorized
dealer for repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.

KANEXPRO HDBASE70POE
11
7. After-sales Service
If problems arise when operating the device, please refer to this user manual. Any
transport costs are borne by the users during the warranty.
1) Product Limited Warranty: We warrant that products will be free from defects in
materials and workmanship for three years, which starts from the first day the
product exits warehouse. (Make note of the serial number on the product)
Proof of purchase in the form of a bill of sale or receipted invoice MUST be
presented to obtain warranty service.
2) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
Use of supplies or parts not meeting our specifications
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized
Any other causes which does not relate to a product defect
Delivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email or call our after-sales department if there are any
problems or any unanswered questions. Please inform us the following information
about your cases:
Product version and name.
Detailed failure situations.
The formation of the cases.

KANEXPRO HDBASE70POE
12
Remarks: For any questions or problems, please try to get help from your local
distributor or contact kanexpro.com or call us at 888-975-1368 for further support.
9. Warranty
A. LIMITED WARRANTY
KanexPro ™ warrants that (a) its products (the “Product”) will perform greatly in
agreement with the accompanying written materials for a period of 36 months (3 full
years) from the date of receipt and (b) that the product will be free from defects in
materials and workmanship under normal use and service for a period of 3 years.
B. CUSTOMER REMEDIES
KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro
option, either return of the price paid for the product, or repair or replacement of the
Product that does not meet this Limited Warranty and which is returned to KanexPro
with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product
has resulted from accident, abuse, or misapplication. Any replacement Product will be
warranted for the remainder of the original warranty period of 3 years, whichever is
longer.
C. NO OTHER WARRANTIES
To the maximum extent permitted by applicable law, KanexPro disclaims all other
warranties, either express or implied, including, but not limited to implied warranties of
merchantability and fitness for a purpose, regarding the product and any related written
materials. This limited warranty gives customers specific legal rights. Customers may
have other rights depending on the jurisdiction. 
D. NO LIABILITY FOR DAMAGES
To the maximum extent permitted by applicable law, in no event shall KanexPro be
liable for any damages whatsoever (including without limitation, special, incidental,
consequential, or indirect damages for personal injury, loss of business profits,
business interruption, loss of business information, or any other pecuniary loss) arising
out of the use of or inability to use this product, even if KanexPro has been advised of
the possibility of such damages.

KANEXPRO HDBASE70POE
13
1405 pioneer street
Brea, CA 92821
