KanexPro MX-HDBASE8X8-4K User manual

MX-HDBASE8X8-4K
4K HDBaseT™ 8x8 Matrix Switcher
All Rights Reserved
Version: MX-HDBASE8X8-4K_2015V1.1

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K
www.kanexpro.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till April 2015. Any changes of functions
and parameters since then will be informed separately. Please refer to the dealers for
the latest details.
All product function is valid till 2015-4-13.
Trademarks
Mentioned product model, logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K
www.kanexpro.com
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
!Unpack the equipment carefully and save the original box and packing material for
possible future shipment
!Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
!Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
!Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
!Refer all servicing to qualified service personnel.
!To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
!Do not put any heavy items on the extension cable in case of extrusion.
!Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
!Install the device in a place with fine ventilation to avoid damage caused by
overheat.
!Keep the module away from liquids.
!Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
!Do not twist or pull by force ends of the optical cable. It can cause malfunction.
!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
!Unplug the power cord when left unused for a long period of time.
!Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K
www.kanexpro.com
Contents
1. Introduction..................................................................................................................1!
1.1 Introduction to the 4K HDBaseT 8x8 Matrix Switcher ........................................1!
1.2 Features .............................................................................................................1!
1.3 Package List.......................................................................................................1!
2. Product Appearance of the 4K HDBaseT 8x8 Matrix Switcher ...................................2!
2.1 Front Panel.........................................................................................................2!
2.2 Rear Panel .........................................................................................................4!
3. System Connection .....................................................................................................5!
3.1 System Applications...........................................................................................5!
3.2 Usage Precautions.............................................................................................5!
3.3 Connection Diagram ..........................................................................................6!
3.4 Connection Procedure .......................................................................................6!
3.5 Connection with HDMI Twisted Pair PoC Receiver ...........................................7!
4. System Operations......................................................................................................7!
4.1 Front Panel Button Control.................................................................................7!
4.1.1 Switching I/O connection..........................................................................7!
4.1.2 EDID Management...................................................................................8!
4.1.3 Inquiry ......................................................................................................9!
4.1.4 Clear operation.......................................................................................10!
4.2 IR Control .........................................................................................................10!
4.2.1 Usage of IR Remote...............................................................................12!
4.2.2 IR Operations .........................................................................................13!
4.3 RS232 Control..................................................................................................16!
4.3.1 Connection with RS232 Communication Port........................................16!
4.3.2 Installation/uninstallation of RS232 Control Software ............................16!
4.3.3 Basic Settings ........................................................................................16!
4.3.4 RS232 Communication Commands.......................................................18!
4.3.5 RS232 Control Modes............................................................................26!
4.3.6 Control 3rd-Party Device from Local......................................................27!
4.3.7 Bi-directional RS232 Control..................................................................28!

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K
www.kanexpro.com
4.4 TCP/IP Control .................................................................................................29!
4.4.1 Control Modes........................................................................................29!
4.4.2 GUI for TCP/IP control ...........................................................................30!
4.4.3 GUI Update ............................................................................................34!
4.5 Firmware Update via USB................................................................................34!
5. Specification ..............................................................................................................36!
6. Troubleshooting & Maintenance................................................................................38!
7. After-sales Service ....................................................................................................40!

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 1
KanexPro.com
1. Introduction
1.1 The MX-HDBASE8X8-4K
The KanexPro MX-HDBASE8X8-4K matrix switcher is a professional 8 HDMI input to 8
HDBaseT output switch with 4 HDMI mirrored outputs designed for routing 4K/UHD
applications. For proficient audio capabilities it includes 8 auxiliary audio inputs for
stereo and 8 stereo outputs for HDMI audio de-embedding and 8 IR inputs. The HDMI
inputs from the matrix can be controlled via front panel buttons, bi-directional IR &
RS232, or in GUI mode using Ethernet. The selected source is delivered to HDMI
Output 1~4(for HDMI input 1~4) & HDBaseT outputs 1~8 (easy extension to 70m at
1080p and 40m at 4Kx2K on a single CAT5e/6 connection with optional PoE based
HDBaseT receivers) simultaneously. The unit provides built-in EDID and HDCP
management.
1.2 Features
!Ultra-fast 8x8 switching with instant display
!Distribute eight HDBaseT outputs up to 70m at 1080p & 40m at 4Kx2K on a single
CAT5e/6 cable.
!Supports power over Ethernet (PoE) to all eight receivers
!Four HDMI mirrored outputs for local monitor support
!Deep color support up to 16 bit
!RGB/YCbCr 4:4:4, YCbCr: 4:2:2, 4K/30Hz
!Illuminated buttons w/ Front panel LCD
!Dedicated audio zones for digital and stereo audio
!Audio De-embedding
!Advanced EDID & HDCP management
!Bi-directional IR & RS-232 control
!Built-in GUI using Ethernet connectivity
!Controllable via front panel, RS232, IR & IP
!IR remote control included
!Easy firmware upgrade thru Micro-USB port
!Locking HDMI connectors
!2 RU rack-mountable steel enclosure

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 2
KanexPro.com
!External International power supply (100V-240V AC, 50/60Hz)
1.3 Package List
"1 x 4K HDBaseT 8x8 Matrix Switcher
"2 x Mounting ears (6 x Screws)
"1 x RS232 cable
"1 x IR Receiver
"4 x Plastic cushions (4 x Black Screws)
"1 x IR remote
"1 x Power cord
"24 x Pluggable Terminal Blocks
"1 x User manual
Notes:
1) Confirm if the product and the accessories are all included, if not, please contact with
the dealers.
2) This matrix switcher does not include any receivers, please order the receivers
separately by contacting your AV dealer or KanexPro directly.
2. Product Appearance of the KanexPro 8x8 Matrix Switcher

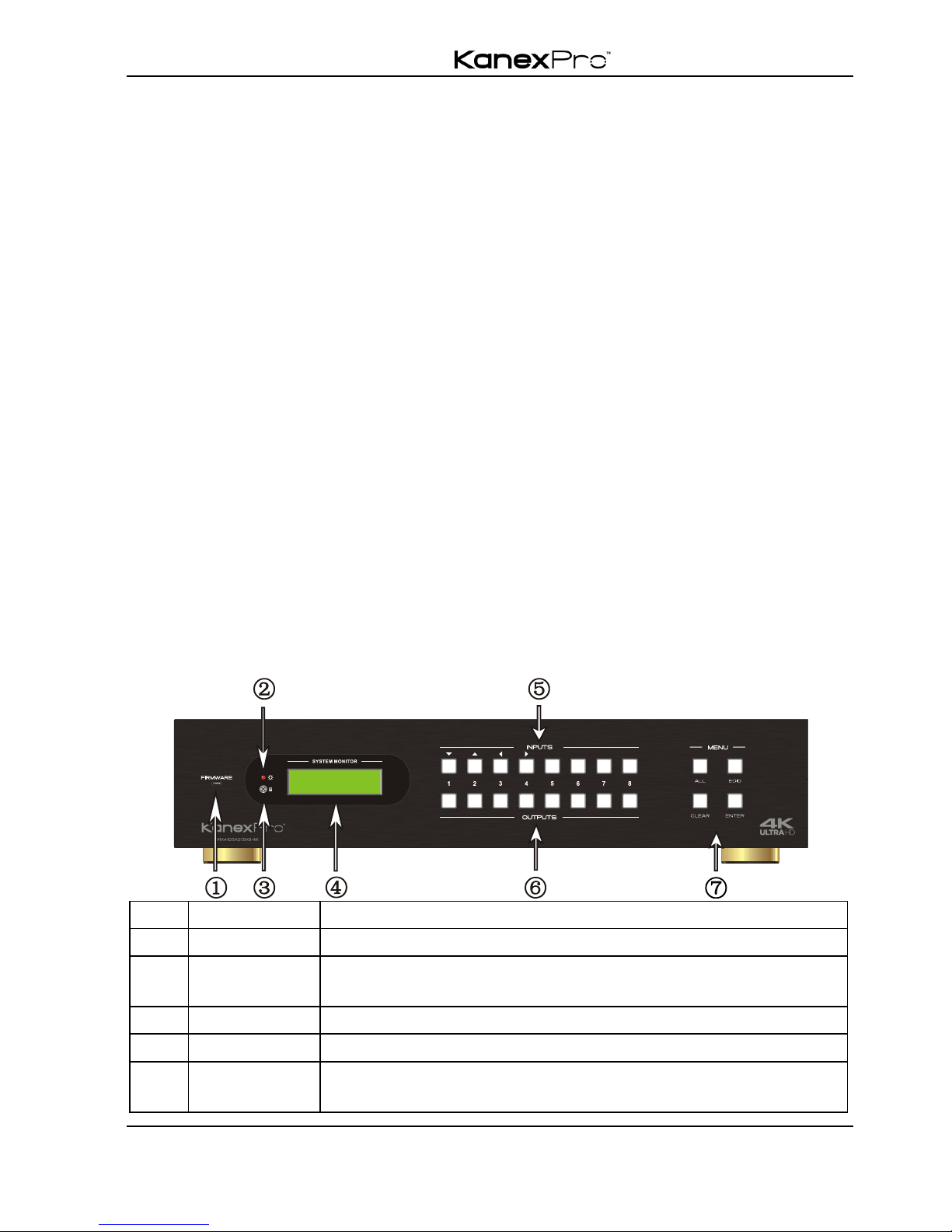

2.1 Front Panel
No.
Name
Description

Firmware
Micro USB port for updating firmware

Power
Indicator
"Illuminate red when power on
"Illuminate yellow in standby mode

IR
In-built IR sensor, receive IR signals sent from IR remote.

LCD Screen
Display real-time operation status.

INPUTS/Me
nu buttons
"Normal mode: Back-lit buttons, ranging from "1" to "8".
"Inquiry mode (buttons 1~4): Press, “ENTER” for more than

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 3
KanexPro.com
3 seconds to enter this mode. Dial to select
different menus, to select different options.

OUTPUTS
buttons/
EDID
Manageme
nt buttons
"Normal mode: Backlit buttons, ranging from "1" to
"8".Output 1~4 support synchronous local HDMI output.
"EDID Invoking mode: press and hold EDID button for 3
seconds or more to enter this mode, buttons 1~6
correspond to the 6 embedded EDID data separately.
Press any of the 6 buttons to invoke embedded EDID data.

Function
buttons
"ALL: Select all inputs/ outputs

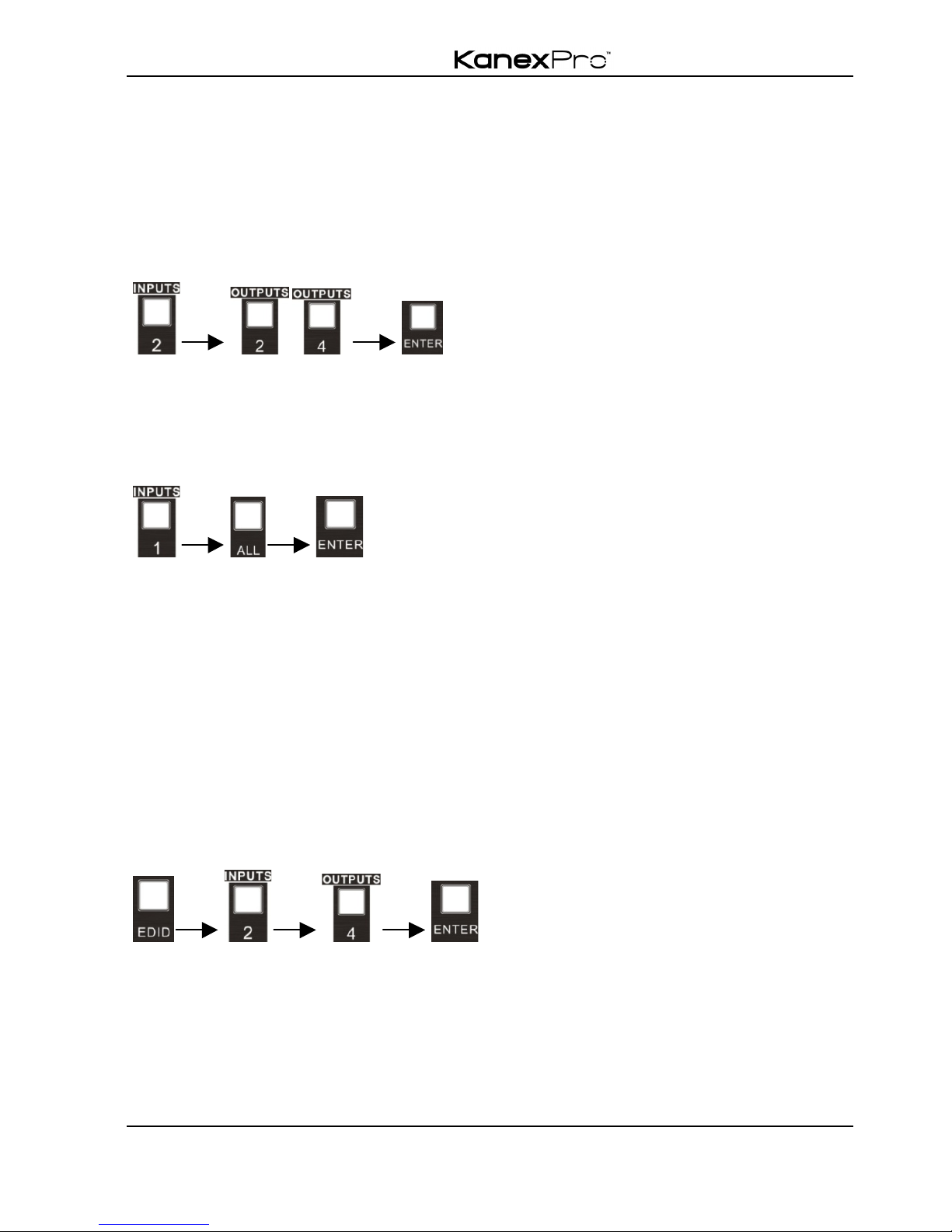

Example: To transfer both AV and IR signals from input
channel No.1 to all output channels.
Operation: Press buttons in this order: “1”, “ALL”, “ENTER”
"EDID management button: Enable input port to manually
capture and learn the EDID data of output devices.
Example: Input channel No.2captures and learns the EDID
data of output channel No.4
Operation: Press buttons in this order: “EDID”, “2”, “4”,
“ENTER”
"CLEAR: Withdraw an operation like switching output
channel; learning EDID data before it comes into effect.
Meanwhile, the matrix will return to the previous status.
"ENTER: Confirm operation. Press and hold it for 3 seconds
to enter in Inquiry mode.
Notes: Pictures shown in this manual are for reference only; different model and
specifications are subject to real product.
Important:
This matrix switcher does not include any receivers, please order the receivers
separately by contacting your AV dealer or KanexPro directly. Referring part #
HDBASE70POER for optional HDBaseT receivers which are powered over Ethernet
from the Matrix switcher.

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 4
KanexPro.com
2.2 Rear Panel
No.
Name
Description

INPUTS
a. IR OUT:8 in total connect with IR emitters to deliver the
IR signal sent from the far-end receivers connected to the
HDBaseT ports.
These IR OUT sockets make up an IR matrix with the IR
IN sockets on the far-end receivers, and all can be
switched synchronously with the AV signal, or separately
switching.
In default setting, the 8 IR OUT corresponds with the 8 IR
IN, i.e. IR OUT1→IR IN1, IR OUT2→IR IN2, …IR OUT8
→IR IN8.
b. AUDIO: Auxiliary audio input ports, 8 in total, connect
with analog audio sources
c. HDMI: HDMI input ports, 8 in total, type A female HDMI
connector, connect with HDMI input source devices.

OUTPUTS
d. IR IN: Connect with IR receiver (with carrier), 8 in total,
correspond to the 8 IR OUT, cannot be switched
separately. It makes up an IR bi-directional transmission
with the IR OUT on the corresponding far-end receiver.
e. RS232: 3-pinpluggable terminal blocks, 8 in total,

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 5
KanexPro.com
correspond to 8 output sources separately, communicate
with the RS232 port on corresponding HDBaseT receiver,
and cannot be switched separately. When controlled by
HDBaseT receiver, the communication protocol must be
the same with the matrix switcher’s.
f. AUDIO: stereo audio output ports, 8 in total
g. HDMI: Local HDMI output ports for HDMI Inputs 1~4,
synchronously switched with HDBaseT Output 1~4
h. HDBaseT: output extension ports, works with HDBaseT
receivers to extend signals and power far-end HDBaseT
receiver on a single CAT5e/6 cable.

RS232
Serial port for unit control, 9-pin female connector, connects
with control device such as a PC.
④
IR ALL IN
Input port for IR control signal; connect with IR receiver (with
carrier), delivers the received IR signal to all the 8 far-end
receivers.

TCP/IP
TCP/IP port for unit control
⑥
IR EYE
Connect with extended IR receiver; use the IR remote to
control the matrix switcher.
⑦
Power
Trigger
Press the button to turn on/off the matrix. The indicator turns
red when power on.
⑧
Power port
Connect to an AC 100V~240V power adapter via the included
power cord
⑨
GROUND
Connect to grounding; make sure the unit is grounded well.
Note: Pictures shown in this manual are for reference only; different model and
specifications are subject to real product.
3. System Connection
3.1 System Applications
As its good performance in control and transmission, the matrix switcher can be widely
used in computer realm, monitoring, large screen displaying, conference system,
television education and bank securities institutions etc.
3.2 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3) All devices should be connected before power on.

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 6
KanexPro.com
3.3 Connection Diagram
3.4 Connection Procedure
1) Connect HDMI sources (e.g. DVD) to HDMI inputs of the matrix switcher with HDMI
cables.
2) Connect auxiliary audio sources to the AUDIO IN ports with audio cables.
3) Connect HDBaseT receivers (e.g. HDMI Twisted Pair PoC Receiver) to the
HDBaseT Output ports with twisted pair.
4) Connect HDMI displays (e.g. HDTV) to HDMI outputs of the matrix switcher or the
receivers with HDMI cables
5) Connect speakers/earphones to AUDIO output ports
6) Connect the RS232 port of control device (e.g. a PC) to the RS232 port of either
switcher or far-end receivers. RS232 signal can be transmitted bi-directionally
between the switcher and far-end receivers.
7) The switcher can collect IR signal sent by the included IR remote via its built-in IR
sensor or through external IR receiver connected to the IR IN/ IR EYE/ IR ALL IN
port. The IR signal can be transmitted bi-directionally between the switcher and
far-end receivers.
IR Transmitter
VCR
STB
DVD
Speaker
Laptop
RS232
control panel
HDTV
PoC

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 7
KanexPro.com
8) Connect an AC 100V~240V power outlet and the switcher with the AC power cord.
Note:
1. Connect HDBT ports of switcher and far-end receiver with straight-through cable.
2. Output audio is selectable via RS232 command Audio/[X]:[Y]. It’s free to select
whether analog audio or HDMI audio to output. Default is HDMI audio.
3. IR receivers connected to IR IN& IR ALL IN should be with carrier. If not, send
command %0900.or %0901.to activate native carrier mode or force carrier mode in
the IR matrix launched between the switcher and far-end receivers.

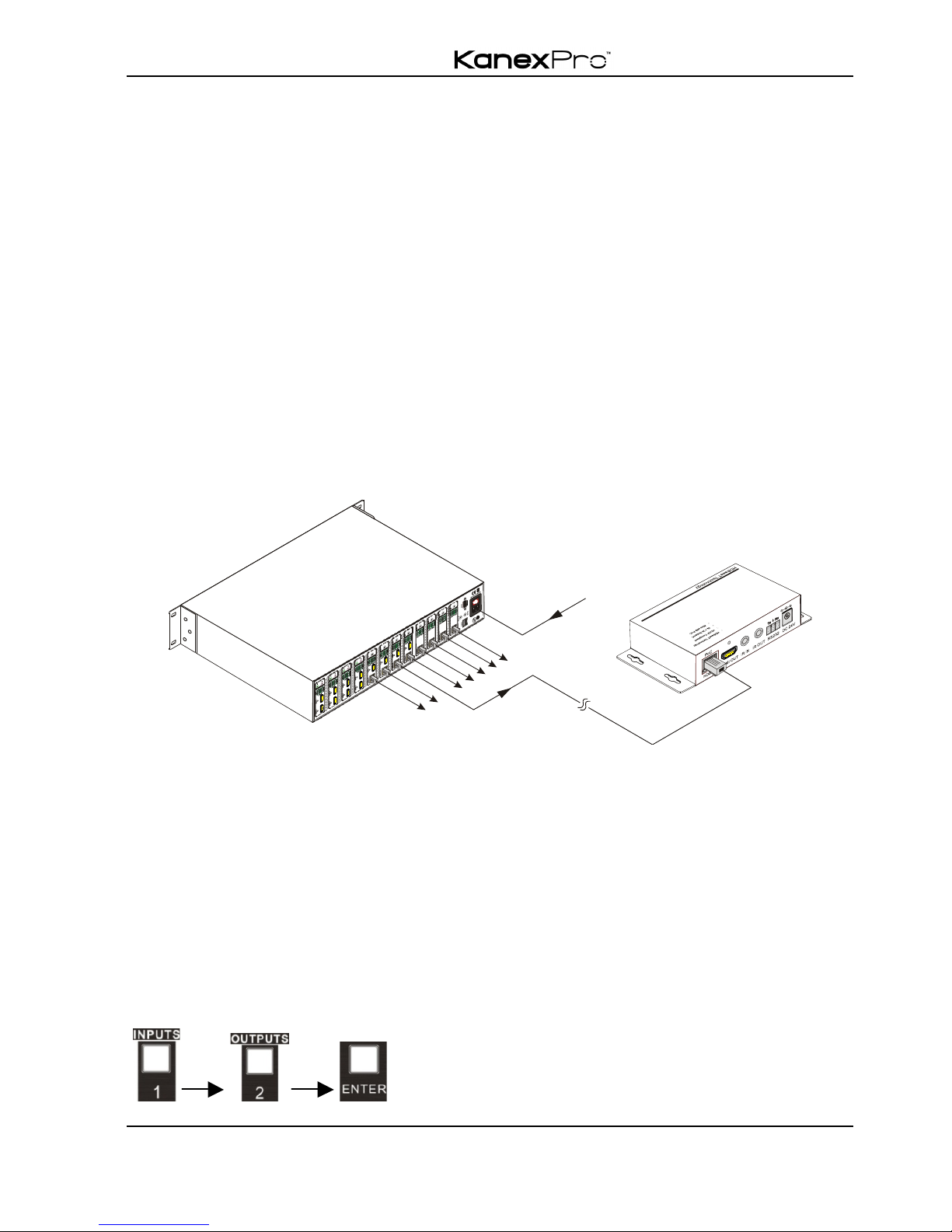

3.5 Connection with HDMI Twisted Pair PoC Receiver
4K HDBaseT 8x8 Matrix Switcher boasts 8 HDBaseT output ports, which support PoC
solution. Connect the HDBT output ports of 4K HDBaseT 8x8 Matrix Switcher to
HDBaseT Receivers supporting PoC(like HDMI Twisted Pair PoC Receiver) via twisted
pair. Plug a power supply to the power port of the switcher; the HDBaseT Receivers will
be energized synchronously with PoC solution.
4. System Operations
4.1 Front Panel Button Control
The operation examples are showed in 2.1 Front Panel. Here we make a brief
introduction to the system operations.
4.1.1 Switching I/O connection
1) To convert one input to an output:
Operation: “input”+“output”+“ENTER”
Example: input 1 to output 2
PoC
AC 100V ~ 240V

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 8
KanexPro.com
Note: In default status, 8 IR OUT sockets correspond with 8 HDMI INPUTS. When you
convert an HDMI input to an output, the corresponding IR OUT will be switched
synchronously.
2) To convert an input to several outputs:
Operation: “input” + “output” + “output” +…+“ENTER”
Example: Switch input 2 to output 2, 4
3) To convert an input to all outputs:
Operation: “input” + “ALL” +“ENTER”
Example: Convert input 1 to all outputs
Note: Indicators of the pressed buttons will blink green for three times if the conversion
is done, then it will be off. If the conversion failed, they will be off immediately.
4.1.2 EDID Management
The matrix switcher features EDID management to maintain compatibility between all
devices. It can be controlled via EDID learning and EDID invoking.

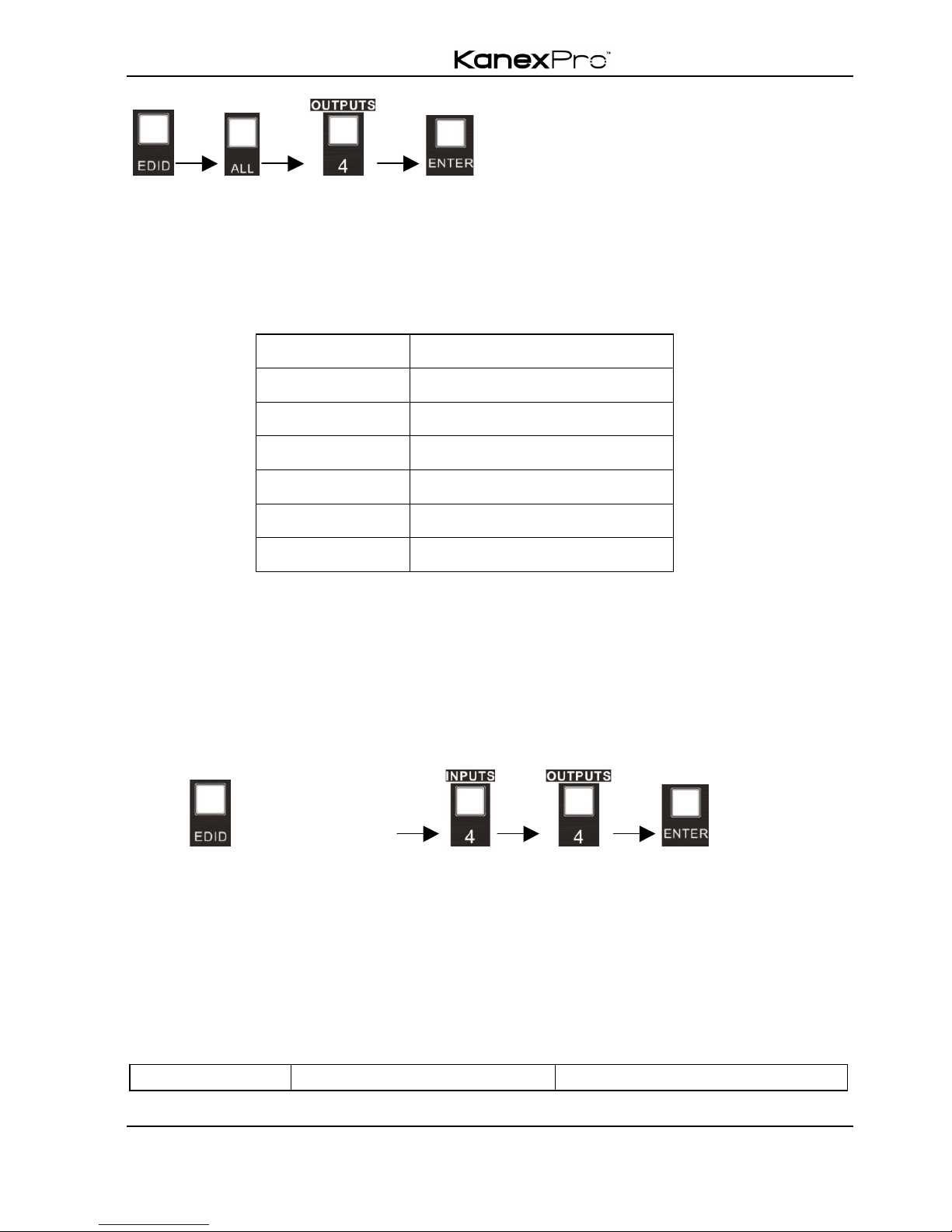

EDID Learning (from output):
"One input port learns the EDID data of one output port
Operation: Press “EDID”, “INPUTS”+“OUTPUTS”+“ENTER”.
Example: Input 2learns EDID data from output 4
"All input ports learn EDID data from one output port
Operation: Press “EDID”, “ALL”+“OUTPUTS”+“ENTER”
Example: All input ports learn EDID data from output 4

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 9
KanexPro.com
Note: Indicators of the pressed buttons will blink green for three times if the conversion
is done, then it will be off. If the conversion failed, they will be off immediately.
EDID invoking:
There are six types of embedded EDID data. The chart below illustrates the detailed
information of the embedded EDID data:
Output Button
EDID Data
1
1080P 3D 2CH
2
1080P 3D Multichannel
3
1080P 2D 2CH
4
1080P 2D Multichannel
5
3840x2160 2D（30Hz）
6
4096x2160 2D（30Hz）
Format: Press and hold “EDID” for 3 seconds, “INPUTS”+“OUTPUTS”+“ENTER”.
Operations:
"Set EDID data for one input
Operation: Press “EDID”(hold for 3 seconds to enter in EDID setting status),
“INPUTS”+“OUTPUTS”+“ENTER”.
Example: Set the EDID data of INPUT 4 to the forth type of embedded EDID data:
Press (hold for 3 seconds) .
Note: If the conversion is successful, indicators of the pressed buttons will blink green
for three times at normal speed; if the conversion failed, they will blink for three times
quickly.
4.1.3 Inquiry
"Check status
Press and hold the button “ENTER” for 3 seconds, it will enter into system inquiry menu.
Use Left and Right direction button to navigate checking the previous/next items.

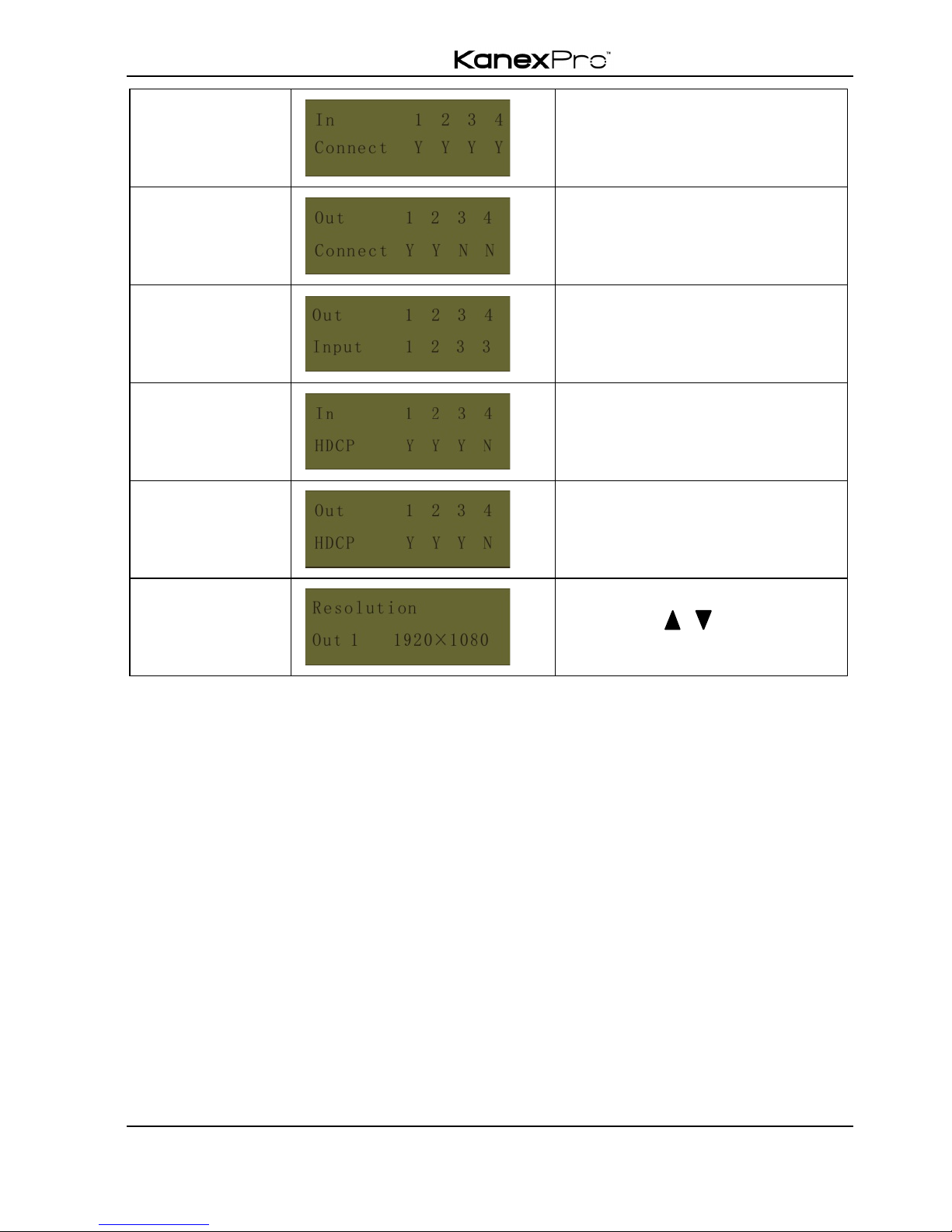

Function Items
Example
Description

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 10
KanexPro.com
Check the
connection
status of inputs
Y means the corresponding port
is connected with input device, N
means not.
Check the
connection
status of outputs
Y means the corresponding port
is connected with output device,
N means not.
Correspondence
between inputs
and outputs
Shows the correspondence
between the 8 inputs and 8
outputs.
Check if the
input is with
HDCP
Y means the input signal is with
HDCP, N means not.
Check if the
output is with
HDCP
Y means the output signal is with
HDCP, N means not.
Check the
output resolution
Use button to check the
8 output resolutions separately.
"Output check
Press any output button to check its corresponding input.
Example: Check which one is the corresponding input for output 2. (Presume Output 2
corresponds to Input 1.)
Operation: Press Output 2 button, LCD screen display “AV: 1->2 IR: 1->2”, and
indicators of input 1 and output 2 turn on and last for 3 seconds. Then output 2
corresponds to input 1.
4.1.4 Clear operation
When you switch output channel, learn EDID data, or set EDID data, press Clear button
to withdraw the operation before you press “ENTER” to carry it on. When you press it,
the matrix will return to the previous status.
4.2 IR Control
By using IR & HDBaseT transmission technology, the switcher has some functions as
follows:

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 11
KanexPro.com
1) Control far-end output device from local.
2) Control local input/output device remotely.
3) Control the 4K HDBaseT 8x8 Matrix Switcher locally/remotely.

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 12
KanexPro.com
4.2.1 Usage of IR Remote
Standby button, press it to enter/ exit standby
mode
Input channels, range from 1~8,
corresponding IR signal switched
synchronously when switching input
channels.
Menu buttons, ALL, EDID and CLEAR, same
with the corresponding front panel buttons.
Please refer to 4.1 Front Panel Button Control
for details.
: Navigation buttons.
ENTER: Confirm button.
Output channels, range from1~8.
Each channel has 1 IR IN, 1 HDBaseT, 1
RS232, and 1 AUDIO outputs, and
channel1~4have HDMI outputs.
Note: With this IR remote, the matrix switcher can be controlled with the built-in IR, the
extended IR receiver connected to the “IR EYE”/”IR ALL IN” and the IR receiver on the
far-end receiver.

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 13
KanexPro.com
4.2.2 IR Operations
1) IR Matrix Switching
The 8“IR OUT” ports and the 8 “IR IN” ports on the far-end receivers makeup an8x8IR
matrix. See as below:
IR Matrix
Corresponding IR sends the IR signal remote, then it is transferred to HDBaseT receiver,
then to corresponding zone of the matrix through the twisted pair, finally it is transferred
to IR OUT port and received by controlled device.
Switching Operation: (8 IR IN ports correspond with 8 HDMI input ports separately in
default mode.)
a) Sending command (reference to 4.3 RS232 Control): [x1] R [x2].
x1: Corresponding to the 8 IR OUT ports of the matrix, the IR transmitter connected
to this port can be placed at IR receiving area of output device or the
8x8switcheritself.
x2: Corresponding to the zone (receive IR signal from HDBaseT receiver with IR IN
port connects with IR receiver) number of the switcher.
Example: Send command “3R2.” to transfer IR signal received from zone 2 to IR
OUT port 3.
2) Force Carrier
a) Only if the IR receiver connected to HDBaseT receiver is with IR carrier, can the
received IR signal be transferred to IR OUT port of the matrix.
b) Only if the IR receiver connected to IRALL IN port of the matrix is with IR carrier, can
the received IR signal be transferred to IR OUT port of the matrix.
If the IR receiver connected with HDBaseT receiver or IR ALL IN port of the matrix is
RS 23 2TC P/ IP
IR A LL I N
IR E YE
HD MI 8 HD MI 7
7
IR OUT
INPUT
L R
HD Ba seT
RS232 AUDIO
OUTPUT 1
Tx Rx
HD MI
1
L R
HD Ba seT
RS232 AUDIO
OUTPUT 2
Tx Rx
HD MI
2
L R
HD Ba seT
RS232 AUDIO
OUTPUT 3
Tx Rx
HD MI
3
L R
HD Ba seT
RS232 AUDIO
OUTPUT 4
Tx Rx
HD MI
4
L R
HD Ba seT
RS232 AUDIO
OUTPUT 5
Tx Rx
5
L R
HD Ba seT
RS232 AUDIO
OUTPUT 6
Tx Rx
6
L R
HD Ba seT
RS232 AUDIO
OUTPUT 7
Tx Rx
7
L R
HD Ba seT
RS232 AUDIO
IR INIR INIR INIR INIR INIR INIR INIR IN
OUTPUT 8
Tx Rx
8
AUDIO
7
L R L R
8
8
HD MI 6 HD MI 5
5
IR OUT
INPUT
AUDIO
5
L R L R
6
6
HD MI 4 HD MI 3
3
IR OUT
INPUT
AUDIO
3
L R L R
4
4
HD MI 2 HD MI 1
1
IR OUT
INPUT
AUDIO
1
L R L R
2
2
HDMI OUTHDBT I N
Tx Rx
RS232IR IN IR O UT
PoC
IR Transmitt er
HDMI OUTHDB T IN
Tx Rx
RS232IR IN IR O UT
PoC
HDMI O UT
HDBT I N
Tx Rx
RS232IR IN IR OU T
PoC
HDMI OUTH DBT IN
Tx Rx
RS232IR IN IR O UT
PoC
HDMI O UT
HDBT I N
Tx Rx
RS232IR IN IR O UT
PoC
HDMI O UT
HDBT I N
Tx Rx
RS232IR IN IR O UT
PoC
HDMI O UT
HDBT I N
Tx Rx
RS232IR IN IR O UT
PoC
HDMI O UT
HDBT I N
Tx Rx
RS232IR IN IR O UT
PoC
12
Receiver 1 Receiver 2 Receiver 3 Receiver 4 Receiver 5 Receiver 6 Recei v er 7 Receive r 8
345678

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 14
KanexPro.com
not with IR carrier, send the command “%0901.”to enter infrared carrier enforcing
mode, and then IR signal can be transferred to IR OUT port.
3) IR control setting
!Control far-end output device from local
Connect an IR receiver with IR carrier to the IR IN port of the switcher; users can control
far-end output displayer via its IR remote from local.
In that case, the IR signal is transferred via twisted pair. Only the corresponding IR OUT
port can emit control signals to the remote display.
See the figure below:
Control far-end device from Local
Note: The IR receiver connected to IR IN must be with IR carrier
The IR signal received from IR ALL IN port will be transmitted to all the eight far-end
HDBaseT receivers connected to HDBaseT ports of the matrix switcher. See below:
RS 23 2TC P/ IP
IR A LL IN
IR E YE
HD MI 8 HD MI 7
7
IR OUT
INPUT
L R
HD Ba se T
RS232 AUDIO
OUTPUT 1
Tx Rx
HD MI
1
L R
HD Ba se T
RS232 AUDIO
OUTPUT 2
Tx Rx
HD MI
2
L R
HD Ba se T
RS232 AUDIO
OUTPUT 3
Tx Rx
HD MI
3
L R
HD Ba se T
RS232 AUDIO
OUTPUT 4
Tx Rx
HD MI
4
L R
HD Ba se T
RS232 AUDIO
OUTPUT 5
Tx Rx
5
L R
HD Ba se T
RS232 AUDIO
OUTPUT 6
Tx Rx
6
L R
HD Ba se T
RS232 AUDIO
OUTPUT 7
Tx Rx
7
L R
HD Ba se T
RS232 AUDIO
IR INIR INIR INIR INIR INIR INIR INIR IN
OUTPUT 8
Tx Rx
8
AUDIO
7
L R L R
8
8
HD MI 6 HD MI 5
5
IR OUT
INPUT
AUDIO
5
L R L R
6
6
HD MI 4 HD MI 3
3
IR OUT
INPUT
AUDIO
3
L R L R
4
4
HD MI 2 HD MI 1
1
IR OUT
INPUT
AUDIO
1
L R L R
2
2
HDMI OUT
HDBT IN
Tx Rx
RS232IR IN IR OUT
PoC
Receiver
DVD
HDTV
IR Remote
HDTV
IR Transmitter

4K HDBaseT™ 8x8 Matrix Switcher
MX-HDBASE8X8-4K 15
KanexPro.com
Control far-end device through IR ALL IN port
!Control local device from remote
User can control local source devices with their IR remote from remote too. When using,
the IR signal received by the HDBaseT receiver will be transmitted to the corresponding
IR OUT port of the switcher. See below:
Control local device from remote
RS2 32TCP /I P
IR AL L IN
IR EY E
HDM I 8 HDM I 7
7
IR OU T
INPUT
L R
HDB as eT
RS232 AUDIO
OUT PUT 1
Tx Rx
HDM I
1
L R
HDB as eT
RS232 AUDIO
OUT PUT 2
Tx Rx
HDM I
2
L R
HDB as eT
RS232 AUDIO
OUT PUT 3
Tx Rx
HDM I
3
L R
HDB as eT
RS232 AUDIO
OUT PUT 4
Tx Rx
HDM I
4
L R
HDB as eT
RS232 AUDIO
OUT PUT 5
Tx Rx
5
L R
HDB as eT
RS232 AUDIO
OUT PUT 6
Tx Rx
6
L R
HDB as eT
RS232 AUDIO
OUT PUT 7
Tx Rx
7
L R
HDB as eT
RS232 AUDIO
IR INIR INIR INIR INIR INIR INIR INIR IN
OUT PUT 8
Tx Rx
8
AUDIO
7
L R L R
8
8
HDM I 6 HDM I 5
5
IR OU T
INPUT
AUDIO
5
L R L R
6
6
HDM I 4 HDM I 3
3
IR OU T
INPUT
AUDIO
3
L R L R
4
4
HDM I 2 HDM I 1
1
IR OU T
INPUT
AUDIO
1
L R L R
2
2
HDMI OUT
HDBT IN
Tx Rx
RS232
IR IN IR OUT
PoC
Recei v e r 1 R e c e i c e r 2 Recei v e r 3 Receiver 4 Recei v e r 5 Recei v e r 6 Receiver 7 Recei v e r 8
HDTV
IR Transmitter
HDMI OUT
HDBT IN
Tx Rx
RS232IR IN IR OUT
PoC
HDTV
IR Transmitter
HDMI OUT
HDBT IN
Tx Rx
RS232IR IN IR OUT
PoC
HDTV
IR Transmitter
HDMI OUT
HDBT IN
Tx Rx
RS232IR IN IR OUT
PoC
HDTV
IR Transmitter
HDMI OUT
HDBT IN
Tx Rx
RS232IR IN IR OUT
PoC
HDTV
IR Transmitter
HDMI OUT
HDBT IN
Tx Rx
RS232IR IN IR OUT
PoC
HDTV
IR Transmitter
HDMI OUT
HDBT IN
Tx Rx
RS232IR IN IR OUT
PoC
HDTV
IR Transmitter
HDMI OUT
HDBT IN
Tx Rx
RS232IR IN IR OUT
PoC
HDTV
IR Transmitter
DVD
IR R e m o t e
RS 23 2TC P/ IP
IR A LL IN
IR E YE
HD MI 8 H DM I 7
7
IR OUT
INPUT
L R
HD Ba se T
RS232 AUDIO
OUTPUT 1
Tx Rx
HD MI
1
L R
HD Ba se T
RS232 AUDIO
OUTPUT 2
Tx Rx
HD MI
2
L R
HD Ba se T
RS232 AUDIO
OUTPUT 3
Tx Rx
HD MI
3
L R
HD Ba se T
RS232 AUDIO
OUTPUT 4
Tx Rx
HD MI
4
L R
HD Ba se T
RS232 AUDIO
OUTPUT 5
Tx Rx
5
L R
HD Ba se T
RS232 AUDIO
OUTPUT 6
Tx Rx
6
L R
HD Ba se T
RS232 AUDIO
OUTPUT 7
Tx Rx
7
L R
HD Ba se T
RS232 AUDIO
IR INIR INIR INIR INIR INIR INIR INIR IN
OUTPUT 8
Tx Rx
8
AUDIO
7
L R L R
8
8
HD MI 6 H DM I 5
5
IR OUT
INPUT
AUDIO
5
L R L R
6
6
HD MI 4 H DM I 3
3
IR OUT
INPUT
AUDIO
3
L R L R
4
4
HD MI 2 H DM I 1
1
IR OUT
INPUT
AUDIO
1
L R L R
2
2
HDMI OUT
HDBT IN
Tx Rx
RS232IR IN IR OUT
PoC
Revceiver
DVD
HDTV
IR Remote
HDTV
IR Transmitter
