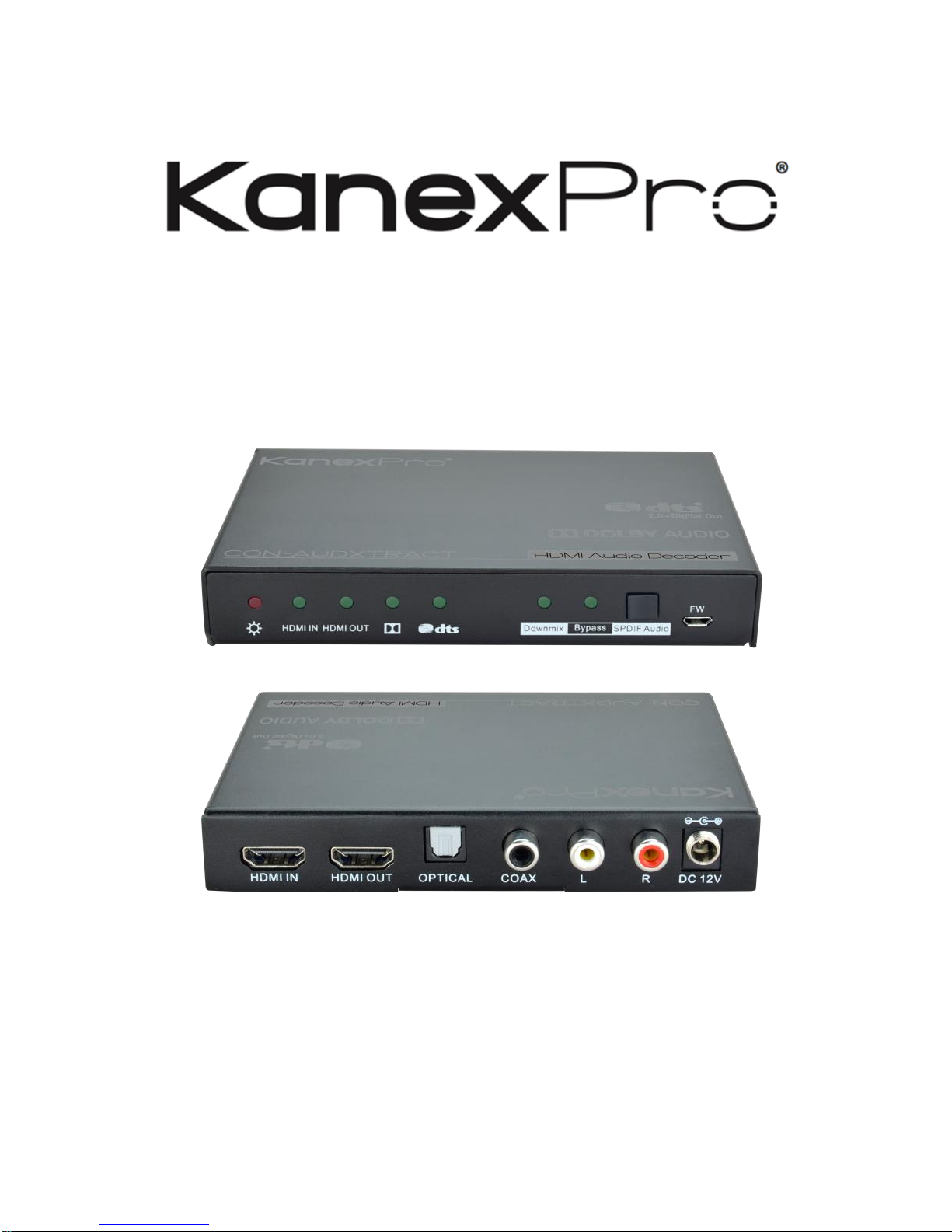

KanexPro CON-AUDXTRACT User manual

CON-AUDXTRACT
USER MANUAL
Extract multi-channel audio from HDMI
All Rights Reserved
Version: CON-AUDXTRACT_2018V1.1

CON-AUDXTRACT
1 | Page
Preface
Read this user manual carefully before using the product. Pictures are shown in this
manual for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
February, 2018. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

CON-AUDXTRACT
2 | Page
SAFETY PRECAUTIONS
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

CON-AUDXTRACT
3 | Page
Table of Contents
1. Introduction..................................................................................................................4
1.1 Introduction to CON-AUDXTRACT ....................................................................4
1.2 Features.............................................................................................................4
1.3 Packing List........................................................................................................5
2. Panel Description ........................................................................................................6
2.1 Front Panel.........................................................................................................6
2.2 Rear Panel .........................................................................................................7
3. System Connection .....................................................................................................8
3.1 Usage Precautions.............................................................................................8
3.2 System Diagram.................................................................................................8
3.3 Connection Procedure........................................................................................9
4. Specification..............................................................................................................10
5. Panel Drawing...........................................................................................................11
6. Troubleshooting & Maintenance................................................................................12
7. Customer Service......................................................................................................13
8. Warranty....................................................................................................................14

CON-AUDXTRACT
4 | Page
1. Introduction
1.1 Introduction to CON-AUDXTRACT
The KanexPro CON-AUDXTRACT is an audio converter used to extract the encoded
multi-channel LPCM, Dolby Digital 5.1, DTS-HD 5.1 from HDMI sources to optical
audio output and decode to 2 CHs analog stereo audio via RCA (L/R) and COAX
outputs without any other external equipment.
Content from multi-channel sources such as Blu-ray players, set-top boxes and game
consoles can be distributed to multi-channel and two-channel-capable zones
simultaneously, ensuring compatibility, reducing system complexity and eliminating the
expense of separate dedicated sources for each zone and you can listen to digital
audio sources such as DVD and CD players or digital computer audio on your legacy
analog sound system, preserving your current investment.
1.2 Features
Ultra-thin design.
Support 4K HDMI video source
HDCP2.2 compliant.
Any input HD source can do audio extract by the OPTICAL, RCA(L/R) and COAX.
Optical, Digital Coaxial and analog stereo audio outputs for connection to legacy
AVRs and systems without HDMI support.
Comprehensive audio format signal compatibility: LPCM, Dolby Digital 5.1,DTS-HD
5.1
Plug and play functionality and simplicity eliminates the need for any setup,
programming or configuration.
Transmit 4Kx2K signal for 15m via AWG24 HDMI cable
LED indicators show work status.

CON-AUDXTRACT
5 | Page
1.3 Packing List
1 x CON-AUDXTRACT
2 x Mounting Ears（with 2 Screws）
4 x Plastic Cushions
1 x Power Adapter (DC 12V 1A)
1 x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

CON-AUDXTRACT
6 | Page
2. Panel Description
2.1 Front Panel
No.
Name
Description
①
Power LED
Turns red when DC power present.
②
HDMI IN Activity LED
Green when HDMI signal input.
③
HDMI OUTActivity LED
Green when HDMI signal output.
④
Dolby Activity LED
Green when Dolby audio signal input.
⑤
DTS Activity LED
Green when DTS audio signal input.
⑥
DOWNMIX Activity LED
Green when the digital audio is decoded to PCM2.0 to
output via OPTICAL and COAX ports.
⑦
Bypass Activity LED
Green when the digital audio is allowed to pass
through to the OPTICAL and COAX output ports
without any decode operations.
⑧
SPDIF Activity Selector
Press this to select DOWNMIX or Bypass mode.
⑨
FW
Micro-USB port for firmware updating.
HDMIIN HDMIOUT Bypass SPDIFAudio
Downmix
FW
123 4 56789

CON-AUDXTRACT
7 | Page
2.2 Rear Panel
No.
Name
Description
①
HDMI IN
HDMI signal input.
②
HDMI OUT
HDMI signal output.
③
OPTICAL
Optical audio output.
④
COAX
Coaxial audio output.
⑤
L/R
RCA(L/R) audio output.
⑥
DC 12V
Power input port.
Note: Pictures shown in this manual are only for reference.
HDMI OUT OPTICAL COAX L RHDMI IN DC 12 V
123456

CON-AUDXTRACT
8 | Page
3. System Connection
3.1 Usage Precautions
Verify all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
All devices should be connected before power on.
3.2 System Diagram
Blu-Ray
HDBaseT Matrix
HDMI Audio Decoder
HDMI Audio Decoder
Amplifier TV Speaker
HDBaseT
Receiver
TV Speaker
Living Room
LivingRoom
BedRoom
Bed Room
HDMI O UT O PTICA L COAX L RHDMI I N DC 12V
HDMI O UT OP TICAL C OAX L RHDMI I N DC 12V

CON-AUDXTRACT
9 | Page
3.3 Connection Procedure
In the living room:
Step1.Connect a HDMI source (Blu-Ray) to HDMI input port of the HDBaseT Matrix
with HDMI cable.
Step2.Connect the HDMI output of HDBaseT Matrix to the HDMI IN port of the Audio
converter with HDMI cable.
Step3.Connect an HDMI display device to the HDMI OUT port of the Audio converter
with HDMI cable.
Step4.Connect an AV Amplifier to OPTICAL/COAX/RCAport of the Audio converter
with the corresponding audio cable.
Step5.Connect the CAT5e/6 cable between the HDBaseT Matrix and HDBaseT
Receiver.
In the Bed room:
Step1.Connect the HDBaseT Receiver to the HDMI IN port of the Audio converter with
HDMI cable.
Step2.Connect an HDMI display device (HDTV) to the HDMI OUT port of the Audio
converter with HDMI cable.
Step3.Connect a Speaker to OPTICAL/COAX/RCA port of the Audio converter with
the corresponding audio cable.
Step4.Plug power adaptors.

CON-AUDXTRACT
10 | Page
4. Specification
Input & Output
Input Signal
(1) HDMI
Input Connector
(1) Type A Receptacle
Output Signal
(1) HDMI; (1) OPTICAL; (1) COAX; (1) L/R;
OUTPUT Connector
(1) Type A Receptacle; (1) Toslink Receptacle;
(1) Black RCA Receptacle; (1) Red & White RCA
Receptacle;
General
Maximum Video Compatibility
Deep Color 8/10/12/16 Bit at 1080p and 2160p/60
HDMI Resolution
Up to 4Kx2K@60Hz
HDMI Embedded Audio
PCM ,Dolby Digital, Dolby TrueHD, DTS,DTS-HD
Decoded Audio
PCM2.0
HDMI Cable
≤15m AWG24 HDMI standard cable
Power Supply
Input: AC (50HZ, 60HZ) 100V-240V; Output:
DC12V/1A
Maximum Power Consumption
4.5W
Operating Temperature
-10 ~ +55℃
Storage Temperature
-20 ~ 70℃
Operating Humidity
10 ~ 90%
Storage Humidity
10 ~90%
Dimensions (W x H x D)
132mm X 22mm X 77mm
Weight
172g
Note:All nominal levels are at ±10%.

CON-AUDXTRACT
11 | Page
5. Panel Drawing
HDMIIN HDMIOUT Bypass SPDIFAudio
Downmix
FW
HDMIAudioDecoder
CON-AUDXTRACT
HDMIOUT OPTICAL COAX L RHDMIIN DC12 V
132 mm
77 mm
22 mm

CON-AUDXTRACT
12 | Page
6. Troubleshooting & Maintenance
Problems
Potential Causes
Solutions
Output images in
display show with ghost
Incorrect setting on the
display
Check the display’s setting
Acable of bad quality
Try another high quality
connection cable
No output image when
switching
No signal at the input / output
end
Check with oscilloscope or
multimeter if there is any
signal at the input / output
end.
Fail or loose connection
Make sure the connection
is good
The extender is broken
Send it to authorized
dealer for repairing.
Static becomes
stronger when
connecting the video
connectors
Bad grounding
Check the grounding and
make sure it is connected
well.
If your problem still remaining after following the above troubleshooting steps, please
contact your local dealer or distributor for further assistance.

CON-AUDXTRACT
13 | Page
7. Customer Service
The return of a product to our Customer Service implies the full agreement of the
terms and conditions hereinafter. There terms and conditions may be changed without
prior notice.
1) Warranty
The limited warranty period of the product is fixed three years.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) Warranty Exclusions:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
✓Normal wear and tear.
✓Use of supplies or parts not meeting our specifications.
✓No certificate or invoice as the proof of warranty.
✓The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
✓Damage caused by force majeure.
✓Servicing not authorized by distributor.
✓Any other causes which does not relate to a product defect.
Shipping fees, installation or labor charges for installation or setup of the
product.
4) Documentation:
Customer Service will accept defective product(s) in the scope of warranty
coverage at the sole condition that the defeat has been clearly defined, and upon
reception of the documents or copy of invoice, indicating the date of purchase, the
type of product, the serial number, and the name of distributor.
Remarks: For further assistance or solutions, please contact your local distributor.

CON-AUDXTRACT
14 | Page
8. Warranty
A. LIMITED WARRANTY
KanexPro ™warrants that (a) its products (the “Product”) will perform greatly in
agreement with the accompanying written materials for a period of 36 months (3 full
years) from the date of receipt and (b) that the product will be free from defects in
materials and workmanship under normal use and service for a period of 3 years.
B. CUSTOMER REMEDIES
KanexPro’s entire liability and Customer’s exclusive remedy shall be, at KanexPro
option, either return of the price paid for the product, or repair or replacement of the
Product that does not meet this Limited Warranty and which is returned to KanexPro
with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product
has resulted from accident, abuse, or misapplication. Any replacement Product will be
warranted for the remainder of the original warranty period of 3 years, whichever is
longer.
C. NO OTHER WARRANTIES
To the maximum extent permitted by applicable law, KanexPro disclaims all other
warranties, either express or implied, including, but not limited to implied warranties of
merchantability and fitness for a particular purpose, with regard to the product and any
related written materials. This limited warranty gives customers specific legal rights.
Customers may have other rights depending on the jurisdiction.
D. NO LIABILITY FOR DAMAGES
To the maximum extent permitted by applicable law, in no event shall KanexPro be liable
for any damages whatsoever (including without limitation, special, incidental,
consequential, or indirect damages for personal injury, loss of business profits, business
interruption, loss of business information, or any other pecuniary loss) arising out of the
use of or inability to use this product, even if KanexPro has been advised of the
possibility of such damages.

1405 pioneer street
Brea, CA92821
