KanexPro SDI-MULTI2SDIPRO User manual

1 | Page
SDI-MULTI2SDIPRO
Convert DVI-I, VGA, Component, S-video or Composite to 3G/HD/SD-SDI & HDMI
User manual
Rev1.0

KANEXPRO SDI-MULTI2SDIPRO
2 | Page
Content
Introduction............................................................................... 3!
Feature ................................................................................... 3!
Front Panel............................................................................... 4!
Rear Panel ............................................................................... 5!
Side Panel................................................................................ 5!
DipSwitch/LED Control ................................................................. 6!
Installation...............................................................................12!
Package Contents......................................................................12!
Specifications ...........................................................................13!
Firmware Upload .......................................................................14!
Appendix Table A ......................................................................16!
Update List ..............................................................................17!
Warranty.................................................................................17!

KANEXPRO SDI-MULTI2SDIPRO
3 | Page
Introduction
The KanexPro multi-cast cross converter provides multiple input conversions from
HDMI, DVI-I, VGA, Component, to 3G/HD/SD-SDI & HDMI. It packs a powerful up
and down video scaler supporting a bank of resolutions up to 1080p60/59.94Hz
and 1080p/29.97Hz.
Feature
•Convert Digital / Analog video to SDI & HDMI
•Powerful up/ down converter scaler
•Built-in anti – aliasing & 3D De-interlace
•Built-in test pattern generator
•Added DIP switch settings for various video resolutions
•Allows region of interest (ROI) – for annotation & quantitative information
•Simultaneous output to 2 x SDI & 1x HDMI
•Audio embedder supports output up to 8Ch/24Bit@48KHz
•Mini –USB port for firmware update
•Locking power supply & mounting ears
•Compact & ruggedized design makes perfect mobile broadcasting hardware

KANEXPRO SDI-MULTI2SDIPRO
4 | Page

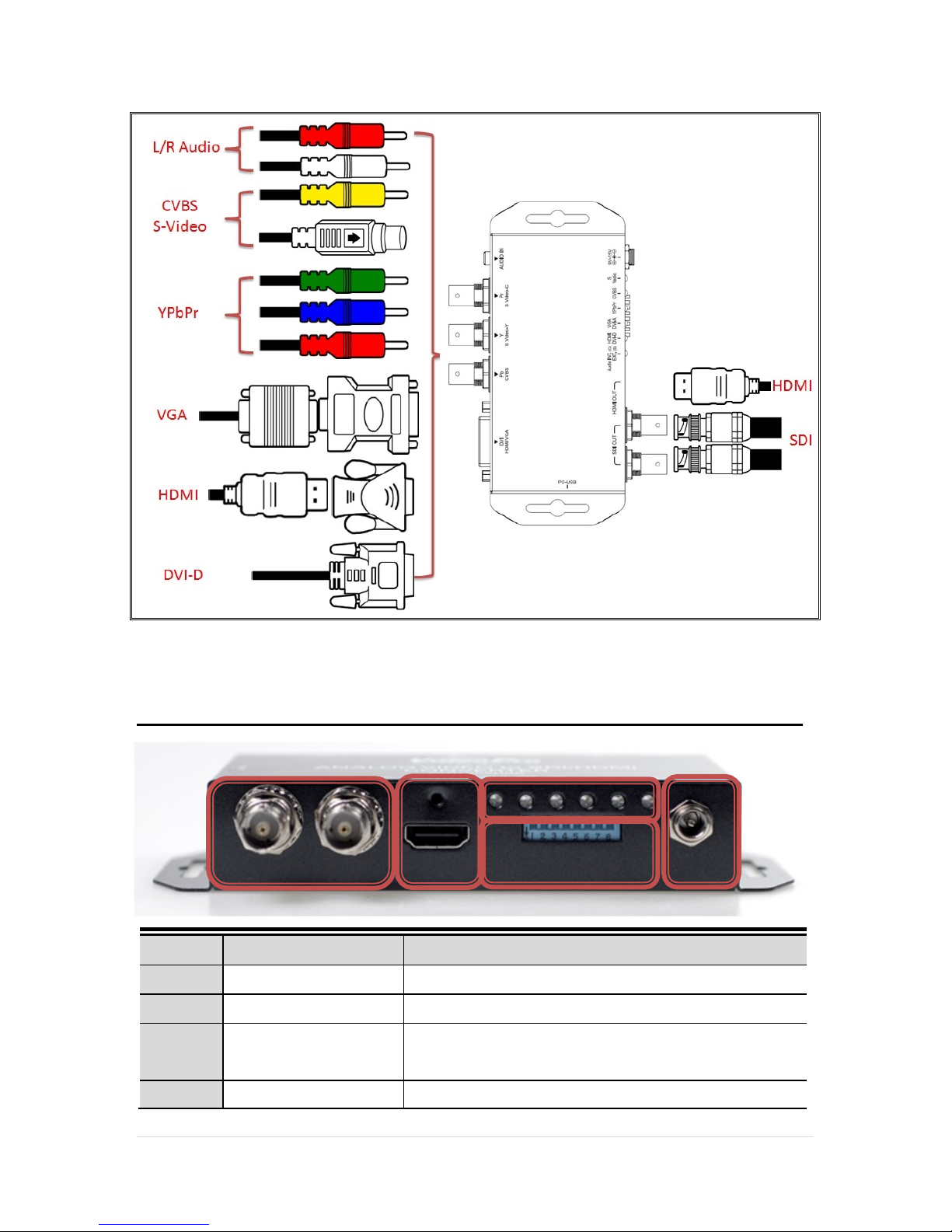

Front Panel
NO
Component
Function
1
SDI Output Port
Plug your SDI displays into these ports
2
HDMI output Port
Plug your HDMI display port into this port
3
Input Port/ Audio
source LED
The LEDs would indicate Input Ports and
Audio Source
4
Dipswitch
Control the Box ( Input Port/Audio/Output
1
5
2
3
4

KANEXPRO SDI-MULTI2SDIPRO
5 | Page
Format)
5
Power Jack
The Power adapter plug into here
Rear Panel
NO
Component
Function
1
Phone Jack
From you Audio Device plug into this port
2
Component/CVBS/S-Video
Input Port
From your YPbPr/CVBS/S-Video Device
plug into this port
3
DVI-D/DVI-A Input Port
From your DVI-D/DIV-A Device plug into
this port
Side Panel
NO
Component
Function
1
USB Port
Upgrade firmware/Control Box From PC
1
3
2
1

KANEXPRO SDI-MULTI2SDIPRO
6 | Page

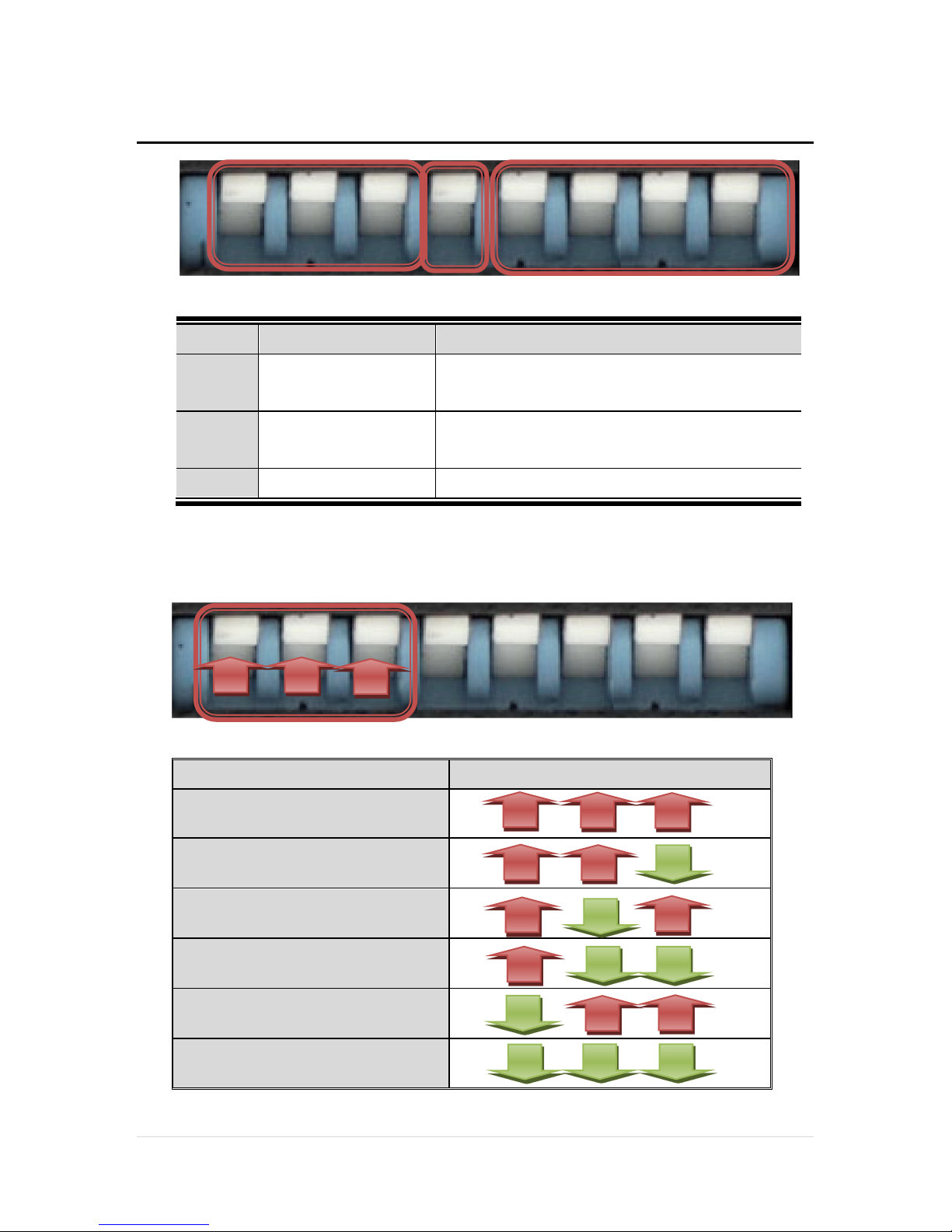

Dip Switch/LED Control
NO
Component
Function
1
Input Source
Five of kinds input source be support
( DVI-D/DV-A/YPbPr/CVBS/S-Video)
2
Audio Source
Two of kinds Audio input source
(Embedded audio/L/R Audio)
3
Output format
Control Box to switch Output Format.
uInput Source:
VPC-MX1 Box can choose one of three standard inputSource by DipSwitch.
Input Source
Dipswitch Indicates
DVI-D(HDMI)
DVI-A(VGA)
YPbPr
CVBS
S-Video(YC)
USB Control
1
2
3

KANEXPRO SDI-MULTI2SDIPRO
7 | Page

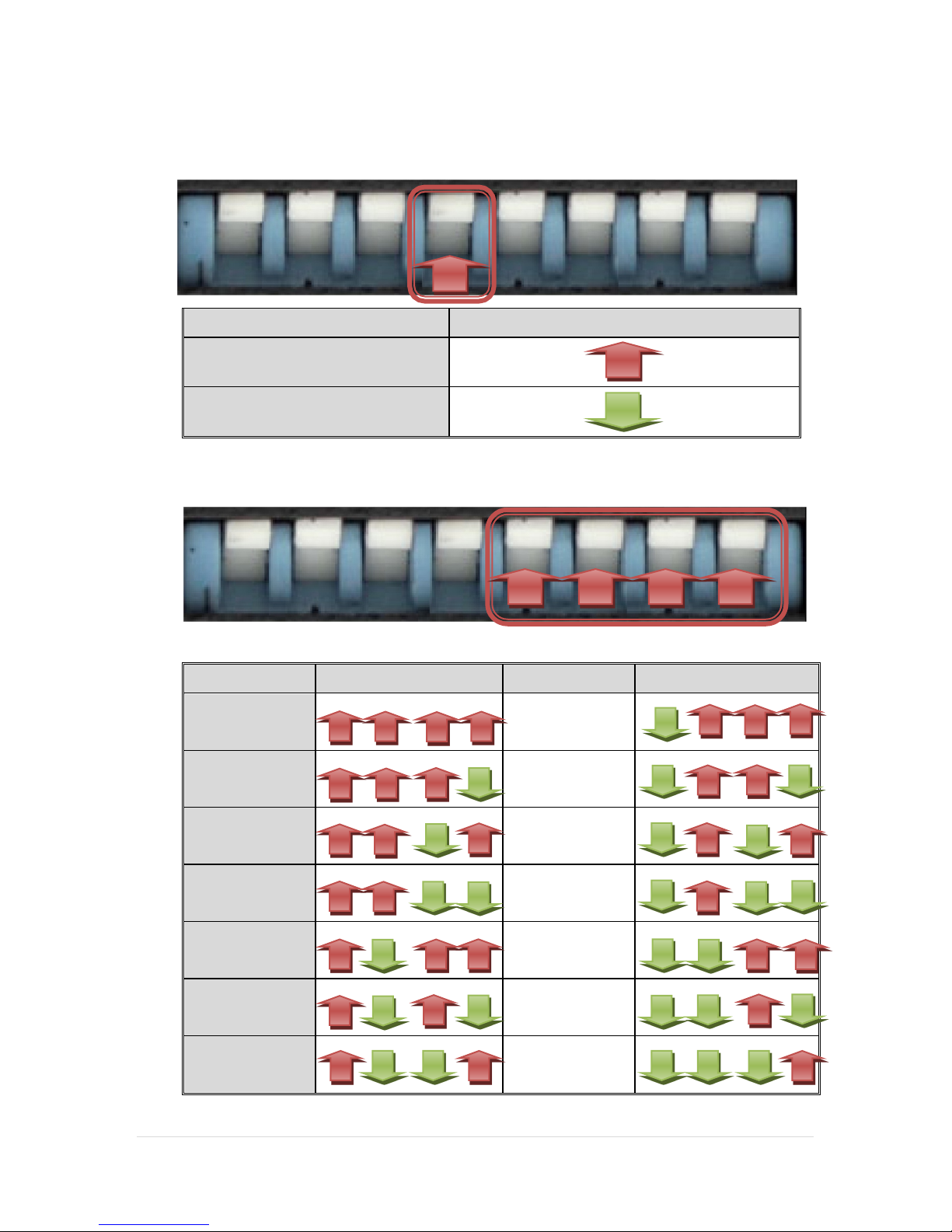

uAudio Source:
VPC-MX1 Box can be select audio source from L/R Audio.
Resolution
Dipswitch Indicates
Internal (Default)
L/R Audio
uOutput Format:
VPC-MX1box can be select 16 of kinds output format.
Resolution
Dipswitch Indicates
Resolution
1920x1080p6
0
1920x1080i6
0
1920x1080p5
9
1920x1080i5
9
1920x1080p5
0
1920x1080i5
0
1920x1080p3
0
1280x720p60
1920x1080p2
9
1280x720p59
1920x1080p2
5
1280x720p50
1920x1080p2
4
720x480i59

KANEXPRO SDI-MULTI2SDIPRO
8 | Page
1920x1080p2
3
720x576i50
uLED Indicate:
NO
Component
Function
1
Internal/L/R Audio
The LED is indicate Audio Source
indicate
2
DVI-D(HDMI)
The LED is indicate DVI-D Signal
indicate
3
DVI-A(VGA)
The LED is indicate DVI-A Signal
indicate
4
YPbPr
The LEDs is indicate YPbPr Signal
indicate
5
CVBS
The LED is indicate CVBS Signal
indicate
6
S-Video
The LEDs is indicate S-Video Signal
indicate
1
6
2
3
4
5

KANEXPRO SDI-MULTI2SDIPRO
9 | Page
1. DVI-D + L/R Audio:
DVI-D + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
●
○
○
○
○
Un-locked
●
○
○
○
○
MicroVision
●(Blinking)
○
○
○
○

KANEXPRO SDI-MULTI2SDIPRO
10 | Page
2. DVI-A+ L/R Audio:
DVI-A + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
●
○
○
○
Un-locked
○
●
○
○
○
3. YPbPr + L/R Audio:
YPbPr + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
○
●
○
○
Un-locked
○
○
●
○
○

KANEXPRO SDI-MULTI2SDIPRO
11 | Page

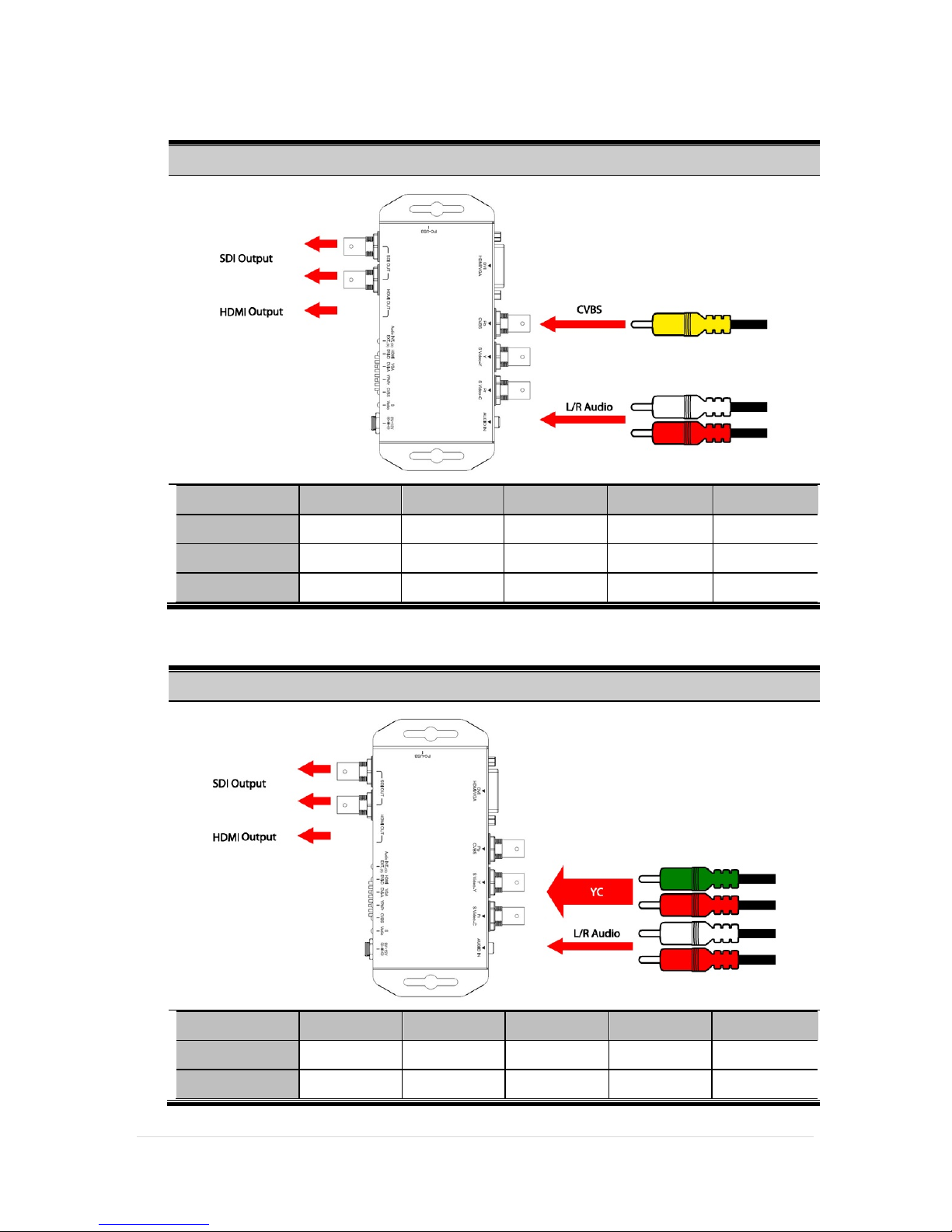

4. Composite (CVBS) + L/R Audio:
Composite(CVBS) + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
○
○
●
○
Un-locked
○
○
○
●
○
MicroVision
○
○
○
●(Blinking)
○
5. S-VIDEO + L/R Audio
Composite(CVBS) + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
○
○
○
●
Un-locked
○
○
○
○
●

KANEXPRO SDI-MULTI2SDIPRO
12 | Page
MicroVision
○
○
○
○
●(Blinking)
6. Audio Select:
DVI-D + L/R Audio
Internal Audio
●
L/R Audio
●
Installation
SDI-MULTI2SDIPRO installation consists of the following:
1. Disconnect 12v DC adaptor to converter.
2. Connect Video Source to the Input Connector.
3. Connect Display Equipment to the output’s connector
4. Connect the 12v DC adaptor to the converter.
Package Contents
The SDI-MULTI2SDIPRO package contains the following items:

KANEXPRO SDI-MULTI2SDIPRO
13 | Page
lUser Manual x 1
l12v DC Adapter x 1
lSDI-MULTI2SDIPRO Converter x 1
Specifications
DESCRIPTION
SDI-MULTI2SDIPRO
SDI Format
SD-SDI, HD-SDI & 3G-SDI
SDI Transition Rate
2.970Gb/s, 1.0485Gb/s and 270Mb/s
Audio Support
HDMI(DVI-D) : 8-Channel
L/R Audio :a. only 2 channel and splitter to 8
channel (HDMI/SDI out)
b. Input impedance = 10K.
c. max input level(Vrms) = 10dBV (9V p-p), or 3.16
Vrms.
Re-Sample Clock
Auto Resample audio clock to 48Khz
Coaxial Cable Type
RG6/RG59(75Ω)
Cable Equalization
3G: 100m of RG6/ 86m of RG59
HD: 170m of RG6/ 120m of RG59
SD: 400m of RG6/ 280m of RG59
*1 RG6: CANARE L-5CFB Cable / RG59: Belden 9275 Cable
*2 Cable Length Performance: Depending on SDI Signal and
Cable Quality
Input Source
HDMI/VGA/YPbPr/CVBS/S-Video
Output Source
2 X SDI + 1 x HDMI (the same time)
Input Format Support
Appendix Table A
Output Format Support
Appendix Table A
Firmware Updates
Via Mini-USB
Output Connector
2 x BNC [SDI]
1 x HDMI
Input Connector
1 x BNC [SDI]
1 x DVI-I [DVI-D + DVI-A]
3 x BNC [YPbPr or YC + CVBS ]
1 x Phone Jack

KANEXPRO SDI-MULTI2SDIPRO
14 | Page
BNC Connector
3G 75 Ωinter-locked socket
USB Connector
Mini-USB
Dipswitch
Output Format/Audio Source/Input Source
Housing
SECC
Dimension
L:153mm x W:63.3mm xH:26mm
Power Source
Power Adapter: AC 100 ~ 240 V/DC (+9 ~ 15 V)
Operation Temperature
0~50°C [32~114°F]
Storage Temperature
-20~+60°C
Firmware Upload
Firmware is upgradable in the field using the integrated USB port
How to Firmware upgrade:

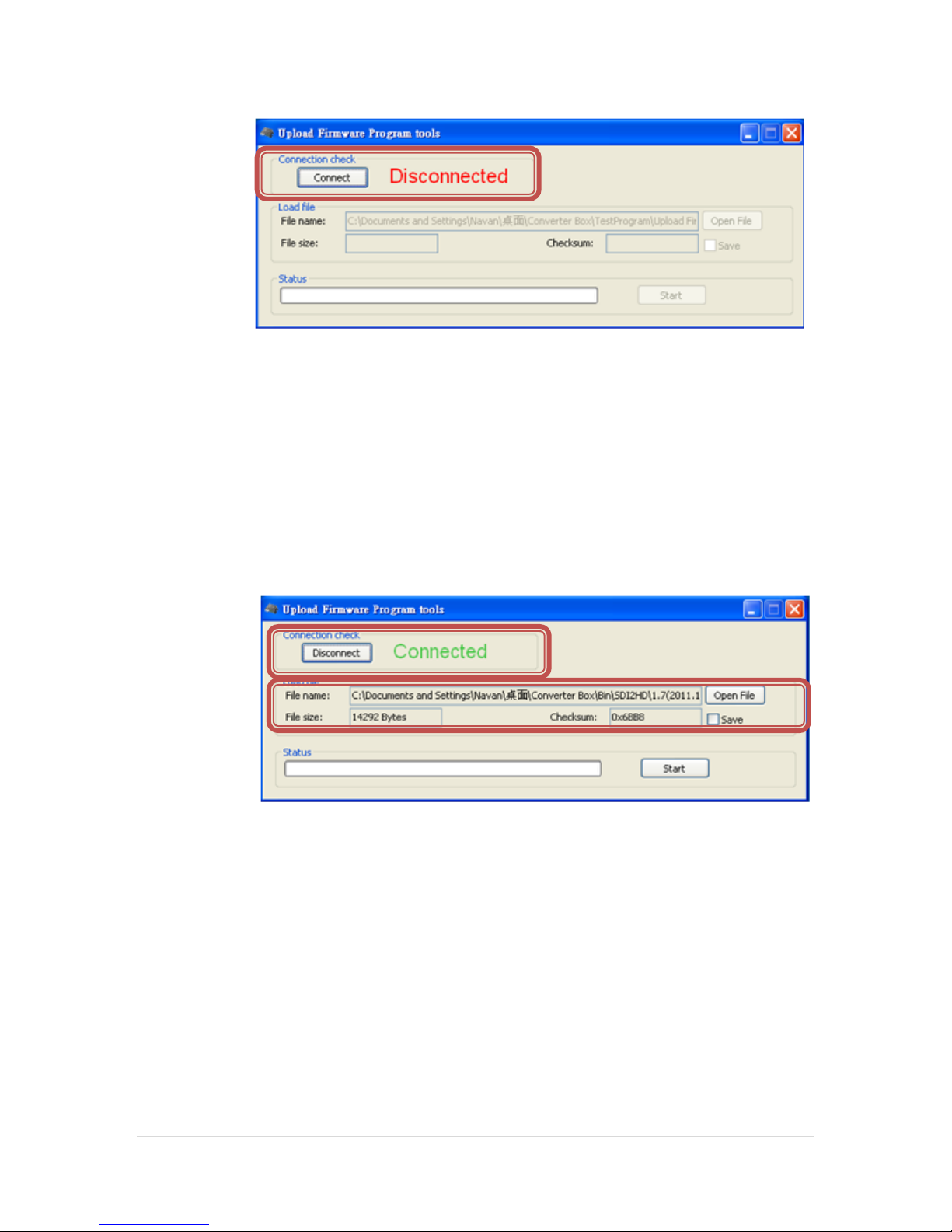

Step 1.
Open Upload Firmware Program tools.exe and connect box to PC by
USB Cable.
Step 2.
Plug and un-plug “DC adapter” to power on/off the converter box (the
connection check status will be changed to “Connect”)

KANEXPRO SDI-MULTI2SDIPRO
15 | Page

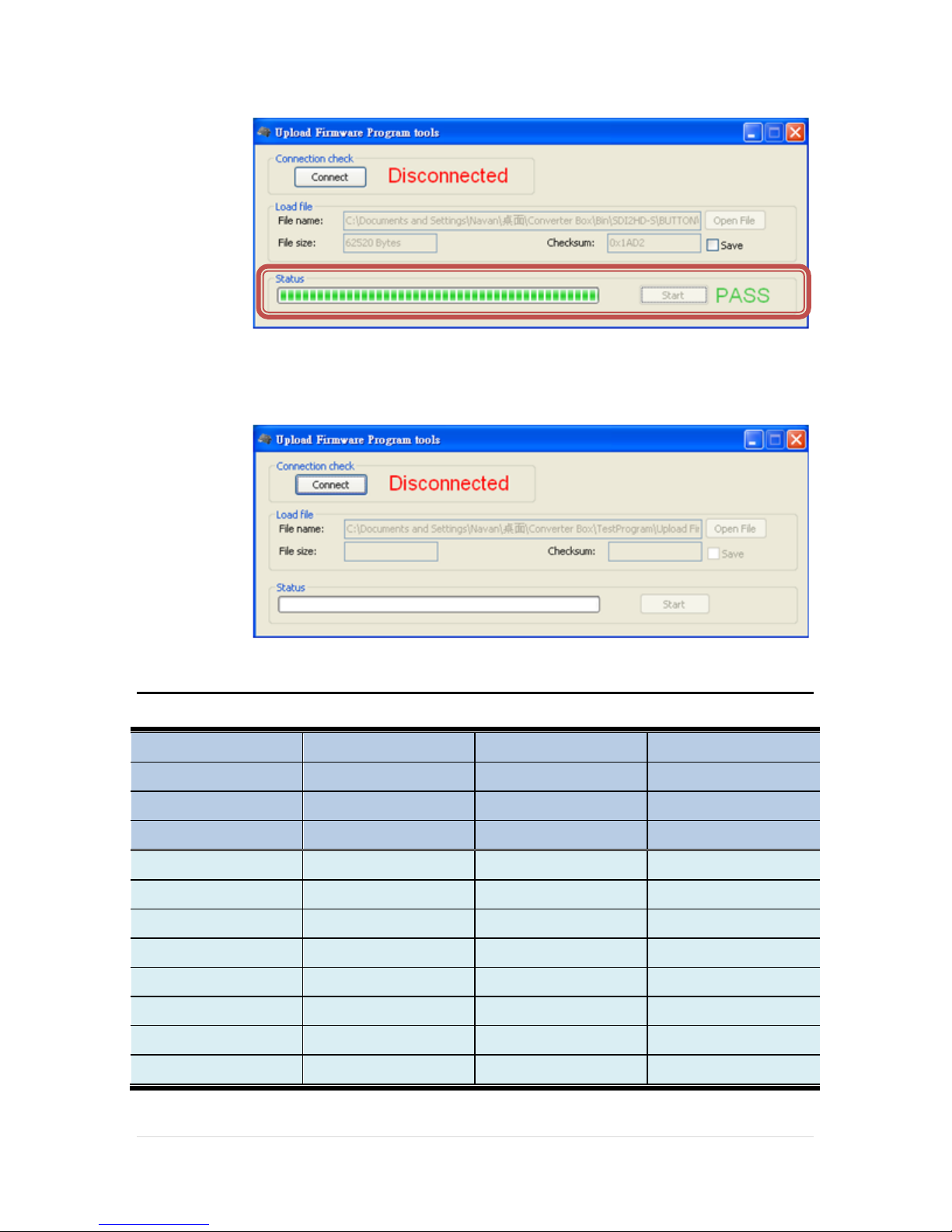

Step 3.
Plug and un-plug “DC adapter” again (the connection check status will be
changed to “Connected”) and Please click the Open File button to select
the firmware bin file.
Step 4.
Please click “Start’ Button to proceed with new firmware programming.
The PASS message will appear when the procedures finished.

KANEXPRO SDI-MULTI2SDIPRO
16 | Page
Step 5.
Close Upload Firmware Program tools
Appendix Table A
Support Input Format:
720x480i60
720x576i50
720x480 p60
720x576 p50
1280x720p60
1280x720p50
1920x1080i60
1920x1080i50
1920x1080p24
1920x1080p25
1920x1080p30
1920x1080p60
1920x1080p50
640x350p85
640x400p85
720x400p85
640x480p60
640x480p72
640x480p75
640x480p85
800x600p56
800x600p60
800x600p72
800x600p75
800x600p85
848x480p60
1024x768p50
1024x768p59
1024x768p60
1024x768p70
1024x768p75
1024x768p85
1152x864p70
1152x864p75
1280x768pRB
1280x768p60
1280x768p75
1280x768p85
1280x800p60
1280x800p75
1280x800p85
1280x960p60
1280x960p75
1280x960p85
1280x1024p60

KANEXPRO SDI-MULTI2SDIPRO
17 | Page
1280x1024p75
1280x1024p85
1360x768p60
1366x768p50
1366x768p60
1400x1050p50
1400x1050p59
1400x1050p60
1400x1050p75
1440x900p60
1440x900p75
1440x900p85
1600x1200p50
1600x1200p59
1600x1200p60
1600x1200pRB
1680x1050pRB
1680x1050p60
1920x1200pRB
2048x1052p60
2048x1080p50
2048x1080p59
2048x1080p60
Support Output Format:
HDMI Mode
720x480 i60
720x480 i59.94
720x576 i50
1280x720 p60
1280x720 p59.94
1280x720 p50
1920x1080 i60
1920x1080 i59.94
1920x1080 i50
1920x1080 p60
1920x1080 p59.94
1920x1080 p50
1920x1080 p30
1920x1080 p29.97
1920x1080 p25
1920 x 1080 p24
1920 x 1080 p23.98
Update List
Data
Version
Command
2014.11.11
V1.0
1. Release
Warranty
A. LIMITED WARRANTY
KanexPro ™ warrants that (a) its products (the “Product”) will perform greatly in
agreement with the accompanying written materials for a period of 36 months (3
full year) from the date of receipt and (b) that the product will be free from defects
in materials and workmanship under normal use and service for a period of 3
years.

KANEXPRO SDI-MULTI2SDIPRO
18 | Page
B. CUSTOMER REMEDIES
KanexPro entire liability and Customer’s exclusive remedy shall be, at KanexPro
option, either return of the price paid for the product, or repair or replacement of
the Product that does not meet this Limited Warranty and which is returned to
KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure
of the Product has resulted from accident, abuse, or misapplication. Any
replacement Product will be warrantied for the remainder of the original warranty
period of 1 year, whichever is longer.
C. NO OTHER WARRANTIES
To the maximum extent permitted by applicable law, KanexPro disclaims all other
warranties, either express or implied, including, but not limited to implied
warranties of merchantability and fitness for a particular purpose, with regard to
the product and any related written materials. This limited warranty gives
customers specific legal rights. Customers may have other rights depending on
the jurisdiction.
D. NO LIABILITY FOR DAMAGES
To the maximum extent permitted by applicable law, in no event shall KanexPro
be liable for any damages whatsoever (including without limitation, special,
incidental, consequential, or indirect damages for personal injury, loss of business
profits, business interruption, loss of business information, or any other pecuniary
loss) arising out of the use of or inability to use this product, even if KanexPro has
been advised of the possibility of such damages.
Brea, California
KanexPro.com
