kansai FX SERIES User manual

INSTRUCTION
Industrial Sewing Machines
First published : May 1997
Fourth edition : January 2006
No. 050153

INTRODUCTION
Thank you for your purchasing Kansai Special's FX Series.
Read and study this instruction manual carefully before beginning any of the
procedures and save it for later use.
1. This instruction manual describes adjustments and maintenance procedures on this
machine.
2. Before starting the machine, check to make sure the pulley cover, safety cover, etc.
are secured.
3. Before adjusting, cleaning, threading the machine or replacing the needle, be sure to
turn off the power.
4. Never start the machine with no oil in the reservoir.
5. Refer to the parts list as well as this instruction manual before maintenance.
If the machine includes a thread trimmer, read and study the instruction manual for
the thread trimmer carefully.
6. The contents described in this instruction manual are subject to change without
notice.

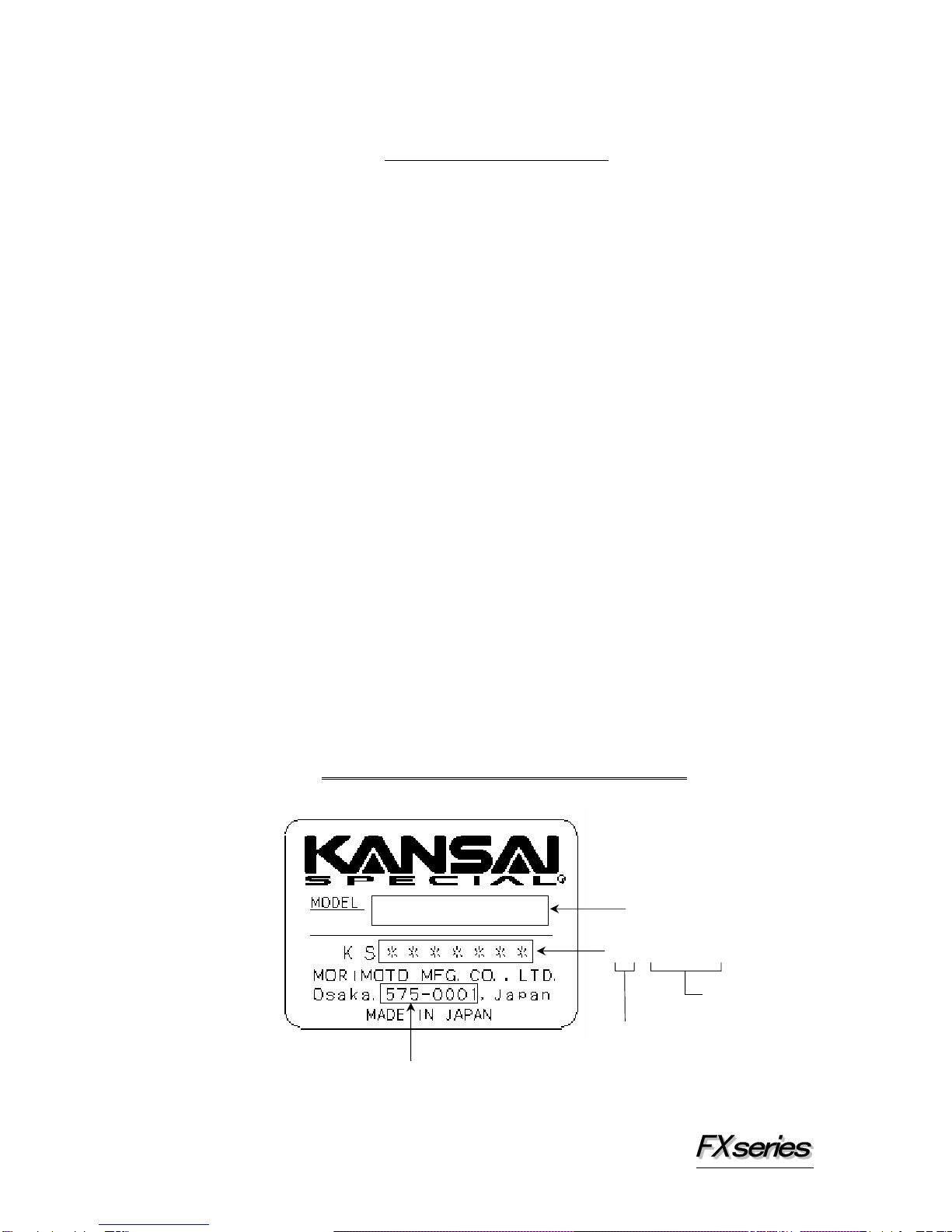

Indication of serial number
Zip code
Model
0 6 0 0 0 0 1
Serial number
The date of manufacture

CONTENTS
1. SPECIFICATIONS
1-1 Stitch type ···············································1
1-2 Models ····················································1
1-3 Diagrammatic sketch of the Series ··············1
2. NEEDLES & THREADING THE MACHINE
2-1 Needles ···················································2
2-2 Replacing the needle ·································2
2-3 To thread the machine ······························2
3. MACHINE SPEED
3-1 Machine speed & direction in which the machine
pulley runs ··············································6
3-2 Motor & belt ············································6
4. LUBRICATION
4-1 Oil ·························································7
4-2 To fill the machine with oil ························7
4-3 Replacing the oil and the oil element ···········7
5. SEWING MACHINE INSTALLATION
5-1 Cutting the machine table ·························8
5-2 How to install the machine ························9
6. TIMING OF THE LOOPER TO THE NEEDLES
6-1 positioning the looper and the looper rocker 10
6-2 Looper left-to-right movement ·················· 10
6-3 Looper setting distance ··························· 11
6-4 Needle height ········································ 11
7. TIMING OF THE RETAINER LOOPER
7-1 Installing the retainer looper ··················· 12
7-2 Timing of the retainer looper to the needle · 12
8. ADJUSTING THE NEEDLE GUARD
8-1 Position of the needle guard ····················· 12
9. ADJUSTING THE FEED DOG & STITCH LENGTH
9-1 Feed dog height & tilt ····························· 13
9-2 Stitch length ·········································· 13
10. ADJUSTING THE PRESSER FOOT
10-1 Presser foot pressure ·····························14
10-2 Position of the presser foot and foot lift ·····14
11. ADJUSTING THE REAR PULLER DEVICE
11-1 Manual lever and position of the stopper····15
11-2 To adjust the puller pressure ··················15
11-3 To adjust the feeding amount of the rear puller
····························································15
12. ADJUSTING THE STITCH FORMATION
12-1 Thread tension adjustment ·····················16
12-2 Position of the needle thread eyelet ··········16
12-3 To adjust the needle thread guard ···········16
12-4 Position and timing of the looper thread take-up
eyelet ··················································17
13. CLEANING THE MACHINE ···················17

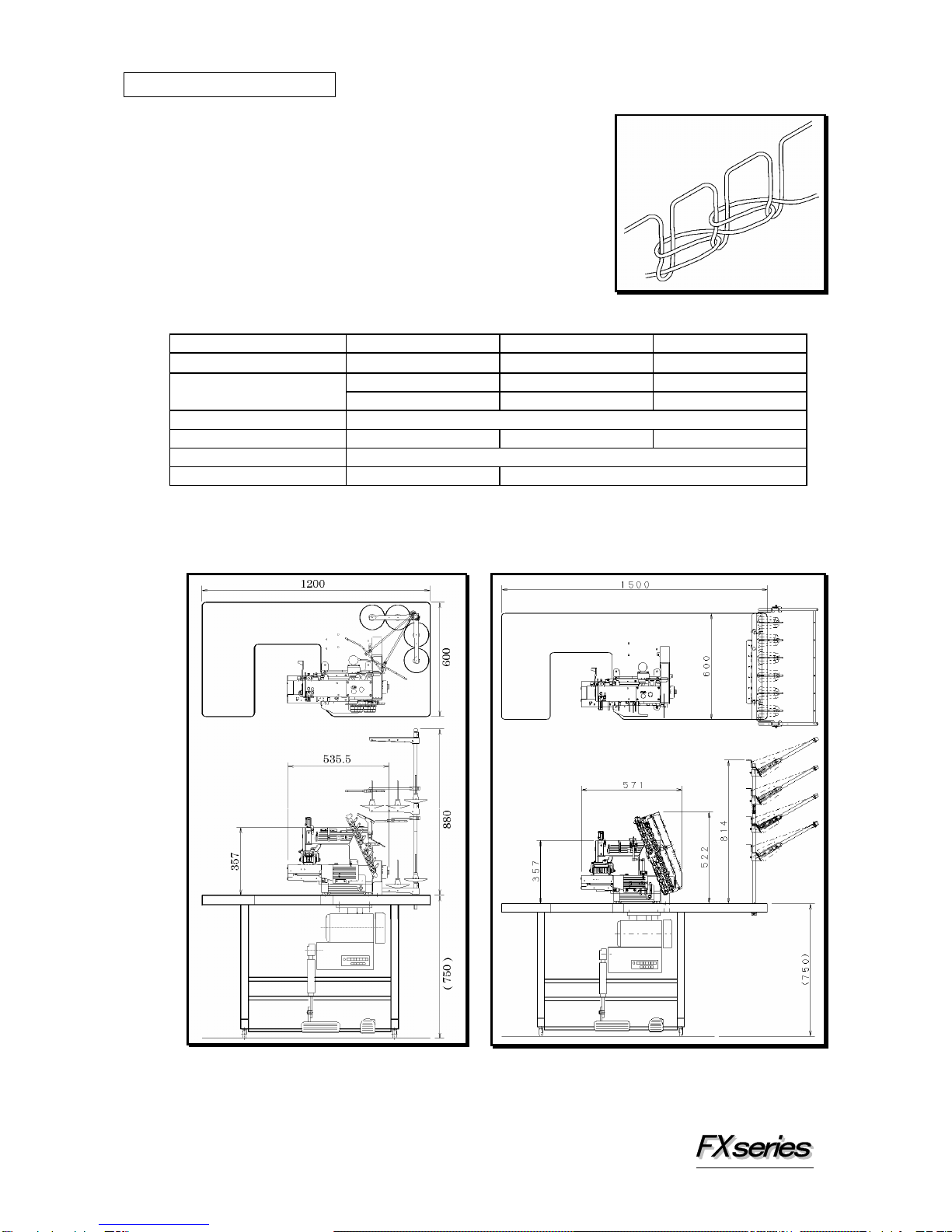

【1】SPECIFICATIONS
1-1 Stitch type
JIS401 double chainstitch machines
1-2 Models
Model FX4404P,4404P/UTC FX4406P,4406P/UTC FX4412P,4412P/UTC
No. of needles 2〜4 5〜6 7〜12
4 needle threads 6 needle threads 12 needle threads
No. of threads 4 looper threads 6 looper threads 12 looper threads
Type of tension set Mounted type
Puller width 55mm 78mm 78mm
Minimum gauge width 3.2mm (1/8 inch)
Maximum gauge width 50mm 70mm
1-3 Diagrammatic sketch of the Series
< FX4404 > < FX4412 >
1

【2】NEEDLES & THREADING THE MACHINE

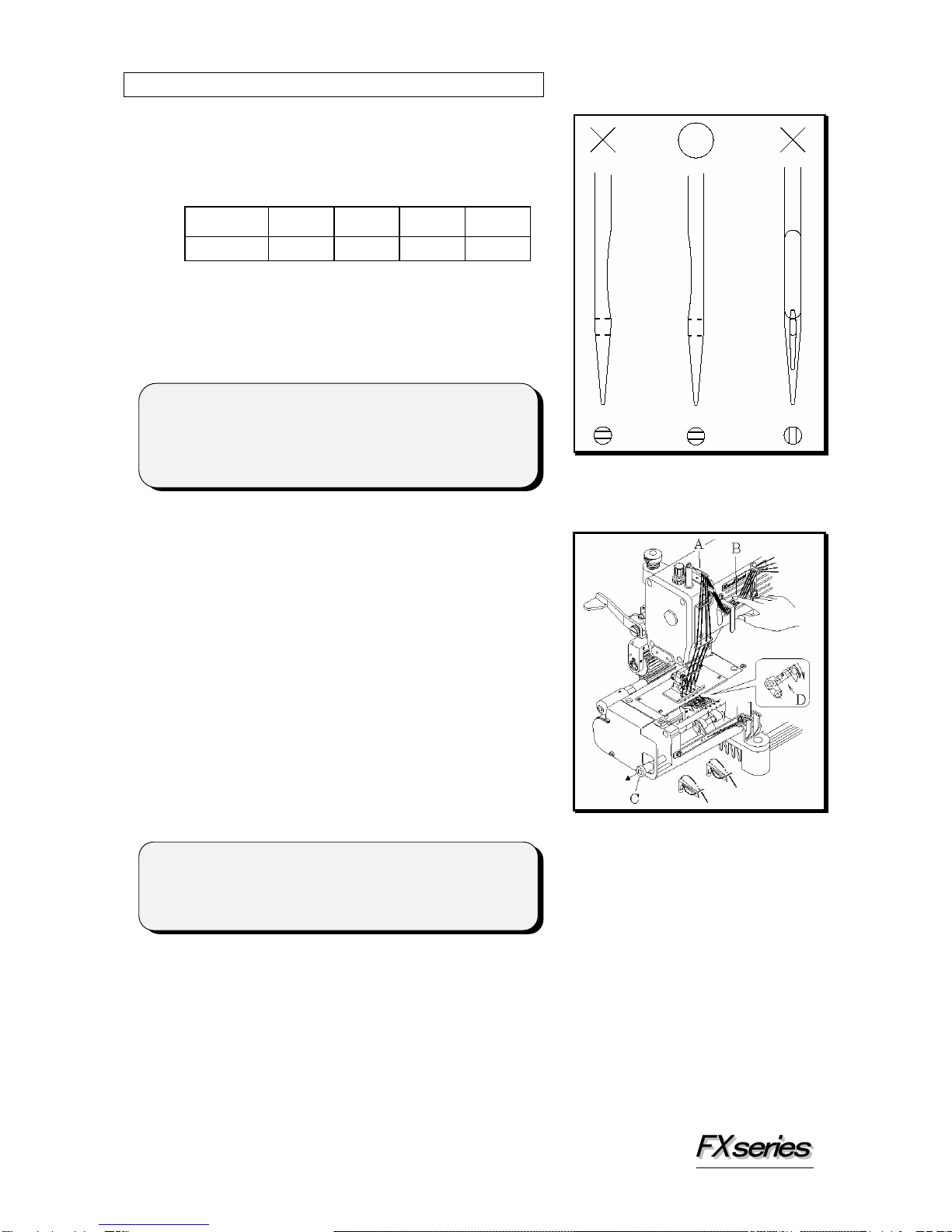

2-1 Needles
DV×57 of Schmetz or Organ.
Select the proper needle for the fabric and thread to
be used.
< Needle count comparison table >
Schmetz Nm75 Nm80 Nm90 Nm100
Organ #11 #12 #14 #16
2-2 Replacing the needle
When replacing the needle, check the needle
carefully to see that the scarf is turned to the left
(see the illustration).
2-3 To thread the machine
Thread the machine correctly by referring to pages 3
to 5. Incorrect threading may cause skip stitching,
thread breakage and/or uneven stitch formation.
When threading the looper, tilt the looper holder
toward the front of the machine using the looper
drawing bar.
■To tilt the looper toward the front
1. Bring needle bar A to the top of its stroke.
2. Pay out the needle thread from the spool by
pressing a finger down on needle threads B.
3. Pull looper drawing bar knob C out to the left so
that the looper holder is tilted toward the front
of the machine.
4. After the machine is threaded, replace the
looper by pressing looper holder D into the
machine until it clicks.
< Note >
Be sure to turn off the machine before replacing the
needle. A clutch motor continues running for a while
after the machine is turned off. Therefore keep on
pressing the pedal until the machine stops.
< Note >
The looper pops out of the machine as soon as knob C
is pulled, so do not bring your fingers close to the
looper.
2

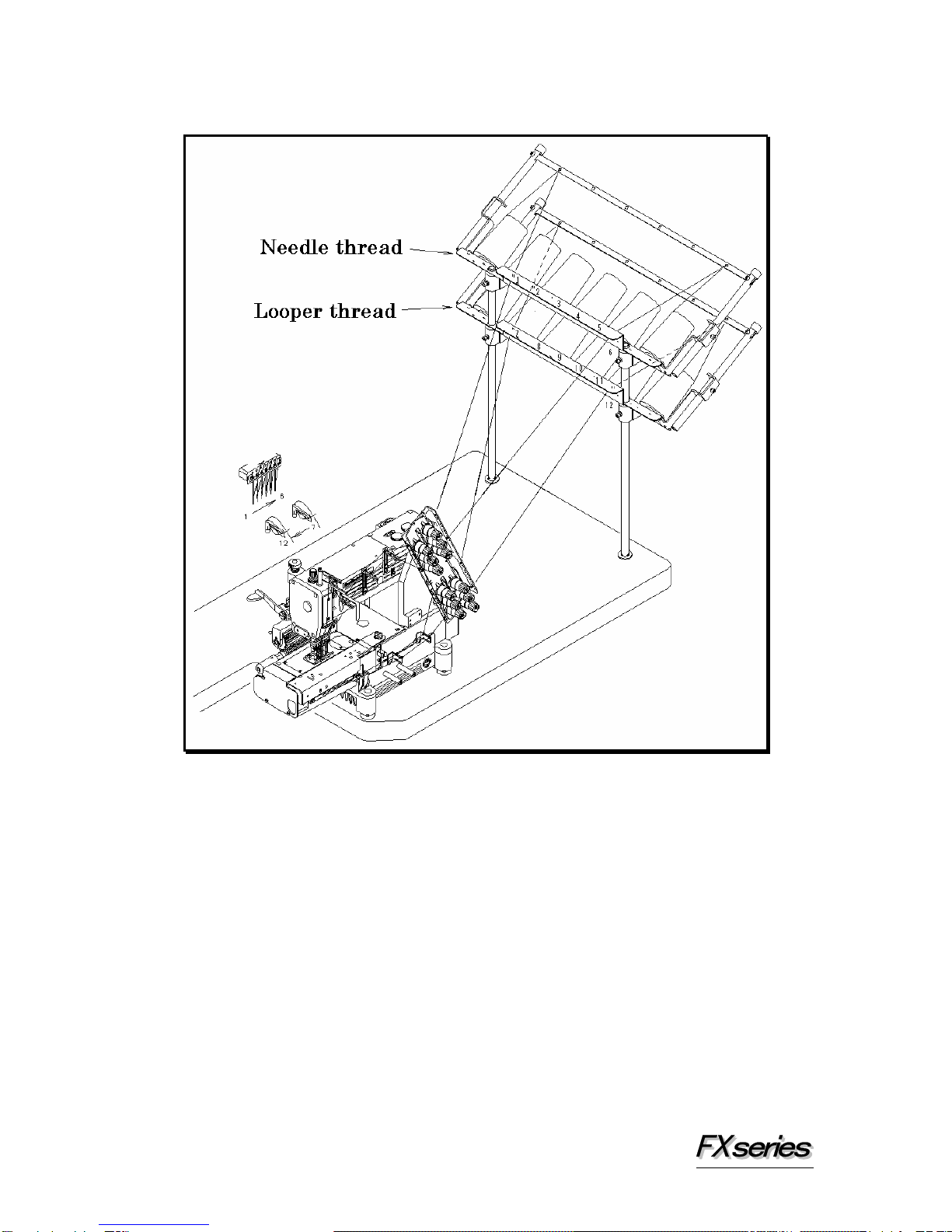

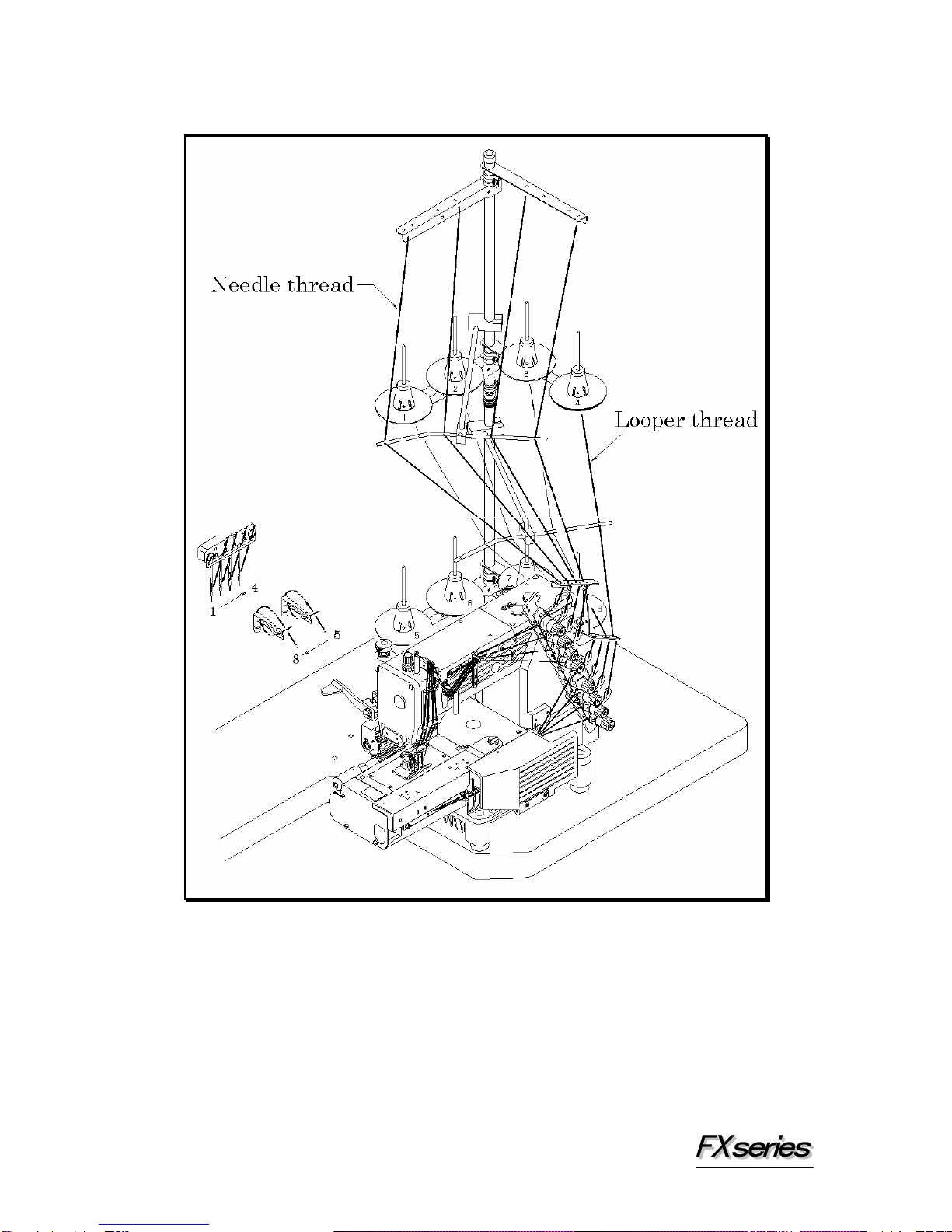

■Threading diagram for FX4404
3

■Threading diagram for FX4406
4

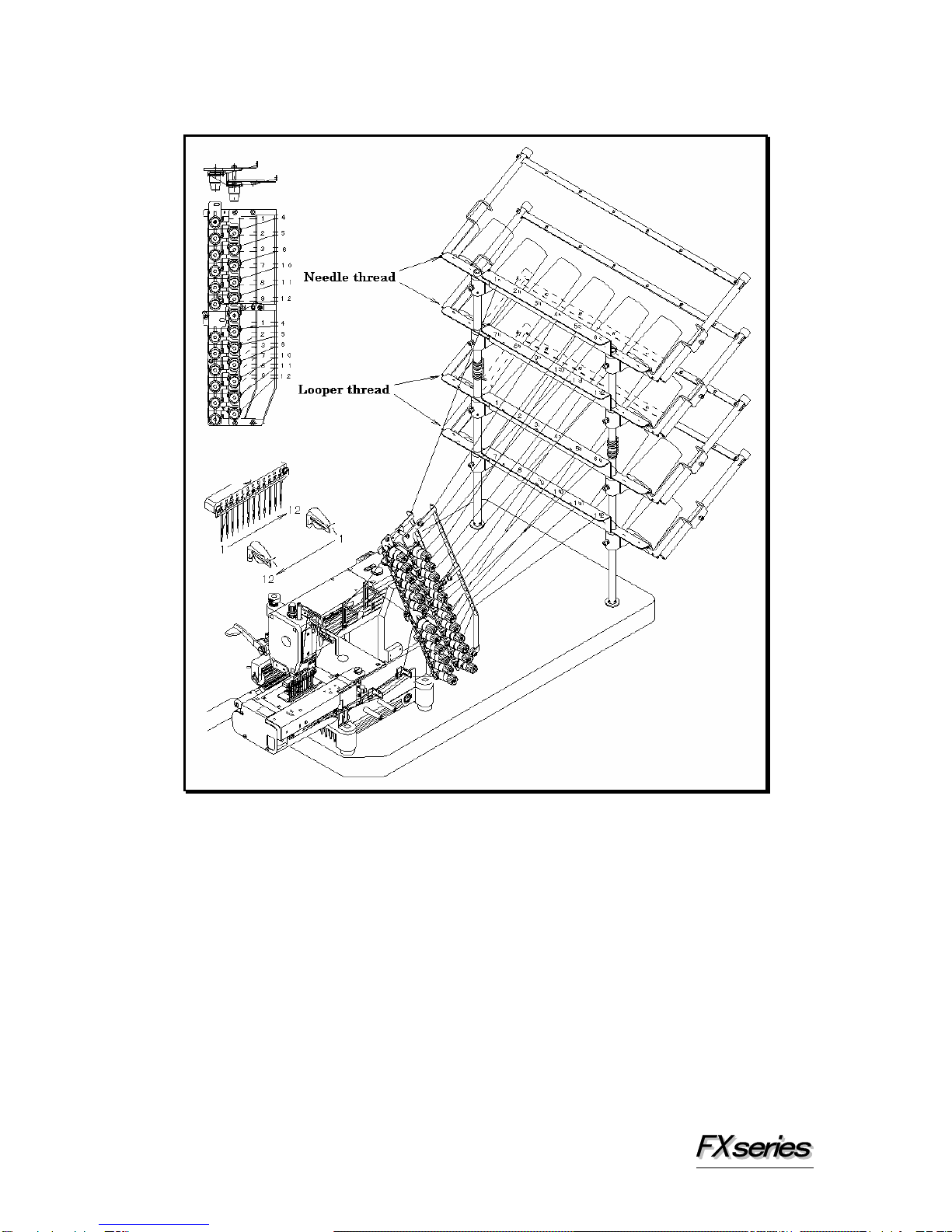

■Threading diagram for FX4412
5

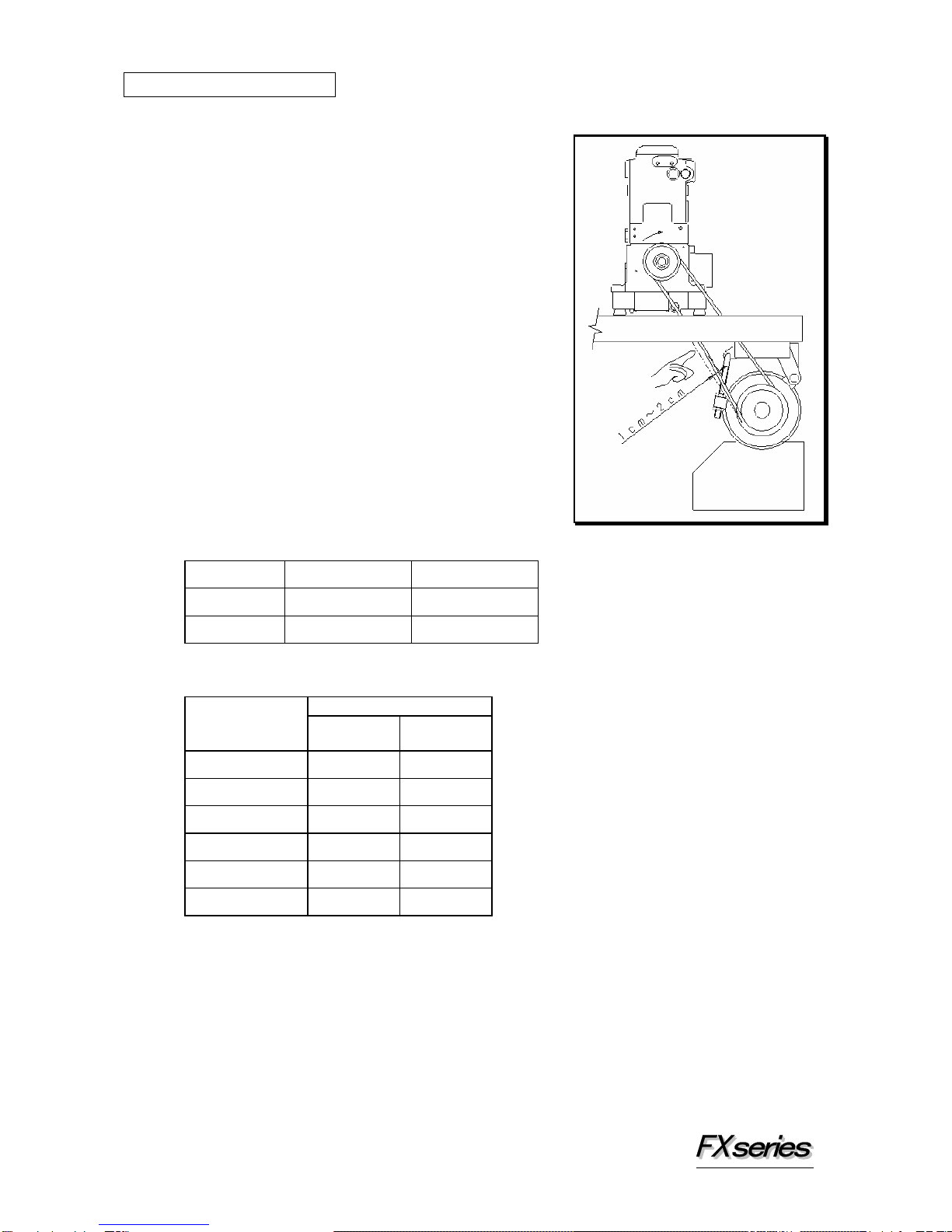

【3】MACHINE SPEED
3-1 Machine speed & direction in which the machine pulley runs
Refer to the table below for maximum and standard
speeds of the Series. To extend machine life, run
the machine approximately 15-20% below the
maximum speed for the first 200 hours of operation
(approx. 1 month). Then run the machine at the
standard speed. The machine pulley turns
clockwise as seen from the end of the machine
pulley.
3-2 Motor & belt
Motor : 3-phase, 2-pole, 400W clutch motor
Belt : M type V belt
Select the proper motor pulley according to the
machine speed (refer to the motor pulley outer
diameter on the table below).
Adjust the position of the motor by pressing the
finger onto the middle of the belt so that 1~2cm
deflection can be achieved (see the illustration on
the right).
< Machine speed >
Model Maximum speed Standard speed
FX4404P 4500 4000
FX4412P 4000 3500
< Motor pulley selection table >
Machine speed (SPM)Motor pulley
outer diameter
(mm) 50Hz 60Hz
60 3150 2950
70 2300 3450
80 3300 3900
90 3700 4400
100 4100 (4900)
110 4500 (5400)
6

【4】LUBRICATION
4-1 Oil
Use Kansai Special’s genuine oil.
(Part No. 28-613 : 1000 cc)

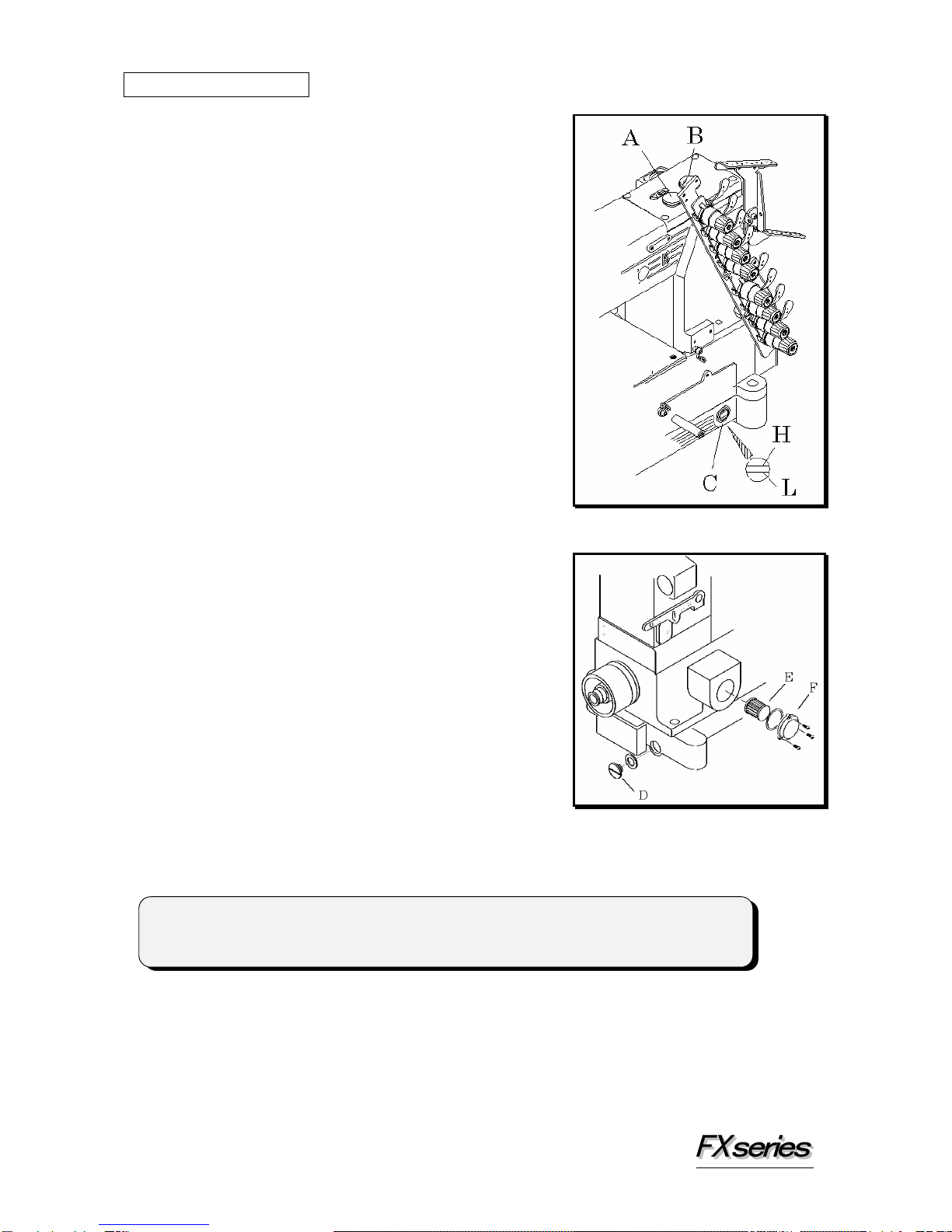

4-2 To fill the machine with oil
Remove rubber plug A from the oil hole.
Fill the machine with oil until the oil level is at the
top line (see H in the illustration) on oil gauge C.
After the first lubrication, add oil so that the oil
level will be between H and L.
After filling the machine with oil, run the machine
to check the oil is splashing onto oil pot A.
4-3 Replacing the oil and the oil element
To extend machine life, be sure to replace the oil
after the first 250 hours of operation.
To replace the oil, follow the procedures below.
1. Remove the V belt from the motor pulley and
then remove the machine from the table.
2. Remove screw D and then drain the oil.
Be careful not to stain V belt with the oil.
3. After draining the oil, be sure to tighten screw
D.
4. Fill the machine with oil by referring to 4-2
shown above.
If element E is contaminated, proper oiling may not be performed.
Clean the filter element every six months. If just a little or no oil flows out from the
nozzle with the proper amount of oil in the machine, check the element.
To do so, remove oil filter cap F. Replace the element if necessary.
< Note >
When the oil filter cap is rem ved, the oil collected on the element drips. Be careful. o
7
