Kaon KS0694 User manual

For further information contact KAON on 07 3180 1470 or [e-mail]
FITTING INSTRUCTIONS FOR
Side Molle Panels
SKU COMPATIBILITY
KS0694 Toyota Prado 120, Lexus GX 470
Included contents
QTY COMPONENT
2 Side Molle Panel (LHS & RHS)
6 Black Self Tapping Screw
6 Black M5 x 16 x 1.0 DIN Washer
30 minutes / Half a beer
Time

2
With your setup order sorted, let’s get to the good part: installing.
YES YES
YES YES
Install the Molle Panel
as per it’s instructions.
Now’s the time to mount
any additional accessories
to the Molle as well.
Follow the Shelf
fitting guide. Complete
the Shelf & Molle install.
Are you installing a
Side Molle Panel?
It all works together.
All our storage products work together, but there is a certain order to installing.
Let’s work out the best order for your setup, shall we?
Are you installing other
KAON Storage Products?
Are you installing other
KAON Storage Products?
With the foundation in
place, it’s time to mount
any other accessories,
such as a Cargo Divider,
Travel Buddy, etc. Have
fun making it your own.
Complete the Molle Panel
as per it’s instructions. That’s it, you’re done! That’s it, you’re done!
NO NO NO
NO NO
Are you installing a
Standalone Shelf?
Are you installing a
Light Cargo Barrier?
YES
Are you installing other
KAON Storage Products?
The last piece of the
puzzle, complete your
install by following the
Light Cargo Barrier
fitting guide.
YES

4 5
Let’s get to work.
Preparing the Vehicle

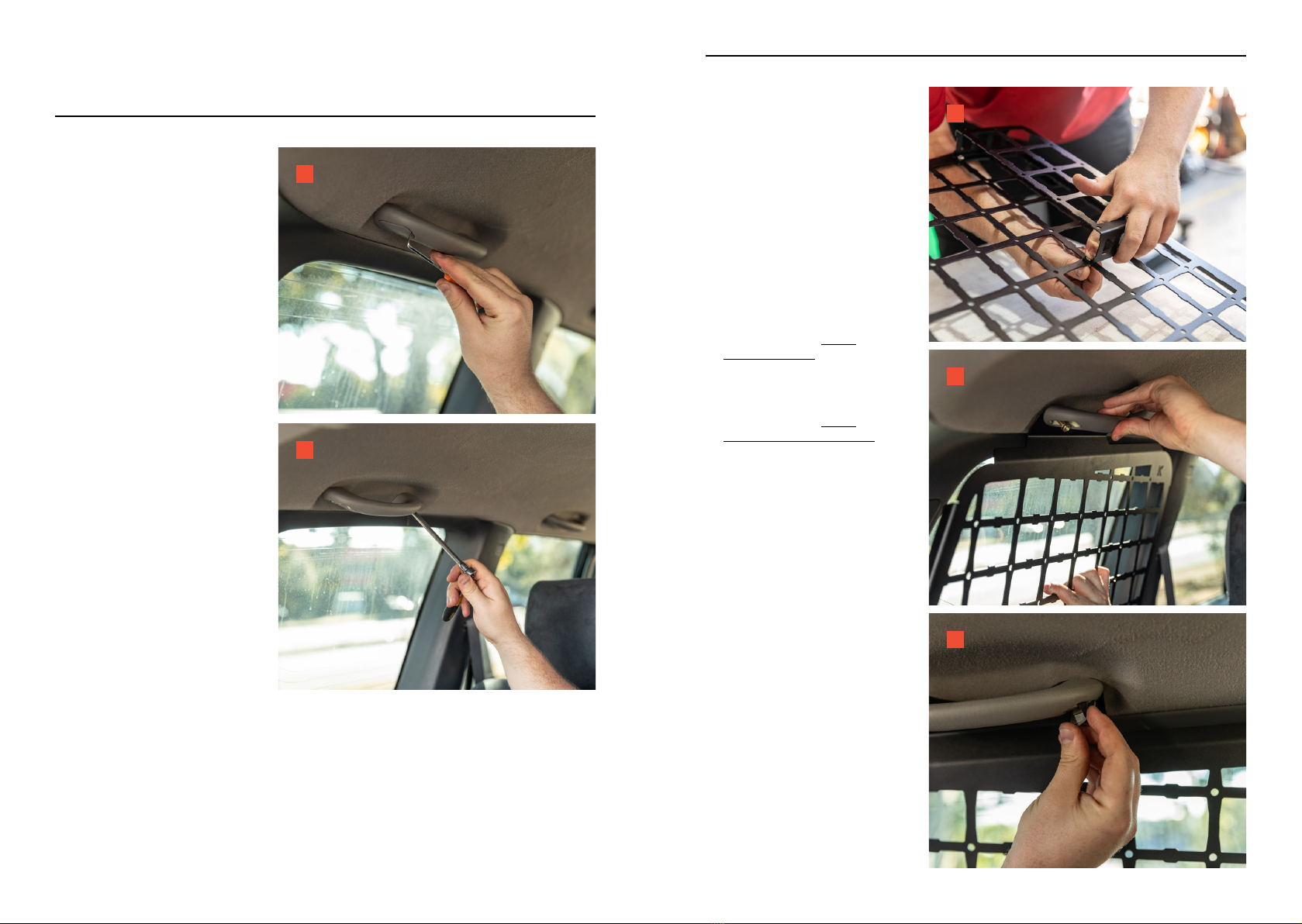

1. Whether you’re starting from a
factory rear, or with existing KAON
accessories, we need to start from
a blank slate. Remove the rear grab
handles by prying open the plastic
cover and removing the bolts
withasocket.
Installing the
Molle Panels
2. Ensure you have the correct panel
for each side. The ‘K’ on each panel
should be oriented at the front of
the vehicle.
3. Now is the easiest time to attach
any accessories such as pouches,
electrical components, or storage
pods to yourMolle Panels.
Thread the handle mounts over the
rear grab handles, ensuring molles
are oriented as pictured.
If you’re installing with a
Standalone Shelf: their handle
brackets should be sandwiched
between theMolle Panel and factory
handles at this stage.
If you’re installing with a
Barrier and/or Barrier Shelf:
their handle brackets should be
sandwiched between theMolle
Panel and factory handles at
thisstage.
Shelf Brackets should be layered
over the Molles,and Barrier
HandleBrackets last, paying
attention to the correct orientation
as per theirinstructions.
4. Secure using the factory handles
and hardware. Tighten the bolts to
secure and reclip the plastic cover.
1
1
3
5
4

6 7
Finishing the Install
5. Apply gentle pressure to the
mollepanel so it sits flush against
the interior trim.
6. Ensure the spacing around the
Molle Panels is even and correct.
7. Use a 3mm bit to carefully drill the
three lower mount holes.
Depending on preference, you can
drill without removing the panel.
Otherwise mark the placement and
remove the panel to drill.
8. Secure the molle to these
holes using the supplied self
tappingscrews and washers.
9. Repeat for the other side.
10. That’s it, you’re done! If you are
installing a Shelf or Light Cargo
Barrier with your panels, continue
with the instructions in their
fittingguides.
9
8
10

8
Disclaimer: The products sold by KAON should not be modified, and are for use only on the vehicles specifically stated. KAON will not be
liable for any damages arising out of the use or misuse of it’s products. It is the customers responsibility to ensure the products are safely
and properly used and installed. KAON consistently seeks to improve it’s products and reserves the right to make changes to any product.
Local Knowledge & Assistance
We know half the fun of building your dream 4x4 is getting your hands
dirty. But we also know that sometimes, things don’t go to plan. If in the
pursuit to build the ultimate setup you find yourself off-track, we’re here
tohelp you get unstuck.
For further information call 07 3180 1470 or email [email protected]om.au
Bolt Torque
DIAMETER (mm) 5mm 6mm 8mm 10mm 12mm
NEWTON-METRES (Nm) 5 Nm 9 Nm 22 Nm 44 Nm 77 Nm
