kapitaler Hirsch BUOY.3000 User manual
LED hanging lamp
Instruction manual
with exchangeable Osram LED
warm white (2700 K), 230 lumen, 2.6 W
Product code 2211525/2018/R/S
A luminous
upcycling object.
Topic Page
Table of contents .................................................................................................. 2
Intended use ......................................................................................................... 3
Upcycling characteristic ........................................................................................ 3
Warranty ................................................................................................................ 4
Safety instructions ................................................................................................. 5
Disposal instructions .............................................................................................. 5
Instructions before use .......................................................................................... 6
Explanation of symbols .......................................................................................... 7
Technical data ........................................................................................................ 8
Installation instructions .......................................................................................... 8
Adjusting the height ............................................................................................ 11
Cleaning and care ................................................................................................ 13
Detection of errors – remedy ............................................................................... 13

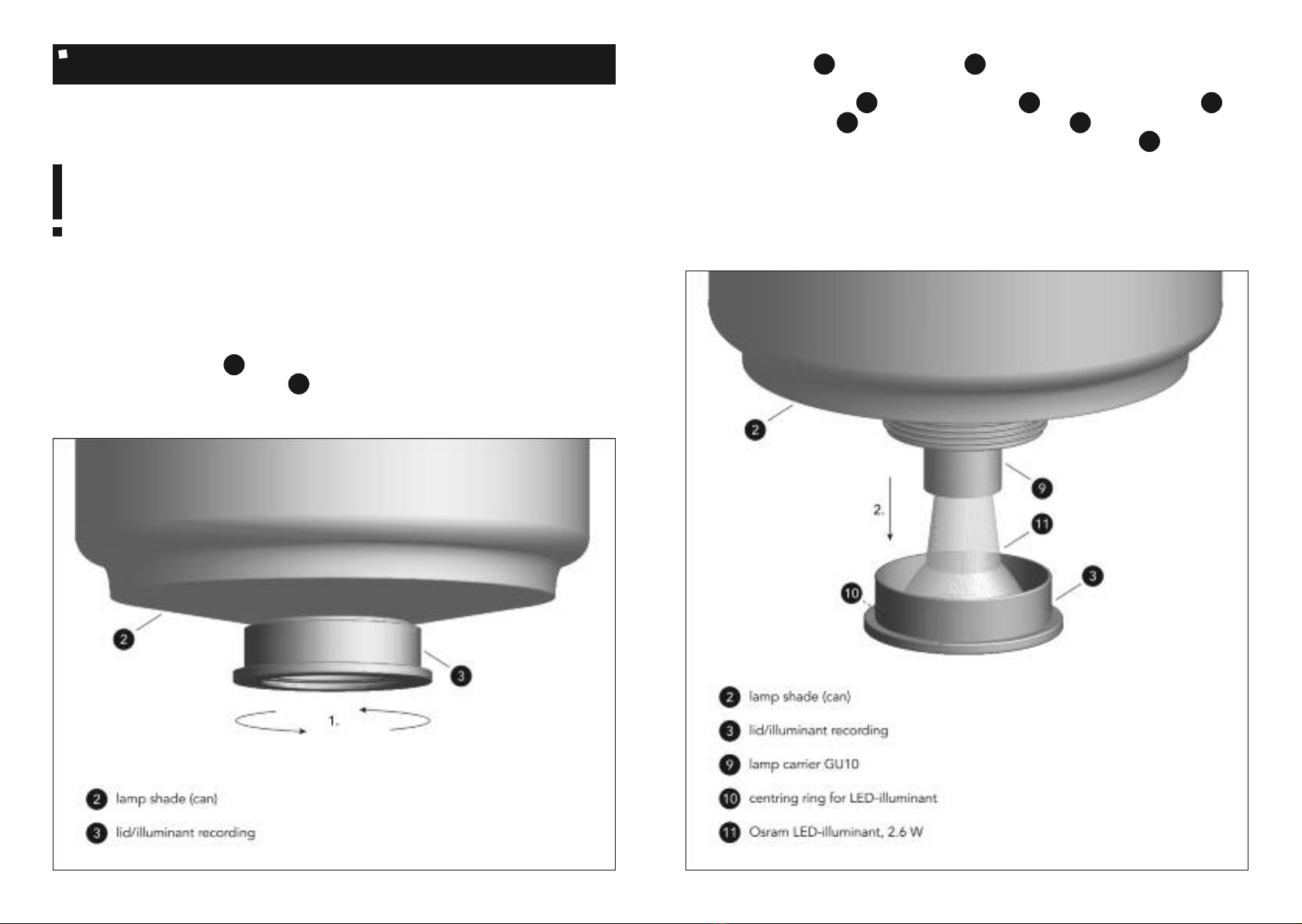

Replacement of LED illuminant – A Access to LED illuminant ............................ 14
Replacement of LED illuminant – B Removal of LED illuminant ..........................16
Replacement of LED illuminant – C Installation of LED illuminant ......................18
Service and contact details .................................................................................. 20
Page 3Page 2
Table of contents
The LED hanging lamp BUOY.3000 serves for illumination in dry interiors and is
intended for ceiling mounting.
It is equipped with a 2.6 watts LED illuminant with a beam angle of 36 degrees.
Thus, it is suitable for directed illumination, for example above the dining table,
the bar or in the lounge area.
Due to its warm white LED light (2700 K), the hanging lamp is particularly suitable
for atmospheric illumination.
The three-core lamp cable with textile jacket has a length of approx. 1.5 m. At the
end of the cable a suspension device with a plastic strain relief as well as a ceiling
rose are provided.
WAGO lustre terminals are pre-installed at the end of the cables for the electrical
connection. The electrical connection has to be carried out by qualified electricians.
Intended use
Our basic idea when designing the hanging lamp BUOY.3000 is to transform a pro-
duct which has served its time, a tin coffee bean container, into an amazing design
object with as little use of energy and additional material as possible. After a
sometimes hard life, the coffee box thus becomes a ceiling lamp – maybe with the
potential to become a design icon.
Each BUOY.3000 is absolutely one of a kind due to its signs of wear and tear. As a
real upcycling product it has dents, scratches and sometimes slight flash rust.
Of course this is not a deficiency here, but rather a sign of individuality and the
character of this hanging lamp. The beauty lies in the uniqueness.
Each of our hanging lamps has a hologram seal at the bottom side with its indivi-
dual serial character and the serial number as proof of authenticity and for identi-
fication.
Upcycling characteristic
Page 5Page 4
Our BUOY.3000 LED hanging lamps are subject to continuous quality control
throughout the whole manufacturing process. In case the hanging lamp should not
work perfectly, contrary to expectations, we regret this and ask you to contact us
via the contact details on the back of this instruction manual. We are glad to help
you via mail, telephone or e-mail.
For the enforcement of warranty claims the following applies– without thereby
limiting your statutory rights
1. Warranty claims may be filed within a maximum period of 2 years from the
purchase date. Our warranty is limited to the repair of material defects and
production faults or the exchange of the hanging lamp. Our warranty is free of
charge for you.
2. Warranty claims have to be enforced without delay after having obtained
knowledge thereof. Enforcing warranty claims after expiry of the warranty period
is excluded, unless the warranty claims are raised within a term of 2 weeks after
expiry of the warranty period.
3. Please send a defective device exempt from postage to the service address and
enclose the sales receipt. If the defect is covered by our warranty, you will receive
the repaired hanging lamp or a new hanging lamp back. No new warranty period
starts with repair or exchange of the hanging lamp. The warranty period of 2
years from the date of purchase remains relevant.
Please note that our warranty expires in case of improper use or misuse, non-ob-
servance of the safety measures for the device, use of force or unauthorized inter-
ference.
Defects of the device which are not – or no longer – covered by the warranty or
damage due to which the warranty has expired are repaired against a reimburse-
ment of costs. In this case, please send the device to our service address which can
be found on the back of this booklet.
Warranty 2 years from the purchase date
Please keep your sales receipt as proof of the purchase.
Warranty
The LED hanging lamp BUOY.3000 is only intended for use in dry interiors (not suit-
able for moist rooms) and may only be used corresponding to its construction.
Installation may only be carried out by an authorized electrician, do not install
it yourself! An improper and unprofessional approach when dealing with supply
voltage is life-threatening for you and also other persons. There is danger to life
through electric shock.
Before starting the electrical installation, the electric circuit has to be switched off
by means of the fuse/residual current circuit breaker.
Only the parts installed by the manufacturer may be used. Do not reconstruct,
disassemble or modify the lamp. At the bottom of the lamp shade next to the illu-
minant holder there is a pan-head screw at which the protective earth conductor is
mounted inside. Said screw must never be operated, loosened or removed. If it is
manipulated in any way not only the approval (CE) expires but it may lead to security
gaps and there is danger to life through electric shock.
Children, persons whose physical, mental or other abilities are restricted and who
cannot operate this hanging lamp safely as well as unauthorized persons may not
operate this electrical device unattended.
Never look into the light of the LED illuminant installed in the lamp directly or with
optical instruments in order to avoid the risk of eye damage.
Safety instructions
The LED hanging lamp BUOY.3000 may not be disposed of with other
household waste at the end of its lifetime. For return there are collection
points for electrical and waste electronic devices in your vicinity which
are free of charge. The addresses can be obtained from your urban or
municipal administration.
Separate collection of electrical and waste electronic devices serves to enable
reutilization, material recycling or other forms of recycling of waste devices as well
as to avoid negative consequences due to disposal of the dangerous substances
possibly contained in the devices to the environment and human health.
Disposal instructions
Page 7Page 6
Please read this instruction manual carefully. You will thus avoid mistakes which may
lead to malfunction.
It is important to keep this manual for later use.
If you give this lamp to others, please also provide them with the instruction manual.
This hanging lamp corresponds to protection class I, which means that a protective
conductor is installed. It is only admitted for the connection to 220-240 V, ~50/60 Hz.
This hanging lamp may only be operated in dry interiors.
The LED used in this LED hanging lamp has a very long lifetime of approx. 15000
hours. The LED installed in this lamp cannot be dimmed.
A base converter E27 on GU10 is installed in the LED hanging lamp as lamp
holder with GU10 base. Said base converter may in no event not be removed
or be circumvented by removal. Always make sure you do not remove the base
converter when changing the illuminants.
The scope of delivery covers the complete LED hanging lamp BUOY.3000, this in-
struction manual, a package copy of the mounted LED illuminant as well as a return
receipt to the manufacturer.
The manufacturer does not take responsibility for injuries or damage caused by
improper use of the hanging lamp.
Safe operation of this hanging lamp is only guaranteed when the instructions con-
tained in this instruction manual are followed.
In the text of this instruction manual, num-
bers appear behind components of the
lamp. Said numbers relate to the numbers
of the components of the lamp used in the
following illustrations, for example “… the
suspension 4b …”.
Instructions before use

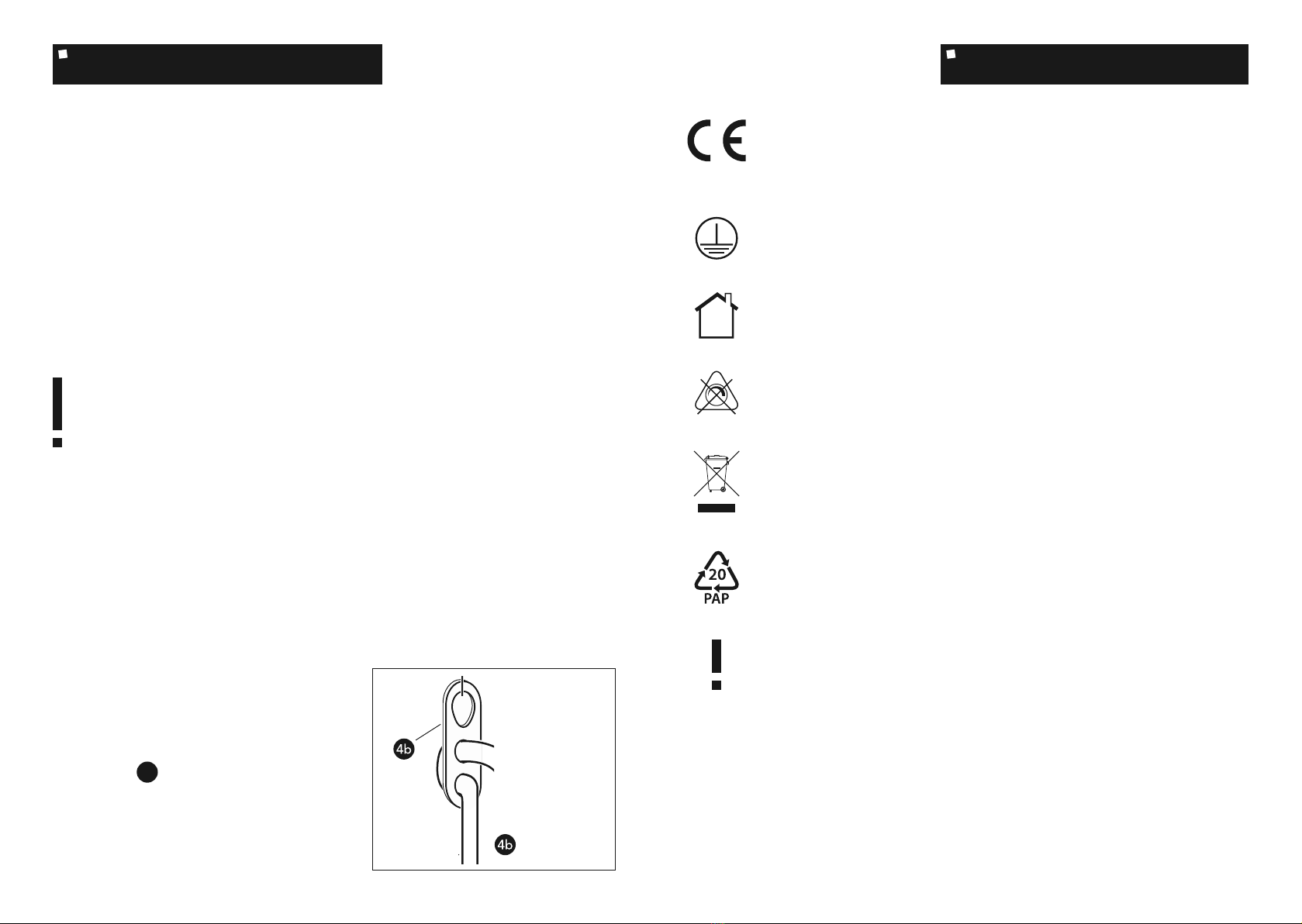

Declaration of conformity
The manufacturer declares that this product fulfils the requirements of
the applicable European and national guidelines and standards. The
manufacturer keeps corresponding declarations.
Protection class I
Protective earth conductor installed.
only for interiors
Only intended for use in dry interiors.
non-dimmable
The LED illuminant is not intended for dimmer operation.
not to be disposed of with other household waste
The hanging lamp may not be disposed of with other household waste
at the end of its lifetime (see “Disposal instructions“ on page 5).
Waste-paper recycling
The transport packaging of the hanging lamp consists of corrugated card-
board and has to be disposed of in the waste-paper recycling after use.
Important notice
Please pay attention to these important instructions.
Question
Possible question regarding the detection of defects.
Answer
Possible measure to remedy defects.
Explanation of the symbols
?
»
suspension
Page 9Page 8
Electrical installation may only be carried out by an authorized electrician.
Switch off all poles of the supply voltage before installation and connection. Switch
off the corresponding automatic circuit breaker or unscrew the fuse.
Make sure that no underground wires are damaged due to drilling and screwing
during installation. In order to avoid this, please pay attention to, i.a., the posi-
tion of the supply.
Montage
I. Determine the place of installation.
II. Install a hook which corresponds to the tensile force at the place of installation
in such a way that the suspension 4b and the hanging lamp may be fixed to it
without any problems (The total weight of one hanging lamp is approx. 860 g.).
Installation instructions
III. Slide the ceiling rose 4a back along the lamp cable 7 until the suspension 4b
is exposed.
IV. Guide the upper oval hole of the suspension 4b over the hook.
Voltage 220-240 V, ~50/60 Hz
Protection class I, protective earth conductor installed
LED base GU10
LED illuminant 2.6 W, 230 Lumen
Light color warm white (2700 K)
Dimming non-dimmable
Lamp cable 3-core, 0.75 mm respectively
Length of cable approx. 1.5 m
Dimensions ø 19.2 cm, approx. 39.5 cm high
Total weight approx. 860 g
Technical data
395 mm
192 mm
V. Make sure that the electrical connection is carried out by an electrician.

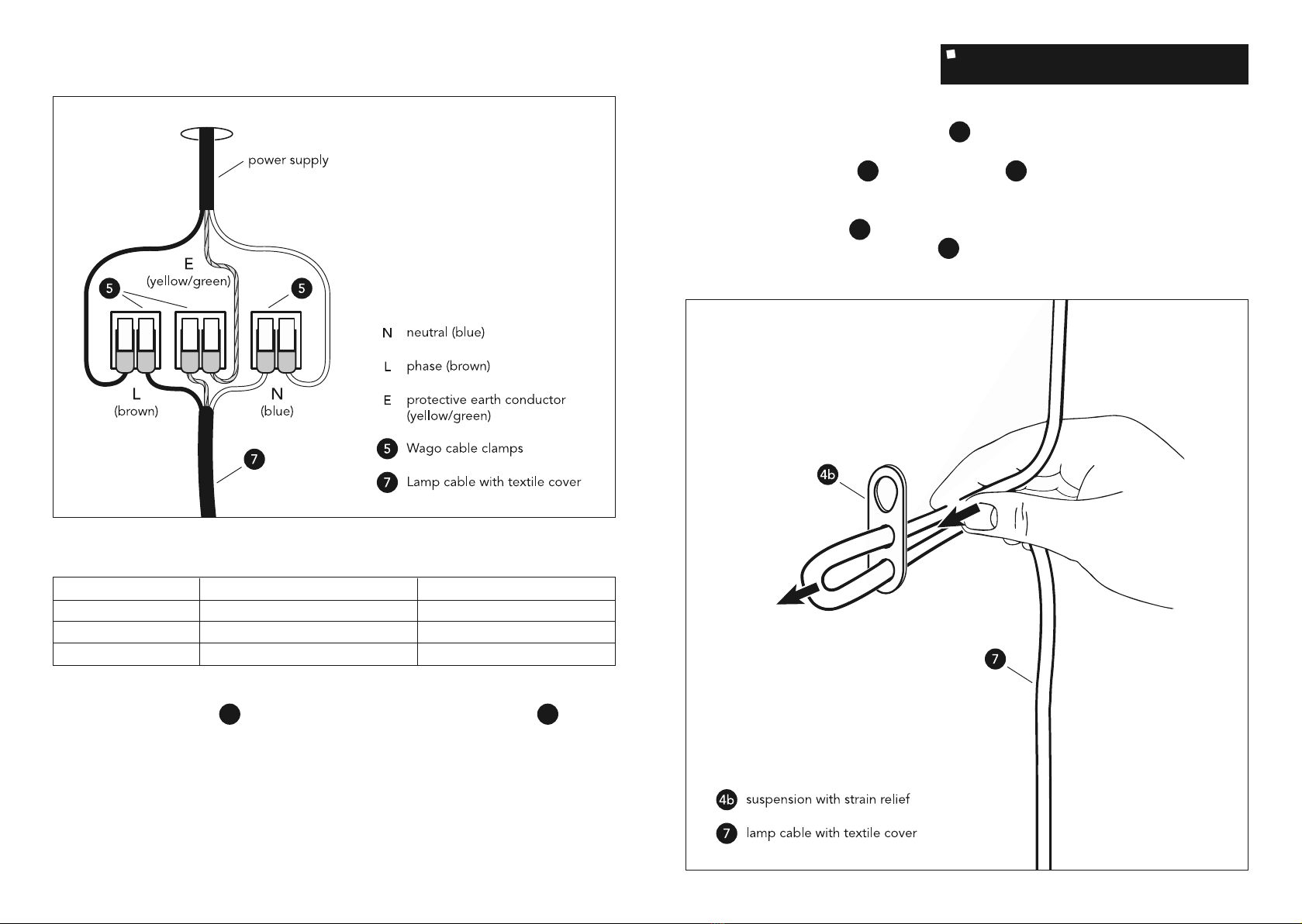

Anschlusshinweis
Wire Terminal Name
brown L phase
blue N neutral
yellow/green E protective earth conductor
VI.Push the ceiling rose 4a upwards so that all cables, the suspension 4b and the
hook are covered.
Restore the power supply, switch on the corresponding automatic circuit breaker
or screw the fuse in again.
Check the function of the lamp.
Page 11Page 10
The height of the LED hanging lamp BUOY.3000 may be adjusted by the length of
the cable by means of the suspension 4b.
I. Lead both cable ends 7at the suspension 4b towards each other so that they
touch each other and hold them with one hand.
II. Hold the suspension 4b with the other hand and push both cable ends through
the holes in the cable suspension 4b until they can be moved easier.
Adjusting the height
III. Pull the lower part of the lamp cable 7out of the lower hole of the suspension
4b until the correct length is reached.
IV. Now pull the upper part of the lamp cable 7back again through the central
hole of the suspension 4b. Make sure that the lamp cable 7is not twisted.
Guide it until it forms a proper arc again at the suspension 4b.
V. Tighten the cable 7in the suspension 4b and position the suspension 4b
parallel to the lower part of the lamp cable 7.
Page 13Page 12
Cleaning and care of the hanging lamp BUOY.3000 is limited to its surface. Abso-
lutely no moisture may enter the lamp shade or conducting parts. Before cleaning,
disconnect the hanging lamp from the electric circuit by switching off the upstream
fuse/the residual current circuit breaker.
Use a dry, soft cloth or duster for cleaning.
Persistent stains at the lamp shade may be removed with a slightly moist cloth, if
necessary using a mild, neutral cleaning agent.
Do not use cleaning agents which contain solvents or abrasive or caustic substan-
ces. Avoid pulling at the lamp cable or applying weight to the lamp during cleaning.
Make sure that the hanging lamp is absolutely dry before switching the fuse/the
residual current circuit breaker on again.
Cleaning and care
The lamp flickers.
? Is the lamp connected to a dimmer?
» The lamp is not intended for use with a dimmer. Arrange for the dimmer to
be removed from the supply and replaced by a regular switch.
The lamp does not work at all.
? Is the lamp connected correctly?
» Arrange for an electrician to check whether the lamp is connected correctly.
? Is the fuse/the residual current circuit breaker switched off?
» Switch the fuse/the residual current circuit breaker on.
The LED illuminant does not function any longer.
» Replace the original Osram LED illuminant by a new, non-dimmable LED illu-
minant with a maximum of 5W. The procedure is described in the following
three chapters.
The new LED illuminant hums.
» Some replacement LED illuminants may hum. In this case, use a LED illuminant
of a different manufacturer.
Detection of errors - Remedy
Page 15Page 14
Replacement of LED illuminant– A Access to LED illuminant
In order to be used for a long time, the hanging lamp BUOY.3000 is constructed
so that the LED illuminant may easily be replaced at the end of its lifetime.
Important Replace the original Osram LED illuminant exclusively by a non-dim-
mable LED illuminant with a maximum of 5W. The use of other illuminants with
GU10 base is explicitly not allowed and may lead to a security risk. Non-obser-
vance leads to loss of warranty and liability of the manufacturer.
Disconnect the hanging lamp from the electric circuit before opening it by switching
off the upstream fuse/the residual current circuit breaker.
Opening of the lid/the illuminant holder
I. Hold the lamp shade 2 tightly, put one arm around it or arrange for another
person to hold the lamp shade 2 .
II. Unscrew the lid 3of the lamp shade 2.
III. Carefully pull the lid 3with the illuminant 11 and the centring ring 10 out
of the lamp shade 2until you see the lamp carrier 9– the illuminant unit is
protected from being pulled out further via the cable screwing 1.
Now the LED illuminant can be changed. The procedure of removal and installation
is described on the following pages.
IV. In order to close the lid, proceed in reversed order.
Page 17Page 16
Before removal of the LED illuminant, make sure that the hanging lamp is
disconnected from the electrical circuit by switching off the upstream fuse/the
residual current circuit breaker.
After having gained access to the illuminant unit, consisting of the LED illuminant
11, the centring ring 10 and the lid 3by unscrewing, the LED illuminant may be
removed from the lamp carrier 9and replaced.
I. Hold the lamp carrier 9 with one hand and remove the illuminant unit with
approx. ¼ rotation.
II. Hold the illuminant 11 tightly and pull off the lid 3. The centring ring 10 remains
on the illuminant 11. Take the centring ring off from the illuminant and use it
again.
In case the centring ring may not be usable again, please order a substitute via
e-mail or telephone.
Replacement of LED illuminant – B Removal of LED illuminant
Page 19Page 18
Before installing the LED illuminant, make sure that the hanging lamp is discon-
nected from the electrical circuit by switching off the upstream fuse/the residual
current circuit breaker.
I. Take the new, non-dimmable LED illuminant with a maximum of 5W and put the
centring ring 10 over it, starting from the connections, until it rests on the lower
lamp frame.
II. Put the illuminant 11 and the centring ring 10 into the lid 3.
III. Push the centring ring 10 over the illuminant 11 tightly and centrally into the lid
3so that both parts rest at the bottom of the lid 3 .
IV. Take the illuminant unit, consisting of the illuminant 11, the centring ring 10
and the lid 3and mount it with approx. ¼ rotation in the lamp carrier 9.
V. Now push the lamp unit back into the lamp shade 2and screw the lid 3tight
without jamming. Check the straight and centred position of the illuminant 11
in the lid 3.
Replacement of LED illuminant – C Installation of LED illuminant
Page 20
Please do not hesitate to contact us if you have questions regarding our product
or in case of problems, notices or re-orders.
Our contact hours are Monday to Friday from 9 00 a.m. to 6 00 p.m.
This is our service address
kapitaler Hirsch
Björn Abe
Hölderlinstraße 16
75181 Pforzheim [Germany]
Telephone +49 72 31 95 53 43
Telefax +49 72 31 95 53 44
eMail info@kapitaler-hirsch.de
www.kapitaler-hirsch.de
This instruction manual as well as the energy label can also be downloaded as
pdf on our homepage or accessed online.
LED hanging lamp
BUOY.3000
Product code
2211525/2018/R/S
ABE/enz · Information as of July 2018 · WEEE reg. no. DE 39080781
Table of contents
