Kärcher 2201 F User manual

5.960-023 (06.02)
2201 F

7
English
Brief instructions
Before first use
When unpacking the appliance, make sure that
all listed parts are supplied. You will find the filter
bag and the swivel casters in the container. The
swivel casters still have to be fitted to this
appliance (see ”Preparation” point).
Please inform your dealer if there has been any
damage during transportation.
1ON/OFFSwitch
2 Carry handle
for carrying the appliance on stairs, etc.
3 Motor housing
4 Swivel casters
make it easy to draw the appliance along
behind
5 Accessory compartment
for storing the accessories
6 Dirt container
collects the wet and dry dirt that is being
vacuumed
7 Filter, filters out suspended particles and
protects the turbine
7a Cartridge filter
set in for dry vacuuming
7b Foam filter
set in for wet vacuuming
8 Suction hose connection
9 Suction hose
10 Suction tube
11 Floor nozzle with inserts
can be used for wet and dry vacuuming
12 Crevice nozzle
for edges, crevices and around radiators
13 Paper filter bag
for dust-free emptying of the appliance after
dry vacuuming
Safety notes
Appropriate use
The appliance is intended for use as a wet and
dry vacuum cleaner in accordance with the
descriptions and safety instructions in these
operating instructions.
Before first use of the machine read these
operating instructions and comply with them.
Use the appliance exclusively
– for non-commercial purposes,
– with accessories and replacement parts
authorised by Kärcher.
General safety notes
Only allow children and adolescents to use the
machine when under supervision.
Never leave the machine unattended if the
master switch is on.
Electrical connection
The voltage shown on the model plate must
concur with that of the electricity mains supply.
mDanger of electric shock!
Never grasp the mains plug with wet hands.
Check the connection lead and mains plug for
damage before each use. Have a damaged
connection lead replaced immediately by an
authorised Customer Service point or by an
electrician.

8English
When using the machine in wet rooms, e.g. in the
bathroom, only connect it to sockets which are
connected in series with a ground fault circuit
interrupter. In case of doubt, consult an
electrician.
mDanger of explosion!
Never use to appliance to vacuum explosive
liquids, flammable gases, explosive dusts, or
undiluted acids or solvents! These include petrol,
paint thinner, and heating oil, which may form
explosive vapours or mixtures when agitated by
the suction air. This applies equally to acetone,
undiluted acids and solvents, and aluminium and
magnesium dusts. Furthermore, these
substances may cause appliance materials to
corrode.
Do not use the appliance to vacuum burning or
smouldering objects.
When using the appliance in areas of potential
risk (e.g. filling stations), the pertinent safety
guidelines must be observed. It is not permitted
to use the appliance in potentially explosive
locations.
Environmental protection
Disposal of packaging
The packaging is recyclable. Please dispose of it
at a recycling facility.
Disposing of the appliance
You can obtain information about environmentally
correct disposal from your Kärcher dealer.

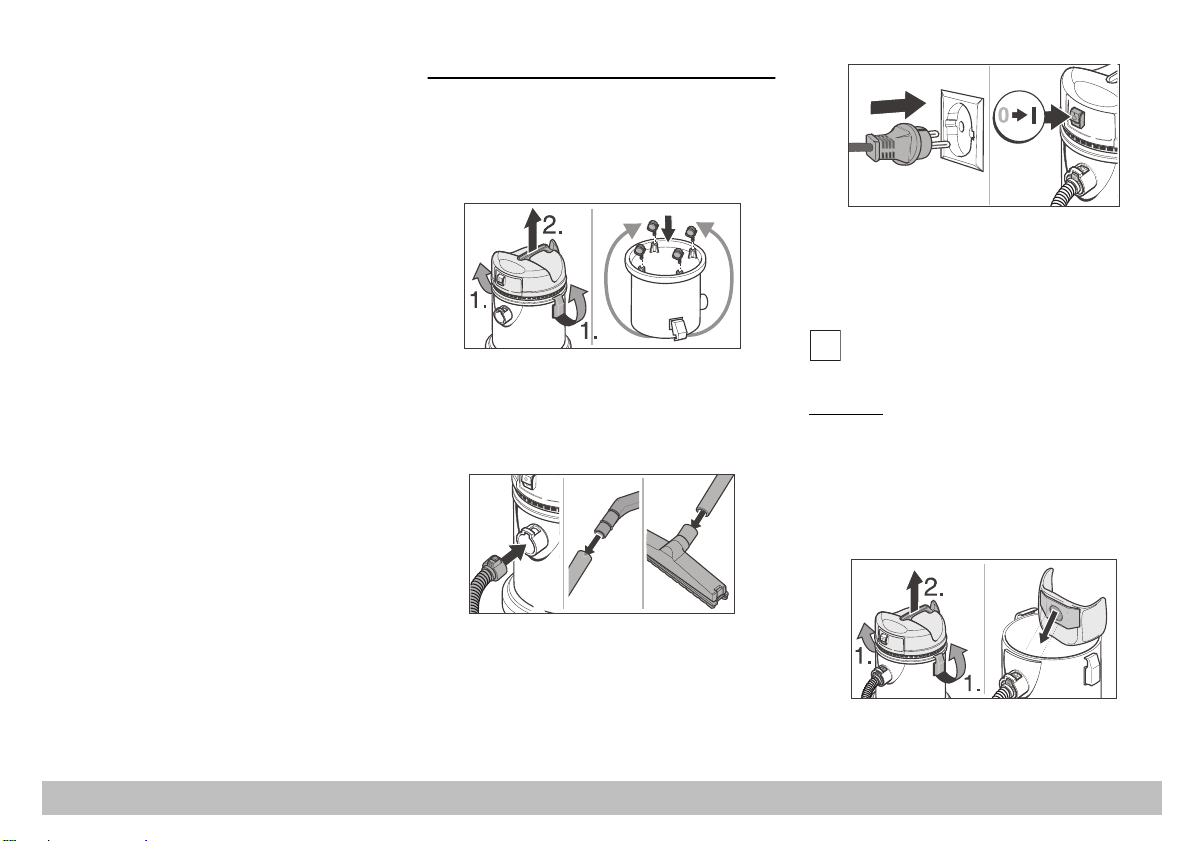

Operating the cleaner
Preparation
lRemove the motor housing, take the swivel
casters out of the container.
lMount the swivel casters.
lPlace the motor housing on the container and
close.
Note: Motor housing can be attached in one
position only (switch towards front).
lConnect accessories.
Switching on
mCaution:
Never use the appliance without a filter!
lInsert the mains plug.
lSwitch on the appliance.
Operations with floor nozzle
mCaution!
When changing from wet to dry vacuuming
note the following:
If you vacuum dry dust while the filter is still
wet, the dust will stick to the filter making it
impermeable, and may thus damage it beyond
repair.
Therefore: Always allow wet filters to dry
before use!
Dry vacuuming – stubborn stains
lAs it capacitates dust-free emptying, we
recommend that you insert the paper filter bag
as well. This has the added advantage that the
filter does not become dirty so quickly.
i

9
English
lAttach the insert for stubborn stains.
Dry vacuuming - carpets
lAs it capacitates dust-free emptying, we
recommend that you insert the paper filter bag
as well. This has the added advantage that the
filter does not become dirty so quickly.
lAttach the insert for carpets.
Working with the crevice nozzle
The crevice nozzle can be used for both wet
and dry-vacuuming.
Wet vacuuming
lNever use a paper filter bag.
lRemove the cartridge filter and set in the foam
filter.
mCaution!
If the appliance starts to leak foam or liquid,
switch it off immediately.
As soon as the container is
full, a float closes the suction
opening and the suction turbine
runs at a higher speed. Switch off
the appliance immediately and
empty the container.
Parking
lSwitch off the appliance.
lAttach the accessories to the appliance before
taking a break.
When finished
lSwitch off the appliance.
lDraw out the mains plug.
lRemove the motor housing and empty the
container.
lClean the container after every use.
lCarry the appliance by the carry handle only.
lStore the appliance in a safe place.
Care / Maintenance
mDanger!
Before any care and maintenance work on the
machine draw out the mains plug.
Cleaning the appliance and
accessories
The appliance must not be cleaned using
a water hose or a high-pressure water jet
(danger of short-circuit or other damages).
lWipe down the exterior of the appliance using
a damp cloth. Do not use any aggressive
agents such as scouring powder. Rinse out
accessory parts when necessary.
i
i
MAX
MAX
1.
2. i

10 English
Changing the filter
lPoor suction –clean the filter under flowing
water and allow to dry before inserting it into
the appliance. Replace the filter if damaged.
Order no. 6.414-552
Changing the filter bag
lPoor suction –the paper filter bag is full.
Replace it.
Order no. 6.959-130 (5x)
Service
Warranty
In each country the warranty terms issued by our
authorized marketing company are valid. We
remedy any fault in the cleaner free of charge
within the warranty period providing the cause of
the fault proves to be a material or manufacturing
error.
Should you wish to call upon the guarantee,
please apply to your dealer or nearest authorised
Customer Service centre taking along also the
accessories and bill of sale.
Customer Service
If you have any questions or malfunctions our
Kärcher agency will be pleased to help you.
See the back page for addresses.
EU Declaration of Conformity
We hereby declare that the equipment described below conforms
to the relevant fundamental safety and health requirements of the
appropriate EU Directives, both in its basic design and
construction as well as in the version marketed by us.
This declaration will cease to be valid if any modifications are
made to the machine without our express approval.
Product: Wet & dry vacuum cleaner
Ty p : 1.336-xxx
Relevant EU Directives:
EU Machinery Directive (98/37/CE)
EU Low-Voltage Equipment Directive (73/23/EEC) amended by
93/68/EEC
EU Directive on Electromagnetic Compatibility (89/336/EEC)
amended by 91/263/EEC, 92/31/EEC, 93/68/EEC
Harmonised standards applied:
DIN EN61000-3-2:1995; DIN EN61000-3-3:1995; DIN EN60335-
1; DIN EN60335-2-2; DIN EN55014-2:1997; DIN EN55014-
1:1999
National standards applied: –
Appropriate internal measures have been taken to ensure that
series-production units conform at all times to the requirements of
current EU Directives and relevant standards.
The signatories are empowered to represent and act on behalf of
the company management.
Technical Specifications
AUS
Nominal voltage 220–240 V 240 V
1~50/60 Hz 1~50/60 Hz
Fuse protection
(surge-proof) 10 A 10 A
Container volume, net 18 l 18 l
Water uptake 8 l 8 l
Fan data: Pmax 1200 W 1200 W
Pnom 1000 W 1000 W
Weight 5.5 kg 5.5 kg
Class of protection II II
Mains cable: type
H05VV-F2x1 4.5 m 4.5 m
Sound level 74 dB(A) 74 dB(A)
We reserve the right to introduce technical
changes without prior notice.
Circuit diagram
C1 Capacitor
M1 Suction turbine
S1 Switch
X1 Plug

6.959-161.0
7.303-361.0
6.435-353.0
2201 F
9.411-343.0
6.959-129.0
9.411-726.0
6.959-361.0
5.960-023.0 06.06.2002
1.336-101.0 * EUR
1.336-102.0 * CH
1.336-103.0 * AUS
1.336-112.0 * GB
6.414-552.0
4.075-012.0
9.411-630.0
6.903-396.0
6.903-860.0
6.903-861.0
6.959-175.0
5.585-026.0
6.902-097.0
6.902-097.0
A
6.959-130.0
6.900-385.0
6.647-915.0
6.647-916.0
6.641-973.0
6.647-914.0
1.336-101.0 * EUR
1.336-102.0 * CH
1.336-103.0 * AUS
1.336-112.0 * GB
5.731-595.0

A
