NT 50/70/90 Classic
Service Manual

2 English 5.906-709.0 Rev. 00 (11/14)
Contents
Preface 4
Safety instructions 4
Hazard levels 4
Description in this service manual 5
Service groups 5
Functional group structure 5
Textual description 5
Technical Features 6
Intended use 6
Field of application 6
Safety installations 6
Type plate 6
Overview of the appliance 7
Front view 7
View from behind 8
AB Service group setup 9
010 Safety information 9
020 Overview 9
030 Function 9
040 Service activities 10
ABTG Uninstall / install carrying handle 10
ABGH Uninstall / install appliance hood 10
ABAS Uninstall/ install suction turbine cover 11
ABFK Uninstall / install filter basket 12
ABSC Uninstall / install float 12
ABVS Uninstall / install locking mechanism suction head 13
ABBU Uninstall / install bumper 13
ABHZ Uninstall / install holder accessories 13
ABSB Uninstall / install push handle 14
ABLR Uninstall / install steering rollers 14
ABRH Uninstall / install wheels in the back 15
050 Maintenance and inspection 15
060 Error diagnosis 15
070 Peculiarities/ others 15
AC Service group suction system 16
010 Safety information 16
020 Overview 16
030 Function 9
040 Service activities 10
ACPF Uninstall / install cartridge filter 17
ACSU Uninstall / install suction turbines (2) 17

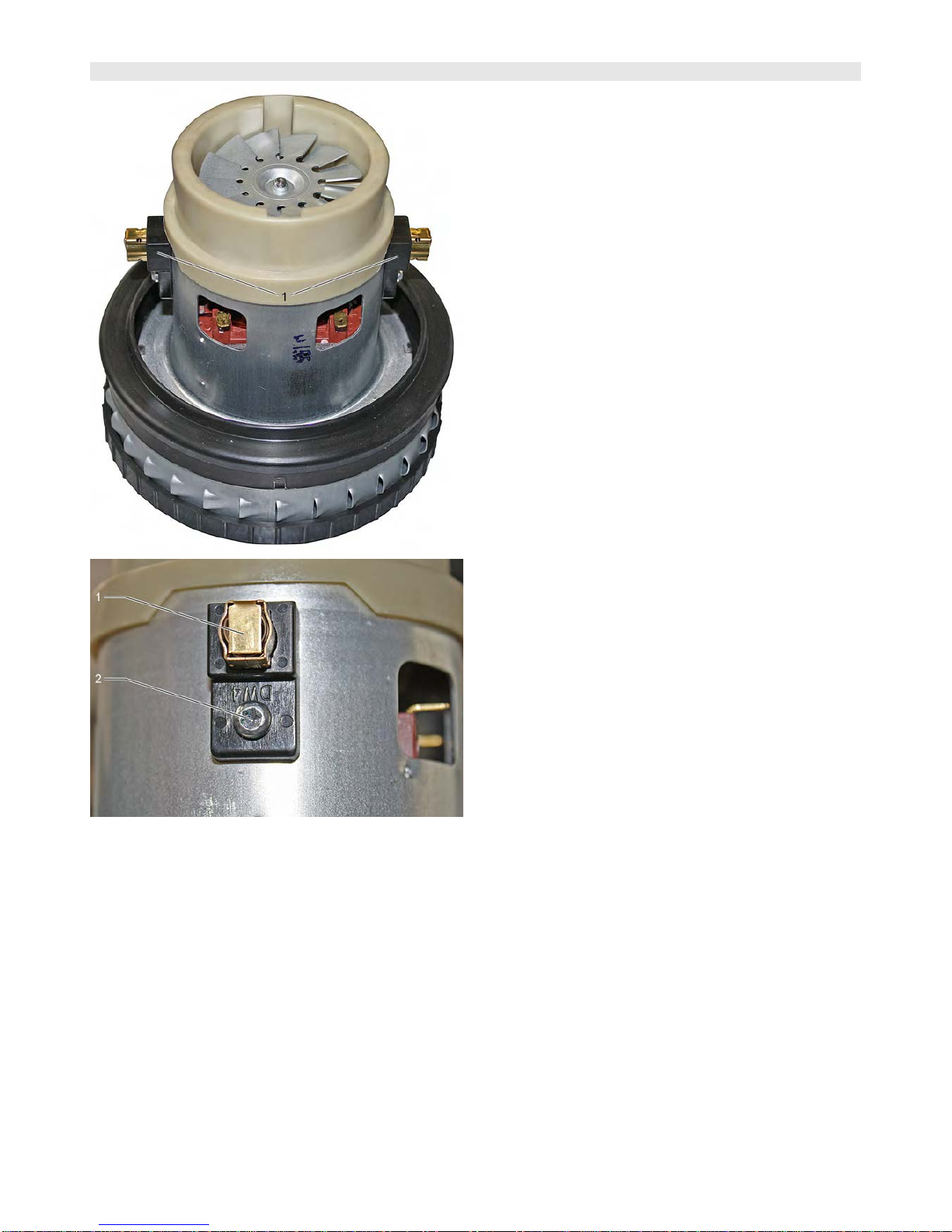

ACGT Uninstall / install sliding contacts suction turbines (2) 18
ACAS Uninstall / install connection nozzle 19
050 Maintenance and inspection 15
060 Error diagnosis 15
070 Peculiarities/ others 15
AH Service group electrics 20
Safety instructions 4
020 Overview 20
030 Function 9
040 Service activities 10
AHGB Uninstall / install power switches (2) 21

English 5.906-709.0 Rev. 00 (11/14) 3
AHEK Uninstall / install anti-interference capacitor 21
AHNK Uninstall / install power cable 22
050 Maintenance and inspection 15
060 Error diagnosis 15
070 Peculiarities/ others 15
Technical Documentation 23
Technical specifications 23
Special tools 24
Circuit diagram 24

4 English 5.906-709.0 Rev. 00 (11/14)
Good service work requires extensive and practice-orient-
ed training as well as well-structured training materials.
Hence we offer regular basic and advanced training pro-
grammes covering the entire product range for all service
engineers.
In addition to this, we also prepare service manuals for im-
portant appliances - these can be initially used as instruc-
tion guides and later on as reference guides.
Apart from this, we also regular information about product
enhancements and their servicing.
If you should require supplements, have corrections or
questions regarding this document, please address these
citing the following subject to:
[e-mail]
The responsible product specialist will take care of your is-
sue.
Copying and duplication of texts and diagrams as well
as third-party access to this information is permitted
only with the explicit permission of the company:
Alfred Kärcher GmbH & Co. KG
P O Box 160
D -71349 Winnenden
www.kaercher.com
Service and maintenance tasks may only be performed by
qualified and specially trained specialists.
Observe safety information in the chapters!
DANGER
Prior to all work on the appliance, switch off the appliance
and pull the power plug.
몇CAUTION
Risk of damage by electrostatic discharge (ESD)! Take
suitable measures for discharging electrostatic charge pri-
or to performing work on the appliance electronics.
DANGER
For an immediate danger which can lead to severe injuries
or death.
몇WARNING
For a possibly dangerous situation which could lead to se-
vere injuries or death.
몇CAUTION
Forapossiblydangeroussituationwhichcanleadtominor
injuries or property damage.
ATTENTION
Pointer to a possibly dangerous situation, which can lead
to property damage.
Note
Indicates useful tips and important information.
Preface
Subject: Fall 118591
Safety instructions
Hazard levels

English 5.906-709.0 Rev. 00 (11/14) 5
Example:
Install/uninstall ANRA wheel axle
Observe the allocation of service groups to the appliance
componentsintheoverviewdiagraminChapter"Overview
over the service and functional groups".
Instruction
Preparatory operations
1
2 Key numerical
A
B Key alphanumerical
–Enumeration / General list
Safety note
Pointer to hazards, sources of errors.
Description in this service manual
Service groups
AN RA Install/uninstall wheel axle
Service group Component Activity
Functional group structure
010 Safety instructions
020 Overview
030 Function
040 Service activities
050 Maintenance and inspection
060 Error diagnosis
070 Peculiarities/ others
080 - 100 Not assigned
Textual description

6 English 5.906-709.0 Rev. 00 (11/14)
–Two suction turbines
몇WARNING
The appliance is not suitable for vacuuming dust which en-
dangers health.
–The machine is meant for dry and wet cleaning of floors
and walls.
–This appliance is suited for the commercial use, e.g. at
construction sites, in industrial systems, in workshops
and rental companies.
This service manual describes the appliance family:
–NT 50/1 Me Classic
–NT 50/2 Me Classic
–NT 70/2 Me Classic
–NT 90/2 Me Classic
The devices differ in the size of the catch pan and the num-
ber of suction turbines.
Safety devices serve to protect the user and must not be
rendered in operational or their functions bypassed. Observe safety information in the chapters!
The type plate is located at the bottom of the appliance.
1 Protective class
2 Performance data
3 Serial number
4 Appliance description
5 Part number
6 Year of manufacture
7 Address of manufacturer
Technical Features
Intended use
Field of application
Safety installations
Type plate

English 5.906-709.0 Rev. 00 (11/14) 7
1 Storage area
2 Suction head
3 Suction head lock
4 Dirt receptacle
5 Impeller
6 Steering roller
7 Bumper
8 Suction support
9 Air outlet opening
10 Appliance switch suction turbine 2
(NT 50/2, NT 70/2, NT 90/2 only)
11 Appliance switch suction turbine 1
12 Carrying handle
Overview of the appliance
Front view

8 English 5.906-709.0 Rev. 00 (11/14)
1 Push handle
2 Suction tube
3 Air outlet opening
4 Holder accessories
5 Floor nozzle
6 Suction tube
7 Power cord
8 Air outlet opening
9 Crevice nozzle
10 Hose/cable holder
View from behind

English 5.906-709.0 Rev. 00 (11/14) 9
General
Service and maintenance tasks may only be performed by
qualified and specially trained specialists.
DANGER
First pull out the plug from the mains before carrying out
any tasks on the machine.
Observe general safety information!
Casing
In the casing
–Power switch suction turbine
–Suction turbine
–Chassis
are installed
AB Service group setup
010 Safety information
020 Overview
ABAS Uninstall/ install suction turbine cover
ABBU Uninstall / install bumper
ABFK Uninstall / install filter basket
ABGH Uninstall / install appliance hood
ABHZ Uninstall / install holder accessories
ABLR Uninstall / install steering rollers
ABRH Uninstall / install wheels in the back
ABSB Uninstall / install push handle
ABSC Uninstall / install float
ABTG Uninstall / install carrying handle
ABVS Uninstall / install locking mechanism suction head
030 Function

10 English 5.906-709.0 Rev. 00 (11/14)
1 Carrying handle
2 Screws
Unscrew the screws.
Remove the carrying handle.
ABTG Uninstall / install carrying handle
1 Cover
2 Screw, medium length
3 Carrying handle
4 Screws, long length
5 Screws, short length
Unscrew the screws.
Remove the appliance cover.
1 Screws, short length
2 Screws, long length
3 Screw, medium length
Note
Payattentiontothecorrect placementofthescrewsduring
assembly.
040 Service activities
ABTG Uninstall / install carrying handle
ABGH Uninstall / install appliance hood

English 5.906-709.0 Rev. 00 (11/14) 11
Remove the suction head.
1 Inside cover
2 Screws
Unscrew the screws.
Remove inside cover.
1 Sound insulation mat
Remove sound insulation mat.
1 Screws
2 Cover of the suction turbine
Unscrew the screws.
Remove cover of suction turbine.
Reattach the sound insulation mat upon installation.
ABAS Uninstall/ install suction turbine cover

12 English 5.906-709.0 Rev. 00 (11/14)
Remove suction head from the dirt receptacle.
ACPF Uninstall / install cartridge filter
1 Filter basket
2 Screws
Unscrew the screws.
Remove the filter basket.
ABFK Uninstall / install filter basket
1 Filter basket
2 Float
Remove float from the filter basket.
Note
Mind the correct alignment of the float upon installing the
float.
The open side of the float must face away from the suction
head.
ABFK Uninstall / install filter basket
ABSC Uninstall / install float

English 5.906-709.0 Rev. 00 (11/14) 13
Remove suction head from the dirt receptacle.
1 Suction head lock
2 Rivets
Drill out rivets.
Remove locking mechanism.
Fasten the locking mechanism by means of new rivets.
Remove the accessories on the back of the bumper.
Remove the suction hand.
Empty the dirt receptacle.
Place the dirt receptacle on the side.
1 Tensioning ring
2Bumper
3 Dirt receptacle bottom
Remove clamping ring.
Remove bumper.
Remove the suction hand.
Empty the dirt receptacle.

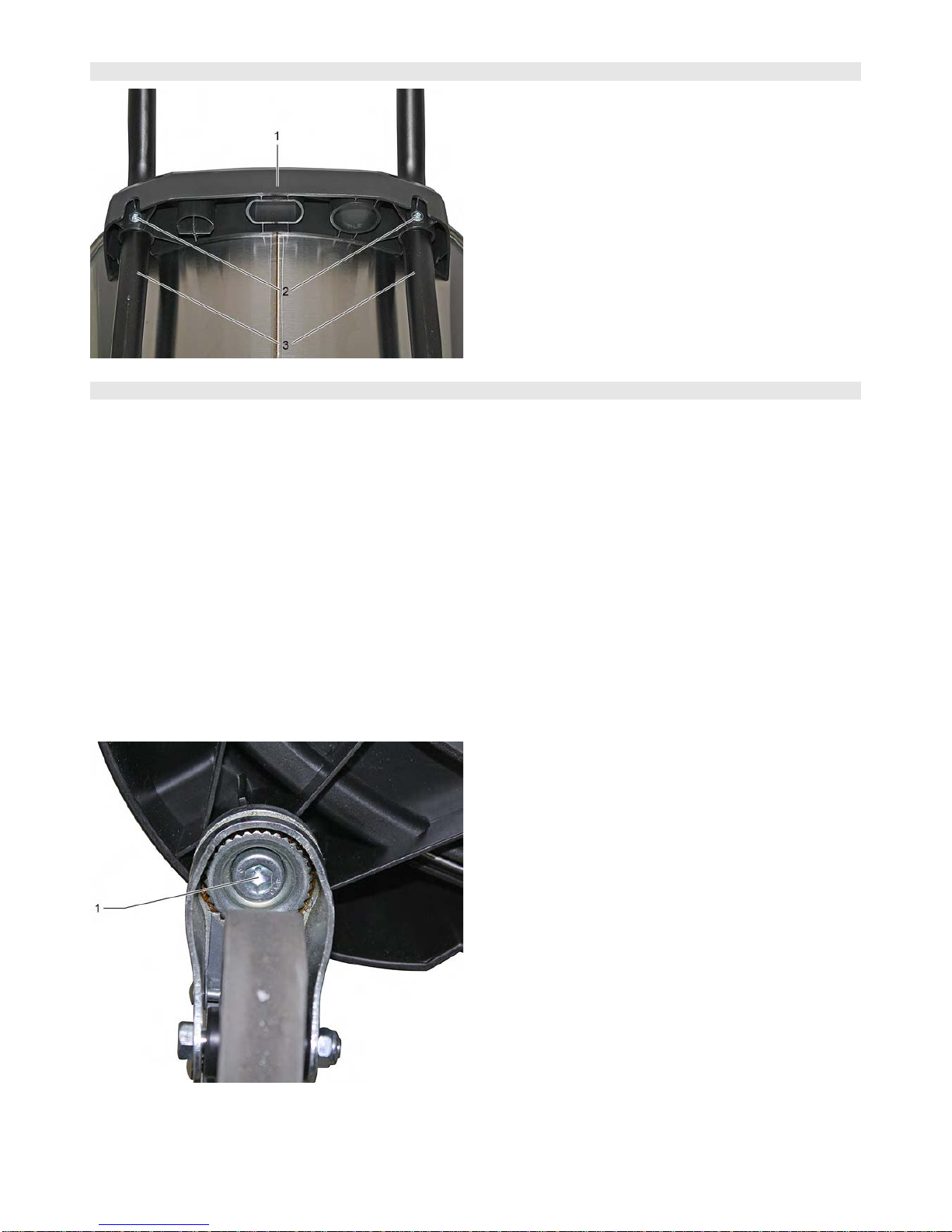

1 Holder accessories
2 Screws
3 Push handle
Unscrew the screws.
Pull the push handle out of the bumper.
Remove the accessories holder from the push handle.
ABVS Uninstall / install locking mechanism suction head
ABBU Uninstall / install bumper
ABHZ Uninstall / install holder accessories

14 English 5.906-709.0 Rev. 00 (11/14)
ABHZ Uninstall / install holder accessories
1 Holder accessories
2 Screws
3 Push handle
Sequence as described in Chapter "ABHZ Uninstall /
install holder accessories".
Remove the suction hand.
Empty the dirt receptacle.
Place the dirt receptacle on the accessories holder .
1Nut
2 Steering roller
1 Inner hexagonal screw
Hold up hexagon socket screw.
Loosen the nut.
ABSB Uninstall / install push handle
ABLR Uninstall / install steering rollers

English 5.906-709.0 Rev. 00 (11/14) 15
1 Wheel rear
2 Cover
Remove the cover.
1 Clamping washer
2 Axle
Lever the clamping washer off the axle.
Use a new clamping washer upon installation.
Check wheels for ease of movement.
Check whether the axle is bent.
The service group does not contain any peculiarities.
ABRH Uninstall / install wheels in the back
050 Maintenance and inspection
060 Error diagnosis
Findings Possible cause Correction
Water leak during vacuuming Float is jammed. Loosen and clean the jammed float us-
inga dampcloth.Checkfloatforeaseof
movement.
070 Peculiarities/ others

16 English 5.906-709.0 Rev. 00 (11/14)
For this service group there is no special safety informa-
tion.
Observe general safety information!
Casing
Dirtandfluidsaresucked through the suction hose into the
dirt receptacle via the floor nozzle.
The suction turbine generates the necessary vacuum in
the dirt receptacle.
Inordertoprotect the suction turbinefromdamagecaused
by water ingress, the float closes the air duct when the dirt
receptacle is full.
AC Service group suction system
010 Safety information
020 Overview
ACAS Uninstall / install connection nozzle
ACGT Uninstall / install sliding contacts suction turbines (2)
ACPF Uninstall / install cartridge filter
ACSU Uninstall / install suction turbines (2)
030 Function

English 5.906-709.0 Rev. 00 (11/14) 17

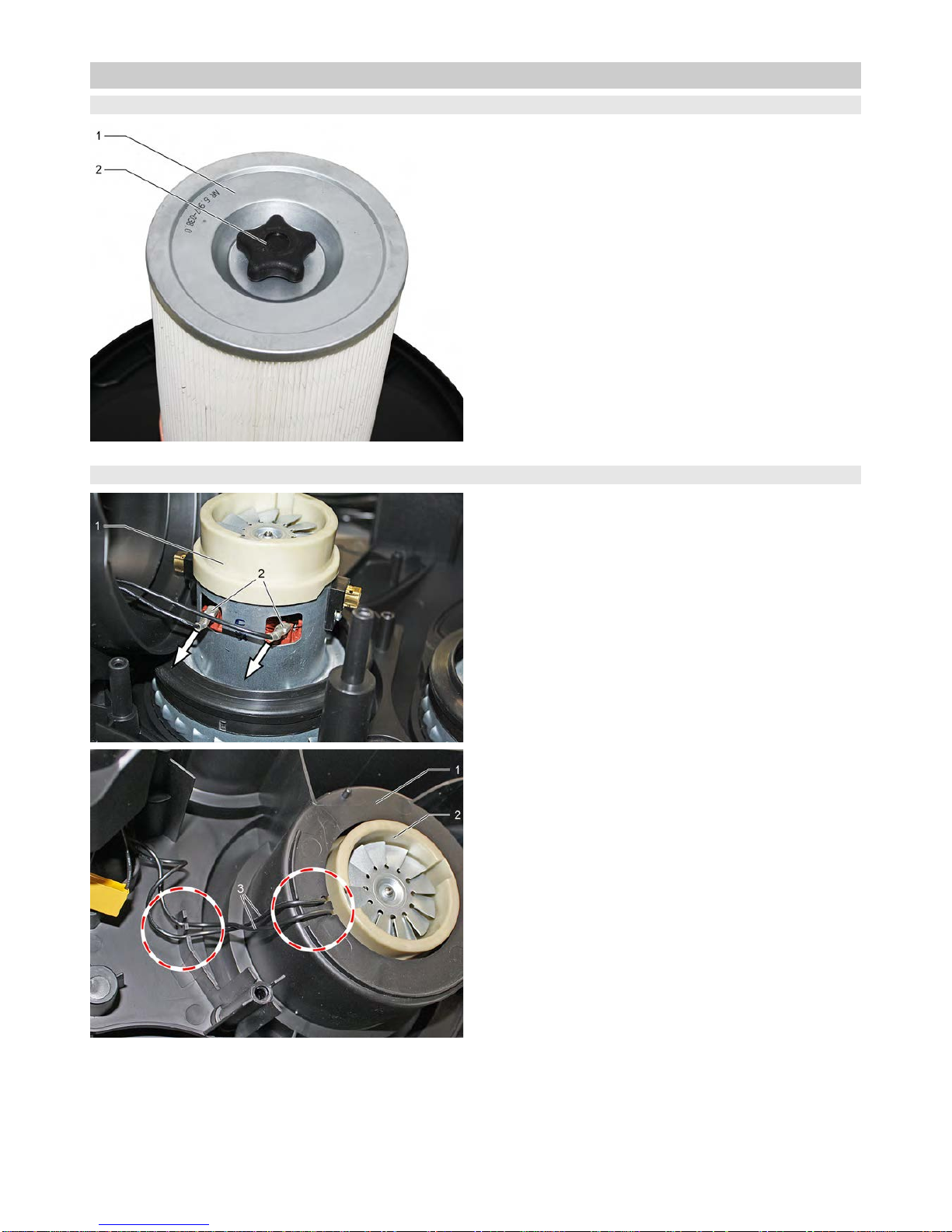

Remove the suction hand.
1 Cartridge filter
2 Star handle screw
Screw out the star handle screws.
Remove the cartridge filter.
ABAS Uninstall/ install suction turbine cover
1 Suction turbine
2 Connecting cable
Remove the connecting cable.
Remove the suction turbine.
1 Cover of the suction turbine
2 Suction turbine
3 Connecting cable
Upon installation, ensure that the connecting cables
run in the cable guides.
040 Service activities
ACPF Uninstall / install cartridge filter
ACSU Uninstall / install suction turbines (2)

18 English 5.906-709.0 Rev. 00 (11/14)
ACSU Uninstall / install suction turbines (2)
1 Sliding contacts
1 Glide contact
2Screw
Loosen screws.
Pull the sliding contact out of the duct.
Sliding contact uninstalled.
ACGT Uninstall / install sliding contacts suction turbines (2)

English 5.906-709.0 Rev. 00 (11/14) 19
Remove the suction hand.
Empty the dirt receptacle.
1 Connection nozzle
2 Clips
3 Counter support
Bent up all three clips on the counter support.
Push the connection nozzle outwards through the
counter support.
Upon installation, ensure that all three clips snap into
the connection nozzle.
Service group does not contain any maintenance and in-
spection points.
The service group does not contain any peculiarities.
ACAS Uninstall / install connection nozzle
050 Maintenance and inspection
060 Error diagnosis
Findings Possible cause Correction
Suction turbine does not run Electrics defective. Check the receptacle and the fuse of
the power supply.
Connection defective. Check power cable, mains plug and
mechanical overflow protection.
Device is not switched on. Turn on the appliance.
Vaccum turbine is running but the ma-
chine is not sucking in dust/dirt ? Turn off the appliance and wait for 5 seconds, turn it on again after 5 sec-
onds.
Float is jammed. Loosen and clean the jammed float us-
inga dampcloth.Checkfloatforeaseof
movement.
Float is blocking the suction canal. Empty the dirt receptacle.
Dirt receptacle is full. Empty the dirt receptacle.
Suction capacity decreases Suction system is blocked. Remove choking of suction nozzle, suc-
tion tube, suction hose, or cartridge fil-
ter.
NT 50/1, NT 50/2 only:
Exchange the fleece filter bag (option).
Clean or replace the membrane filter
(special accessory) under running wa-
ter.
Change cartridge filter.
Drain hose leaking. NT 70/2, NT 90/2 only:
Check drain pipe for leaks.
Dust comes out during the vacuuming Cartridge filter not properly installed. Check the proper installation of the car-
tridge filter.
Cartridge filter defective. Change cartridge filter.
070 Peculiarities/ others

20 English 5.906-709.0 Rev. 00 (11/14)
DANGER
First pull out the plug from the mains before carrying out
any tasks on the machine.
The suction turbines are switch on and off via the power
switches.
AH Service group electrics
010 Safety information
020 Overview
AHEK Uninstall / install anti-interference capacitor
AHGB Uninstall / install power switches (2)
AHNK Uninstall / install power cable
030 Function
