Kasco LED3C11 User manual

1
Owners Manual
LED3C11
WaterGlow Lighting
Kasco Marine, Inc.
800 Deere Rd.
Prescott, WI 54021
PH [phone]
kascomarine.com
Rev 2-18-20

2
Table of Contents
Important Safety pg 2
Parts Included pg 3
Mounting Instructions pg 4 - 7
Maintenance and Warranty pg 8
Repair pg 9
Troubleshooting Tips pg 10-11
Replacement Parts pg 12
Important Safety:
Please read and follow these important instructions to help ensure your safety and the quality performance of your Kasco
equipment.
•Caution should be used when dealing with any electrical and/or moving equipment.
•Under NO CIRCUMSTANCE should anyone enter the water with the electrical equipment plugged in and/or in
operation.
•Kasco WaterGlow lighting kits are intended for use with a Listed control panel having a GFCI protected receptacle, or
field wiring terminals and disconnect switch, or a timer with a disconnect for use with a GFCI receptacle. They are
intended to be mounted on a floating fountain or aerator for use in a natural or man-made body of water to comply
with NEC Article 682.
•Kasco WaterGlow lighting kits have not been evaluated for use in swimming pools, spas or stationary fountains.
•LED3C11 kit is 120Vac and MUST be plugged into a GFCI protected receptacle or GFCI protected field terminal
connections.
•LED3C11 fixtures MUST be properly submerged (approx. halfway) to avoid overheating; insufficient submersion or
operation out of water will damage fixtures and void warranty.
•Extreme caution should be used around water, especially cold water, as in Spring, Fall, and Winter, which poses a
hazard in and of itself.
•NEVER lift or drag the equipment by the power cords. If you need to pull the unit to the side of the pond, use the
anchoring ropes.
•Do not use boats that tip easily for lighting kit installation and follow all boating safety rules and regulations, including
wearing a PFD (Personal Flotation Device). Do not use waders in deep ponds/lakes or ponds/lakes with drop-offs,
drastic slopes, or soft bottom material.
•For more information regarding your control panel instructions, refer to your equipment owner’s manual. A control
panel must be installed a minimum of 5 feet (3m in Canada) from the body of water unless separated from the body
of water by a fence, wall, or other permanent barrier that will make the unit inaccessible to persons in the water. A
complete list of control panels can be found in the Accessories section of kascomarine.com.

3

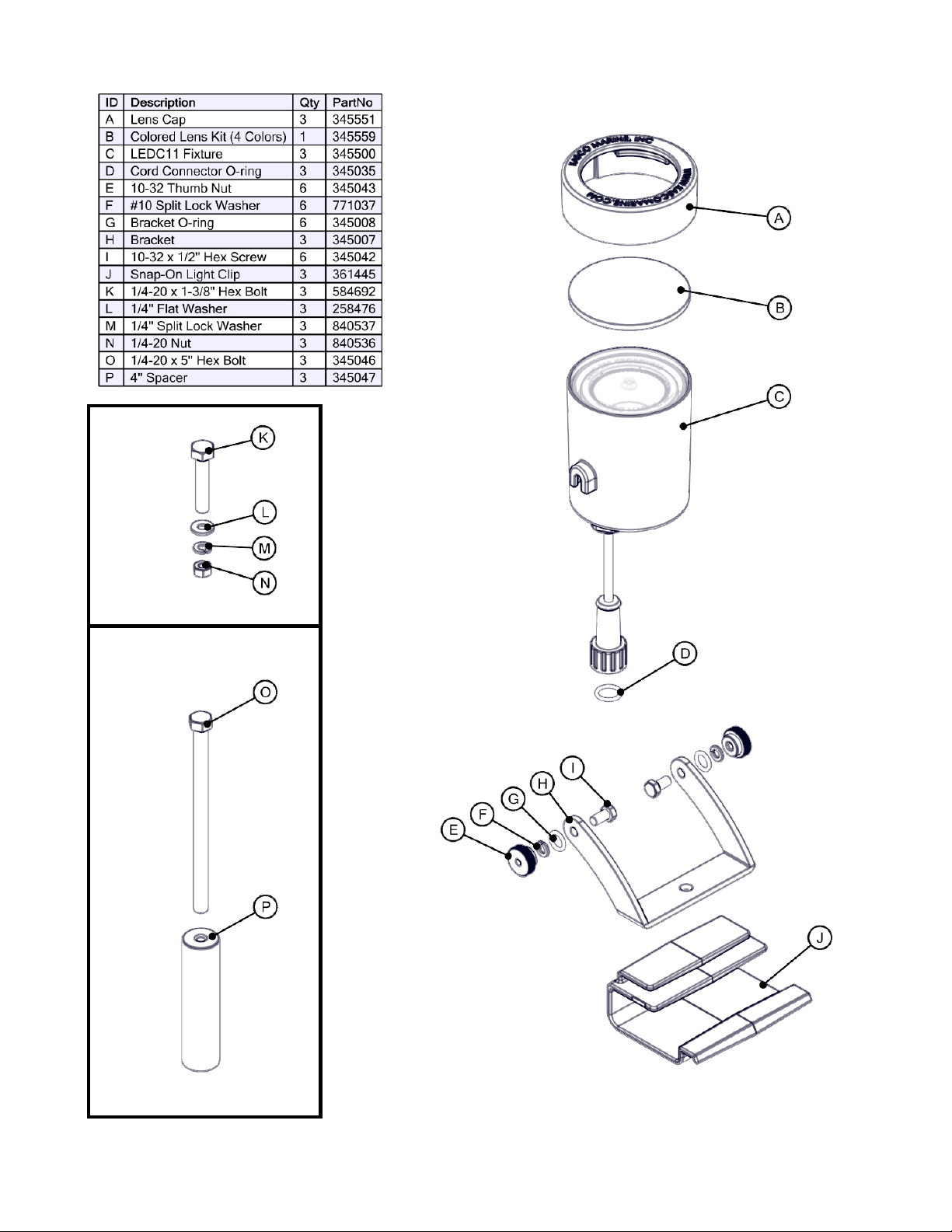

Parts Included
Alternate Mounting Method
Mounting Method for 2HP and larger
fountains (8400JF/VFX/AF and larger)

4


Mounting Instructions
Step 1

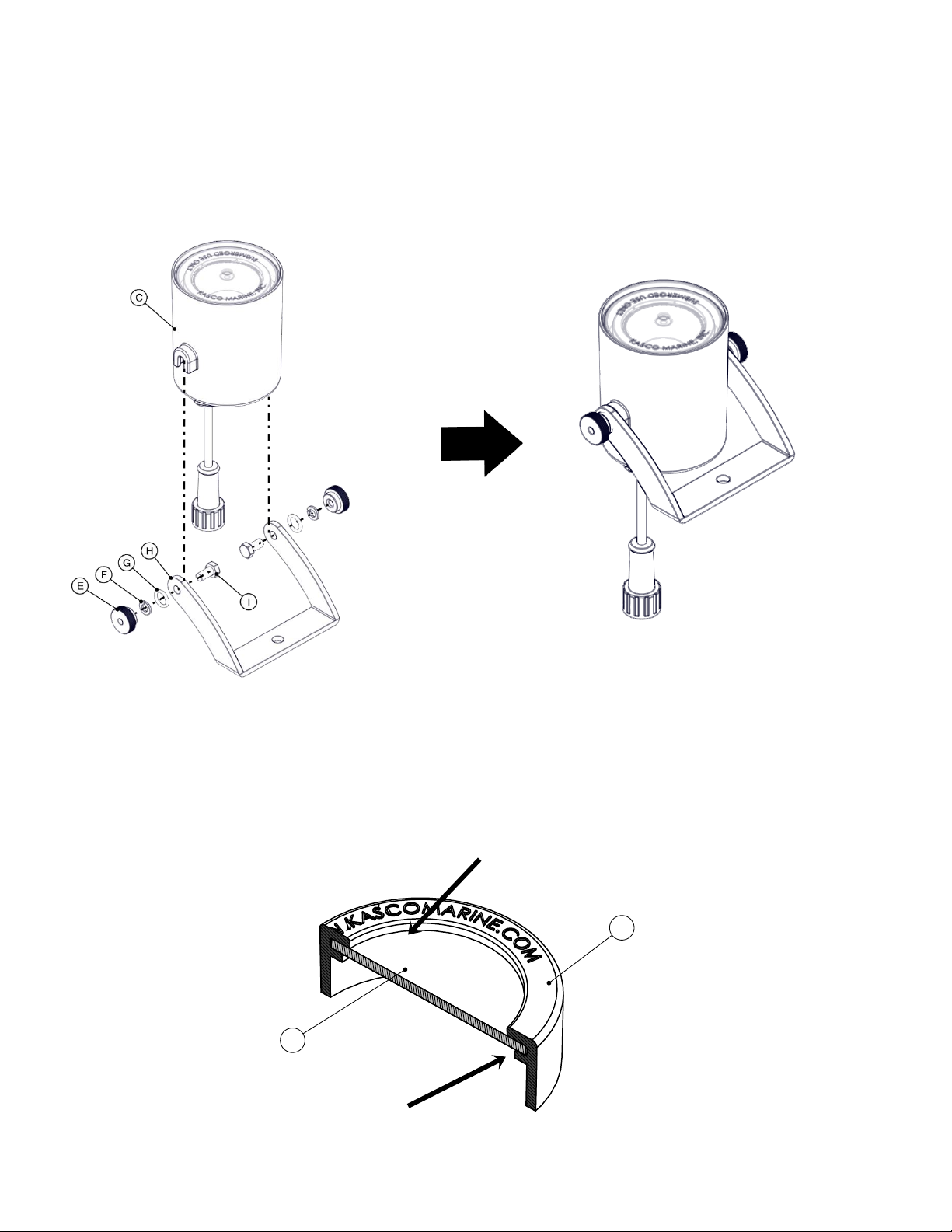

Attach the bracket (H) to the light fixture (C) by fitting the head of the 10-32 x 1/2’’ hex screw (I) into the tabs on each side of
the fixture. Place one bracket O-ring (G), one #10 lock washer (F), and one thumb nut (E) on each #10 screw outside the
bracket. Tighten the thumb screws on each side hand tight only. Repeat this step for all fixtures.
Step 2 (Optional)
If you desire to change to one of the color choices instead of the standard soft white light, unpeel the protective backing from both
sides of the colored lens (B) of your choice. Place the lens inside the lens cap (A) making sure the 3 flaps are holding the lens in
place. Repeat this step for all lens caps. Continue to Step 3.
No Gap
Flaps behind lens

5

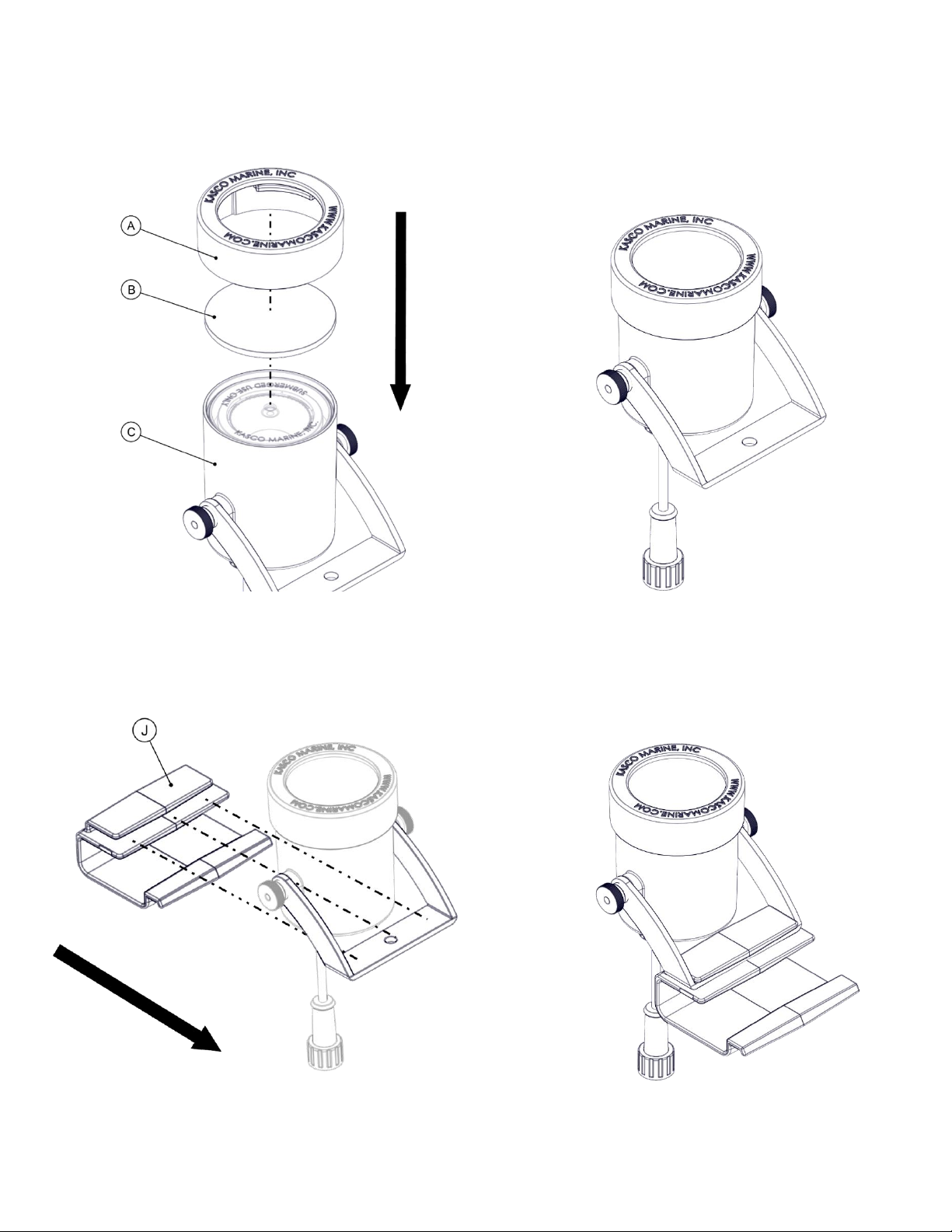

Step 3 (Optional)
Place lens caps over the light fixture (C) as shown. Ensure the cap is seated all the way down onto the fixture housing. Make sure
the fixture and lens are clean before installing the lens cap. Repeat for all fixtures.
Step 4
Slide bracket into the top flange on the snap-on clip (J) until it clicks into place and is secure.

6
Step 5

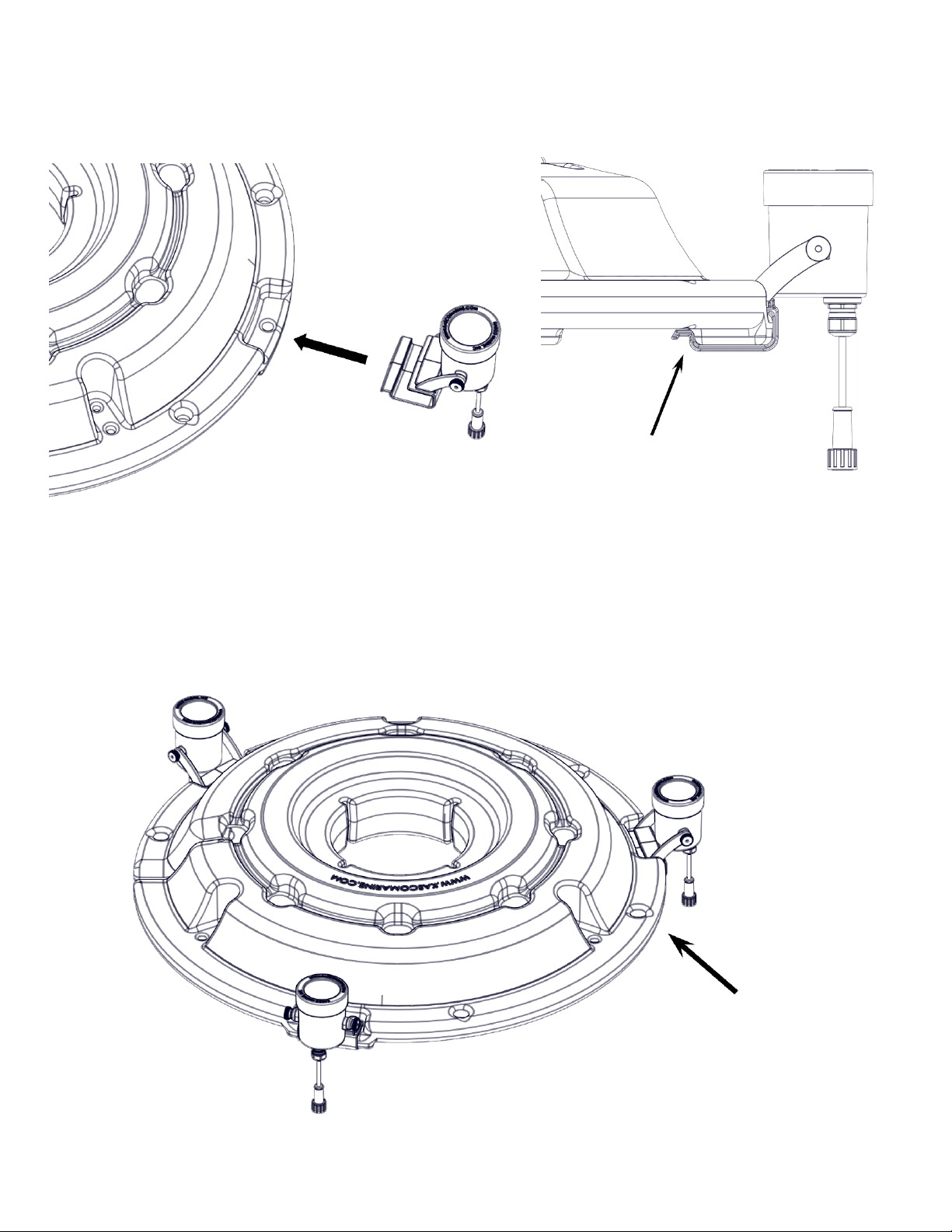

After attaching unit to the float according to fountain/aerator instructions, push clips into recesses on float until an audible click is heard
and fixture is secure.
Ensure clip is fully
seated on float
Step 6
Repeat for remaining fixtures, spacing evenly around the float. Adjust angle of lights using thumb nuts if desired, being sure that the
same angle is used for all fixtures. Cable ties can be used to attach fixture cords to float to decrease play and ensure protection. Cable
tie light kit power cord to float opposite the fountain power cord for balance and to prevent damage from fountain. Upon installation of
the assembled unit, connect light kit to field installed GFCI protected outlet and timer.
Secure light kit power
cord to float using
supplied cable ties

7
Alternate Mounting Instructions
For 3400/4400 JF/VFX/AF units:
Included with the LED3C11 Kit is optional hardware for use
instead of the snap-on light clip. Assemble parts K, L, M, and
N as shown in the diagram below. 7/16’’ socket and wrench
required.
For 8400 JF/VFX/AF and larger units:
Included with the LED3C11 Kit is required hardware for use
instead of the snap-on light clip. Assemble parts O, P, L, M, and
N as shown in the diagram below. 7/16’’ socket and wrench
required.

8
Under NO CIRCUMSTANCE should anyone enter the water while a fountain is operating.
The following maintenance procedures can be utilized to ensure many years of quality performance from your Kasco Fountain and
Light Kit and reduce the need for more costly repair work.
PROPER INSTALLATION: Proper installation of Kasco equipment will include a power source with ground fault protection. The control
panel included with the equipment has built-in ground fault protection for both the fountain and the lighting kit. Ground fault interrupters
are a safety feature that can also alert you to electrical leaks in the equipment. If you have repeat, consistent trips of the ground fault
device, the equipment should be disconnected and removed from the water. The power cord should be inspected for damage and you
should contact your distributor or contact Kasco Marine at 715-262-4488 or [e-mail] for further instructions. A
complete list of control panels can be found in the Accessories section of kascomarine.com.
OBSERVATION: Operating equipment should be observed on a regular basis (daily, if possible) for any reduction or variation in
performance. If a change in performance is observed, the equipment should be disconnected from power and inspected.
WINTER STORAGE: In regions where there is significant freezing in the wintertime, the light kit should be removed from the water to
protect it from the expansion pressure of ice. Storage over winter is best in a location that is out of the sun and cool, but above 32° F.
CLEANING: Light kits should be removed from the water at least once per year (at the end of the season in cold climates) to clean the
exterior of the system. The light fixture surfaces dissipate heat into the water and any algae, calcium, or other build-up will become an
insulator that blocks heat transfer and may lead to overheating and damage. Keeping the lenses clean will also ensure the brightest
light possible.
Warranty Policy
Warranty period: LED3C11, LED4C11, LED6C11 = 2 year Limited Warranty: Kasco® Marine, Inc. warrants this Light Kit to be free
from defects in material or workmanship under normal use and service. The Kasco Marine, Inc. obligation under this warranty is limited
to replacing or repairing free of charge any defective part within the warranty period from the date of shipment. Customer shall pay
shipping charges for returning the unit to Kasco.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND ANY OTHER OBLIGATION OR
LIABILITY WHATEVER ON THE PART OF KASCO MARINE, INC. AND IN NO EVENT SHALL KASCO MARINE, INC. BE LIABLE
FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES.
Warranty is void if:
•The Light Kit is not maintained properly according to the Maintenance Recommendations supplied in this Owner’s Manual.
•The lights, control box, or power cord are altered in any way from original shipment. Cuts in the power cord are not covered
under warranty.
•The Light Kit is damaged by unauthorized tampering.
Warranty Claim Procedure: The best method for establishing warranty period is by keeping your original receipt and registering the
equipment online at kascomarine.com under the Warranty Information section.
Once warranty coverage has been established, the light kit may be sent to Kasco Marine or any Kasco Authorized Repair Center for
evaluation and repair.
Maintenance Recommendations
Warranty

9
Note: The LED light fixtures are sealed and do not require any physical maintenance other than cleaning. If a fixture fails to operate it
can be removed and the included sealing cap installed onto the waterproof connector of the power cord. This will allow you to continue
to operate your light kit with two fixtures while a replacement fixture is procured. Only perform this removal/replacement with all
equipment disconnected from the power source.
Any required repairs must be performed by Kasco Marine. Any alterations or changes made to Kasco units by an unauthorized source
will void the warranty. This includes tampering with the unit, power cord, and/or control box.
A physical Kasco Repair Form must be included with any equipment sent to Kasco or an Authorized Repair Center. This form can be
found under the Product Support section of kascomarine.com. If no Repair Form is available, include your name and physical address
for return delivery of the repaired Light Kit and a daytime phone number and/or e-mail address for correspondence regarding the
warranty claim.
Note: Visually inspect the power cord for any cuts, rodent chews, etc. to determine if it should be included in the repair shipment. The
cord may be needed by the shop to diagnose the failure.
Once warranty coverage has been established, the equipment may be sent to any Kasco Authorized Repair Center or to Kasco at:
Kasco Marine, Inc.
800 Deere Rd.
Prescott, WI 54021
Attn: Repairs
Non-Warranty Repairs: Most failed equipment can be repaired at substantially lower costs than replacement with new. If your light kit
requires repair and is no longer covered under warranty, please contact Kasco Marine or your local distributor for available options.
Please ship according to the instructions above.
•Kasco Marine does estimates on repairs at the request of the customer. The request for estimate should be included in the
letter that accompanies the returned unit and must include a daytime phone number and/or e-mail address. We will contact
the customer with a total after the unit has been evaluated, but before the work is performed.
•All estimates that are rejected for repair will be destroyed unless otherwise directed by the customer. Rejected equipment can
be returned at the customer’s expense for shipping and handling charges.
Billing: All non-warranty repairs will be returned and billed to the customer unless otherwise directed. Kasco Marine accepts Visa and
MasterCard credit card payments. Kasco Marine will call for credit card information upon completion of the estimate at the customer’s
request.
Please see the Product Support section of kascomarine.com for more information about warranty and repairs. Contact Kasco Marine at
715-262-4488 or [e-mail] for additional information and your closest Authorized Repair Center.
Repair

10
The following is provided to help diagnose a probable source of trouble. It is a guideline only and may not show all causes for all
problems. For additional troubleshooting help, contact your local distributor or visit kascomarine.com for additional guidance. Note: you
may need to refer to your owners manual that was provided with your fountain for additional control panel settings and adjustments.
“My light kit is installed and wired but will not turn on.”
Ensure control panel is connected to the electrical circuit. Verify circuit breakers, timers, and/or interlock switches are turned on and
functional. Refer to your owners manual that was provided with the fountain.
It may not be dark enough for the photo eye on the control panel to activate.
•C-25 control panel: The control panel has a photo eye on the left side of the enclosure exterior. This photo eye measures
ambient light. To activate, the photo eye must not measure any ambient light for at least several minutes. Also, the C-25 timer
must be turned on (fountain operating) to allow the light circuit to energize. Covering the photo eye with black electrical tape
will activate the photo eye for testing.
•C-85, or C-95 control panel with GFCI outlet and photo eye control: The control panel has a photo eye on the left side of the
enclosure exterior. This photo eye measures ambient light. To activate, the photo eye must not measure any ambient light for
at least several minutes. Also, the fountain timer must be turned on (fountain operating) to allow the light circuit to energize.
Covering the photo eye with black electrical tape will activate the photo eye for testing. While the photo eye is covered, the
GFCI outlet can be reset if tripped.
The timer may not be set properly.
•C-85, or C-95 control panel (and all 3phase fountain control panels) with terminal connections and timer control for light kit:
The control panel has a second timer for controlling the lights (no photo eye). Ensure the light timer is set to operate the lights.
The timer has a built in Hand-Off-Auto switch. Ensure the switch is set properly. Ensure the fountain is turned on. The light
timer will not energize the light kit unless the fountain circuit is energized.
The GFCI may be tripped.
•C-25 control panel: Reset the GFCI. If the GFCI does not reset it could be a ground fault in the fountain wiring, or the light kit
wiring. Unplug both the fountain and light kit and reset the GFCI. If it resets, plug fountain then light kit back in and see which
one trips the GFCI. If the GFCI does not reset with both unplugged, then the GFCI may be defective.
•C-85, or C-95 control panel with GFCI outlet and photo eye control: To reset the GFCI outlet the fountain timer must be turned
on, and the photo eye must be activated. (black electrical tape can be wrapped around the photo eye to activate it). Once
these are on, the GFCI reset button can be pressed. (unplug the light kit prior). Plug the light kit in and see if it operates. If the
GFCI trips again then the light kit may be damaged. If the GFCI does not reset (with light kit unplugged) then it may be
defective, or the photo eye is not activated to send power to the outlet.
•C-85, or C-95 control panel with terminal connections and timer control for light kit: For panels with a GFCB (ground fault
circuit breaker) and timer-controlled lights, simply reset the two-pole breaker. This will turn the fountain and light kit back on if
the timers are set to on! If it trips again, disconnect the light kit from the terminals and reset. WARNING! You must turn off
power to the panel before disconnecting any wiring from the terminals! If the breaker trips with the light kit disconnected, then
disconnect the fountain as well and reset. If the breaker continues to trip it may be a defective GFCB. If the breaker resets,
then reconnect the fountain then the light kit to see which one trips the GFCB.
•3phase fountain control panels: 3phase fountain panels have a ground fault sensing module that will trip if either the light kit or
fountain has a ground fault. To reset the module, simply press the reset button in the panel. This will turn the fountain and light
kit back on if the timers are set to on! If it trips again, disconnect the light kit from the terminals and reset. WARNING! You
must turn off power to the panel before disconnecting any wiring from the terminals! If the GFI module trips with the light kit
disconnected, then disconnect the fountain as well and reset. If the GFI module continues to trip it may be a defective module
Troubleshooting Tips

11
or an internal wiring issue with the panel. If the module resets, then reconnect the fountain then the light kit to see which one
trips the module.
“My lights work, but they are not as bright as they were when fist installed.”
Dirty lenses may be to blame.
•Turn off power to the control panel and disconnect power cords to the fountain and the light kit. Bring the fountain to the shore
and inspect the light kit lenses. Over time, algae growth and hard water deposits on the lenses can block light output. Clean
the lenses with a soft brush and the light should be bright again.

12
Replacement Parts

13
800 Deere Rd
Prescott, WI 54021
Phone: 715‐262‐4488 Fax: 715‐262‐4487
www.Kascomarine.com [e-mail]
Repair Contact Form
❖Kasco requires all Repairs sent in MUST be accompanied by this form and marked to Repairs
attention. (ex. Attn: Repairs)
❖Repairs returned should include upper pump housing or wire basket for Aerators and De‐Icers. These
parts protect the motor during shipping.
❖Kasco is NOT responsible for shipping damage accrued in return shipment.
❖It is the responsibility of customer to ship and pay freight to Kasco.
❖Do not ship float or control panel with unit, unless otherwise instructed
❖A fee of $60 per hour will be assessed for cleaning excessively dirty units and float disassembly
❖Refer to the Owner’s manual for easy‐to‐follow troubleshooting rule out site issue.
Note: Contact Information Should be that of the person or company to contact for repair.
Company
First Name
Last Name
Address
City
State
Zip code
Phone #
Alternate Phone #
Email Address
Preferred method of contact (Circle)
Phone Email
Purchase order #
Additional notes for technician.
Submersible Pump Information (Complete if
sending unit)
Parts Included (For office use)
Light kit Information (complete if sending lights)
Model #
Model #
Unit
Serial #
Serial #
Cord
Cord Length:
Cord Length:
Light Kit
Purchased from:
Purchased From
Float
Purchase Date:
Purchase Date:
Control Panel
