Tranberg TEF 2438N User manual

R. Stahl Tranberg AS
E[email protected] | stahl-tranberg.com
Main office: Strandsvingen 6 | N-4032 Stavanger | Norway | T+47 51 57 89 00 | F+47 51 57 89 50
Office Oslo: Luhrtoppen 2 | N-1470 Lørenskog |Norway | T+47 24 08 44 10
IMPORTANT
Read this instruction carefully before installing the
product
LIGHTING
TEF 2438N LUMINAIRE
SAFE AREA
USER MANUAL
Subject to change without prior notice TUM1008 REV. B 17.07.2017

TEF 2438N LUMINAIRE USER MANUAL
INTRODUCTION
Thank you for purchasing this product!
For installation, maintenance and assurance of a long life
of this product, please follow this manual.
CONTENT IN BOX
The product is fully assembled, and ready for installation.
SAFETY PRECAUTIONS
Note that changes made to the product and/or
installation of components which do not conform to the
approval, may be a safety violation. The manufacturer will
in no circumstance be held responsible for such activity.
For your health and safety, always use safety gear suited
for the task. Be certain to follow codes, regulations and/or
specific procedures that are related to the installation.
TOOLS REQUIRED
Regular tools required for installation:
• 10 mm wrench –for assembling the luminaire.
• 27 mm wrench –for cable gland.
• 24 mm wrench –for pressure nut on the cable gland
• 4 mm flat screwdriver –for assemble and disassemble
the plate w/lamp holder 2438 without economizer bulb.
• 5,5 mm flat screwdriver –for earth screw.
MAINTENANCE INSTRUCTIONS
The luminaire should be inspected according to Company
routines. The manufacturer suggests regular check for
water intrusion/condensation which should be removed
immediately. Check the drain plug / drain hole function.
When cleaning, use only mild detergents. Alcohol or
petroleum based products may damage lens, paint or
plastic components.
APPLICATIONS
• Deck lighting
• Signal lighting
• Obstacle marking
• Perimeter lights on helideck
• For use in safe areas
• General lighting
RUBBER SEAL
Cable diameter Size Part No.
5 - 9mm Ø20,4/9 x 8mm 5002 0045
8,5 - 14mm Ø20/13 x 8mm 5002 0038
Be sure to install the cable in a way wich prevents water to penetrate into the enclosure through the cable gland,
also make sure to use the correct rubber seal when you install the luminaire.
APPROVAL
NA

TEF 2438N LUMINAIRE USER MANUAL
INSTALLATION INSTRUCTIONS
Mount on plane surface, or on pipe 1”BSP (code 0)
Prior to the installation, remove the globe of the
luminaire. This is done by turning the globe ring/guard
counter clockwise, and then pull out both the guard and
the globe. Ensure that the silicon gasket stay on the globe
flange, as it is vital to obtain the water ingress protection.
The lamp is fastened to a structure typically by means of
two M5 bolts, spaced at 120mm. If installed on a wall,
ensure that the cable gland is pointing downwards to
minimize the risk of water ingress through the cable
gland.
Remove the bottom assembly plate inside the luminaire.
This is done by only loosening the two M3 screws, then
slightly turning the bottom assembly plate until it can be
pulled out.

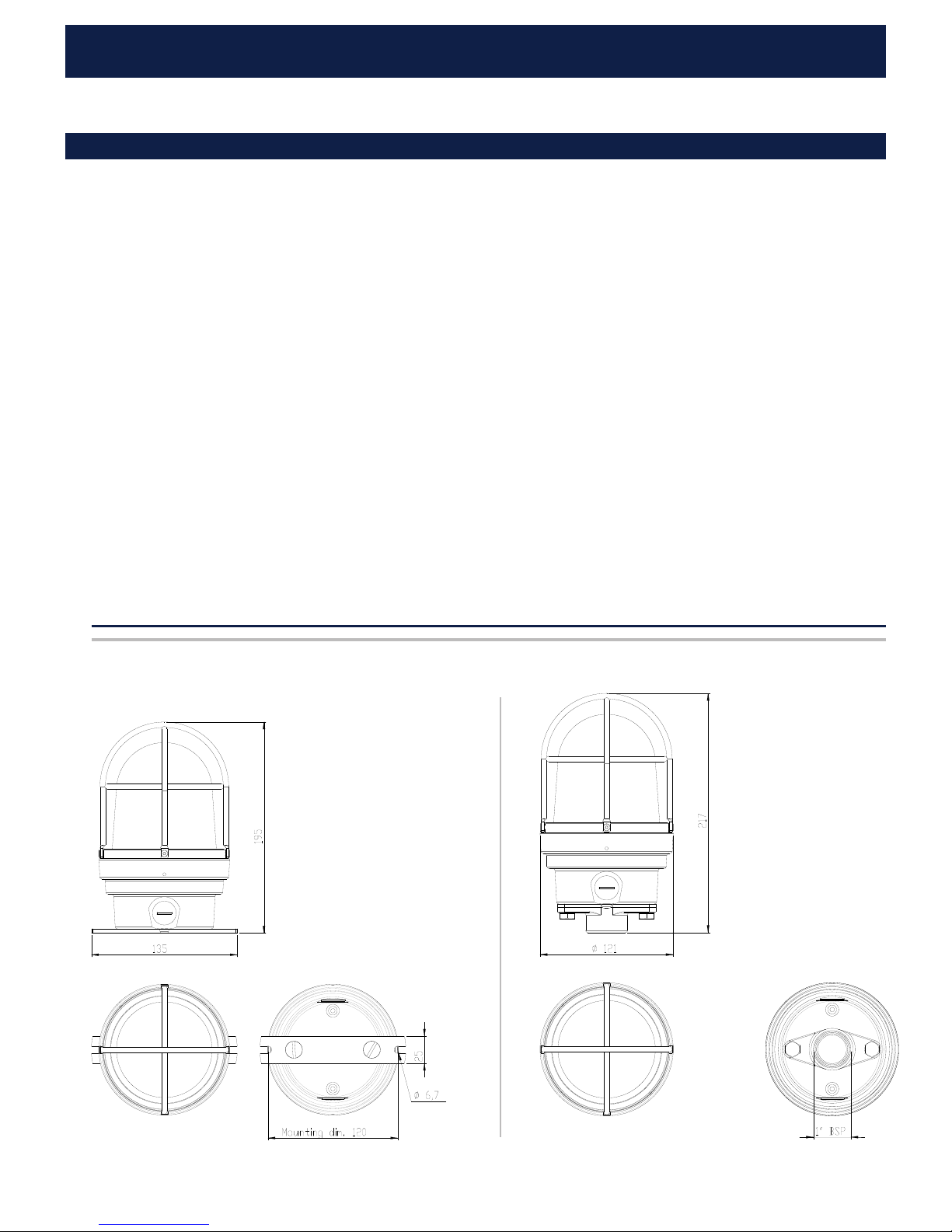

Plane surface mounted Pipe mounted
243A108262
Check that the rubber gasket inside the cable gland
matches the dimension of the cable. See the section at
bottom of the preceding page in this manual, and swicth
to a different size if required. Pull the cable through the
cable gland and connect the wires to the terminals on the
bottom assembly plate.
Replace the bottom assembly plate, while ensuring that
the cable and wires beneath it, does not get jammed when
the two screws for the bottom assembly plate are
tightened. Then tighten the cable gland nut until the
rubber gasket is firmly sealing against the cable.
Finally, test the lamp, then replace the globe and the globe
ring/guard. Please ensure that the silicon gasket is free
from foreign objects and that it is not twisted, nor
dislocated, as that may impair the water ingress rating of
the product.

R. Stahl Tranberg AS
E[email protected] | stahl-tranberg.com
Main office: Strandsvingen 6 | N-4032 Stavanger | Norway | T+47 51 57 89 00 | F+47 51 57 89 50
Office Oslo: Luhrtoppen 2 | N-1470 Lørenskog |Norway | T+47 24 08 44 10
TEF 2438N LUMINAIRE USER MANUAL
TECHNICAL DATA
Material: Cast copper alloy
Globe: polycarbonate (Lexan 953A)
Input voltage: 230/240V AC 50/60Hz
Light source: Incandescent/Compact fluorescent
Lamp holder: E27/B22
Power consumption: Max. 40W
Light output
(w/ 40W incandescent lamp): Clear: Min. 30cd, Yellow / Amber: Min. 30cd, Blue: Min. 5cd,
Red: Min. 10cd, Green: Min. 10cd
Weight: 1,8 kg.
IP-rating: IP56
Standard cable entries: Pipe mounting (Scheme 0):
1 x Bottom entry (Max. Ø25mm),
2 x Stopping plugs M20
Surface mounting (Scheme 1):
1 x Cable gland M20 (Ø5.0-9.0/8.5-14.0mm),
1 x Stopping plug M20
Mounting: On plane surface, or on pipe
1” BSP (code 0)
Description Rart No.
Globe clear, polycarbonate 5044 0018
Globe green, polycarbonate 5044 1006
Globe red, polycarbonate 5044 2006
Globe yellow, polycarbonate 5044 3004
Globe blue, polycarbonate 5044 1004
Globe amber, polycarbonate 5044 6001
Globe gasket, silicone 5001 0021
Lamp holder, E27 5087 0011
Lamp holder, B22 5088 0020
Guard, 2438N (2000 037) 2889
Cable gland, M20 marine Ø5,0-9,0/8,5-14,0mm 7045 043
Stopping plug M20 marine 50793008
SPARE PART
