Kasda KW58193 User manual

KW58193 Wireless ADSL Modem
User Manual

Wireless ADSL Modem USER MANUAL
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all environments
and applications, and makes no warranty or representation, either expressed or implied,
with respect to the quality, performance, merchantability, or fitness for a particular purpose
of the software or documentation. The manufacturer reserves the right to make changes to
the hardware, software, and documentation without obligation to notify any person or
organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2014
All rights reserved.

Content
1 OVERVIEW................................................................................................................................1
1.1 FEATURES...................................................................................................................................... 1
1.1.1 Data rate.................................................................................................................................. 1
1.1.2 ADSL Compliance.................................................................................................................. 1
1.1.3 Wireless................................................................................................................................... 1
1.1.4 Network Protocol and Features....................................................................................... 2
1.1.5 ATM Capabilities.................................................................................................................... 2
1.1.6 FIREWALL.............................................................................................................................. 2
1.1.7Management Support............................................................................................................ 3
1.1.8 Operating System Support ................................................................................................... 3
1.1.9 Environmental......................................................................................................................... 3
1.2 PACKET CONTENTS..................................................................................................................... 3
1.3 SYSTEM REQUIREMENTS............................................................................................................ 3
1.4 FACTORY DEFAULTS................................................................................................................... 4
1.5 WARNINGS AND CAUTIONS......................................................................................................... 4
2 HARDWARE DESCRIPTION................................................................................................... 5
3HARDWARE INSTALLATION.................................................................................................7
4 PC CONFIGURATION GUIDE.................................................................................................8
4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP.....................................................8
4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000 ......................................................................8
4.3LOCAL PC CONFIGURATION IN WINDOWS VISTA .....................................................................9
4.4LOCAL PC CONFIGURATION IN WINDOWS 7............................................................................. 9
5 WEB-BASED MANAGEMENT GUIDE ................................................................................. 10
5.1 LAN SETTING PAGE ....................................................................................................................10
5.2ADSL SETUP............................................................................................................................... 10
5.2.1 PPPoE(PPP over Ethernet)........................................................................................................ 11
5.2.2 PPPoA(PPP over ATM)................................................................................................................. 13
5.2.3 Bridged........................................................................................................................................ 15
5.2.4 LAN Settings................................................................................................................................ 16
5.3WLAN SETTING.......................................................................................................................... 19
5.3.1 Basic ......................................................................................................................................... 19

Wireless ADSL Modem USER MANUAL
3
5.3.2 Advanced Settings............................................................................................................... 20
5.3.3 Security.................................................................................................................................. 22
5.4MANAGEMENT............................................................................................................................. 26
5.4.1 TR069 .......................................................................................................................................... 26
5.4.2 Port Mapping .............................................................................................................................. 27
5.4.3 Reset Router................................................................................................................................ 29
APPENDIX FREQUENT ASKED QUESTIONS....................................................................... 30

Wireless ADSL Modem USER MANUAL
1
1 Overview
Thank you for choosing our product. The KW58193 Wireless ADSL Router uses
Realtek’s CPE solution that fully complies with ADSL, ADSL2，ADSL2+ and
IEEE802.11b/g/n standards. It will provide your SOHO with convenient Internet
access.
1.1 Features
1.1.1 Data rate
Downstream data rate up to 24 Mbps,
Upstream data rate up to 3.5Mbps (With AnnexM enabled)
1.1.2 ADSL Compliance
ITU G.992.1 (G.DMT)
ITU G.992.2 (G.Lite)
ITU G.994.1 (G.hs)
ITU G.992.3 (G.DMT.BIS)
ITU G.992.4 (G.lite.bis)
ITU G.992.5
Compatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
TR-069 compliant with ACS
Support IPv6
1.1.3 Wireless
Fully IEEE 802.11b & IEEE 802.11g&IEEE 802.11n compatible.
Wireless data rate up to 150 Mbps
Operating in the unlicensed 2.4 GHz ISM band
Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK, 802.1x

Wireless ADSL Modem USER MANUAL
2
1.1.4 Network Protocol and Features
Ethernet to ADSL Self-Learning Transparent Bridging
Internet Control Message Protocol (ICMP)
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DDNS
Simple Network Time Protocol (SNTP)
1.1.5 ATM Capabilities
RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
RFC 2364 PPP over ATM compliant
RFC 2516 PPP over Ethernet compliant
ATM Forum UNI3.1/4.0 PVC
VPI Range: 0-255
VCI Range: 32-65535
UNI 3.0 & 3.1 Signaling
ATM AAL5 (Adaption Layer type 5)
OAM F4/F5
1.1.6 FIREWALL
Built-in NAT
MAC Filtering
Packet Filtering
Stateful Packet Inspection (SPI)

Wireless ADSL Modem USER MANUAL
3
Denial of Service Prevention (DoS)
DMZ
1.1.7 Management Support
Web Based GUI
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgrade-able for future feature enhancement
1.1.8 Operating System Support
WINDOWS 98/SE/ME/2000/XP/VISTA/7
Macintosh
LINUX
1.1.9 Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
ADSL ROUTER x 1
Power Adapter x 1
Telephone Line x 1
Ethernet Cable x 1
External Splitter x 1
CD x 1
1.3 System Requirements
Before using this ROUTER, verify that you meet the following requirements:

Wireless ADSL Modem USER MANUAL
4
Subscription for ADSL service. Your ADSL service provider should provide
you with at least one valid IP address (static assignment or dynamic
assignment via dial-up connection).
One or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
A hub or switch, if you are connecting the device to more than one
computer.
For system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Encapsulation: LLC/SNAP-BRIDGING or VC/MUX
VPI/VCI: According to local information
1.5 Warnings and Cautions
Never install telephone wiring during storm. Avoid using a telephone during
an electrical storm. There might be a risk of electric shock from lightening.
Do not install telephone jacks in wet locations and never use the product
near water.
To prevent dangerous overloading of the power circuit, be careful about the
designed maximum power load ratings. Not to follow the rating guideline
could result in a dangerous situation.
Please note that telephone line on modem must adopt the primary line that
directly outputs from junction box. Do not connect Router to extension
phone. In addition, if your house developer divides a telephone line to multi
sockets inside the wall of house, please only use the telephone that has
connected with the splitter of ADSL Router when you access the Internet.
Under the above condition, if you also install telephone with anti-cheat-dial
device, please pull out this kind of telephone, otherwise ADSL Router may
occur frequently off-line.

Wireless ADSL Modem USER MANUAL
5
2 Hardware Description

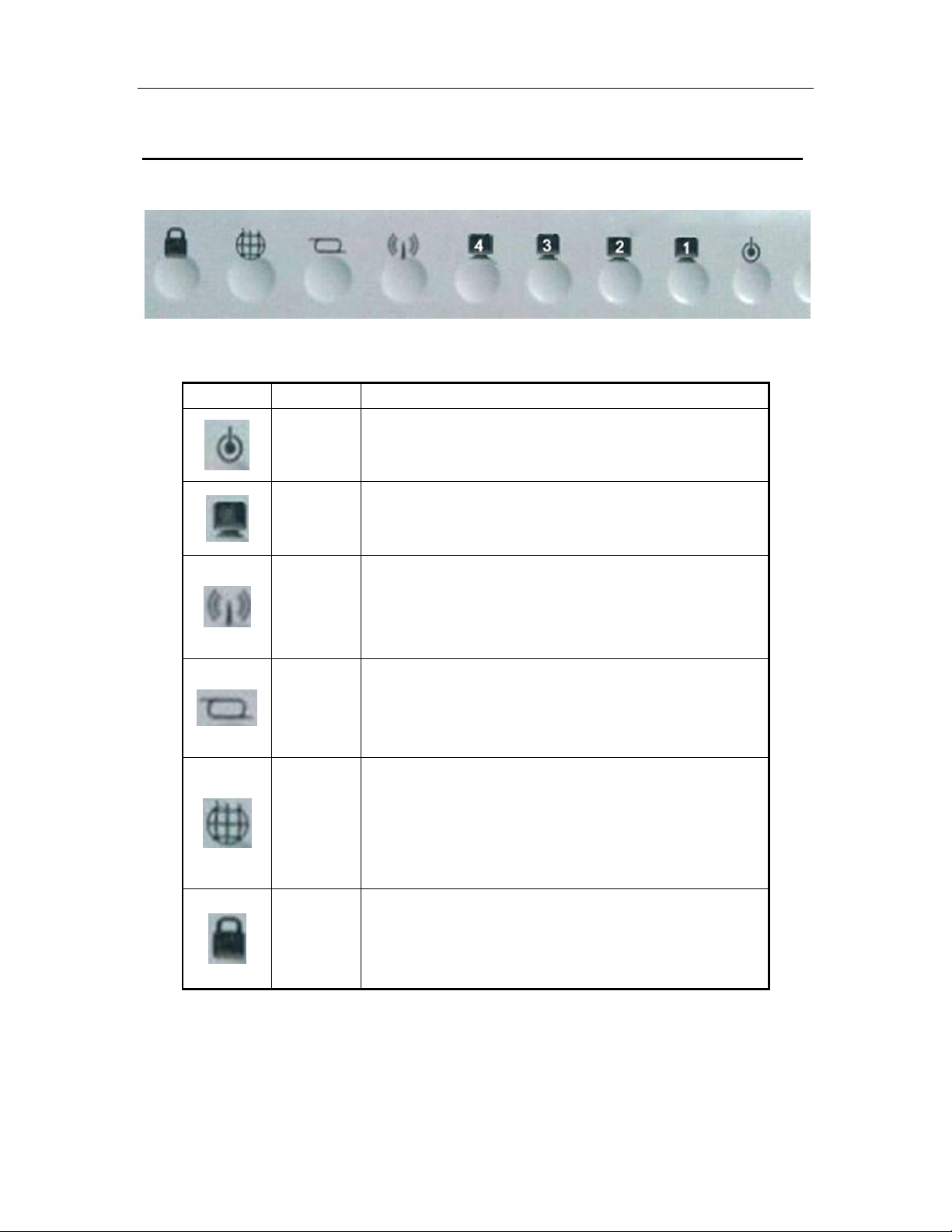

Front Panel
LED
Color
Function
Green
On: Power on
Off: No power
Green
On: LAN link established and active via LAN port
Blinking: ADSL data activity occurs
Off: No LAN link via LAN port
Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off: The wireless function is off
Green
On:ADSL link established and active
Quick Blinking: ADSL is trying to establish a connection
Slow Blinking: No ADSL link
Green
On: IP connected
Blinking: IP connected and IP traffic is passing thru the
device
Off: Modem power off or ADSL connection not present
Green
On: WPS connection is established
Blinking: Trying to establish a WPS connection
Off: WPS function is off or no WPS connection

Wireless ADSL Modem USER MANUAL
6

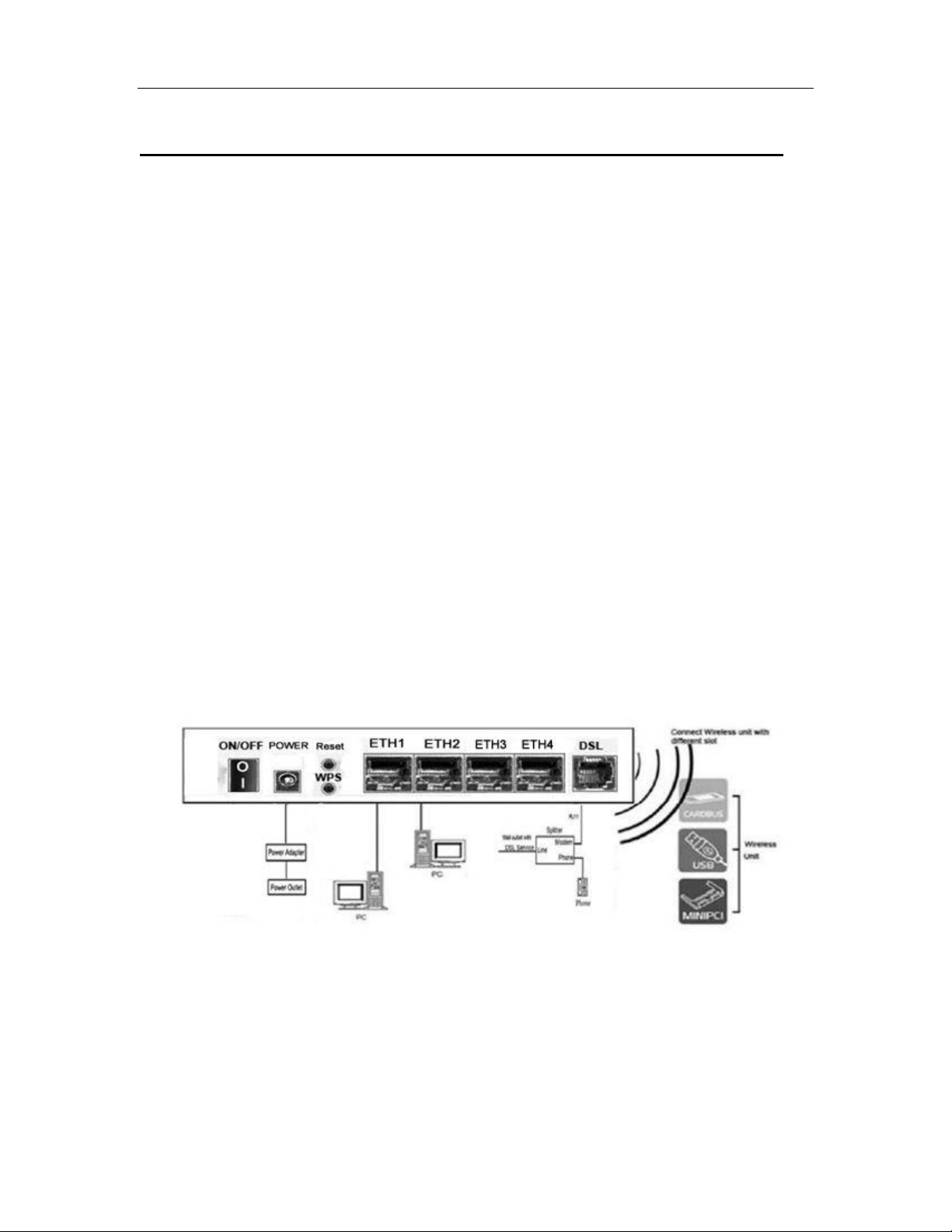

Rear panel
Port
Function
DSL
Connect the device to an ADSL telephone jack or splitter
using a RJ-11 telephone cable
ETH1-4
Connect the device to user’s PC's Ethernet port, or to the
uplink port on user’s hub/switch, using a RJ-45 cable
Reset
System reset or reset to factory defaults
WPS
A convenient way for WPS set.
ON/OFF
Switch it on or off
Power
Connect to the supplied power adapter
