Kasei KZ-5200EA-PRO-2S User manual

KZ-5200EA-PRO-2S
KZ-6300EA-NEO-2S
With
Japan
Walbro
carburator

1
■INTRODUCTION
To correctly use the earth auger and prevent accidents, do not start work without having first carefully read this manual.
You will find explanations concerning the operation of the various parts plus instructions for necessary checks and relative
maintenance.
Note: Illustrations and specifications in this manual may vary according to Country requirements and are subject to
change without notice by the manufacturer.
■THE OPERATOR’S MANUAL
Your operator’s manual is for your protection. READ IT. Keep it in a safe place for reference. Know what you are doing
before you begin assembly of the unit. Proper preparation and upkeep go hand-in-hand with satisfactory performance of the
earth auger and safety.
Contact your dealer or the distributor for your area if you do not understand any of the instructions in this manual.
In addition to the operating instructions, this manual contains paragraphs that require your special attention.
Such paragraphs are marked with the symbols described below:
Warning: where there is a risk of an accident or personal injury or serious damage to property.
Caution: where there is a risk of damaging the machine or its individual components.

2
■PARTS LOCATION
1. Starter
2. Fuel Tank
3. Engine
4. Stop Button Comp
5. Throttle Lever
6. Grease Cap
7. Auger Bit

3
■Understanding Safety Labels
- This symbol indicates Warning, and Caution.
- Your manual contains special messages to bring attention to potential safety concerns, machine
damage as well as helpful operating and servicing information. PLEASE READ ALL THE
INFORMATION CAREFULLY TO AVOID INJURYAND MACHINE DAMAGE.
- Wear eye, hearing and head protection when operating this equipment.
-Wear non-slip, heavy-duty protective gloves when handling earth auger and bit.
- Wear safety strong shoes or boots having skid-proof sole and anti-piercing insert.

4
Warning to Users
1. The gasoline engine must use mixed fuel with volume rate of 30:1 for No.90 gasoline to two-stroke
automobile oil.
2. 3 to 5 minutes’low speed rotation after start and before stop is very necessary. In order to prevent
damage of some parts or body harm caused by violent movement of the engine.
3. High-speed rotation without load must be prohibited! It is strictly prohibited to stop the engine
suddenly at high speed.
4. When adding fuel, the engine should stop, fire sources must be far away and smoking is prohibited.
5. In order to avoid electric shock, do not touch the cap of spark plug and the conducting wire during
the rotation of the engine.
6. The surface of the muffler and the cylinder is very hot, so neither the hands nor the body
approaches them. Especially children should be far away from the engine.

5
■SAFETY RULES
1、Basic Safety Precautions
• Read this manual carefully until you completely understand and can follow all safety rules, precautions, and
operating instructions before attempting to use the unit.
• Restrict the use of your earth auger to adult users who understand and can follow safety rules, precautions, and
operating instructions found in this manual. Minors should never be allowed to use a earth auger.
• Do not handle or operate a earth auger when you are fatigued,ill, or upset, or if you have taken alcohol, drugs, or
medication.You must be in good physical condition and mentally alert.
Earth auger work is strenuous. If you have any condition that might be
aggravated by strenuous work, check with your doctor before operating
a earth auger. Be more cautious before rest periods and towards the end
of your shift.
• Keep children, bystanders, and animals a minimum of 50 feet
(15meters) away from the work area. Do not allow other people
or animals to be near the earth auger when starting or operating the earth
auger.
• While working with the earth auger, always use safety protective

6
approved clothing. The use of protective clothing does not eliminate injury risks, but reduces the injury effects in case
of accident. Consult your trusted supplier to choose equipment in compliance with legislation. The clothing must be
proper and not an obstacle. Wear adherent anti-cut clothing. Protective jackets and dungarees are ideal. Do not wear
clothes, scarves, ties or bracelets that can stuck into twigs. Tie up and protect long hair (example with foulards,
cap,helmets, etc.). Safety shoes or boots having skid-proof sole and anti-piercing insert. Wear protective helmet in
places where there can be falling objects. Wear protective goggles or face screens. Use protections against noises:for
example noise reduction ear guards or earplugs.The use of protections for the ear requests much more attention and
caution, because the perception of danger audio signals(screaming, alarms, etc.) is limited. Wear gloves.
• Only loan your earth auger to expert users who are completely familiar with earth auger operation and correct use.
Give other users the manual with operating instructions, which they have to read before using the earth auger.
• Check the earth auger each day to ensure that each device,whether for safety or otherwise, is functional.
• Never use a damaged, modified, or improperly repaired or assembled earth auger. Do not remove, damage or
deactivate any of the safety devices. Always replace bit immediately if it becomes damaged, broken or is otherwise
removed.
• Carefully plan your working operation in advance. Do not start cutting until you have a clear work area, secure
footing.
• All earth auger service, other than the operations shown in the present manual, have to be performed by competent

7
personnel.
• The earth auger must only be used for making bores in soil. It is forbidden to cut other types of material. Do not use
the earth auger as a lever to lift, move or break objects, nor lock it on fixed supports. It is forbidden to apply tools or
applications that are not the ones indicated by the manufacturer onto the earth auger’s power take-off.
• It is unadvisable to hitch tools or applications to the P.t.o. that are not specified by the manufacturer.
2、Fuel Handling

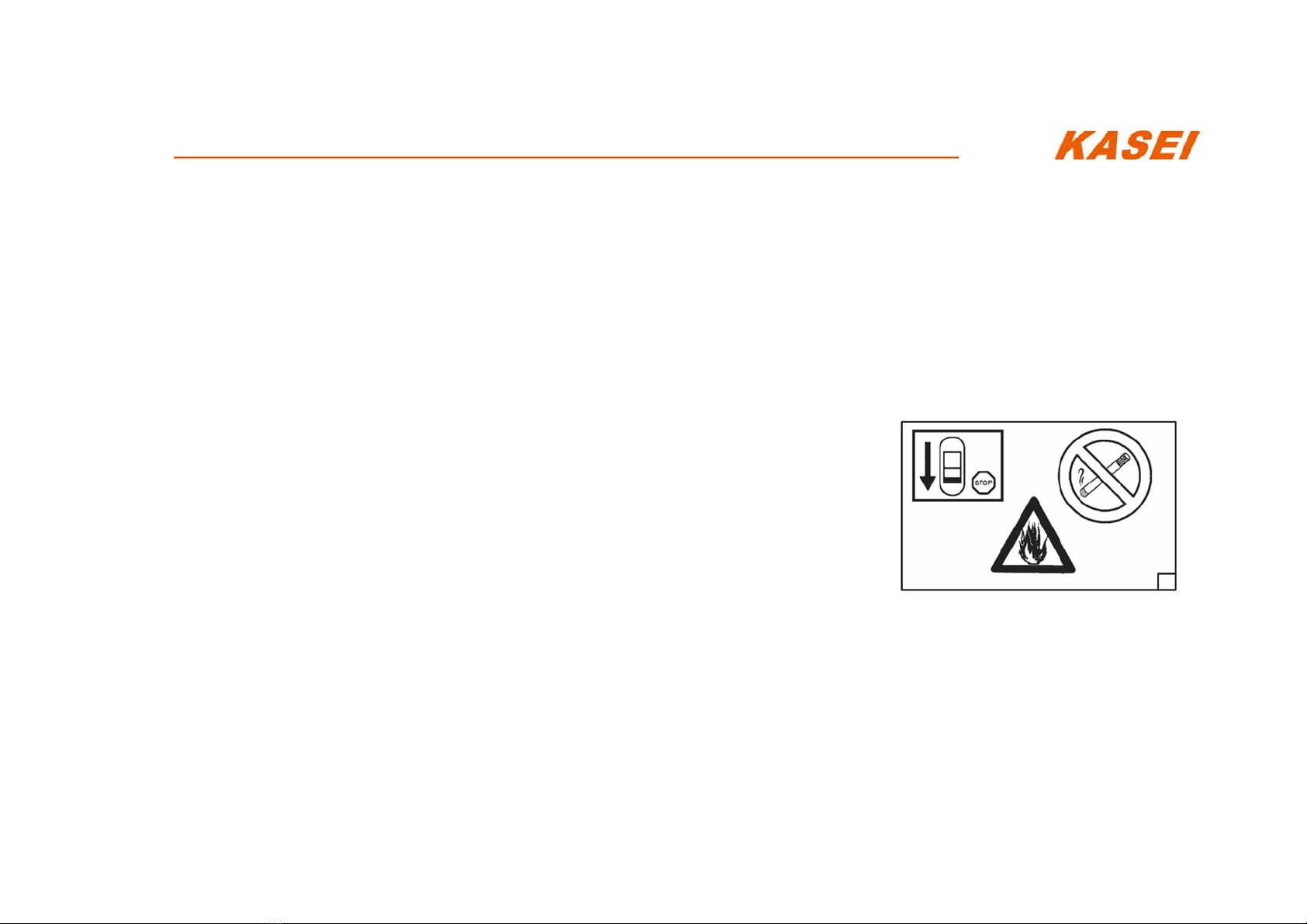

WARNING: Gasoline is an extremely flammable fuel.Use extreme
caution when handling gasoline or fuel mix. Do not smoke or bring
any fire or flame near the fuel or the earth auger.
• To reduce the risk of fire and burn injury, handle fuel with care.
It is highly flammable.
• Mix and store fuel in a container approved for gasoline.
• Mix fuel outdoors where there are no sparks or flames.
• Select bare ground,stop engine,and allow to cool before refueling.
• Loosen fuel cap slowly to release pressure and to keep fuel from escaping around the cap.

8
• Tighten fuel cap securely after refueling. Unit vibration can cause an improperly tightened fuel cap to loosen or come
off and spill quantities of fuel.
• Wipe spilled fuel from the unit. Move 10 feet (3 m) away from refueling
site before starting engine.
• Never attempt to burn off spilled fuel under any circumstances.
• Do not smoke while handling fuel or while operating the earth auger.
• Store fuel in a cool, dry, well ventilated place.
• Never place the earth auger in a combustible area such as dry leaves, straw, paper, etc.
• Store the unit and fuel in an area where fuel vapors cannot reach sparks or open flames from water heaters, electric
motors or switches, furnaces, etc.
• Never take the cap off the tank when the engine is running.
• Never use fuel for cleaning operations.
• Take care not to get fuel on your clothing. If you get fuel on your clothing substitute them immediately.

9
3、Operation and Safety

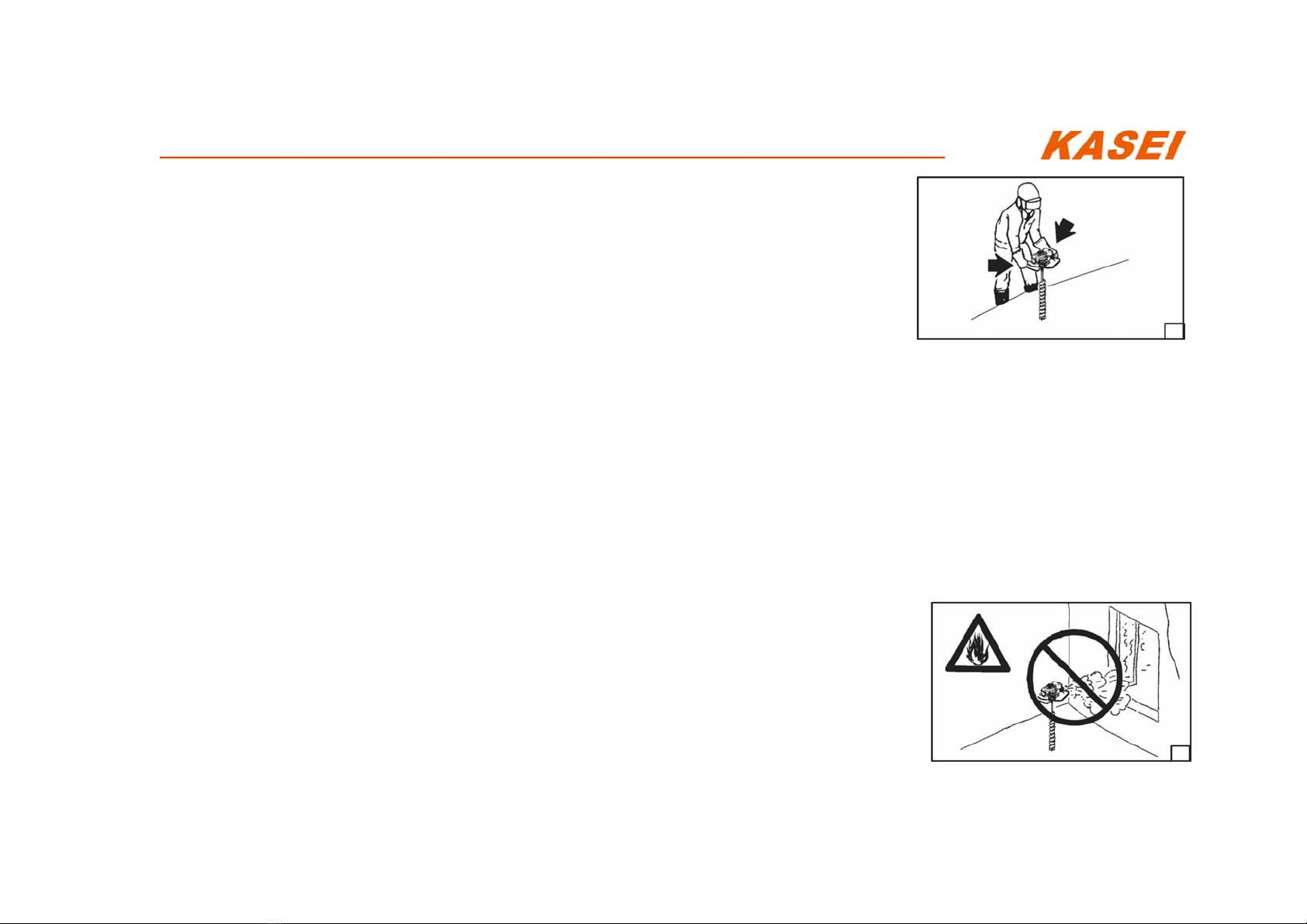

WARNING: Always hold the earth auger with both hands when the
engine is running. Use a firm grip with thumbs and fingers
encircling the earth auger handles.
• Keep all parts of your body away from the earth auger when the engine
is running.
• Always carry the earth auger with the engine stopped the bit to the rear, and the muffler away from your body. When
transporting in a vehicle, properly secure your earth auger to prevent turnover, fuel spillage and damage to the earth
auger.
•Do not operate a earth auger with one hand! Serious injury to the operator helpers, bystanders, or any combination of
these persons may result from one-handed operation. An earth auger is intended for two-handed use.
• Before you start the engine, make sure the earth auger is not contacting any object.
• Shut off the engine before setting down the earth auger.Do not leave the engine running unattended.
• Only use the earth auger in well-ventilated places, do not operate the earth
auger in explosive or flammable atmospheres or in closed environments,
Beware of carbon monoxide poisoning.
• Do not operate earth auger from a ladder. Always cut from a firm-footed
and safe position.

10

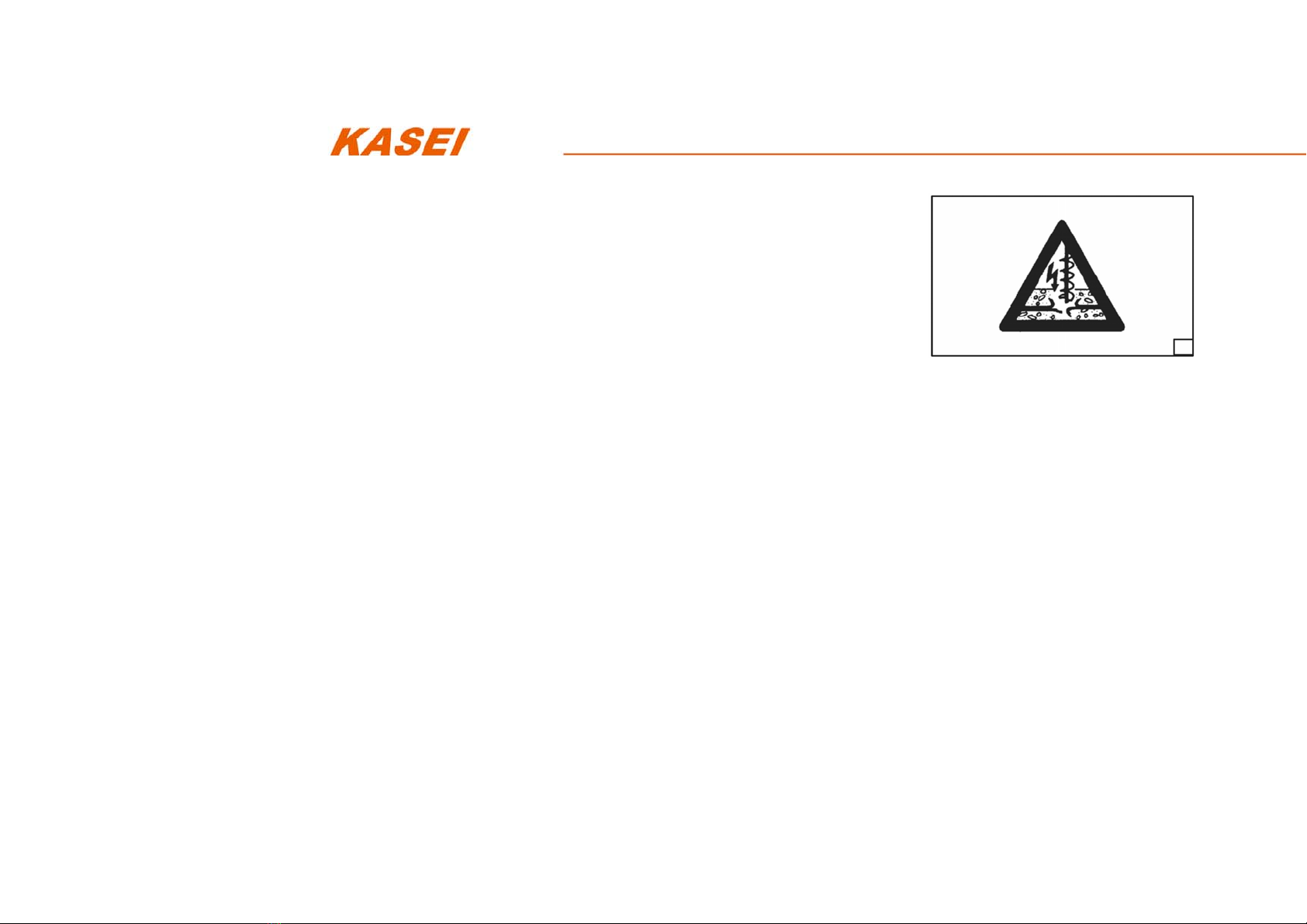

• Do not work near electric cables.
WARNING – Contact with electrical cables or wires can cause serious
injury or death as a result of electrical shock. This unit is not insulated.
• Keep the handles dry, clean, and free of oil
or fuel mixture.
• When the earth auger is running, grip the left handle firmly with your left
hand and the right handle with your right hand.
• Never raise the earth auger above shoulder height.
WARNING – Striking a hard object in the earth with the turning auger and the resulting slowing or stopping of
the auger creates reactive forces. The
transfer of rotational (reactive) forces can cause the auger power head and handles to rotate suddenly in a
counterclockwise direction and can result in loss of control or cause the handle frame to hit the operator or
throw him to the ground, resulting in serious injury
4、Precautions to Reduce Vibration Risk
• Wear gloves and keep your hands warm.
• Keep the bit sharp and the earth auger, well maintained. A dull bit will increase cutting time, will increase the

11
vibrations transmitted to your hands.
• Maintain a firm grip at all times, but do not squeeze the handles with constant, excessive pressures, take frequent
breaks. All the above mentioned precautions do not guarantee that you will not sustain whitefinger disease or carpal
tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fingers.
If any of the above symptoms appear, seek medical advice immediately.
5、Maintenance Precaution
WARNING – Never operate a earth auger that is damaged, improperly adjusted, or is not completely and
securely assembled.
WARNING – Be sure that the bit stops moving when the throttle control trigger is released. If the bit moves at
idle speed, the carburetor may need adjusting, see Operation-Carburetor Adjusting Section. If the bit moves at
idle speed after adjustment has been made, contact a Servicing Dealer for adjustment and discontinue use until
the repair is made.
• Never modify your earth auger in any way.
• Keep the handles dry, clean, and free of oil or fuel mixture.
WARNING – Use only accessories and replacement parts recommended.
• Never touch the bit or attempt to service the earth auger while the engine is running.

12
• Never use fuel for cleaning operations.
• Keep the earth auger in a dry place, off the ground with the tanks empty.
• If your earth auger is no longer usable, dispose of it properly without damaging the environment by handing it in to
your local Dealer who will arrange for its correct disposal.
• Replace immediately any safety device when damaged or broken.
WARNING – The muffler and other parts of the engine (e.g. fins of the cylinder, spark plug) become hot during
operation and remain hot for a while after stopping the engine.To reduce risk of burns do not touch the muffler
and other parts while they are hot.

13
■ASSEMBLY
Fit the reduction shaft (C) into the seat on
the bit (D) and secure it using the
appropriate gudgeon pin (A)and（B）.

14
■OPERATION
1、Before start
(1) Promise the surroundings no man and animal;
(2) Check the earth auger in detail，promise it in the safe appearance;
(3) Beat the accelerator switch to the lowest position;
(4) Have to make the earth auger with the adding-fuel place to keep at least
3m distance
2、Start
(1)Put the stop button on the starting position;
(2)Push the fuel-injecting pump continuously until the fuel is full i.e. fuel
flowsoutofthetransparenttube.SeeFigure(2);
(3) Regulate the choker ,See Figure (1)
to close position in winter and at the first time
tofullopenpositionwhentheengineishot; (1) (2)
(4) Pull the starter lightly for 3-5 times to make the fuel into the cylinder. Then pull it fast to start the engine. Note:

15
The After start, the the start rope should be contracted back slowly with hand's help. If the rope contracts back fast, it
may cause damage of the starter;
(5)After start, put the choker slowly to full open position;
(6)Regulate the fuel handle to a proper position to run at low speed for 3-5 minutes, then make spraying operation.
New machine should not work at full open position within the first 4 hours. The speed should be controlled at
4000-5000r/min, thus enabling the engine to have a good match and do reliable job.
3、Shut down
(1)Beat the accelerator control switch to the lowest position to revolve more than 30s;
(2)Close the stop button to make the gasoline machine stop.
WARNING – Suggest use a low vibration, the low voice mode.
WARNING – Have to carry the protection equipments to wear protection clothing perhaps while operate.
WARNING – Operate time continuously can't be over an hour each time.

16
■MAINTENANCE ＆CARE
1、Periodical Check Cleaning
•Clean the air filter element (1) frequently.
2、Check Spark Plug
•Scrape off the carbon from the spark plug gap 0.6-0.7mm (.023".028")
•Clean the cylinder exhaust port and muffler.
•Inspect carefully for any fuel or oil leaks.
•Lubricate Gear Case, every 25 hours of use.
3、Extended Storage
•Inspect, clean and repair unit if necessary.
•Remove all fuel from tank.
•Start engine-This will consume all fuel in fuel line and carburetor.
•Remove spark plug and pour one tea spoon of clean motor oil into spark plug hole of cylinder-replace spark plug.
•Store in clean, dry, dust free area.

17
■TROUBLE SHOOTING GUIDE
1. FAILURE TO START
problem probable cause remedy
Fuel system
abnormality these is no fuel in tank fuel filter obstruct add fuel in tank clean fuel filter
fuel is too dirty instead fuel
there is water in fuel instead fuel
there is too much fuel in cylinder tear down spark plug and dry it
spark plug
spark normal fuel system
normal fuel
mixture ratio is improper mixture proration
spark plug fouled with oily
deposits clean the oily deposits
spark plug insulation damage replace spark plug
high
voltage wire
spark
normal
spark
plug spark gap is too large or small adjust spark gap 0.6-0.7mm
high voltage wire breach or break
off replace or tighten
cylinder
compress
pressure normal
fuel system
normal
high voltage wire
spark abnormality coil looseness tighten
piston ring attrite replace a new
piston ring is broke replace
piston ring cementation eliminate
spark plug looseness tighten
compress press is
shortage conjoint surface of the cylinder
and crank cass leak eliminate
fuel system
normal ignition system
normal
compress normal high voltage wire and spark plug
contact badness tighten the spark plug cap

18
stop switch failure or short
circuit repair or replace
2. LOW OUTPUT
symptom probable cause remedy
fuel filter obstruct, clean fuel filter、clean fuel road、
fall short of fuel adjust carburetor
flameout when speedup
the smoke is thin
carburetor spout backward muffler fouled with oily deposits clean the oily deposits
compress press is shortage piston、piston ring、cylinder attrite、replace piston、piston ring
engine leak conjoint surface of the cylinder and
crank cass leak repair
the end of two crank shaft leak the seal is bad replace seal
engine overheats avoid use it for long time 、high speed and heavy load
burning room fouled with oily
deposits clean the oily deposits
3. ENGINE RUNNING UNSTABLE
symptom probable cause remedy
there are knock sound in
engine
piston、piston ring、cylinder attrite、
piston pin、piston attrite bearing of
crank shaft attrite
replace piston、piston ring replace piston pin、piston
replace bearing
engine overheats burning room
fouled with oily deposits avoid use it for long time 、high speed and heavy load,
clean the oily deposits
there are metal knock sound gasoline branded is unfit replace require branded octane
there is water in fuel instead fuel
spark gap is wrong adjust spark gap 0.6-0.7mm
engine ignition break off coil gap is wrong adjust coil gap 0.3-0.4mm

19
4. THE ENGINE SUDDENLY STOPPED
ydemeresuacelbaborp
leufddapuesusileuf
spark plug fouled with oily deposits and short circuit clean the oily
tcennocstisopedffollaferiwegatlovhgih
■ SPECIFICATIONS
Name/Type KZ-5200EA-PRO-2S KZ-6300EA-NEO-2S
5.9noitarepOelgniSNet Weight
kg 4.01noitarepOelbuoD
Single Operation 520×340×360
Outward Size(No
Bit) mm Double Operation 670×360×440
003/052/002/051/001/08mmtiBreguA
Power Transmission Method Automatic centrifugal clutch, spur gear, cam-crank
Reduction Rate 37 ：1
Type 1E48F 1E44F-E 1E44F-2A 1E40F-5A 1E44FG
Type Single cylinder air cooling 2-cycle gasoline engine
Displacement Volume cc 63.3 51.7 51.7 42.7 51.7
Fuel Tank Capacity L 1.3 1.1 1.2 1.2 1.0
Fuel Used Mixture
30:1 (when using market oil)
lioenigneelcyc-2desUliOgnitacirbuL
evlavyrator,mgarhpaiDroterubraC
Sparking method IC-controlled fly wheel magnet
Sparking Plug BPMR7A L8RTC L7T L6 BPMR7A
Engine
retratslioceRdohteMgnitratS
Sound power values（dB（A）） ≤105
Vibration values(m/s
2
)≤12.5
Please note that due to improvement, detailed specifications of the product may differ from the information herein.
