Kathrein MSK 130 User manual

Instructions for Use MSK130
English
You will find an English version of this
document at www.kathrein.com
IMPORTANT
Read carefully
before use!

2 of 100
Contents
1 Preface.................................................................................6
2 Validity of Manual .................................................................6
3 Intended Use ........................................................................6
4 Explanation of Symbols and Signal Words.............................8
4.1 Symbols.............................................................................................................. 8
4.2 Signal Words...................................................................................................... 8
4.3 Other Symbols ................................................................................................... 8
4.4 Presentation of Operating Instructions........................................................... 9
5 Safety Instructions ...............................................................9
6 Important Information on the Battery .................................10
6.1 General Information ........................................................................................ 10
6.2 Charging the Battery....................................................................................... 10
6.3 Replacing the Battery ..................................................................................... 10
7 Transport and Storage ........................................................11
8 Unpacking the Device.........................................................11
9 Scope of Delivery................................................................11
9.1 Optional Accessories...................................................................................... 11
10 Abbreviations and Technical Terms ....................................12
11 Device Description .............................................................14
11.1 Front Panel....................................................................................................... 14

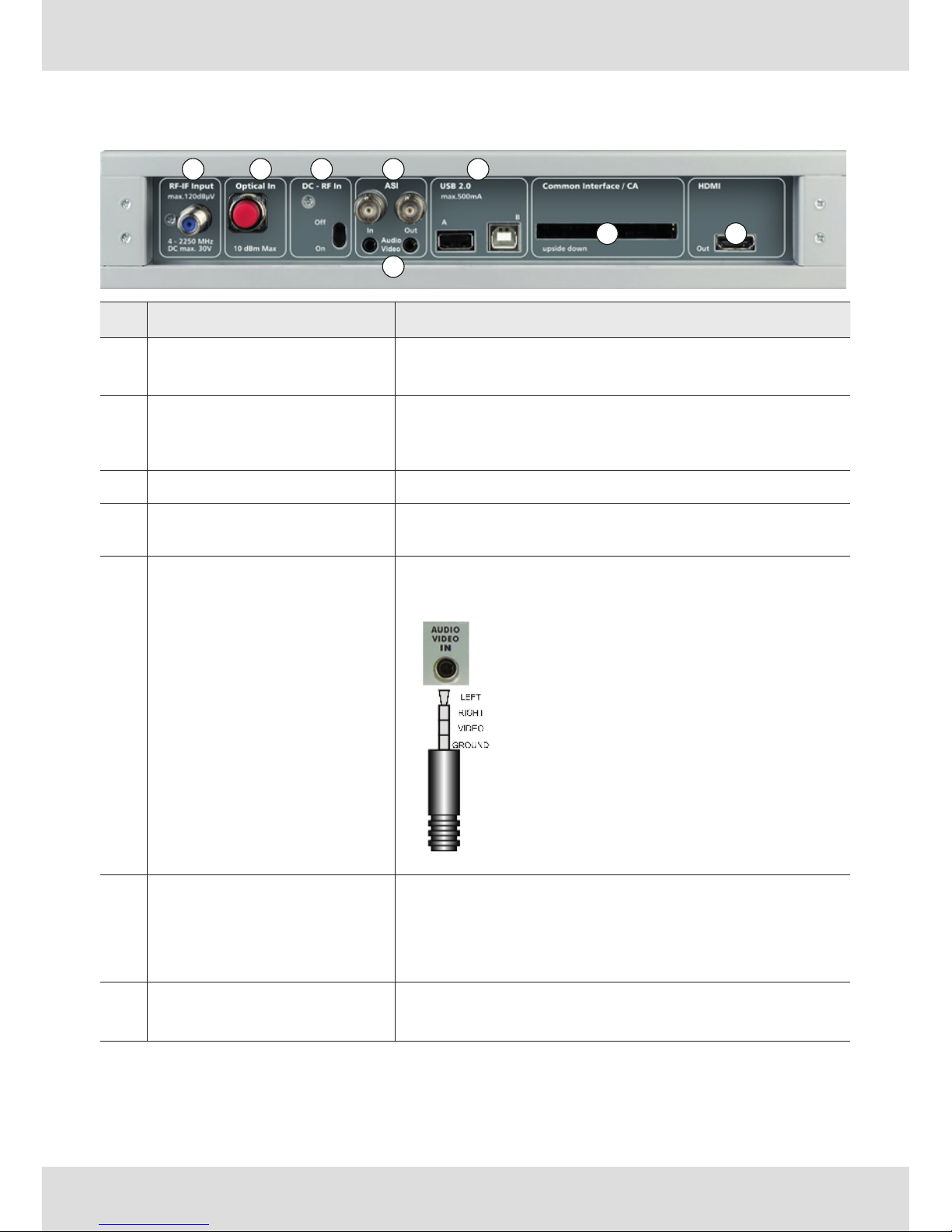

11.2 Plan View.......................................................................................................... 16

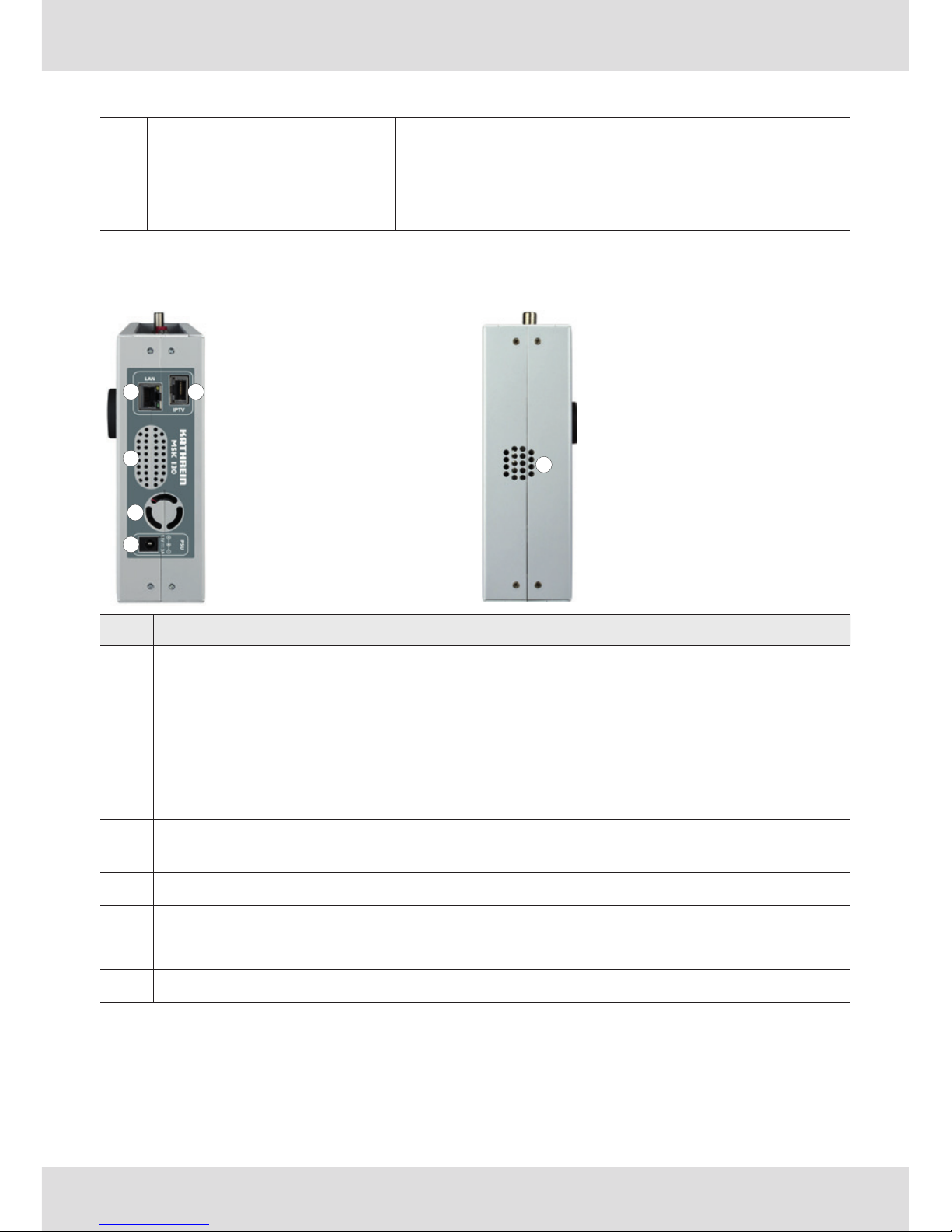

11.3 Right and Left Panels...................................................................................... 17
12 Operating the Signal Meter.................................................18
12.1 Turning the Device on and off ........................................................................ 18
12.2 Locking the Keyboard and Touch Screen ..................................................... 18
12.3 Resetting the Device....................................................................................... 18
12.4 Updating Firmware and Channel Plans......................................................... 18
12.5 Resetting the Device to Factory Settings ..................................................... 18
12.6 Reading the LED Display ................................................................................ 19
12.7 Touch Screen Display Area............................................................................. 20
12.8 Changing a Setting Value Using the Navigation Wheel ............................... 20
12.9 Changing a Setting Value Using the Navigation Wheel and the Drop-down
Menu................................................................................................................. 21

3 of 100
12.10 Changing the Frequency Value Using the Numeric Field ............................ 21
13 Changing Basic Parameters................................................23
13.1 Changing Volume ............................................................................................ 23
13.2 Changing Brightness....................................................................................... 23
13.3 VIDEO OUT....................................................................................................... 24
13.4 Displaying an Analogue Video Signal ............................................................ 24
13.5 Changing the Image Format........................................................................... 25
13.6 ASI IN................................................................................................................ 25
13.7 Changing the RF IN Setting............................................................................ 25
13.8 Changing the LTE Filter Setting ..................................................................... 25
13.9 Activating and Deactivating Power Saving Mode ........................................ 25
14 Configuration Menu ............................................................26
14.1 Editing Meter Configuration........................................................................... 26
14.2 Editing TV Configuration................................................................................. 30
14.3 Editing SAT Configuration .............................................................................. 33
14.4 Editing CATV Configuration............................................................................ 35
14.5 Displaying Meter Info...................................................................................... 36
14.6 SAT & TV Threshold ........................................................................................ 36
14.7 IPTV Configuration (only MSK130/IA and MSK130/OIA)............................ 37
14.8 Common Interface........................................................................................... 39
14.9 Diagnostic ........................................................................................................ 39
15 Main Menu..........................................................................40
16 Measuring SAT, TV, CATV and Optical Signals ....................41
16.1 General Information ........................................................................................ 41
16.1.1 Selecting Signal Type ........................................................................................ 41
16.1.2 Activating and Deactivating Full Screen Mode ................................................. 41
16.1.3 Selecting the Sound Mode................................................................................ 41
16.2 Performing SAT Measurements ..................................................................... 42
16.3 Performing Digital TV Measurements ........................................................... 46
16.4 Performing Analogue TV Measurements ...................................................... 51
16.5 Performing Cable Measurements.................................................................. 52
16.6 Performing Optical Measurements (Optional).............................................. 53
16.6.1 Safety Instructions............................................................................................. 53
16.6.2 Performing Optical Measurements.................................................................... 54
16.6.3 OMI Measurement............................................................................................. 55
16.7 Performing Spectrum Analysis ...................................................................... 56

4 of 100
17 MPEG Services ...................................................................60
17.1 Decoding the Signal Content ......................................................................... 60
17.2 Streaming the Content over IP and USB....................................................... 62
17.3 Performing LTE Interference Analysis........................................................... 63
18 Performing ASI IP Measurements (Optional) .......................64
18.1 Performing ASI Analysis ................................................................................. 64
18.1.1 Performing ASI Analysis of Signals Fed over the RF Input ............................... 64
18.1.2 Performing ASI Analysis of Signals Fed over the ASI Input .............................. 66
18.1.3 Performing ASI Analysis of Optical Signals....................................................... 67
18.2 Performing IPTV Analysis ............................................................................... 67
19 Using Memory Functions ....................................................68
19.1 Memory Menu.................................................................................................. 68
19.2 Automemory (Only TV and CATV) .................................................................. 69
19.3 Datalogger Functions...................................................................................... 70
19.3.1 Save Datalogger................................................................................................ 70
1.1.1 Recalling Data Logger....................................................................................... 73
1.1.2 Manual Memory................................................................................................. 73
1.1.3 File Manager...................................................................................................... 75
19.3.2 Copying Memory Plans..................................................................................... 76
20 Special Functions ...............................................................76
20.1 SAT Special Functions .................................................................................... 76
20.1.1 SAT SCR............................................................................................................ 77
20.1.2 DUAL LNB......................................................................................................... 77
20.1.3 DiSEqC Motor ................................................................................................... 78
20.1.4 SAT Finder ......................................................................................................... 79
20.1.5 Buzzer and Noise Margin .................................................................................. 79
20.1.6 Attenuation Test................................................................................................. 80
20.1.7 SAT Point........................................................................................................... 80
20.2 TV and CATV Special Functions..................................................................... 81
20.2.1 Attenuation Test (TV) ......................................................................................... 81
20.2.2 Leakage (CATV) ................................................................................................. 82
20.2.3 Ingress Measurement (CATV) ............................................................................ 83
21 Remote Controlling the Meter (Optional).............................84
21.1 Activating the Remote Controlling of the Meter........................................... 84
21.2 Activating the Watchdog................................................................................. 85
21.3 Deactivating the Remote Control .................................................................. 86

5 of 100
21.4 Changing Settings........................................................................................... 86
21.5 Defining Measurement and Logger Settings................................................ 86
21.5.1 Entering Measurement Settings........................................................................ 86
21.5.2 Defining Logger Settings................................................................................... 87
21.6 Performing the Measurement ........................................................................ 88
21.7 Performing Spectrum Analysis ...................................................................... 88
21.8 Performing ASI Analysis ................................................................................. 89
21.8.1 Performing HF and ASI Analysis ....................................................................... 89
21.8.2 Performing IPTV Analysis.................................................................................. 90
21.9 Activating Data Logger ................................................................................... 92
21.9.1 Activating Data Logger...................................................................................... 92
21.10 Using Memory Functions................................................................................ 93
21.10.1 Recalling a Memory Plan from the Meter.......................................................... 93
21.10.2 Recalling Data Logger....................................................................................... 93
22 Technical Data....................................................................94
23 Service ...............................................................................96
24 Cleaning .............................................................................97
25 Disposal .............................................................................98

Preface
6 of 100
1 Preface
Dear customer,
Please follow all the information given in this manual. KATHREIN-Werke KG has made
every effort to ensure the information and descriptions are correct and complete.
We reserve the right to make changes to this manual without prior notice. In particular, this
applies to changes made due to technical advancements.
We are always grateful to receive your comments and suggestions for improvement.
Prior written consent from KATHREIN-Werke KG is required for publishing, copying,
reprinting or electronically reproducing this manual or parts thereof. All product names
and trademarks in this manual are the property of the respective companies.
►For the latest software version, go to www.kathrein.com▶Solutions ▶Satellite Recep-
tion▶Products▶Measuring Instruments ▶Signal Meters ▶Product page of your
signal meter model▶Downloads .
2 Validity of Manual
This manual applies to the signal meters:
MSK 130 BN 21710045 MSK130/IA BN 21710053
MSK130/O BN 21710046 MSK130/OIA BN 21710054
The instructions used in this manual are important for operating the MSK 130 and must be
observed under all circumstances. The functions of the MSK 130 described in these oper-
ating instructions are not available for every device version due to the different hardware
versions of the device.
3 Intended Use
The MSK 130 is a portable multi-standard selective signal meter designed for DVB-S/S2,
DVB-C, DVB-T/T2, analogue TV and FM radio including the return path. In addition, the
MSK130/IA and MSK130/OIA are able to measure IPTV signals. The MSK 130/O and
MSK 130/OIA feature an additional optical measuring input, which can also be retrofitted
in the MSK 130.
The unit is equipped with a high-quality 9" TFT colour touch screen which enables ana-
logue and digital video display in MPEG-2 and MPEG-4 in the highest quality. The inte-
grated CI interface also makes it possible to display coded transmitters. Measurement
results can be saved on a USB stick.
The signal meter can be used for testing antenna and cable systems as well as profes-
sional head ends. The device is suitable for use in the lab and for monitoring headends
with remote control, as well as for acceptance measurements on antenna and distribution
systems.

7 of 100
<Features:
●Level measurement of analogue and digital TV signals (DVB-S/S2, DVB-C, DVB-H/T/
T2, TV, FM) including the return path
●Video display of analogue and digital TV signals
●BER/MER measurement and display
●Constellation diagram display
●9" touch TFT colour display (800 x 480 pixels), splash-proof
●Spectrum analysis
●Sat-finder function (Sat expert)
●Acoustic signal tone for antenna alignment
●Level display can be selected in dBμV, dBmV or dBm
●Automatic measuring range selection
●Direct frequency and channel input
●Measurement and display of the remote feed current
●Audio carrier measurement (TV)
●Audio check via built-in loudspeaker
●Stereo headphone socket
●Return path measurement
●DiSEqCTM1.2 control signal
●SCR/SCD2 single cable system control commands
●IP test: Ping test
●Data rate measurement of services in the DVB transport stream
●Memory for signal meter settings
●Memory for measured values (readout via USB possible)
●Data Logger function
●Interface for software updates
●TV output: HDMI and analogue audio-video in/out
●IPTV/ASI measurement
●Mains or battery operation

Explanation of Symbols and Signal Words
8 of 100
4 Explanation of Symbols and Signal Words
4.1 Symbols
General warning sign
Risk of material damage or malfunctions
4.2 Signal Words
Notice This signal word indicates a hazard which can lead to damage to property
or malfunction.
Tip This signal word indicates useful tips and recommendations.
4.3 Other Symbols
Symbol Meaning
►Operating instruction
1, 2, 3...n Operating instructions in a fixed order
➯Result of an operating instruction
✔Condition for the execution of an operating instruction
●List/list entry
Instrument Buttons in the S.M.A.R.T. interface
Logger Buttons and menu items in the signal meter

9 of 100
4.4 Presentation of Operating Instructions
The operating instructions in this document are shown either in the short form or the long
form.
Short form
Step 1▶Step2 ▶Step3 ▶...
Example: VOL CONFIG▶CONFIGURATION MENU▶METER
Long form
Step1 Example: 1. Press VOL CONFIG.
Step2 2. Tap CONFIGURATION MENU .
Step3 3. Tap METER .
5 Safety Instructions
CAUTION
Danger of choking of small parts and packaging material!
►Keep and operate the unit out of reach of children.
WARNING
Danger to life due to electric shock!
►Ensure that the unit is operated only by trained specialist personnel.
►Pay attention to the safety instructions and important information about
the operation, installation location and connection of the unit supplied
with the signal meter.
►Read these instructions carefully before setting up the device.
CAUTION
Fire hazard due to a damaged connecting cable!
►Keep the connecting cable and the power supply unit out of reach of
domestic animals and rodents.
NOTICE
Risk of damage to property due to overheating!
►Do not cover the cooling openings on the device.
►Maintain a minimum clearance of 5 cm to all sides.
►Use the device only with the supplied power supply unit.
Tip Keep these instructions and the Safety Instructions for further reference, and
if the unit passes to another owner, pass them on to the new owner.

Important Information on the Battery
10 of 100
6 Important Information on the Battery
6.1 General Information
The provided battery is a lithium polymer battery of the highest quality. The battery life is
between 6 and 10 hours, depending on the following conditions:
●LNB power consumption: Single, dual or quad LNB
●Outdoor temperature: At temperatures below 10 °C the battery performance is
reduced by 20 %.
●Age of the battery: The capacity of the battery is annually reduced by 10 %.
Tip If the meter has been exposed to particularly low or high temperatures, allow
it to rest at room temperature before use.
6.2 Charging the Battery
►Always turn the MSK 130 off before connecting the battery charger.
►Do not leave the battery uncharged over a longer period of time.
►Always charge the battery for at least 7 hours, even if it is not completely discharged.
The battery status has a tolerance of ±20 % and depends on the battery charge condi-
tion and ageing process as well as on the outdoor temperature. The following icons in the
bottom left corner of the touch screen provide information about the battery charge condi-
tion:
6.3 Replacing the Battery
NOTICE
Risk of damage to property due to overheating!
►Do not damage or open the battery or subject it to any improper use.
►Use only rechargeable batteries which have been tested and approved
for the unit.
►Make sure that the rechargeable batteries are replaced only by the
Kathrein staff.

11 of 100
7 Transport and Storage
►Transport and store the device in its original case.
►Protect the device against dust, dirt, moisture and direct sunlight.
►Transport and store the device only in the permitted temperature range between -25
and 70°C. Make sure there is no water condensation build-up.
8 Unpacking the Device
►Before unpacking the unit, inspect the outer packaging for shipping damage.
►If the carton shows damage, inspect the unit in those areas.
9 Scope of Delivery
●1 MSK 130 signal meter
●1 AC power unit
●Original transport case
●Accessory bag
●1 carrying strap
●RF connector set
●RF measurement cable
●Video cable
●DiSEqC2.2 as a 2-way switch
●Instructions for Use
●USB flash drive
●USB cable
●Car adapter
●Safety Instructions
●Declaration of Conformity
9.1 Optional Accessories
●Optional (MSK 130/O): FC/Clik! adapter cable
●Optical adapter set

Abbreviations and Technical Terms
12 of 100
10 Abbreviations and Technical Terms
APID (Audio Packet Identifier) Audio reception parameters in the MPEG data
stream
aBER (Bit Error Rate after Viterbi) Ratio of the transmitted bits to the erroneous
bits after Reed Solomon (Viterbi)
BCH (Bose Chaudhuri Hocquenghem) external error protection decoder
BER (Bit Error Rate) The bit error rate shows the quality of the DVB signals. It
displays the number of erroneous bits in relation to all the transmitted bits.
bBER/CBER (Bit Error Rate before Viterbi) Ratio of the received bits relative to bits that
have errors before Reed Solomon (Viterbi)
CBR (Constant Bit Rate) is used for MPTS measurements, cf. VBR
C/N (Carrier to Noise) Difference between the carrier signal and noise level in
dB; see also S/N
EVM (Error Vector Magnitude) Measures deviation of the transmitted symbols
to the ideal constellation, measured in dB.
FEC Forward Error Correction (Forward Error Correction), e.g. in case of the
code rate ¾, ¾ of the information is user data, ¼ of the data come from
the Viterbi correction.
Guard Interval Guard interval by extending the symbol through a gap. Due to this, good
reception is possible even in case of strong reflections.
LCN (Logical Channel Numbering) Logical channel sorting performed by the
provider
LDPC (Low Density Parity Check) A new error protection method applied in
DBV-S2 (Gallager codes). Inner error protection; code rates from ½ to 9/10
MER MER (Modulation Error Rate) is the ratio of the average signal power to
the average error power in dB. It is a kind of a C/N measurement which
gives information whether the receiver is able to demodulate the received
signal.
MPTS Multiple Program Transport Stream
NID (Network Identification) Network ID or channel identification number
between 0 and 8191
NIT (Network Information Table) contains, for example, information about all
available transponders, PIDs, downlink frequency, polarisation, next tran-
sponder for the scan; transmitted in the multiplexer transport stream

13 of 100
NsMargin (Noise Margin) Signal to Noise Ratio margin
OMI Optical modulation index
PER The Packet Error Ratio (Packet Error Ratio) displays the number of incor-
rectly received data packets relative to the total number of transmitted
packets (after Viterbi) .
QEF (Quasi Error Free) Bit error rate equals 2.00e-4
Noise level Sum of noise factor and thermal noise floors. Noise is created by physi-
cally caused molecular motion in electrical conductors.
RMS (Root Mean Square) Method of a square mean value determination
S/N (Signal to Noise) Difference between the wanted signal and the noise level
in dB; S/N≈C/N + 1,5; see also C/N
SPTS Single Program Transport Stream.
TSID (Transport Stream ID) Transponder/multiplex ID
VBR (Variable Bit Rate) is used for MPTS measurements, cf.CBR
VPID (Video Packet Identifier) Video reception parameters in the MPEG data
stream

Device Description
14 of 100
11 Device Description
11.1 Front Panel
1
2
3
4
6
5
14
7
910
11
12
13
8
No. Name Function
①Touch screen displays signals and enables operation
②Rotary wheel navigates between menu items and confirms a selection
③SAT opens the measurement range of SAT signals
④TV opens the measurement range of TV signals
⑤CATV opens the measurement range of CATV signals
⑥DISCOVERY shows a bar chart of the available channels in the TV and CATV
mode
⑦SCREENSHOT takes a screenshot of the current display image
(condition: an external USB device is connected to the signal
meter)
⑧VOL CONFIG sets up volume and other settings
⑨DC RF In LED is on if there is a DC offset in the SAT signal
⑩CHARGE LED is on when the meter is being charged; see also Reading the
LED Display, p.19

15 of 100
No. Name Function
⑪PLAN activates SAT, TV and CATV channel lists
⑫MAINS LED is on when the meter is turned on or connected to the mains;
see also 12.6 Reading the LED Display, p.19
⑬ON/OFF
HOME
turns the meter on and off and navigates to the main menu
⑭SPECT activates the spectrum analyser mode
To operate the signal meter, use the buttons (③-⑧, ⑪, ⑬and ⑭), the navigation wheel
(②) and the touch screen (①) .

Device Description
16 of 100
11.2 Plan View
321 4 6
7 8
5
No. Name Function
①RF SAT/TV input connects the RF SAT/TV input plug 930–2250MHz
connects the TV/CATV input plug 4–1010MHz
②Optical In (optional, only
MSK130/O/OIA)
connects the optical 75 Ω F-connector; a special
optical measurement interface is available in the
MSK 130/O/OIA main menu
③DC RF In activates/deactivates the remote feed voltage
④ASI interface (optional, only
MSK130/IA/OIA)
transmits MPEG transport streams
⑤Audio Video In Out
(analogue)
provides to or gets from the meter composite audio
and video stereo signals
You can find the suitable cable in the
accessories bag delivered with the
meter.
On one end, the cable has standard A/V
Cinch connectors, while on the other
end there are jack connectors as shown
in the picture on the left.
⑥USB A/B connection ●connects to a PC for software upgrades or data
upload/download via the S.M.A.R.T. software
●connects external USB drives suitable for Logger,
Test Drive and ASI Analysis data storage
⑦Common Interface/CA connects a CAM module (Conditional Access
Module)

17 of 100
⑧HDMI output connects an external monitor or TV
The meter detects automatically when a screen is
connected and switches the display from the embed-
ded touch screen to the external monitor.
11.3 Right and Left Panels
1 2
3
4
5
6
No. Name Function
①LAN Ethernet connection
The MSK130 is equipped with a standard 10/100
Base-T Ethernet connector supporting both DHCP
and static IP configurations. Through the IP inter-
face it is possible to stream one elementary stream
selected among the services decoded in the cur-
rent signal.
②IPTV port (optional, only
MSK130/IA/OIA)
connects IPTV signals
③Loudspeaker reproduces sound
④Cooling fan
⑤Power supply connects an external power supply (12 Volt DC)
⑤Cooling opening

Operating the Signal Meter
18 of 100
12 Operating the Signal Meter
12.1 Turning the Device on and off
Turn on the signal meter.
►Press ON/OFF HOME .
➯The meter turns on and is ready for operation within seconds.
Turning off the Signal Meter
►Press ON/OFF HOME for 2 seconds.
➯The meter turns off within seconds.
12.2 Locking the Keyboard and Touch Screen
Locking the Keyboard and Touch Screen
►Press VOL CONFIG for 5 seconds.
➯The keyboard and the touch screen are locked.
Unlocking the Keyboard and Touch Screen
►Press ON/OFF HOME .
➯The keyboard and the touch screen are unlocked.
12.3 Resetting the Device
✔The meter does not respond.
►Press ON/OFF HOME .
➯A reset is being carried out. The meter restarts automatically.
12.4 Updating Firmware and Channel Plans
You can find information about the firmware and channel plans update performed via the
S.M.A.R.T. Software in the S.M.A.R.T. Software manual at www.kathrein.com ▶Solutions
▶Satellite Reception▶Products▶Measuring Instruments▶Signal Meters ▶product page
of your signal meter model ▶Manuals.
12.5 Resetting the Device to Factory Settings
The signal meter is delivered with a standard configuration (factory setting) for the system
and plan/measurement parameters. To reset the meter to factory settings:
1. Turn the meter off.
2. Turn the meter on and immediately after this, press VOL CONFIG for 10 seconds.
➯When you turn the meter on again, a red square appears in the bottom right corner.
The meter is restored to factory settings.

19 of 100
12.6 Reading the LED Display
Signal
Meter
Power
supply unit
is con-
nected
LED
Meaning
MAINS CHARGE
off no off off Battery is charged.
on no off off Battery operation
off no off flashing
2 seconds
off
0.5 sec-
onds on
The meter does not turn on.
►Charge the battery.
off yes on flashing
0.5 sec-
onds off
0.5 sec-
onds on
Abnormal battery temperature;
the recharge cycle has been
suspended and will automati-
cally reset.
off yes on on Fast charging of battery
off yes on off Battery charge complete
off Other than
Kathrein
power supply
unit is used.
flashing
0.5 sec-
onds off
0.5 sec-
onds on
off The meter does not turn on.
►Check the power supply
unit.
ON/OFF
HOME on
yes or no on off The measuring instrument is
being turned on.
on yes or no Flashing simultaneously
0.5 seconds off, 0.5 sec-
onds on
The meter has detected an
error and turns off automati-
cally.
on yes Flashing alternatively
1 second off, 1 second
on
A battery test is being carried
out. The meter charges and
discharges the battery auto-
matically.

Operating the Signal Meter
20 of 100
12.7 Touch Screen Display Area
1
2
3
4
5
①Setting parameters and
values
②Image display
③Context-sensitive menu
④Transport stream information
⑤Measurements
Tip Use the main menu on the touch screen or the buttons to call up the following
functions:
●SAT
●TV
●CATV
●SPECT
●PLAN
●DISCOVERY
●VOL CONFIG
●SCREENSHOT
12.8 Changing a Setting Value Using
the Navigation Wheel
1. Press the navigation wheel to activate the line with setting param-
eters.
➯A setting parameter is active (marked in orange).
2. Rotate the navigation wheel to select the desired setting parameter.
3. Press the navigation wheel to go to a setting value.
➯A setting value is active (marked in orange).
4. Rotate the navigation wheel to change the setting value.
➯The setting value changes.
5. Press the navigation wheel to confirm the selection.
➯The new setting value is saved.
