Kato SR-300L User manual

SR-300L
WARNING
・You must read and understand this manual before operating
or servicing this crane.
If you do not do so, you may cause serious injury or death
including damage to the equipment etc.
・All people who come into contact with this crane must read
and be familiar with the contents of this manual. Keep it in
the crane so it will be available to anybody who needs it.
・If you need a copy of this manual in another language, ask
your authorised KATO dealer.
214521
Applicable serial No.: 6110051－
Machine Section

SR-300L 214521
背厚 11.5 mm （中）

[1]
Cautions on setting outriggers
Inadequate setting of the outriggers or an error in setting the outrigger status to the ACS could result in the crane
tipping over. So be sure to check the following before starting work.
①Has the strength of the ground where the outriggers will be set been suffciently discussed with the work
supervisor ?
②Is the crane set horizontal ?
③Are the tires off the ground ?
④Are the outriggers fully extended ?
⑤Are the outrigger stopper pins inserted ?
⑥Has the outrigger extension width been correctly set to the ACS ?
(0099-0001-1E)

[2]

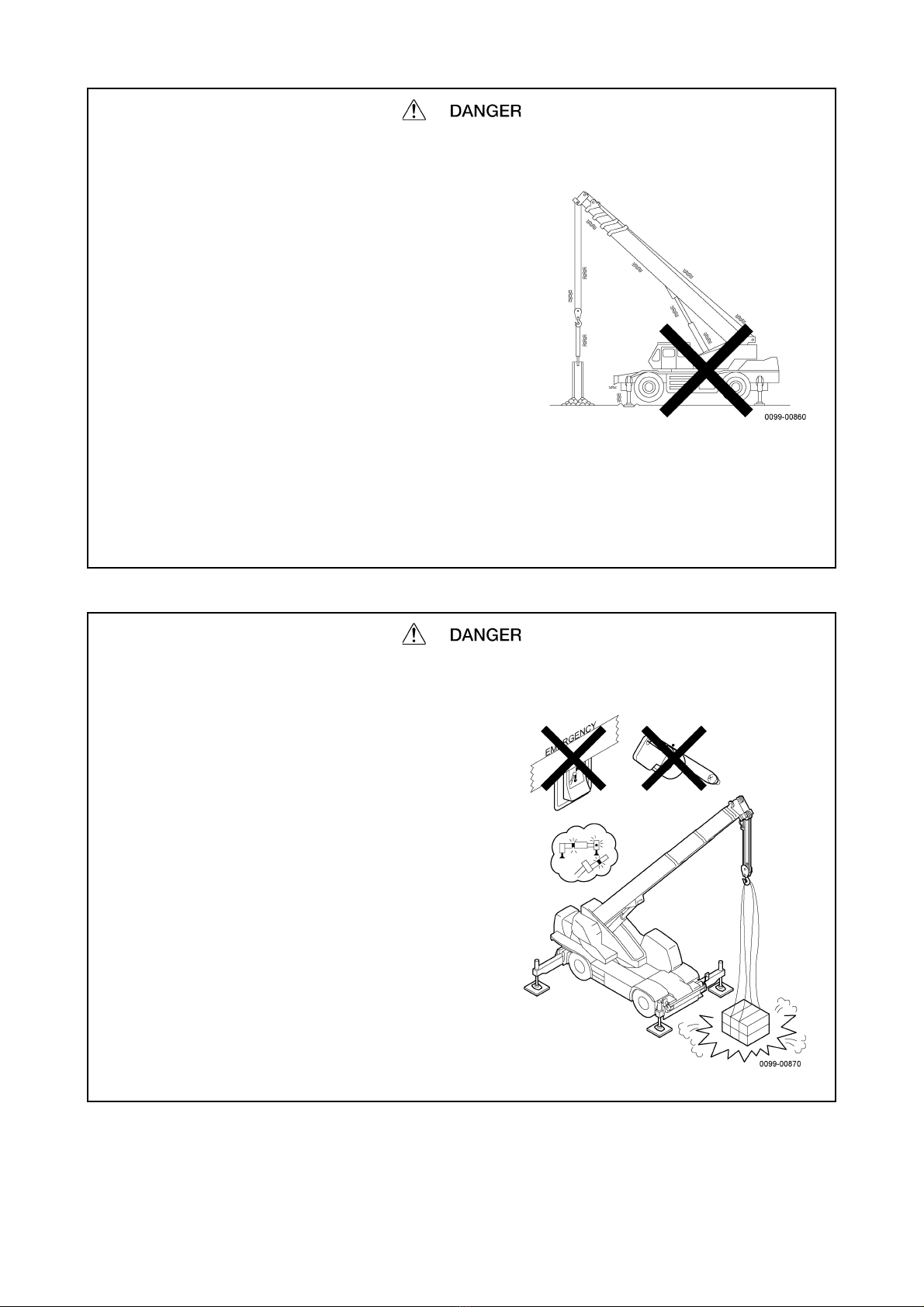

All operations in accordance with rated lifting capacity chart
Make sure that all crane operations are in accordance with the
rated lifting capacity chart for the crane.
Accidents such as the crane tipping over or damage to the boom
etc. cannot be attributed but to operation beyond the rated lifting
capacity of the crane.
The 1st step toward safe operation is to set the crane level on firm
ground using the outriggers, and then operate according to the
rated lifting capacity chart.
Operation very close to or slightly in excess of the limits could
result in an accident.
Everyone including the crane operator and site supervisor must
perform work with a sufficient safety margin.
(0099-0002-0E)
Beware of wind !!
When operating with the boom extended or when hoisting/
lowering a large load, the wind could produce unexpected moment
against the crane and cause the boom to break or the crane to tip
over.
Be especially careful about wind striking the side of the boom or
when operating in the space between buildings.
(0099-0003-1E)

[3]
Don't use the crane to lift the planet !!
If you use the crane to pull up or break off objects which have
been driven into the ground or buried (sheet piles, H-beams, posts,
pipes etc.), or if you try to drag a load toward the crane by raising
the boom, you place a strong diagonal load on the boom which
may exceed rated lifting capacity by many times. Pulling or
breaking off driven or buried objects by raising the boom is
recklessly dangerous as if you would use the crane to lift the
planet. Therefore raising the boom in any way that may apply
diagonal loads is forbidden. If you ignore the danger and the
warning of the ACS and continue such an operation, an excessive
load will act, possibly breaking the boom or the wire rope. Even if
there is no final collapse during operation, the crane will be
damaged resulting in progressive damage even when working
within rated lifting capacity and leading to sudden catastrophic
failure.
(0099-0004-0E)
Absolutely avoid releasing !!
Working with the ACS emergency switch and the overhoisting
emergency switch turned to the release positions risks causing
accidents. Before you start work, always check that both switches
are positioned correctly.
(0099-0099-0E)

[4]
MEMO

[5]
Introduction(0099-0045-0E
)
Thank you for choosing KATO.
Correct operation and handling of the crane is essential for maximum safety and performance and will help to improve
working efficiency and work rate.
We have prepared this manual to help you to do just that. Do not start using the crane before you have read this manual
thoroughly and understood its contents.
(1)Modifications
If you modify this crane from the state in which it left our factory, you may impair its safety
or performance.
KATO bears no responsibility for accidents or malfunctions which arise as a result of
unauthorised modifications.
(2)Optional parts and attachments
Refer to the instruction manuals provided when you install genuine optional parts or
designated attachments. Attachments not designated by KATO may impair safety or
performance. They may cause tip-over accidents or have an adverse effect on the lifespan of
the crane.
KATO bears no responsibility for accidents or malfunctions which arise as a result of the
fitting of unauthorised attachments.
(0099-0100-0E)

[6]
How to use this manual(0099-0101-1E)
・You must read this manual fully and understand its contents before
you operate, inspect or service this crane.
This manual is intended to be a guide to safe operation and regular
servicing so it should be kept in the designated place inside the cab
available to all those who use the crane.
・The sections in this manual and safety signs on this crane include
safety information.
The labels " DANGER", " WA R N IN G " a n d " CAUTION"
are used in this manual and safety signs on this crane, so that you
can understand the important items for safety operations and
procedures.
Read them fully and understand them before you operate, inspect or
service this crane.
Indicates warnings concerning direct risks of serious injury or death.
(0099-0048-0E)
Indicates warnings concerning potential risks of serious injury or death.
(0099-0049-0E)
Indicates warnings concerning potential risks of injury or major damage to the crane.
(0099-0050-0E)
・If this manual is lost or seriously damaged, please order a replacement immediately from your authorised KATO
dealer.
・When the user changes through resale or other circumstances, the instruction manuals must be transferred together
with the crane.
・This manual has been written as a standard for general handling in specified operations.
Before attempting any operations not covered by this manual or when you are unsure of any aspect of its contents,
contact your authorised KATO dealer.
・Any operations which do not conform to the contents of this manual are at the operator's own risk and responsibility.
KATO will bear no responsibility for any accident or damage which occurs as a result.
・In addition to the contents of this manual, further safety information and requirements are to be found on the safety
signs on the crane and are contained in laws, regulations, ordinances, insurance conditions and other sources. You
must also adhere to these conditions.
Further observe the safety regulations and laws of the country where the crane is used.
・Please also refer to the separate instruction manuals.

[7]
Inspection and servicing(0099-0102-0E)
The inspection and servicing operations listed in this manual are a guide for extending the lifespan of the crane and
improving its work rate. Carry out the regular inspection and servicing tasks on the basis of this manual and regulations
of the country where the crane is used without fail.
This manual details the procedures for preoperational, monthly and annual inspection and servicing. Record the results
of each inspection and servicing measures taken in the separate "Inspection Sheet".
Refer to the separate "Service Manual" for servicing procedures for breakdowns and disassembly.
Serial number nameplate(0099-0221-0E)
When you order parts or repairs from your authorised KATO dealer, please help to ensure smooth processing by quoting
the model and serial number of the crane at the same time.
When you take delivery of the crane, make a record of its serial number, engine serial number and delivery date.
Serial number
Engine serial number
Delivery date
(0099-0053-0E)
Operation qualifications(0099-0054-0E)
・Before operating this machine, make sure you have obtained all necessary qualifications
following the regulations and law of the country where the machine is used.
・You must not operate without these qualifications.
(0099-0225-0E)

[8]
MEMO

[9]
Table of Contents (611A-0001-0E)
Introduction ………………………………………………………………………………………… [5]
How to use this manual …………………………………………………………………………… [6]
Inspection and servicing …………………………………………………………………………… [7]
Serial number nameplate ………………………………………………………………………… [7]
Operation qualifications …………………………………………………………………………… [7]
General devices
(for driving and crane)214521
1. Part names and terms ………………………………………………………………………… 1
2. For safe operation …………………………………………………………………………… 11
3. General operation devices …………………………………………………………………… 17
4. Safety signs …………………………………………………………………………………… 37
5. Precautions on getting on and off the machine …………………………………………… 46
6. Precautions when filling with fuel …………………………………………………………… 47
7. Starting and stopping the engine …………………………………………………………… 49
8. Handling the machine in winter and summer ……………………………………………… 52
Driving operation 214521
9. Driving safely…………………………………………………………………………………… 55
10. What to do when the machine breaks down ……………………………………………… 61
11. Drive operation devices ……………………………………………………………………… 69
12. Driving the machine …………………………………………………………………………… 94
Crane operation 214521
13. For safe operation ………………………………………………………………………… 105
14. How to read the capacity charts…………………………………………………………… 129
15. Crane operation devices …………………………………………………………………… 137
16. Crane operation when the outriggers are used ………………………………………… 147
17. Crane operation without outriggers ……………………………………………………… 168
18. Crane operation …………………………………………………………………………… 175
19. Changing the wire rope number of parts ………………………………………………… 192

[10]
Preoperational checks/
Pre-drive checks 214521
20. Preoperational checks/Pre-drive checks ………………………………………………… 195
Index 214521
Index ……………………………………………………………………………………………… 211
Manual Jib Section Separate
manual 214531
Inspection and Servicing Section Separate
manual 214541

(611A-0002-0E)
General devices
(for driving and crane)214521
1. Part names and terms ………………………………………………………………………… 1
1-1 Part names …………………………………………………………………………………………………… 1
1-2 Terms ……………………………………………………………………………………………………… 9
2. For safe operation …………………………………………………………………………… 11
2-1 General precautions ………………………………………………………………………………………… 11
3. General operation devices …………………………………………………………………… 17
3-1 Inside the cab ……………………………………………………………………………………………… 17
3-2 Front panel …………………………………………………………………………………………………… 24
3-3 Side panel …………………………………………………………………………………………………… 26
3-4 Radio
(optional)…………………………………………………………………………………………… 27
3-5 Cabin air conditioner ………………………………………………………………………………………… 31
3-6 Outside the cab ……………………………………………………………………………………………… 33
4. Safety signs …………………………………………………………………………………… 37
5. Precautions on getting on and off the machine …………………………………………… 46
6. Precautions when filling with fuel …………………………………………………………… 47
7. Starting and stopping the engine …………………………………………………………… 49
7-1 Starting the engine ………………………………………………………………………………………… 49
7-2 Stopping and parking ………………………………………………………………………………………… 51
8. Handling the machine in winter and summer ……………………………………………… 52
8-1 Handling in winter ………………………………………………………………………………………… 52
8-2 Handling in summer ………………………………………………………………………………………… 53

- 1 -
1. Part names and terms(541A-0019-0E)
1-1 Part names (541A-0020-0E)

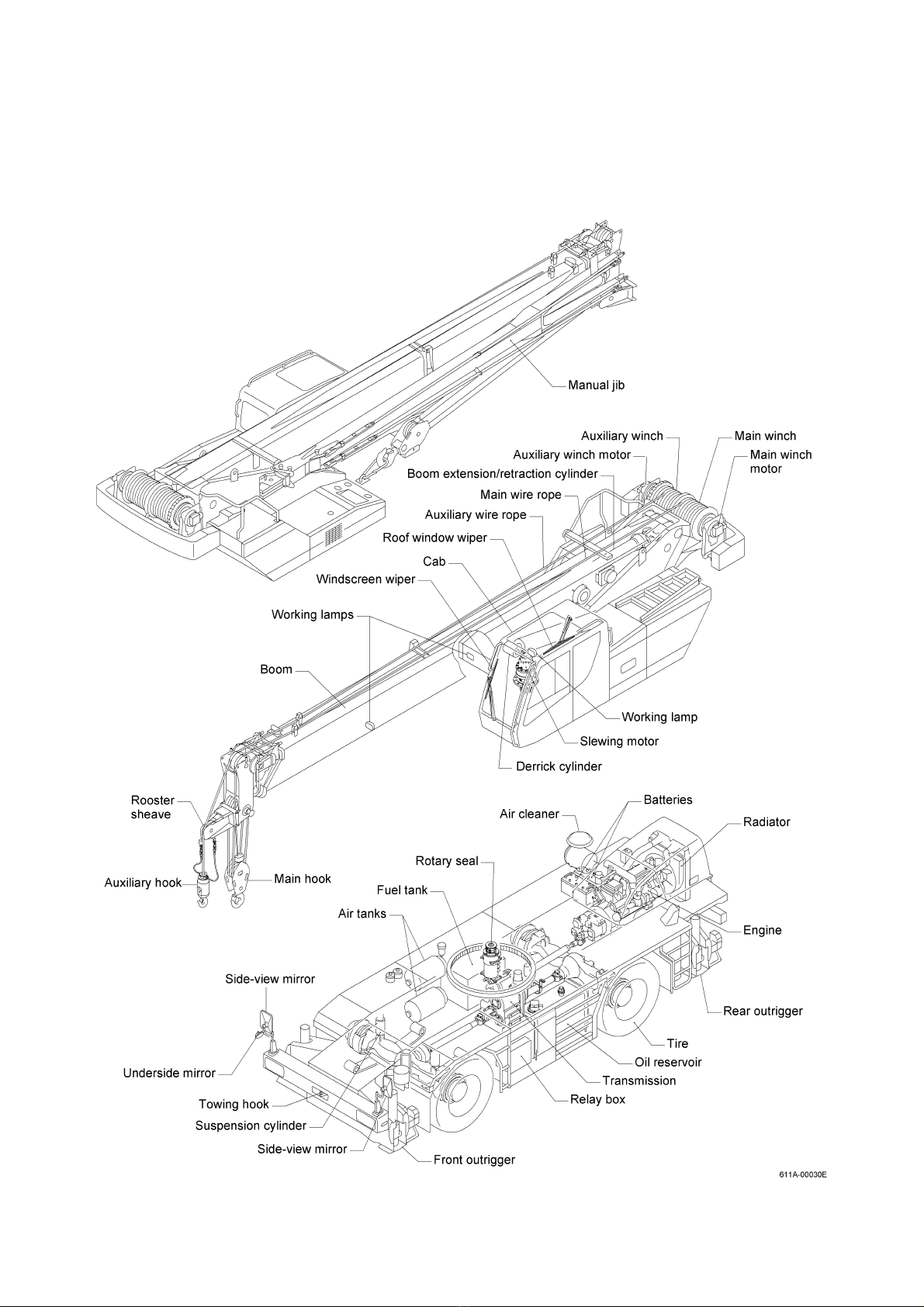

1-1-1 Exterior (541A-0268-0E)

- 2 -
MEMO

- 3 -
1-1-2 General operation devices (611A-0003-0E)
(1)Inside the cab
For details of this page
Refer to pages 17－32
3-1 Inside the cab
1. Door
2. Seat
3. Seatbelt
4. Interior lamp
5. Left window
6. Sun visor
7. Sunshade
8. Flare (optional)
9. Fuse box
10. Holders for the rated lifting capacity
chart and instruction manual
11. K e y s
12. Fire extinguisher (optional)
13. Emergency kit
14. Rear window
3-2 Front panel
1. Lighter
2. Ashtray
3. Starter switch
4. Idle speed knob
3-3 Side panel
1. Roof window wiper/washer switch
2. Fan switch (optional)
3. Defroster switch
4. Heater switch (optional)
3-4 Radio (optional)
3-5 Cabin air conditioner

- 4 -
For details of this page
Refer to pages 33－36
(2)Outside the cab

- 5 -
For details of this page
Refer to pages 69－91

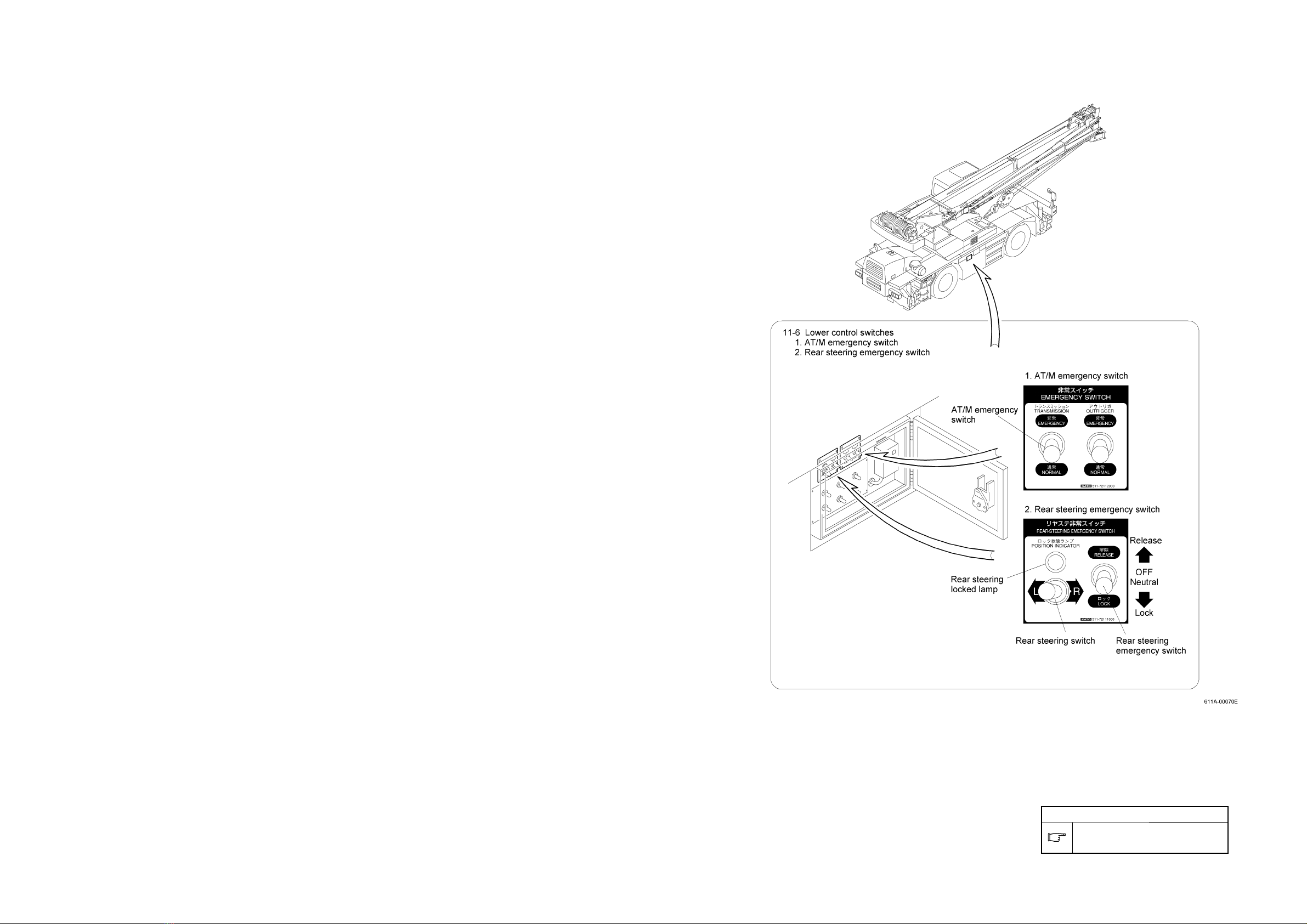

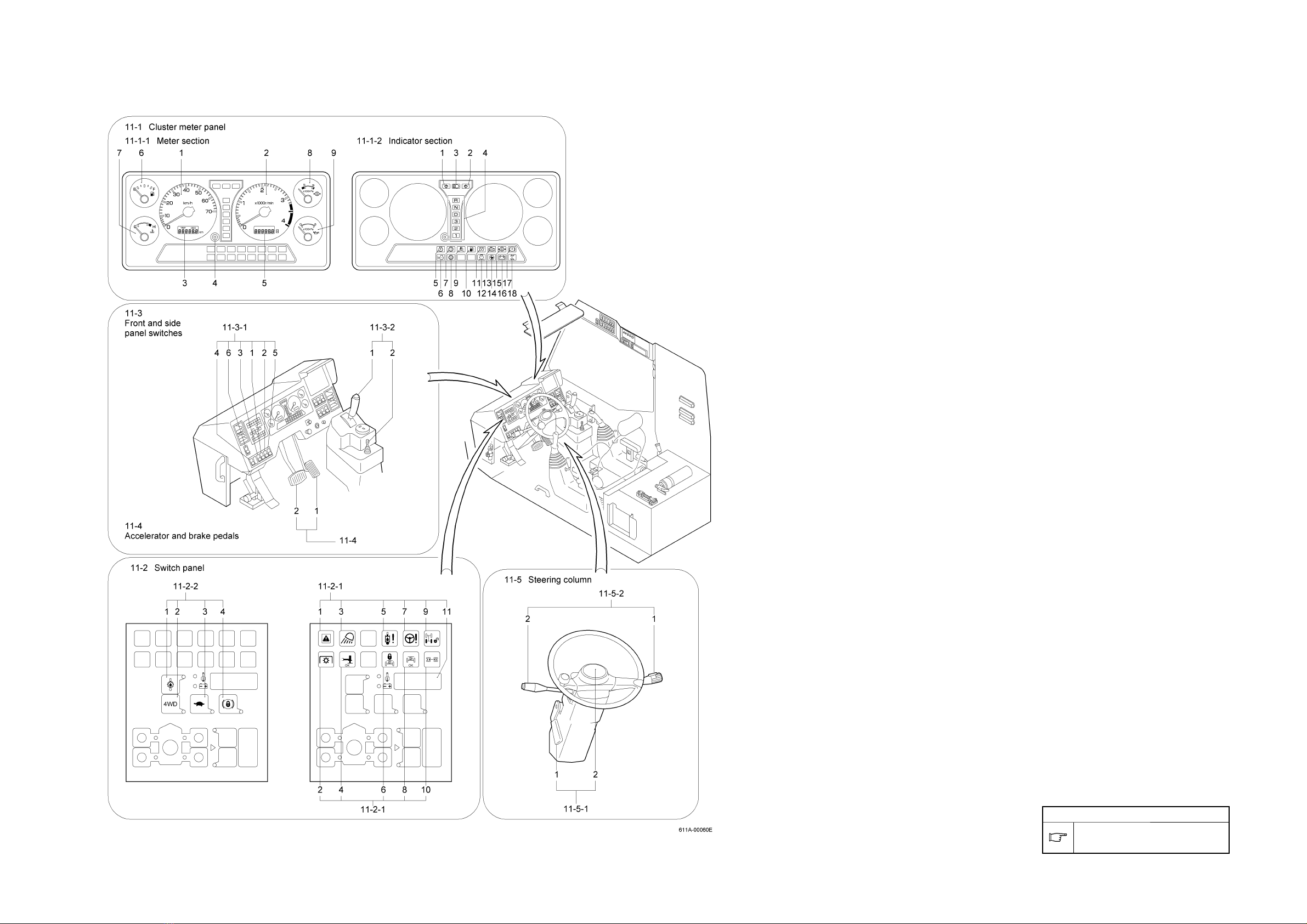

1-1-3 Drive operation devices (611A-0004-0E)
(1)Inside the cab
11-1 Cluster meter panel
11-1-1 Meter section
1. Speedometer
2. Tachometer
3. Odometer/trip meter
4. Odometer/trip meter switch
5. Hour meter
6. Fuel gauge
7. Engine water temperature gauge
8. Air pressure gauge
9. Engine oil pressure gauge
11 -1 - 2 I n di c a t o r s e c t i o n
1. Turn signal indicator lamp (left)
2. Turn signal indicator lamp (right)
3. High beam indicator lamp
4. Shift position indicator lamp
5. Engine trouble warning lamp
6. Radiator coolant level warning lamp
7. AT/M (automatic transmission)malfunction warning lamp
8. Torque converter trouble warning lamp
9. Exhaust brake indicator lamp
10. Fuel level warning lamp
11. Preheat indicator lamp
12. Air cleaner blockage warning indicator lamp
13. Engine control warning lamp
14. Overrun warning lamp
15. Low air pressure warning lamp
16. Battery charge indicator lamp
17. Parking brake/brake fluid level warning lamp
18. Rear steering lock release indicator lamp
11-2 Switch panel
11 - 2 -1 I n di c a t o r s e c t i o n
1. Multiplex communication error warning lamp
2. PTO indicator lamp
3. Working lamp indicator lamp
4. Outrigger operation OK indicator lamp
5. Hydraulic oil warning lamp
6. Suspension locked indicator lamp
7. Power steering pressure warning lamp
8. Suspension operation OK indicator lamp
9. Rear steering lock release confirmation indicator
lamp
10. Rear steering central position indicator lamp
11. Digital display
11-2-2 Switch section
1. Torque converter oil temperature display switch
2. Two/four wheel drive switch
3. High/low speed switch
4. Brake lock switch
11-3 Front and side panel switches
11-3-1 Front panel switches
1. Suspension lock/release switch
2. Suspension retraction switch
3. Rear steering lock/release switch
4. Parking brake switch
5. Revolving warning lamp switch (optional)
6. Hazard warning switch
11-3-2 Side panel
1. Shift lever
2. Rear steering switch (self-reset type)
11-4 Accelerator and brake pedals
1. Accelerator pedal
2. Brake pedal
11 - 5 S t e e r i n g c o l u mn
11-5-1 Steering wheel
1. Height and angle adjustment lock lever
2. Horn switch
11 - 5 - 2 C o m b i na t i o n s w i t c h
1. Combination switch
・Windscreen wiper switch
・Windscreen washer switch
・Exhaust brake lever
2. Turn signal and dimmer switch
・Turn signal switch
・Lighting switch
・Dimmer switch

- 6 -
For details of this page
Refer to pages 92 and 93
(2)Outside the cab

- 7 -
For details of this page
Refer to pages 137－145 and 157－159
1-1-4 Crane operation devices (611A-0005-0E)
(1)Inside the cab
15-1 Front panel
1. PTO switch
2. ACS emergency switch (self-reset type)
3. Level gauge
4. Crane operation switch
5. Slewing brake switch
6. Main winch switch
7. Auxiliary winch switch
8. Boom extension/retraction switch
15-2 Side panel
1. Overhoisting emergency switch
(self-reset type)
2. Boom extension/retraction emergency switch
(self-reset type)
3. Jib side-lifting switch (self-reset type)
4. Slewing free/lock switch
5. Drum rotation detector switch
6. Working lamp switch
15-3 Control levers and pedals
1. Left control lever
2. Slewing alarm button
3. Right control lever
4. Boom extension/retraction pedal
5. Accelerator pedal
6. Console lock lever
7. Armrest
16-4 Outrigger control panel
