Kawai ES100 User manual

ES100
Owner’s Manual
Preparation Before Use
Playing the Piano
Internal Songs
Recorder
Settings
Appendix

Thank you for purchasing this Kawai digital piano.
This owner’s manual contains important information regarding the usage and
operation of the ES100 digital piano.
Please read all sections carefully, keeping this manual handy for future reference.

3
Preface

About this Owner’s Manual
Before attempting to play this instrument, please read the Preparation Before Use section from page 10 of this owner’s manual.
This section explains the name and function of each part, how to connect the power cable, and how to turn on the power.
The Playing the Piano section (page 13) provides an overview of the instrument’s most commonly used functions, allowing the
ES100 digital piano to be enjoyed almost immediately after being connected, while the Internal Songs section (page 19) includes
information regarding the built-in demonstration songs, and Lesson function.
The Recorder section (page 23) provides instructions on how to record and play back pieces stored in the instrument’s internal
memory, and the Settings section (page 26) details the settings that can be used to adjust a number of sound and keyboard
characteristics, as well as basic MIDI functionality.
Finally, the Appendix section (page 48) includes listings for all demo, and Lesson function songs, a troubleshooting guide,
assembly instructions, MIDI reference information, and full specication details.

ES100 Feature Highlights
Advanced Hammer Action IV-F weighted-key keyboard action
The Advanced Hammer Action IV-F keyboard action has been developed to represent the distinctive touch of an acoustic
grand piano, with its remarkable springless design providing consistent upward and downward motion for a smooth,
natural, piano playing experience.
Moreover, just as acoustic pianos utilise heavier bass hammers and lighter treble hammers, the AHA IV-G keyboard action
also employs dierent hammer weights, appropriately graded for each playing range. Such attention to detail allows
greater stability during fortissimo passages, while preserving delicate pianissimo control, to satisfy the demands of even
the most discerning pianist.
Harmonic Imaging™ (HI) sound technology, 88-key piano sampling
The ES100 digital piano captures the beautiful sound of Kawai’s highly acclaimed hand-built concert grand piano, with
all 88 keys of this exceptional instrument meticulously recorded, analyzed and faithfully reproduced using proprietary
Harmonic Imaging ™ technology. This unique process accurately recreates the broad dynamic range of the original grand
piano, aording pianists an extraordinary level of expressiveness ranging from the softest pianissimo to the strongest,
boldest fortissimo.
Additional reverberation eects that simulate the acoustic environment of a recital room, small room, or concert hall are
also applied, resulting in a rich, vibrant piano tone that delivers breathtaking realism and authenticity.
Internal Song recorder, Built-in Lesson Function
The ES100 digital piano features a three song recorder, allowing performances to be recorded to internal memory and
played back at the touch of a button. In addition, the convenient lesson feature allows aspiring pianists to learn the piano
using a built-in collection of etudes from Burgmüller and songs from the popular Alfred course books. The left and right
hand parts for each piece can be practiced separately, while adjusting the tempo allows more dicult passages to be
perfected.

4
Important Safety Instructions
Important Safety Instructions
denotes that care shouldbe taken.
The exampleinstructs the user to take care not to allow ngers to be trapped.
denotes aprohibited operation.
The exampleinstructs that disassemblyof the productis prohibited.
denotes an operation that shouldbe carried out.
The exampleinstructs the user to remove the power cord plug from the AC outlet.
Examples of Picture Symbols
Read all the instructions before using the product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS : RISQUE DE CHOCELECTRIQUE -NE PAS OUVRIR.
TO REDUCETHE RISK OF ELECTRICSHOCK, DO NOTREMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICINGTOQUALIFIED SERVICE PERSONNEL.
The lighting ash with arrowhead symbol, within
an equilateraltriangle, is intended to alert the user
to the presence of uninsulated "dangerous
voltage"within the product's enclosure that may
be of sucient magnitude to constitute a risk of
electricshock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presenceof important operating and maintenance
(servicing) instructions in the leterature
accompanying the product.
WARNING
TO REDUCETHE RISK OF FIRE
OR ELECTRICSHOCK, DO NOT
EXPOSE THIS PRODUCT TO
RAINOR MOISTURE.
INSTRUCTIONSPERTAININGTOARISK OF FIRE, ELECTRIC SHOCK, OR INJURYTOPERSONS
SAVE THESE INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Donot use this apparatus near water.
6) Clean only with dry cloth.
7) Donot block any ventilation openings. Install in
accordance with the manufacturer'sinstructions.
8) Donot install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9) Donot defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and athird grounding
prong. The wide blade or the third prongs are
provided for your safety. Ifthe provided plug does
not tinto your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specied bythe
manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
specied bythe manufacturer, or
sold with the apparatus. When acart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or object
havefallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

5
WARNING
The product should be connected to
an ACoutlet of the specied voltage.
● If you are going to use an ACpower cord,
make sure that its has the correct plug shape
and conforms to the specied power voltage.
● Failure to do so mayresult in re.
120V 240V230V
Indicates a potential hazard that could result in death or
serious injuryif the product is handled incorrectly.
Do not insert or disconnect the power
cord plug with wet hands.Doing so maycause electric shock.
WARNING - When using electric products, basic precautions should always be followed, including the following.
The product is not completely disconnected fromthe
power supply even when the power switch is turned
o.If the product will not be used for a long time,
unplug the ACpower cord fromthe ACoutlet.
● Failure to do so maycause re in case of
lightning.
● Failure to do so mayover-heat the product,
resulting in re.
Do not disassemble, repair or modify
the product.Doing so mayresult in product breakdown, electric
shock or short-circuit.
This product may be equipped with a polarized line plug (one blade wider
than the other).This is a safety feature.
If you are unable to insert the plug into the outlet, contact an electrician to
replace your obsolete outlet.
Do not defeat the safety purpose of the plug.
When disconnecting the ACpower cord's
plug, always hold the plug
and pull it to remove it.
● Pulling the ACpower cord itself maydamage
the cord, causing a re, electric shock or
short-circuit.
Doing so maycause the product to fall over,
resulting in injury.
Do not lean against the keyboard.
When using the headphones, do not
listen for long periods of
time at high volume levels.
Doing so mayresult in hearing problems.
It is a good practice to have the instrument near the ACoutlet and the power cord plug in a position
so that it can readily be disconnected in an emergency because electricity is always charging
while the plug is in the ACoutlet even in a power switch o condition.
The chair must be used properly (it must be
used only when playing the product).
● Do not play with it or stand on it.
● Only one person is allowed to sit on it.
● Do not sit on it when opening the lid.
● Re-tighten the bolts occasionally.
Doing so maycause the chair to fall over or your
ngers to be trapped, resulting in injury.
Entryof water, needles or hair pins mayresult
in breakdown or short-circuit.
The product shall not be exposed to dripping or
splashing. No objects lled with liquids, such as
vases, shall be placed on the product.
Take care not to allow any foreign
matter to enter the product.

6
● Doing so maycause the product to become
deformed or fall over, resulting in breakdown
or injury.
Do not stand on the product or exert
excessive force.
● Doing so mayresult in discoloration or deformation
of the product.
● When cleaning the product, put a soft cloth in
lukewarmwater, squeeze it well, then wipe the
product.
Do not wipe the product with benzene
or thinner.
Failure to do so maydamage them, resulting in
re, electric shock or short-circuit.
When connecting the ACpower cord
and other cords, take care
not to get themtangled.
● Doing so maycause the product to generate
noise.
● If the product generates noise, move the
product sucientlyawayfromthe electrical
appliance or connect it to another ACoutlet.
Do not place the product near electrical
appliances such as TVs and radios.
Please lift up the product when moving it.
Please note that the product is heavyand must
be carried bymore than two persons.
Dropping the product mayresult in breakdown.
Do not drag the product on the oor.
Take care not to drop the product.
Doing so maycause the illumination to fall over,
resulting in re.
Do not place naked ame, such as lighted
candles on the product.
CAUTIONIndicates a potential hazard that could result in injuryor
damage to the product or other propertyif the product
is handled incorrectly.
Using the product in such areas mayresult in
product breakdown.
Use the product onlyin moderate climates (not
in tropical climates).
Do not use the product in the following areas.
● Areas, such as those near windows, where the product is
exposed to direct sunlight
● Extremely hot areas, such as near a heater
● Extremely cold areas, such as outside
● Extremely humid areas
● Areas where a large amount of sand or dust is present
● Areas where the product is exposed to excessive
vibrations
Failure to do so maycause breakdown of this
product and other devices.
Before connecting cords, make sure
that the power to this product
and other devices is turned
OFF.
The product should be located so that its location or position does not interfere with its proper ventilation.Ensure a
minimumdistance of 5cmaround the product for sucient ventilation.
Failure to do so mayover-heat the product,
resulting in re.
Ensure that the ventilation is not
impeded by covering the ventilation
openings with items, such as newspaper,
table-cloths, curtains, etc.
Use only the ACadaptor included with this instrument to power the instrument.
● Do not use other ACadaptors to power this instrument.
● Do not use the included ACadaptor or ACpower cord to power other equipment.
OFF

7
The product should be serviced by qualied service personnel when:
● The power supply cord or the plug has been damaged.
● Objects have fallen, or liquid has been spilled into the product.
● The product has been exposed to rain.
● The product does not appear to operate normally or exhibits a marked change in performance.
● The product has been dropped, or the enclosure damaged.
Notes on Repair
Should an abnormalityoccur in the product, immediatelyturn the power OFF, disconnect the power cord plug, and then
contact the shop fromwhich the product was purchased.
CAUTION:
To prevent electric shock, match wide blade of plug to wide slot, fullyinsert.
ATTENTION:
Pour éviter les chocs électriques, introduire la lame la plus large de la che dans la borne correspondante de la prise et
pousser jusqu'au fond.
An information on Disposal for users
If your product is marked with this recycling symbol it means that, at the end of its life, you must dispose of it
separatelybytaking it to an appropriate collection point.
You should not mixit with general household waste. Disposing of this product correctlywill prevent potential negative
eects on the environment and human health which could otherwise arise due to inappropriate waste handling.
For further details, please contact your local authority.
(European Union only)
Instruction for ACpower cord (U.K.)
IMPORTANT
THE WIRES INTHIS MAINS LEAD ARE COLOURED INACCORDANCE WITH THE FOLLOWING CODE.
BLUE :NEUTRAL
BROWN:LIVE
As the colours of the wires in the mains lead of this apparatus maynot correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter Nor coloured BLACK.
The wire which is coloured BROWNmust be connected to the terminal which is marked with the letter L or coloured RED.
Do not plug either terminal of the power cord to the the ground od ACoutlet on the wall.
Canadian Radio Interference Regulations
This instrument complies with the limits for a class B digital apparatus, pursuant to the Radio Interference Regulations,
C.R.C., c. 1374.
FCC Information (U.S.A)
CAUTION: Changes or modications not expresslyapproved bythe partyresponsible for compliance could void the user’s
authorityto operate the equipment.
NOTE : This equipment has been tested and found to complywith the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequencyenergyand, if not installed and used in
accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined byturning the equipment o and on, the user is encouraged to tryto correct
the interference byone or more of the following measures:
xReorient or relocate the receiving antenna.
xIncrease the separation between the equipment and receiver.
xConnect the equipment into an outlet on a circuit dierent fromthat to which the receiver is connected.
xConsult the dealer or an experienced radio/TV technician for help.

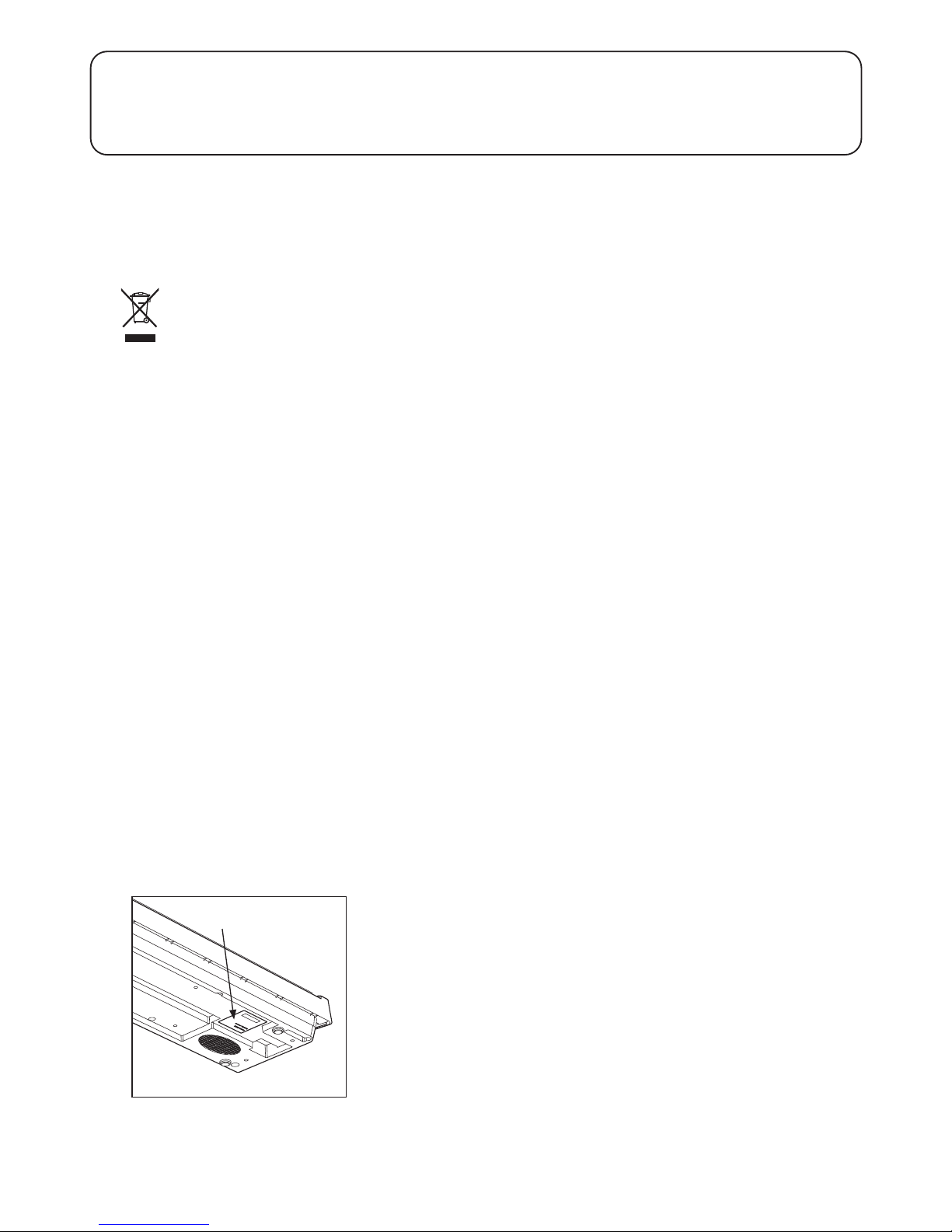

The nameplate label is located on the underside of the instrument, as indicated below.
Nameplate

section
9
Preface.................................... 3
ImportantSafetyInstructions............... 4
TableofContents .......................... 9
Preparation Before Use
PartNamesandFunctions.................10
SettingUpthePiano ...................... 11
BasicOperation........................... 12
Playing the Piano
SelectingSounds ......................... 13
DualMode................................ 15
SplitMode................................ 16
Metronome / Drum Rhythms .............. 17
Registration Memories .................... 19
Internal Songs
Demo Songs ..............................20
Lesson Function. . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1. Selecting a lesson book/song ..................21
2.Listeningtotheselectedlessonsong......... 22
3. Practicing left and right-hand parts separately . . 23
Recorder
Recorder .................................24
1.Recordingasong............................. 24
2.Playingbackasong .......................... 25
3.Erasingrecordedsongs....................... 25
Settings
KeyboardandSoundSettings .............26
1.Reverb....................................... 27
2. Damper Resonance. . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3. Voicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4. Fall-back Noise............................... 30
5. Damper Noise.................................31
6.Transpose.................................... 32
7.Brilliance..................................... 33
8.Touch........................................ 34
9.Tuning....................................... 35
10.Temperament............................... 36
11.TemperamentKey........................... 37
MIDISettings.............................38
1. Transmit MIDI Program Change............... 40
2. MIDI Channel(transmit/receive) ...............41
3. Local Control................................. 42
4. Multi-timbral Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . 43
SpeakerSettings..........................44
1. Table EQ..................................... 44
2. Speaker ON/OFFwithPhones................. 45
OtherSettings............................46
1.FactoryReset................................. 46
2.UserMemory .................................47
PowerSettings............................48
1.AutoPowerO............................... 48
Appendix
ConnectingtoOtherDevices ..............49
Rear Connectors................................ 50
Front Connectors............................... 50
Troubleshooting..........................51
DemoSongLists..........................52
LessonFunctionSongLists................53
DrumRhythmList.........................55
Specications.............................56
MIDIImplementationChart................57
Notes.....................................58
OperationGuide..........................59
Table of Contents

10
section
Preparation Before Use
Part Names and Functions
①POWERbutton
This button is used to turn the instrument on/o.
* The ES100 digital piano features a power saving mode that can turn o
the instrument automatically after a specied period of inactivity. For
more information, please refer to the Auto Power O setting on page
48.
②MASTERVOLUME slider
This slider controls the master volume level of the instrument’s
built-in speakers or headphones, if connected.
③FUNCTIONbutton
This button allows various settings of the ES100 digital piano
to be adjusted.
④PLAY / STOP button
This button is used to start/stop the playback of Recorder
songs stored in memory and the ES100 digital piano’s built-in
Lessons songs.
⑤RECbutton
This button is used to record performances to the ES100 digital
piano’s internal memory.
⑥LESSONbutton
This button is used to select the ES100 digital piano’s built-in
Lesson songs.
⑦SOUND buttons
These buttons are used to select the sound(s) that will be
heard when playing the instrument’s keyboard.
These buttons are also used to select Registration memories.
⑧PHONES jacks
These jacks, located on side of the keyboard, are used to
connect stereo headphones to the instrument. Two pairs of
headphones can be connected and used simultaneously.
* For more information about connectors/jacks, please refer to page 50.

Operation Guide
The separate Operation Guide provides a convenient overview of the ES100 digital piano’s various button and keyboard controls.
This sheet is also reprinted in the Appendix section of this owner’s manual.
① ② ③ ④ ⑤ ⑥ ⑦
⑧
Preparation Before Use
