IMPORTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit. Make
sure to save this manual for future reference.

Owner’s Manual
Table of Contents
1Safety Precautions ................................................................................ 04
2Unit Specifications and Features......................................................... 06
SECURITY
FIRST

3Care and Maintenance ............................................................................ 12
4Troubleshooting ...................................................................................... 14

◄ Page 4 ►
Safety Precautions
Read Safety Precautions Before Operation and Installation
Incorrect installation due to ignoring instructions can cause serious damage or injury. The
seriousness of potential damage or injuries is classified as either a WARNING or CAUTION
This symbol indicates that ignoring instructions may cause serious injury.
WARNING
This symbol indicates that ignoring instructions may cause moderate injury
to your person, or damage to your appliance or other property.
CAUTION
WARNINGS FOR PRODUCT USE
WARNING
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision(EN Standard requirements).
This appliance is not intended for use by persons(including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance(IEC Standard
requirements)
• If an abnormal situation arises (like a burning smell), immediately turn off the unit and disconnect the power.
Call your dealer for instructions to avoid electric shock, fire or injury.
• Do not insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since the fan may
be rotating at high speeds.
• Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire or
combustion.
• Do not operate the air conditioner in places near or around combustible gases. Emitted gas may collect around
the unit and cause explosion.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to
water can cause electrical components to short circuit.
• Do not expose your body directly to cool air for a prolonged period of time.
• Do not allow children to play with the air conditioner. Children must be supervised around the unit at all times.
• If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the room to
avoid oxygen deficiency.
• In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed air-
conditioning units is highly recommended.
Safety Precautions
1

◄ Page 5 ►
CLEANING AND MAINTENANCE WARNINGS
• Turn off the device and disconnect the power before cleaning. Failure to do so can cause electrical
shock.
• Do not clean the air conditioner with excessive amounts of water.
• Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents
can cause fire or deformation.
CAUTION
• Turn off the air conditioner and disconnect the power if you are not going to use it for a long time.
• Turn off and unplug the unit during storms.
• Make sure that water condensation can drain unhindered from the unit.
• Do not operate the air conditioner with wet hands. This may cause electric shock.
• Do not use device for any other purpose than its intended use.
• Do not climb onto or place objects on top of the outdoor unit
• Do not allow the air conditioner to operate for long periods of time with doors or windows open,
• or if the humidity is very high.
• How to install the appliance to its support, please refer to the “INSTALLATION MANUAL” for
details in "indoor unit installation" and "outdoor unit installation" sections.
Note about Fluorinated Gasses
1. This air-conditioning unit contains uorinated greenhouse gasses. For specific information on the
type of gas and the amount, please refer to the relevant label on the unit itself or the
“Owner's Manual - Product Fiche ” in the packaging of the outdoor unit. (European Union products
only).
2. Installation, service, maintenance and repair of this unit must be performed by a certified
technician.
3. Product uninstallation and recycling must be performed by a certified technician.
4. For equipment that contains fluorinated greenhouse gases in quantities of 5 tonnes of CO2
equivalent or more, but of less than 50 tonnes of CO2 equivalent, If the system has a leak- detection
system installed, it must be checked for leaks at least every 24 months.
5. When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended
Safety Precautions
Caution: Risk of fire
(for R-32 refrigerant
only)

◄ Page 6 ►
A
Unit Specifications and Features 2

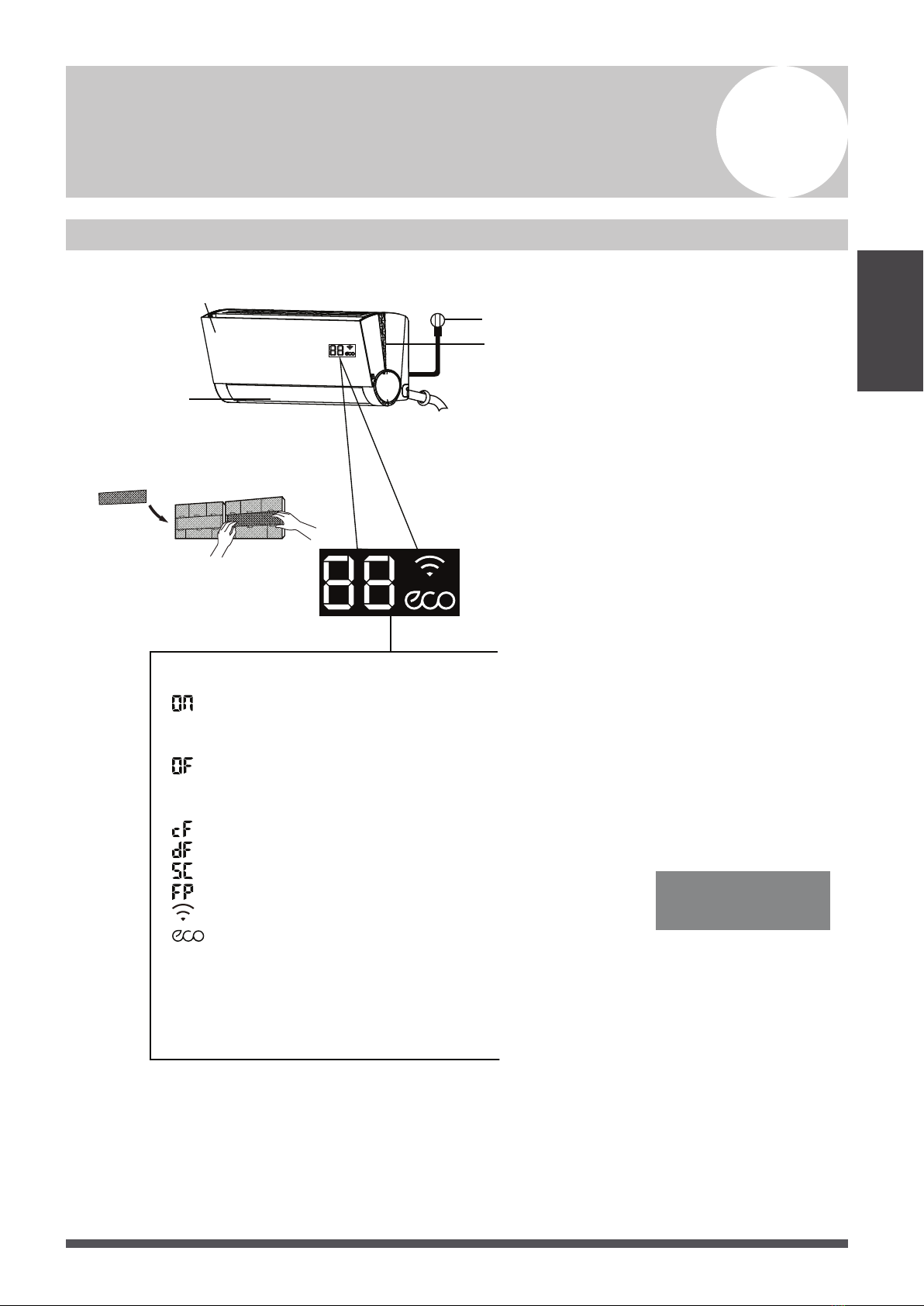

Unit Parts
NOTE: Different models have different front panel and display window. Not all the indicators describing
below are available for the air conditioner you purchased. Please check the indoor display window of the unit
you purchased.
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be
slightly different. The actual shape shall prevail
Functional Filter
(Installed on Back of Main Filter -
Some Units)
Front Panel
Remote
Control
Remote Holder
(Some Units)
Display window
Louver
Power Cable (Some Units)
V-shape light area::
Lights up in different colour according to the operation
mode: In (AUTO)COOL and DRY mode, the light is
blue.
In (AUTO)HEAT mode, the light is orange. The light is
off in Fan mode.
NOTE: When room light is turned off, the
splay window will slowly darken after 5 seconds, and
the buzzer will turn off. It will be back to normal after
the light is turned on
“ ” for 3 seconds when:
•TIMER ON is set
•FRESH, SWING, TURBO, or SILENCE features are turned on
“ ” for 3 seconds when:
•TIMER OFF is set
•FRESH, SWING, TURBO, or SILENCE features are turned off
“ ” when anti-cold air feature is turned on(some units)
“ ” when defrosting
“ ” when unit is self-cleaning(some units)
“ ” when 8 C heating feature is turned on(some units)
“ ” when WireIess Control feature is activated(some units)
“ ” when ECO function is activated(some units)
Unit
Specifications
and Features
Unit
Specifications
and Features
Display Code
Meanings

◄ Page 7 ►
Normal Operating temperature
When your air conditioner is used outside of the following temperature ranges, certain safety protection
features will activate and cause the unit to disable
COOL mode HEAT mode DRY mode
Room
Temperature
17 - 32 °C
(63 - 90 °F)
0°C - 30°C
(32°F - 86°F)
10°C - 32°C
(50°F - 90°F)
Outdoor
Temperature
0°C - 50°C
(32°F - 122°F)
-15°C - 50°C
(5°F - 122°F)
(For models
with low
temp. cooling
systems.)
-15°C - 30°C
(5°F - 86°F)
0°C - 50°C
(32°F - 122°F)
0°C - 60°C
(32°F - 140°F)
(For special
tropical models)
0°C - 60°C
(32°F - 140°F)
(For special
tropical models)
Tipo Split Inverter
FOR OUTDOOR UNITS
WITH AUXILIARY
ELECTRIC HEATER
When outside
temperature is below
0°C (32°F ), we strongly
recommend keeping the
unit plugged in at all
time to ensure smooth
ongoing performance.
To further optimize the performance of your unit, do the following:
• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
• Regularly inspect and clean air filters.
Unit
Specifications
and Features
Unit
Specifications
and Features

◄ Page 8 ►
A guide on using the infrared remote is not
included in this literature package. Not all the
functions are available for the airconditioner,
please check the indoor display and remote
control of the unit you purchased.
Other Features
• Auto-Restart(some units)
If the unit loses power, it will automatically restart
with the prior settings once power has been
restored.
• Wireless Control (some units)
Wireless control allows you to control your air
conditioner using your mobile phone and a
wireless connection.
For the USB device access, replacement,
maintenance operations must be carried out by
professional staff.
• Louver Angle Memory(some units) When
turning on your unit, the louver will automatically
resume its former angle.
• Refrigerant Leakage Detection (some
units)
The indoor unit will automatically display “EC” or
“EL0C”when it detects refrigerant leakage.
• Intelligent Light Detection
When room light is turned off, the display window
and V-shape light area will slowly darken after 5
seconds, and the buzzer turn off.
It will be back to normal after the light is turned
on.
NOTE: When room light is bright, the display
window and V-shape area remains on. When the
room light is dark, you can press the LED button
on the remote controller to turn on/off the display
window.
• Smart Air Manager
When the unit is under COOL or AUTO
mode, press the SWING button on the remote
controller ,it will blow out very comfortable &
quiet wind, which brings you feeling of nature
Unit Specifications
and Features

◄ Page 9 ►
While the unit is on, use the SWING/DIRECT
button on remote control to set the direction
(vertical angle) of airflow. Please refer to the
Remote Control Manual for details
(The vertical louver auto swing is a standard
function).
When using COOL or DRY mode, do not set
louver at too vertical an angle for long periods
of time. This can cause water to condense on
the louver blade, which will drop on your oor or
furnishings.
When using COOL or HEAT mode, setting the
louver at too vertical an angle can reduce the
performance of the unit due to restricted air ow.
Setting horizontal angle of air ow
The horizontal angle of the airow must be set
manually. Grip the deector rod (See Fig.B)and
manually adjust it to your preferred direction.
For some units, the horizontal angle of the
airflow can be set by remote control. please
refer to the Remote Control Manual.
CAUTION
Do not put your fingers in or near the blower
and suction side of the unit. The high-speed
fan inside the unit may cause injury..
Fig A
Fig B
Deector rod
Unit Specifications
and Features
Caution: Do not keep louver at too vertical
an angle for long periods of time. This
can cause water condensation to drip on
your furnishings.
Setting Angle of Air Flow
Setting vertical angle of air ow
NOTE ON LOUVER ANGLES
A
A
B
A
A
B
rank

◄ Page 10 ►

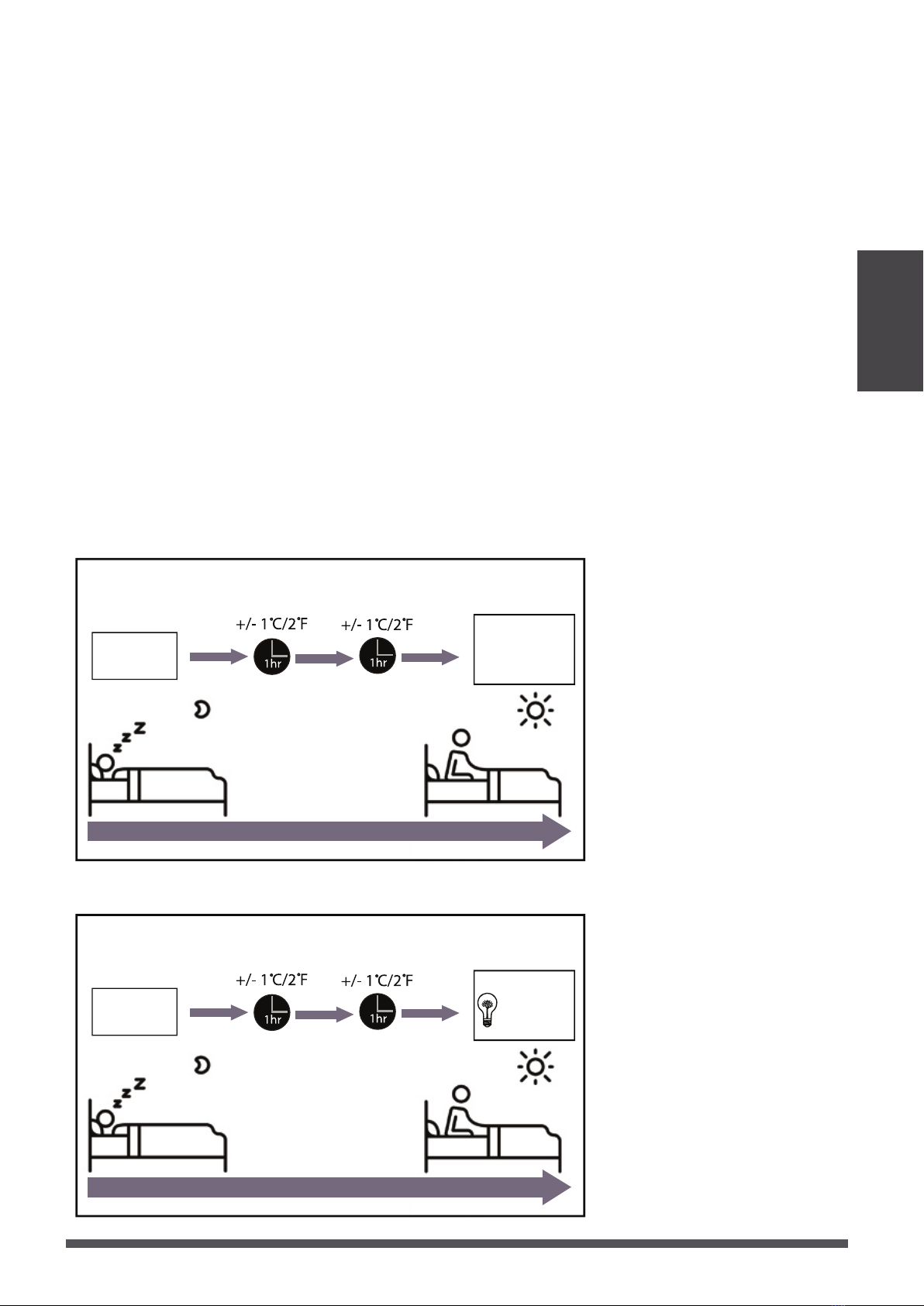

The SLEEP function is used to decrease energy
use while you sleep (and don’t need the same
temperature settings to stay comfortable). This
function can only
be activated via remote control. And the Sleep
function is not available in FAN or DRY mode.
Press the SLEEP button when you are ready to
go to sleep. When in COOL mode, the unit will
increase the temperature
by 1°C (2°F) after 1 hour, and will increase
an additional 1°C (2°F) after another hour.
When in HEAT mode, the unit will decrease the
temperature by 1°C (2°F) after 1 hour, and will
decrease an additional 1°C (2°F) after another
hour.
For some units, the sleep feature will stop after 8
hours and the system will keep running with final
situation
Set
temperature
Timer Off
for 7 hours
Saving energy during sleep
SLEEP Operation
Unit Specifications
and Features
• Sleep Operation
For some units, the unit will turn off after 7 hours.
Set
temperature
Keep runnig
Saving energy during sleep
SLEEP Operation

◄ Page 11 ►
A
A

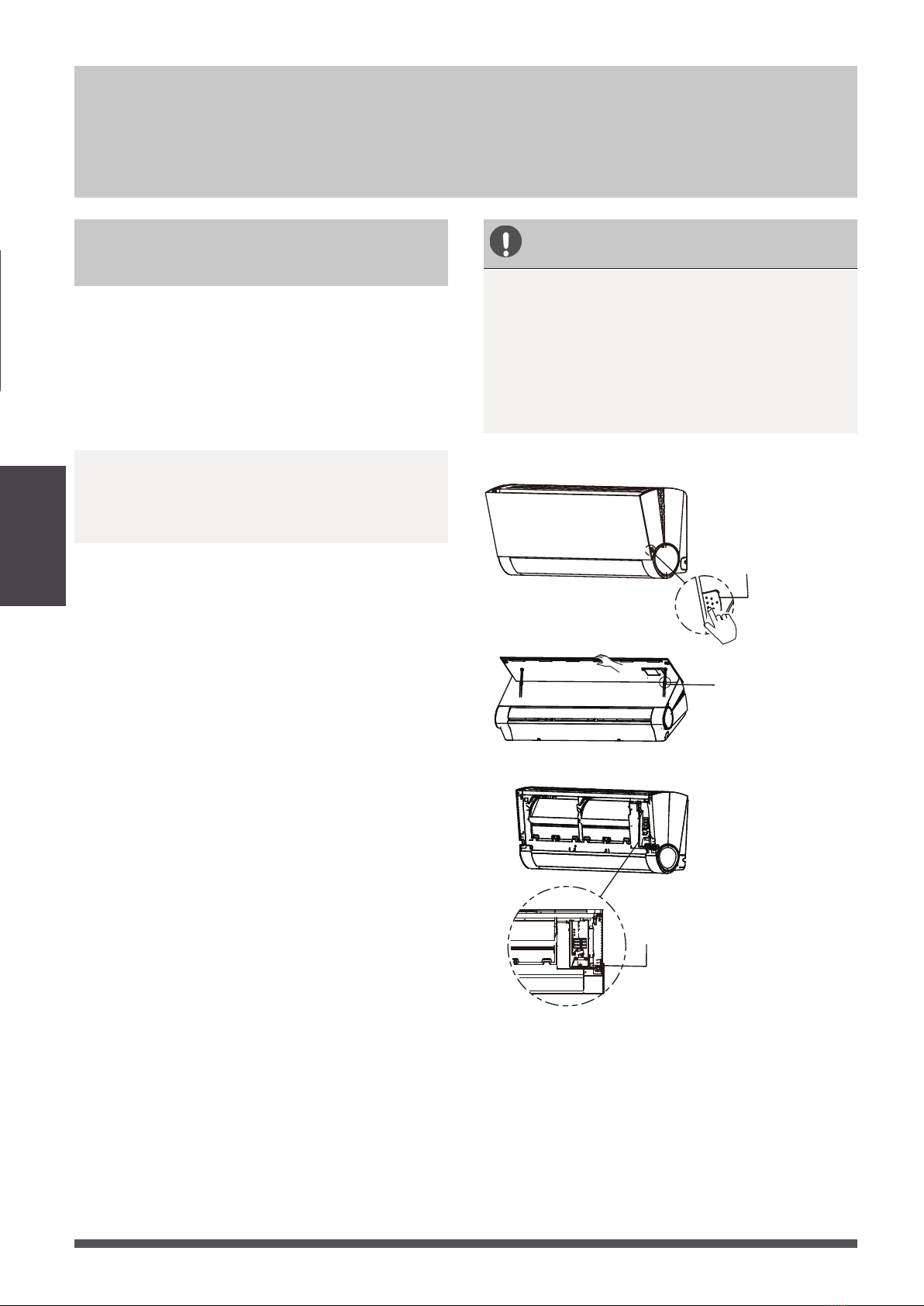

Manual Operation (Without Remote)
In the event that your remote control fails to work,
your unit can be operated manually with the
MANUAL CONTROL button located on the indoor
unit. Note that manual operation is not a long-
term solution, and that operating the unit with
your remote control is strongly recommended.
BEFORE MANUAL OPERATION
Unit must be turned off before manual
operation.
To operate your unit manually:
1. Press the button on both side of the indoor unit
to loosen the panel, then lift the front panel up, use
the automatic telescopic rod to prop up the panel.
2. Locate the MANUAL CONTROL button
on the right-hand side of the unit. Press the
recessed button with your finger or the tip of a
ballpoint pen.
3. Press the MANUAL CONTROL button one
time to activate FORCED AUTO mode. Press the
MANUAL CONTROL again to activate FORCED
COOLING mode.
4. Press the MANUAL CONTROL again
to activate FORCED COOLING mode.
5. Press the MANUAL CONTROL
button a third time to turn the unit off.
6. Hold the panel by hand, and press the middle
position of the automatic telescopic rod to close
the front panel.
How to operate your unit without the
remote control
CAUTION
The manual button is intended for testing
purposes and emergency operation only.
Please do not use this function unless the
remote is lost and it is absolutely necessary.
To restore regular operation, use the remote
control to activate the unit.
Automatic
telescopic rod
(press the middle
position to release)
Press here to loosen
the front panel
Manual control button
Unit Specifications
and Features

◄ Page 12 ►
Care and Maintenance 3
Cleaning Your Indoor Unit
ALWAYS TURN OFF YOUR AIR
CONDITIONER SYSTEM AND
DISCONNECT ITS POWER SUPPLY
BEFORE CLEANING OR MAINTENANCE.
BEFORE CLEANING OR MAINTENANCE
CAUTION
Only use a soft, dry cloth to wipe the unit clean.
If the unit is especially dirty, you can use a cloth
soaked in warm water to wipe it clean.
• Do not use chemicals or chemically treated
cloths to clean the unit
• Do not use benzene, paint thinner, polishing
powder or other solvents to clean the unit. They
can cause the plastic surface to crack or deform.
• Do not use water hotter than 40°C (104°F) to
clean the front panel. This can cause the panel to
deform or become discolored.
Cleaning Your Air Filter
A clogged air conditioner can reduce the cooling
efficiency of your unit, and can also be bad for
your health. Make sure to clean the filter once
every two weeks.
1. Lift the front panel of the indoor unit. Use
suspension bar to prop up the panel(please refer
to page 9).
2. Grip the tab on the end of the filter, lift it
up,then pull it towards yourself.
3. Now pull the filter out.
4. If your filter has a small air freshening filter,
unclip it from the larger filter. Clean this air
freshening filter with a hand-held vacuum.
5. Clean the large air filter with warm, soapy
water. Be sure to use a mild detergent.
6. Rinse the filter with fresh water, then shake
off excess water.
7. Dry it in a cool, dry place, and refrain from
exposing it to direct sunlight.
8. When dry, re-clip the air freshening filter to
the larger filter, then slide it back into the indoor
unit.
9. Close the front panel of the indoor unit
CAUTION
Do not touch air freshening (Plasma) filter for
at least 10 minutes after turning off the unit.
Pestañas del Filtro
Remove air freshening filter from back of
larger filter (some units)
Care and
Maintenance
Filter tabs

◄ Page 13 ►

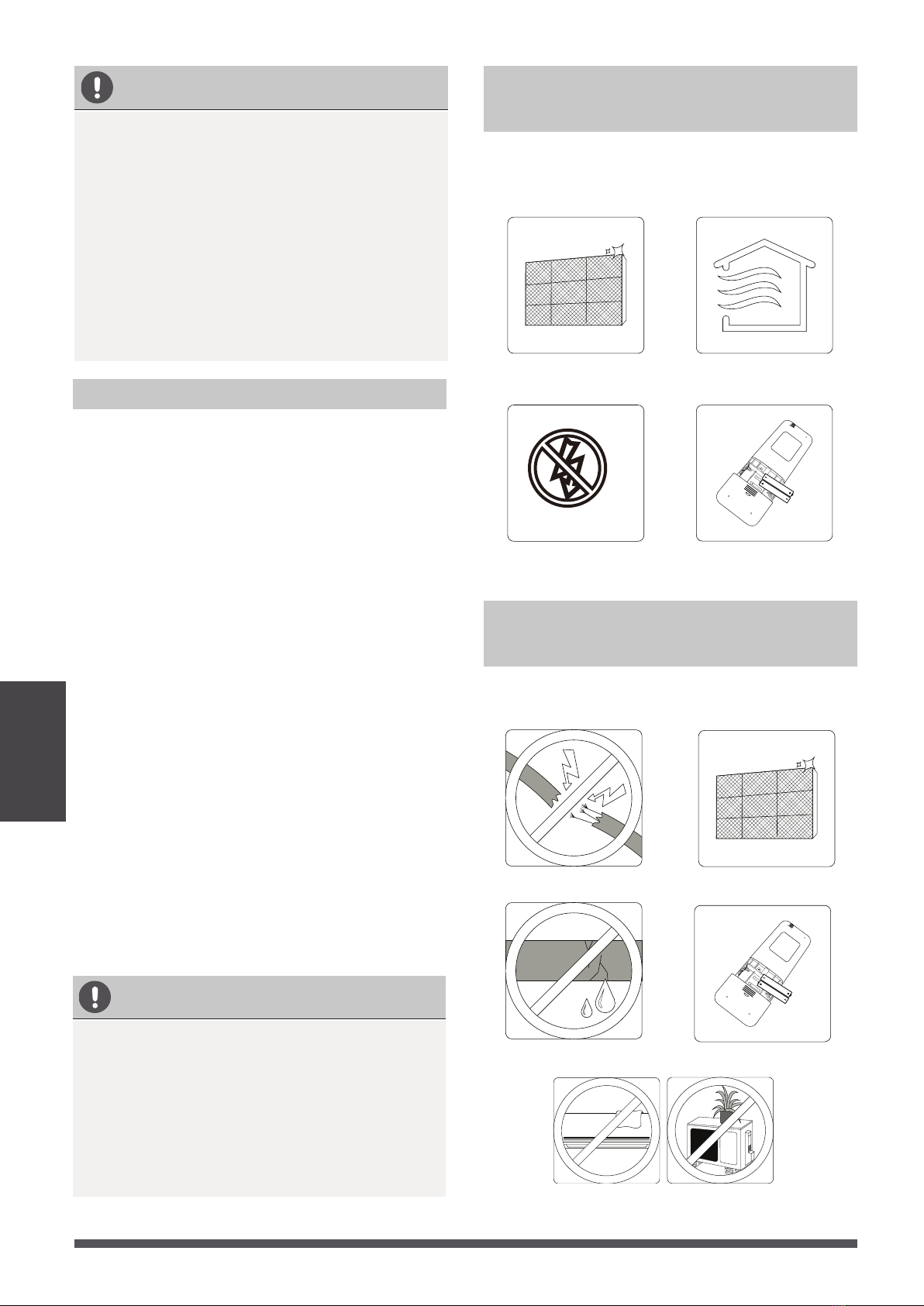

CAUTION
• Before changing the filter or cleaning, turn
off the unit and disconnect its power supply.
• When removing filter, do not touch metal
parts in the unit. The sharp metal edges can
cut you.
• Do not use water to clean the inside of the
indoor unit. This can destroy insulation and
cause electrical shock.
• Do not expose filter to direct sunlight when
drying. This can shrink the filter.
Air Filter Reminders (Optional)
Air Filter Cleaning Reminder
After 240 hours of use, the display window on
the indoor unit will ash “CL.” This is a reminder
to clean your filter. After 15 seconds, the unit will
revert to its previous display.
To reset the reminder, press the LED button
on your remote control 4 times, or press the
MANUAL CONTROL button 3 times. If you don’t
reset the reminder, the “CL” indicator will flash
again when you restart the unit.
Air Filter Replacement Reminder
After 2,880 hours of use, the display window on
the indoor unit will ash “nF.” This is a reminder
to replace your filter. After 15 seconds, the unit
will revert to its previous display.
To reset the reminder, press the LED button
on your remote control 4 times, or press the
MANUAL CONTROL button 3 times. If you don’t
reset the reminder, the “nF” indicator will flash
again when you restart the unit.
If you plan not to use your air conditioner for an
extended period of time, do the following::
CAUTION
• Any maintenance and cleaning of outdoor
unit should be performed by an authorized
dealer or a licensed service provider.
• Any unit repairs should be performed
by an authorized dealer or a licensed service
provider.
Maintenance –
Long Periods of Non-Use
After long periods of non-use, or before periods
of frequent use, do the following:
Maintenance –
Pre-Season Inspection
Clean all filtersCheck for damaged wires
Check for leaks Replace batteries
Make sure nothing is blocking all air inlets and outlets
Care and
Maintenance
Clean all filters Turn on FAN function until unit
dries out completely
Turn off the unit and
disconnect the power
Remove batteries from
remote control

◄ Page 14 ►
Troubleshooting 4
SAFETY PRECAUTIONS
If ANY of the following conditions occurs, turn off your unit immediately!
• The power cord is damaged or abnormally warm
• You smell a burning odor
• The unit emits loud or abnormal sounds
• A power fuse blows or the circuit breaker frequently trips
• Water or other objects fall into or out of the unit
DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT AN AUTHORIZED SERVICE
PROVIDER IMMEDIATELY!
Common Issues
The following problems are not a malfunction and in most situations will not require repairs.
Issue Possible Causes
Unit does not turn on
when pressing ON/
OFF button
The Unit has a 3-minute protection feature that prevents the unit from
overloading. The unit cannot be restarted within three minutes of being
turned off.
The unit changes
from COOL/HEAT
mode to FAN mode
The unit may change its setting to prevent frost from forming on the
unit. Once the temperature increases, the unit will start operating in the
previously selected mode again.
The set temperature has been reached, at which point the unit turns off
the compressor. The unit will continue operating when the temperature
uctuates again.
The indoor unit emits
white mist
In humid regions, a large temperature difference between the room’s air
and the conditioned air can cause white mist.
Both the indoor and
outdoor units emit
white mist
When the unit restarts in HEAT mode after defrosting, white mist may be
emitted due to moisture generated from the defrosting process.
Troubleshooting

◄ Page 15 ►
Issue Possible Causes
The indoor unit
makes noises
A rushing air sound may occur when the louver resets its position.
A squeaking sound may occur after running the unit in HEAT mode due to
expansion and contraction of the unit’s plastic parts
Both the indoor unit
and outdoor unit
make noises
Low hissing sound during operation: This is normal and is caused by
refrigerant gas owing through both indoor and outdoor units
Low hissing sound when the system starts, has just stopped running, or
is defrosting: This noise is normal and is caused by the refrigerant gas
stopping or changing direction.
Squeaking sound: Normal expansion and contraction of plastic and
metal parts caused by temperature changes during operation can cause
squeaking noises.
The outdoor unit
makes noises The unit will make different sounds based on its current operating mode.
Dust is emitted from
either the indoor or
outdoor unit
The unit may accumulate dust during extended periods of non-use,
which will be emitted when the unit is turned on. This can be mitigated by
covering the unit during long periods of inactivity.
The unit emits a bad
odor
The unit may absorb odors from the environment (such as furniture,
cooking, cigarettes, etc.) which will be emitted during operations.
The unit’s filters have become moldy and should be cleaned.
The fan of the outdoor
unit does not operate During operation, the fan speed is controlled to optimize product operation.
Operation
is erratic,
unpredictable, or unit
is unresponsive
Interference from cell phone towers and remote boosters may cause the
unit to malfunction.
In this case, try the following:
• Disconnect the power, then reconnect.
• Press ON/OFF button on remote control to restart operation.
NOTE: If problem persists, contact a local dealer or your nearest customer service center. Provide
them with a detailed description of the unit malfunction as well as your model number.
Troubleshooting

◄ Page 16 ►
Troubleshooting
When troubles occur, please check the following points before contacting a repair company.
Problem Possible Causes Solution
Poor Cooling
Performance
Temperature setting may be higher
than ambient room temperature Lower the temperature setting
The heat exchanger on the indoor
or outdoor unit is dirty Clean the affected heat exchanger
The air filter is dirty Remove the filter and clean it
according to instructions
The air inlet or outlet of either unit is
blocked
Turn the unit off, remove the
obstruction and turn it back on
Doors and windows are open
AMake sure that all doors and
windows are closed while operating
the unit
Excessive heat is generated by
sunlight
Close windows and curtains during
periods of high heat or bright
sunshine
Too many sources of heat in
the room (people, computers,
electronics, etc.)
Reduce amount of heat sources
Low refrigerant due to leak or long-
term use
Check for leaks, re-seal if necessary
and top off refrigerant
SILENCE function is
activated(optional function)
SILENCE function can lower
product performance by reducing
operating frequency. Turn off
SILENCE function
Troubleshooting

◄ Page 17 ►
Problem Possible Causes Solution
The unit is not
working
Power failure Wait for the power to be restored
The power is turned off Turn on the power
The fuse is burned out Replace the fuse
Remote control batteries are dead Replace batteries
The Unit’s 3-minute protection has
been activated
Wait three minutes after restarting
the unit
Timer is activated Turn timer off
The unit starts and
stops frequently
There’s too much or too little
refrigerant in the system
Check for leaks and recharge the
system with refrigerant.
Incompressible gas or moisture has
entered the system.
Evacuate and recharge the system
with refrigerant
The compressor is broken Replace the compressor
The voltage is too high or too low Install a manostat to regulate the
voltage
Poor heating
performance
The outdoor temperature is
extremely low Use auxiliary heating device
Cold air is entering through doors
and windows
Make sure that all doors and
windows are closed during use
Low refrigerant due to leak or long-
term use
Check for leaks, re-seal if necessary
and top off refrigerant
Indicator lamps
continue ashing
The unit may stop operation or continue to run safely. If the indicator lamps
continue to flash or error codes appear, wait for about 10 minutes. The
problem may resolve itself.
If not, disconnect the power, then connect it again. Turn the unit on.
If the problem persists, disconnect the power and contact your nearest
customer service center
Error code appears
and begins with the
letters as the following
in the window display
of indoor unit:
•E(x), P(x), F(x)
•EH(xx), EL(xx), EC(xx)
•PH(xx), PL(xx), PC(xx)
NOTE: If your problem persists after performing the checks and diagnostics above, turn off your unit
immediately and contact an authorized service center.
Troubleshooting

◄ Page 18 ►
European Disposal Guidelines
This marking shown on the product or its literature, indicates that waste electrical and eletrical
equipment should not be mixed with general household waste.
This appliance contains refrigerant and other potentially hazardous materials. When disposing of
this appliance, the law requires special collection and treatment. Do not dispose of this product as
household waste or unsorted municipal waste.
When disposing of this appliance, you have the following options:
• Dispose of the appliance at designated municipal electronic waste collection facility.
• When buying a new appliance, the retailer will take back the old appliance free of charge.
• The manufacturer will take back the old appliance free of charge.
• Sell the appliance to certified scrap metal dealers.
Disposing of this appliance in the forest or other natural surroundings endangers your health and is
bad for the environment. Hazardous substances may leak into the ground water and enter the food
chain.
Special notice
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)

The design and specifications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details. Any updates to the
manual will be uploaded to the service website, please check for the latest version.
CS360U-VP(N)
16122000007899
20181110
