1. Components & Features
Bluetooth Audio
Receiver+FM Radio+DAB
(MASTER)
Speakers
FM/DAB Antenna
iOS/Android devices
KBSOUND STAR App
External Bluetooth devices
(Computer, Amazon Alexa
devices, etc.)
Remote Control Accessory
(If purchased as an
accessory)
2
4
5
6
7
3
1
The MASTER (1) is an electronic module installed in the ceiling that
allows you to enjoy three music channels: Bluetooth audio streaming,
FM Radio and DAB Radio.
The device (4) is any smartphone or tablet based on iOS or ANDROID
with Bluetooth Low Energy (BLE) and the following Bluetooth profiles:
A2DP, AVRCP (for sending audio).
The KBSOUND STAR App (5) is the App for managing the MASTER (1).
It can be downloaded from Apple App Store (for iOS devices) or Google
Play Store (for ANDROID devices). The KBSOUND STAR App is
compatible with iOS 10.0 and higher and ANDROID 4.4 and higher.
The external device (6) is any Bluetooth device (A2DP, AVRCP profiles)
from which you wish to stream Audio.
See also chapter 12 for management when using the Remote Control
Accessory if purchase separately.
Warning: The KBSOUND STAR
App runs on different releases
from different operating systems,
using different devices from
different brands.
As a result, its functioning
may present some differences
between devices.
2. KBSOUND STAR App Installation
2.1 iOS DEVICES 2.2 ANDROID DEVICES
Tap the Apple App Store on the iOS device to
download the KBSOUND STAR App.
Tap the Google Play Store on the ANDROID
device to download the KBSOUND STAR App.

8 9
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
3. Bluetooth Low Energy Connection (BLE)
1. The first time the App is launched the list of devices is empty. Tap the “Pair a new device”
button to search the available MASTERS within range.
2. All the MASTERS within range will appear in the screen. Select the MASTER with which
you wish to connect.
3. The first time the device is going to be paired with the MASTER,
the KBSOUND STAR Bluetooth ID and password will be the factory default.
This data can be found on the label of the MASTER. Each MASTER has a UNIQUE KBSOUND STAR
Bluetooth ID and password, please check that you have a copy of the label provided on the
“Quick reference guide”.
4. Introduce the password
5. Now the device has been added to the list of paired devices. Tap on the KBSOUND STAR
identification to connect.
6. Tap the MASTER ( ) button to switch ON/OFF the system.
7. For adding new devices, press the name of the MASTER at the bottom of the screen and follow
the same process from the beginning.
Note: only one Bluetooth device can be connected
to a MASTER at any time. If a second Bluetooth
device wants to connect to the same MASTER,
disconnect the first one closing the App and then
connect the second one. Be aware that the first
App is not running in the background.
Note: KBSOUND STAR Bluetooth ID and password
can be changed by the user (see chapter 8).
For recovering factory default (see chapter 10.3).
KBSOUND
Select a previously paired devide
Pair a new device
PASSWORD
1234 KBSOUND STAR
Enter PASSWORD
Cancel
Pair
0
1
GHI
PQRS
4
7
2
ABC
JKL
TUV
5
8
MNO
WXYZ
3
6
9
DEF
KBSOUND
Select a previously paired devide
Re-scan
0012 KBSOUND STAR
1234 KBSOUND STAR Pair
Pair
Pair
0519 KBSOUND STAR
Pair
2805 KBSOUND STAR
KBSOUND
Select a previously paired devide
Pair a new device
1234 KBSOUND STAR Forget
KBSOUND
Select a previously paired devide
Pair a new device
PASSWORD
1234 KBSOUND STAR
Enter PASSWORD
Cancel
Pair
0
1
GHI
PQRS
4
7
2
ABC
JKL
TUV
5
8
MNO
WXYZ
3
6
9
DEF
KBSOUND
Select a previously paired devide
Re-scan
0012 KBSOUND STAR
1234 KBSOUND STAR Pair
Pair
Pair
0519 KBSOUND STAR
Pair
2805 KBSOUND STAR
KBSOUND
Select a previously paired devide
Pair a new device
1234 KBSOUND STAR Forget
KBSOUND
1234 KBSOUND STAR
KBSOUND
1234 KBSOUND STAR
MasterAux
Master
BLUETOOTH ID:
0001 KBSOUND STAR
PASSWORD:
4582
MAC address:
00 : 00 : 00 : 00 : 00 : 00
To clear the pairing between the device and the
MASTER. Take care that to pair again,
you will need the password, so before clearing
the pairing, take note of the password.
Warning: some ANDROID’s, after clearing
the pairing, do not clear all of their internal
data and to pair again will requiere resetting
the MASTER to factory default (see chapter 10.3),
which means that all the devices paired will be
deleted and they will have to be paired again.
Tested with:
GOOGLE NEXUS 5 / ANDROID 5.0.1
SAMSUNG GALAXY ALPHA / ANDROID 4.4.4
To disconnect the App from the MASTER close
the App. Be sure that the App is permanently
closed and it is not operating in background.
The way to close the App can be different for
each device, although the process can be similar.
See the device user manual to see how to do it.

10 11
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
Turn on the MASTER and select the FM audio channel. Turn on the MASTER and select the DAB audio channel.
4. Listen FM 5. Listen DAB
The App in each Bluetooth device (iOS/Android) allows you to store its own
list of FM favorites and its own list of DAB favorites. These lists are managed
only by the App in each device, never using the Remote Control Accessory.
However, the MASTER unit can store a (unique) list of 10 FM memories
and a (unique) list of 10 DAB memories, if they are managed by the Remote
Control Accessory. (See chapter 12).
KBSOUND
DAB
ESRADIO
95.8
MasterAux
Current FM
tuner station
frequency
jump to the
FM FAVORITES
SCREEN
RDS information
about current FM
tuner station
jump to the
EQ SCREEN
ON / OFF
audio channels buttons
add/remove FM favorites
(long press 4” to remove)
scan
manual dialing
FM forced mono
jump to the SETTINGS SCREEN
set ideal mode
(long press 4” save ideal mode)
Bluetooth ID. Tap to open
the window which will show
the devices available and allows
you to connect with another one
if you wish.
volume
SettingsBass
FM
Scan level
1234 KBSOUND STAR
Ideal
FM MONO
FM sensitivity
for scan
KBSOUND
DAB
ESRADIO
95.8
MasterAux
FM
2 3
4 5 6
7 8 9
. 0
cancel intro
1
Tap on the number
if you wish to jump
in the screen to directly
key in the FM station
frequency.
KBSOUND
DAB
BBC5 RADIO LIVE
MasterAux
jump to the
DAB FAVORITES
SCREEN
information about
current DAB station
jump to the
EQ SCREEN
ON / OFF
audio channels buttons
add/remove DAB favorites
(long press 4” to remove)
next/previous station
jump to the SETTINGS SCREEN
set ideal mode
(long press 4” save ideal mode)
Bluetooth ID. Tap to open
the window which will show
the devices available and allows
you to connect with another one
if you wish.
volume
SettingsBass
FM
1234 KBSOUND STAR
Ideal
INFORMATION RECEIVED DAB RADIO
BBC WORLD SERVICE UCB UK RADIO

12 13
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
Connect the Bluetooth device for streaming
(smartphone, computer, amazon alexa device, ...) to the MASTER.
6. Listen Bluetooth Audio Streaming
If you wish to stream music select the Bluetooth audio channel.
6.1 BLUETOOTH AUDIO PAIRING AND CONNECTION
1. Be sure that the KBSOUND STAR App
is closed, not running in the background
(see chapter 14.15 FAQ’s).
2. Open iOS Bluetooth Settings Menu.
3. Select the KBSOUND STAR Bluetooth ID
(e.g. 0001 KBSOUND STAR).
4. Introduce the password (e.g. 4582).
Needed only when pairing, not in future
connections.
5. Check that the MASTER
(e.g. 0001 KBSOUND STAR)
is correctly connected.
6.1.1 iOS DEVICES
Bluetooth
DEVICES
PIN 4582
KBSOUND STAR
Bluetooth
0001 KBSOUND STAR Connected
MY DEVICES
0
1
GHI
PQRS
4
7
2
ABC
JKL
TUV
5
8
MNO
WXYZ
3
6
9
DEF
JF14 FREEDOM Not Connected
BT 140401 Not Connected
0001 KBSOUND STAR
Bluetooth
DEVICES
PIN 4582
KBSOUND STAR
Bluetooth
0001 KBSOUND STAR Connected
MY DEVICES
0
1
GHI
PQRS
4
7
2
ABC
JKL
TUV
5
8
MNO
WXYZ
3
6
9
DEF
JF14 FREEDOM Not Connected
BT 140401 Not Connected
0001 KBSOUND STAR
KBSOUND
DAB
Bluetooth
MasterAux
ashing to indicate that the BT AUDIO DEVICE
must be connected by Bluetooth with the MASTER
SettingsBass
FM
1234 KBSOUND STAR
Ideal
Connect Bluetooth Audio in the device you
want to stream your music
Bluetooth Audio Streaming
No BT audio device connected (A2DP)
BT audio device connected (A2DP)
(ashing) Waiting for pairing and connecting
with BT audio device (A2DP)
BT audio device streaming (A2DP)
The first time the device is going to be paired with the MASTER,
the KBSOUND STAR Bluetooth ID and password will
be the factory default. This data can be found on
the label of the MASTER.
BLUETOOTH ID:
0001 KBSOUND STAR
PASSWORD:
4582
MAC address:
00 : 00 : 00 : 00 : 00 : 00
KBSOUND
DAB
iPhone 8
MasterAux
ON / OFF
SettingsBass
FM
1234 KBSOUND STAR
Ideal
Go and play your music whether it is streaming
Internet music services or music from your own library
Bluetooth Audio Streaming
disconnect BT
Audio device
(A2DP)
name of the
device which
is connected
information
about the current
streaming
Hope of deliverance
Paul McCartney
The very best

14 15
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
6.2.1. iOS DEVICES
There are two options:
1. Open the iOS Bluetooth settings
Menu and disconnect Bluetooth.
(Total Bluetooth disconnection
is advisable, although some iOS
models/versions permit individual
disconnections).
2. In the App, tap the ”disconnect icon”
in the “Bluetooth Audio Streaming”
screen.
Bluetooth
0105 KBSOUND STAR Connected
MY DEVICES
JF14 FREEDOM Not Connected
BT 140401 Not Connected
Bluetooth

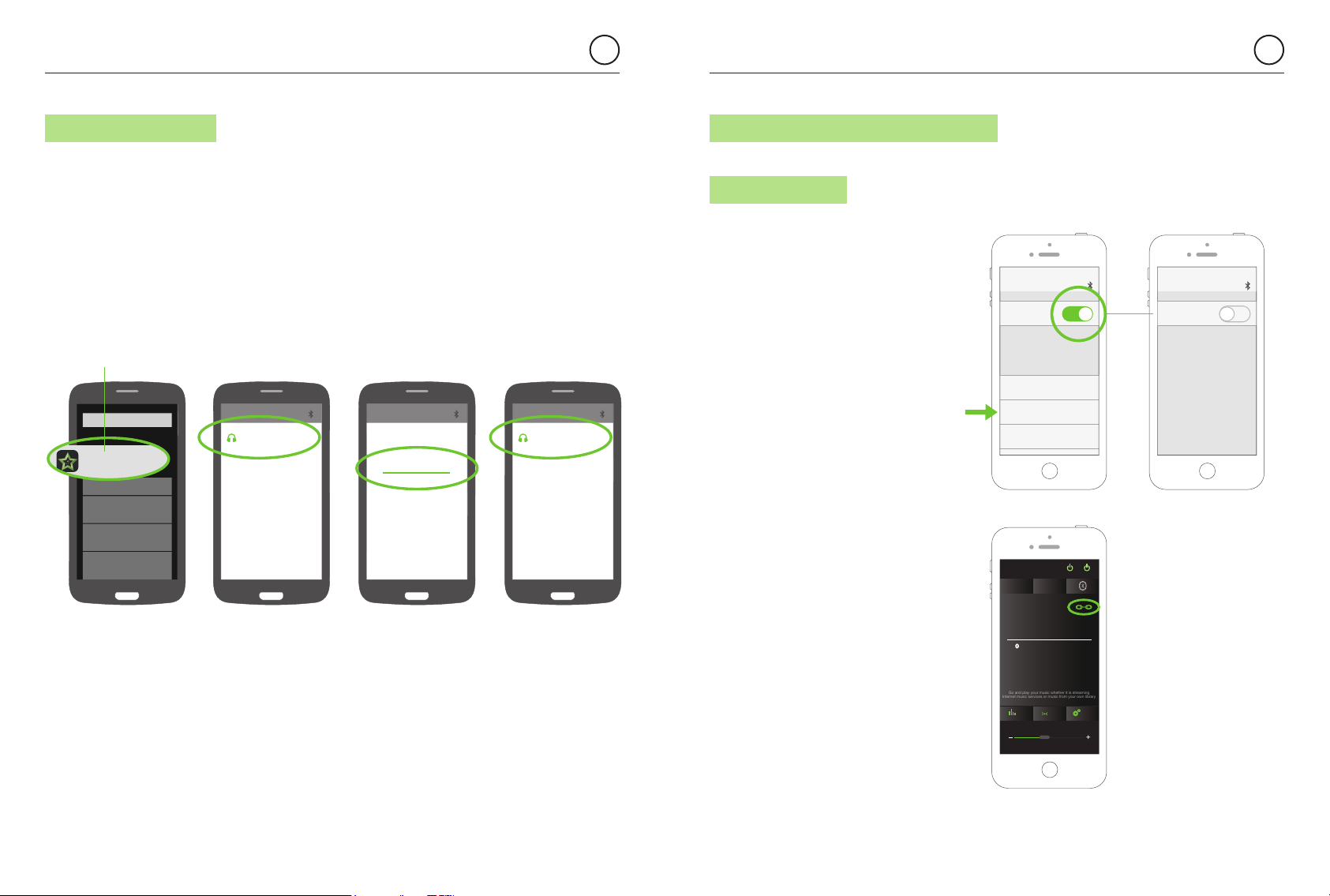

6.1.2 ANDROID DEVICES 6.2 BLUETOOTH AUDIO DISCONNECTION
1. Be sure that the KBSOUND STAR App is closed, not running in the background
(see chapter 14.15 FAQ’s).
2. Open ANDROID Bluetooth Settings Menu.
3. Select the KBSOUND STAR Bluetooth ID (e.g. 0001 KBSOUND STAR).
4. Introduce the password (e.g. 4582). Needed only when pairing, not in future connections.
5. Check that the MASTER (e.g. 0001 KBSOUND STAR) is correctly connected.
Note: the above process is just an example
(GOOGLE NEXUS 5 / ANDROID 5.0.1) since
different devices have different configurations
for different brands, models and versions.
KBSOUND STAR
if KBSOUND STAR App is running
in background, close it.
0001 KBSOUND STAR 0001 KBSOUND STAR
Connected
Bluetooth pairing request
0001 KBSOUND STAR
4582
KBSOUND
DAB
Bluetooth
MasterAux
SettingsBass
FM
1234 KBSOUND STAR
Ideal
Bluetooth Audio Streaming
Go and play your music whether it is streaming
Internet music services or music from your own library

16 17
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
If you wish to stream music from a computer, go to the computer
Control Panel - Bluetooth options and connect with the MASTER
(XXXX KBSOUND STAR)
KBSOUND
DAB
Mi PC
MasterAux
ON / OFF
SettingsBass
FM
1234 KBSOUND STAR
Ideal
Go and play your music whether it is streaming
Internet music services or music from your own library
Bluetooth Audio Streaming
disconnect BT
Audio device
(A2DP)
name of the
device which
is connected
information
about the current
streaming
Hope of deliverance
Paul McCartney
The very best
Bluetooth: On
Show Bluetooth in menu bar
Devices
ASUOP5KSE
1234 KBSOUND STAR
GDMALLBT3
Turn Bluetooth Off
Advanced...
KBSOUND
DAB
Mi PC
MasterAux
ON / OFF
SettingsBass
FM
1234 KBSOUND STAR
Ideal
Go and play your music whether it is streaming
Internet music services or music from your own library
Bluetooth Audio Streaming
disconnect BT
Audio device
(A2DP)
name of the
device which
is connected
information
about the current
streaming
Hope of deliverance
Paul McCartney
The very best
Bluetooth: On
Show Bluetooth in menu bar
Devices
ASUOP5KSE
1234 KBSOUND STAR
GDMALLBT3
Turn Bluetooth Off
Advanced...
6.3. OTHER BLUETOOTH DEVICES
6.3.1. COMPUTER
6.2.2. ANDROID DEVICES
Note: the following process is just an
example (GOOGLE NEXUS 5 / ANDROID
5.0.1) since different devices have different
configurations for different brands, models
and versions.
0001 KBSOUND STAR
Connected
GW LITE CONN
Paired devices
On Off
There are two options:
1. Open the ANDROID Bluetooth Settings
Menu and disconnect Bluetooth.
(Total Bluetooth disconnection is
advisable, although some iOS
models/versions permit individual
disconnections).
2. In the App, tap the “disconnect BT icon”
in the “Bluetooth Audio Streaming” screen.
KBSOUND
DAB
Bluetooth
MasterAux
SettingsBass
FM
1234 KBSOUND STAR
Ideal
Bluetooth Audio Streaming
Go and play your music whether it is streaming
Internet music services or music from your own library

18 19
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
If you wish to stream music from any Amazon Alexa device setup
the Bluetooth connection with the KBSOUND STAR and say “Alexa,
connect with the speaker”.
To change the source of the Bluetooth streaming at any time, disconnect
the Bluetooth device (A2DP) pressing the disconnect icon in the App screen,
and connect a new one following the same process.
Note: To connect the Amazon Alexa device with the MASTER
by Bluetooth, the password of the MASTER must be set to 0000
KBSOUND
DAB
Echo Dot
MasterAux
ON / OFF
SettingsBass
FM
1234 KBSOUND STAR
Ideal
Go and play your music whether it is streaming
Internet music services or music from your own library
Bluetooth Audio Streaming
disconnect BT
Audio device
(A2DP)
Alexa,
connect with
the speaker
name of the
device which
is connected
information
about the current
streaming
Hope of deliverance
Paul McCartney
The very best
6.3.2 AMAZON ALEXA DEVICES
AUTO POWER - ON
1234 KBSOUND STAR
About
IDEAL MODE
DAB
AUDIO CHANNELS
SPEAKERS OUTPUT (MASTER)
LINE OUTPUT (AUX)
BLUETOOTH
IR REMOTE CONTROL UNIT
LANGUAGE English >
Back
User’s Manual
jump to the
ABOUT SCREEN
jump to
the previous
SCREEN
(Android = Also
the standard
back button)
Certain features of the Settings screen such as: Speaker output (master), Line output
(Aux), Bluetooth and Remote Control Accessory can be blocked using the “About”
screen. This block will avoid undesired changes in the settings.
Go to the “About” screen and tap on the STAR App logo five times to switch
between the block and unblocked menus.
block menu unblocked menu
7. Settings
AUTO POWER - ON
1234 KBSOUND STAR
About
IDEAL MODE
DAB
AUDIO CHANNELS
SPEAKERS OUTPUT (MASTER)
LINE OUTPUT (AUX)
BLUETOOTH
IR REMOTE CONTROL UNIT
LANGUAGE English >
Back
User’s Manual
1234 KBSOUND STAR
User’s Manual
Back
Copyright (C) 2018 EISSOUND
All rights reserved
Model 52792
Version 2.0.1.20170124
Firmware 01.02.00
KBSOUND STAR
tap on the STAR App logo
ve times to switch between
the block and unblocked menus.

20 21
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
7.1 AUTO POWER ON
The AUTO POWER-ON mode is the status (ON/OFF) and audio settings
(audio channel and volume) of the MASTER and/or AUX units when they
are powered from the mains 230/120V. Factory default is OFF.
To personalize the start-up mode use the AUTO POWER-ON function:
If the AUTO POWER-ON is disabled, when
the MASTER is powered from the mains, it will
start in OFF mode (no audio).
If the AUTO POWER-ON is enabled, when
the MASTER is powered from the mains, it will
start in ON mode with the audio settings previously
defined.
The AUTO POWER-ON settings is a characteristic
of the MASTER. It is unique, although it can be
enabled or disabled by every App in every device
and by the Remote Control Accessory.
The active audio settings will always be the last
defined either by the App or the Remote Control
Accessory.
2. activate the settings
option in the AUTO
POWER-ON screen.
When you switch ON
the MASTER
and/or AUX button
the audio settings will
be updated to the
new ones.
Master
AUTO POWER-ON
1234 KBSOUND STAR
About
Aux
Master and Aux will turn on automatically when
modules are fed from the mains (120/230Vac).
Current Auto Power-On settings:
FM - 95.8MHz - volume +5
Back
User’s Manual
KBSOUND
DAB
ESRADIO
95.8
MasterAux
SettingsBass
FM
Scan level
1234 KBSOUND STAR
Ideal
FM MONO
Note: The Auto AUTO POWER-ON setup
as MASTER=OFF, AUX=ON will work only while
the MASTER is powered from the mains.
IDEAL MODE
1234 KBSOUND STAR
About
Save current audio settings as “ideal mode” (volume,
equalization, FM/DAB/AUDIO-IN//BT and, if FM/DAB,
the station currently tuned)
Current Ideal mode:
FM - 101.0MHz - volume +10 - Pop
Back
User’s Manual
KBSOUND
DAB
KISS FM
101.0
MasterAux
SettingsPop
FM
Scan level
1234 KBSOUND STAR
Ideal
FM MONO
Save Ideal mode
7.2 IDEAL MODE
1. Using the App to save the Ideal Mode on the user’s device
Each user can use the App to set their own ideal mode in their
device for chosing the audio channel (FM, DAB, Buetooth),
volume and equalization.
To save the Ideal mode in each device:
Choose the desired audio channel (FM, DAB, Bluetooth),
volume and equalization.
Press the Save Ideal mode button in the Ideal mode screen.
After pressing the button the audio settings will be updated
to the new ones.
These settings are
particular to each
user’s device only.
1. choose the desired
audio channel
(FM, DAB, Bluetooth)
and volume for start-up.

22 23
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual

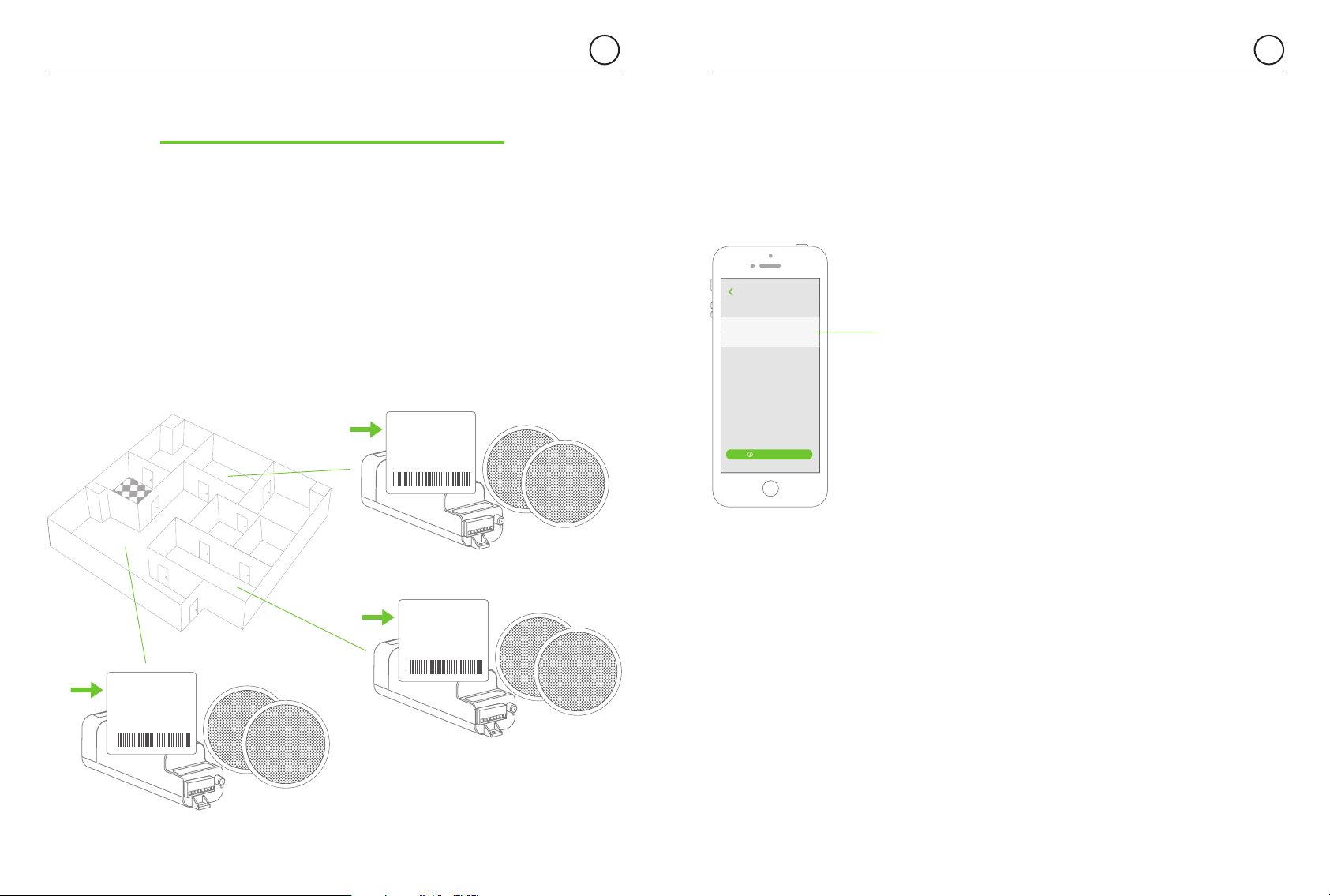

7.3 DAB
7.4 AUDIO CHANNELS
When any of the audio channels are not
in use they can be disabled and the button
will not appear in the audio screen.
Take note that this selection overrides
all audio channels available in other
KBSOUND STAR units managed
by other device.
FM
AUDIO CHANNELS
1234 KBSOUND STAR
About
DAB
Bluetooth
When disabled, buttons will not be shown
in the audio screens.
Back
User’s Manual
2. Using the Remote Control Accessory to save the Ideal Mode in the MASTER,
if purchased separately.
The Ideal Mode for Audio channel (FM,DAB, Buetooth), volume and equalization can be stored
in the MASTER with the Remote Control Accessory.
Only the Remote Control can be use to store this information in the MASTER never the App.
Selecting the DAB settings button you will be able
to update and reset the DAB services.
Master

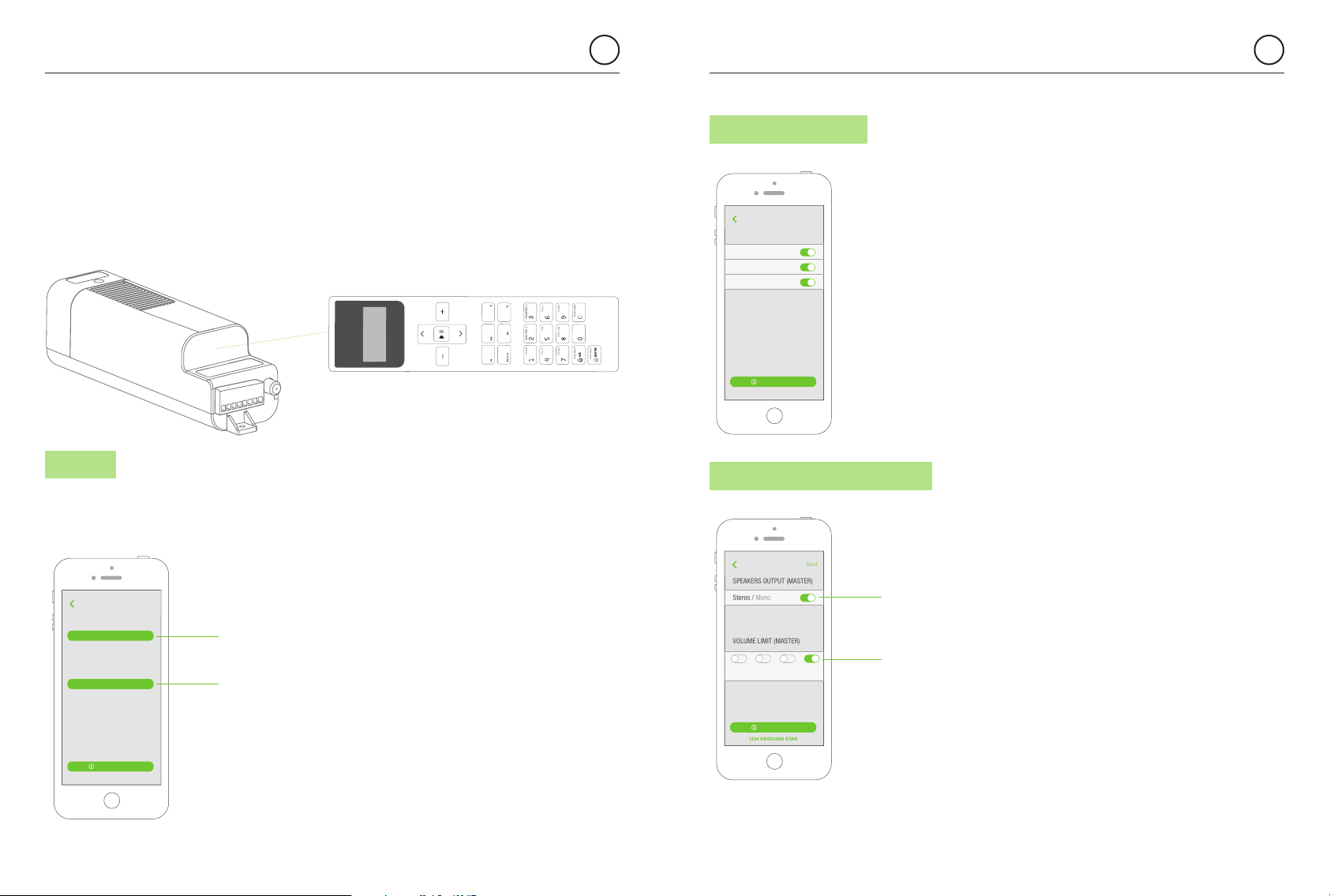

7.5 SPEAKER OUTPUT (MASTER)
Stereo / Mono
SPEAKERS OUTPUT (MASTER)
VOLUME LIMIT (MASTER)
1234 KBSOUND STAR
About
Select the speakers output (Master) between
STEREO or MONO.
Select the maximum volume of the speakers
output (Master)
Back
User’s Manual
Min Medium
Low
Medium
High
Max
select the MASTER speaker output to MONO or STEREO
limit the maximum volume for the speaker output
IR
EQ
DAB
1234 KBSOUND STAR
About
Update DAB services. Adds new services found
Back
User’s Manual
Update DAB
Re-scan the DAB services available. It replaces
all the DAB services by the new ones. It also deletes
all the DAB favourites
Reset DAB
update DAB in the MASTER unit
reset DAB in the MASTER unit

24 25
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
7.7 BLUETOOTH
7.6 LINE OUTPUT (AUX) 7.8 REMOTE CONTROL ACCESSORY
Changing the Bluetooth ID requires that
you “forget the device” and “pair” again from
the Bluetooth Settings Menu with the new name.
Please take note of the password before pressing
“continue” as you will need it to pair again.
(See chapter 8)
The Remote Control Accessory can operate
simultaneously with the App. To enable this option
you need to activate the Remote Control Accessory.
Select the App language desired.
See chapter 12 for more information
when operating with the Remote Control Accessory.
7.9 LANGUAGES
Note: The volume of both MASTER and AUX is controlled
through the App volume bar. MASTER and AUX can have
different sound levels if the volume limitation switches in the AUX
have been previously regulated. (see chapter 11). Please note
that the Bluetooth device only communicates with the MASTER,
so the range must be measured between the location of the
user and the MASTER. It can never be related to the location of
the speakers nor the Auxiliary amplifiers.
RC
Remote Control Accessory
1234 KBSOUND STAR
About
Enable to operate with the Remote Control Unit
Disable when no Remote Control Unit is used,
to avoid interferences
Back
User’s Manual
enable/disable
the Remote Control Accessory
Aux
LINE OUTPUT (AUX)
1234 KBSOUND STAR
About
Active this option when the module has
an amplifier connected to the Line Output (Aux).
When disabled, no Aux on/off button will
be shown in the audio screens
Back
User’s Manual
Master and Aux together
Active this option when the Master speakers will
always be activated together with the Aux speakers
using only one ON/OFF button.
Deactivate this option when the Master and Aux
speakers can be activated separately using two
ON/OFF different buttons.
aux button enabled or disabled in the audio screen
enable this option when
the user wants to turn on
and off the Master and Aux
jointly using only one button
on the audio screen.
KBSOUND
MasterAux
KBSOUND
Master
Deutsch
1234 KBSOUND STAR
About
English
Español
Français
Back
User’s Manual
Nederlandse
Norsk
Polskie
Living room
BLUETOOTH ID
1234 KBSOUND STAR
About
PASSWORD 1234
Changing the Bluetooth identifier may require
that you “forget the device” and “pair” again from
the Bluetooth Settings Menu with the new name.
Please, take note of the password before pressing
“continue” as you will need to pair again.
Back
User’s Manual
MASTER ID
and password
for the Bluetooth
connection

26 27
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
8. Multiroom: Bluetooth ID
Many MASTERS can be installed in the same home/building. Each one will have
a unique KBSOUND STAR Bluetooth ID and password.
The default factory Bluetooth ID for each MASTER is XXXX KBSOUND STAR
where XXXX is a number between 0000 and 9999. The default password for
each MASTER is a 4-digit number between 0000 and 9999 (different from the
KBSOUND STAR Bluetooth ID). This data can be found on the label
of the MASTER and the label provided with the “Quick reference guide”.
When more than one MASTER is installed in the same home/building,
it is convenient to rename the KBSOUND STAR Bluetooth ID making daily
operation more friendly.
The ID must be a name containing only letters and numbers.
Other symbols are not allowed. It is important to use a name which
has a meaning in order to facilitate the identification of each MASTER.
(advice: use names like KITCHEN, LIVING ROOM, BEDROOM, etc.)
Warning: if the Bluetooth ID and/or password have been forgotten,
reset to factory default (see chapter 10.3).
BLUETOOTH ID:
5091 KBSOUND STAR
PASSWORD:
MAC address:
00 : 00 : 00 : 00 : 00 : 00
****
BLUETOOTH ID:
2819 KBSOUND STAR
PASSWORD:
MAC address:
00 : 00 : 00 : 00 : 00 : 00
****
BLUETOOTH ID:
0105 KBSOUND STAR
PASSWORD:
MAC address:
00 : 00 : 00 : 00 : 00 : 00
****
To personalize the KBSOUND STAR Bluetooth ID and password open
the Settings and go to the Bluetooth ID screen and edit the ID and/or the password.
Living room
BLUETOOTH ID
1234 KBSOUND STAR
About
PASSWORD 1234
Changing the Bluetooth identifier may require
that you “forget the device” and “pair” again from
the Bluetooth Settings Menu with the new name.
Please, take note of the password before pressing
“continue” as you will need to pair again.
Back
User’s Manual
MASTER ID
and password
for the Bluetooth
connection

28 29
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
Note for ANDROID: in some ANDROID
models/versions it is possible to personalize
the Bluetooth ID in the ANDROID Bluetooth settings
menu. However the KBSOUND STAR App cannot
update the KBSOUND STAR Bluetooth ID when it
has been personalized in that way. For this reason, if
the KBSOUND STAR Bluetooth ID is changed from
the ANDROID Bluetooth Settings Menu, take care
to use the same name used in the App to avoid
confusion.
Note: When the KBSOUND STAR Bluetooth ID
has been changed, updating the
iOS/ ANDROID Bluetooth Settings Menu of some
models/versions may require you to disconnect
and connect, while other models/versions need
to be un-paired and paired again.
Warning for ANDROID: take care that some
ANDROID models/versions require a factory reset
when un-paired and paired again. Remember that
for un-pairing and pairing again, it is necessary to
know the password.
Many users can be paired. However, only one can be connected. While one
user is connected a second user cannot connect with the same MASTER until
the first user disconnects his device. (See chapters 3.1 for Bluetooth Low Energy
Connection and chapters 6.1.1 and 6.1.2 for Bluetooth Audio Streaming)
Many devices paired
Only one connected
Bluetooth
MASTER
9. Multi-User
Bluetooth
5091 KBSOUND BT Not Connected
MY DEVICES
2819 KBSOUND BT Not Connected
0105 KBSOUND BT Not Connected
KINGBT-0014 Not Connected
Bluetooth
5091 KBSOUND STAR Not Connected
MY DEVICES
2819 KBSOUND STAR Not Connected
0105 KBSOUND STAR Not Connected
KINGBT-0014 Not Connected
Bluetooth
KITCHEN Not Connected
MY DEVICES
BEDROOM Not Connected
LIVING ROOM Not Connected
KINGBT-0014 Not Connected
Bluetooth
KITCHEN Not Connected
MY DEVICES
BEDROOM Not Connected
LIVING ROOM Not Connected
KINGBT-0014 Not Connected

30 31
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
10. Operating Mode
10.1 VOLUME
When Bluetooth streaming audio is selected as
the audio channel you may select either the device
volume buttons, the KBSOUND STAR App volume
bar or the volume bar of the selected streaming audio
source (Music Player, Tune In Radio, Spotify, ...).
If the Bluetooth audio streaming source is a
different device (another smartphone, Computer,
Amazon Alexa devices, etc ...) the volume is
controlled from the device connected.
When FM/DAB is selected as the music source
only the App volume bar will manage
the FM/DAB volume.
KBSOUND
00001 KBSOUN...Settings
Scan level
RNE 1.
100.5
Master
FM volume
KBSOUND
Fm
Bluetooth Audio Streaming
See information in your Music Player
Music Player
00001 KBSOUN...
Master
Bluetooth volume
10.2 NOTIFICATIONS AND PHONE CALLS WHILE OPERATING
When the device receives a phone call while a Bluetooth A2DP
(audio streaming) is connected with the MASTER, the ring tone will be heard
in the smartphone. The phone call will be managed only from the smartphone
and never through the speakers.
When the device receives a notification (email, sms, WhatsApp, ...) while
a Bluetooth device A2DP (audio streaming) is connected with the MASTER,
the smartphone sends this sound to the Bluetooth audio streaming. If Bluetooth
audio streaming is selected in the MASTER as audio source, the notifications
will be heard through the speakers. However if the MASTER is OFF or FM is
selected as audio source, the notification will not be heard through the speakers.
Warning: take note that notifications depend on
iOS/ANDROID Notification Settings Menu and also
may depend on each particular App Settings
(for example Whatsapp Settings).
Note: Take care that the sound level depends
on the device, the track, etc. Different devices
(iOS, ANDROID, Alexa, computers, etc.) perform
in different ways. Is advisable to set the volume
at 60-80% in the Bluetooth device and then
manage the volume by the App volume bar.

32 33
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
120/230V
N
F
120/230V
antenna
(76 cm.)
master
SPEAKER
OUTPUT
LINE
OUTPUT
62
4
6566
L+R-R+ L-
aux
8 ohm / 5W
120/230V
N
F
120/230V
LINE
OUTPUT
62
4
6566
SPEAKER
OUTPUT
L+R-R+ L-
8 ohm / 5W
120/230V
N
F
120/230V
LINE
OUTPUT
62
4
6566
SPEAKER
OUTPUT
L+R-R+ L-
8 ohm / 5W
10.3 RESET TO FACTORY DEFAULT
1. Close the KBSOUND STAR App. (important: not in background).
2. Turn OFF the Bluetooth within the iOS/ANDROID Bluetooth Settings Menu.
3. Reset the MASTER.
4. Turn ON the Bluetooth within the iOS/ANDROID Bluetooth Settings Menu.
5. Pair and connect (see chapter 3).
Warning: resetting the MASTER with factory default will
clear all the settings and all the pairings with the different
devices. The KBSOUND STAR Bluetooth ID and pasword
can be found on the label on the MASTER.
hold the button
pressed for 10”
to reset to factory
default
BLUETOOTH ID:
0001 KBSOUND STAR
PASSWORD:
4582
MAC address:
00 : 00 : 00 : 00 : 00 : 00
The MASTER module has a line output (AUX) where amplifiers can be connected.
It is necessary to use the Auxiliary Amplifier (ref. 13204) to expand the system to a maximum
of 4 amplifiers. AUXILIARY and MASTER can be turned ON jointly or separately using the settings
menu (see chapter 7.6).
The volume of both MASTER and AUXILIARY is controlled
simultaneously through the App volume bar.
If necessary you can regulate the sound output level of the amplifiers
by setting the volume limitation switches at the time of installation.
Warning: Please note that the Bluetooth
device only communicates with the MASTER,
so the range must be measured between the
location of the user and the MASTER. It can
never be related to the location of the speakers
nor the Auxiliary amplifiers.
11. Auxiliary Amplifier Option
STEREO
ON
1 2 3
MONO
ON
1 2 3
MAX
ON
1 2 3
MID
HIGH
ON
1 2 3
MID
LOW
ON
1 2 3
MIN
ON
1 2 3

34 35
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
12. Remote Control Accessory
EQ
FM/DAB next/prev station (long press)
FM/DAB next/prev memory (short press)
BT forwards/backwards song
volume
long key press disconnects
the Bluetooth Audio (A2DP)
equalization
audio sources
BT password (read)
add to list of FM/DAB memories
forced mono
manual dialing for direct keying FM
(e.g. 96.4MHz)
manual dialing for direct keying
DAB service (e.g. the service
number 46 in the list)
direct acces to an FM memory (1-10)
ideal mode
BT identier (read)
disconnect Bluetooth Audio (A2DP)
update DAB available stations
BT play/pause
FM sensitivity
auto-power ON
remove all FM/DAB
memories
remove from list of
FM/DAB memories
ON/OFF
Our KBSOUND STAR Audio
System can also be controlled
using our Remote Control
Accessory if purchased separately.
(Not included in this kit)
2”
6”
6”
6”
2”
2”
6”
6”
6”
FORCED MONO
6”
6”
IDENTIFIER
6”
6”
2”
2”
2”
EQ
EQ
EQ
EQ
6”
6”
6”
6”
6”
6”
6”
ask for FM
sensitivity scan level
setup current mode
as Ideal mode
setup FM station sensitivity
scan level: 1 or 2 or 3
setup Auto Power ON
for MASTER
setup Auto Power ON
for Aux Line Output
setup MASTER speaker
output level: low
store FM/DAB
memory
setup MASTER speaker
output level: medium-low
delete FM/DAB
memory
setup MASTER speaker
output level: medium-high
delete all FM/DAB
memories
setup MASTER speaker
output level: max
update DAB
available stations
setup MASTER speaker
output Mono
reset DAB
available stations
setup MASTER speaker
out
FM Forced
Mono version
disconnect
Bluetooth ID
ask for
Bluetooth ID
ask for
Bluetooth password

36 37
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
1
3
120/230V
N
F
120/230V
antenna
(76 cm.)
SPEAKER
OUTPUT
L+R-R+ L-
IR
IR
EQ
MASTER
AUX
REMOTE CONTROL
ACCESSORY
2
3
1
FM memories (MASTER)
DAB memories (MASTER)
-----------------------------
Ideal mode (MASTER)
13. Technical Specifications
52791 MIN NORMAL MAX COMMENTS
Measurements 200x53x56 mm
Voltage 85 264 Vac 50/60Hz, terminal F,N
Frequency 47 63 Hz 50/60Hz, terminal F,N
Consumption demand 10 60 W terminals F,N (ref.52391/92)
Amplified output signal
2,5 W terminals L,R over 16ohm
5 W terminals L,R over 8ohm
10 W terminals L,R over 4ohm
Passband 20 20.000 Hz
Aux.amplifier switch on signal
12 14 Vdc terminals 62, 4
220 mA
Aux. amplifier output signal 0 3,5 Vrms terminals 65, 66
Distortion 0,3 %
Crosstalk -68 -85 dB
FM Frequency range 87,5 108.0 MHz
DAB frequency range 174 240 MHz
FM antenna impedance 75 ohms RF connector
DAB antenna impedance 50 ohms RF connector
Antenna sensitivity 1,7 3,5 uV
FM tuner distortion 0,1 0,5 %
Bluetooth spec.
Class2 BT4.2 dual mode
BLE
A2DP 1.3
AVRCP 1.6
Wireless transceiver 2,4 GHz ISM Band
Tx power 2 dBm
RF antenna internal
Bluetooth range 10 m
13.1 MASTER

38 39
ENEN KBSOUND®STARKBSOUND®STAR User ManualUser Manual
13204 MIN NORMAL MAX COMMENTS
Measurements 200x53x56 mm
Voltage 85 264 Vac 50/60Hz, terminal F,N
Frequency 47 63 Hz 50/60Hz, terminal F,N
Consumption demand 10 60 W terminals F,N
Output signal
2,5 W terminals L,R (16ohm)
5 W terminals L,R (8ohm)
10 W terminals L,R (4ohm)
Passband 20 20.000 Hz
Auto-power-on level 10 20 Vdc terminals 62, 4
Input Signal 0 3,5 Vrms terminals 65, 66
Distortion 0,3 %
Crosstalk 68 85 dB
13.2 AMPLIFIER 14. FAQ’s
14.1 EQUALIZATION AUDIO MODE
14.2 BLUETOOTH NAME AND PASSWORD
14.3 FM/DAB RECEPTION
14.4 RDS INFORMATION RECEPTION
The equalization audio mode is stored in the MASTER. As a result, the equalization
is the last one set by the most recent user.
We have included in the “Quick Reference Guide” a copy of the label on the MASTER
with the KBSOUND STAR Bluetooth ID and password.
This product has been designed and tested to provide reasonable protection
against harmful interference in residential installation.
Improving the FM/DAB reception: extend the aerial antenna wire and adjust the
angle for best reception. Be sure to locate it as far as possible from any sources
of electrical noise such us halogen or led lamps, HVAC, fluorescent bulbs, etc.
The App is prepared to receive RDS information and show it alongside
the frequency.
However, some FM stations do not send any RDS information. Also, if the FM
reception is poor, although sound can be heard, RDS information may not be well
received. In these cases, no RDS information is shown. To improve it, be sure that
the FM station is sending an FM signal and use an FM antenna.
14.5 RECEIVE A CALL WHEN LISTENING FM/DAB
Take note that the FM/DAB is not paused when the device receives a call.
