Keating Of Chicago pre 2000 series User manual

Record the Serial number and Model number of this Incredible Frying Machine™ in
the spaces provided. Keep these numbers for future reference.
INCREDIBLE FRYING MACHINE™
GAS FRYER
SERIES PRE-2000
KEEP A COPY OF YOUR BILL OF SALE.
The date on the bill establishes the warranty period should service be required.
If service is performed, it is in your interest to obtain and keep all receipts.
Keating commercial fryers are not intended for household use.
As continuous product improvement occurs, specifications may be
changed without notice.
IMPORTANT:
THE USER'S MANUAL PROVIDES SPECIFIC OPERATING INSTRUCTIONS
FOR YOUR MODEL. USE THE INCREDIBLE FRYING MACHINE™ ONLY AS
INSTRUCTED IN THIS MANUAL.
IFMpre2000_2013
10/13
1-800-KEATING | keatingofchicago.com
MANUAL
KEEP THIS MANUAL FOR TRAINING NEW PERSONNEL.
SERIAL NUMBER
MODEL NUMBER

PROPANE GAS MAY EVENTUALLY LOSE ITS ODOR AND PRECAUTIONS SHOULD BE
TAKEN TO ASSURE THAT PROPANE GAS IS NOT PRESENT EVEN THOUGH YOU DO NOT
DETECT AN ODOR. IF THERE IS ANY DOUBT, YOU SHOULD CALL YOUR LOCAL PRO-
PANE GAS SUPPLIER FOR ASSISTANCE.
PURCHASER SHOULD POST IN A PROMINENT LOCATION INSTRUCTIONS TO BE FOLLOWED
IN THE EVENT THE USER SMELLS GAS. THIS INFORMATION SHALL BE OBTAINED BY CON-
SULTING THE LOCAL GAS SUPPLIER.
WARNING
Improper installation
can cause damage,
injury or death.
ShockBurnsGas
WARNING
Do not store
flammable liquids
near this or
any other appliance.
IF NOT INSTALLED, OPERATED AND MAINTAINED IN ACCORDANCE WITH THE MANU-
FACTURER’S INSTRUCTIONS, THIS PRODUCT COULD EXPOSE YOU TO SUBSTANCES
IN FUEL OR IN FUEL COMBUSTION WHICH CAN CAUSE DEATH OR SERIOUS ILLNESS
AND WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM.
THE EQUIPMENT IS TO BE INSTALLED TO COMPLY WITH THE BASIC PLUMBING CODE
OF THE BUILDING OFFICIALS AND CODE ADMINISTRATORS INTERNATIONAL, INC.
(BOCA) AND THE FOOD SERVICE SANITATION MANUAL OF THE FOOD AND DRUG
ADMINISTRATION (FDA).
9902091 9902091
i
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before installing or servicing this
equipment.
Do not store or use gasoline or other flammable vapors or liquids in the
vicinity of this or any other appliance.
FOR YOUR SAFETY:

1-800-KEATING |
INCREDIBLE FRYING MACHINE™ - SERIES PRE-2000
Important Safety Instructions ............................................ i
INTRODUCTION .............................................................. 1
INSTALLATION
Damage During Shipment ................................................ 1
Standard Features........................................................... 2
Safety Precautions .......................................................... 2
FIRST STEPS
National Code Requirement ............................................. 4
Leveling.......................................................................... 4
Restraining Devices......................................................... 4
Electrical Connection ....................................................... 4
Gas Connection .............................................................. 5
Gas Leak Testing............................................................. 5
PLACING YOUR KEATING FRYER IN OPERATION
Filling ............................................................................. 5
Lighting ..........................................................................6
Cooking.......................................................................... 6
Shutdown ....................................................................... 7
Draining.......................................................................... 7
Cleaning and Boil-Out ...................................................... 7
Electronic Timers ............................................................ 8
PREVENTATIVE MAINTENANCE
Warranty Repairs ............................................................ 9
Preventive Maintenance Chart ......................................... 9
Oil Breakdown ................................................................ 9
Thermostat Calibration ................................................... 9
Thermostat Bulb Positioning...................................... 9-10
SERVICE
Removal/Replacement of Grease Filter........................... 10
Flame Adjustment .................................................. 10 - 11
SERVICE DIAGNOSIS
Troubleshooting...................................................... 12 - 13
ORDERING PARTS ........................................................ 14
Warning and Operating Plates......................................... 14
Parts List............................................................... 16 - 19
Wiring Diagrams..................................................... 20 - 21
Warranty Information ..................................................... 22
TABLE OF CONTENTS
INTRODUCTION
1
Instructions in this manual should be read thoroughly before attempting to operate this Keating Gas Fryer.
All installation and service on Keating equipment must be performed by qualified, certified, licensed and/or
authorized installation or service personnel.
Operating information for Keating equipment has been prepared for use by qualified and/or
authorized personnel.
Keating equipment is made in the USA and has American sizes of hardware. All metric conversions
are approximate.
INSTALLATION INSTRUCTIONS
Proper installation will assure top performance.
Alterations of any kind to your equipment will void the
warranty. Before uncrating, check equipment carefully
for damage.
IF EQUIPMENT ARRIVES DAMAGED
Keating does not assume responsibility for loss or
damage incurred in transit.
IMPORTANT
This merchandise has been thoroughly inspected
and carefully packed before leaving our plant.
Responsibility for its safe delivery was assumed by
the carrier at the time of shipment. Claims for loss or
damage to the contents should, therefore, be made
upon the carrier, as follows:
CONCEALED LOSS OR DAMAGE
Concealed loss or damage means loss or damage
which does not become apparent until the mer-
chandise has been unpacked. The contents may be
damaged in transit due to rough handling even though
the carton may not show external damage. When the
damage is discovered upon unpacking, make a writ-
ten request for inspection by the carrier’s agent within
fifteen days of the delivery date. Then file a claim with
the carrier since such damage is the carrier’s respon-
sibility. By following these instructions carefully, we
guarantee our full support of your claims to protect
you against loss from concealed damage.
VISIBLE LOSS OR DAMAGE
Any external evidence of loss or damage must be
noted on the freight bill or express receipt, and
signed by the carrier’s agent. Failure to adequately de-
scribe such external evidence of loss or damage may
result in the carrier refusing to honor a damage claim.
The form required to file such a claim will be supplied
by the carrier.
DO NOT RETURN DAMAGED MERCHANDISE TO
KEATING. FILE YOUR CLAIM AS STATED ABOVE.

| keatingofchicago.com
2
Keating’s Incredible Frying Machine®(IFM) is de-
signed to give maximum production efficiency, deliver-
ing high quality food products. The following design
features are incorporated in Keating’s Incredible
Frying Machine®(IFM).
STANDARD FEATURES
• Highly polished stainless steel fryer vessel
• Highly polished stainless steel front
• Highly polished stainless steel transfer tubes
• Highly polished stainless steel thermostat bulb
• Highly polished stainless steel Hi-Limit bulb
• Complete stainless steel cabinet
• True Cold Zone for proper sedimentation
• Grid screen over heat transfer tubes
• 1" full port front drain valve
• Patented accurate temperature control system
±2°F
• Ideal 35" working height
• 3/4" NPT gas connection on single fryers
• One pair of split baskets or one full-size basket
(18" model only)
• 3/4" NPT gas connection on single fryers
• Patented burner design
• Spark Ignition System
• 100% proof of air flow safety shut-off
• 100% proof of flame safety shut off
• Electronic timers (2)
• Gas and air adjustments
• Gas pressure test port
• Blower grease filter (easily accessible from front)
• Easy access for servicing from front of fryer
• Burner, blower and Hi-Limit indicating lights
• Insulated fryer vessel
• Heat recirculation for higher efficiency and lower
flue temperature
• Black heat tube interiors for optimum heat
transfer
• Instant-On™ Ignition System
• 120 VAC 9' neoprene cord with 3-pronged
grounded plug
• Instant recovery to cooking temperature
• High temperature stainless steel flue lining
• 100% factory testing
STANDARD ACCESSORIES
• Keating Klenzer Sample
• Drain clean out rod
OPTIONS
• Natural Gas or Propane
• Automatic Basket-Lift
• Cooking Computer
RATINGS
• 14" fryer vessel - 38 lb. oil capacity
• 18" fryer vessel - 68 lb. oil capacity
• 20" fryer vessel - 100 lb. oil capacity
• 3" WC (Natural Gas) or 10" WC (Propane)
Manifold Gas Pressure
• 3/4" gas supply pipe recommended
MODEL VARIATIONS
Basket-Lift Model: Basket-Lift Model Fryers come
with all the same features as the standard models.
The Basket-Lift mechanism lowers the baskets of
food into the oil when the timer button is pressed and
raises the baskets when the cooking cycle is com-
plete. Split baskets are required for these models.
CPU Model: CPU Incredible Frying Machine (IFM)
have the same input as the standard models. A
programmable computer replaces the two timers and
thermostat.
SAFETY PRECAUTIONS
THIS SYMBOL WARNS YOU THAT SERIOUS BURNS
OR OTHER INJURIES MAY RESULT IF SAFETY IN-
STRUCTIONS ARE NOT FOLLOWED.
• This service manual should be retained in a safe
place for future reference. The installation of your
new fryer must conform to local codes or in the
absence of local codes, with the current National
Fuel Gas Code ANSI Z223.1/NFPA 54 (latest
edition), Natural Gas Installation Code
CAN/CGA-B149.1 or Propane Installation Code
CAN/CGA-B149.2.
• Your ventilation hood, when installed, must
conform to the current ANSI/NFPA 96 standard
(latest edition).
• No frame or restriction shall be constructed
around the fryer that will restrict air movement
into the fryer’s combustion area or prevent proper
ventilation.

1-800-KEATING |
INCREDIBLE FRYING MACHINE™ - SERIES PRE-2000
3
• Keating fryers are designed to operate on the
gas fuel specified on the serial plate and must not
be operated with another gas fuel. They cannot be
converted to another gas fuel by turning or
engaging a switch.
DO NOT STORE OR USE GASOLINE OR OTHER FLAM-
MABLE VAPORS AND LIQUIDS IN THE VICINITY OF
THIS OR ANY APPLIANCE.
You will post, in a prominent location, instructions to
be followed in the event the user smells gas. This
information shall be obtained from your local gas
supplier.
IMPORTANT: IN THE EVENT A GAS ODOR IS DETECT-
ED, SHUT DOWN UNIT AT MAIN SHUT-OFF VALVE AND
CONTACT THE LOCAL GAS COMPANY OR GAS SUP-
PLIER FOR EMERGENCY SERVICE.
• Suitable for installation on non-combustible floors.
• You must maintain this appliance free and clear
from combustibles.
• You must maintain the following minimum
clearances from combustible and non-combustible
construction:
MINIMUM CLEARANCE
CONSTRUCTION CLEARANCES
COMBUSTIBLE NON-COMBUSTIBLE
BACK 6" 0"
RIGHT SIDE 6" 0"
LEFT SIDE 6" 0"
SUITABLE FOR NON–COMBUSTIBLE FLOORS
• You must install this appliance at least 16
inches away from any open flame.
• Adequate clearance for servicing and proper
operation must be maintained. Your fryer is
designed to be serviced from the front.
• Keating commercial fryers are not intended for
household use.
• ALWAYS instruct new employees on proper fryer
operation.
• A fryer should be operated ONLY by properly
trained personnel.
• ALWAYS turn fryer off each night.
• ALWAYS turn fryer off at customer power panel
before servicing.
• ALWAYS disconnect fuel source before servicing.
• NEVER leave a fryer unattended during operation.
• NEVER move a fryer when full of hot oil.
• NEVER introduce objects or liquids into fryer, while
operational, which are not designed or made for
cooking.
• THIS FRYER MAY NOT BE ALTERED, MODIFIED OR
CHANGED IN ANY WAY.
The State of California enacted the California Safe
drinking water and Toxic Enforcement Act of 1986,
(Prop. 65), which “prohibits any person in the course
of doing business from knowingly and intentionally ex-
posing any individual to a chemical known to the State
of California to cause cancer or reproductive toxicity
without first giving clear and reasonable warning to
such individuals.” The Governor’s Scientific Advisory
Panel added carbon monoxide to the list of hazardous
chemicals known to cause reproductive harm.
Carbon monoxide would not be present in
concentrations that would pose a “significant risk” to
the consumer when the equipment is installed, oper-
ated and maintained as follows:
• Installed in accordance with all local codes, or in
the absence of local codes, with the current
National Fuel Gas Code ANSI Z223.1/NFPA 54
(latest edition).
• Installed under a properly designed operating
exhaust hood.
• Connected to the type of gas for which the
appliance is manufactured.
• In-line pressure regulator, not supplied by Keating,
must be installed outside the appliance.
• The appliance is adjusted for the manifold
pressure marked on the serial plate.
• Adequate air supply to the appliance.
• The equipment is operated in the manner intended
using the proper utensils.
• Keep the equipment clean and have it checked
periodically.
• Burner air adjustments, mechanical maintenance
and repairs must be performed by qualified service
personnel.
If the equipment is not installed, operated and main-
tained in accordance with the above, concentrations of
carbon monoxide in excess of the established limits
could be present in the kitchen environment.

| keatingofchicago.com
4
FIRST STEPS
NATIONAL CODE REQUIREMENT
The installation must conform with local codes, or in
the absence of local codes, with the National Fuel
Gas code, ANSI Z223.1 or the Natural gas Installation
Code, CAN/CGA-B149.1 or the Propane Installation
Code, CAN/CGA-B149.2. Flexible connectors must
comply to ANSI Z221.69/CAN/CGA1.16.
When pressure testing at test pressures less than or
equal to 1/2 psig (3.45 KPA), fryer must be isolated
from gas supply piping. When pressure testing at test
pressures above 1/2 psig (3.45 KPA), fryer must be
disconnected from gas supply piping system.

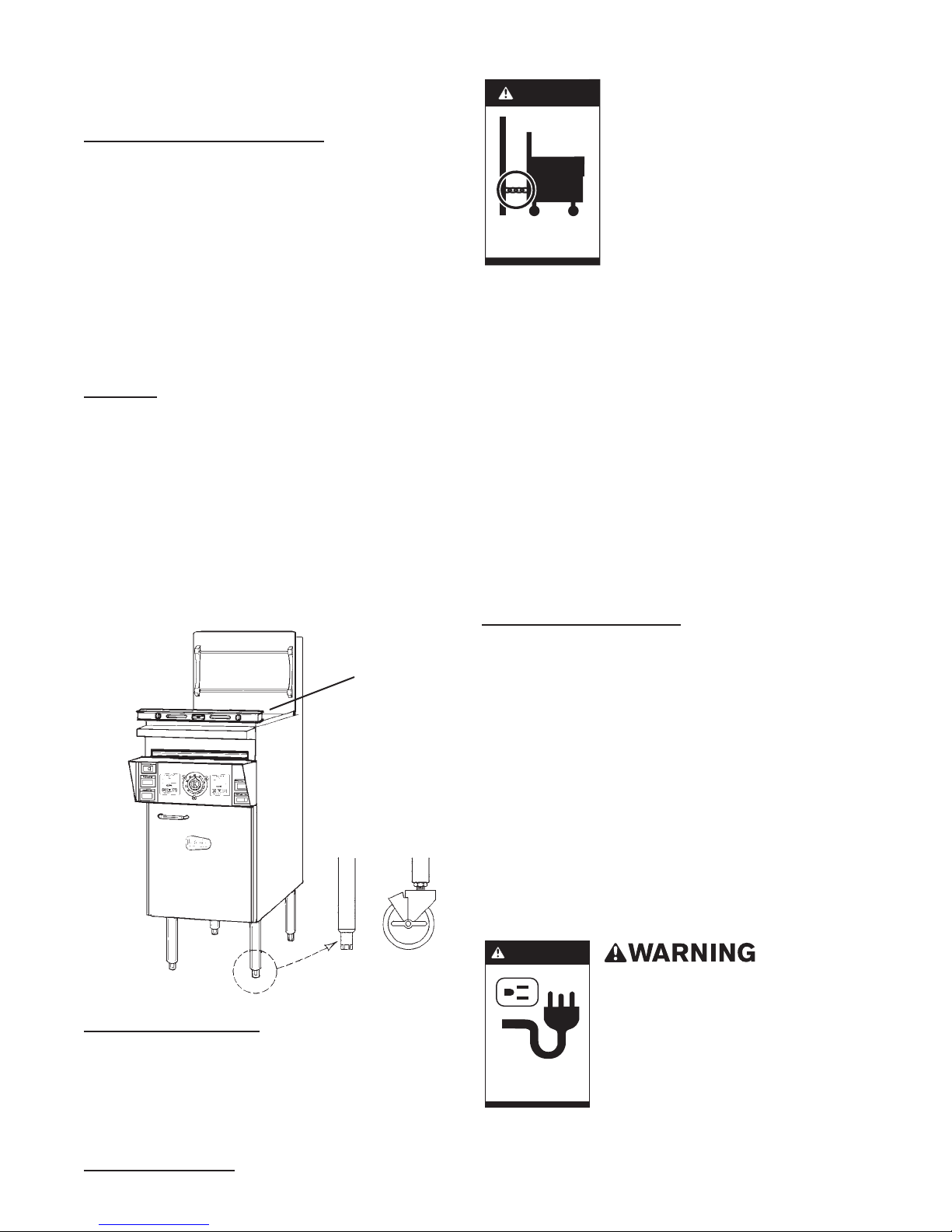

LEVELING
The fryer will operate at its highest efficiency when
properly leveled. Place a level on fryer vessel from
side to side. For fryers on legs, the bottom foot of the
leg is adjustable. Turn clockwise to decrease height
or counter clockwise to increase height until level.
For fryers on casters, the casters are adjustable by
loosening the jam nut and turning the caster in or out.
When the desired level is reached, tighten the jam
nut. Adjustments of more than 3/4" are not recom-
mended on any caster. The same procedure should be
followed to level the fryer from front to back.
RESTRAINING DEVICES
1. On fryer installations with casters, casters and jam
nuts must be completely tightened. Adequate means
must be provided to limit the movement of the ap-
pliance without depending on the connector and the
quick-disconnect device or its associated piping to
limit the appliance movement.
Fryer must also be restrained to
prevent tipping when installed so
that hot liquid splashing is
avoided.
2. The restraint means must
be attached to the rear of the
Keating Gas Fryer within 1" of
the center line width and approxi-
mately 1" from the bottom of the
cabinet back to allow the restrain-
ing bolt to be anchored through the leg channel to
ensure positive support to restrain fryer movement
and not depend on the connector, quick disconnect or
piping to limit the fryer movement
If disconnection of the restraint is necessary, it must
be reconnected when the Keating IFM is returned to
its originally installed position.
NOTICE: WHEN THIS APPLIANCE IS INSTALLED WITH
CASTERS, IT MUST BE INSTALLED WITH CASTERS
SUPPLIED, A CONNECTOR COMPLYING WITH EITHER
ANSI Z21.69 OR CAN/CGA-6.16 AND A QUICK-DIS-
CONNECT DEVICE COMPLYING WITH EITHER ANSI
Z21.41 OR CSA-6.9. IT MUST ALSO BE INSTALLED
WITH RESTRAINING MEANS TO GUARD AGAINST
TRANSMISSION OF STRAIN TO THE CONNECTOR, AS
SPECIFIED IN THE APPLIANCE MANUFACTURER’S
INSTRUCTIONS.
ELECTRICAL CONNECTION
The Keating IFM, when installed, must be electrically
grounded in accordance with local codes, or in the
absence of local codes, the National Electrical Code,
ANSI/NFPA No. 70. or the Canadian Electrical Code,
CSAC-22.2 as applicable. A wiring diagram is located
on the last page. In the USA and Canada, the electri-
cal supply must be 120 VAC, 60 Hz.
The Keating Incredible Frying Machine (IFM) is
equipped with a 9' neoprene covered, 3 wire electrical
cord with a three-pronged grounded plug for protection
against electrical shock. This plug must be placed
into a 120V properly grounded three-pronged polar-
ized outlet. For proper grounding procedures see local
codes, or in the absence of local codes, the National
Electrical Code ANSI/NFPA 70 (latest edition) or
Canadian Electrical Code CAN 22.2 (latest edition) as
applicable.
THIS APPLIANCE IS EQUIPPED
WITH A THREE-PRONG 120 VOLT
NEMA 5-15 (GROUNDING) PLUG
FOR YOUR PROTECTION AGAINST
SHOCK HAZARD AND SHOULD BE
PLUGGED DIRECTLY INTO A PROP-
ERLY GROUNDED AND POLARIZED
THREE-PRONG RECEPTACLE. DO
NOT CUT OR REMOVE THE GROUNDING PRONG
FROM THIS PLUG.
Figure 1
NOTICE
Restraining devices
required.
WARNING
Plug into a
properly grounded
three-prong receptacle.
Level
Leg Caster

1-800-KEATING |
INCREDIBLE FRYING MACHINE™ - SERIES PRE-2000
Before plugging in the fryer, confirm the outlet is
properly polarized and grounded. If the hot and neutral
terminals are reversed or the outlet is not properly
grounded, the burners may not ignite (burner on light
will go out after 2-1/2 seconds and the ignition pro-
cesses will continue 3 times).
IF DISCONNECTION OF THE RESTRAINT IS NEC-
ESSARY, IT MUST BE RECONNECTED WHEN THE
FRYER IS RETURNED TO ITS ORIGINALLY INSTALLED
POSITION.
GAS CONNECTION
• PIPE JOINT COMPOUNDS RESISTANT TO PROPANE
GASES MUST BE USED.
• BEFORE OPERATING THIS FRYER, CHECK PIPE
JOINTS FOR LEAKS BY USING A SOAP AND WATER
SOLUTION ONLY. DO NOT USE AN OPEN FLAME!
Connect the fryer to the main gas supply line at the
rear of the fryer. The piping should be a minimum of
3/4" NPT supply pipe for a single fryer at the burner
manifold. Batteries require larger supply lines. Instal-
lation must conform to the current local codes and
National Fuel Gas Code (U.S.) ANSI Z223. 1/NFPA 54
(latest edition), Natural Gas Installation Code CAN/
CGA-B149.1 or Propane Installation Code CAN/CGA-
B149.2 (latest edition).
NOTE: If more than one gas fryer is on the same sup-
ply line, you may require a larger line. Consult your
local gas company to assure adequate volume and
pressure. Refer to serial plate for proper gas require-
ments for your particular model.
NOTE: Piping for a battery should be at least 1-1/4"
to 1-1/2" IPS, depending on total BTU input. Consult
your local gas supplier for appropriate battery piping
size.
NOTE: The electrical wiring diagram for the fryer
is located on the inside of the fryer door or in the
back of this manual.
GAS LEAK TESTING
Prior to lighting your fryer:
1. Make sure all thermostats, switches and safety
valves are in the “OFF” position.
2. Turn main On/Off manual gas valve to the “ON”
position.
3. Have your plumber or gas company check for
leaks with a soap solution. (NEVER check with an
open flame!)
GAS PRESSURE AT MANIFOLD
NATURAL Gas - 3.0 in. W.C.
LP Gas - 10.0 in. W.C.
MINIMUM INCOMING GAS PRESSURE
NATURAL Gas - 7.0 in. W.C.
LP Gas - 11.0 in. W.C.
NOTE: It is estimated that half of all service calls
made on Keating Incredible Frying Machine®(IFM)
result from an inadequate gas supply. During installa-
tion, have a gas company representative make certain
that the fryer is receiving adequate gas pressure and
volume (see “Installation” or your serial plate on the
fryer door).
PROPANE GAS MAY EVENTUALLY LOSE ITS ODOR
AND PRECAUTIONS SHOULD BE TAKEN TO ASSURE
THAT IT IS NOT PRESENT EVEN THOUGH YOU DO
NOT DETECT AN ODOR. IF THERE IS ANY DOUBT,
YOU SHOULD CALL YOUR LOCAL PROPANE GAS
SUPPLIER FOR ASSISTANCE.
OPERATING
FILLING
NOTE: Before filling the fryer make certain the fryer
vessel is sanitized, dry and the drain valve is com-
pletely closed. Refer to item 19 on page 15 for loca-
tion of drain valve.
5
Figure 2
Main Gas
Connection
Figure 3
IFM Control Panel

| keatingofchicago.com
6
NOTE: We recommend that solid shortening not be
used in an Incredible Frying Machine (IFM) as they are
not equipped with a melt cycle. If solid shortening is
used, it should be melted prior to filling the fryer vessel.
Damage done by melting solid shortening in the fryer
vessel will void the warranty.
BE SURE THE HEAT TRANSFER TUBES ARE COM-
PLETELY COVERED WITH OIL BEFORE SWITCHING THE
FRYER ON. IF OIL LEVEL DROPS BELOW TOP OF HEAT
TRANSFER TUBES, SEVERE DAMAGE TO FRYER AND
INJURY TO OPERATOR MAY RESULT.
WATER IN ANY FORM AND HOT OIL DON'T MIX!
OIL EXPANDS WHEN HEATED. THE MAX LEVEL LINE
HAS BEEN PROVIDED TO ENSURE OPTIMUM COOKING
WHILE ENSURING THE SAFETY OF THE OPERATOR.
DO NOT OVERFILL THE FRYER VESSEL.
Fill the fryer vessel with oil or MELTED solid shortening
up to the “Fill Level” line.
LIGHTING
BEFORE ATTEMPTING TO LIGHT THE FRYER, MAKE
SURE THE GAS CONNECTIONS ARE SECURE AND
HAVE BEEN LEAK TESTED AND THE FRYER HAS BEEN
PROPERLY FILLED WITH OIL.
1. Turn on main power switch.
2. Set thermostat to desired setting. (Between
325°F/162.8°C) – (335°F/165.3°C)
3. Once main power switch is on and the thermostat
is set, the following occurs:
a. Blower will start and blower indicating light will
come on.
b. After a preset 6 second delay, the gas valve
will open and the burner indicating light will
come on.
For your safety, the fryer is equipped with a “proof of
air flow” control. If the blower fails, the gas valve will
not open and the burner indicating light will not come
on.
c. The spark module will light the burners
automatically.
d. The burner indicating light will be on whenever
the burners are on. The light goes off when the
oil has reached the desired temperature.
NOTE: The fryer cannot be operated during a power
failure as the electronic ignition system cannot be
operated.
COOKING
Keating Incredible Frying Machine®Gas Fryers (IFM) are
designed to provide maximum production efficiency and
deliver high quality food products.
Low-temperature cooking, highly polished stainless
steel and a true COLD ZONE mean extended oil life.
Follow cooking procedures below for your model.
• OPERATION OF THIS FRYER SHOULD BE LIMITED TO
PERSONNEL WHO HAVE BEEN THOROUGHLY TRAINED
IN OPERATING PROCEDURES.
• USE ONLY KEATING APPROVED BASKETS IN YOUR
FRYER. NEVER OVERFILL FRY BASKETS. DO NOT
BANG BASKETS ON BASKET HANGERS OR ON FRYER
VESSEL.
• CARE SHOULD BE TAKEN WHEN LOWERING BAS-
KETS INTO FRYER TO PREVENT SPLASHING HOT OIL
FROM FRYER VESSEL.
• NEVER LIFT BASKETS DIRECTLY OUT OF THE FRYER
VESSEL WITHOUT DRAINING, AS SEVERE INJURY MAY
RESULT.
1. Set thermostat to the desired frying temperature
(between 325°F - 335°F).
2. When the oil reaches the desired temperature,
burner indicating light will go off.
3. Set timer(s) to desired cooking time and fill basket(s)
to proper level (if applicable).
4. Lower filled basket(s) slowly into oil. For fryers with
automatic basket lift, place basket(s) on upper basket
hanger rods on splashback of fryer.
5. Push “Start-Stop” button of electronic timer(s). This
simultaneously activates the Instant-On™ systems
(if applicable). For fryers with automatic basket lift,
basket(s) will lower into fryer vessel.
Figure 4
Fill Level Line

1-800-KEATING |
INCREDIBLE FRYING MACHINE™ - SERIES PRE-2000
7
6. When timer(s) sounds, carefully lift basket(s) out of
hot oil (if applicable). For fryers with automatic basket
lift, a buzzer will sound and the basket(s) will rise
automatically. Allow oil to drain before removing.
7. Place basket(s) on basket hanger rods on splash-
back of fryer and allow to drain.
SHUT DOWN
Turn off main power switch.
DRAINING
ALWAYS SHUT THE FRYER OFF COMPLETELY
BEFORE DRAINING. THE FRYER SHOULD BE
DRAINED ONLY UNDER THE SUPERVISION OF
PROPERLY TRAINED PERSONNEL. A DRAIN PIPE
AND COVERED CONTAINER SUITABLE FOR USE
WITH HOT OIL SHOULD BE USED TO ENSURE THE
SAFETY OF THE OPERATOR.
1. Operator should be outfitted with
proper attire including:
– Oil and heat resistant gloves
– Oil and heat resistant apron
– Safety goggles
– Oil and heat resistant footwear
2. Turn off the fryer and open the door.
3. Put suitable container under drain valve.
4. Drain oil from fryer by slowly turning handle.
The drain will be completely open after 1/4 turn.
5. After fryer drains, close the drain valve.
6. Filtering may be done at this step - refer to filter
manual.
NOTE: Fryers with central filters will be different.
CLEANING AND BOIL-OUT
When cleaning and boiling out your fryer use Keating
Sea Powder and Keating Klenzer to keep your fryer
in top condition. Keating Sea Powder dissolves any
grease build up - even carbonized grease in fryer
vessels - one of the leading causes of premature
oil breakdown. Once your fryer vessel is clean, use
Keating Klenzer, the finest dry stainless steel polish
available, to restore your Keating Incredible Frying
Machine®’s (IFM) exterior to its original luster.
1. Put on safety attire. See Draining.
2. Turn the fryer off.
3. Drain oil from fryer, see draining steps 2-4.
4. Remove oil container to a secure area to prevent
accidental spillage.
5. Fill fryer vessel to “Fill Level” line with water.
UNDER NO CIRCUMSTANCES SHOULD THE FRYER
BE LEFT UNATTENDED DURING BOIL-OUT. TRAINED
PERSONNEL MUST BE PRESENT DURING THE
PROCEDURE TO PREVENT BOIL OVER OR TO TURN
OFF THE POWER IF WATER DROPS BELOW HEAT
TRANSFER TUBES.
6. Set thermostat and turn fryer on to bring water to
a gentle boil.
7. Once boil has been reached, turn fryer off.
8. Dissolve 2/3 cup of Keating Sea Powder for
every five gallons of water and let soak for 1/2 hour.
If there is a large build-up of carbonized grease,
allow fryer to soak overnight.
CAUTION: When soaking overnight, make sure the
fryer is turned off.
CAUTION: Do not damage or reposition thermostat
probe as this may affect the accuracy of the fryer.
9. While soaking, a natural fiber brush may be used
to scrub the tubes and inside walls of fryer.
10. Drain the water and Sea Powder into a dry suit-
able receptacle and remove from cooking area.
NOTE: DO NOT pump water through the filter
machine.
Figure 5
Operator in
safety gear
Figure 6
Keating Klenzer
and Sea Powder

| keatingofchicago.com
8
11. Spread Keating Klenzer liberally on tubes and
sides of fryer vessel.
12. A non-abrasive scouring pad may be used to
remove the now softened carbonized grease.
13. Thoroughly rinse fryer vessel with potable water
to remove all Klenzer.
14. Prior to refilling with oil, wipe the inside of the
fryer vessel making sure all water and Klenzer has
been removed.
WATER IN ANY FORM AND HOT OIL DON'T MIX!
15. Close drain valve.
FAILURE TO CLOSE DRAIN VALVE BEFORE REFILL-
ING THE FRYER MAY RESULT IN SERIOUS INJURY.
16. Check thermostat bulb positioning - see page 9.
17. Refill the fryer with new oil.
ELECTRONIC TIMERS
STEP 1
Make certain power to the timer has been OFF for at
least 30 seconds. Then PRESS and hold down the UP
arrow button while turning the rocker power switch to
the ON position. The timer will turn ON and the display
will now be indicating:
The BEEPER will BEEP 4 times.
If STEP 1 was OK, proceed to STEP 2. If not, retry Step
1 making sure the power was OFF for at least 30
seconds or more.
STEP 2
PRESS all 3 buttons in sequence: left-center-right. The
BEEPER will BEEP. If BEEPER does not BEEP, the timer
is defective. STOP TESTING. Reset procedure is com-
pleted when 1:00 appears on the digital display.
OPERATING INSTRUCTIONS (Part # 056921)
The electronic timers,
standard on IFM models,
provide a clearly visible and
accurate display and are
very easy to use. Three
individual cook times can
be set using this timer -
T1, T2 and T3.
PROGRAMMING
To program the timers, the unit must be in the idle
mode. Press and hold the set button for approximate-
ly two seconds. The display will show “SEt”. Press
the T1, T2 or T3 for the cook time to be programmed.
The display will show the current setting for that cook
time. Use the up or down button to increment or
decrement the setting. When the setting is correct,
press and hold the set button again for approximately
two seconds. The display will show "StO" for ap-
proximately two seconds and the timer will return to
normal operation. Repeat the process as necessary
for the other timers.
OPERATING LOGIC
When the timer is powered up, the display will show
the time setting for the cook time that was operated
last and the relay output contacts will be open. To
start a cycle, press the desired cook time button (T1,
T2 or T3). The display will begin to countdown from
the preset time setting and the relay output contacts
will close. During the countdown the colon will flash at
a one-second rate. When the countdown has reached
"00:00" the relay output contacts will open, the
display will flash, and the audible alarm will sound. To
cancel the audible alarm, press any button.
PAUSE FEATURE
To pause a cycle in progress, press any button. The
relay output contacts will open, the display will flash,
and the countdown will pause. To resume the count-
down, press any button. The display will resume the
normal countdown and the relay output contacts will
close.
CANCELING A CYCLE
To cancel a cycle in progress press and hold any but-
ton for approximately two seconds. The relay output
contacts will open and the display will show the time
setting for the cook time last used.
OR

1-800-KEATING |
INCREDIBLE FRYING MACHINE™ - SERIES PRE-2000
9
MAINTENANCE
WARRANTY REPAIRS
Keating’s warranty begins with the date of installation.
In the event that your fryer, under warranty, needs
repairs other than routine maintenance or cleaning,
you are required to contact Keating of Chicago (at
1-800-KEATING) before calling a local service com-
pany. Failure to do so may void your warranty.
PREVENTIVE MAINTENANCE
Preventive maintenance should be done in daily,
weekly, monthly and yearly intervals as necessary.
Following preventive maintenance procedures will help
keep your fryer working efficiently. Proper care and
servicing will lead to years of quality performance.
PREVENTATIVE MAINTENANCE CHART
TIME FRAME OPERATOR/OWNER
AT LEAST
DAILY*
• Check lights and controls.
• Check that the oil is up to
“Fill Level” line.
• Clean all baskets.
• Drain, strain or filter oil.
AT LEAST
WEEKLY*
• Drain and clean fryer.
• Boil-out fryer.
• Clean blower grease filter.
AT LEAST
MONTHLY*
• Verify Thermostat settings.
• Test Hi-Limit control.
TIME FRAME QUALIFIED SERVICE PERSONNEL
AT LEAST
YEARLY*
• Check burner flame color.
EVERY 5
YEARS*
• Replace center tube divider.
*High production facilities should be checked more often.
Contact the factory or a local service company to perform
maintenance and repairs.
Oil Breakdown
As part of a “Preventive Maintenance Program”, the
oil in your fryer needs to be filtered regularly to avoid
breakdown. The initial investment in the frying system
is less than the total overall costs of oil during the life
of the fryer, and with regular filtering, you can realize
substantial savings in oil costs as well as mainte-
nance charges.
LIMITED CALIBRATION
(Less than 25° difference)
You will need:
One screwdriver with 1/8" wide flat blade
One accurate fryer thermometer
1. Set thermostat to desired frying temperature.
2. Allow fryer to cycle three times.
3. Place an accurate thermometer in the oil at the
tip of the thermostat bulb.
NOTE: Locate thermometer in same position for
every calibration.
Figure 7
Thermostat calibration with knob on
4. If calibration of fryer is found to be less than
25°F off, simply loosen the retaining screws holding
the dial plate in place. Reset the dial plate to match
the thermometer reading. If the fryer is found to
be more than 25°F off, a qualified service com-
pany must be contacted to have the fryer properly
calibrated.
DO NOT ADJUST THE THERMOSTAT SET SCREW - IT
VOIDS ANY WARRANTY ON PART.
Thermostat Bulb Positioning
BEFORE REPLACING, TEST THERMOSTATS
NOTE: Operational problems can easily be corrected
by thermostat bulb positioning.
Keating’s patented thermostat application is accurate
within 2°F of the dial setting between 250°F – 350°F.
This accuracy is attained only if the thermostat bulb
is placed properly against the heat transfer tube. To
quickly and accurately test for proper bulb placement,
a single thickness of writing paper should be pulled
through between the tube and the bulb with medium
resistance.*
1. *For 14" IFM Fryers:
• The end of thermostat bulb should touch the
burner tube.

| keatingofchicago.com
10
2. For 18" & 20" IFM Fryers:
• If the bulb is too loose, the paper will slip
through with little or no resistance. A fryer with
a thermostat bulb that is too loose will
overshoot.
Overshoot: The thermostat takes a long time
to cycle and then misses its preset temperature
by 20°F - 40°F yielding a poor quality product.
overshoot.
• If the bulb is too tight, the paper will either not
pull through or it will tear. A fryer with a
thermostat bulb that is too tight will short cycle.
Short Cycle: The thermostat will cycle rapidly
while the fryer is in the idle mode; the
temperature will be erratic.
REQUIRED TEST THERMOSTAT
Multimeter (for testing continuity)
CHECKING CONTINUITY WITH THE MULTIMETER
1. Rotate the thermostat shaft until an audible click
is heard.
2. Rotate the thermostat shaft left and right ten
times causing the switch to click on and off ten
times, while using the Multimeter to verify continuity.
3. If the switch does not show continuity during all
ten trials, replace the thermostat.
Disassembling the thermostat will void the ther-
mostat warranty.
1. Set compression ring onto capillary end of bulb
finger tight, 1/2" from end of capillary.
2. Insert new thermostat bulb through control panel
back.
3. Apply oil resistant flexible sealant on to compres-
sion fitting thread before installing fitting into fryer
vessel.
4. Position bent portion of bulb against far right heat
transfer tube and install compression fitting snugly
into fryer vessel.
5. Adjust bulb so at least 2" of bent portion of it is
next to heat transfer tube and tighten compression
nut onto compression fitting for fryer 18 & up. The
end of thermostat bulb should touch the burner tube
for 14" fryers.
6. Refill fryer with oil to “fill level line”.
7. Start fryer, preheat and calibrate with
thermometer.
SERVICE
REMOVAL & REPLACEMENT OF GREASE FILTER
The grease filter cleans grease from the air entering
the blower and burner assemblies, providing optimum
reliability and performance of the fryer. It consists of
an aluminum mesh which can be easily cleaned in a
dishwasher.
REMOVAL
1. Loosen filter handle thumbscrew (located on
front leg channel), drop handle down and slide filter
forward.
REPLACEMENT
1. Center the filter under the filter handle thumb-
screw and slide it under the blower/spark module
assembly until goes in all of the way. Pull handle up
into place and tighten thumbscrew.
ALL HI-LIMIT CONTROLS ARE PRESET AT THE
FACTORY FOR A SPECIFIC TEMPERATURE. DO NOT
ATTEMPT TO CHANGE THE SETTING OF THE HI-
LIMIT. IF THE HI-LIMIT FAILS TO SHUT OFF BETWEEN
425°F AND 450°F DURING TESTING, IT MUST BE
REPLACED.
FLAME ADJUSTMENT
Fully closed Dull red with aqua colored tips
Brighter Red
Bright red-orange with orange
haze
Desired Position Bright red-orange with orange
glow
Desired Position Bright red-orange with faint blue
tips
Bright red
Duller red with faint blue tips or
blue at front of burner
Fully Open Dull red with blue haze or totally
blue
Figure 8
Thermostat bulb
positioning

1-800-KEATING |
INCREDIBLE FRYING MACHINE™ - SERIES PRE-2000
A. Gas Pressure
1. At gas valve, remove adjustment port cover, (brass
screw located above the black electrical terminal
box), rotate adjustment screw with screwdriver and
replace port cover.
2. To check the gas pressure (3" WC for natural gas
or 10" WC for Propane, low input units 2.4"), use an
allen wrench to remove the gas pressure test port,
located in the center of the 1/2" pipe T-fitting which
feed the 3/8" aluminum burner gas supply tubes.
B. Air Flow
1. The air shutter is located in the front of the blower
cabinet where the two air hoses enter the cabinet. It
consists of two plates, each located directly above
an air hose and held in place by a hex head screw.
(See item #9, page 19).
2. To adjust the air mixture, loosen the shutter screw
for one burner only and move the shutter up or down
until the proper gas/air mixture is reached for that
burner. Tighten the shutter screw and repeat the
process for the other burner.
3. To determine the proper gas/air mixture, look into
the viewing window for each burner, located just to
the left of each burner air hose where the hose is
connected to the burner assembly.
• bright red/orange with proper mixture -
orange “glow” around burner tube.
• too little air – orange “haze” around burner
tube (showing incomplete combustion)
• too much air – blue at front of burner, or
totally blue
4. The burner air/gas mixture status chart shows
the burner flame characteristics over the complete
adjustment range of the air shutter. It can be used
to more accurately determine the burner air/gas
mixture to see if any adjustments are needed. Each
burner should be checked independently of the
other.
11

| keatingofchicago.com
12
SERVICE DIAGNOSIS
A properly adjusted Keating Incredible Frying Machine™, with no load, will cycle “on” approximately every
2-1/2 to 3 minutes. Each cycle will last 15-25 seconds, ensuring that the temperature setting is held within a nar-
row band.
• Every Keating Incredible Frying Machine™ (IFM) has a number of safety controls to ensure safe operation
and guard against component failure.
The following diagnosis is only to be used as a guide to qualified service personnel. Keating recommends that you
use a qualified & licensed service company. (Equipment still under warranty requires it.) Call 1-800-KEATING if you
need assistance in locating a qualified service company.
NOTE: To correctly and quickly diagnose the system, the chart below should be followed in sequential order.
TROUBLE SHOOTING CHART
PROBLEM PROBABLE CAUSE SOLUTION
Main power light does not come on a. Fryer not plugged in.
b. Main power switch is faulty.
a. Plug fryer to an approved outlet.
Must be properly grounded.
b. Replace the main power switch.
Blower light does not come on a. Thermostat not turned on.
b. If blower comes on, blower light is
faulty.
c. If Over Maximum Temperature light is
on, Hi-Limit has been activated.
d. If blower does not come on, blower
is faulty.
a. Set thermostat to desired
temperature.
b. Replace blower light.
c. Reset Hi-Limit after oil has cooled
down below 425°F. Correct problem
which caused Hi-Limit to activate.
(See page 15).
d. Verify power to blower. Replace blower.
Burner light does not come on •Check for spark at each burner.
If no spark is present at either burner:
a. Purge time delay relay is faulty (if it has
no output voltage.)
b. Spark module is faulty.
•Check for spark at each burner.
If spark occurs at both burners:
c. Burner light is faulty.
a. Replace purge time delay relay.
b. Replace spark module.
c. Replace burner light.
Burner light comes on, then goes out
(after 2 1/2 seconds)
•Check for spark at each burner.
If no spark at either burner:
a. Spark electrode wires are not tight
or faulty.
b. Spark electrode is faulty or is out of
alignment.
•Check for spark at each burner.
If spark occurs at both burners:
c. Gas is not hooked up properly or
not turned on.
d. Combination gas valve is faulty.
a. Tighten spark electrode wires or
replace.
b. Align spark electrode. Replace spark
electrode if faulty. Gap must be 1/8"
between electrode and pilot tube and
between pilot tube and burner.
c. Turn manual gas valve on. If using
flexible connector with quick
disconnect, make sure that the quick
disconnect is completely engaged.
d. Replace gas valve after verifying
it has voltage.

1-800-KEATING |
INCREDIBLE FRYING MACHINE™ - SERIES PRE-2000
13
PROBLEM PROBABLE CAUSE SOLUTION
Delayed ignition a. Blower screen not cleaned.
b. Spark electrode gap is incorrect.
c. Gas pressure excessive (incoming or
manifold).
a. Clean blower screen. (#13, 14, on
page 14.)
b. Set proper gap on electrode. (See
detail on page 18.)
c. Set pressure to serial plate.
Fryer has poor recovery a. Over-filling baskets.
b. Over-filling fryer with oil.
c. Thermostat bulb improperly placed.
d. Carbon coating on heat transfer tubes.
e. Low gas pressure or volume.
f. Inefficient burner combustion.
g. Electronic timer and/or Instant On™
relay(s) are faulty.
a. Don’t over-fill baskets.
b. Fill fryer up to “Fill Level” line as oil
will expand when heated.
c. Adjust bulb position. See pages 9-10
Thermostat Bulb Positioning.
d. Boil-out fryer. See page 7 Cleaning
& Boil-out.
e. Contact a qualifi
ed service person to
check gas pressure.
f. Adjust gas/air mixture. See page 10
Flame Adjustment.
g. Replace timer and/or relay(s).
Fryer overshoots temperature setting a. Thermostat bulb improperly placed.
b. Thermostat out of calibration.
a. Adjust bulb position. See pages 9-10
Thermostat Bulb Positioning.
b. Calibrate thermostat. See page 9
Calibration.
Oil in fryer vessel smokes a. Oil has begun to breakdown.
b. High carbon content in oil.
c. Dirty fryer vessel.
d. Inferior grade of oil.
e. Fryer is overheating.
a. Replace oil.
b. Filter oil completely, replace if
necessary.
c. Boil-out fryer. See page 7
Cleaning and Boil-Out.
d. Check with supplier for the grade of oil
needed for your cooking applications.
e. Check calibration of thermostat (See
page 9) and replace if necessary.
Basket lift mechanism will not operate a. Connections are loose or electronic
timer is faulty.
b. Motor limit switch is faulty.
c. Lift motor is faulty.
d. Basket lift relay is faulty.
e. Actuator defective.
a. Make sure connections are tight.
Replace timer if faulty.
b. Replace limit switch or straighten arm.
c. Replace motor. Specify left or right side
motor when ordering.
d. Replace relay.
e. Replace actuator.
Basket lift motor runs, but basket does
not move
a. Cam is slipping on motor shaft.
b. Actuator if faulty.
a. Tighten cam onto motor shaft.
b. Replace actuator.
Basket(s) rise prematurely a. Hi-Limit has been activated.
b. Electronic timer is faulty.
c. Basket lift relay is faulty.
a. Reset Hi-Limit after oil has cooled
down below 425°F. Correct problem
which caused Hi-Limit to activate.
b. Replace timer.
c. Replace relay.

| keatingofchicago.com
14
ORDERING PARTS
Parts may be ordered by calling 1-800-KEATING or your local Keating service company. You may also order on-line
at Keating’s part store, www.keatingofchicago.com
Refer to the Keating Gas Fryer Limited Warranty for complete service and ordering information.
The model/serial plate is attached to the inside of the front door. The serial and model numbers are necessary
when ordering.
WARNING AND OPERATING PLATES
All warning and operating plates on the Keating Incredible Frying Machine™ should be in place at all times.
If plates are damaged or lost, replace them immediately.
INCREDIBLE FRYING MACHINE®GAS FRYER ASSEMBLY
(Corresponds with Parts List on Page 16)
MANIFOLD
ASSEMBLY
MANIFOLD
ASSEMBLY
LEG CHANNEL
DOOR
1
2
3
3
4
5
6
7
9
8
3
4
6
13, 14
21
20

1-800-KEATING |
INCREDIBLE FRYING MACHINE™ - SERIES PRE-2000
15
INCREDIBLE FRYING MACHINE®GAS FRYER ASSEMBLY
(Corresponds with Parts List on Page 16)
SPLASHBACK FLUE
FLUE
BOX
24
25
26
22
23
18
19
16
15
17
BURNER
MOUNTING
BRACKET
CENTER
TUBE
DIVIDER
CENTER
TUBE
COVER
PLATE
HI-LIMIT

| keatingofchicago.com
16
PARTS LIST - IFM GAS FRYER
INCREDIBLE FRYING MACHINE™ GAS FRYER - MODEL PRE-2000
ITEM MODEL DESCRIPTION P/N QTY
1 GAS VALVE 3/4" 120V
ALL NATURAL & LP 038165 1
14 CM, IFM DUAL SOLENOID VALVE 1/2" (BASTROL) 020470 1
2 BLOWER/SPARK MODULE BOX SEE PAGE 19 1
3 ALL COMPRESSION FITTING 3/8" TO 1/2" 015388 2
4 14" TUBING, BURNER GAS SUPPLY 054512 2
18" & 20" TUBING, BURNER GAS SUPPLY 022409
5 14" FLEXIBLE TUBING, BURNER AIR SUPPLY 022031 2
18" & 20" FLEXIBLE TUBING, BURNER AIR SUPPLY 1-800-KEATING
6 ALL HOSE CLAMP 015393 4
7 ALL SPARK ELECTRODE WIRE 037462 2
FLEXIBLE MAIN TUBING ELBOW 054426 2
8 14" FLEXIBLE CONDUIT WITH FITTINGS 1-800-KEATING 1
18" & 20" FLEXIBLE CONDUIT WITH FITTINGS 1-800-KEATING 1
9 FLEXIBLE CONDUIT WITH FITTINGS 1-800-KEATING 1
10* 14" WIRING HARNESS FOR ITEM 9 1-800-KEATING 1
18" & 20" WIRING HARNESS FOR ITEM 9 1-800-KEATING 1
11 W/WOSA REAR DRAIN SAFETY SWITCH 004592 1
13 14" AIR FILTER, BLOWER 016378 1
W/WOSA AIR FILTER, BLOWER 017019 1
18" & 20" AIR FILTER, BLOWER 022163 1
W/WOSA AIR FILTER, BLOWER 022164 1
14 ALL THUMBSCREW, BLOWER AIR FILTER 026826
15 14" 90° ORIFICE HOLDER, NATURAL GAS 021871 2
18" & 20" 90° ORIFICE HOLDER, NATURAL GAS 021875 2
16 14" BURNER ASSEMBLY SEE PAGE 18 2
17 14" BURNER ORIFICE (NATURAL GAS) 016502 2
18" & 20" BURNER ORIFICE (NATURAL GAS) 021869 2
18 FRYER VESSEL (INSULATED) 1-800-KEATING 1
19 14" DRAIN VALVE, FRONT, 1" 016884 1
W/WOSA DRAIN VALVE, REAR, 1" 016341 1
20 ALL DOOR CATCH, ROLLER STYLE 004540 1
21 ALL DRIP CUP (INSIDE DOOR) 004552 1
22 ALL HI-LIMIT CONTROL 004341 1
23 14" THERMOSTAT 035574 1
18" & 20" THERMOSTAT 035575
24 BASKET HANGER MOUNTING BLOCK (Units W/O Basket Lift)
LEFT 004539 1
RIGHT 004538 1
25 BASKET HANGER ROD (Units W/O Basket Lift) 003895 1
26 ALL GASKET, FLUE BOX 016511 1
*ITEMS NOT SHOWN ON DRAWINGS

1-800-KEATING |
INCREDIBLE FRYING MACHINE™ - SERIES PRE-2000
17
INCREDIBLE FRYING MACHINE™ CONTROL PANEL - WITH OR WITHOUT BASKET LIFT
ITEM MODEL DESCRIPTION P/N QTY
1 14" THERMOSTAT 004166 1
18" & 20" THERMOSTAT 030833 1
2 THERMOSTAT DIAL PLATE 058037 1
3 THERMOSTAT KNOB, BLACK 060612 1
4 RETAINING SCREWS 004610 3
5 INDICATING LIGHT, BLOWER ON (BLUE) 015120 1
6 INDICATING LIGHT, BURNER ON (RED) 015121 1
7 INDICATING LIGHT, OVER MAX. TEMP. (RED) 015121 1
8 ROCKER SWITCH, LIGHTED, MAIN ON/OFF 015119 1
9 ROCKER SWITCH, HI-LIMIT TEST 015384 1
10 KEATING TIMER 023709 2
11 TIMING RELAY, INSTANT-ON™ 016189 2
12 RELAY, BASKET LIFT AND INSTANT-ON™ 008088 2
13 CONTROL PANEL, HOODED 1-800-KEATING
14 14" WIRE HARNESS WITH PLUG, 2", FOR BASKET LIFT - 14IFM
16 HI-LIMIT CONTROL 004341 1
17 CONTROL PANEL BACK 1-800-KEATING 1
18 BUSHING, 7/8" 000514 2
19 TERMINAL BOARD 000639 1
20 INSULATION BOARD 000263 1
19
8
5
10
3
2
13
7
9
4
6
112
14
20 18
17
11
16

| keatingofchicago.com
18
ITEM MODEL DESCRIPTION P/N QTY
1 14" BURNER REPLACEMENT KIT 016506 1
18" & 20" BURNER (with ITEMS 5 & 6) 037859 1
2 SPARK ELECTRODE REPLACEMENT KIT
NATURAL GAS 052562 1
LP 052908 1
3 OBSERVATION WINDOW ASSEMBLY
LENS 016101 1
COVER 015905 1
4 BURNER OUTER PLATE & ELBOW ASSEMBLY
(LEFT OR RIGHT SIDE) 022158 1
5 BURNER TO PLATE SEALING GASKET 016505 1
6 BURNER TO TUBE SEALING GASKET 016504 2
7 ORIFICE HOLDER
NATURAL GAS 053208 1
LP GAS 053210 1
2
1
5
6
3
90° ORIFICE
HOLDER
BURNER
ORIFICE
4
IFM BURNER ASSEMBLY
(Right side shown)
0.125
1.000
±0.015
Critical Dimensions for
Proper Spark Ignitor Gap: 160° ± 2°
7
