KEF BSH 20-75CGC User manual

Instructions for Use of
Centerless Belt Grinder
KEF BSH 20-75CGC

1
PLEASE READ THIS MANUAL BEFORE USE

2
EU DECLARATION OF CONFORMITY
hereby declares that
KEF Centerless Belt Grinder Model BSH 20-75CGC are manufactured in accordance
with the provisions of the European Parliament and Council Directive 2006/42 / EC of
17 May 2006
And also in accordance with:
•EUROPEAN PARLIAMENT AND COUNCIL DIRECTIVE 2014/35 / EU of 26
February 2014
•EUROPEAN PARLIAMENT AND COUNCIL DIRECTIVE 2014/30 / EU of 26
February 2014
DK 9460 Brovst
Claus Nielsen,
Producent
KEF-MOTOR A/S
Industrivej 3-9
9460 Brovst
Denmark
Website: www.KEF-group.com
Tel.: [phone]
Fax.: [phone]

3
Contents
1.0 TRANSPORT 4
1.1 TRANSPORT 4
1.2 PARTS OF THE MACHINE 5
2.0 PREPARATION 7
2.1 ASSEMBLY 7
2.2 THE POSITIONS ARE OPEN AND CLOSED 9
3.1 SELECTION OF SUPPORT 10
3.2 SETTING THE FORK 11
3.3 PUTTING THE ARTICLE IN THE MACHINE 11
3.4 LOCATION OF DISTANCE STOP 13
3.5 SELECTION OF SPEED OF BELT GRINDER 14
3.6 FEED SPEED AND DIRECTION 14
3.7 OPERATION OF THE CENTERLESS JIG 15
3.10 SAFETY RULES FOR STATIONARY POWER TOOLS.16
4.0 SPARE PARTS 19
4.1 CENTERLESS GRINDING JIG (CGC) 20
4.2 BELT GRINDER WITHOUT EXHAUST 23
4.3 OPTIONAL EQUIPMENT 25
5.1 SPECIFICATIONS 26
5.2 ELECTRICAL DIAGRAM 27
6.0 GARANTEE 28

4
1.0 Transport
1.1 Transport
The centerless grinding jig is delivered on a pallet of size 120cm x 80cm (48x32 inch).
On the pallet there are (see diagram 1.1):
1. A belt grinder (A)
2. Base (E) (without right tray) with centerless jig and support roller.
3. Right tray (F)
4. 2 Curtains
5. 3 Curtain rods
6. Teflon support plate
7. 2 screws M10x20 w/ corresponding auto-washers.

5
1.2 Parts of the machine

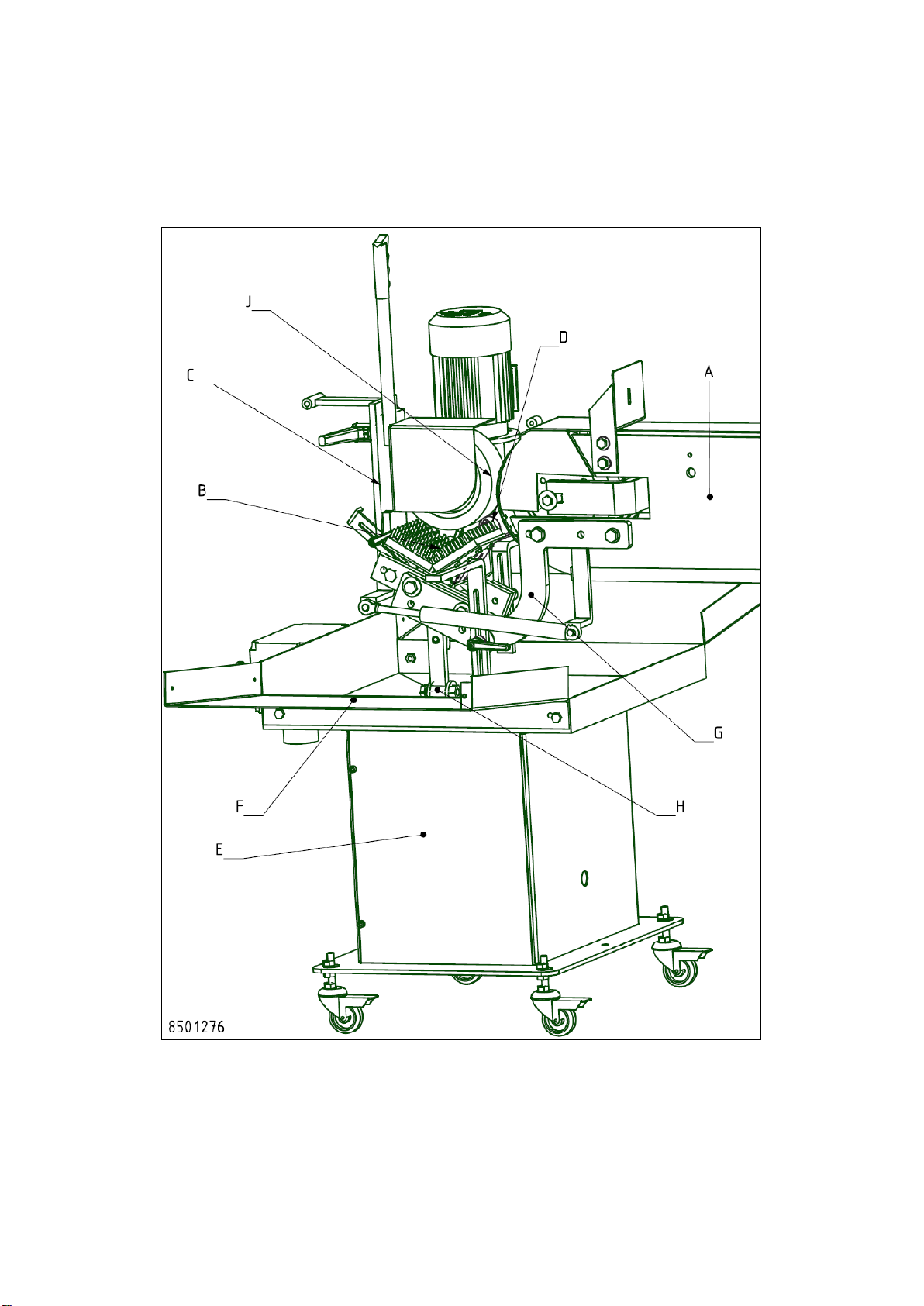

Diagram 1.1: Overview of Centerless grinding jig CGC 75

6
A
Front of the belt grinder
B
Pipe holder
C
Propulsion jig
D
Support ( roller or Teflon)
E
Base
F
Right tray
G
Mounting arm
H
Leg for base unit
J
Driving wheel

7
2.0 Preparation
2.1 Assembly
Assemble the received parts as follows. (See diagram 1.1)
1. Install the right tray on the base.
2. Tilt the motor up in the vertical position and tighten legs to the base frame (H).
3. Place the curtain rods in the trays together and hang the curtains up (see
diagram 2.1).

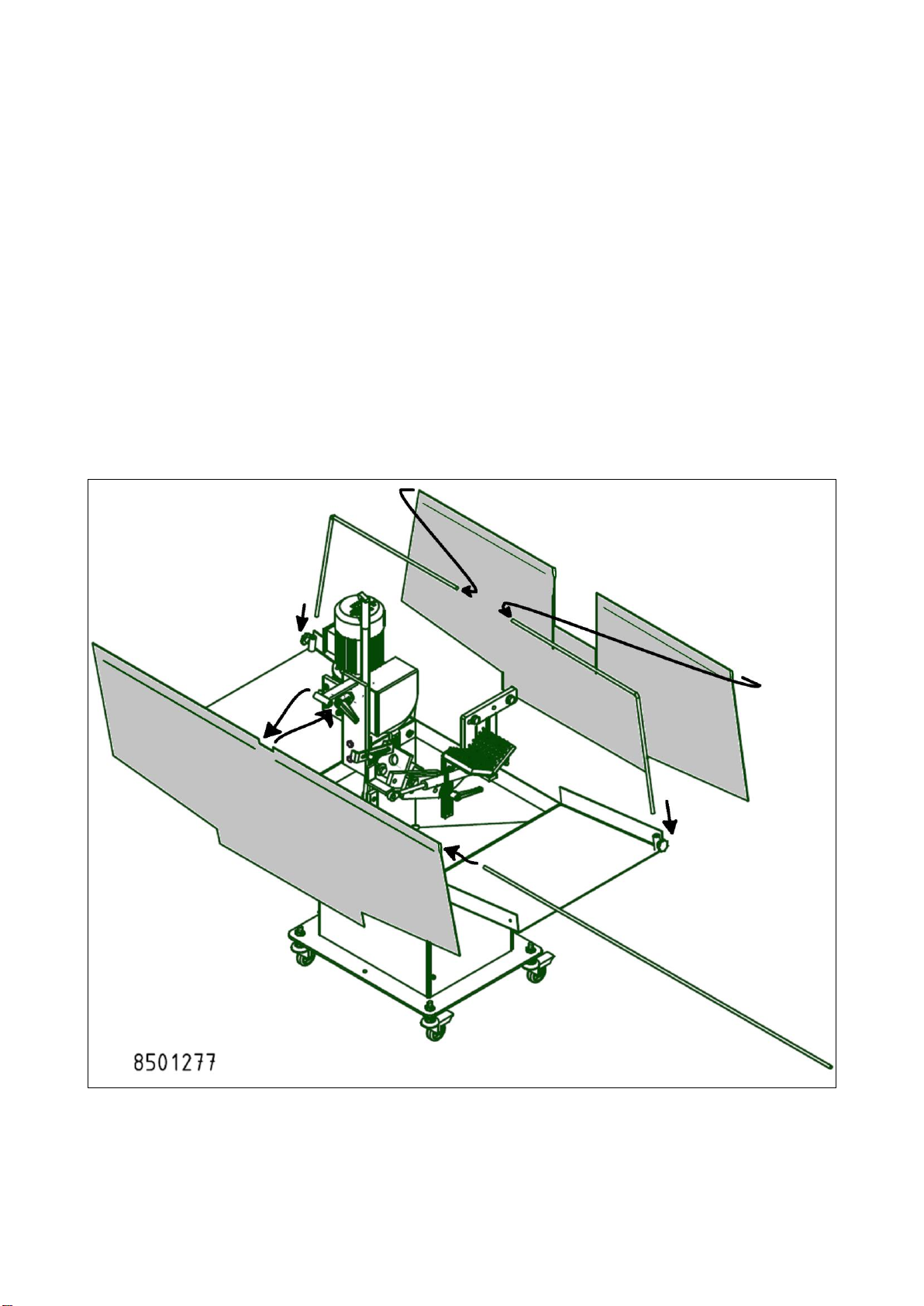

Diagram 2.1: Assembly of curtains and curtain rods.

8
4. Fasten the belt grinder to the floor.
5. Roll the base under the front edge of the belt grinder.
6. Assemble the mounting arm (G) below the fork of the belt grind (K) with the
supplied screws. (See diagram 2.2)
Diagram 2.2: Assembly of curtains and curtain rods.
7. Lock the wheels under the base.
8. The magnetic cold water tap can be placed on the front of the belt grinder.
9. Pour 8-10 litres cold water in the cold water container located in the base.
10. Connect the motors to electricity.
The machine is now ready.

9
2.2 The positions are open and closed
See below how BSH 20-75 CGC can be opened and closed.

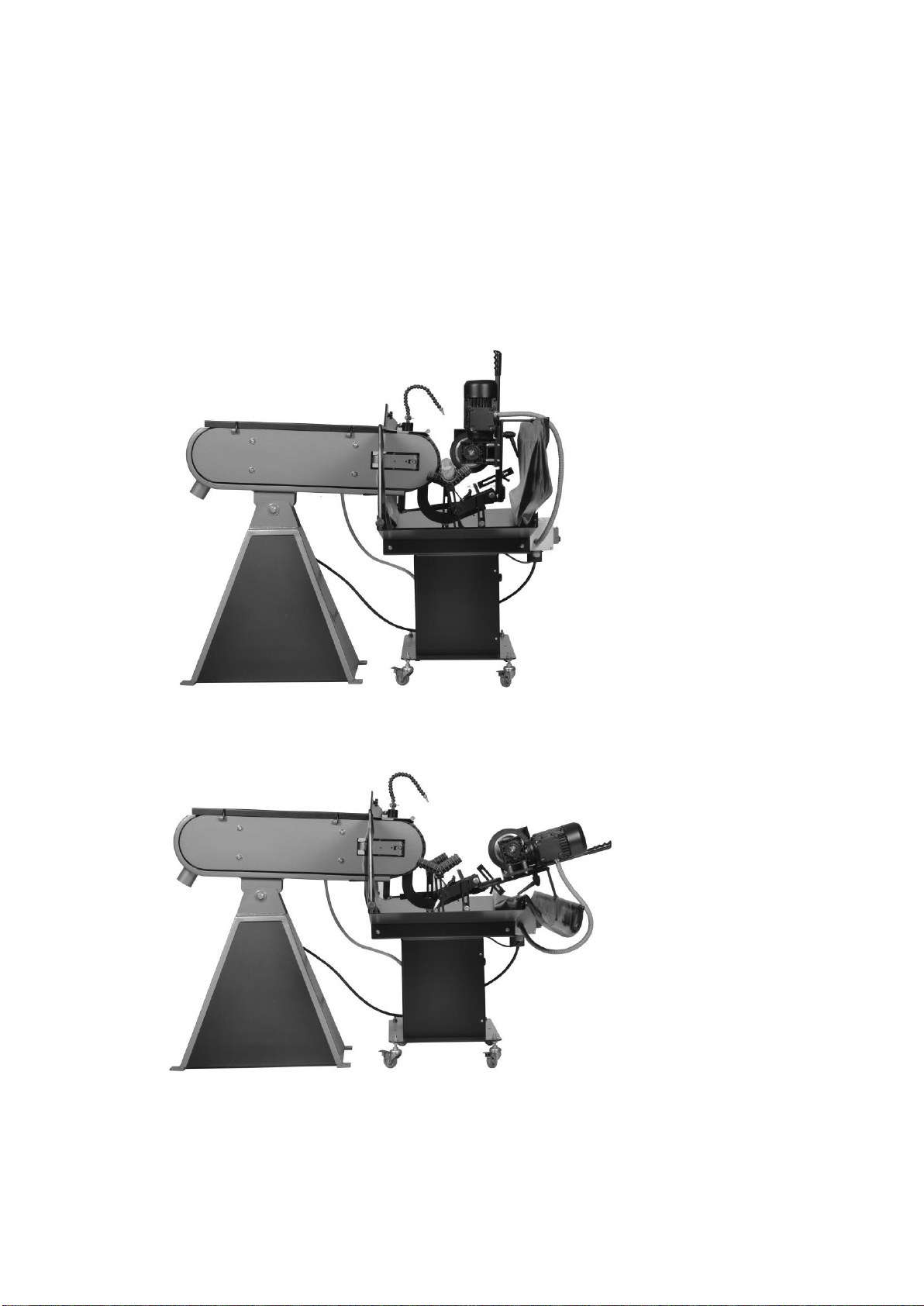

Diagram 2.3: CGC 75 in the closed position.
Diagram 2.4: BSH 20-75CGC in the open position.
