Keit IRmadillo DOC1048R User manual
DOC1048R
21 December 2023, 17:31
DOC1048R IRmadilloNA User
Manual - Safety
Model Number: ASM0627-09-N-Cx-O-Gx-D3x
www.keit.co.uk
Page 1
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
Table of Contents
1. Safety ............................................................................................................................ 3
1.1. General safety ........................................................................................................ 3
1.2. Lifting instructions ................................................................................................... 3
1.3. Electrical safety....................................................................................................... 4
1.4. Pressure and temperature limits ............................................................................. 4
1.5. Operating environment limits .................................................................................. 4
1.6. Specific conditions of use........................................................................................ 5
1.6.1. IRmadilloNA Spectrometer, certificate: IECEx CML 22.0082X......................... 5
1.6.2. Passed on from the CMP Cable Gland certificate: IECEx CML 18.0182X
cCSAus 2288626........................................................................................................... 5
1.6.3. Passed on from Hawke Cable Gland certificate: IECEx CML 19.0045X cCSAus
10150655
1.6.4. Passed on from FibreEx Fibre Optic Connector Certificate: IECEx BAS
16.0032X certificate: IECEx CML 19.0045X................................................................... 5
1.6.5. Passed on from CMP 737 Thread Reducer certificate: IECEx CML 18.0177X
cCSAus 1055233........................................................................................................... 5
1.6.6. Passed on from Redapt BD-U Breather certification: IECEx ITS 16.0014X...... 6
1.7. Product marking...................................................................................................... 6
1.7.1. Pressure and temperature limits ...................................................................... 7
1.7.2. Partition walls................................................................................................... 7
2. How to Power and Connect the IRmadilloNA................................................................. 8
2.1. Powering the IRmadilloNA ...................................................................................... 8
2.1.1. Uninterruptible power supply (UPS) ................................................................. 8
2.1.2. Power cable..................................................................................................... 8
2.2. How to connect data communications................................................................... 10
2.2.1. Connecting the Hawke FibreEx in-line connector........................................... 10
2.2.2. Connecting the fibre data communication cable to the controller.................... 11
2.3. Installation best practice........................................................................................ 11
3. Maintenance ................................................................................................................ 14
3.1. Service and support contacts................................................................................ 14
3.2. Maintenance & support programme (MSP) ........................................................... 14
4. Components ................................................................................................................ 15
4.1. IRmadilloNA spectrometer .................................................................................... 15
4.2. Controller specifications........................................................................................ 17
5. Welded Hub For Lap Joint Flange Option .................................................................... 18
5.1.1. Safety ............................................................................................................ 18
5.1.2. Installation ..................................................................................................... 19
5.1.3. Maintenance .................................................................................................. 20
Page 2
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
6. Troubleshooting ........................................................................................................... 22
Appendix 1: Controller Specifications.................................................................................. 24
Page 3
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
1. SAFETY
EN:
“WARNING” refers to situations that could result in personal injury.
“CAUTION” refers to situations that could result in equipment damage.
Failure to follow the requirements below may lead to dangerous situations.
FR:
«AVERTISSEMENT» fait référence à des situations pouvant entraîner des
blessures corporelles.
«ATTENTION» fait référence à des situations pouvant entraîner des dommages
matériels.
Le non-respect des exigences ci-dessous peut conduire à des situations
dangereuses.
If the equipment is used in a manner not specified by Keit, the protection provided by the
equipment may be impaired.
This manual is intended to be read in conjunction with DOC1049R which describes non-safety
aspects of using the IRmadilloNA.
1.1. General safety
WARNING
AVERTISSEMENT
The spectrometer weighs ~18 kg; handle with care
Le spectrometer pèse environ 18 kg; manipulez-le avec soin
CAUTION
MISE EN GARDE
Do not operate outside the range of environmental or
analyte conditions specified on the product label
N’utilisez pas l’équipement hors des conditions
environnementales ou d’analyte spécifiées dans la plaque
signalétique
CAUTION
MISE EN GARDE
The probe is NOT a carry handle
La sonde n'est pas une poignée de transport
CAUTION
MISE EN GARDE
Do not open the spectrometer; it contains no user-
serviceable parts.
N’ouvrez pas le spectromètre, il ne contient aucune pièce dont
l’entretien doit être effectué par l’utilisateur.
1.2. Lifting instructions
Lift the device using the lip around the lid or with hands underneath the base. Do not use the
probe as a carry handle; this could cause damage. Users should risk assess manual handling
and use lifting equipment if necessary.
Page 4
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
1.3. Electrical safety
WARNING
AVERTISSEMENT
The electrical mains cable must be earthed and should
include a 5A fuse with a means of isolating both live and
neutral; obey local electrical safety codes
Le câble d’alimentation électrique doit être mis à la terre et doit
comporter un fusible de 5 A avec un moyen d’isoler la phase et
le neutre ; respectez les codes de sécurité électrique locaux.
WARNING
AVERTISSEMENT
An additional earth connection is provided on the
enclosure chassis using an M6 screw; use if required by
local codes
Une mise à la terre supplémentaire est fournie sur le châssis
de l’enceinte au moyen d’une vis M6 ; utilisez-la si cela est
requis par les codes locaux.
WARNING
AVERTISSEMENT
Never disconnect the mains power connector when
energised
Ne débranchez jamais le connecteur d’alimentation réseau
lorsqu’il est branché.
CAUTION
MISE EN GARDE
Residual current protection or ground fault interrupter
devices are recommended
L’installation d’une protection contre le courant résiduel ou d’un
interrupteur de défaut de terre est recommandée.
1.4. Pressure and temperature limits
The maximum pressure and temperature (ambient and analyte) limits for the device vary
depending on the model and mechanical interface. Refer to the product label to confirm the
limits.
Do not exceed the pressure limits on the product label as this could be dangerous and will
invalidate the warranty. If in doubt, contact Keit for advice before installing the spectrometer.
When purging the instrument, the maximum total flow rate of the purge gas is 3 liters/minute.
1.5. Operating environment limits
The spectrometer is thermally stabilised and designed to operate indoors or outdoors under a
variety of conditions and environments. Avoiding exposure to direct sunlight will help maintain
this thermal stability.
Table 1 –Atmospheric requirements for electrical safety
Parameters
Value
Units
Pollution degree of intended environment
4
Maximum installation altitude
3000
metres
Page 5
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
Pollution degree of the environment refers to the level of contamination that the exterior of the
device can cope with. Pollution degree 4 means that continuous conductivity from conductive
dust, rain or other wet conditions will not cause electrical safety to be compromised.
1.6. Specific conditions of use
1.6.1. IRmadilloNA Spectrometer, certificate: IECEx CML 22.0082X
i. The media to be monitored must be in an area where dust particles are excluded.
ii. The probe must be mounted so it is protected from impact.
iii. Models with external parts manufactured from light metals can be an ignition source
due to impact or friction sparks. On equipment fitted with a probe of material ‘TI’
(titanium), this shall be considered during installation, particularly in zone 0 locations.
iv. On equipment fitted with probe type ‘K’ (High Temperature dia25), the rate of change
of temperature on the end of the probe shall be limited to 50°C per minute maximum.*
v. It is the responsibility of the manufacturer, installer and end user to ensure chemical
compatibility between the process analyte and all wetted materials. Consult
manufacturer before installation in a process.
vi. The main enclosure shall not be opened. The flamepaths of the main enclosure shall
not be repaired.
*point iv. does not apply to the instrument referred to in this user manual.
1.6.2. Passed on from the CMP Cable Gland certificate: IECEx CML 18.0182X
cCSAus 2288626
i. The glands when used for terminating braided cables are only suitable for fixed
installations.
ii. Cables must be effectively clamped to prevent pulling or twisting.
iii. When assembled for fitting to flexible conduit, the conduit shall be effectively
clamped to prevent twisting and pulling.
iv. Instrument design confirms conformity with this condition.
1.6.3. Passed on from Hawke Cable Gland certificate: IECEx CML 19.0045X
cCSAus 1015065
i. Instrument design confirms conformity with this condition.
ii. It is the responsibility of the manufacturer to confirm conformity with this condition.
iii. Does not apply to model number ASM0627-09-N-Cx-O-Gx-D3x.
1.6.4. Passed on from FibreEx Fibre Optic Connector Certificate: IECEx BAS
16.0032X certificate: IECEx CML 19.0045X
i. The protective caps shall be fitted immediately following separation.
ii. Instrument design confirms conformity with this condition.
iii. It is the responsibility of the manufacturer to confirm conformity with this condition.
iv. It is the responsibility of the manufacturer to confirm conformity with this condition.
v. It is the responsibility of the manufacturer to confirm conformity with this condition.
1.6.5. Passed on from CMP 737 Thread Reducer certificate: IECEx CML
18.0177X cCSAus 1055233
i. It is the responsibility of the manufacturer to confirm conformity with this condition.
ii. Instrument design confirms conformity with this condition.
iii. It is the responsibility of the manufacturer to confirm conformity with this condition.
iv. Does not apply to model number ASM0627-09-N-Cx-O-Gx-D3x.
Page 6
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
v. Does not apply to model number ASM0627-09-N-Cx-O-Gx-D3x.
vi. Does not apply to model number ASM0627-09-N-Cx-O-Gx-D3x.
1.6.6. Passed on from Redapt BD-U Breather certification: IECEx ITS
16.0014X
i. Instrument design confirms conformity with this condition.
ii. It is the responsibility of the manufacturer to confirm conformity with this condition.
iii. It is the responsibility of the manufacturer to confirm conformity with this condition.
iv. Instrument design confirms conformity with this condition.
v. It is the responsibility of the manufacturer to confirm conformity with this condition.
vi. It is the responsibility of the manufacturer to confirm conformity with this condition.
The Ex-certified version of this product (ASM0627-09-N-Cx-O-Gx-D3x) was assessed against
the following standards for hazardous environments:
IEC60079-0 Explosive Atmospheres –Equipment General Requirements
IEC60079-1 Explosive Atmospheres –Equipment protection by flameproof enclosures
IEC60079-26 Explosive Atmospheres –Equipment with EPL Ga
In addition, IEC60079-28 Explosive Atmospheres –Protection of equipment using optical
radiation was considered but the equipment is not in the scope of this standard because (ref
section 1, part 5) it has an enclosure that fully contains the optical radiation and provides IP6X
protection in accordance with IEC60529 Degrees of protection provided by enclosures (IP
code).
Furthermore, elements of IEC60079-31 Explosive Atmospheres –Equipment dust ignition
protection by enclosure have been applied to preclude optical absorbers from entering the
probe.
In accordance with IEC60079-26, the rigid dip probe achieves EPL Ga and can be inserted
into zone 0 environments while the main instrument achieves EPL Gb for use in zone 1. The
user should be aware that creating an opening in a zone 0 environment may lead to the release
of flammable gas and flame entrance. EPL Ga is achieved for the dip probe since it is an
enclosure providing protection against dust ignition.
The North American Class 1, Zone 0/1 (Class 1, Division 2) product (ASM0627-09-N-Cx-O-
Gx-D3x) was also assessed against the following standards for hazardous environments:
UL 61010-1 / CSA C22.2 No.61010-1-12 Standard for Safety Electrical Equipment For
Measurement, Control, and Laboratory Use Part 1: General requirements
UL 60079-0 / CSA C22.2 No. 60079-0 Standard for Safety Explosive Atmospheres –Part 0:
General requirements
UL 60079-1 / CSA C22.2 No. 60079-1 Standard for Safety Explosive Atmospheres –Part 1:
Equipment Protection by Flameproof Enclosures “d”
UL 60079-26 / CSA C22.2 N0. 60079-26 Standard for Safety Explosive Atmospheres –Part
26: Equipment with Equipment Protection Level (EPL) Ga
1.7. Product marking
The device is certified for installation in explosive gas atmospheres and uses a flameproof
enclosure for protection. It is marked with its certification coding.
Page 7
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
1.7.1. Pressure and temperature limits
The maximum pressure and temperature (ambient and analyte) limits for the device vary
depending on the model. Refer to the product label to confirm the limits. Do not exceed the
pressure limits on the product label as this could be dangerous and will invalidate the warranty.
If in doubt, contact Keit for advice before installing the spectrometer.
1.7.2. Partition walls
The minimum partition wall thickness is 1 mm.
The material of the partition wall is given by the final part of the model number as follows:
Code
Probe Material
[blank]
Hastelloy
TI
Titanium
IN
Inconel
SS
Stainless Steel
TA
Tantalum
Page 8
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
2. HOW TO POWER AND CONNECT THE IRmadilloNA
2.1. Powering the IRmadilloNA
NOTE
REMARQUE
See Section 1 Safety prior to attempting installation.
Reportez-vous à la section 1 Safety avant de procéder à
l’installation.
The spectrometer is normally supplied with a blunt-cut mains cable to be wired into your
electrical supply. The instrument requires single-phase mains input and must be connected to
a permanent earth (grounding) connection. A 5A fuse should be fitted in the live/hot supply
connection.
The power supply needs to be fitted with a means of isolating both live and neutral by fitting a
disconnecting switch or using a suitable circuit breaker that meets the requirements of IEC
60947-1 and IEC 60947-3. The switch must be located within easy reach of the instrument
and must be marked as the disconnection device for the equipment. The disconnection device
must not interrupt the earth connection.
The spectrometer is designed to operate over a wide range of voltages shown below in Table
2 - IRmadilloNA power specifications. If you plan to operate the spectrometer outside of
these ranges, contact Keit for advice before powering up the instrument.
Table 2 - IRmadilloNA power specifications
Parameters
Value
Units
AC input voltage
100-240
V
AC input frequency
50/60
Hz
Mains supply fluctuations (% of
Nominal Value)
±10
%
Power consumption
110 (max)
W
Overvoltage Category
CAT II
2.1.1. Uninterruptible power supply (UPS)
To ensure a reliable supply of power to the IRmadilloNA, we strongly recommend use of an
uninterruptible power supply (UPS). Contact support@keit.co.uk for further information.
If you are unable to use a UPS, you may find that the system fails to start correctly following
a power cut. In this situation, Keit recommends power cycling first the IRmadilloNA and then
the controller.
2.1.2. Power cable
The power cable for the IRmadilloNA is a permanently connected flying lead passed through
a cable gland; this is located at the rear of the spectrometer. The gland and cable must be
sufficiently protected from loading and twisting. The cable should ideally be routed above
ground to avoid accidental damage.
Page 9
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
Figure 1: Power and communication gland locations
The spectrometer body has an optional external M6 earth attachment point below the probe.
This can be used where local codes require it. The internal earth bonding through the power
supply cable is the primary earth and the external is optional. Please identify and adhere to
any applicable local standards.
WARNING
AVERTISSEMENT
Failure to properly earth the spectrometer may cause
serious injury or death.
Une mise à la terre incorrecte du spectromètre peut causer des
blessures graves, voire la mort.
Figure 2: Optional External Earthing point
Page 10
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
2.2. How to connect data communications
Like the power cable, the IRmadilloNA is supplied with a permanently connected flying lead
for communication that is passed through a cable gland. You must ensure that the cables are
sufficiently protected from loading and twisting. The cable should ideally be routed above
ground to avoid accidental damage.
NOTE
REMARQUE
Ensure the mains and data communication cable connectors
are dry prior to mating.
Assurez-vous que les connecteurs du câble d’alimentation et de
celui de communication des données sont secs avant de les
brancher.
NOTE
REMARQUE
Keep the dust caps fitted on connectors when not in use.
Never leave an exposed connector.
Maintenez les bouchons antipoussière installés sur les
connecteurs lorsqu’ils ne sont pas utilisés. Ne laissez jamais un
connecteur exposé.
Model numbers of the form ASM0627-09-N-Cx-O-G-xx have the Hawke FibreEx in-line
connector for use in explosive atmospheres. The flying lead from the IRmadilloNA mates with
the supplied extension cable.
2.2.1. Connecting the Hawke FibreEx in-line connector
•Unscrew the cap on the end of the connector.
•Align the key on the connector with the keyways in the corresponding connector
•Mate the two connectors together
•Rotate the shell secure and complete the connection
•Check that the green and orange lights on the controller are present (Figure 5)
Figure 3 Hawke in-line plug and socket
Page 11
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents

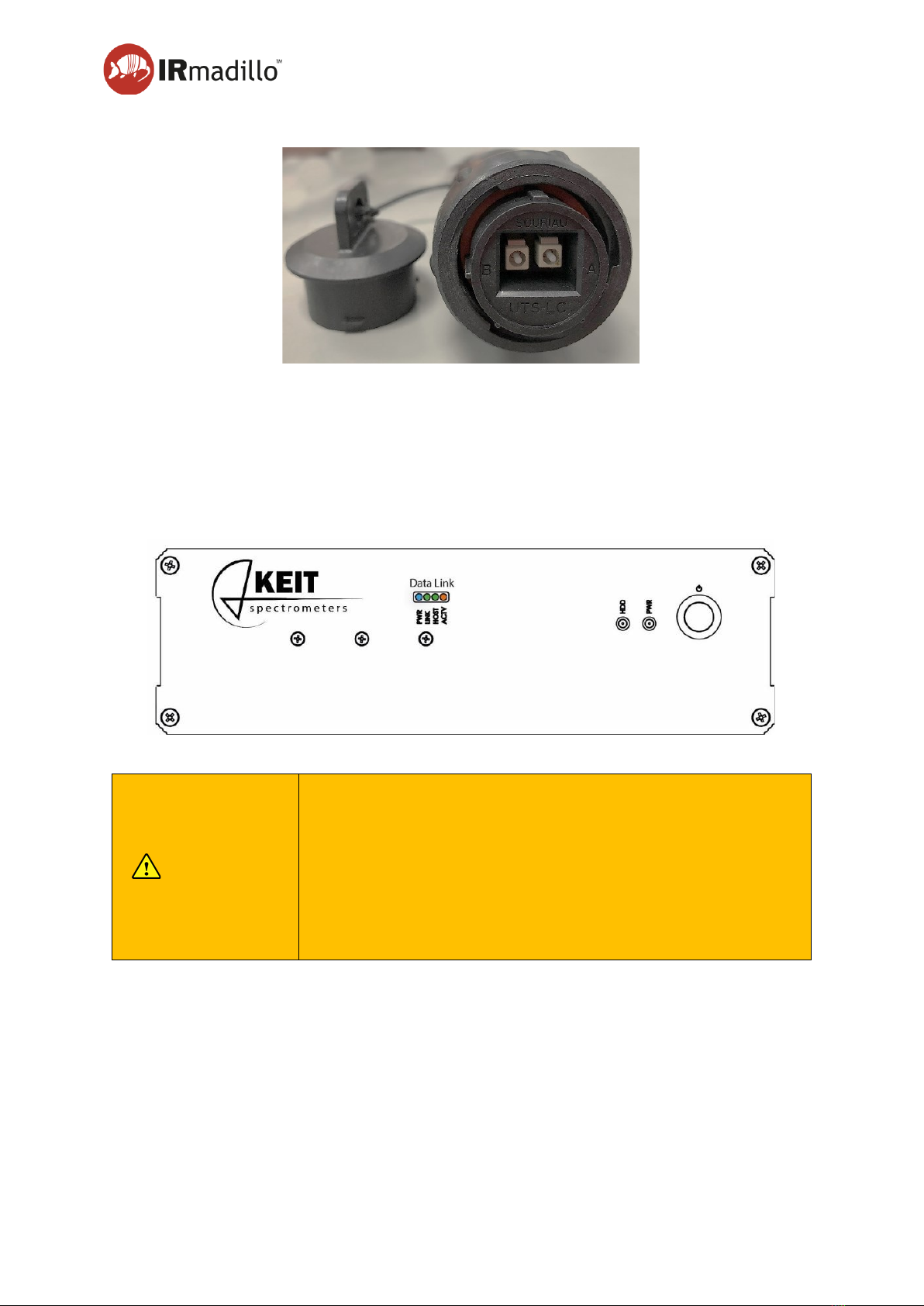

The extension cable is terminated with a Souriau UTS-LC in-line plug.
Figure 4 Souriau in-line plug
2.2.2. Connecting the fibre data communication cable to the controller
•Remove the dust cap from the data communication cable.
•Carefully match up the data communication cable with the corresponding port on the
back of the controller.
•Tighten the locking nut. This will make a secure connection.
•Check that the green and orange lights on the controller are present (see image).
Figure 5: Front panel of Keit controller
NOTE
REMARQUE
Protect the data communication fibre from stress and tight
bends (< 80mm bend radius not allowed!). Tight bends cause
a stress at the glass surface and increase the probability of
fracture.
Protégez la fibre de communication de données des contraintes et
des courbures serrées (rayon de courbure < 80 mm interdit!). Les
courbures serrées provoquent des contraintes à la surface du
verre et augmentent la probabilité de fracture.
2.3. Installation best practice
Having cleaned the probe and taken a background spectrum, the IRmadilloNA is ready to be
inserted into the reaction/process of interest.
Probe installation is unique for each application. Safe installation of the probe into the process
is the responsibility of the user and should be assessed by a suitably trained person.
Please refer to the interface drawings of your probe and mounting system for further guidance.
To ensure success with installs, it is important to consider the following requirements:
Page 12
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
•The IRmadilloNA needs to be suitably supported. The weight of the instrument is ~18
kg, and it must be supported using the mounting points at the base, either through a
custom stand or using a Keit Cradle. The probe should not be used to support the
instrument.
•The body of the IRmadilloNA should not be placed in direct sunlight or near a heat
source. The instrument has internal temperature control, but this rating is limited and
model dependant. Direct heat sources can force the instrument beyond its operating
range and cause damage.
•The IRmadilloNA must be axially restrained when in the flow. Pressure on the probe
will cause the system to move if not properly restrained along the probe’s axis.

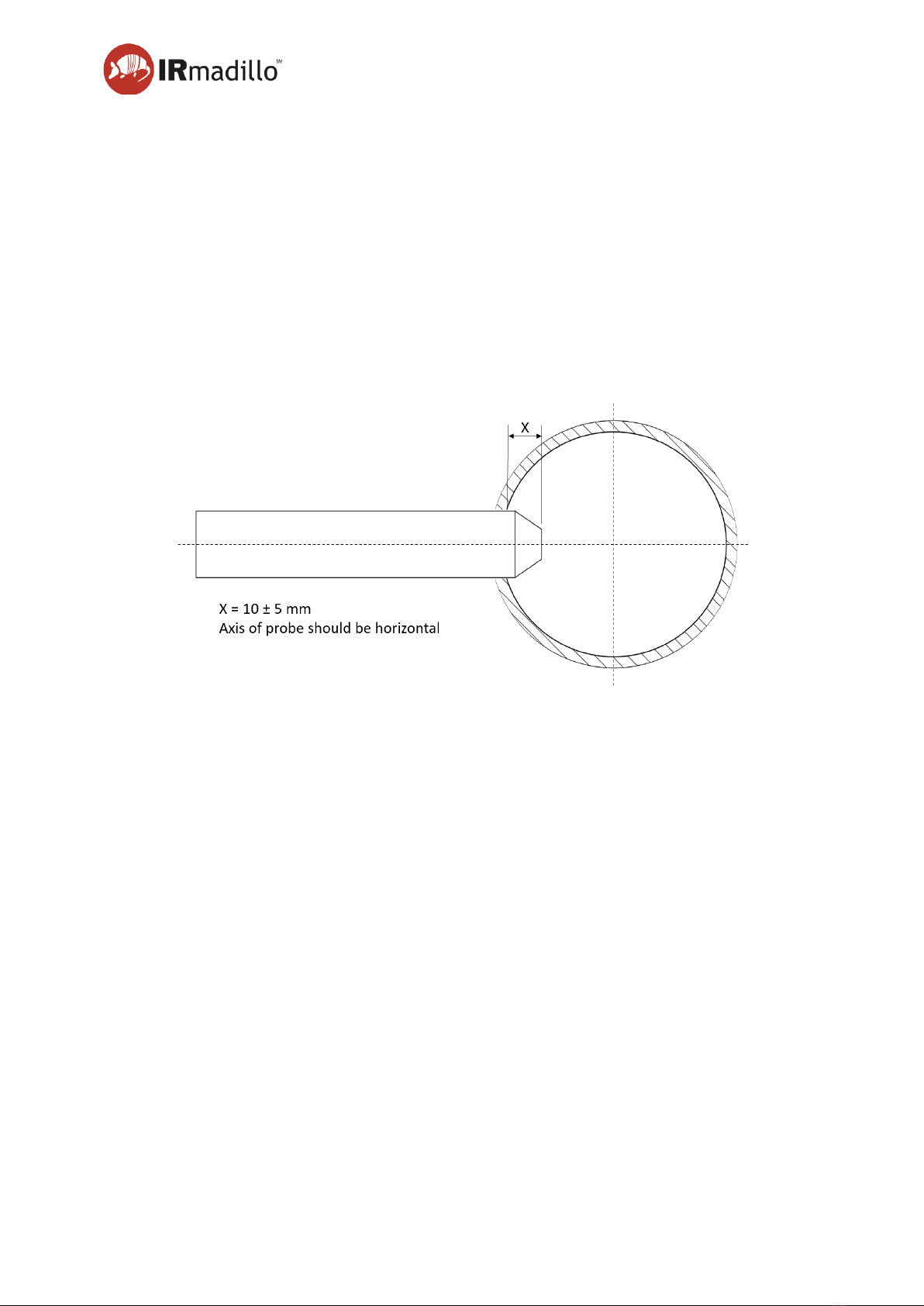

Figure 6: Probe immersion depth in pipework
•The central axis of the probe must be in line with the centre of the pipework.
•The probe must be aligned correctly with the port in which it is placed. It should not be
forced or bent into place as this will cause damage to the instrument.
•The nominal position of the probe end from the internal pipe wall is 10 ± 5 mm.
•The IRmadilloNA must be exposed to the flow when in operation. The probe tip must
be positioned in the flow within the pipeline or vessel to perform correctly; turbulent
flow is desired. If the tip is held in stagnant chemistry, building representative
chemometric models will not be possible.
•It is preferable to mount the IRmadilloNA with the probe positioned horizontally.
Mounting the IRmadilloNA with the probe pointing downwards risks the formation of
bubbles on the ATR element, and prevents the ATR from coming into full contact with
the analyte to correctly analyse the process liquid.
•Similarly, avoid mounting the IRmadilloNA with the probe pointing upwards. If there
are any suspended solids in the mixture, there is a risk of these solids settling on the
probe tip, which may result in the spectra not being representative of the process liquid.
Page 14
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
3. MAINTENANCE
There are no user-serviceable parts inside the IRmadilloNA. Please contact Keit or our local
agent to arrange service or repair. Service should only be performed by suitably trained
engineers.
3.1. Service and support contacts
Website: www.keit.co.uk
Postal address: Keit Ltd.
Unit 4, Zephyr Building
Eighth Street, Harwell Campus
Didcot
Oxfordshire
OX11 0RL
United Kingdom
Telephone number: +44 (0) 1235 431260
3.2. Maintenance & support programme (MSP)
The MSP is for those customers who purchase an IRmadilloNA and want the assurance that
their instrument will receive regular system maintenance to operate smoothly and
uninterrupted. The service package provides a comprehensive set of health checks, upgrades
and remote support to keep the IRmadilloNA functioning at the highest level.
Keit requires access to the Spectrometer User account on the controller in order to provide
remote support. If this is not possible, any issues will require the system to be returned to Keit
for diagnosis.
For more information about our maintenance & support programme contact Keit using
enquiries@keit.co.uk.
Page 15
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
4. COMPONENTS
This section contains general information about the IRmadilloNA spectrometer, such as the
constituent components and internal controller specifications.
4.1. IRmadilloNA spectrometer
Figure 7: ASM0627-09-N front and top of the instrument
(A) Product label
The product label specifies the model of instrument with permissible environmental and
analyte operating conditions, along with applicable certification. Particular attention should be
given to the rated pressure and temperature limits.
(B) ATR element
The diamond ATR element is located at the end of the probe.
(C) Probe
The probe is designed to be installed directly into a reaction vessel or pipe and is made of a
corrosion-resistant metal.
(D) Probe (gas) purge outlet
Allows purge gas to escape the probe. There is a single outlet located on the probe for all
purge gas to escape.
Page 16
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents

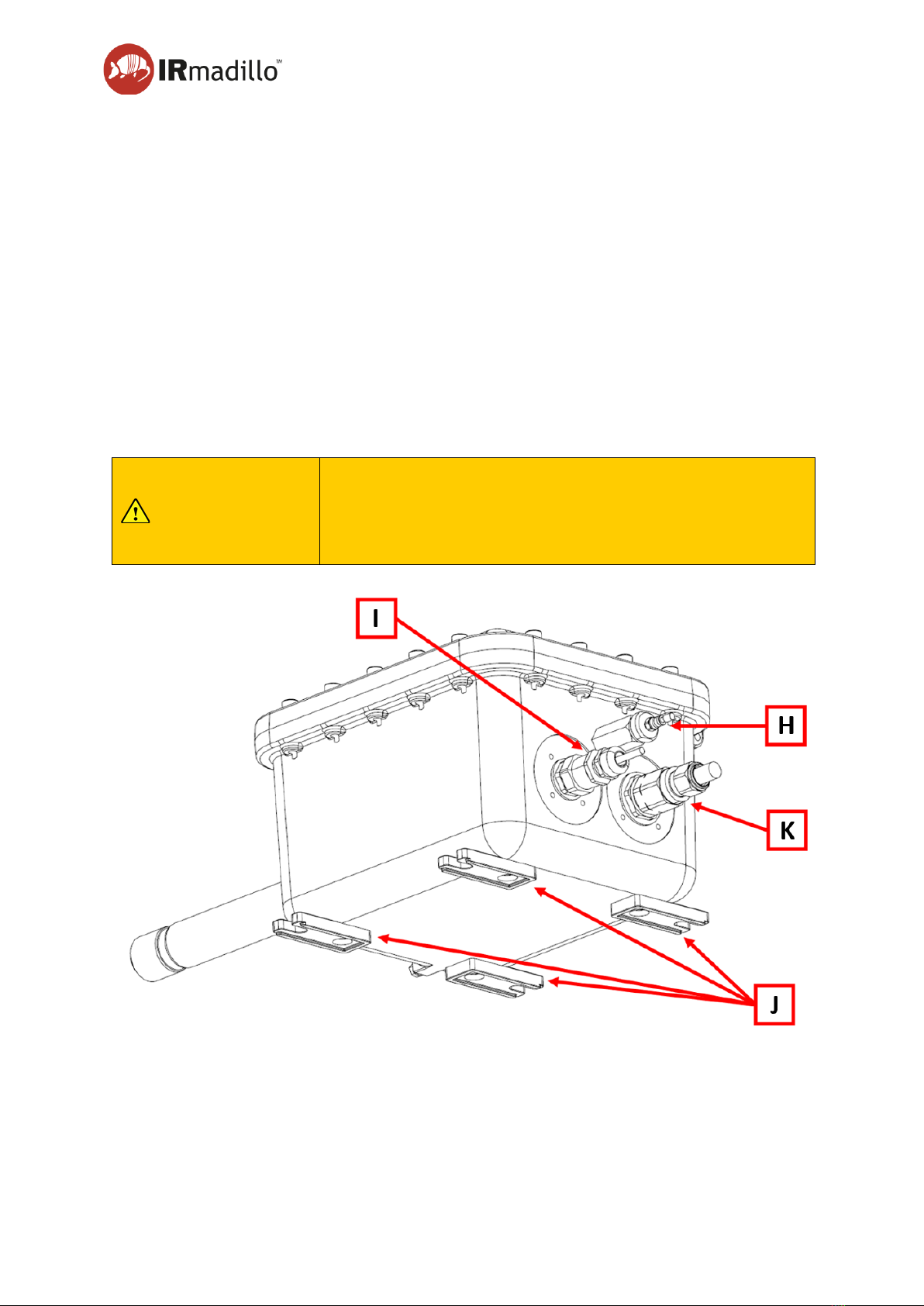

(E) Earthing point
The spectrometer body has an M6 earth attachment point below the probe. This can be used
where local codes require it in addition to earthing through the power supply cable.
(F) Probe Purge inlet
The probe purge inlet is used to purge the probe only. The connection is a 4mm or 5/32” Legris
push-fit fitting typically fitted with a blanking plug that will need to be removed to allow
connections. Rigid or fixed piping may be used if the fitting is compatible and mechanical
stress is avoided.
(G) Body (gas) purge outlet
Allows purge gas to escape the spectrometer body. There is a single outlet located beneath
the probe for purge gas to escape.
More detail on how to purge the instrument is given in DOC1049R.
WARNING
AVERTISSEMENT
Failure to properly earth the spectrometer may cause
serious injury or death.
Une mise à la terre incorrecte du spectromètre peut causer des
blessures graves, voire la mort.
Figure 8: ASM0627-09-N back and base of the instrument
(H) Body Purge inlet
The spectrometer purge inlet is used to purge the spectrometer body. The connection is a
Legris push-fit fitting typically fitted with a blanking plug that will need to be removed to allow
connections. Rigid or fixed piping may be used if the fitting is compatible and mechanical
stress is avoided.
Page 17
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
More detail on how to purge the instrument is given in DOC1049R.
(I) Communication gland
This is the connection from the spectrometer to the controller. More detail on how to connect
using the cables is given in section 2.2, How to connect data communications. The
spectrometer is configured to accept a fibre-optic data cable and is fitted with a cable gland.
(J) Mounting holes
The spectrometer must be supported using the four M8 mounting holes in its base. Optional
feet are provided (shown attached in Figure 8).
(K) Power cable gland
This is the mains power connection to the spectrometer. More detail on how to connect power
to the spectrometer can be found in Section 2.1,Powering the IRmadilloNA.
4.2. Controller specifications
Table 3 - Specifications of the IRmadilloNA controller
Category
Specification
Controller
The controller has been optimised for the rugged operation of the
IRmadilloNA spectrometer; it is not a general-purpose personal computer.
Keit does not recommend the installation of additional software; changes
to the configuration may affect performance and reliability.
User
accounts
There are two user accounts, one with system administrator privileges and
a second ‘standard’ user. The standard user account starts automatically
and is the default account for the KeitSpec software application. The system
administrator account is provided to make changes to the operating system
configuration and install additional software, if required.
If providing Keit remote access to the controller, the connection should be
to the ‘standard’ Spectrometer user account.
Windows
updates
The controller is running Windows 10 LTSC with automatic updates
disabled by default. The local administrator should choose when/if to
update the operating system. A strategy will be required to manage
updates, particularly if the controller is connected to a network.
Anti-virus
There is no anti-virus installed. The controller should only be connected to
internal, protected networks. Install your preferred anti-virus if required
For detailed information on the controller, see Appendix 1: Controller Specifications.
Page 18
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
5. WELDED HUB FOR LAP JOINT FLANGE OPTION
A version of the IRmadilloNA is available to allow connection to process pipework with an
ANSI/ASME B16.5 (other options available on request) compliant flange. A hub is welded to
the wall of the probe and a compatible lap-joint flange is mounted between the hub and
spectrometer body to permit clamping to process pipework. For technical drawings, contact
It is important to follow these instructions completely to ensure safe use of the flanged probe.
Figure 9: Welded hub for lap joint flange
5.1.1. Safety
WARNING
AVERTISSEMENT
The flange and hub form a seal with the process pipework
and as such are safety critical to prevent an accidental
discharge of the process media. Keit recommends regular
inspection of the integrity of the welds on the front and
rear in line with local safety procedures.
La bride et l’écrou constituent un dispositif d’étanchéité avec le
raccord de tuyauterie de processus pour prévenir tout
déversement accidentel du fluide de processus. Keit
recommande une inspection régulière de l’ensemble des
soudures de l’avant et de l’arrière en conformité aux
procédures de sécurité locales.
CAUTION
MISE EN GARDE
The spectrometer weighs ~18kg. The flange must not be
used to support the instrument on process pipework.
Doing so risks damage to the spectrometer and excess
stress on the piping system.
Le spectromètre pèse environ 18 kg. La bride ne doit pas être
utilisée pour supporter l’instrument sur le raccord de tuyauterie
de processus. Cela risque d’endommager le spectromètre et
d’imposer une charge excessive à la tuyauterie.
Page 19
DOC1048R (21 December 2023 17:31)
www.keit.co.uk Back to Table of Contents
WARNING
AVERTISSEMENT
Pipe flanges’ permitted working pressures are
temperature dependent in accordance with the relevant
standard (ANSI/ASME B16.5 or EN 1092-1).
Les pressions fonctionnelles admises des brides de tuyauterie
varient selon les températures, conformément à la norme
pertinente (ANSI/ASME B16.5 ou EN 1092-1).
Table 4 - Specifications and safety limits (welded flange probe)
Parameter
Welded Flange Probe
Pressure
This is limited by the ASME B16.5-2020 Pipe Flanges
and Flanged Fittings Standard. Pressure derated with
temperature.
Analyte Temperature
Refer to IRmadilloNA product label
Probe Body Material
Hastelloy C276
Welded-Hub Material
Hastelloy C276
Lap-Joint Flange Material
Hastelloy C276 or stainless steel
Gasket Material
Customer supplied. Material must be to specification
of standard ANSI B16.21 or EN equivalent
Port Size
Nominal pipe size: 2 inches
5.1.2. Installation
The sealing face on the probe requires a gasket to mate against the flange on the process
pipework. The gasket material must be chosen to be compatible with the pressure and
temperature range of the process media and must be chemically compatible.
WARNING
AVERTISSEMENT
Choice of gasket material must be appropriate for the
chemistry and process being used.
Le matériau du joint choisi doit être approprié pour le produit
chimique et le processus utilisés.
The probe body and hub are manufactured from Hastelloy as standard, which is resistant to
many aggressive chemicals. However, you are advised to check with Keit before
installing on a new process.
Before beginning installation, ensure that the gasket is in good condition and that the sealing
faces are not scratched or dented.
Support the spectrometer on a suitable mounting frame that aligns the probe with the flange
port that it will be fitted to. Avoid applying stress to the probe, weld, or flange by ensuring that
the sealing face of the hub sits flush against the gasket and sealing face of the mating flange
before fitting any mounting bolts to the flange.
Table of contents
Other Keit Measuring Instrument manuals
