INSTALLATION INSTRUCTIONS
MRIPS312_F-2846_110113
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS
BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH
ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT
TO AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS
AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.
SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE
FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING
ORIENTATION, OR MOUNTING RESTRICTIONS.
SAVE THESE INSTRUCTIONS
INSTALLATION INSTRUCTIONS
MEDMASTER™
MRIPS SERIES
External Power Supply for MRI Luminaires
This instruction sheet applies for the Kenall MRIPS-312 External Power Supply. It describes the proper mounting
procedure and wiring instructions for singular and multiple xture congurations. A separate instruction sheet is
provided with the MRI luminaire(s). Both sheets together are intended to provide comprehensive instructions on
system installation and electrical wiring.
The Kenall MRIPS-312 power supply and EMI lter (by others) must be installed outside the shielded MRI
environment. It contains ferrous components that can damage or interfere with MRI equipment.

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
2
INSTALLATION INSTRUCTIONS
MRIPS312_F-2846_110113
Power Supply Mounting Procedure
Follow instructions provided with the luminaires for the proper installation procedure. Make electrical connections
to power supply after luminaires are mounted.
1. Locate suitable mounting location for the power supply. Location should be chosen based on the following
requirements:
A. Ambient Temperature/Humidity: The surrounding ambient temperature must stay below 104°F (40°C).
Allowable relative humidity is 20~90% non-condensing. Product is rated for DRY locations only.
B. Wire Distance: The length of 24V DC supply wires from power supply to luminaires should not exceed 50
feet (15m). In multiple-luminaire congurations, this is the distance to the last luminaire in the run.
C. Ventilation Hole Spacing: Maintain at least 3” of free-air spacing must exist around all sides and at
least 6” over exhaust fan.
D. Contaminants: Location should not allow excessive dirt/dust to clog ventilation holes and prevent
internal air circulation.
2. Securely mount enclosure to a mechanically-sound surface. Use hardware appropriate for the installation (not
provided).
Single Power Supply Wiring Procedure
Use the following procedure if only one power supply is to be connected in this installation. Refer to page 3 for
multiple power supply installations.

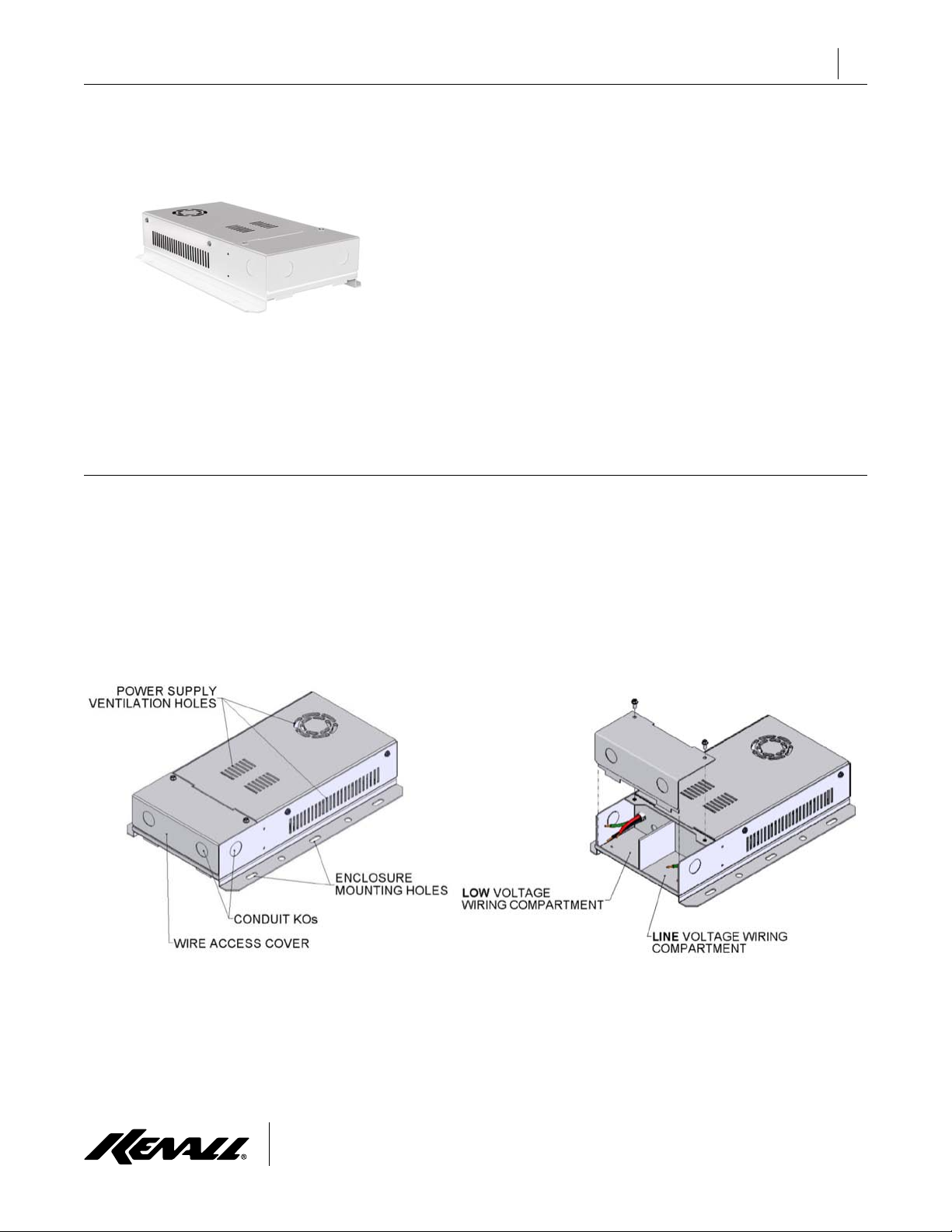

3. Open wire access cover to expose wiring compartments (see Figure 1).
4. Secure conduit to low voltage and line voltage compartments using either the front or side KO locations. Class
1 wiring is required.
5. Make 120-240VAC, 50/60Hz supply connections on line voltage side. Make sure proper ground is connected.

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
3
INSTALLATION INSTRUCTIONS
MRIPS312_F-2846_110113
6. Run conduit and DC wiring to an MRI room EMI lter sized to the load of the power supply (supplied by
others). See Figure 2. Make sure wiring is completely enclosed in grounded conduit. Any gaps, regardless of
size, must be closed or wrapped in copper foil tape.
7. If a 0-10V dimmer is to be connected, install at this time. See Figure 2. Dimmer must be installed outside the
shielded MRI environment with an intermediate MRI room EMI lter to the luminaires. Kenall recommends
using a Leviton® lllumaTech™ IP710 series dimmer or Grak Eye GRX-TVI control interface. Contact Kenall for
suitability of using an alternate sink-type 0-10V dimmer.
WARNING: all DC power and dimming signal wiring must be run through separate EMI lters.
8. Run low voltage supply wires to luminaires using at least 18 AWG wires. Wire distances should not exceed 50
feet (15m) to prevent signicant line losses. Class 1 wiring is required. Make sure wiring is completely enclosed
in grounded conduit. Any gaps, regardless of size, must be closed or wrapped in copper foil tape. Special
attention should be paid to the wiring entry point into the shielded space.
9. Make connections to luminaires following the procedure in the luminaire installation instructions.
NOTE: see “Maximum Fixture Connection” section for the maximum number of luminaires that can be connected to
each power supply.
10. Complete any remaining steps on luminaire installation.
11. Connect power on line voltage side and test system operation. Test operation of lighting during MRI machine
idle mode and during scanning operations.
12. Fill out the Installation Registration Form (attached) and fax to Kenall at [phone].
Multiple Power Supply Wiring Procedure
Installations involving many luminaires may require multiple power supplies to handle the load. This section
describes the procedure for properly wiring this situation. See “Maximum Fixture Connection” section for the
maximum number of xtures that can be connected to each power supply.
13. Mount power supplies in the same manner as described in Section II.
14. Wire line voltage and low voltage connections similar to Section II, except follow the wiring diagram shown in
Figure 3 to connect to each xture group. All DC Ground (black) leads must be tied together.
WARNING: do not exceed the rated wattage of each power supply (312W). MRI room EMI lters are still required
and must be sized to the load of the supply.

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
4
INSTALLATION INSTRUCTIONS
MRIPS312_F-2846_110113
When installed to these instructions, this product is warranted by Kenall to be free of defects in workmanship and
materials for a period of one year from the date of invoice. The DC power supply contained in the external power
supply carries a three year warranty from the date of invoice. The warranty is void if all power and dimming signal
wiring is not completely shielded in grounded aluminum conduit and installed with a suitable MRI room lter
(by others).
Kenall reserves the right to issue credit, repair, or replace the defective merchandise, at its discretion, upon
notication and conrmation by its local representative of the defect. Kenall also reserves the right to test and
examine the defective product if the defect is questionable and to deny the warranty herein for any product
altered, improperly installed, installed in applications for which it is not intended. This includes operation in
ambient temperatures above stated limits for any length of time. Failure by electrical surge shall not be covered
under warranty.
Kenall assumes no responsibility for labor or freight costs incurred in connection with the installation, removal, or
replacement of products determined to be defective or any other consequential or incidental damages arising from
the use of the product. Kenall’s entire liability on any claim of loss or damage resulting from a defective product is
limited to the replacement price of the product. The foregoing warranty is exclusive of all other warranties and no
other warranties of any kind are expressed or implied.
For technical assistance, call 1-800-4KENALL (1-800-453-6255).
WARRANTY
CUSTOMER SERVICE
Maximum Fixture Connection

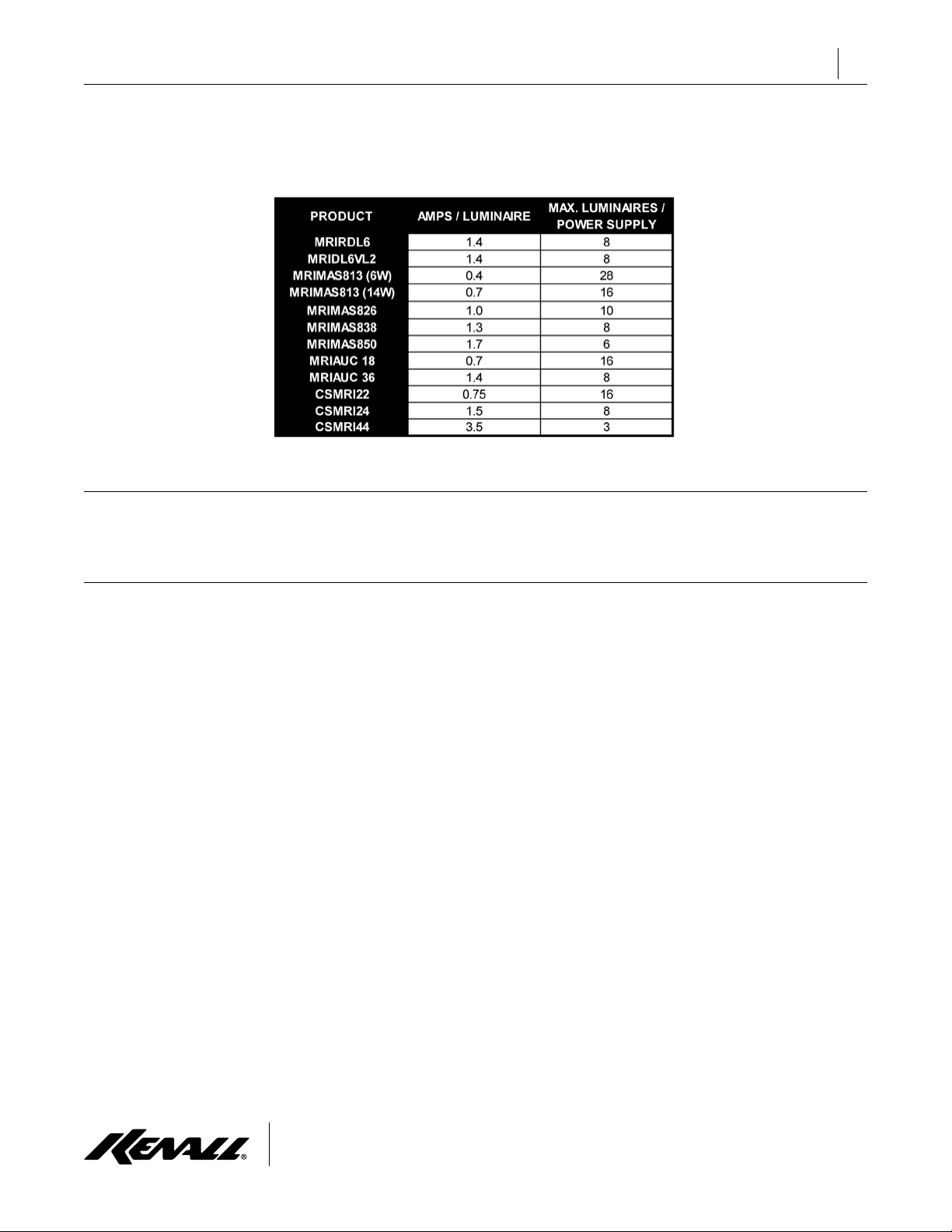

Use the table below to determine the maximum number of luminaires that can be connected to an individual power
supply. The maximum recommended DC amperage leaving the power supply should not exceed 13.0A.

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
5
INSTALLATION INSTRUCTIONS
MRIPS312_F-2846_110113
Content of specication sheets is subject to change; please consult www.kenall.com for current product details. © 2013 Kenall Mfg. Co. All rights reserved.
www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
CUSTOMER ACKNOWLEDGEMENT
Customer acknowledges that these Installation Instructions are part of the product specification, and that the
attached Installation Registration Form will be provided to the installer to sign and return to Kenall after
installation is complete. This signed release is required by Kenall before order will be released into production.
Signature: _________________________________ Date: _________________________________
Print Name: _______________________________ Company Name:__________________________
• Disconnect power to all circuits before wiring system.
• Install in accordance with all national, state, and local codes.
• Do not connect to an ungrounded supply.
• Wiring connections must be made internal to the enclosure.
• Failure to install unit on a mechanically-sound surface may result in personal injury, physical damage, or potential
fire hazard.
• Use installation procedures appropriate for an environment involving MRI and sensitive electronic equipment.
• Read all markings and labels to ensure correct installation of the power supply. Supplemental instructions may be
located on the enclosure, in addition to this instruction sheet, regarding orientation, or mounting restrictions.
• Read instructions provided with the MedMaster™ MRIPS-312 external power supply for proper installation and
electrical connection to the lighting system.
IMPORTANT SAFEGUARDS
To prevent MRI machine interference, all DC power and dimming signal wiring must be completely shielded within
grounded aluminum conduit and a suitable MRI room EMI filter must be installed on each line.
When using electrical equipment, basic safety precautions should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
SAVE THESE INSTRUCTIONS

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
6
INSTALLATION INSTRUCTIONS
MRIPS312_F-2846_110113
MRI INSTALLATION REGISTRATION FORM
For warranty purposes, please fill out this form and return to Kenall by fax at [phone].
I certify that the lighting installation for the listed MRI suite location is completed per the provided
installation instructions and to the best of my abilities.
Please check off items to denote status:
 Installation instruction sheets for MRIPS-312 power supply and individual luminaire(s) read
and followed.
 MRIPS-312 power supply and EMI  lters are located outside the shielded enclosure.
 All DC supply wiring is completely enclosed within grounded aluminum conduit. Installation
has no ungrounded/unshielded portions of conduit or openings of any size or shape.
 All dimming signal wiring is completely enclosed within grounded aluminum conduit.
Installation has no ungrounded/unshielded portions of conduit or openings of any size or
shape. Check here if dimming is not applicable: 
 MRI Room EMI  lters for the 24VDC supply are of the type intended for MRI suites and are
sized to the electrical load.

DC supply power and dimming signal are NOT running through the same EMI  lter. Check here
if dimming is not applicable: 
 Lighting system fully tested (including dimming operation, if applicable) while MRI machine is
in idle and scan operation mode.
If any of these steps cannot be completed or you need technical assistance, please contact Kenall
Technical Support at 1-800-4KENALL (1-800-453-6255).
Electrical Contractor
Name: ___________________________________
City/State: ________________________________
Phone:___________________________________
Installation Date: ___________________________
Installation Site
Name: ___________________________________
City/State: ________________________________
FAX FORM TO [phone]
(Do not write below line)
Kenall Received By: ___________________________________ Received Date: ________________________________
